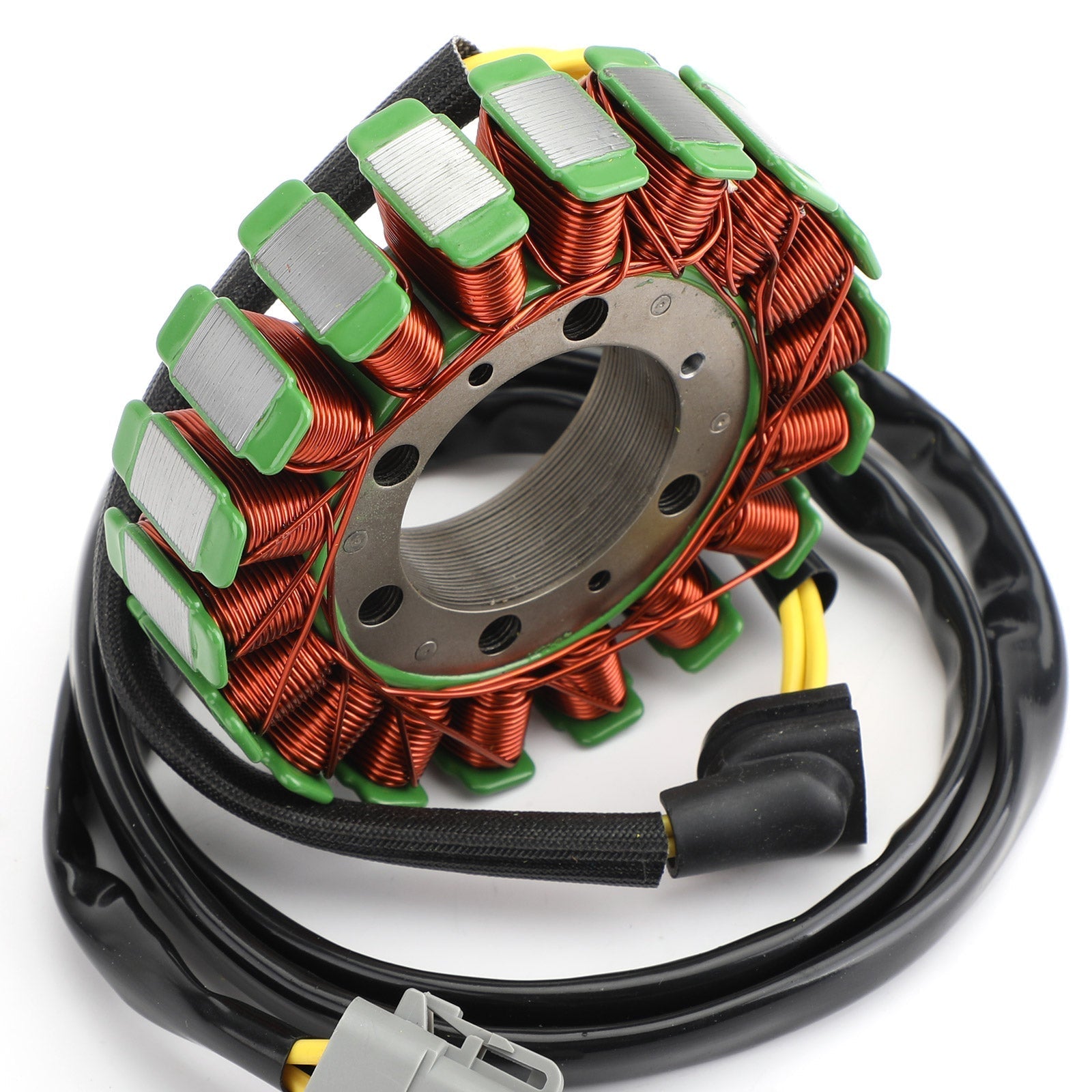

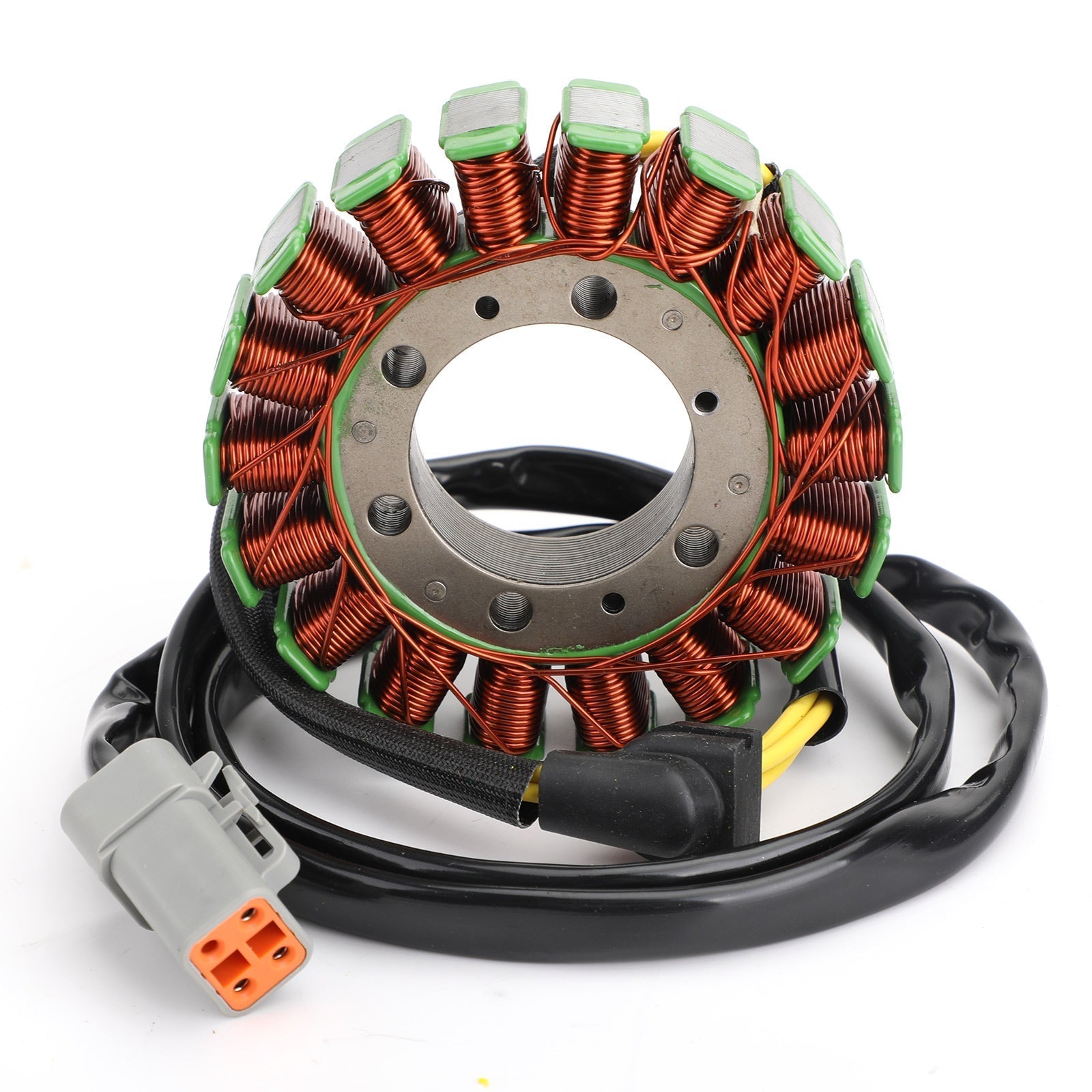

Magneto Generator Engine Stator Coil For Ski-Doo Snowmobiles 420296909 V 800 Skandic Legend Trail/Touring 2007-2008

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

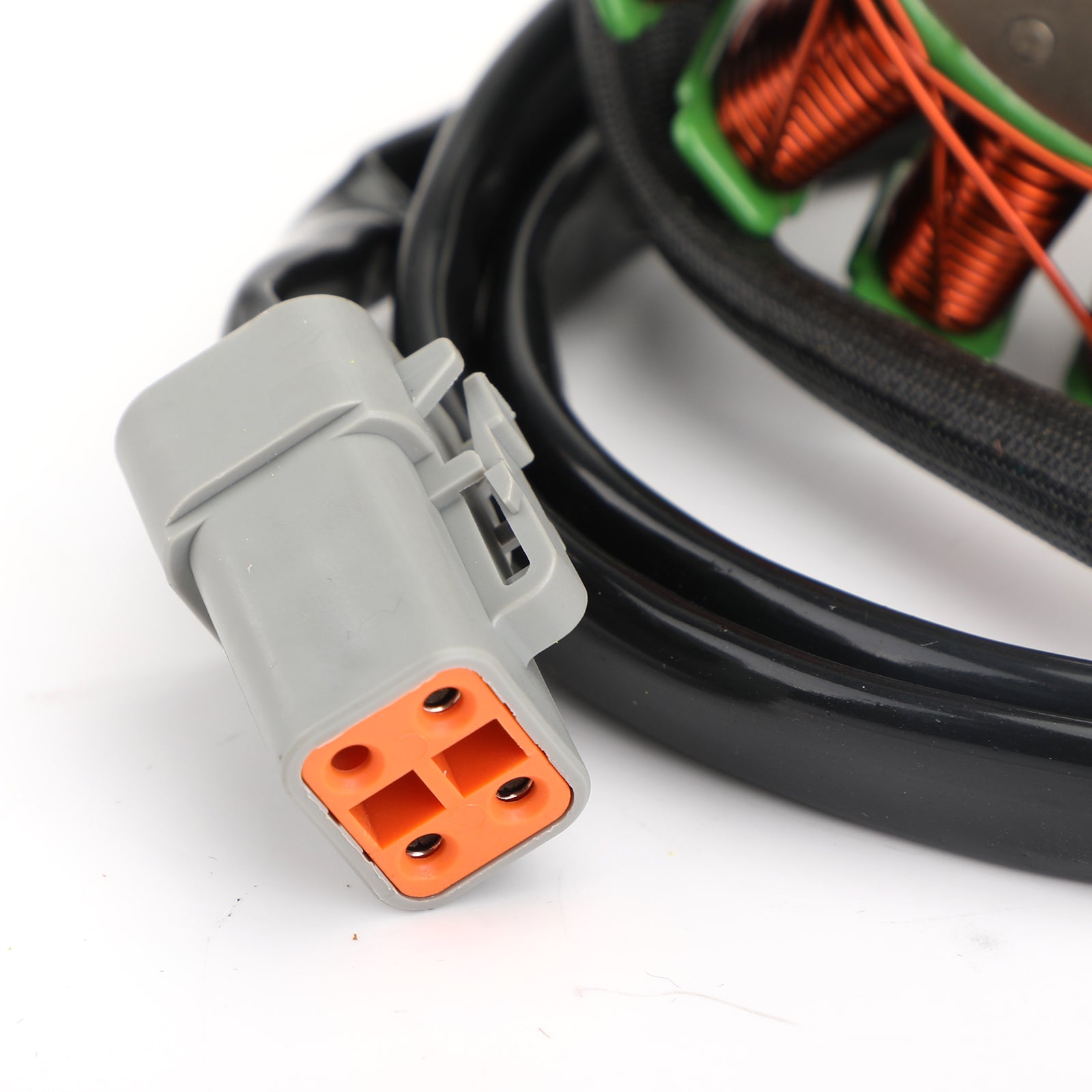

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:420296909

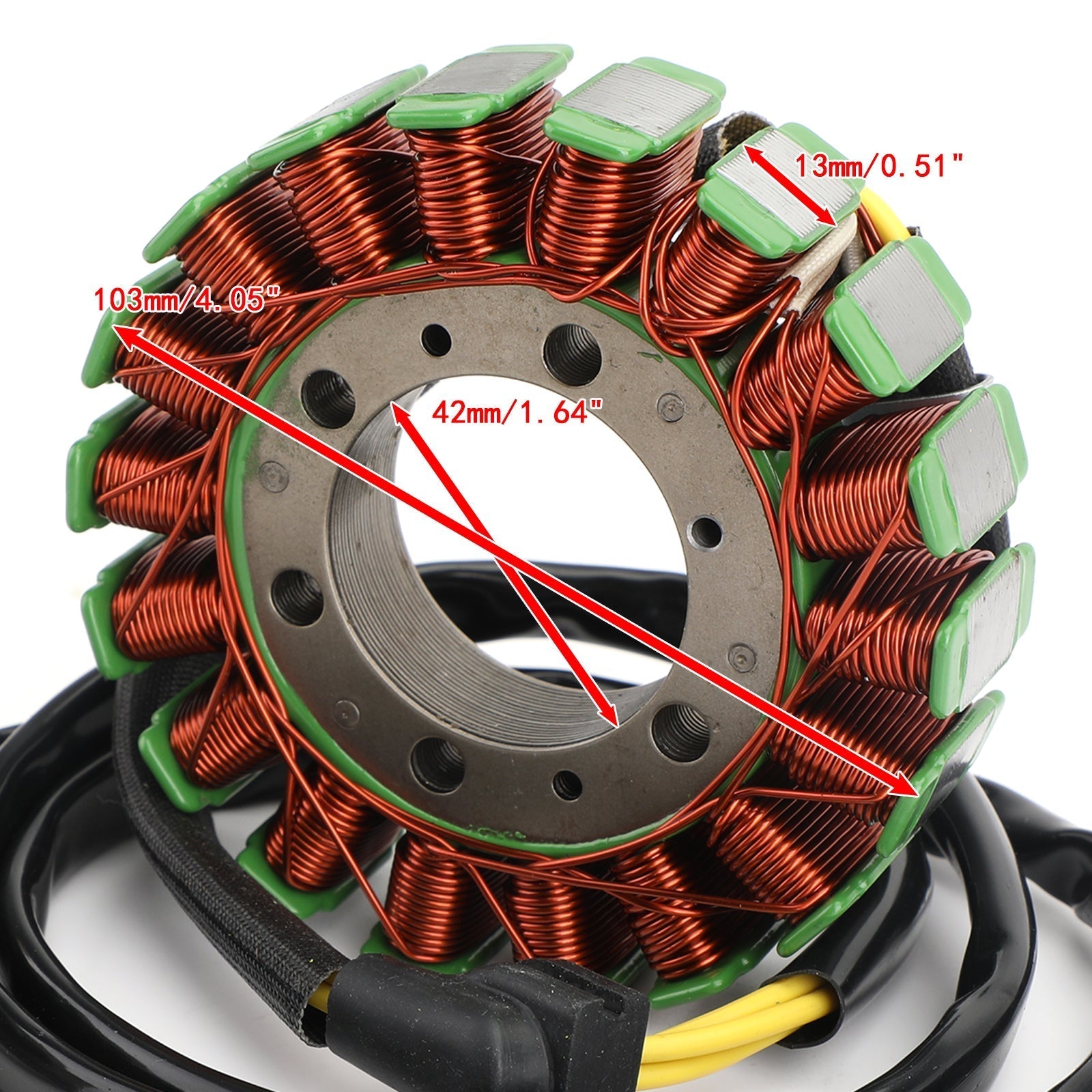

Dimensions :
Interior diameter : 42mm / 1.64"
Exterior diameter : 103mm / 4.05"
Thickness : 13mm / 0.51"

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 5(+2)
Fixation holes length: 24mm / 0.96"

FITMENT:
For Lynx Adventure Ranger V-800 2008
For Lynx Adventure V-800 2007-2008
For Ski-Doo Expedition V 800 Sport EFI L/C 2007-2008
For Ski-Doo Legend Touring V800 2007-2008
For Ski-Doo Legend Trail V 800 EFI L/C 2007
For Ski-Doo Skandic Tundra LT V 800 4-TEC EFI L/C 2008
For Ski-Doo Skandic V 800 SWT EFI L/C 2011-2012
For Ski-Doo Skandic V 800 Tundra EFI L/C 2007

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
