Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

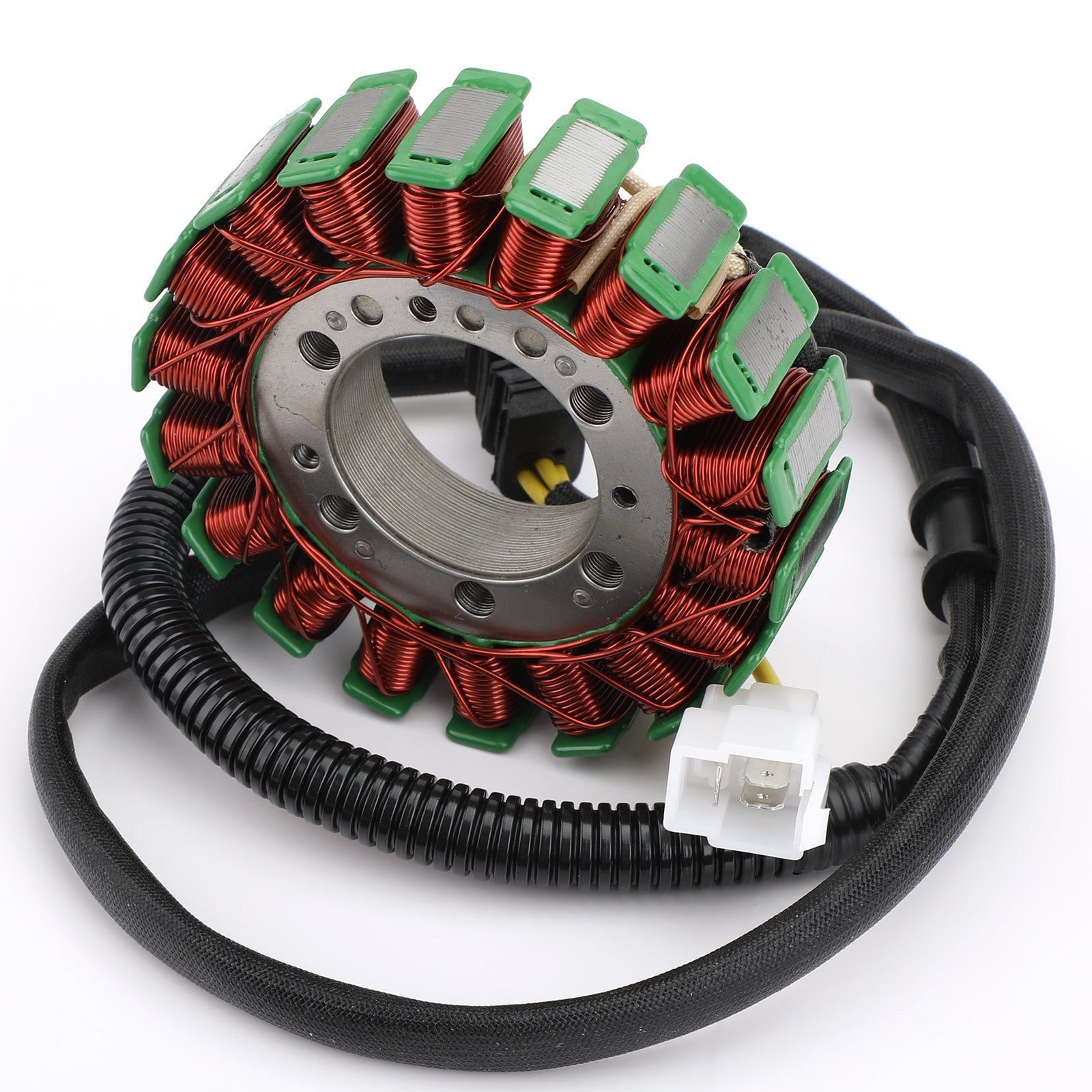

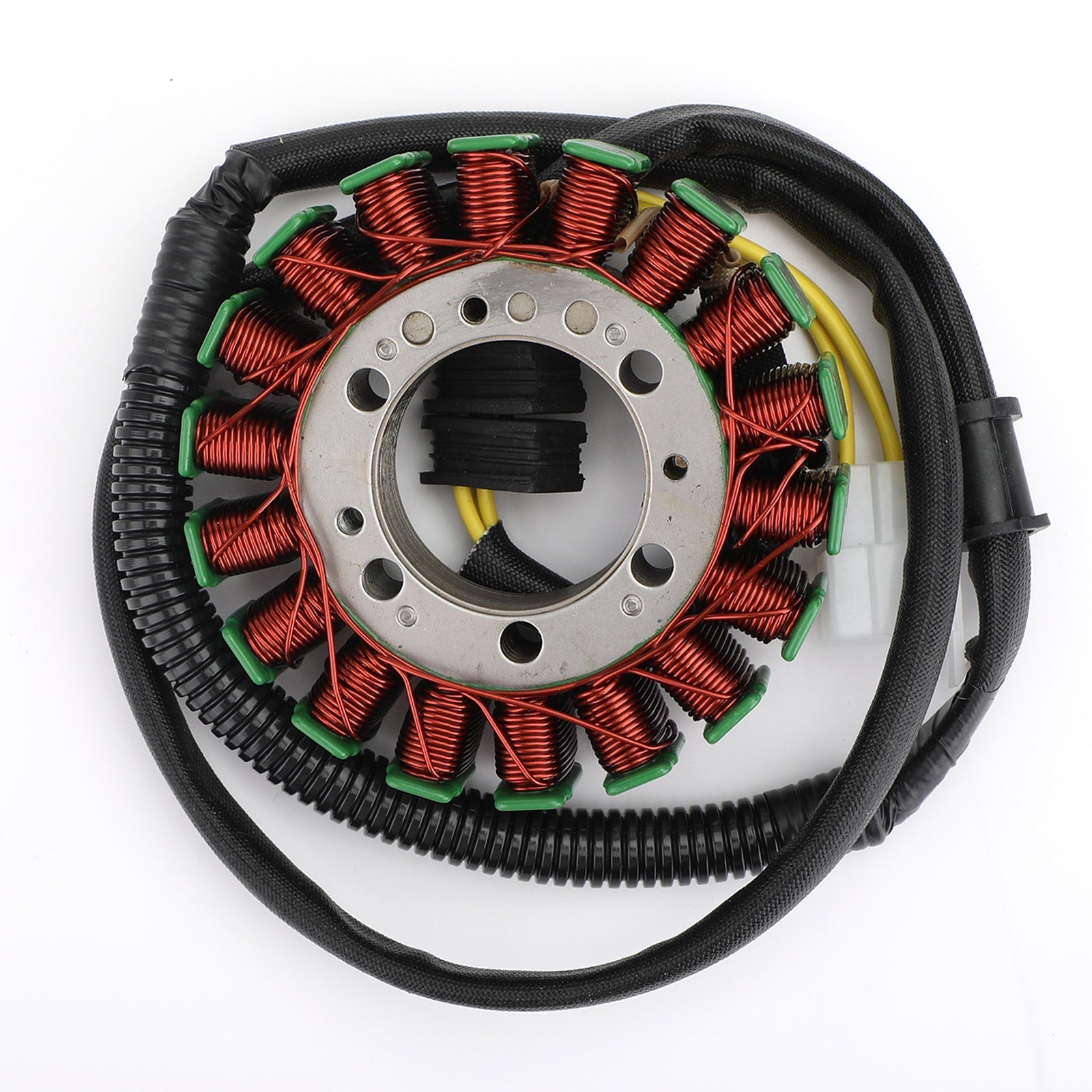

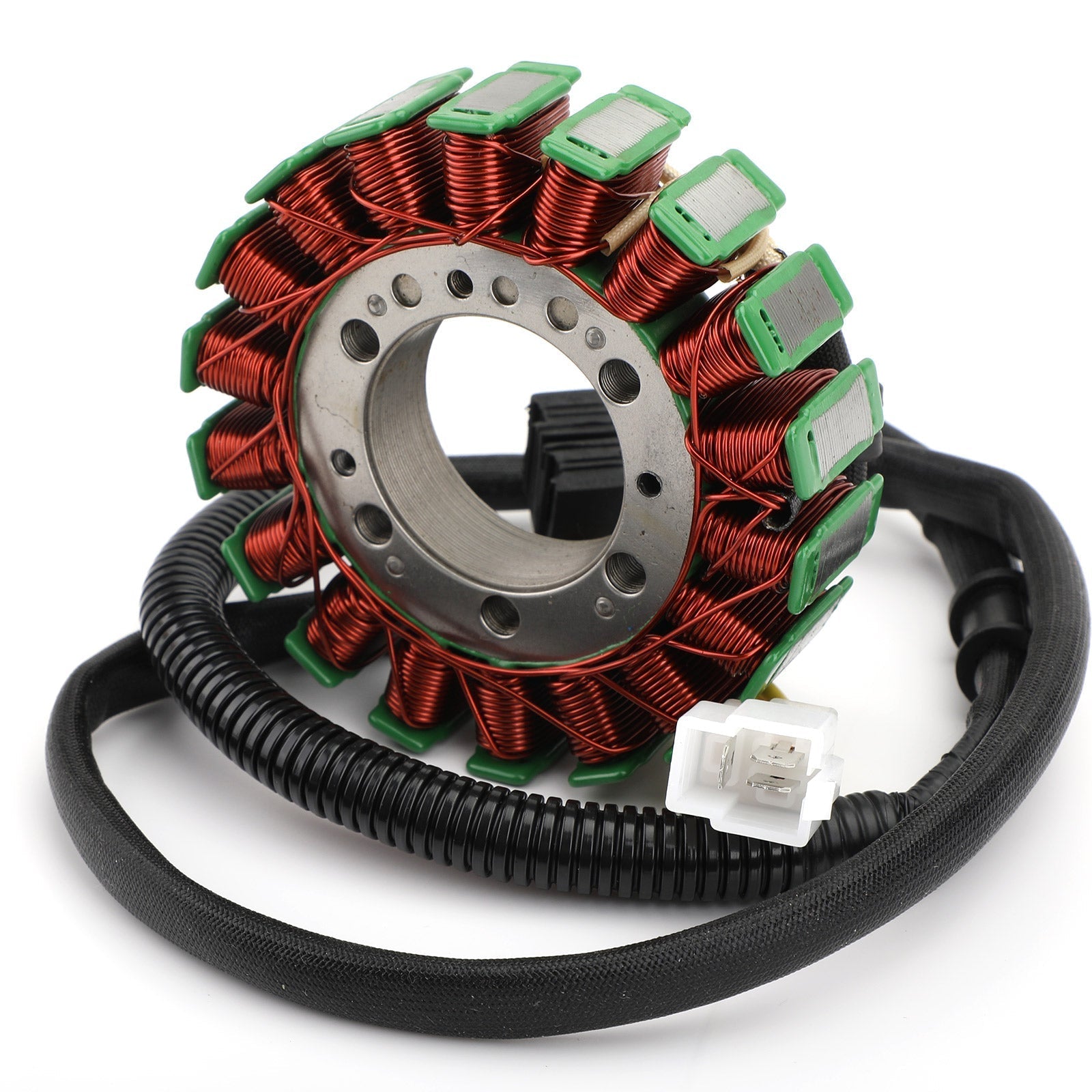

Type: Generator Stator Coil

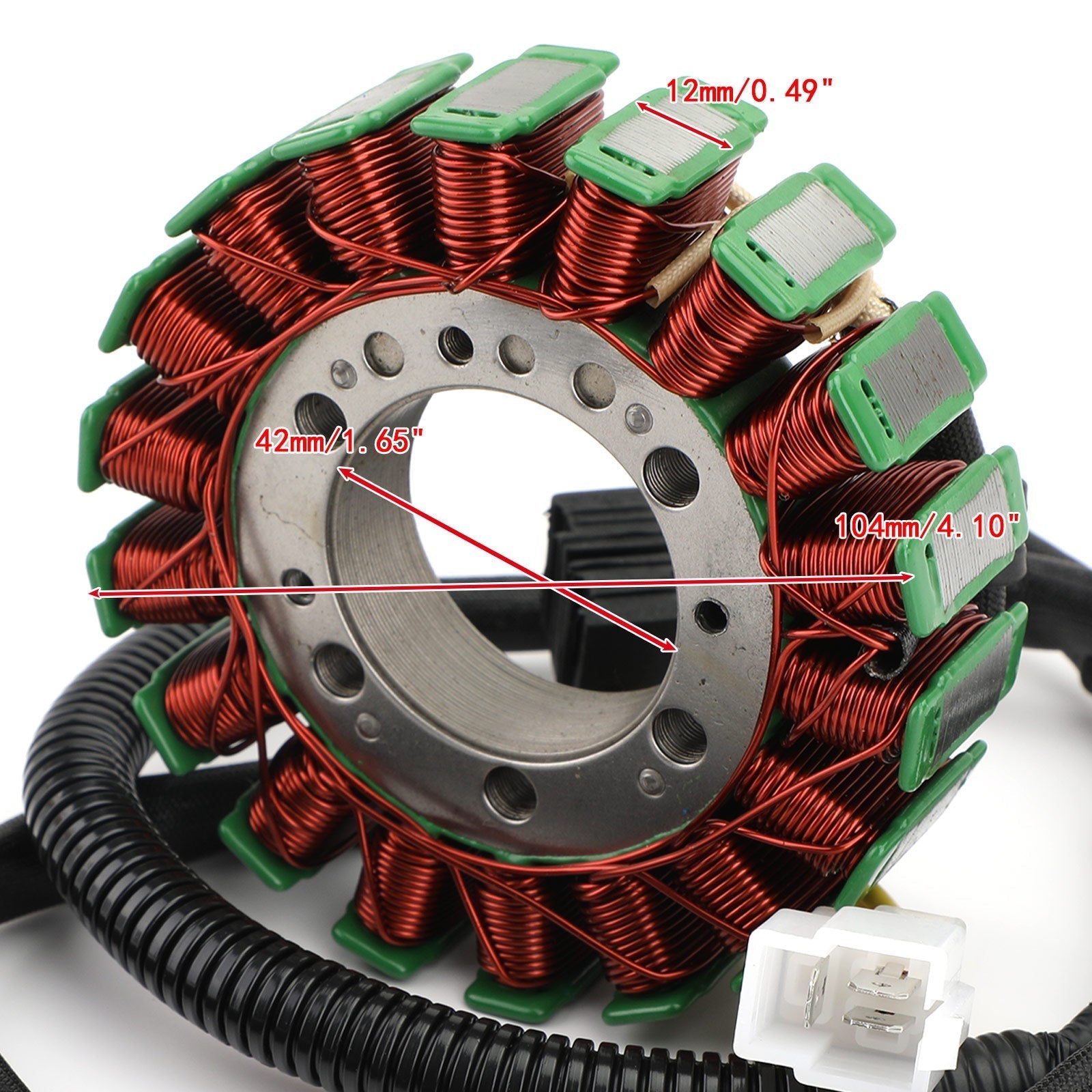

Dimensions :
Interior diameter : 42mm / 1.65in
Exterior diameter : 104mm / 4.10in
Thickness : 12mm / 0.49in

Other Specifications :
Number of wires: 3

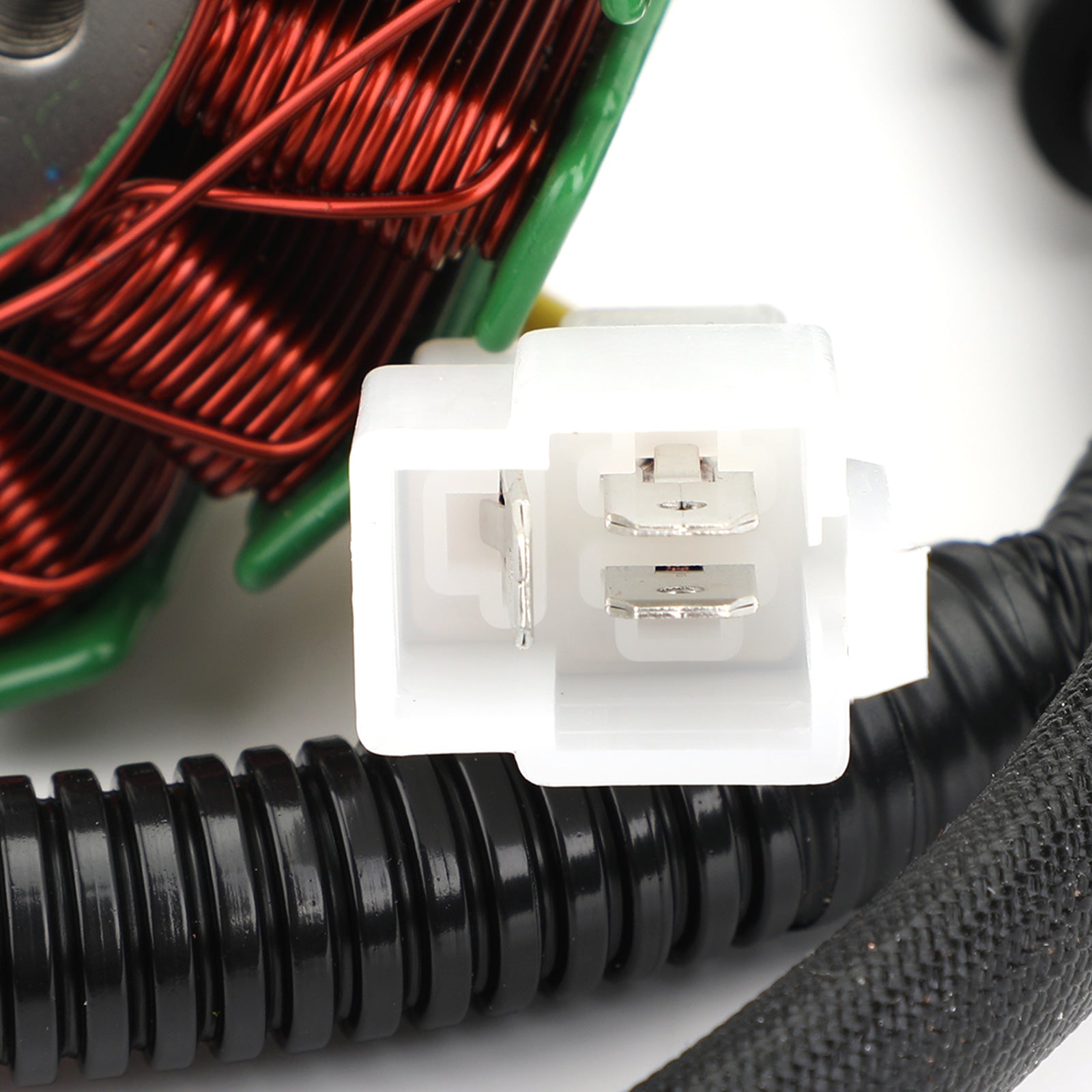

Number of pins: 3
Number of plugs: 1
Number of fixation holes: 5(+2)
Fixation holes length: 24mm / 0.94in

Replacement Part Number:
31120-MJ8-014
31120-KE7-014

Fitments:
Fit for Honda VF500C Magna V30 1984-1985
Fit for Honda VF500F Interceptor (PC12) 1984-1986

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
