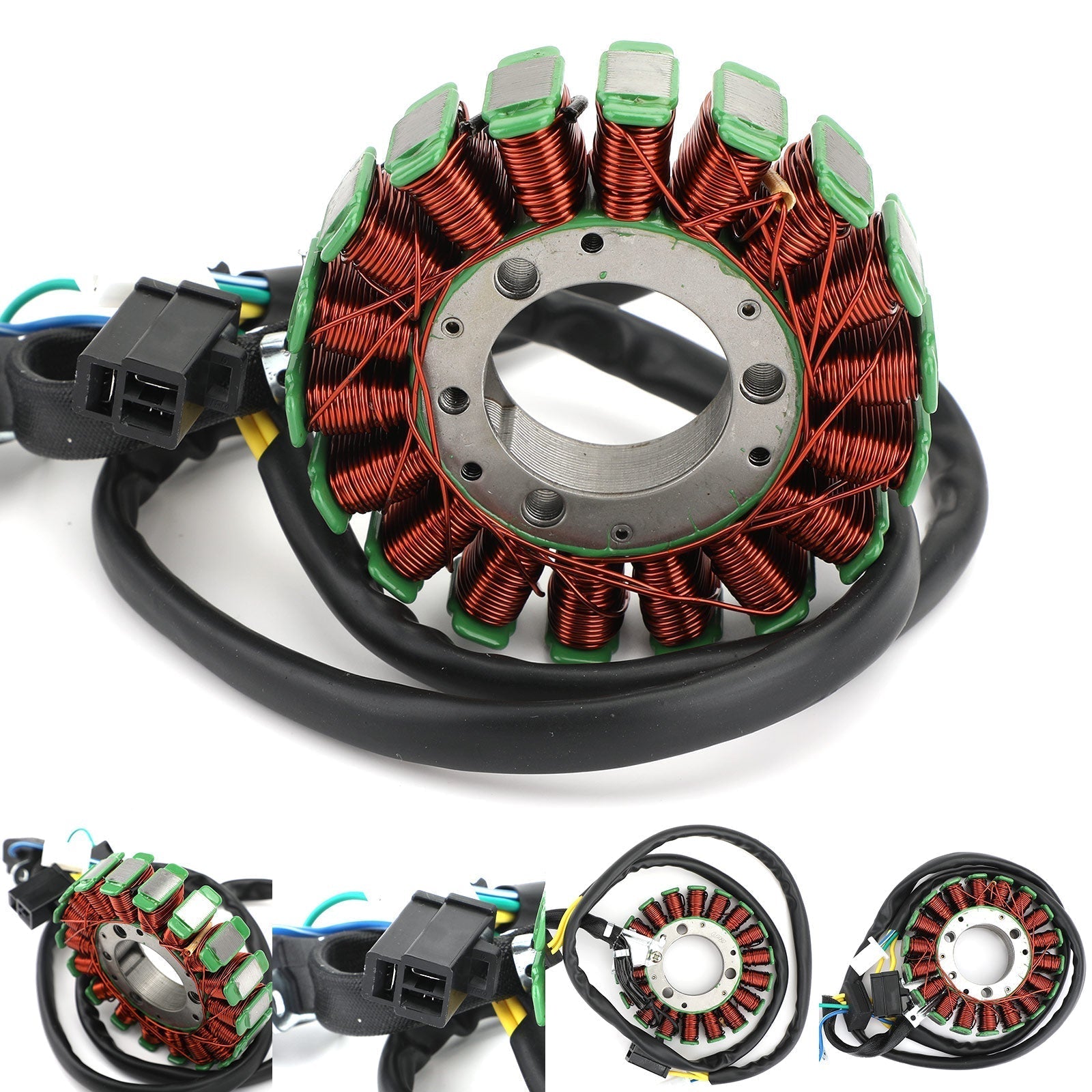

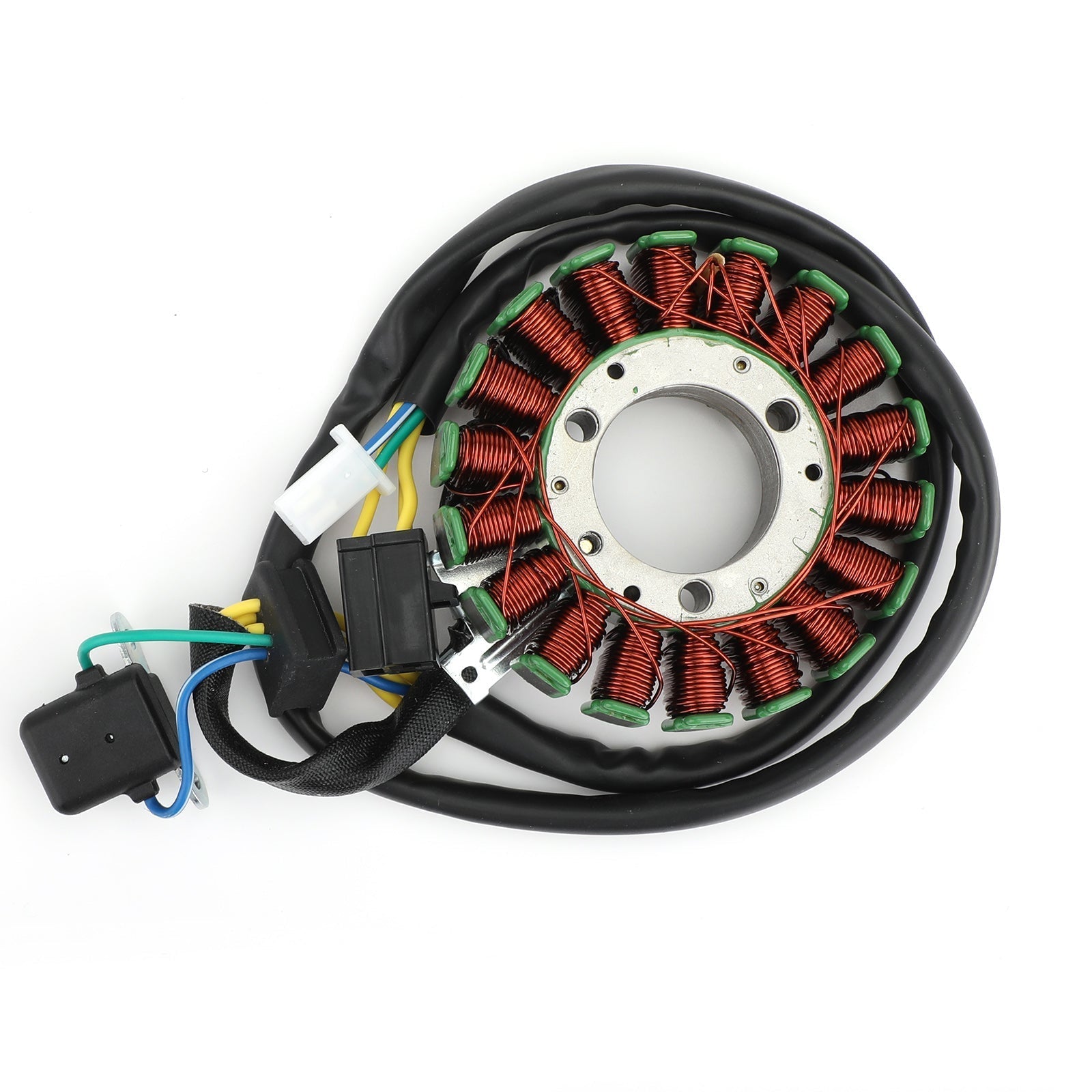

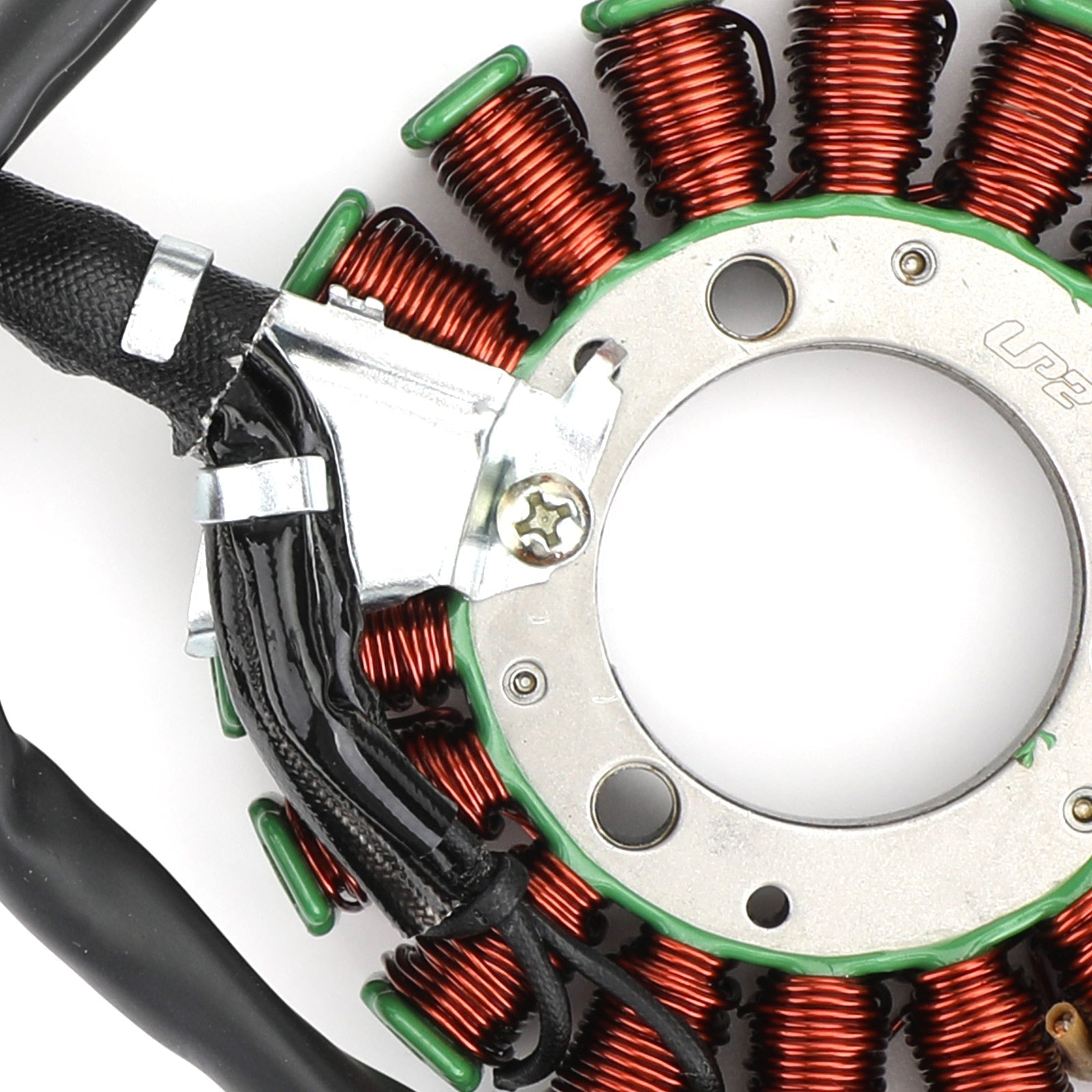

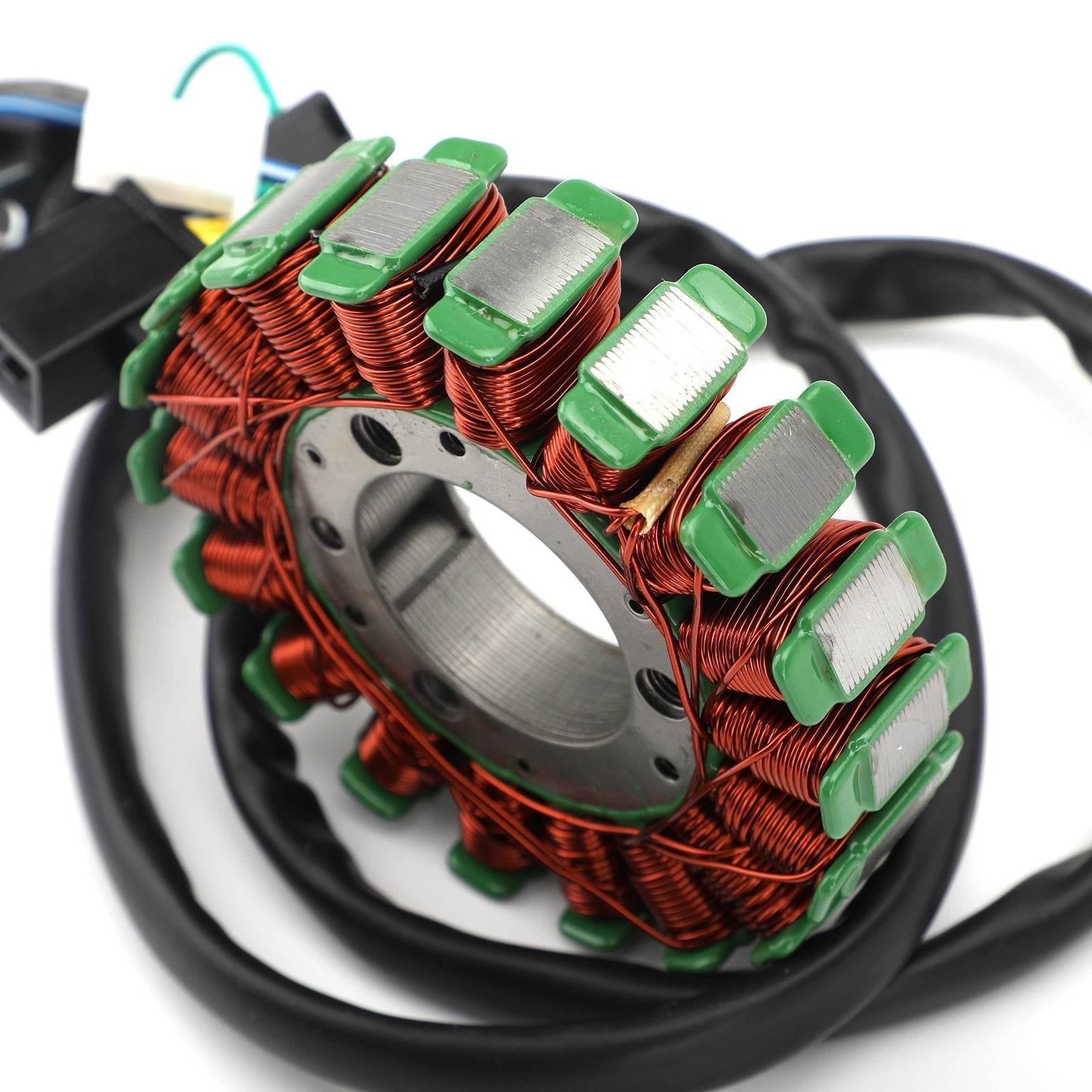

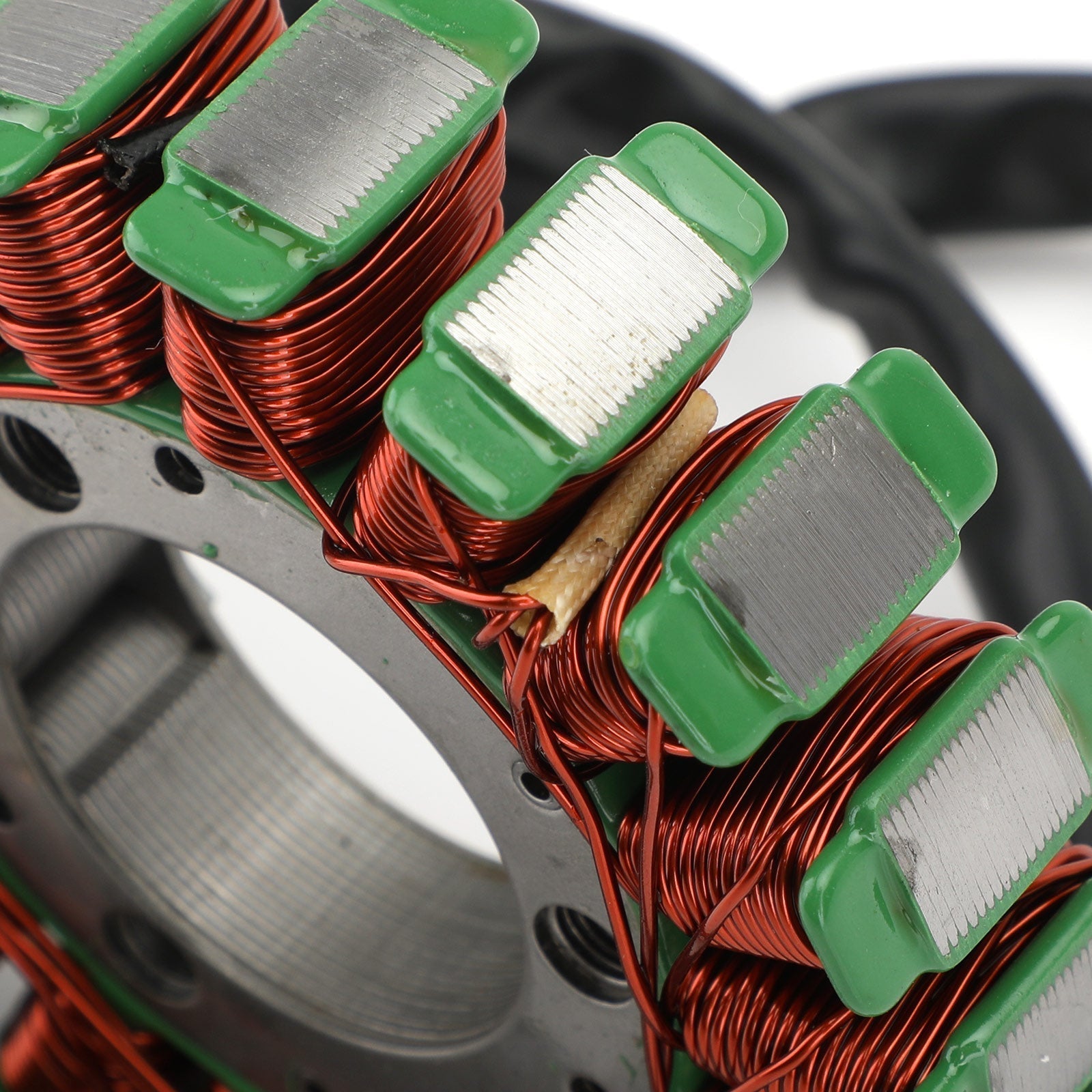

Magneto Generator Engine Stator Coil Fit For Suzuki DR 125 200 SE 1994-2013 32101-42A30 32101-42A40

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

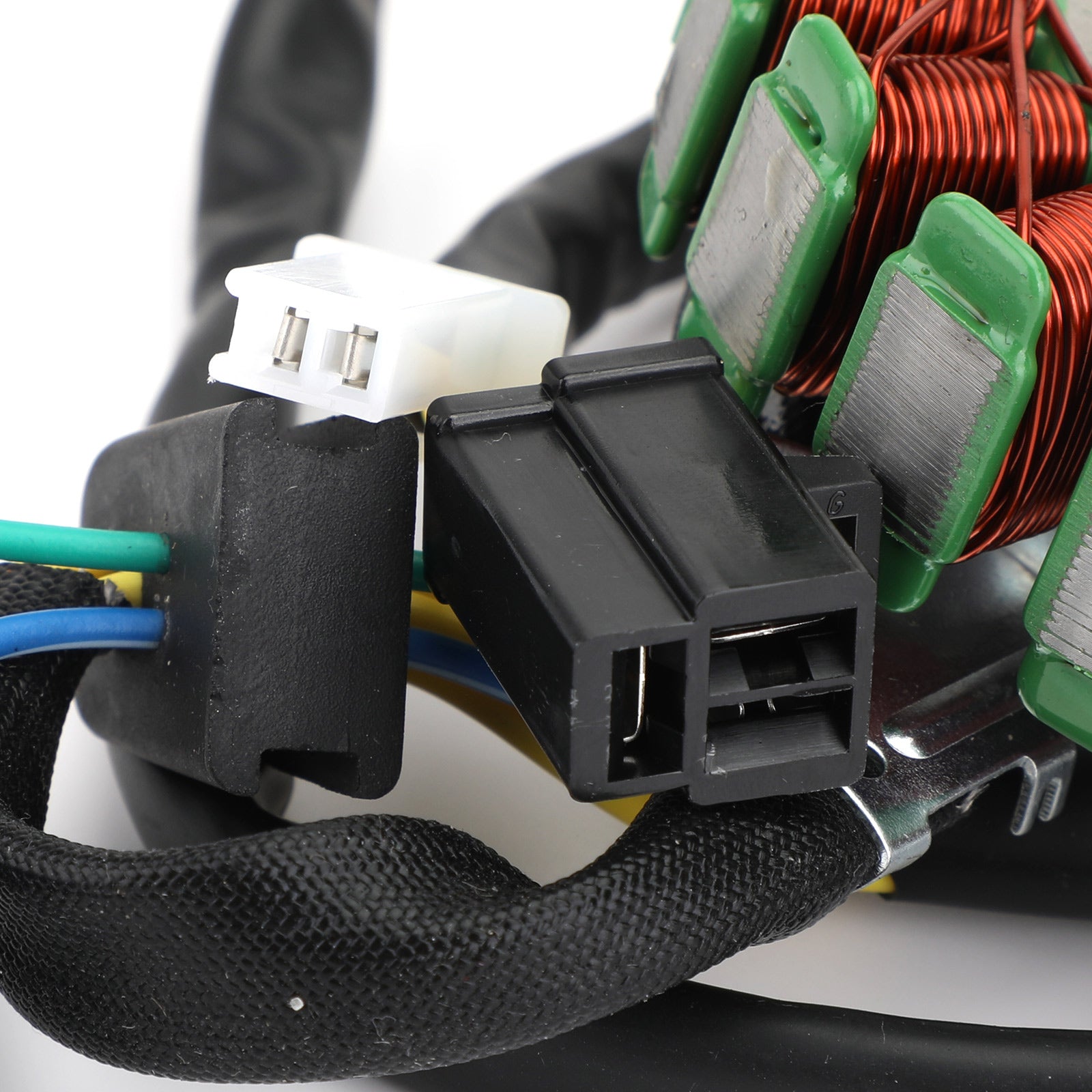

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-42A40 / 32101-42A30

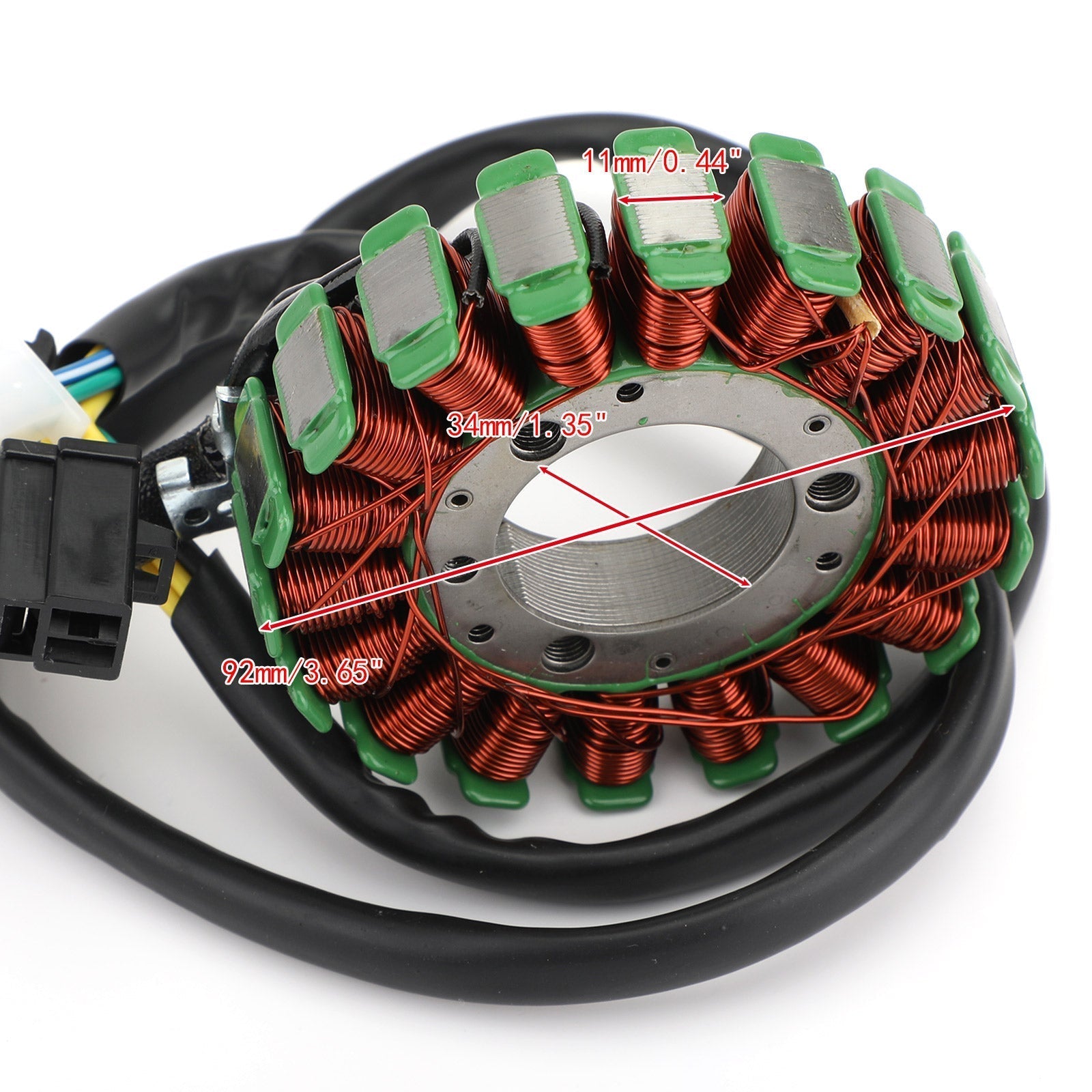

Dimensions :
Interior diameter : 34mm / 1.35in
Exterior diameter : 92mm / 3.65in
Thickness : 11mm / 0.44in

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 33mm / 1.31in

Replacement Part Number:
32101-42A40
32101-42A30

Fitments:
Fit for Suzuki DR200SE 1996-2013
Fit for Suzuki DR125SE 1994-2002

Fit for Suzuki DF125 DF125EX 1999
Fit for Suzuki DF125 DF125EY 2000
Fit for Suzuki DF200 DF200ET 1996
Fit for Suzuki DF200 DF200EW 1998
Fit for Suzuki DF200 DF200EX 1999

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part."
