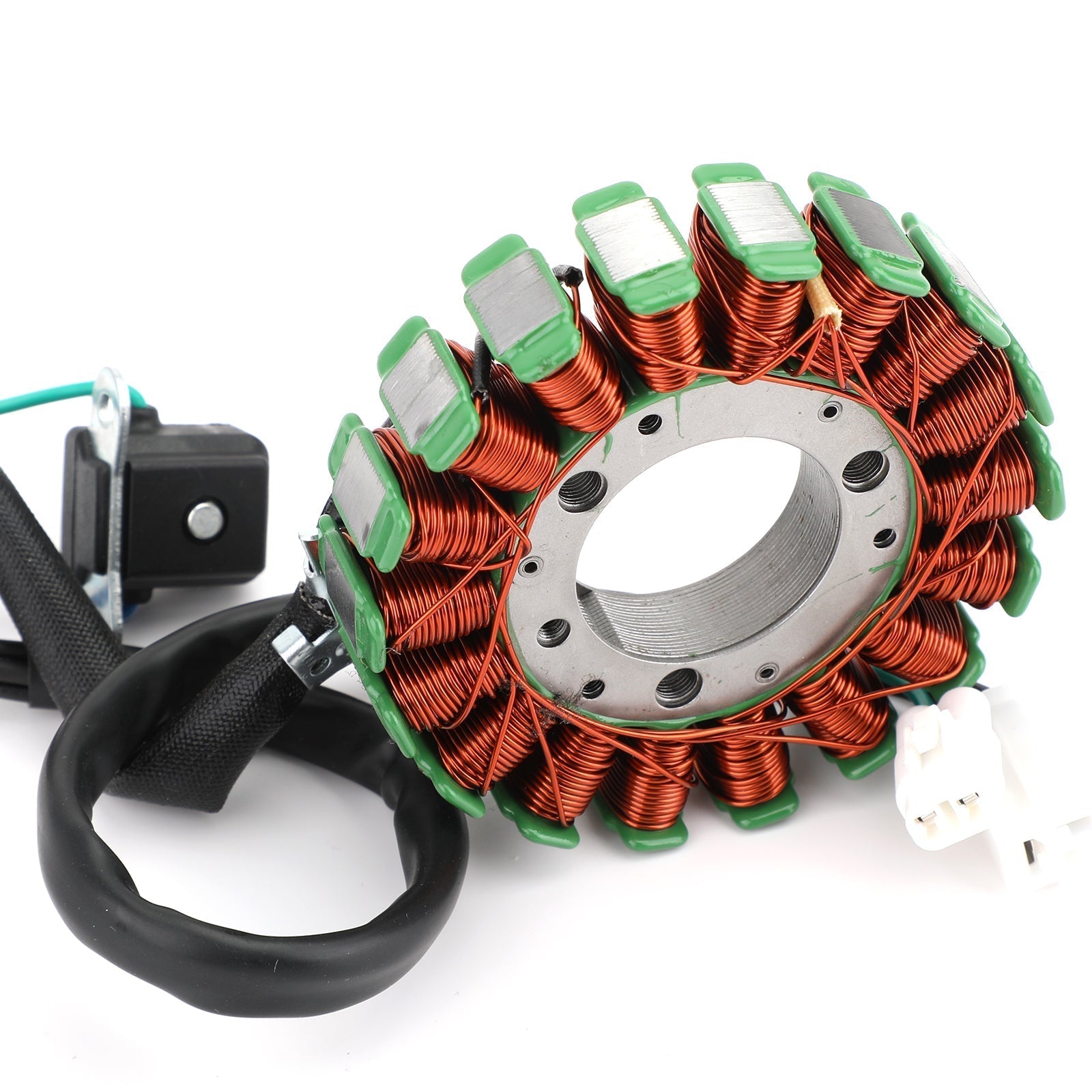

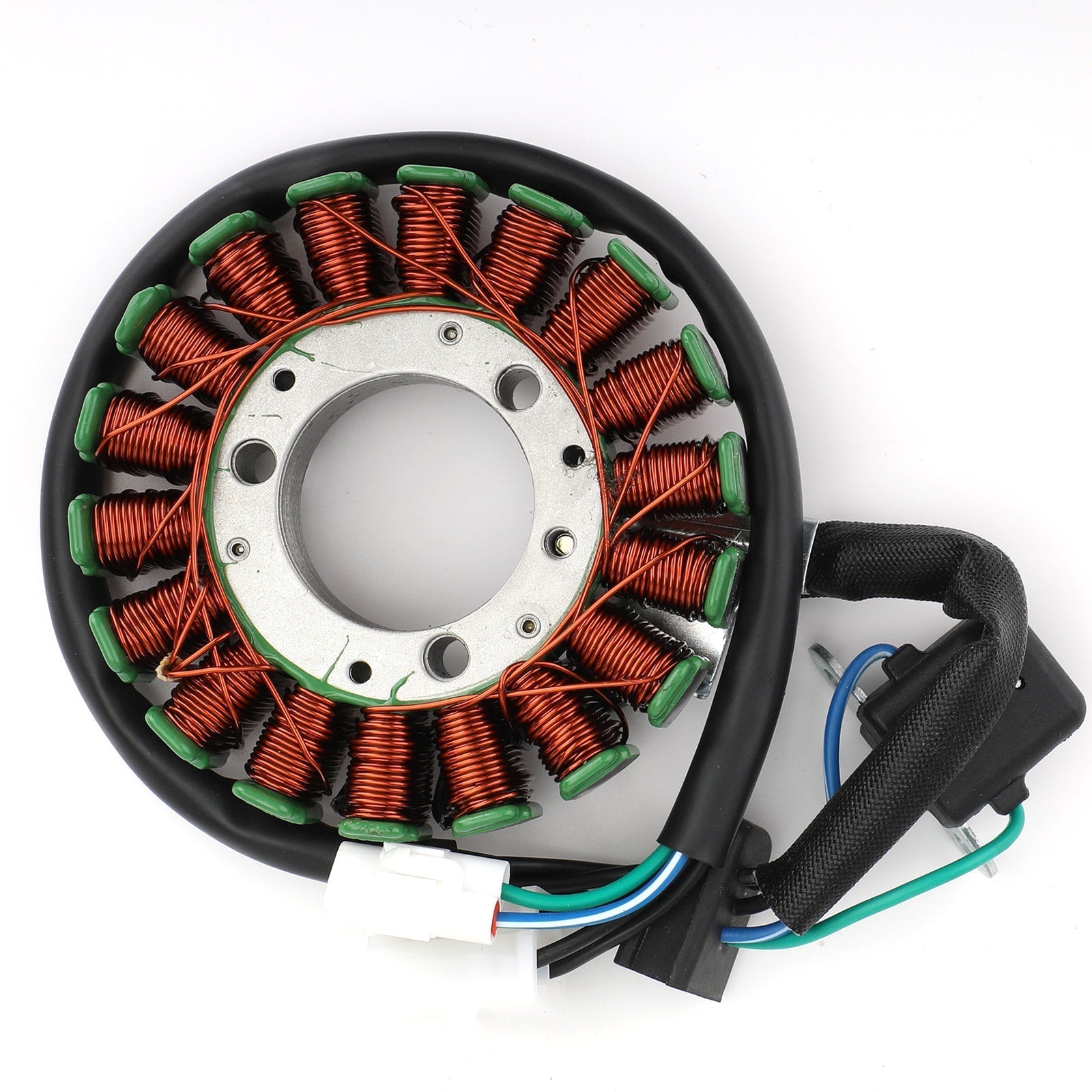

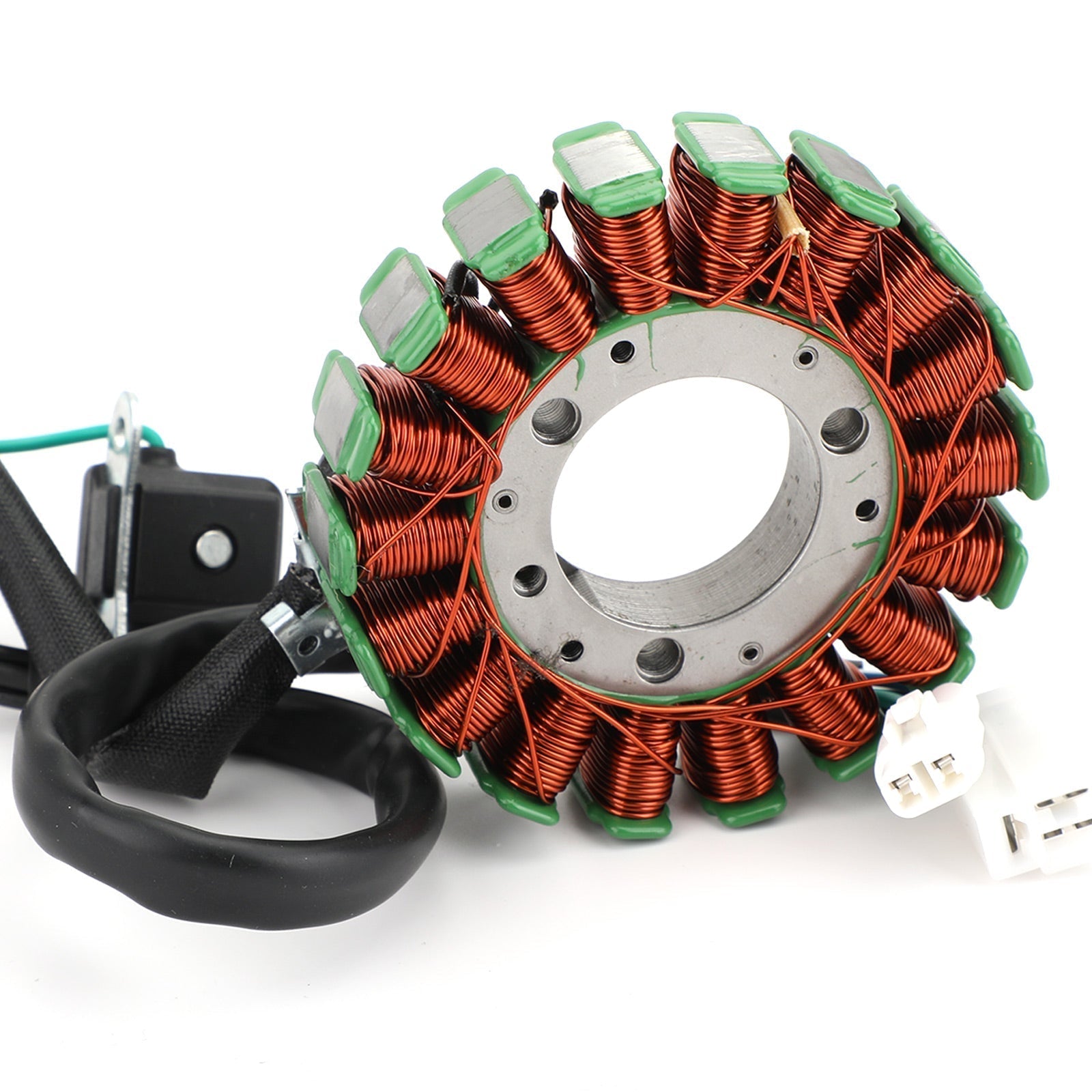

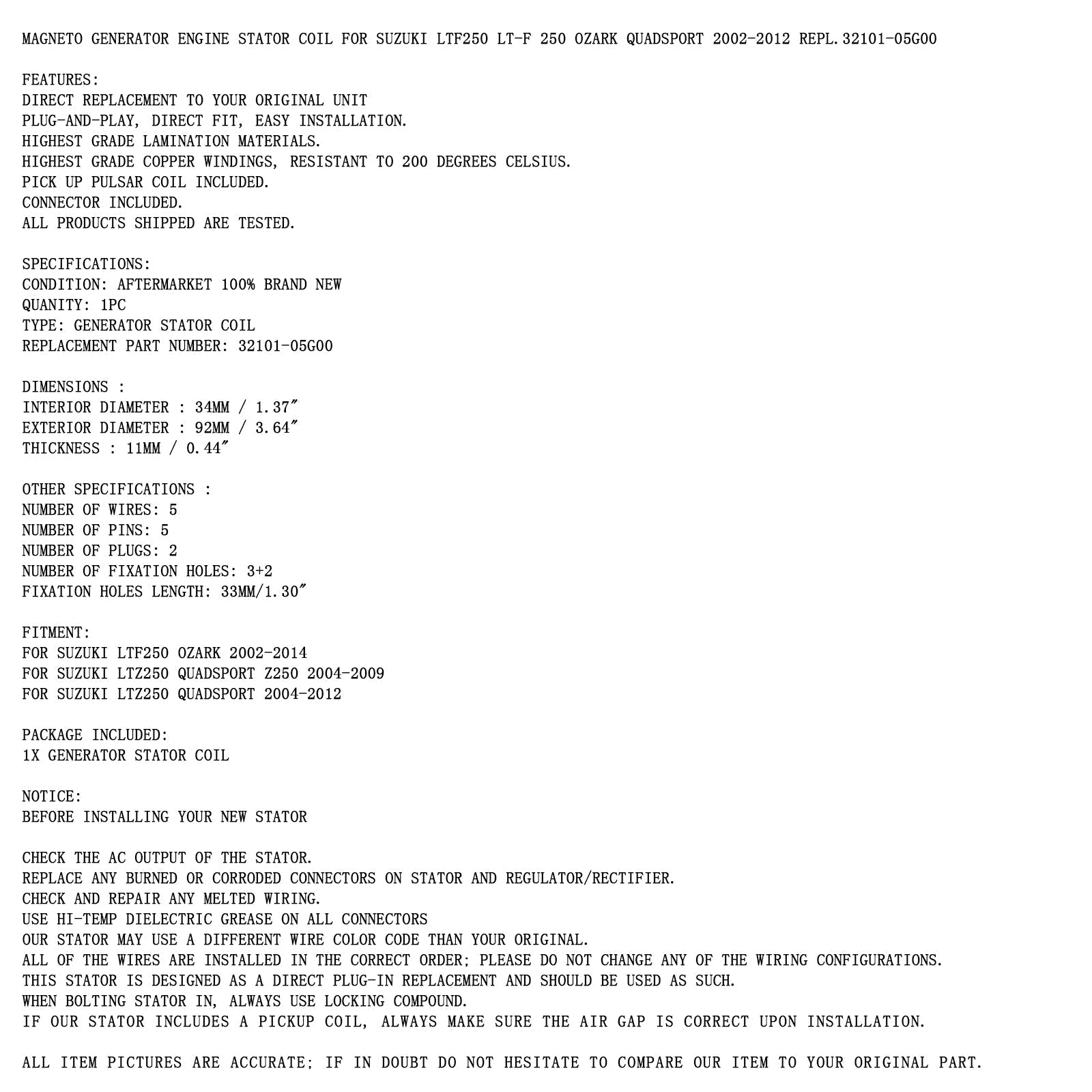

Magneto Generator Engine Stator Coil For Suzuki LTF250 LT-F 250 Ozark Quadsport 2002-2012 Repl.32101-05G00

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

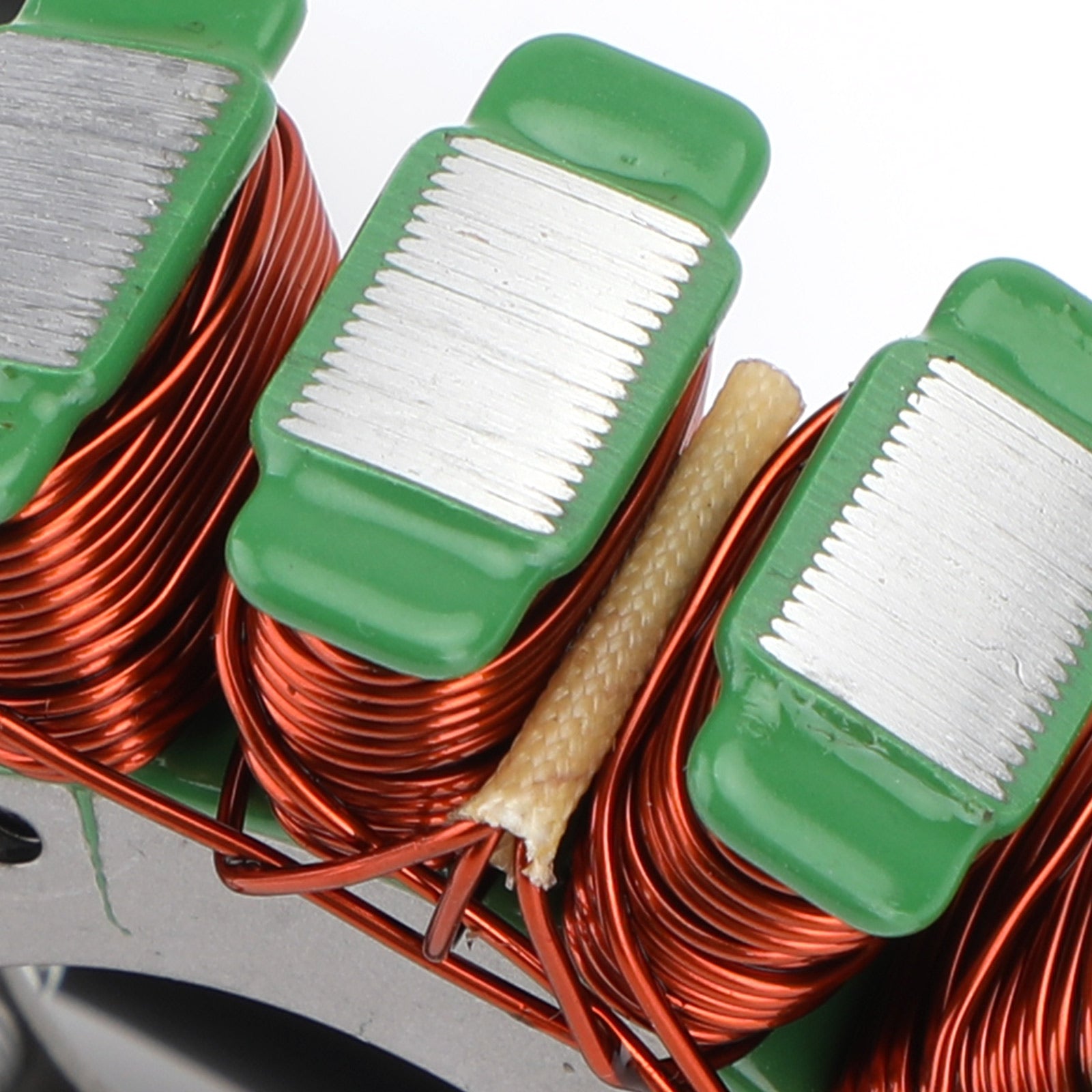

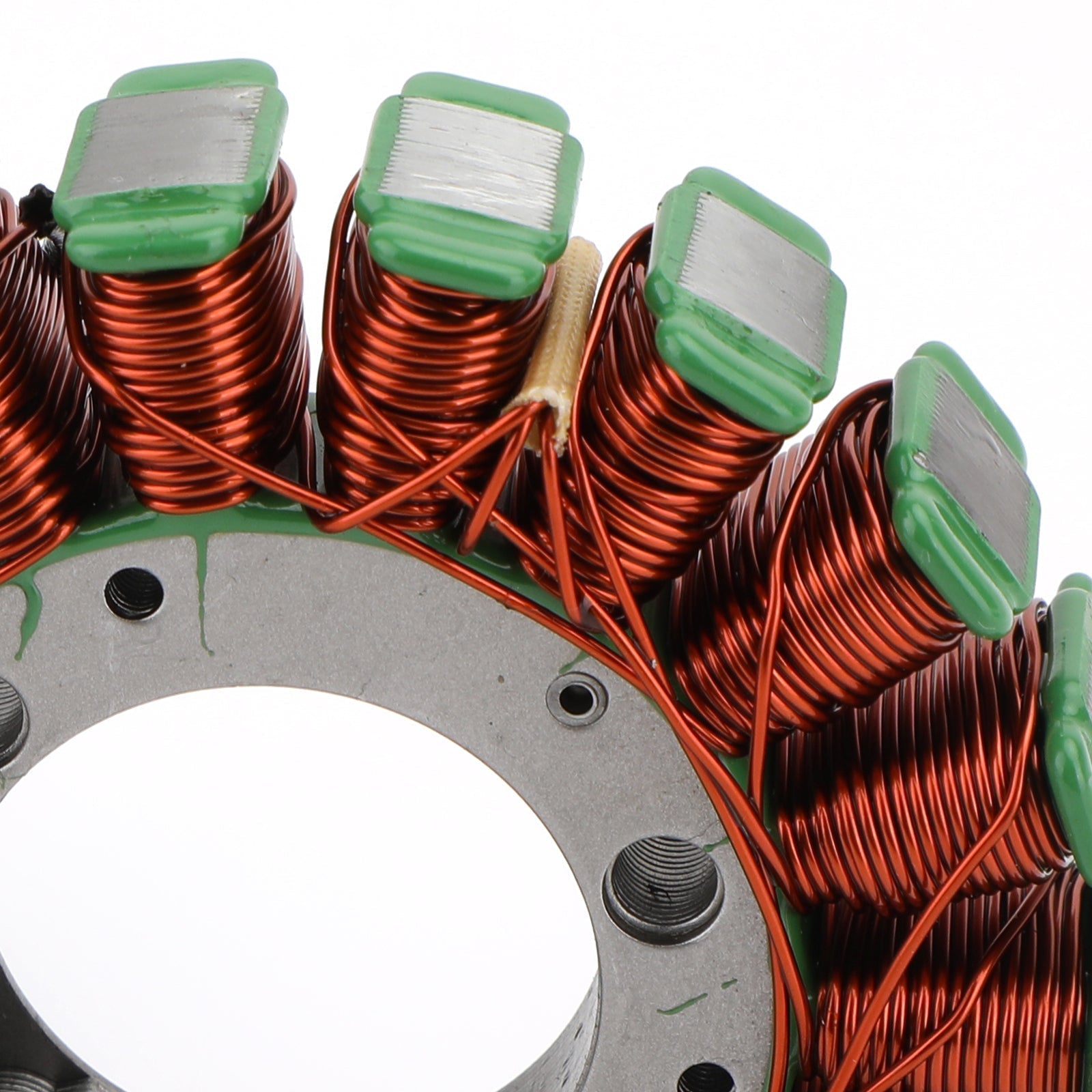

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

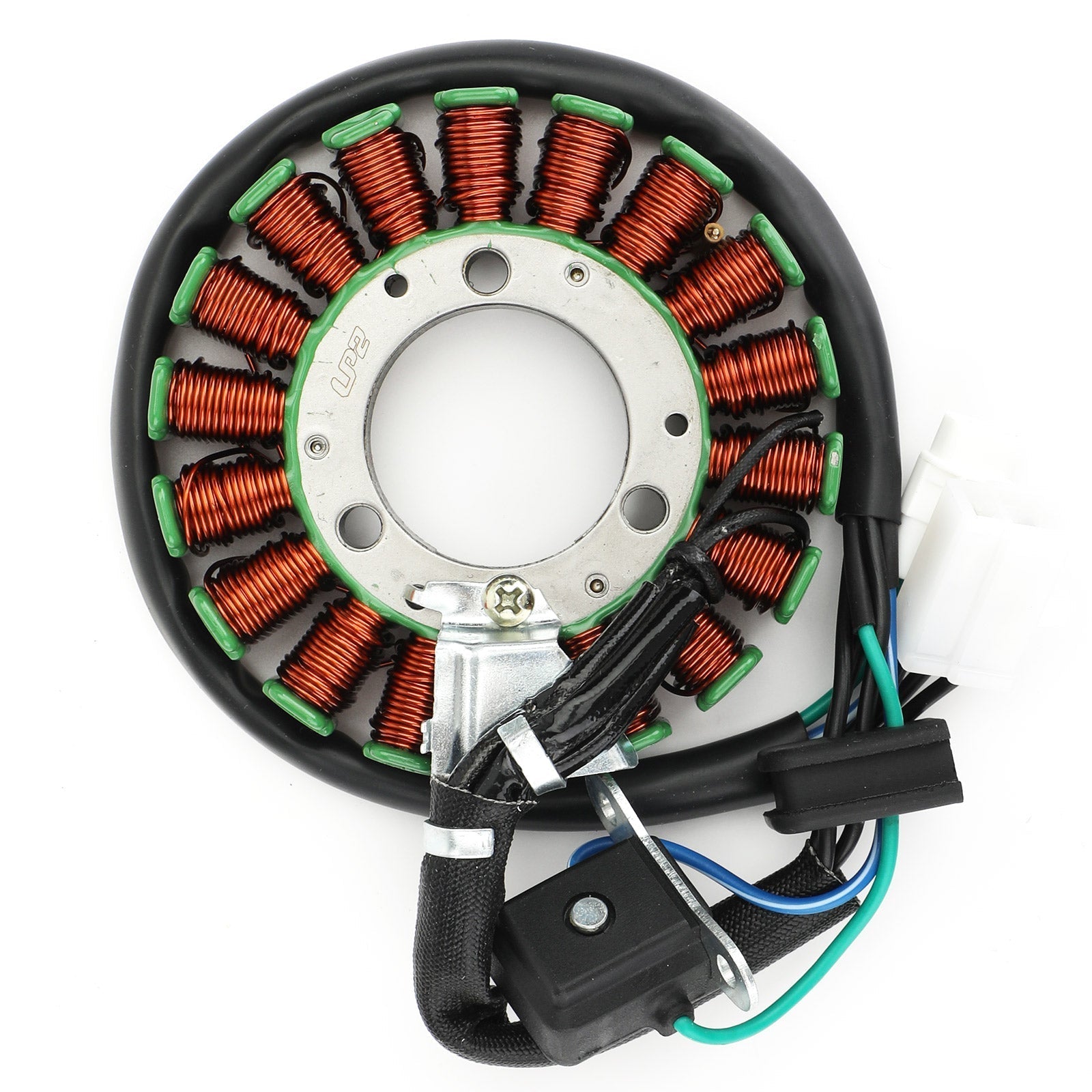

Pick up pulsar coil included.

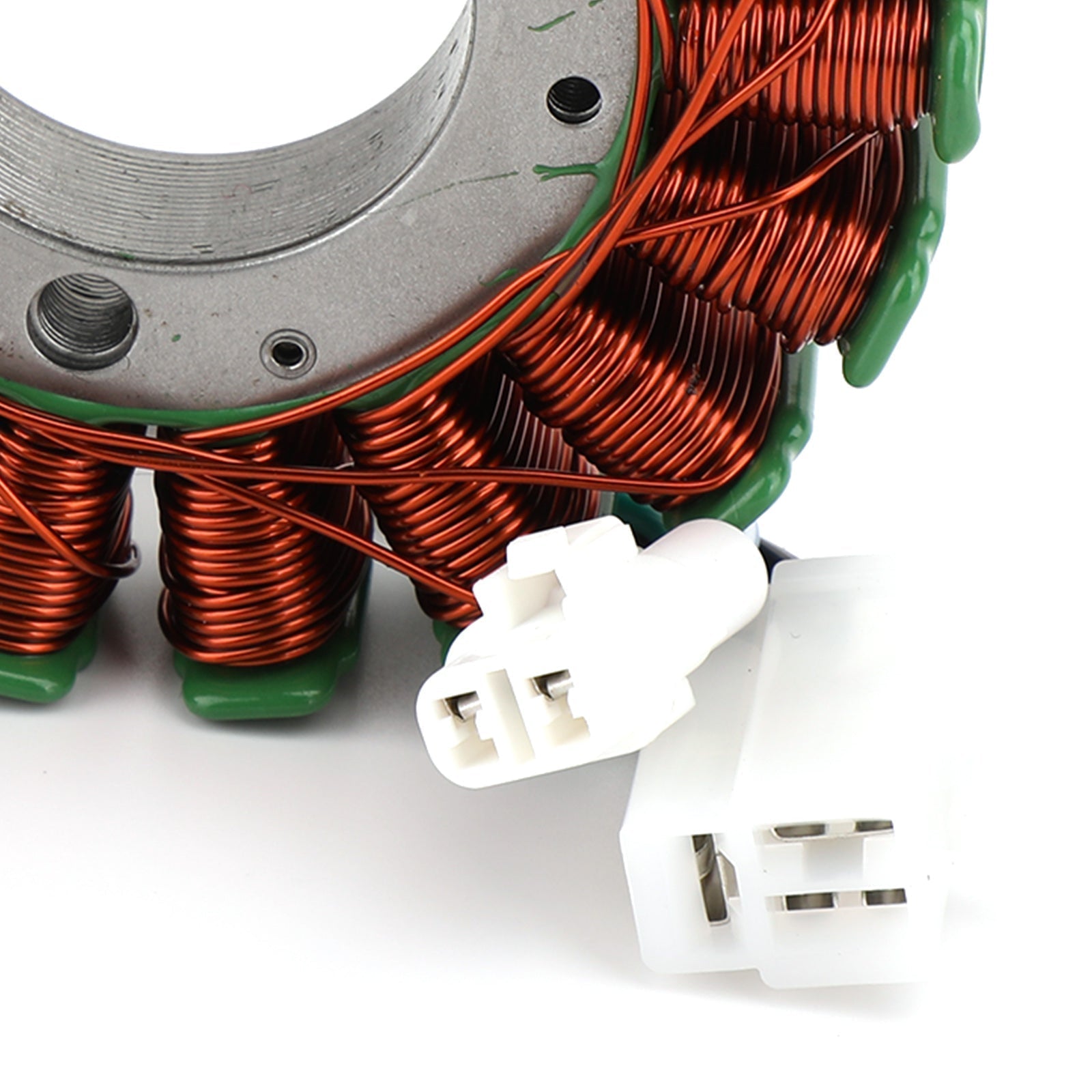

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-05G00

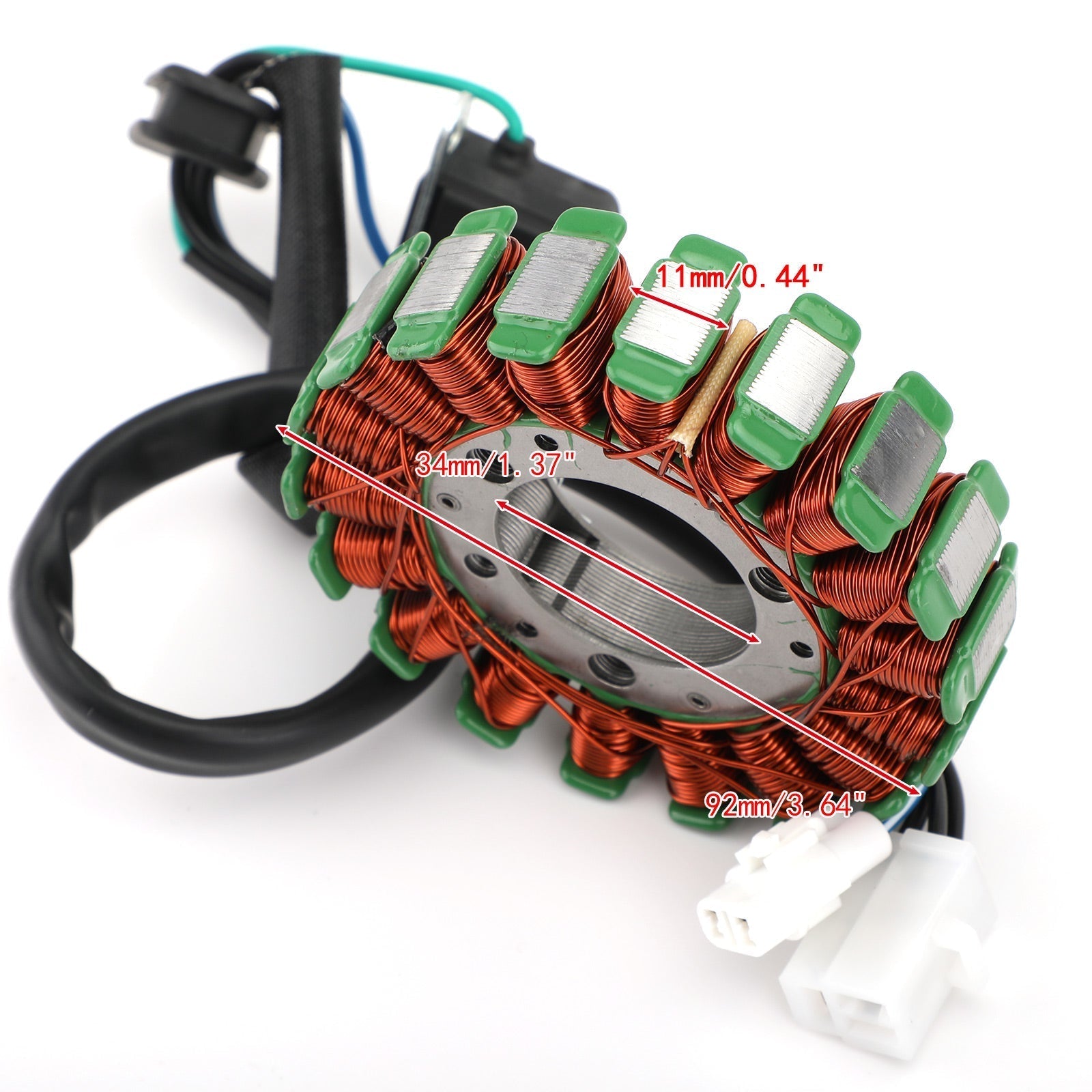

Dimensions :
Interior diameter : 34mm / 1.37"
Exterior diameter : 92mm / 3.64"
Thickness : 11mm / 0.44"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3+2
Fixation holes length: 33mm/1.30"

FITMENT:
For Suzuki LTF250 Ozark 2002-2014
For Suzuki LTZ250 Quadsport Z250 2004-2009
For Suzuki LTZ250 Quadsport 2004-2012

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
