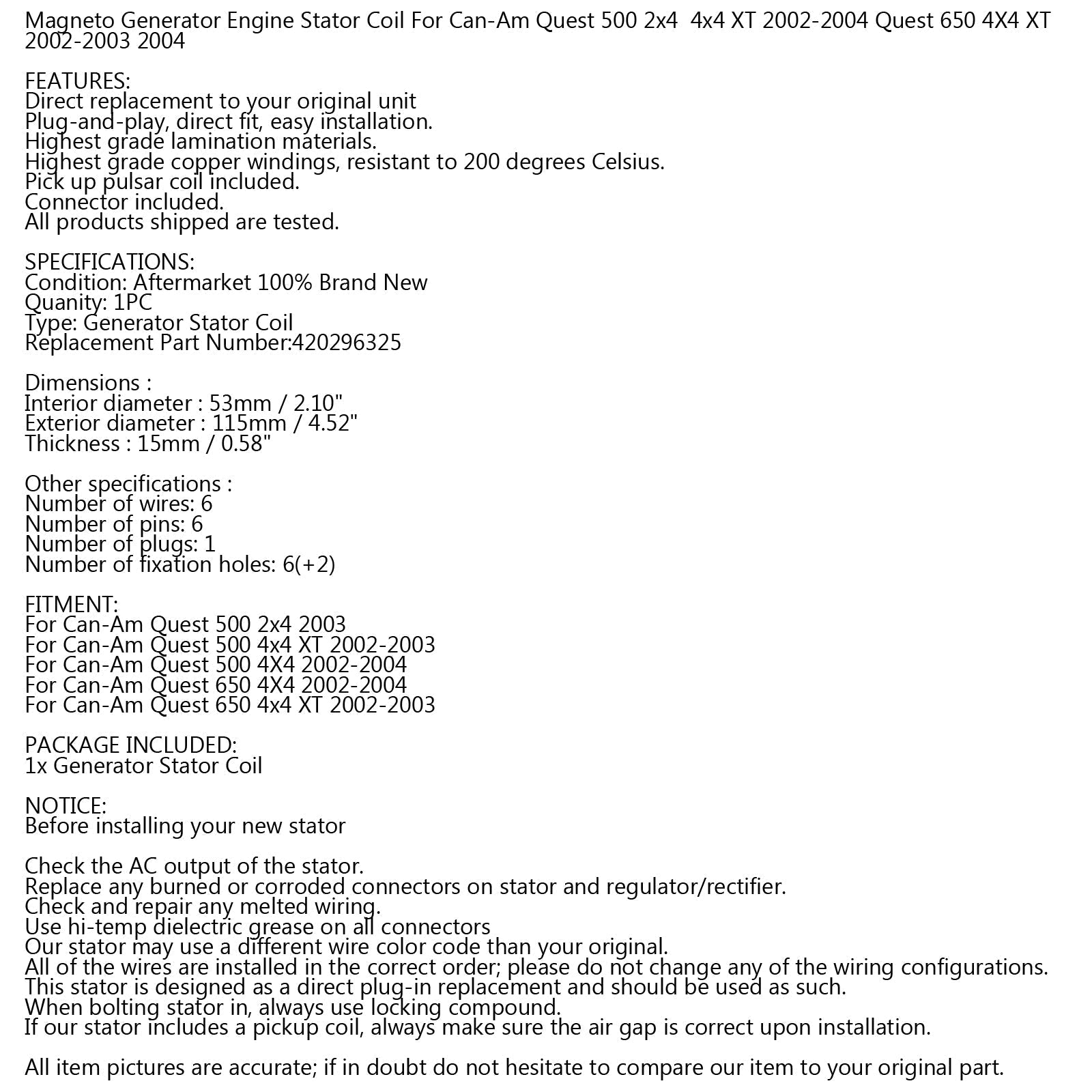

FEATURES:
1.Direct replacement to your original unit
2.Plug-and-play, direct fit, easy installation.
3.Highest grade lamination materials.

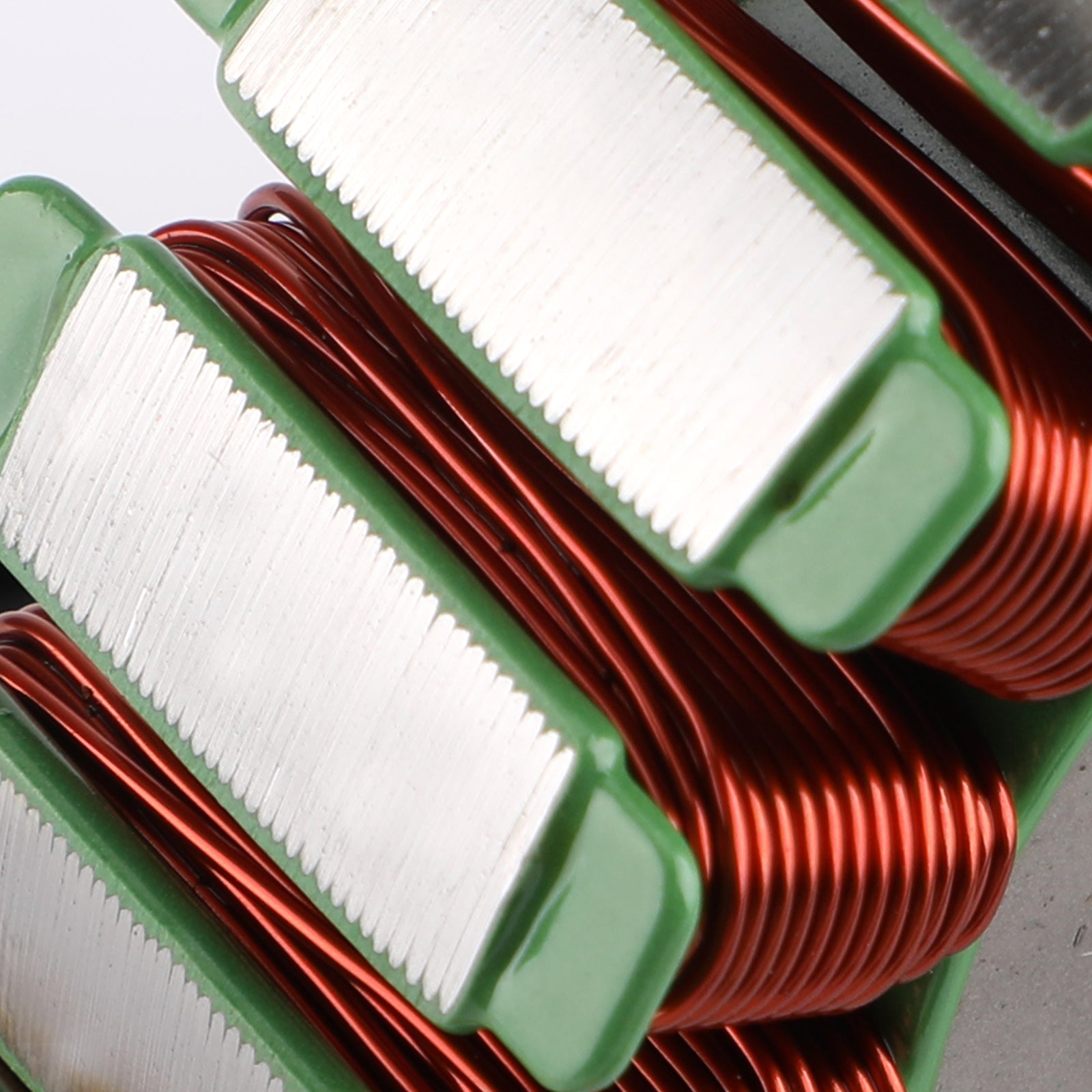

4.Highest grade copper windings, resistant to 200 degrees Celsius.
5.Pick up pulsar coil included.
6.Connector included.
7.All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

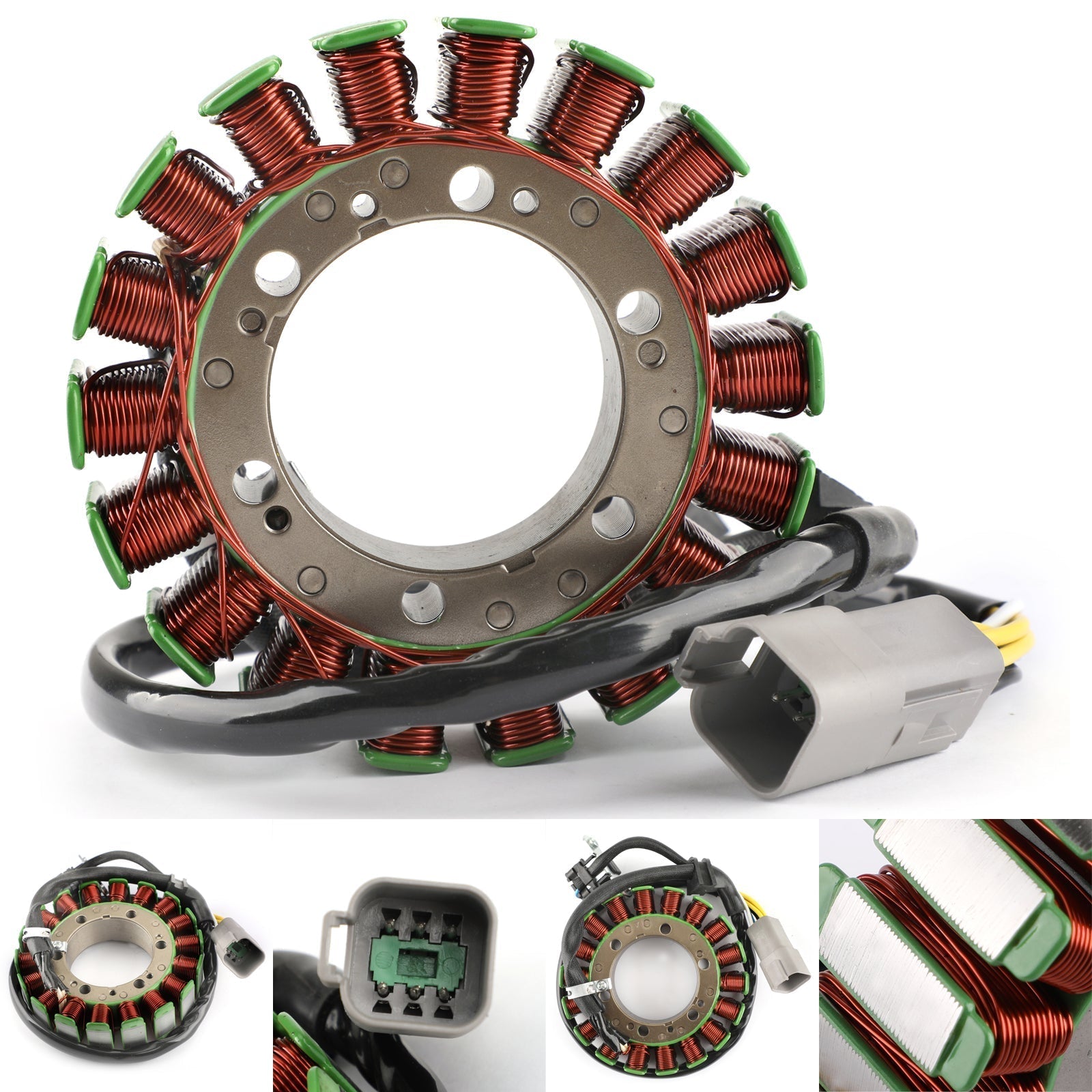

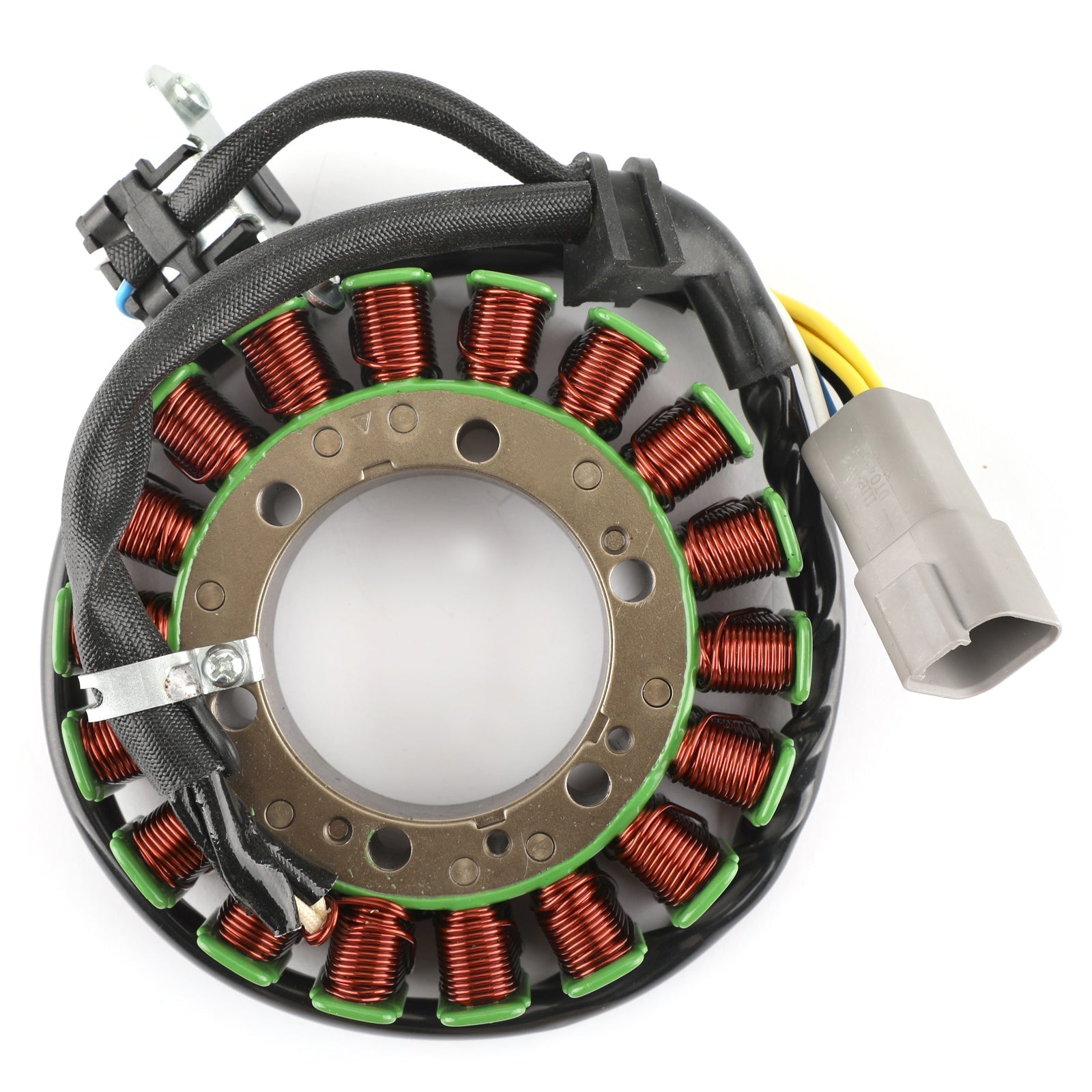

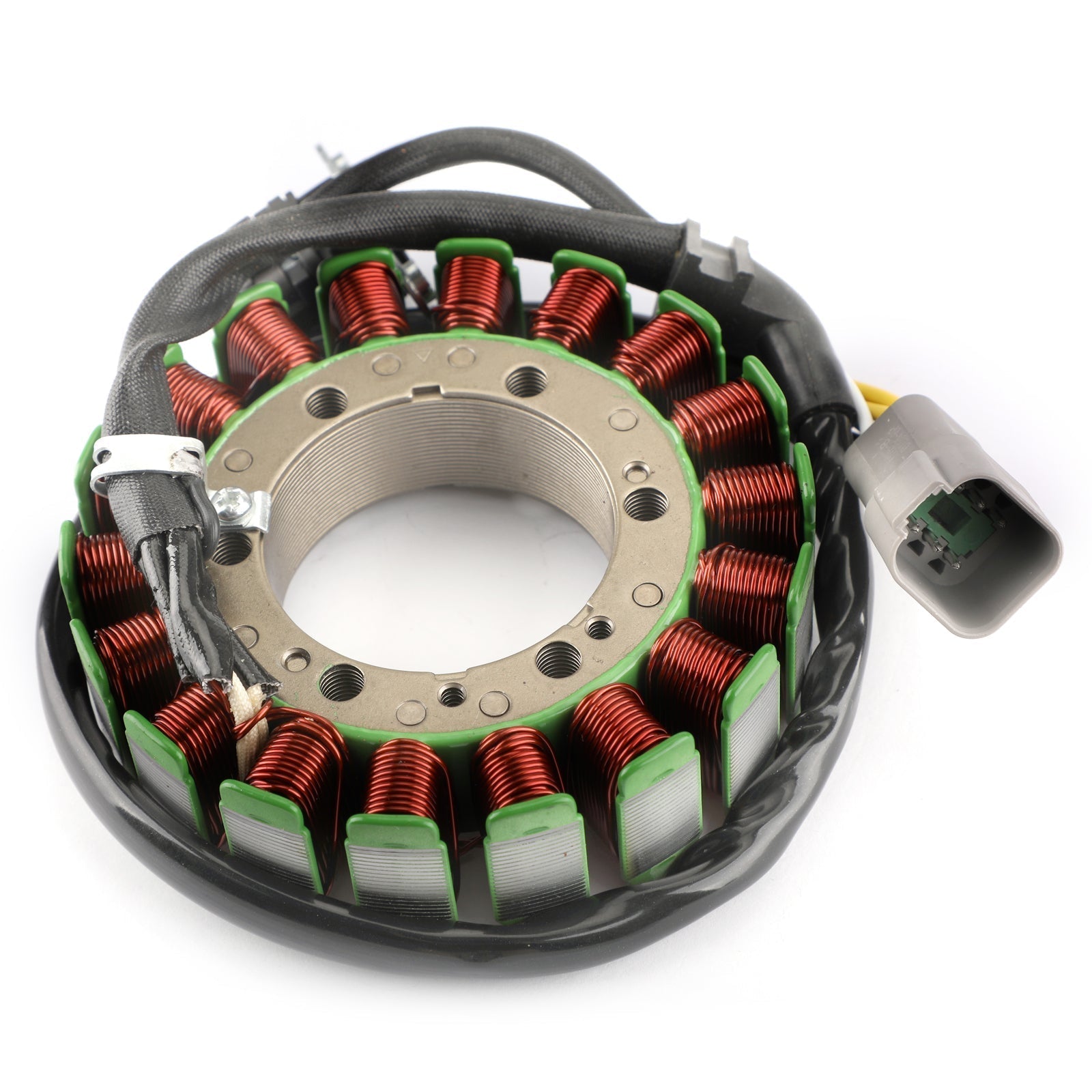

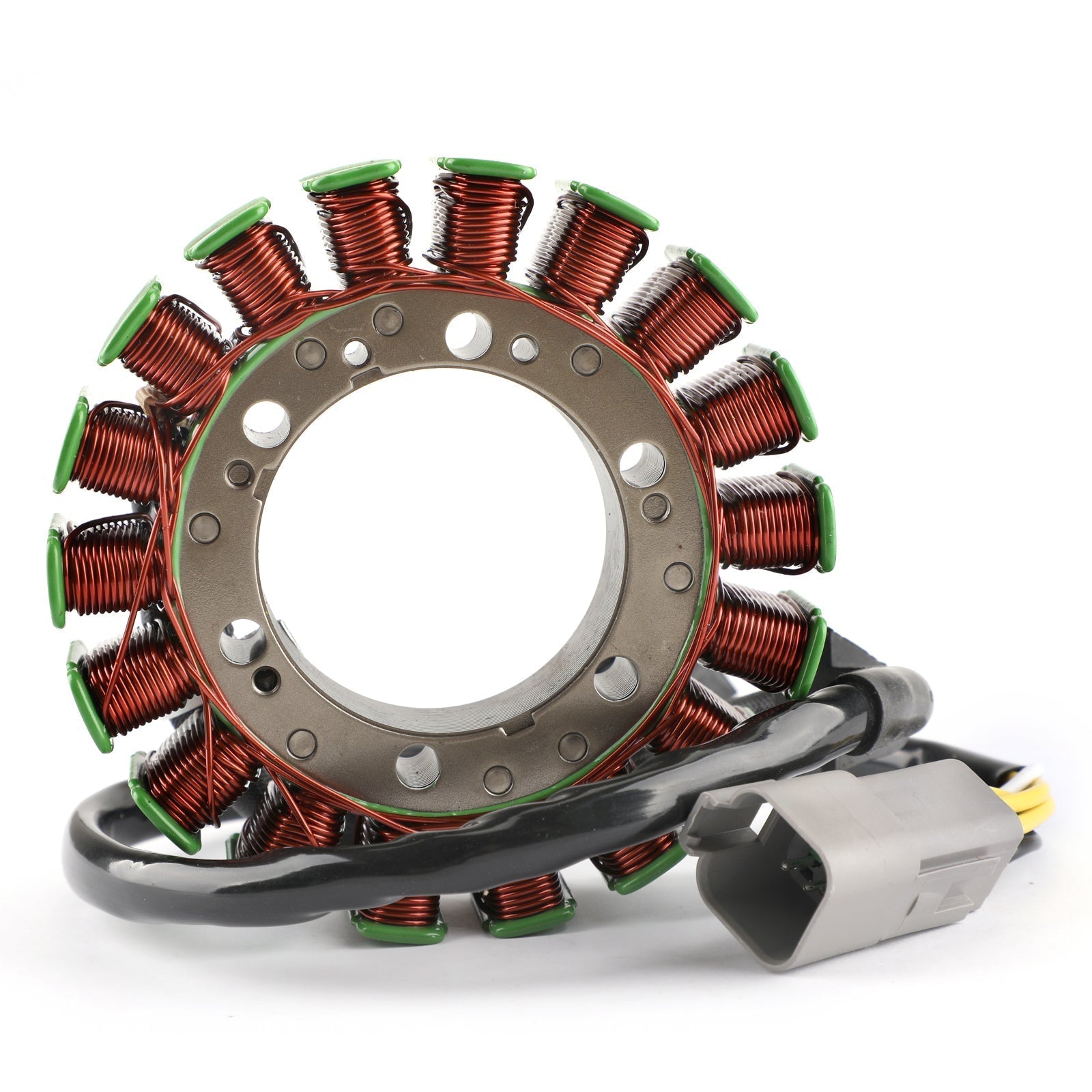

Type: Generator Stator Coil
Replacement Part Number:420296325

Dimensions :
Interior diameter : 53mm / 2.10"
Exterior diameter : 115mm / 4.52"
Thickness : 15mm / 0.58"

Other specifications :
Number of wires: 6

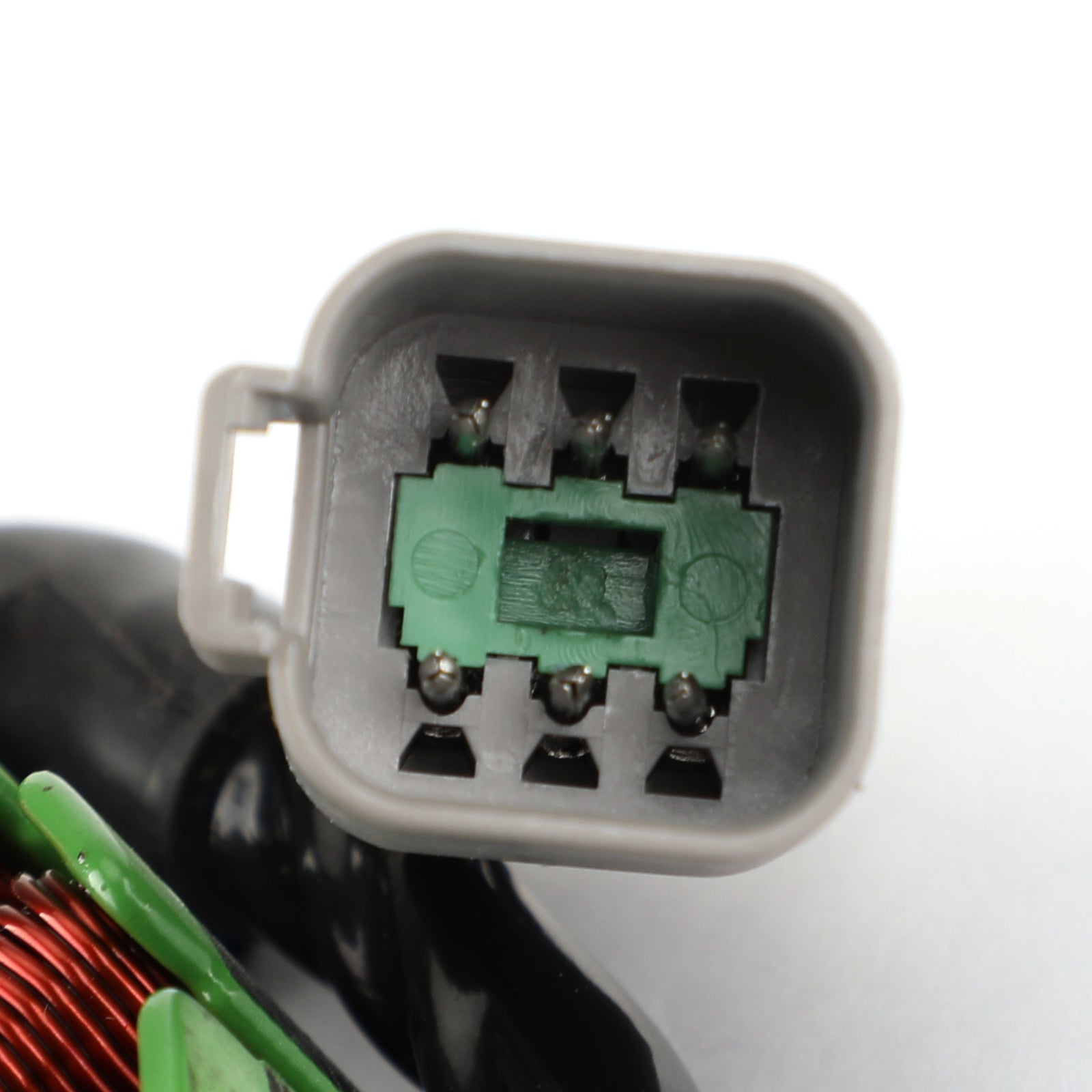

Number of pins: 6
Number of plugs: 1
Number of fixation holes: 6(+2)

FITMENT:
For Can-Am Quest 500 2x4 2003
For Can-Am Quest 500 4x4 XT 2002-2003
For Can-Am Quest 500 4X4 2002-2004
For Can-Am Quest 650 4X4 2002-2004
For Can-Am Quest 650 4x4 XT 2002-2003

PACKAGE INCLUDED:
1x Generator Stator Coil

Warranty:
Warranty Period: 1 Year
24-hour expert online: Solve your installation and product problems

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
