FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

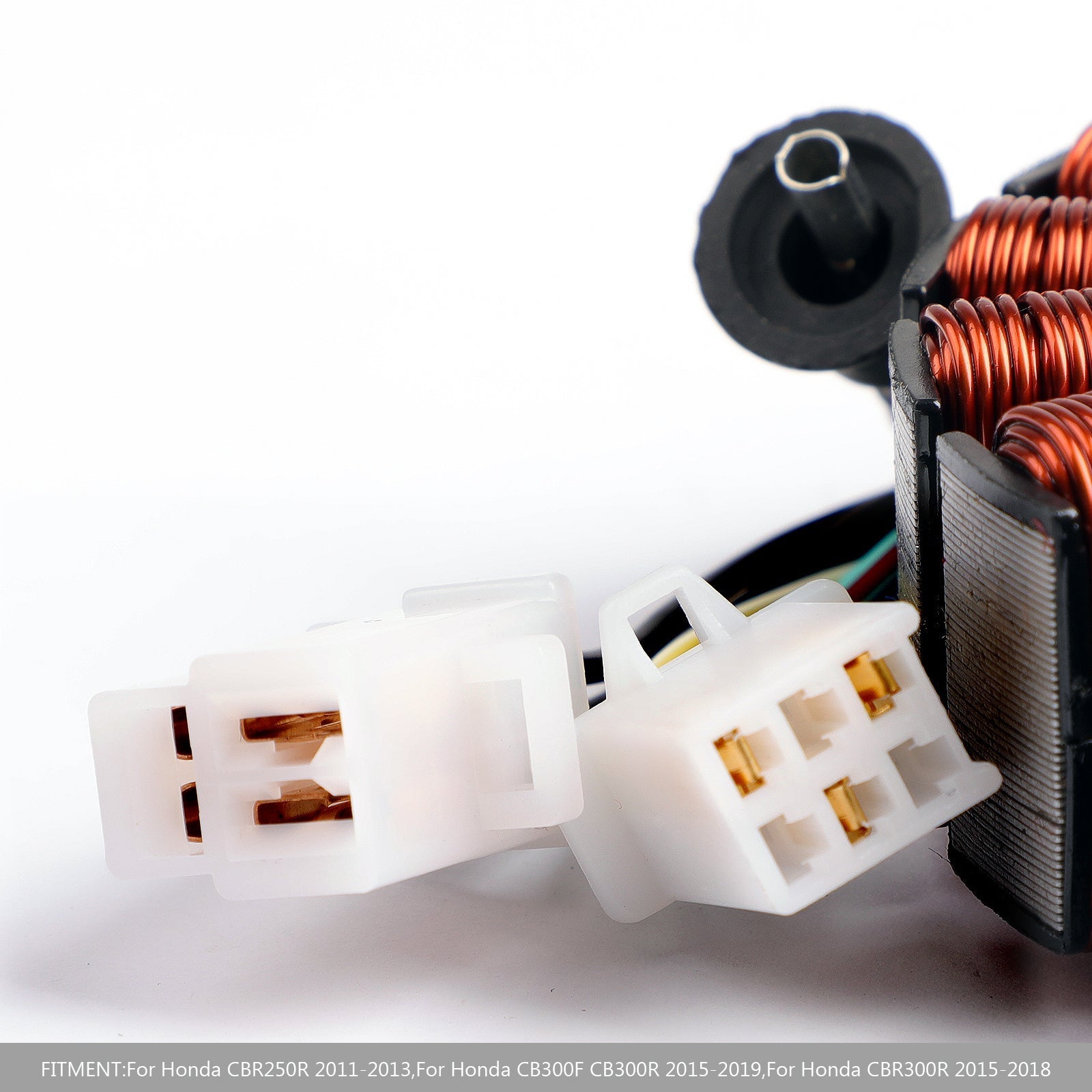

Connector included.
All products shipped are tested.

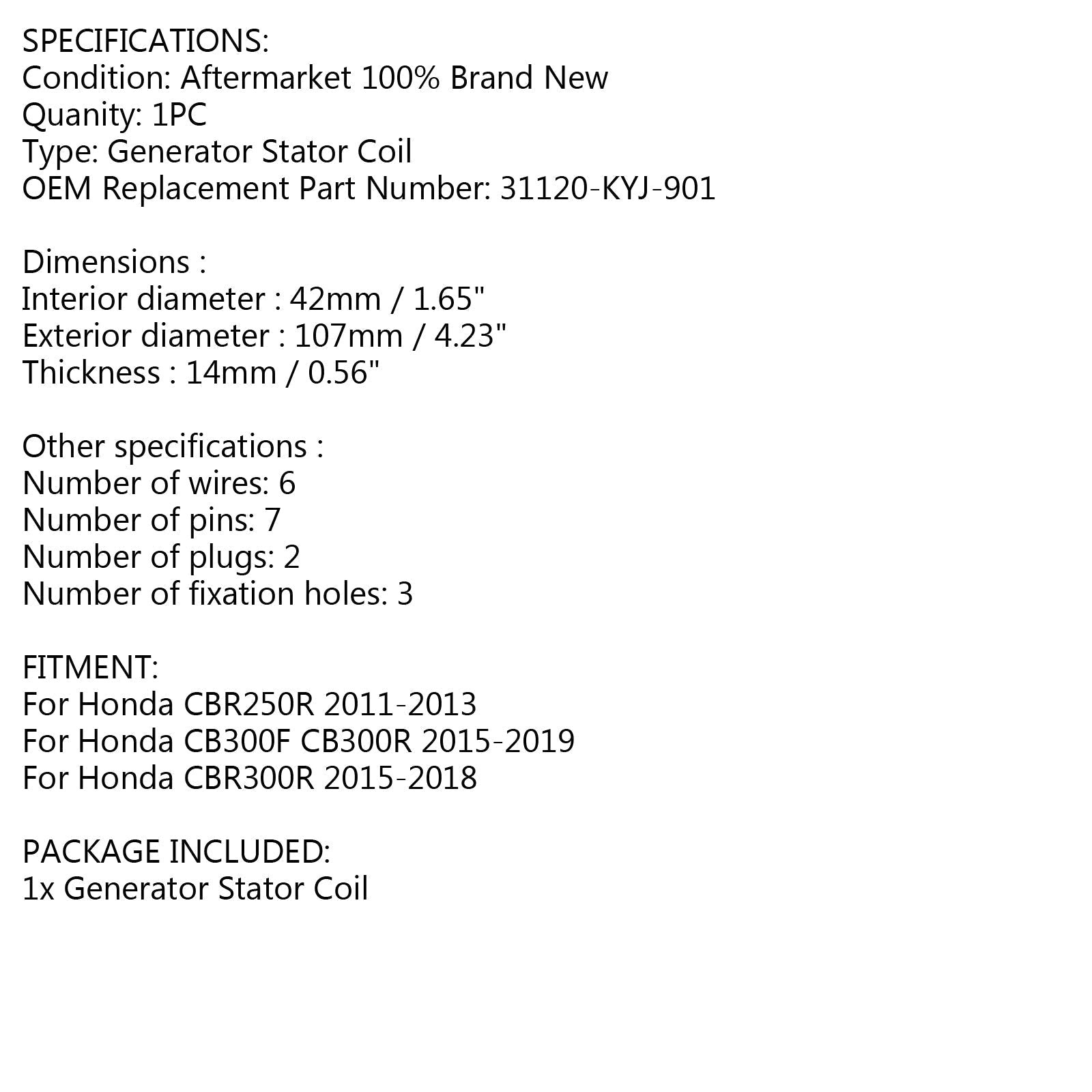

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

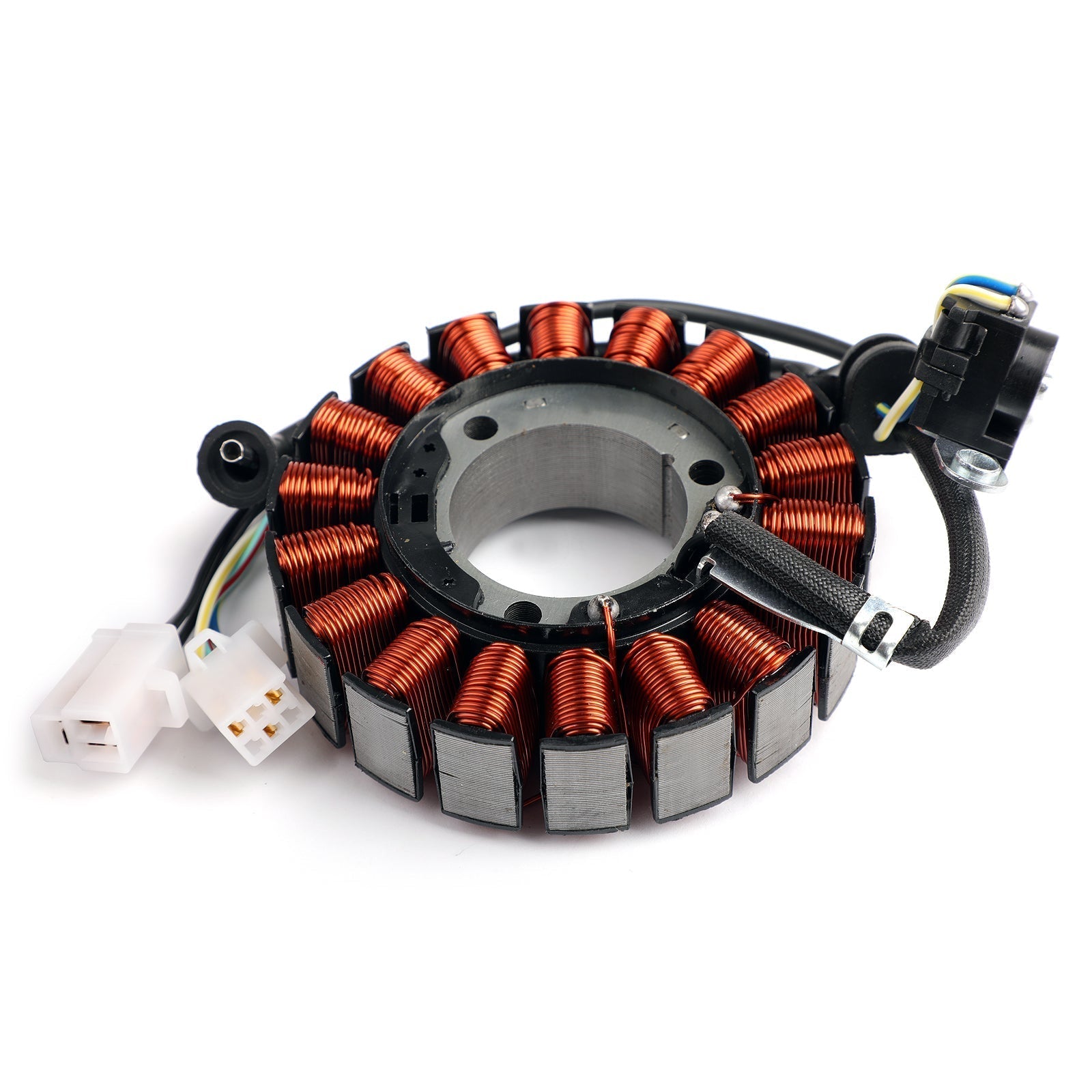

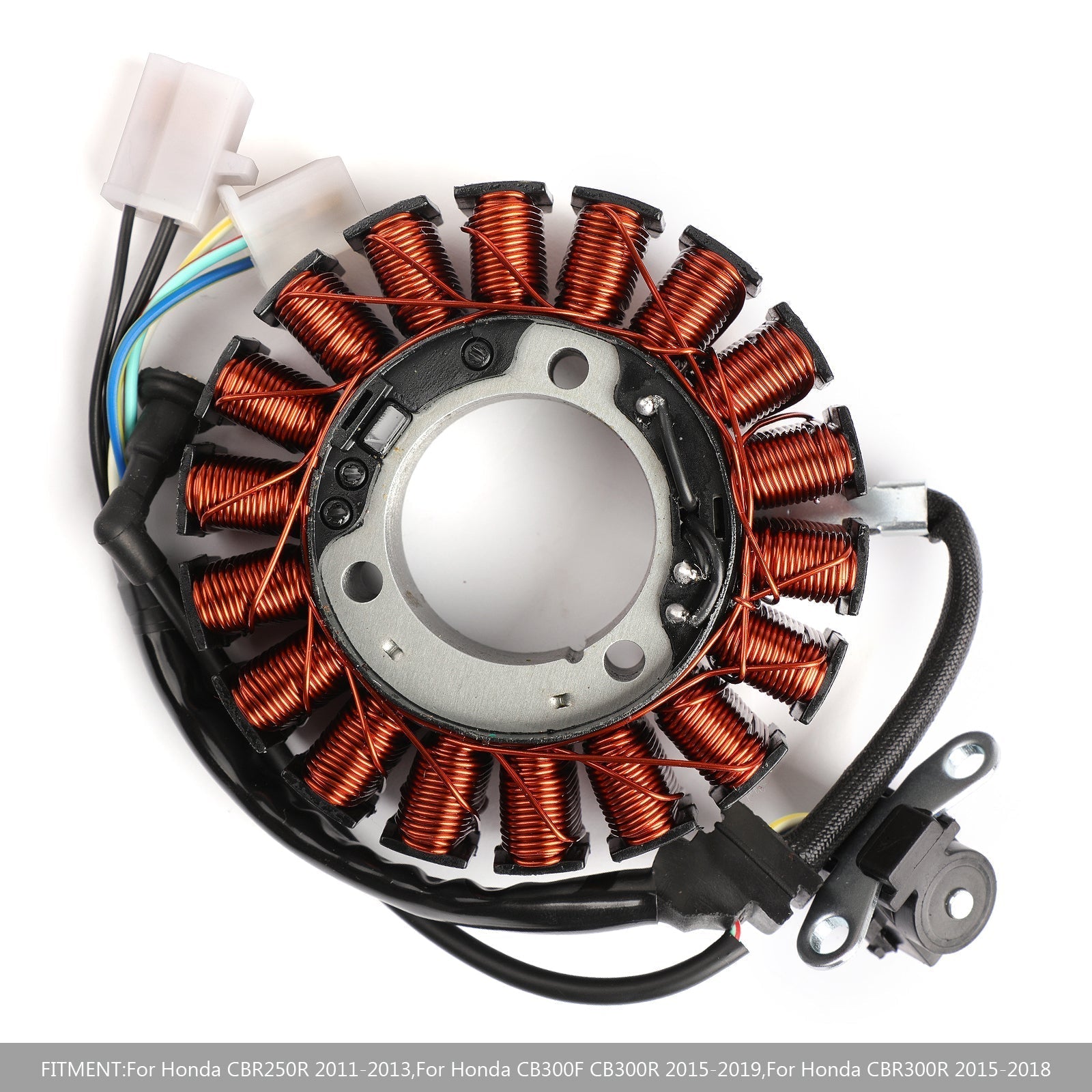

Type: Generator Stator Coil
OEM Replacement Part Number: 31120-KYJ-901

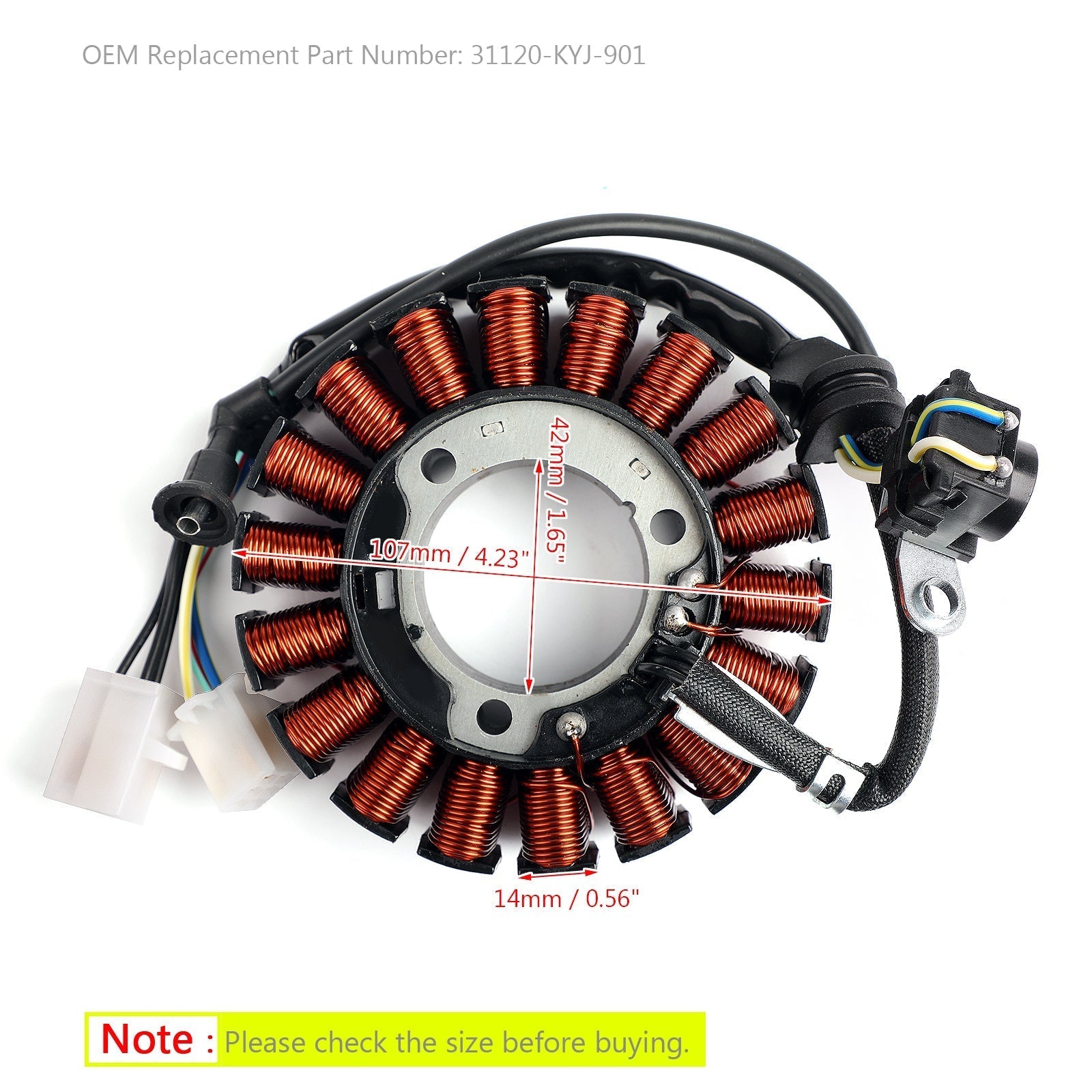

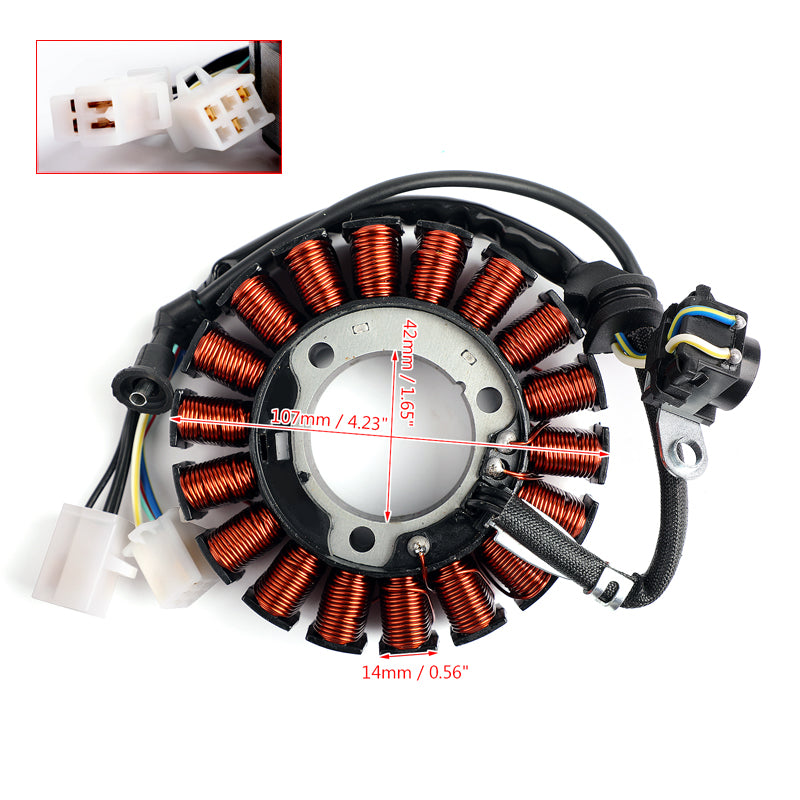

Dimensions :
Interior diameter : 42mm / 1.65"
Exterior diameter : 107mm / 4.23"
Thickness : 14mm / 0.56"

Other specifications :
Number of wires: 6
Number of pins: 7
Number of plugs: 2
Number of fixation holes: 3

FITMENT:
For Honda CBR250R 2011-2013
For Honda CB300F CB300R 2015-2019
For Honda CBR300R 2015-2018

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
