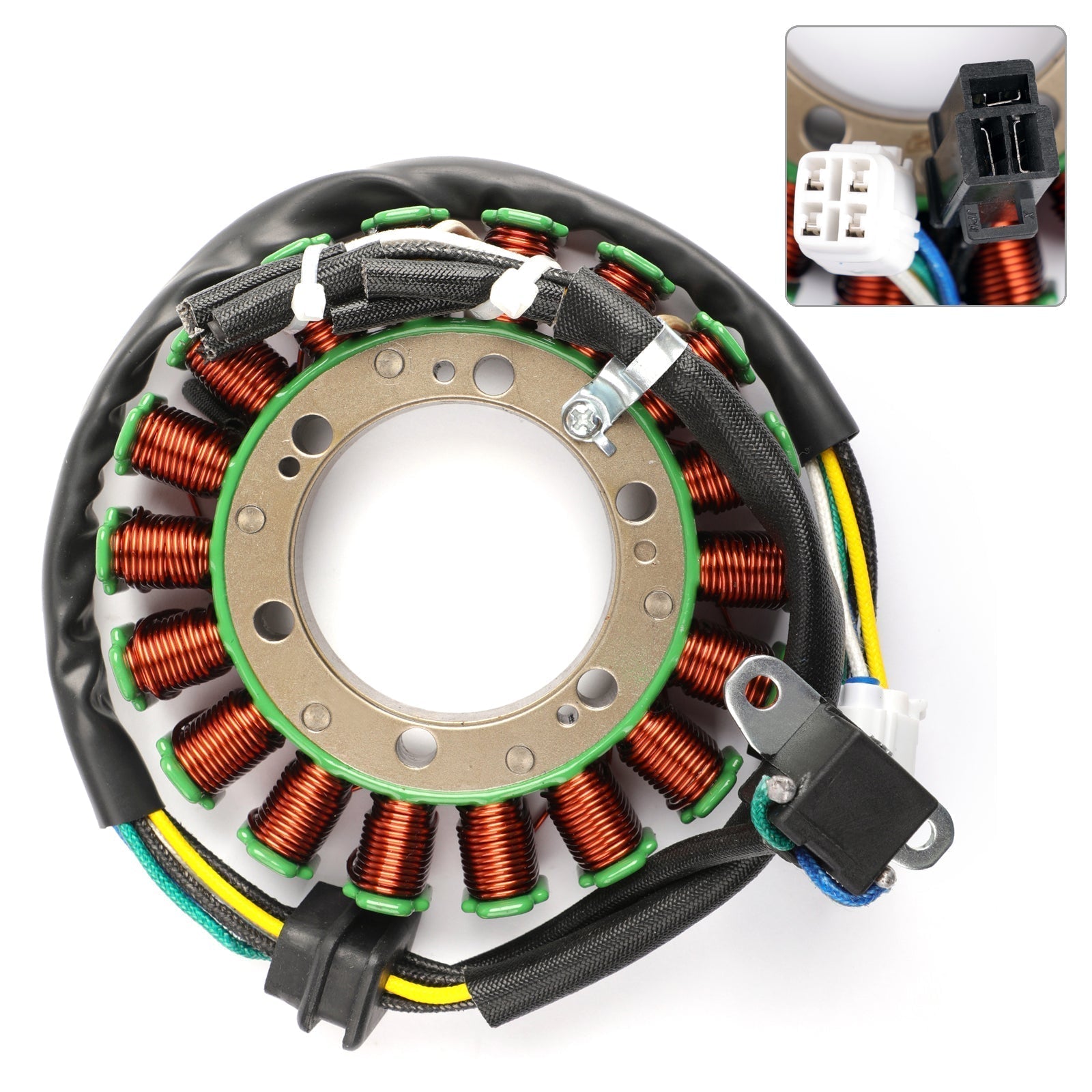

Magneto Generator Engine Stator Coil For Arctic Cat ATV 375 400 650 TBX/TRV 400 650 Suzuki LTA400 Eiger 2002-2008

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number:
Suzuki 32102-38F01
Suzuki 32101-38F00
Arctic Cat 3430-053
Arctic Cat 0802-037

Dimensions :
Interior diameter : 54mm / 2.12"
Exterior diameter : 118mm / 4.66"
Thickness : 15mm / 0.58"

Other specifications :
Number of wires : 7
Number of pins : 7
Number of plugs : 2
Number of fixation holes: 6(+3)

FITMENT:
Fits Suzuki LTA400 Eiger Auto 2WD 2002-2007
Fits Suzuki LTA400 Eiger Auto 4WD 2002-2007
Fits Suzuki LTF400 Eiger 2WD 2002-2007
Fits Suzuki LTF400 Eiger 4WD 2002-2007
Fits Arctic Cat ATV 400 4X4 AUTOMATIC TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400 4X4 MANUAL TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400 FIS 2X4 AUTOMATIC TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400 FIS 4X4 AUTOMATIC TRANSMISSION 2003-2008
Fits Arctic Cat ATV 400 VP 4X4 AUTOMATIC TRANSMISSION 2005-2006
Fits Arctic Cat ATV 400 VP 4X4 MANUAL TRANSMISSION 2005-2006
Fits Arctic Cat ATV 400/500 FIS 2X4 MANUAL TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400/500 FIS 4X4 MANUAL TRANSMISSION 2005-2008
Fits Arctic Cat ATV 375 375 AUTO 4X4 2002
Fits Arctic Cat ATV 375 375 AUTO 2X4 2002
Fits Arctic Cat ATV 650 H1 2010-2012
Fits Arctic Cat ATV 650 H1 FIS 2005-2008
Fits Arctic Cat MudPro 650 H1 2010-2011
Fits Arctic Cat Prowler 650 H1 XT 2006-2009
Fits Arctic Cat TBX 400 4X4 AUTOMATIC TRANSMISSION 2004-2006
Fits Arctic Cat TBX 650 H1 2007/2009
Fits Arctic Cat TRV 400 AUTO 2006-2008
Fits Arctic Cat TRV 400 AUTO 2006-2008
Fits Arctic Cat TRV 650 H1 2007-2009

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
