FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included

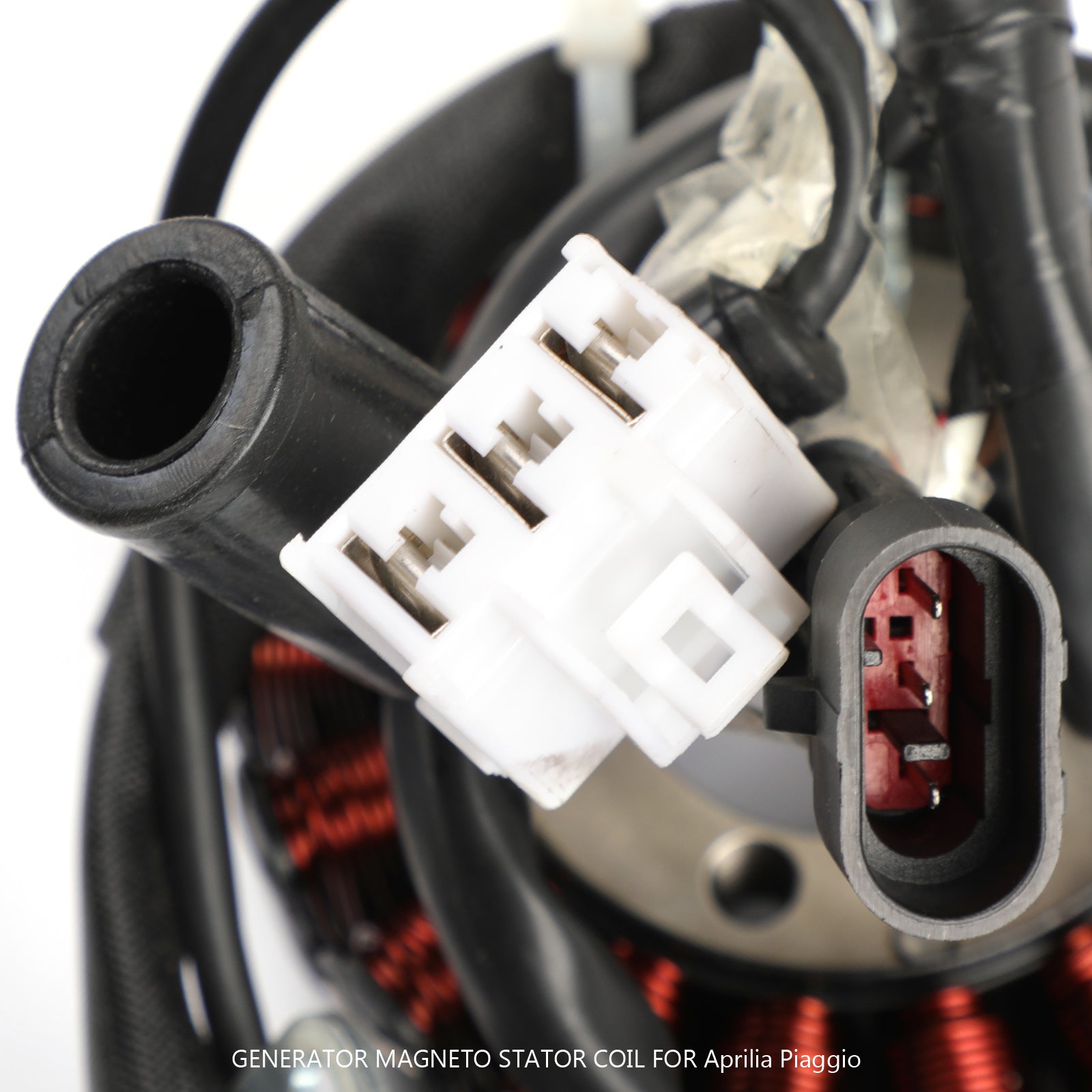

Connector included
All products shipped are tested

SPECIFICATIONS:
Condition: 100% Brand New
Quantity: 1 PC

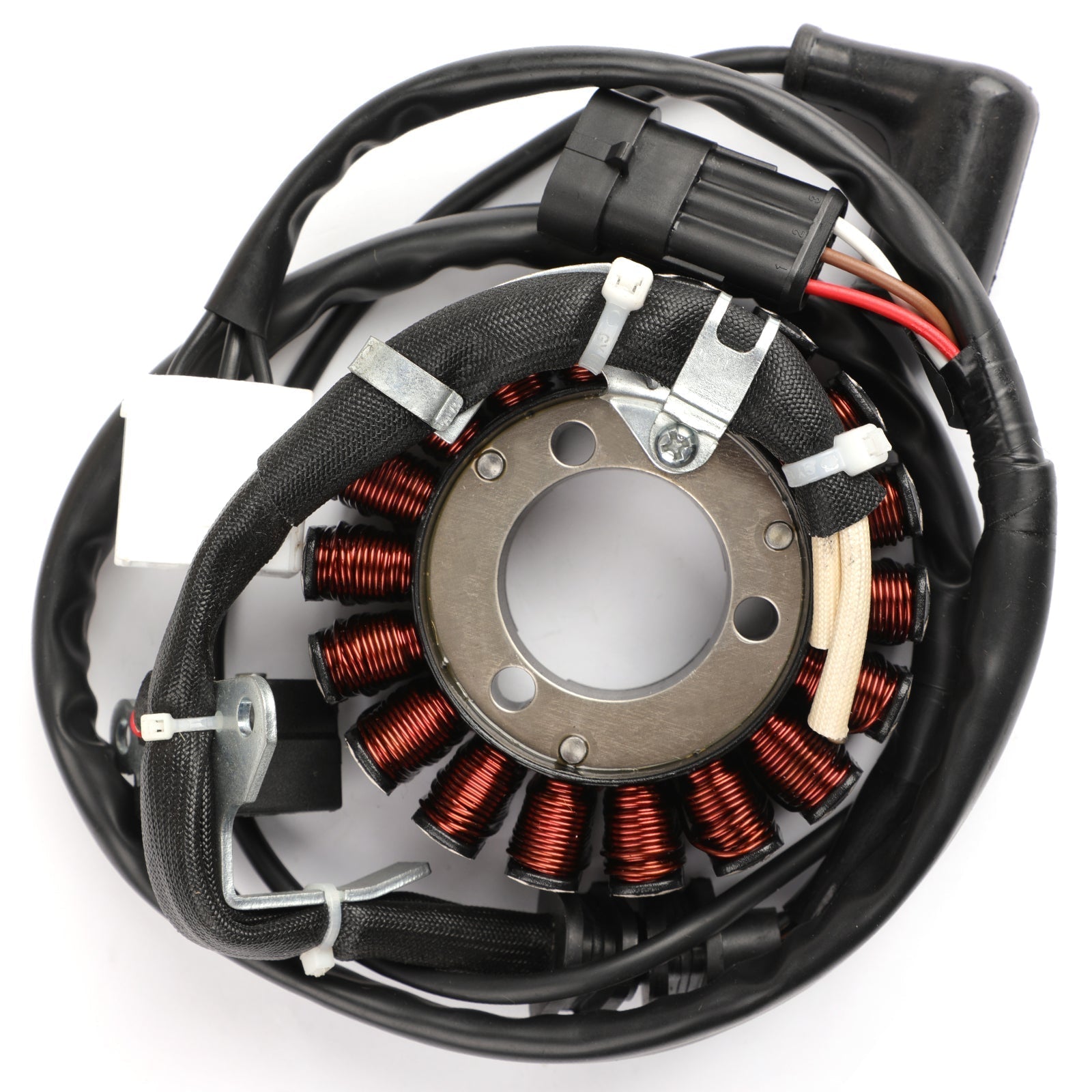

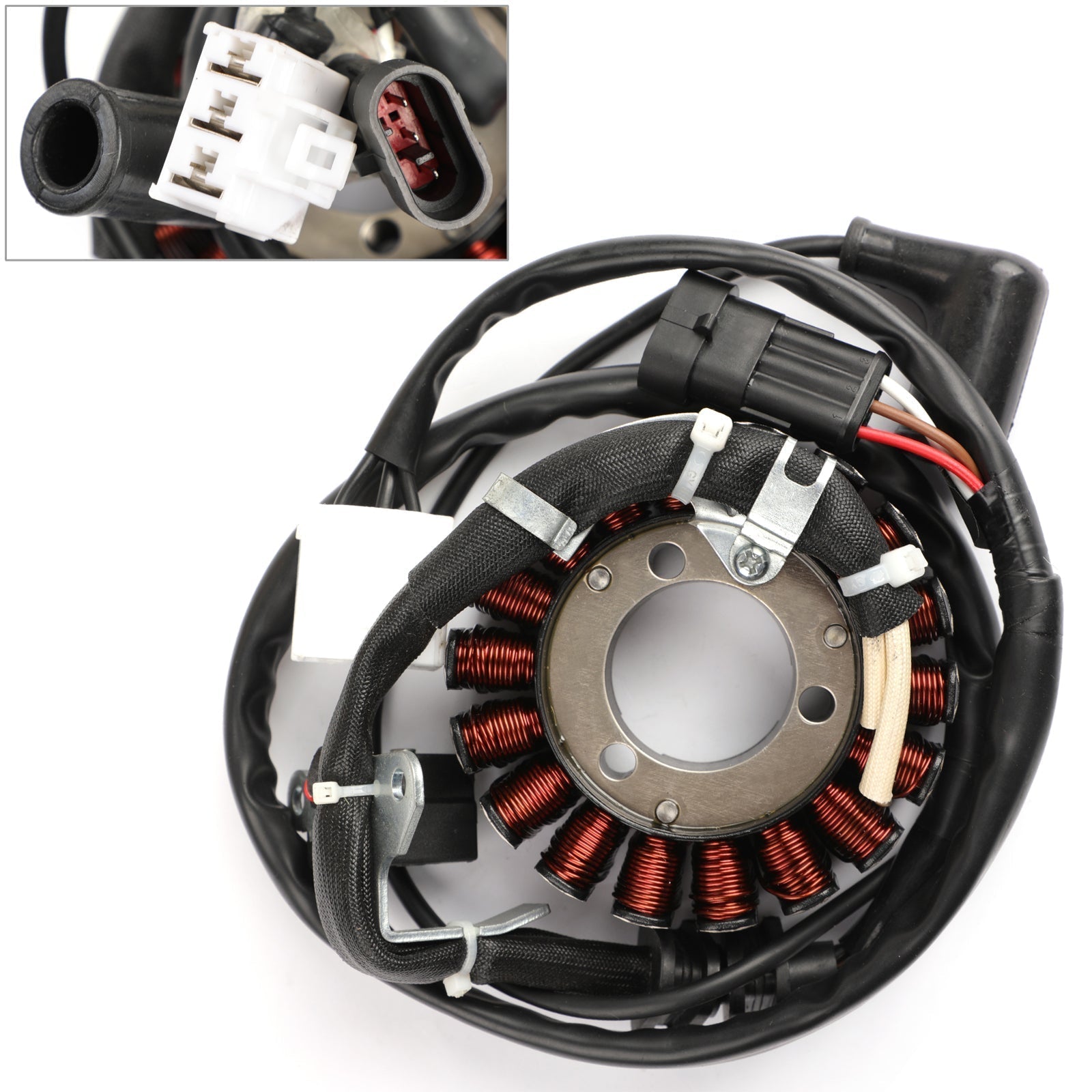

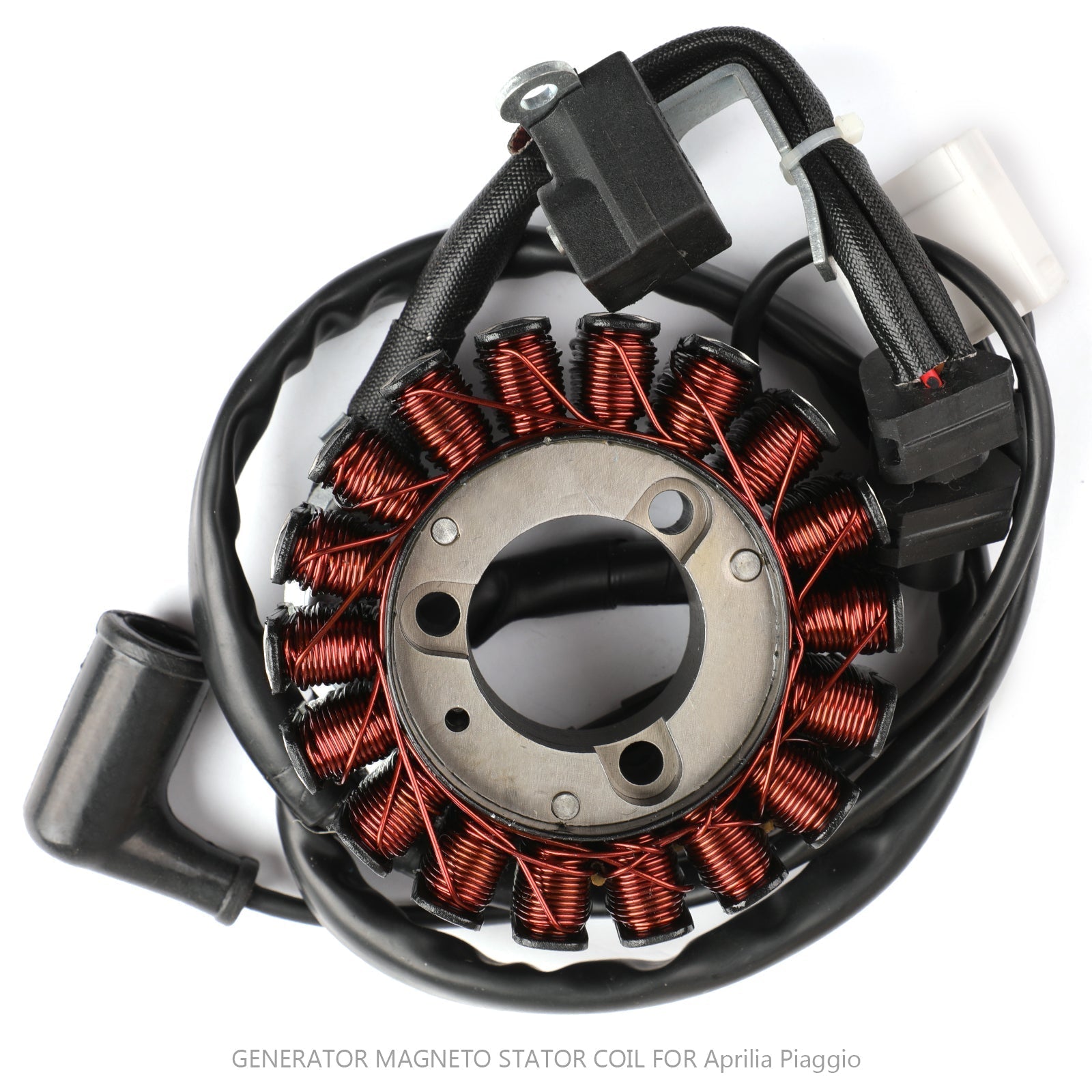

Type: Generator Stator Coil
OEM Replacement Part Number: 58202R

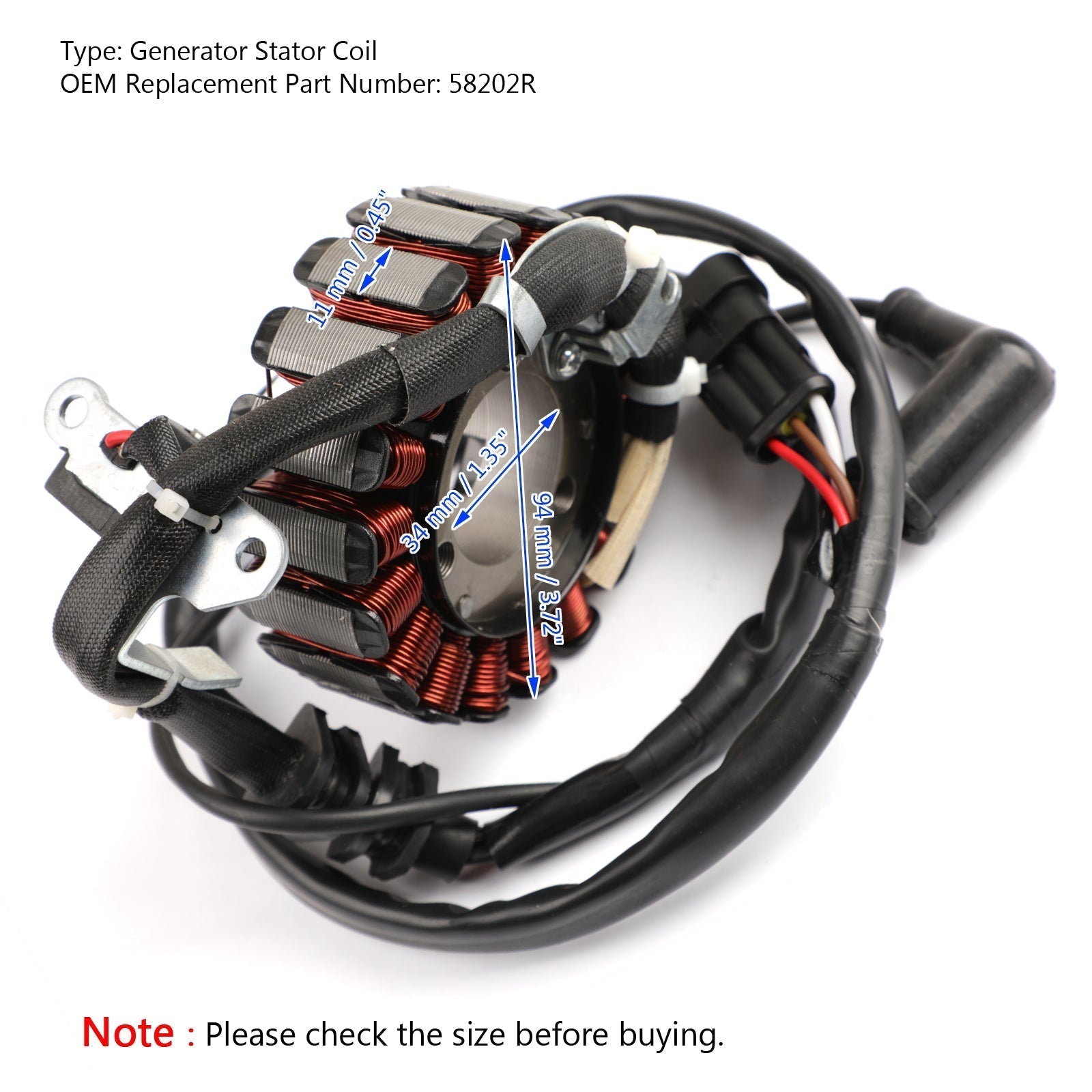

Dimensions :
Interior diameter : 34 mm / 1.35"
Exterior diameter : 94 mm / 3.72"
Thickness : 11 mm / 0.45"

Other specifications :
Number of wires : 6
Number of pins : 7
Number of plugs : 3
Number of fixation holes: 3

FITMENT:
Fits Piaggio VESPA GTS300 20 2009-2017
Fits Piaggio VESPA GTS125 2009-2016
Fits Piaggio VESPA GTS250 2005-2016
Fits Piaggio VESPA GTS250 ABS 2006-2009
Fits Piaggio VESPA GTS 250 IE 2011-2013
Fits Piaggio VESPA GTV250 2007-2011
Fits Piaggio VESPA GTV300 2009-2016
Fits Piaggio Beverly 500 2007
Fits Piaggio Beverly 300 2010-2017
Fits Piaggio Beverly 250 i.e 2007-2009
Fits Piaggio Beverly 125 2010-2015
Fits Piaggio Beverly Cruiser 250 2007-2008
Fits Piaggio Beverly Tourer 250 E3 2008-2009
Fits Piaggio MP3 300 2009-2017
Fits Piaggio MP3 250 LT 2009-2010
Fits Piaggio MP3 250 MIC 2009-2010
Fits Piaggio MP3 250 2007-2008
Fits Piaggio MP3 125 2009-2013
Fits Piaggio X7 125 2009
Fits Piaggio X7 250 E3 2008-2010
Fits Piaggio X8 250 2006-2008
Fits Piaggio X7 300 2009
Fits Piaggio X10 125 2012-2015
Fits Piaggio X EVO 250 E3 2006-2008
Fits Piaggio X EVO 250 2007-2010
Fits Aprilia Sportcity 125 2004-2013
Fits Aprilia Sportcity 250 i.e 2007-2008
Fits Aprilia Sportcity 300 i.e 2009-2013
Fits Aprilia Sport City Cube 300 2008-2013
Fits Aprilia Sport City Cube 250 2008-2012
Fits Aprilia Sport city 250 2007-2009
Fits Aprilia Sport city IE 2007-2008
Fits Aprilia Atlantic 300 2010-2012
Fits Aprilia Scarabeo 250 LIGHT IE/E3 2006-2010
Fits Aprilia SR125 MAX125 2011-2015
Fits Aprilia SR300 MAX300 2012-2015
Fits Gilera Nexus 125 IE E3 2009-2014
Fits Gilera Nexus 250 IE E3 2007-2008
Fits Gilera Nexus 300 I.E. E3 2009-2014
Fits Gilera Nexus 500 2004-2005
Fits Malaguti Madison 250 3 2008-2012
Fits Malaguti Madison 250 RS 2007-2007

PACKAGE INCLUDED:
1 x Generator Stator Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
