Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

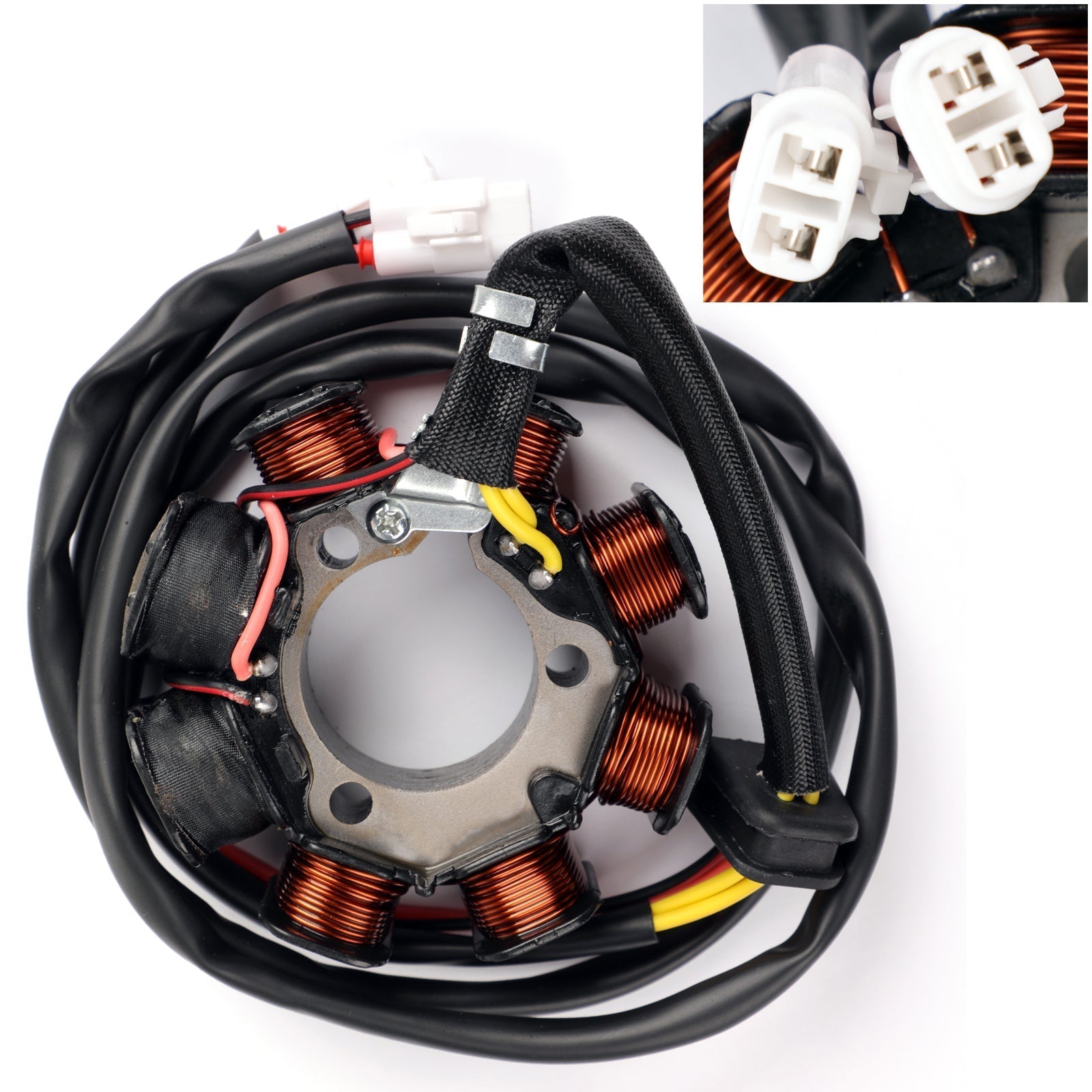

Type: Generator Stator Coil

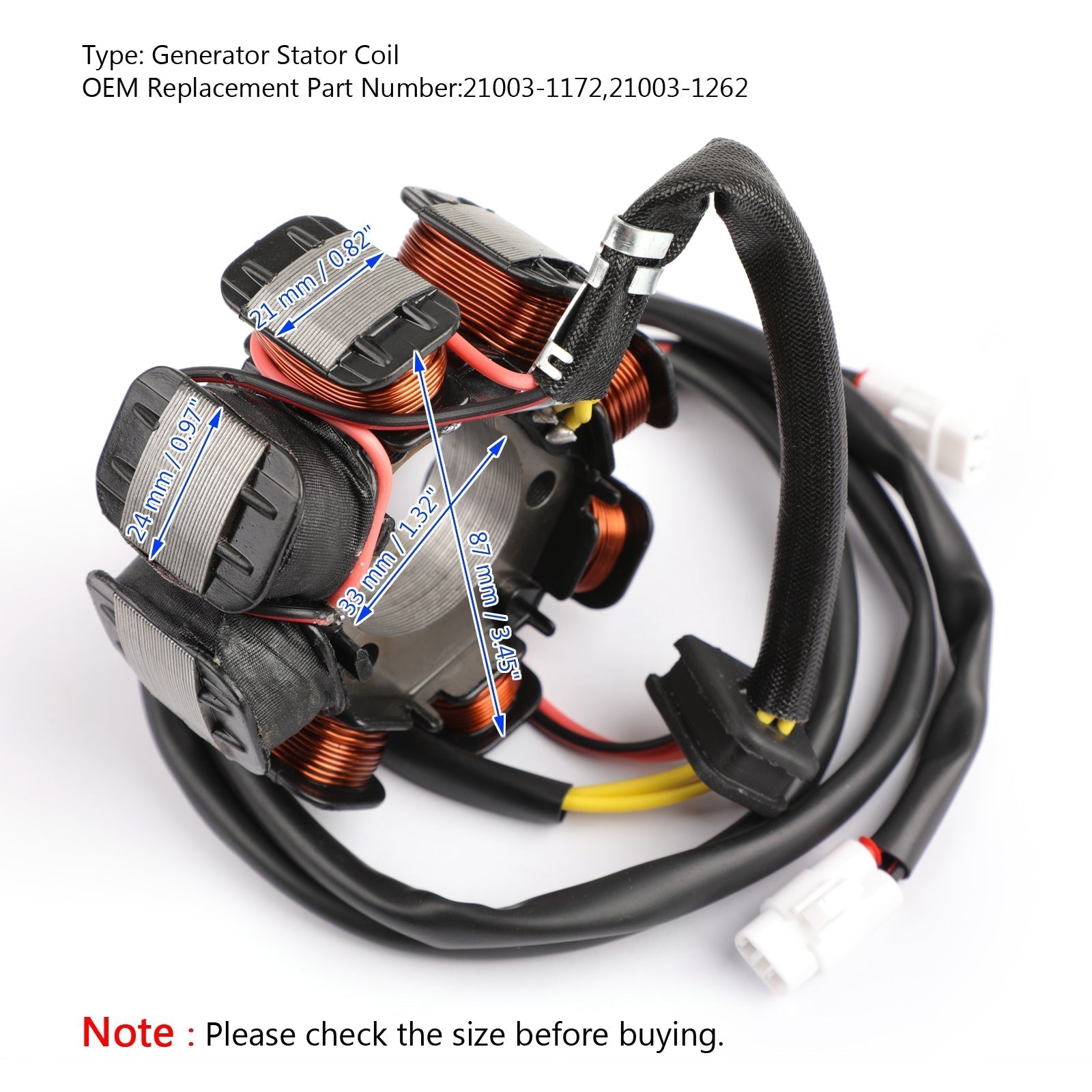

Dimensions :
Interior diameter : 33 mm / 1.32in
Exterior diameter : 87 mm / 3.45in
Thickness 1: 21 mm / 0.82in
Thickness 2: 24 mm / 0.97in

Other Specifications :
Number of wires : 4

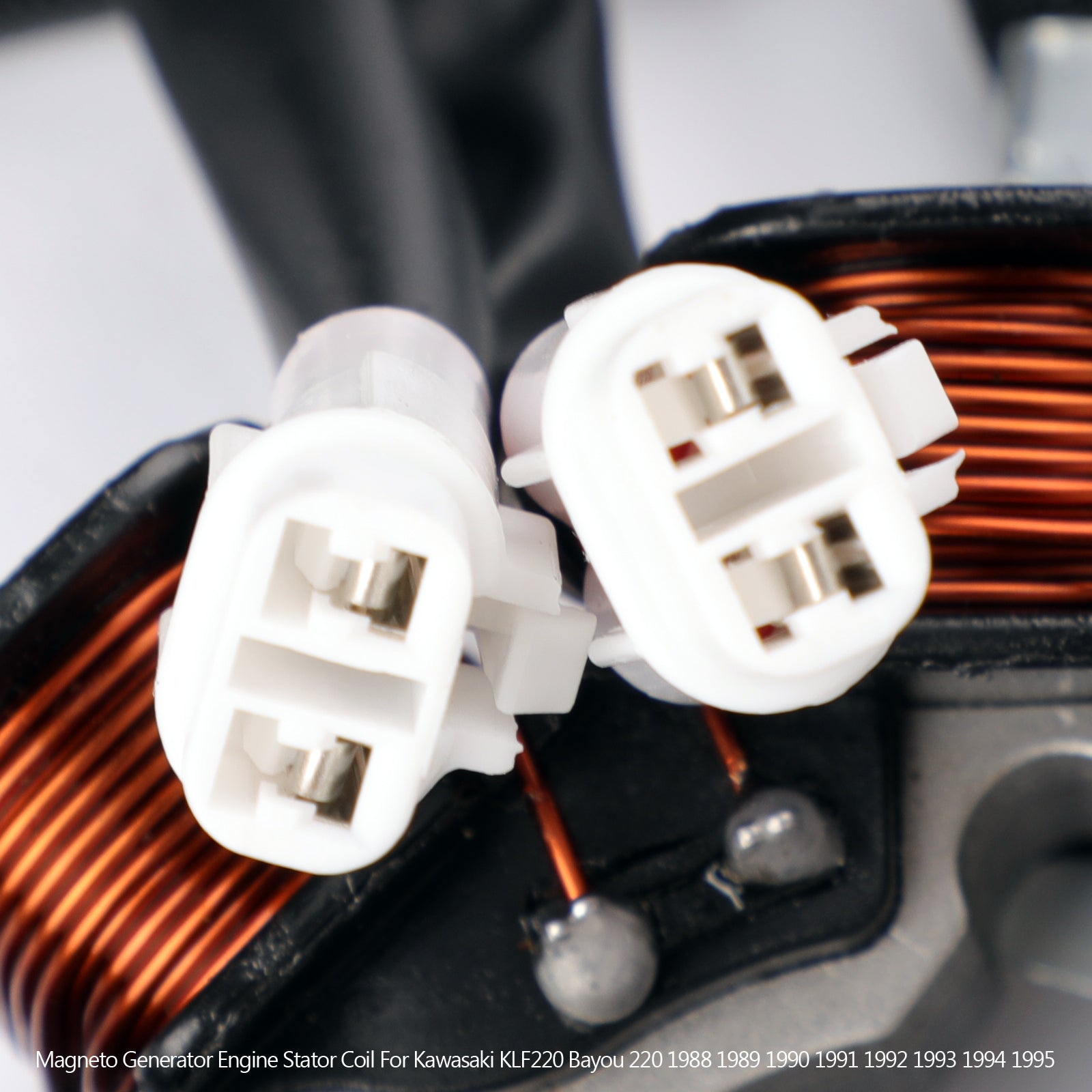

Number of pins : 4
Number of plugs : 2
Number of fixation holes: 3

Replacement Part Number:
21003-1172
21003-1262

Fitments:

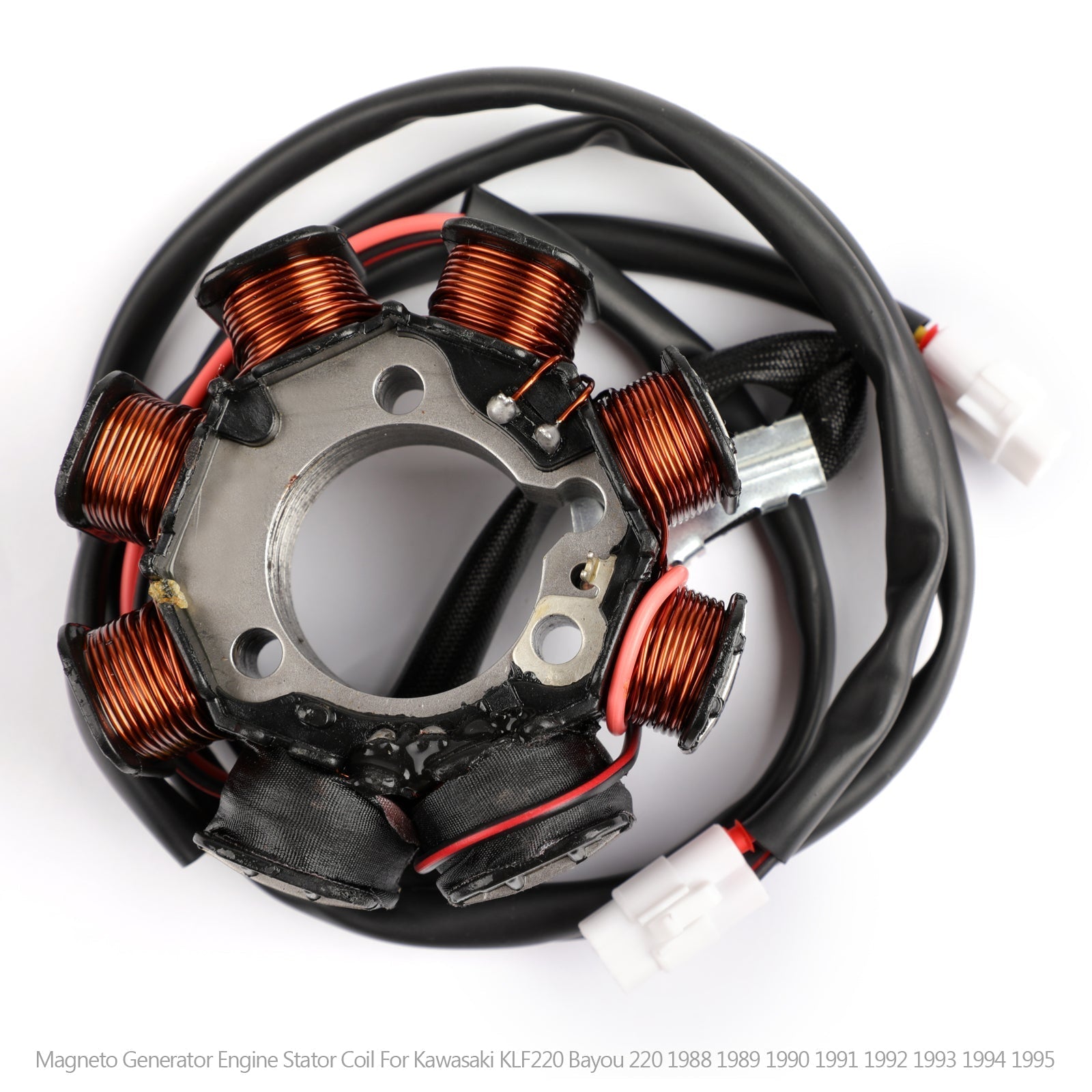

For Kawasaki KLF220 Bayou 220 1988-1995
Package includes:
1x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Warranty:
Returns:Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online:Solve your installation and product problems
