Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

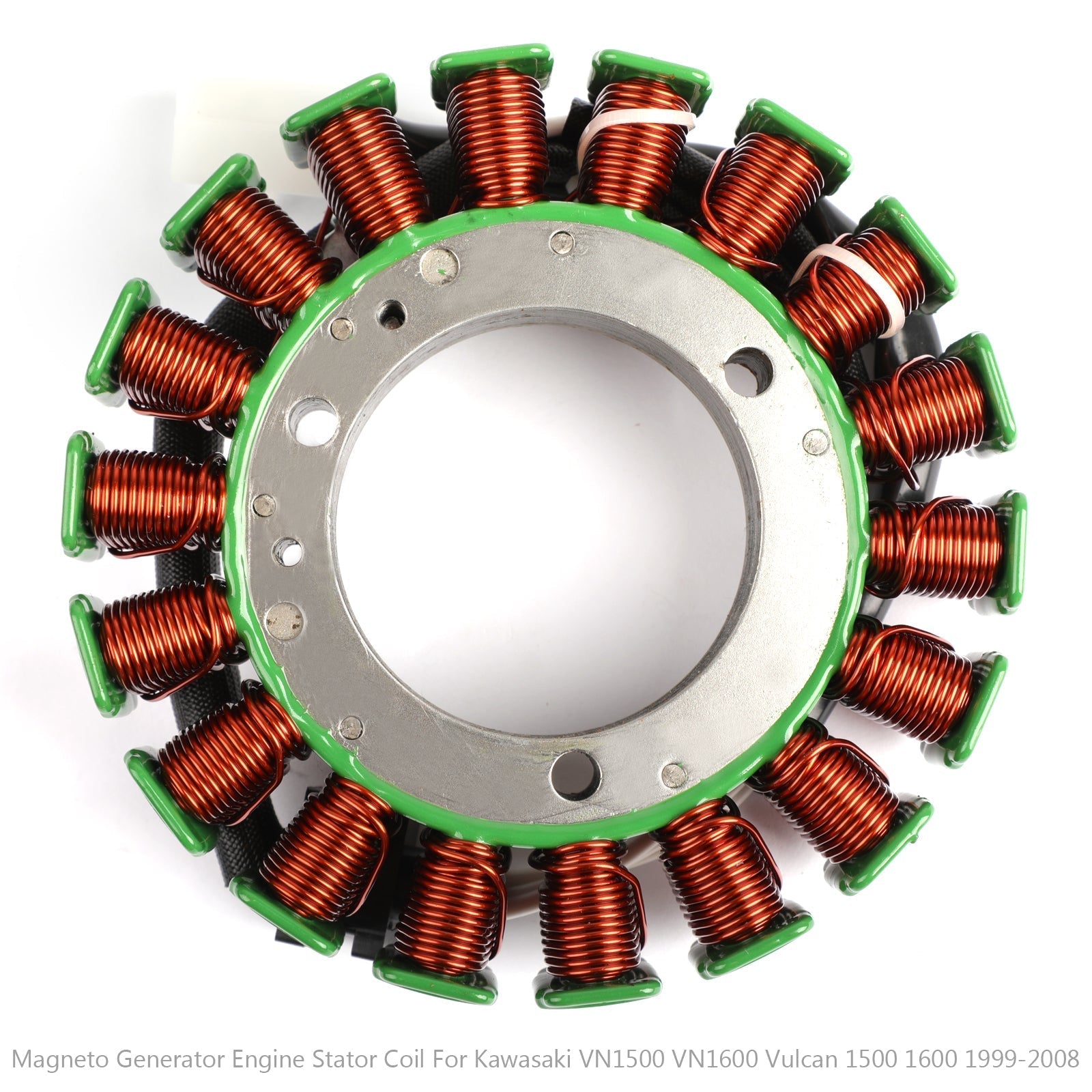

Type: Generator Stator Coil

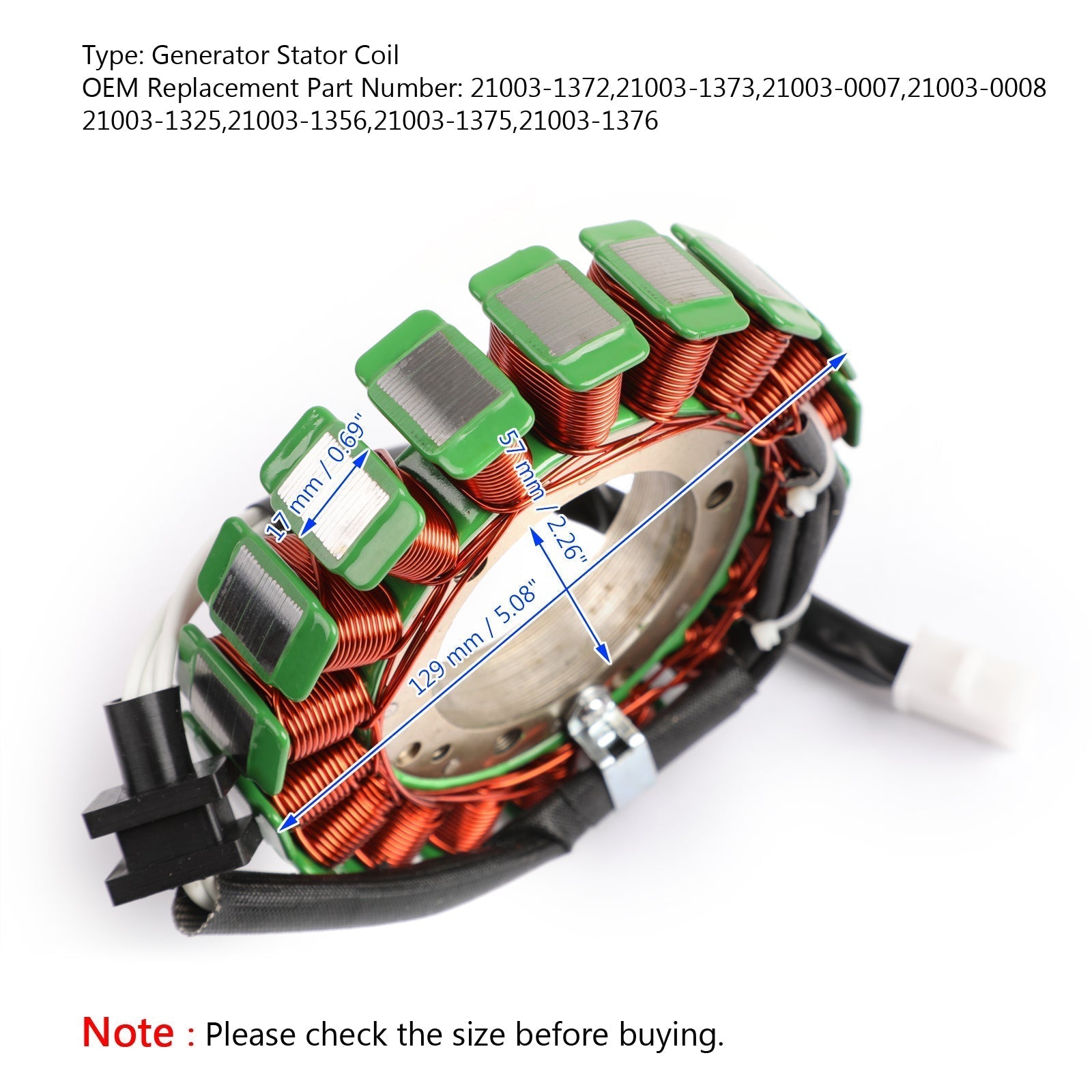

Dimensions :
Interior diameter : 57 mm / 2.26in
Exterior diameter : 129 mm / 5.08in
Thickness : 17 mm / 0.69in

Other Specifications :

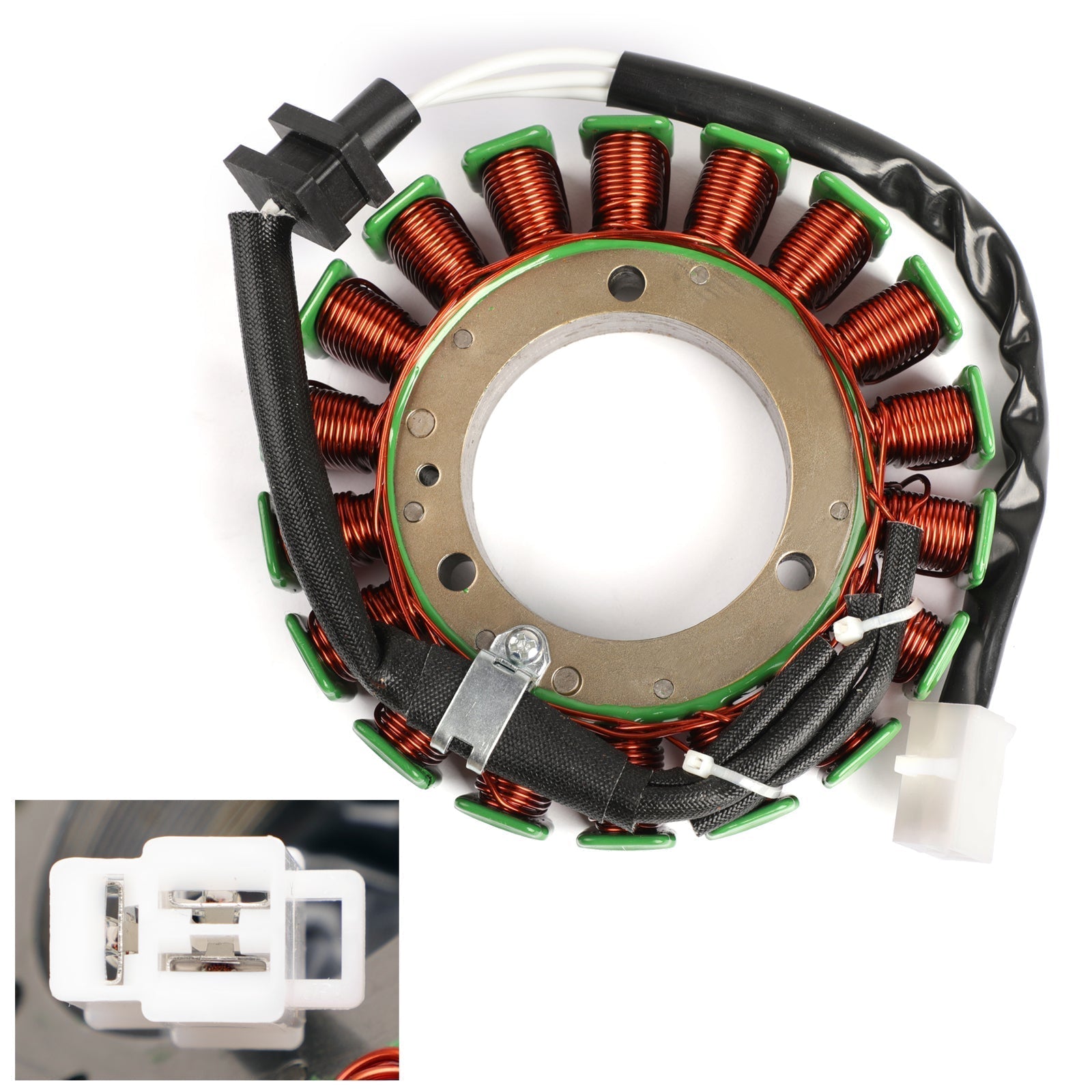

Number of wires : 3

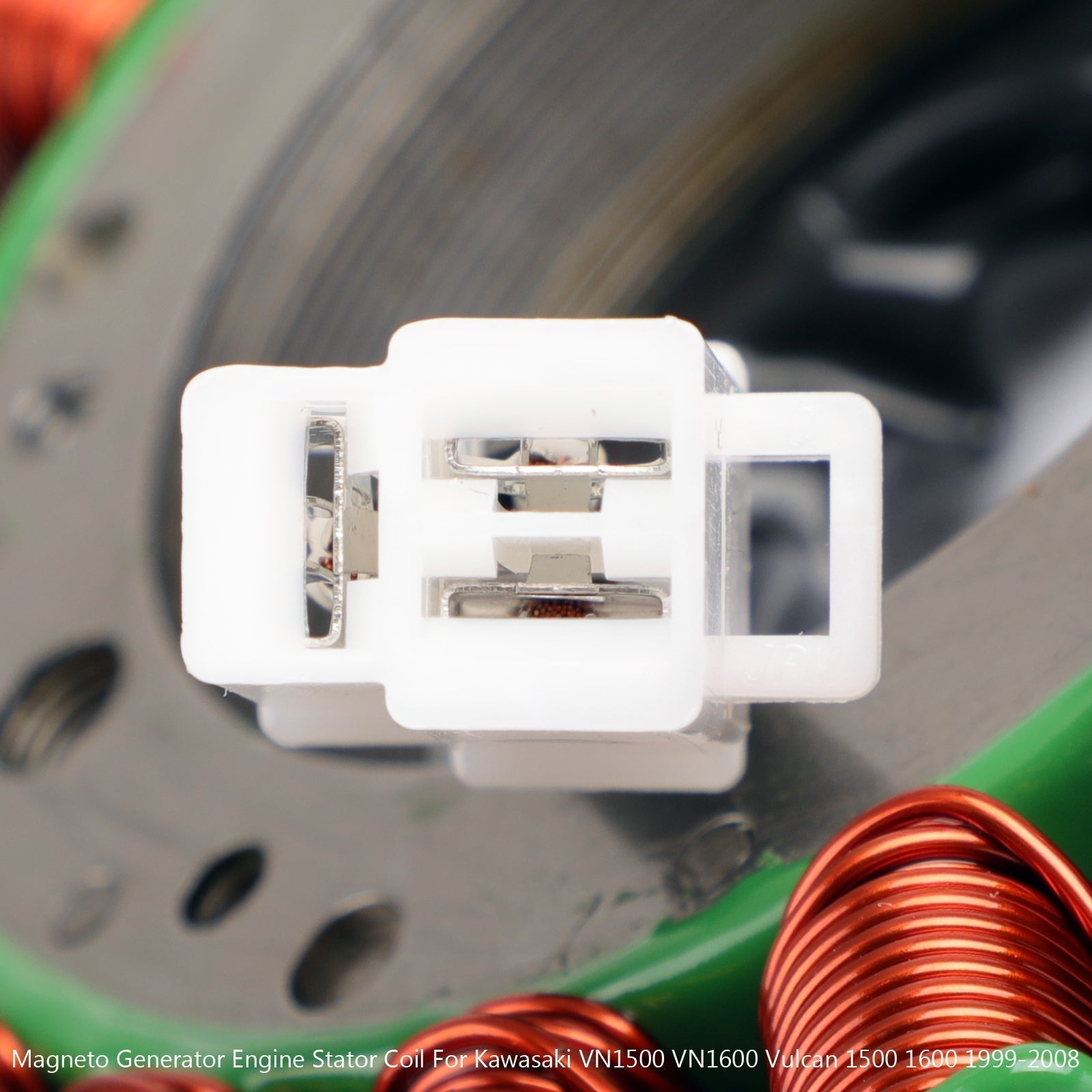

Number of pins : 3
Number of plug : 1
Number of fixation holes: 3

Replacement Part Number:
21003-1372
21003-1373
21003-0007
21003-0008
21003-1325
21003-1356
21003-1375
21003-1376

Fitments:
Fit for Kawasaki VN1500 VN1500 Classic 1999
Fit for Kawasaki VN1500 Vulcan 1500 Classic 2000-2004
Fit for Kawasaki VN1500 Vulcan 1500 Classic FI 2000-2001/2005-2008
Fit for Kawasaki VN1500 VN1500 Classic Tourer 2001
Fit for Kawasaki VN1500 Vulcan 1500 Classic Tourer 1998-2000
Fit for Kawasaki VN1500 Vulcan 1500 Nomad 1999-2000
Fit for Kawasaki VN1500 Vulcan 1500 Nomad Fi 2000-2004
Fit for Kawasaki VN1500 Vulcan 1500 Drifter 2001-2005
Fit for Kawasaki VN1500 VN1500 Mean Streak 2002-2003
Fit for Kawasaki VN1600 Vulcan 1600 Mean Streak 2004-2008
Fit for Kawasaki VN1600 Vulcan 1600 Nomad 2005-2008
Fit for Kawasaki VN1600 Vulcan 1600 Classic 2003-2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Includes:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
