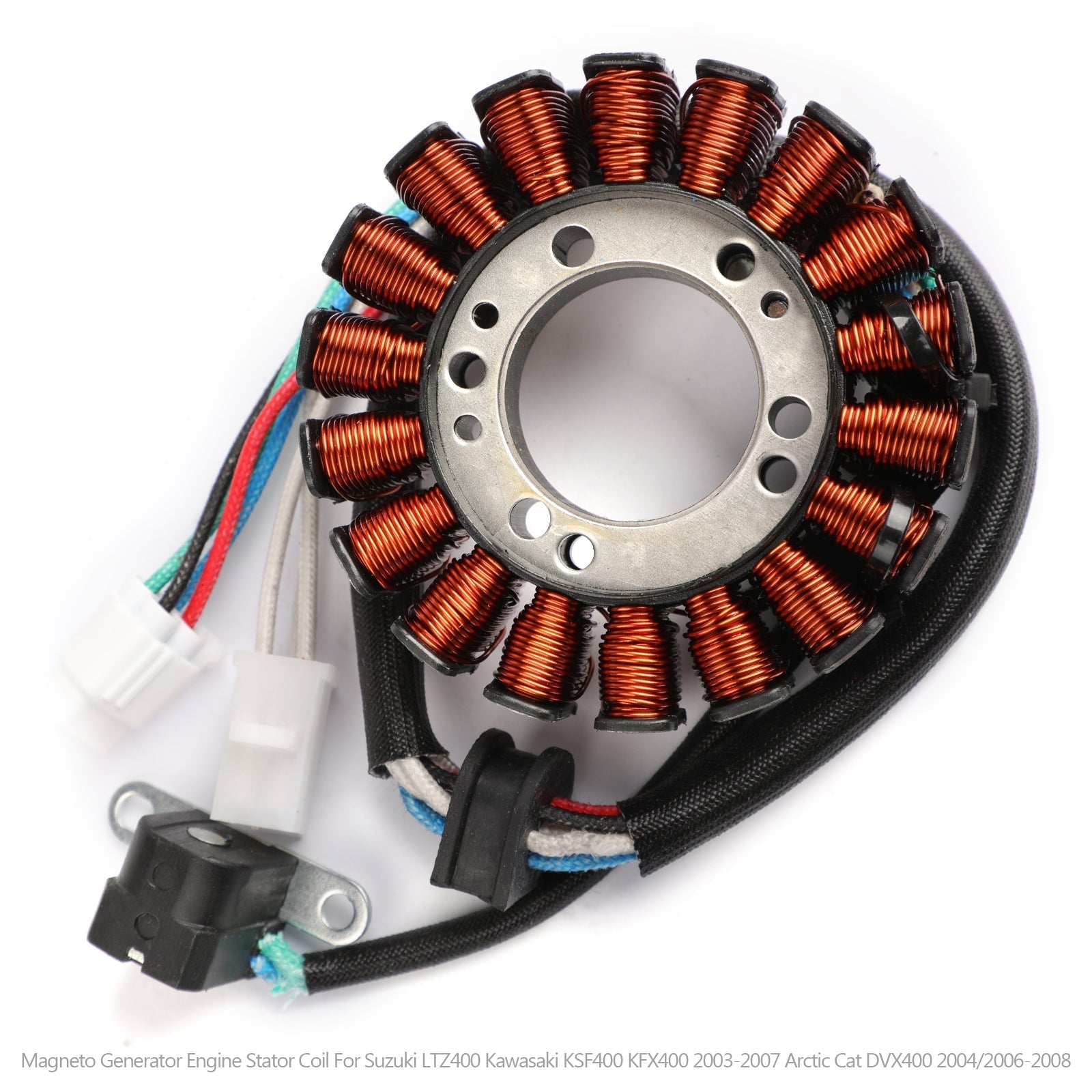

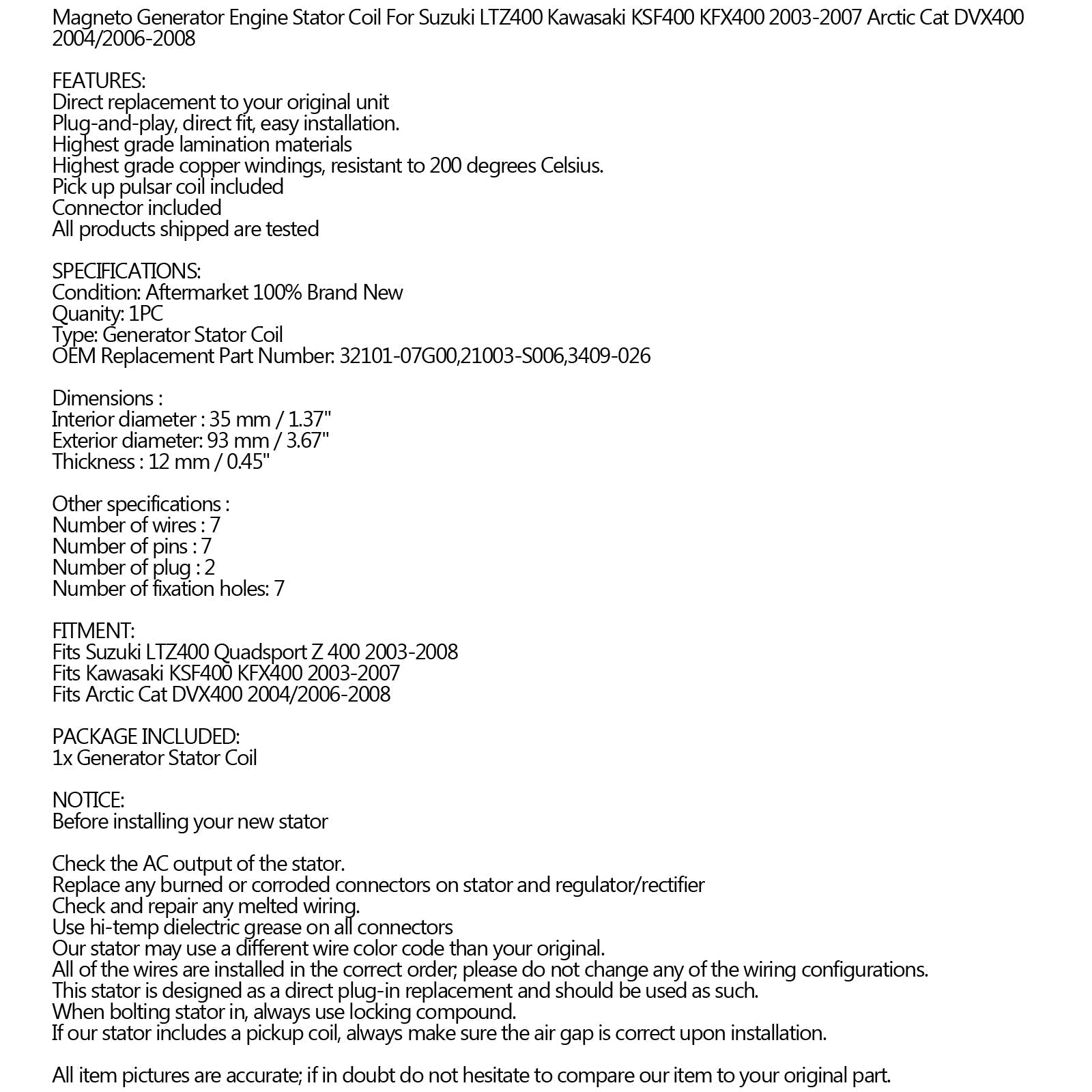

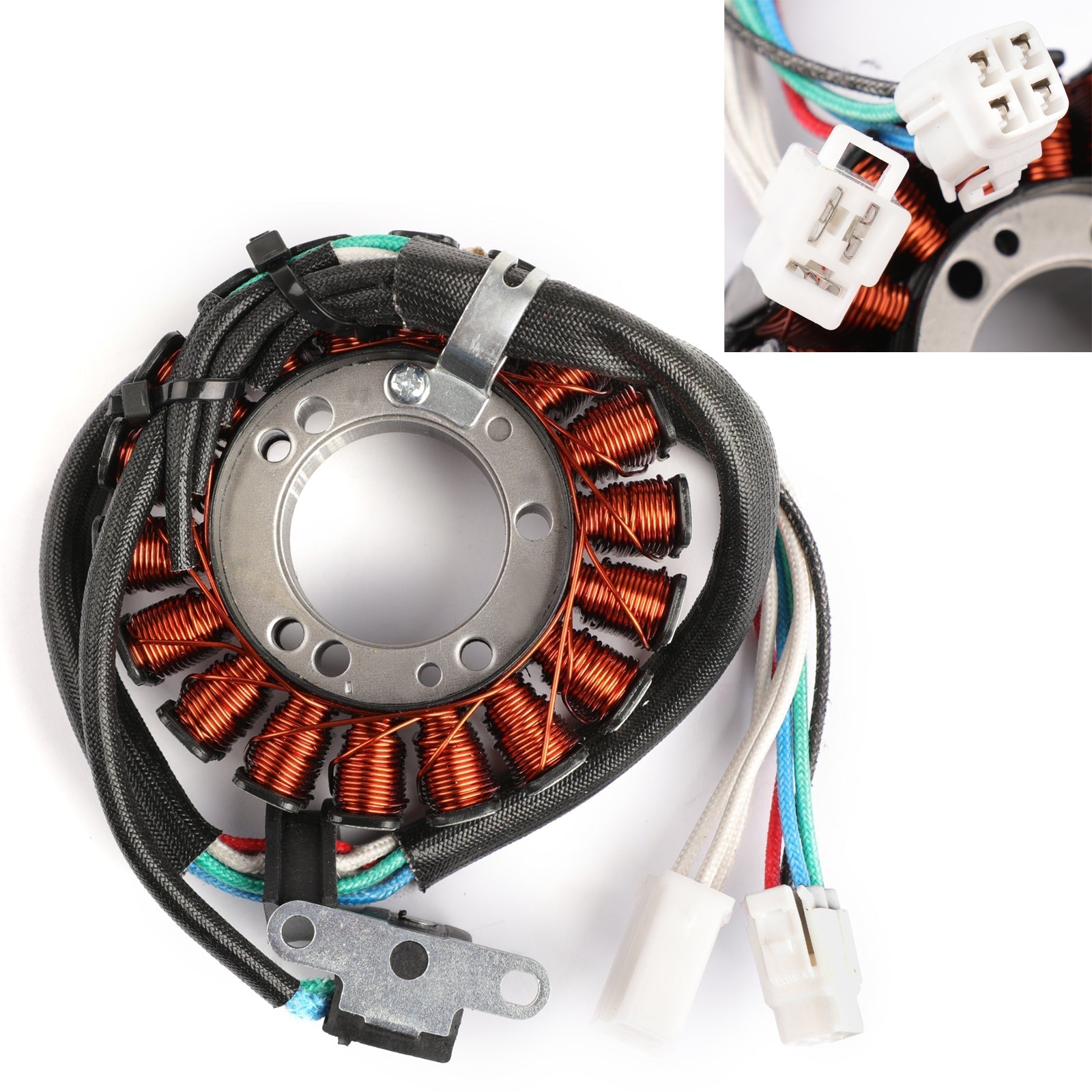

Magneto Generator Engine Stator Coil For Suzuki LTZ400 Kawasaki KSF400 KFX400 2003-2007 Arctic Cat DVX400 2004/2006-2008

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

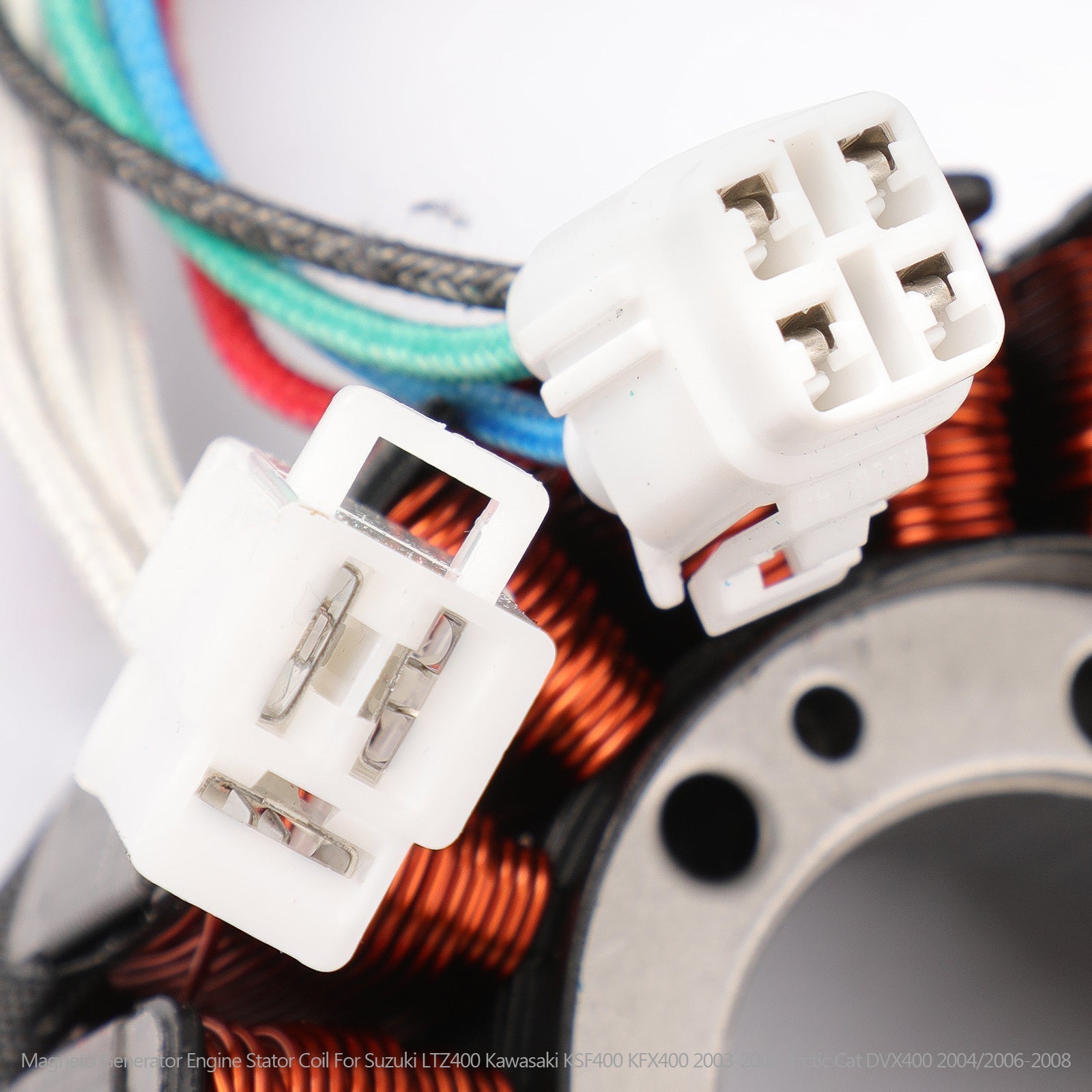

Connector included
All products shipped are tested

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

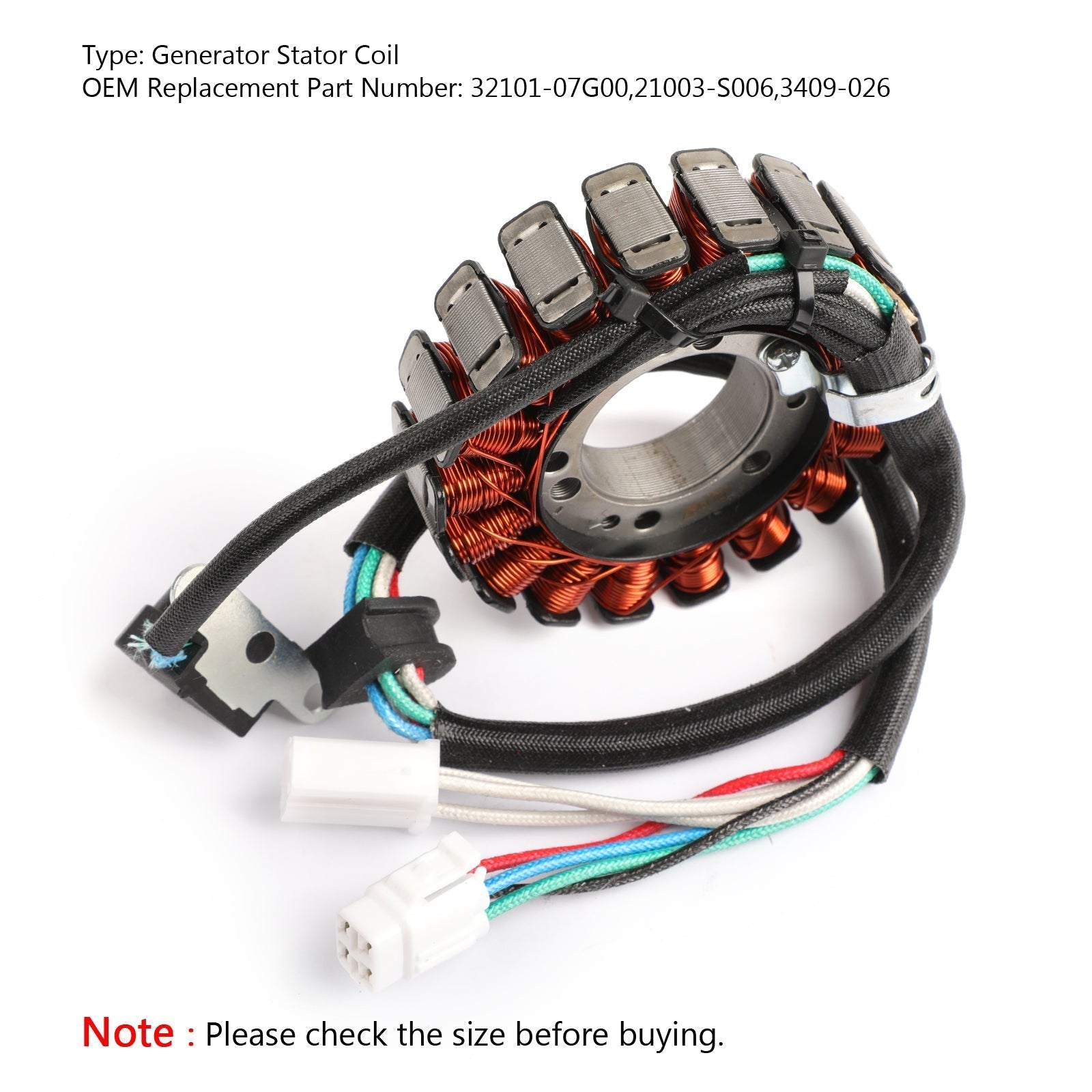

Type: Generator Stator Coil
OEM Replacement Part Number: 32101-07G00,21003-S006,3409-026

Dimensions :
Interior diameter : 35 mm / 1.37"
Exterior diameter : 93 mm / 3.67"
Thickness : 12 mm / 0.45"

Other specifications :
Number of wires : 7
Number of pins : 7
Number of plug : 2
Number of fixation holes: 7

FITMENT:
Fits Suzuki LTZ400 Quadsport Z 400 2003-2008
Fits Kawasaki KSF400 KFX400 2003-2007
Fits Arctic Cat DVX400 2004/2006-2008

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
