Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

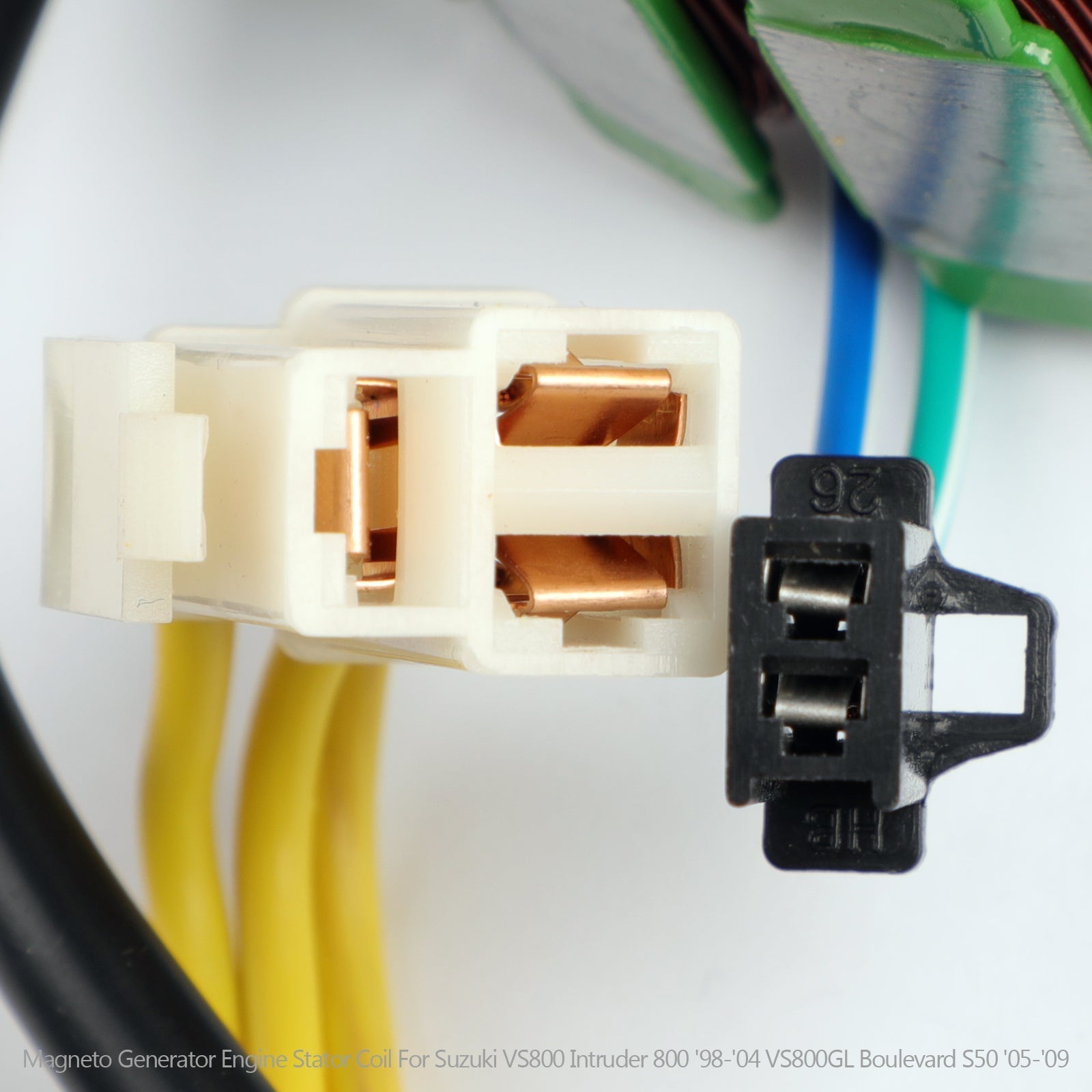

Connector included
All products shipped are tested

Specification:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

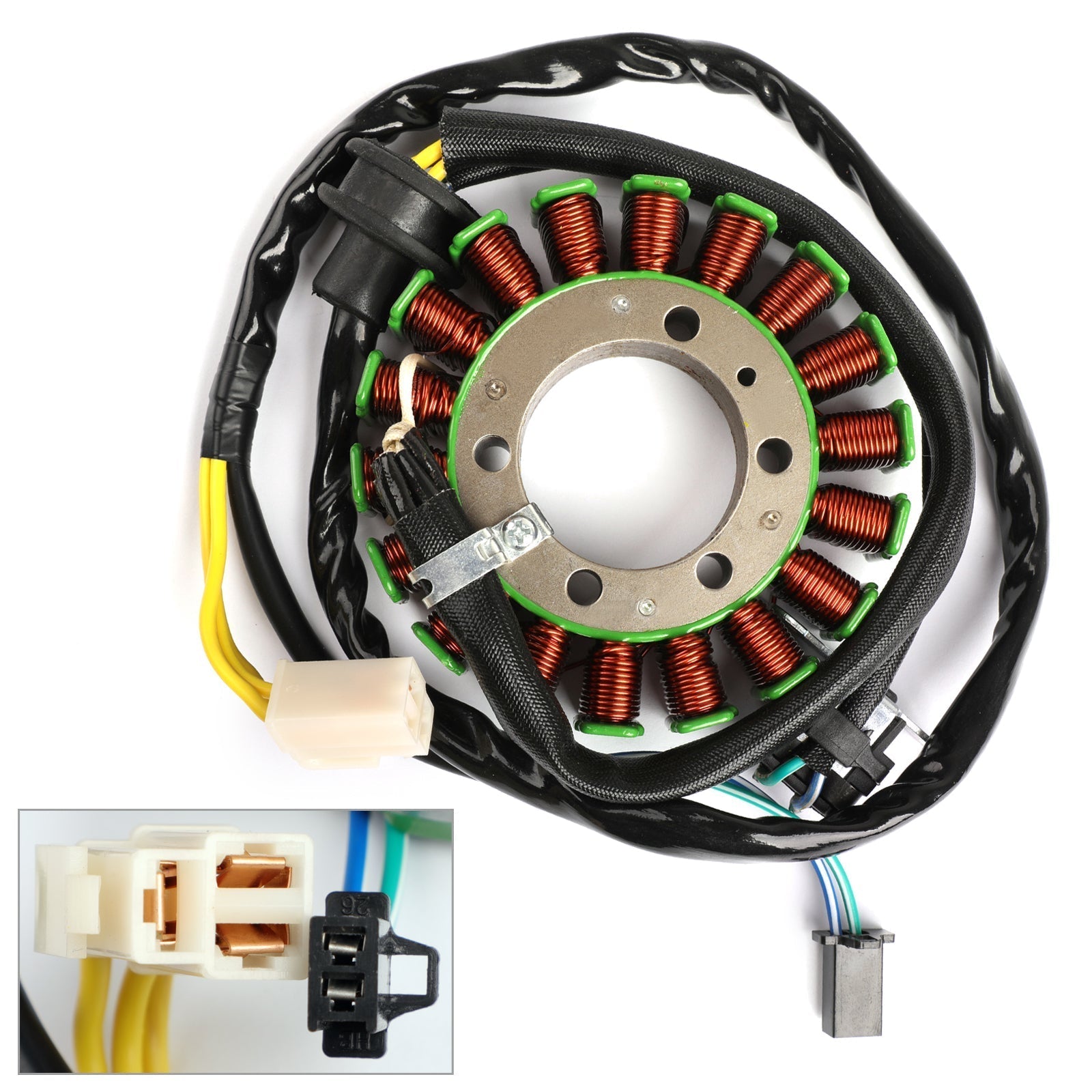

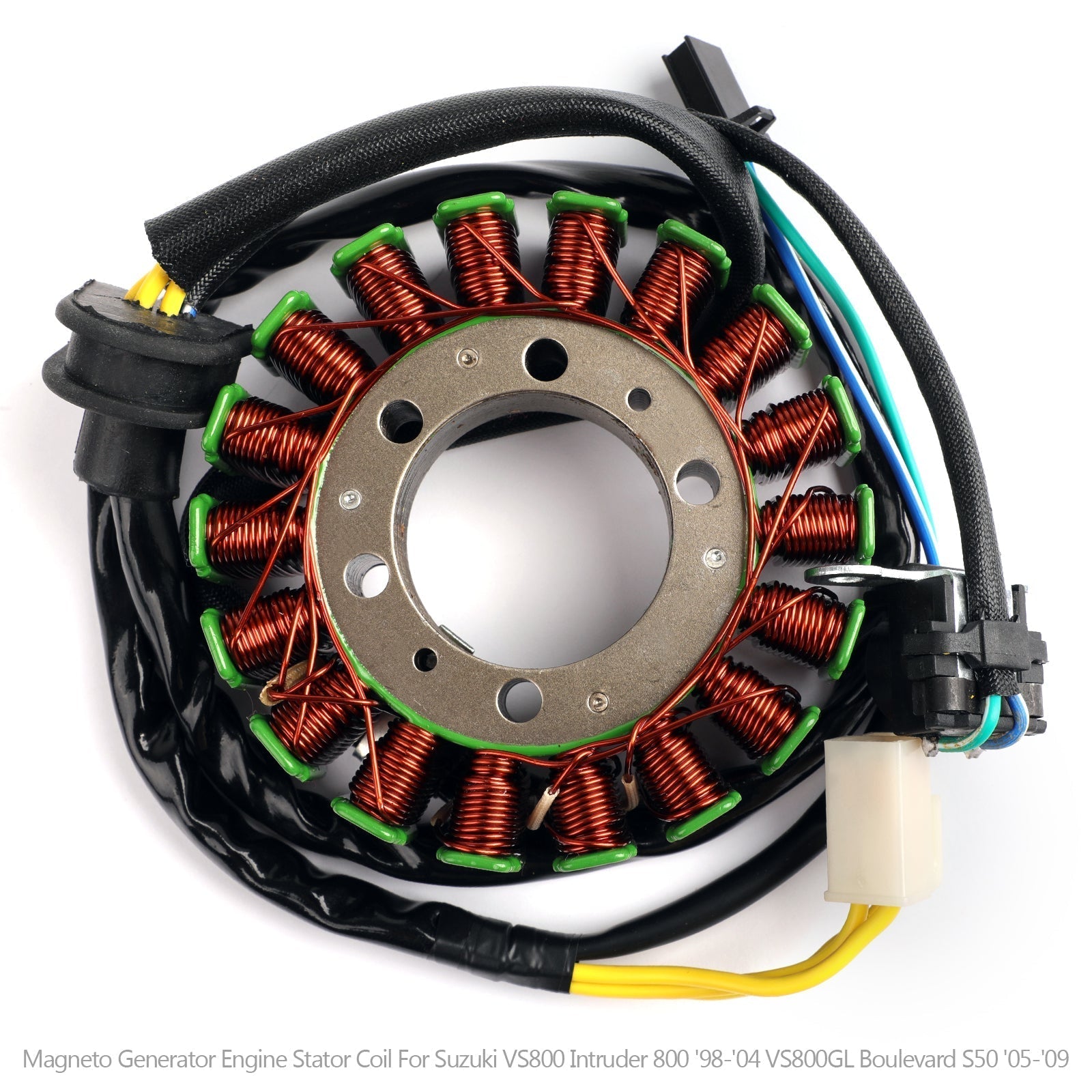

Type: Generator Stator Coil
OEM Replacement Part Number: 32101-45C00

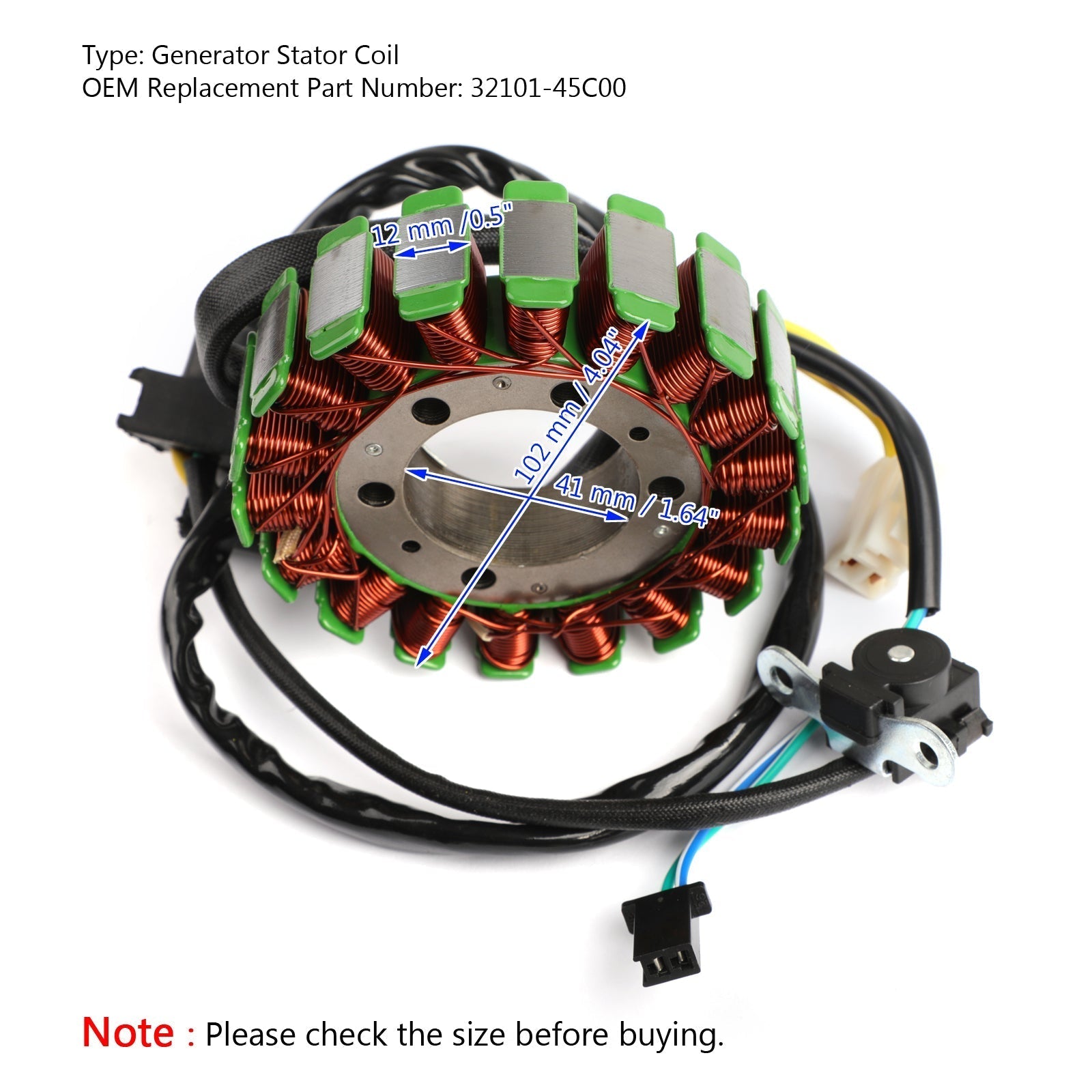

Dimensions :
Interior diameter : 41 mm / 1.64"
Exterior diameter : 102 mm / 4.04"
Thickness : 12 mm /0.5"

Other specifications :
Number of wires : 5
Number of pins : 5
Number of plug : 2
Number of fixation holes: 5

Fitment:
For Suzuki VS800 VS800GL Boulevard S50 2005-2009
For Suzuki VS800 Intruder 800 1998-2004

Package:
1x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
