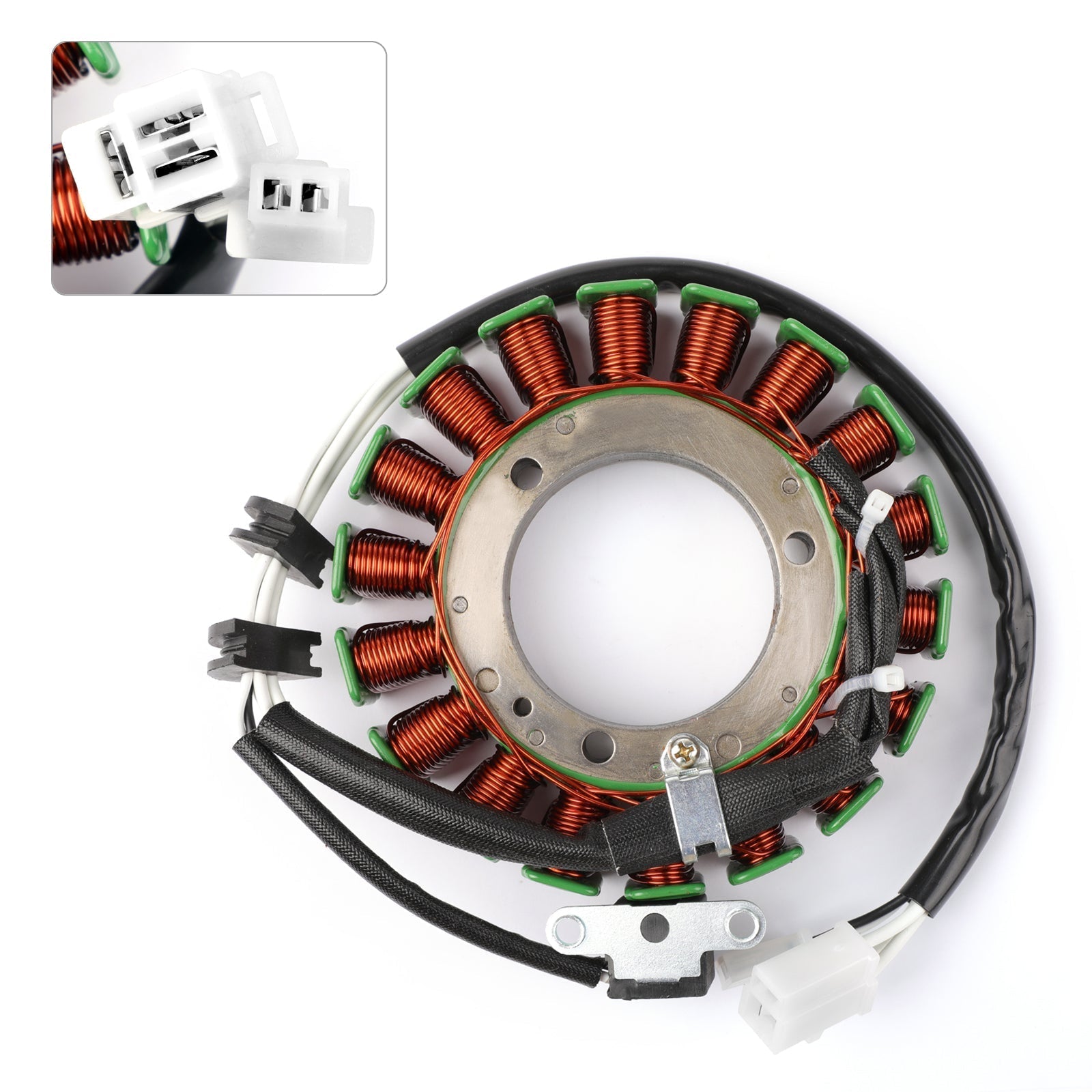

Magneto Generator Engine Stator Coil For YAMAHA XVS 1100 V-STAR CUSTOM / CLASSIC 1999-2003

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 5EL-81410-00, 5EL-81410-01, 5JN-81410-10
Dimensions :
Interior diameter : 58 mm / 2.29"
Exterior diameter : 130 mm /5.11"
Thickness : 18 mm /0.71"

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

FITMENT:
For Yamaha BT1100 Bulldog
For Yamaha XVS1100 VStar Classic 1100 2000-2003
For Yamaha XVS1100 VStar Custom 1100 2000-2003
For Yamaha XVS1100 VStar Silverado 1100 2003
For Yamaha XVS1100 VStar 1100 1999

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
