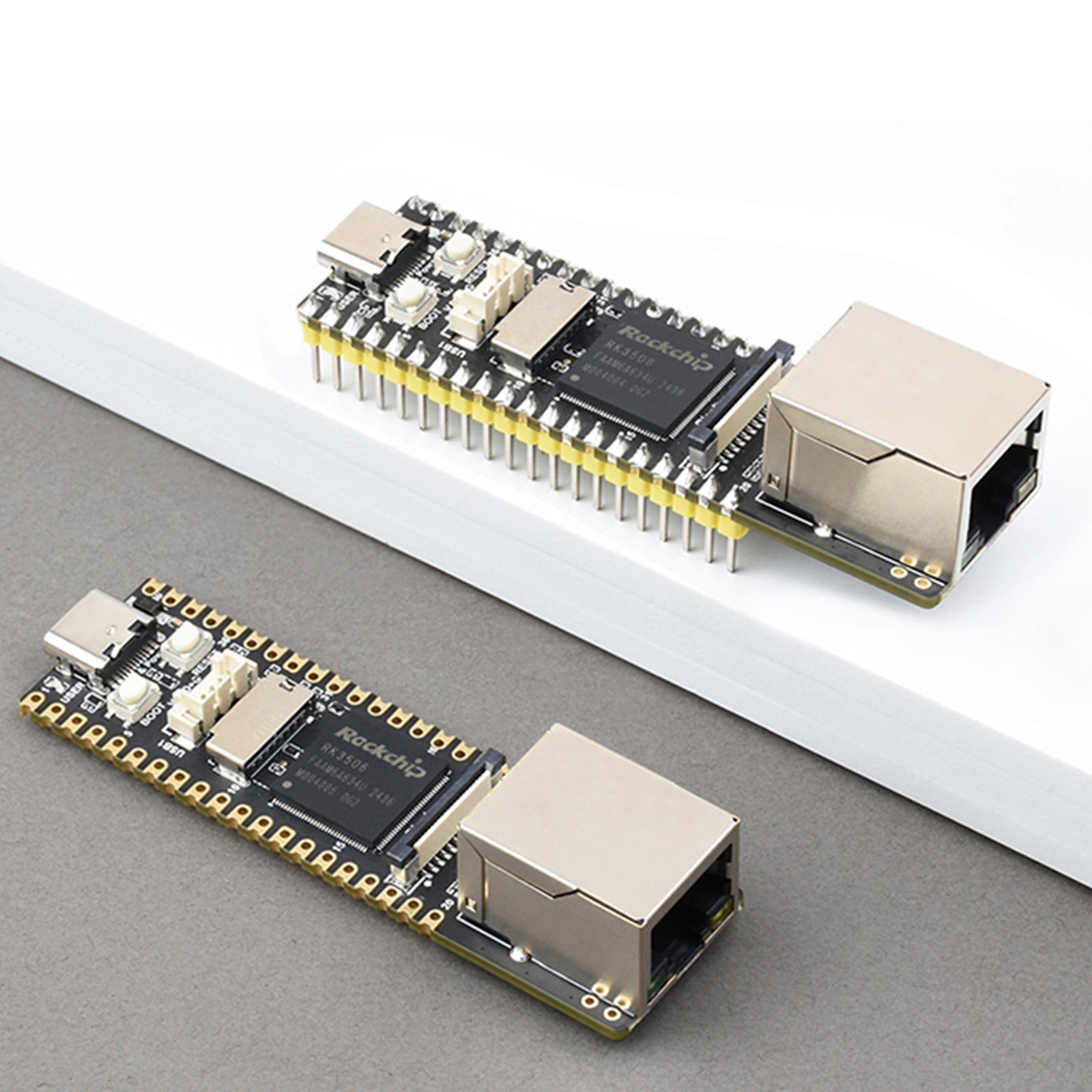

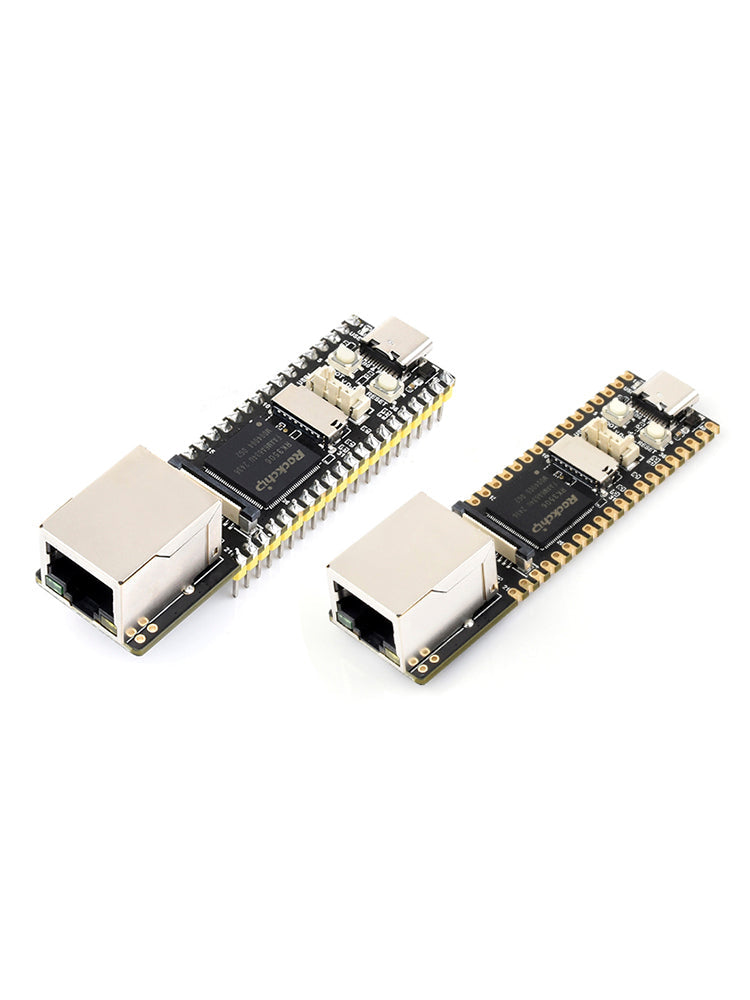

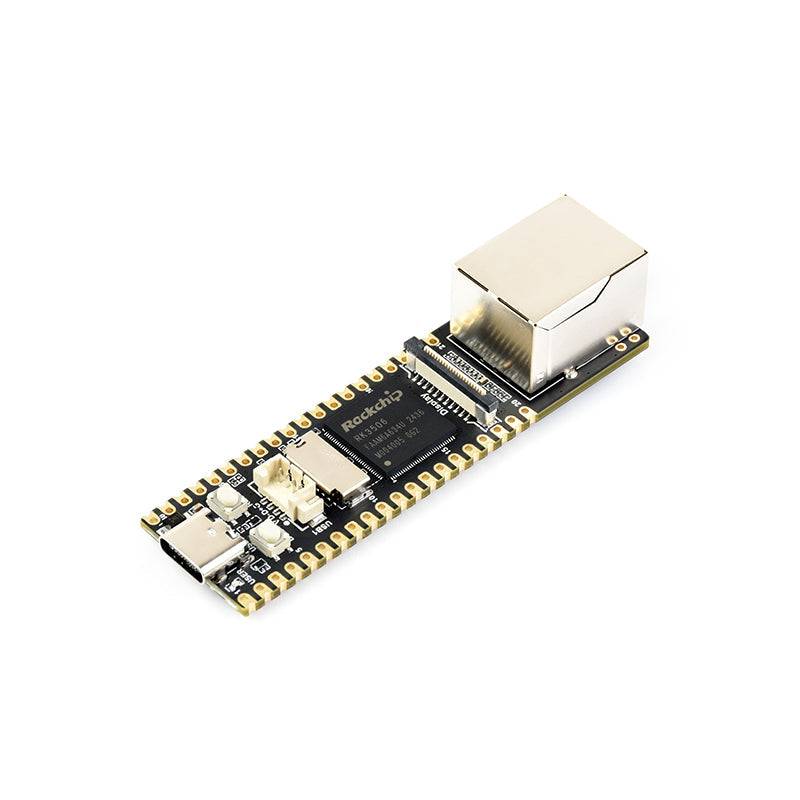

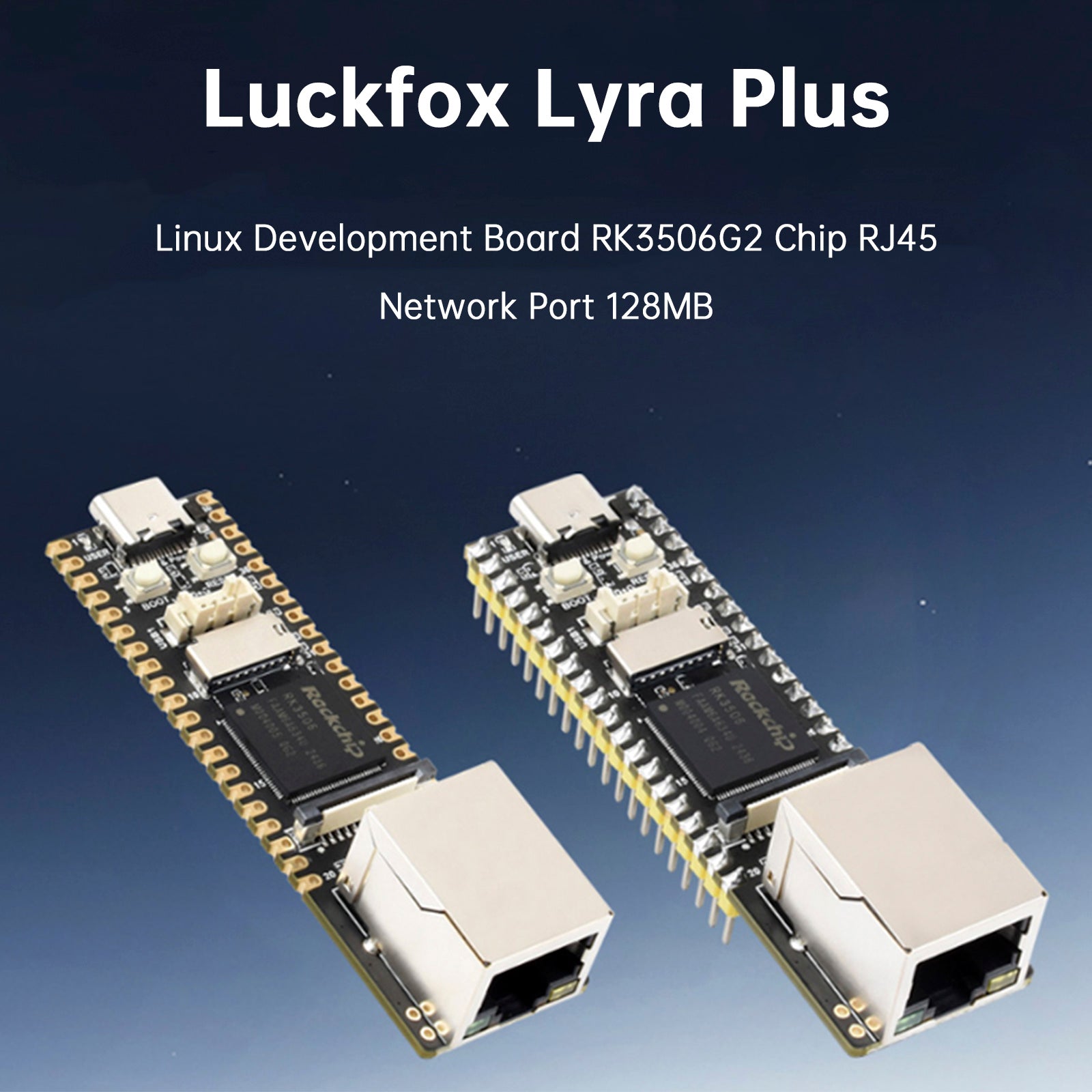

Luckfox Lyra Plus Linux Development Board RK3506G2 Chip RJ45 Network Port 128MB

Description:

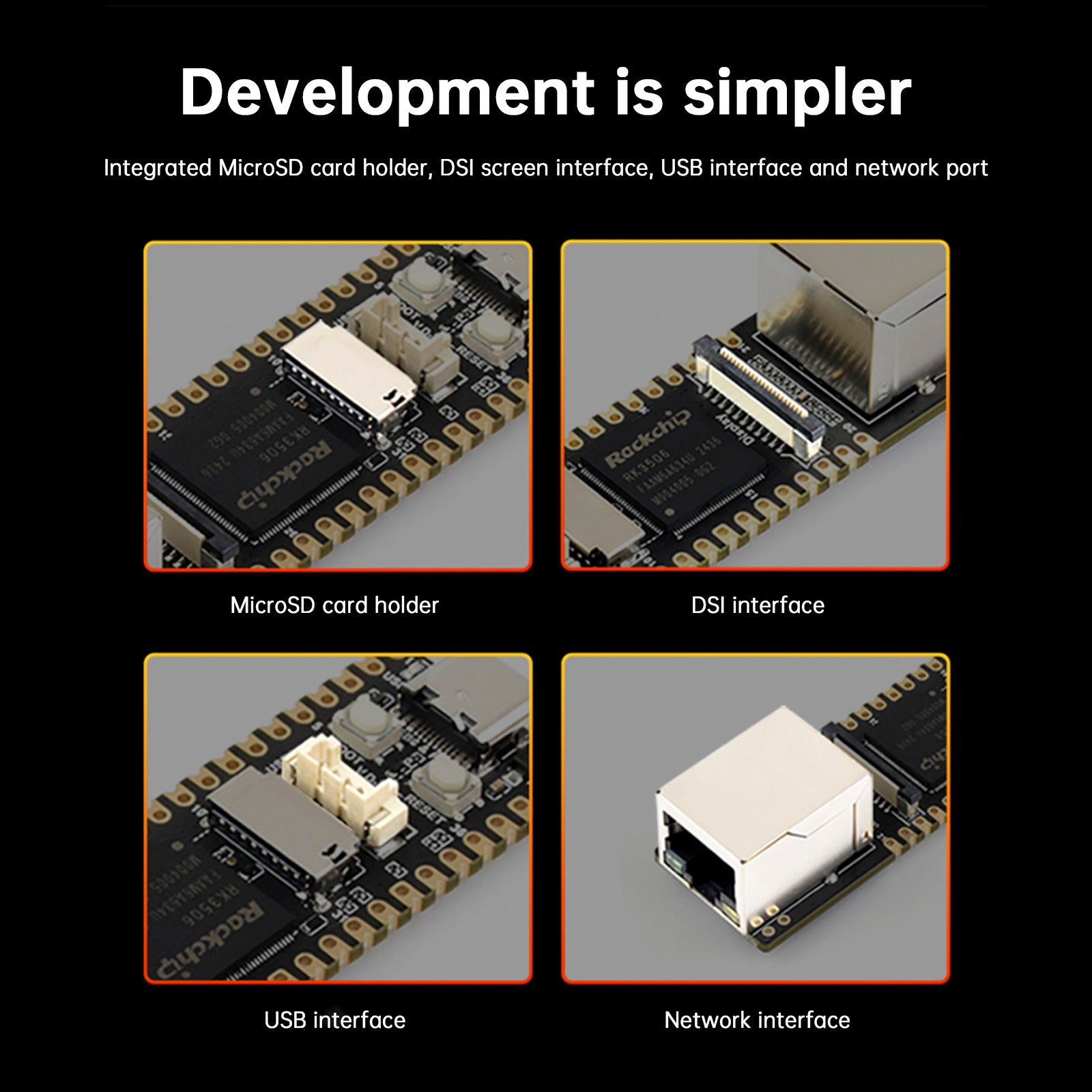

Luckfox Lyra Plus is a micro Linux development board based on Rockchip RK3506G2 chip, designed to provide developers with a simple and efficient development platform. This product supports a variety of high-speed interfaces, including MIPI DSI, RMI and USB, which can meet a variety of application scenarios. The low-speed interface adopts Rockchip Matrix 10 design, which allows the pins supporting this design to share 98 multiplexing functions, and can freely combine PWM, UART, I2C, SPI and I2S, etc., which is convenient for rapid development and debugging

Features:
Tri-core ARM Cortex-A7 32-bit core, integrated VFP, supports single-precision and double-precision floating-point operations
Built-in ARM Cortex-MO MCU design, supports SMP and AMP configurations
Built-in 128MB DDRL3, which can meet the application requirements of multi-core operation

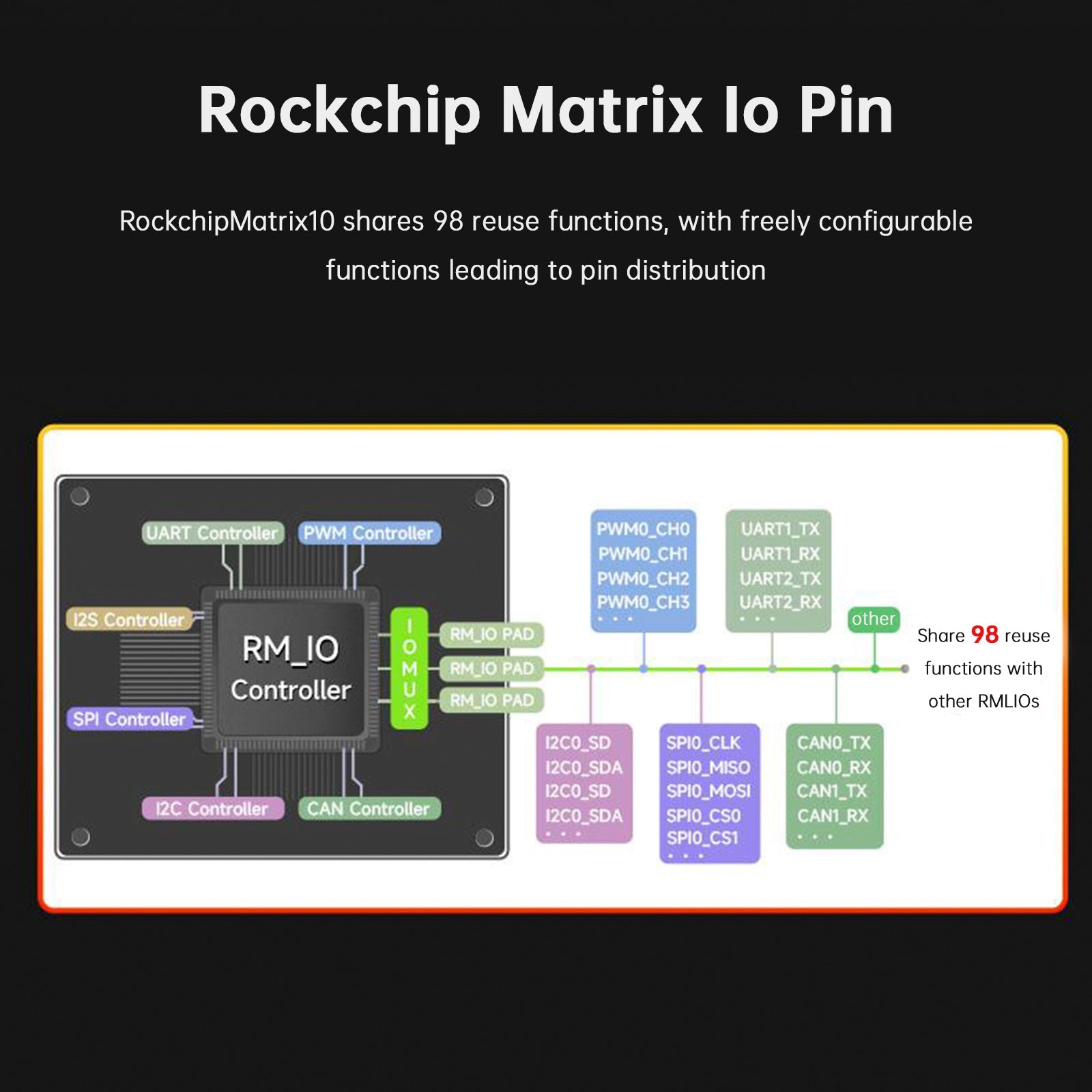

The low-speed interface adopts Rockchip's Rockchip Matrix 10 design, which allows rich multiplexing functions to share limited chip pins, making peripheral circuit adaptation more flexible
Built-in audio and video codecs, supports multiple audio inputs and outputs, and provides high-quality audio playback and recording functions

Specifications:
Processor: Tri-core Arm Cortex-A7 (1.2Ghz)+ Arm Cortex-MO
Memory: 128MB DDR3L
USB: USB OTG2.0 x 2

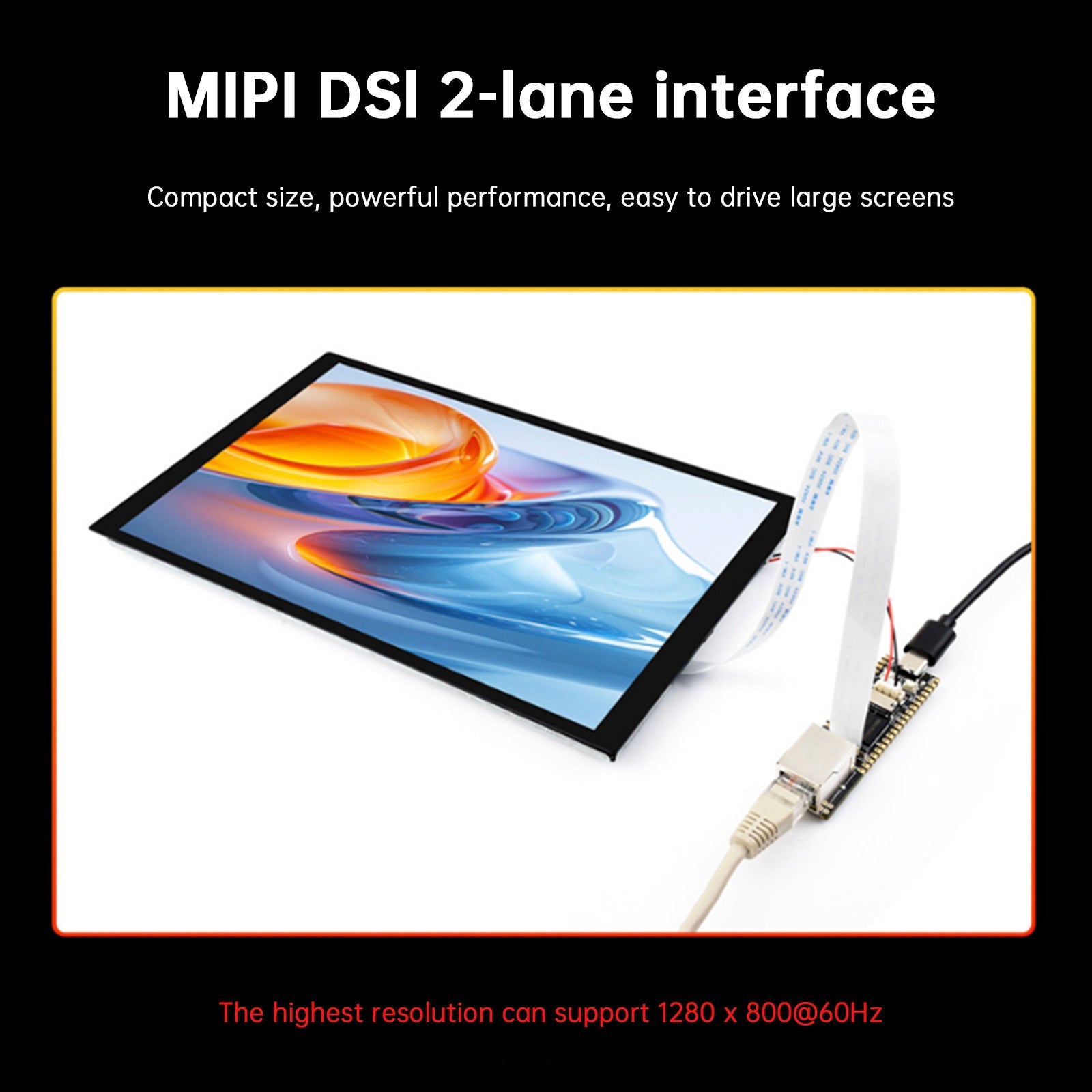

Screen interface: MIPI DSl 2-lane

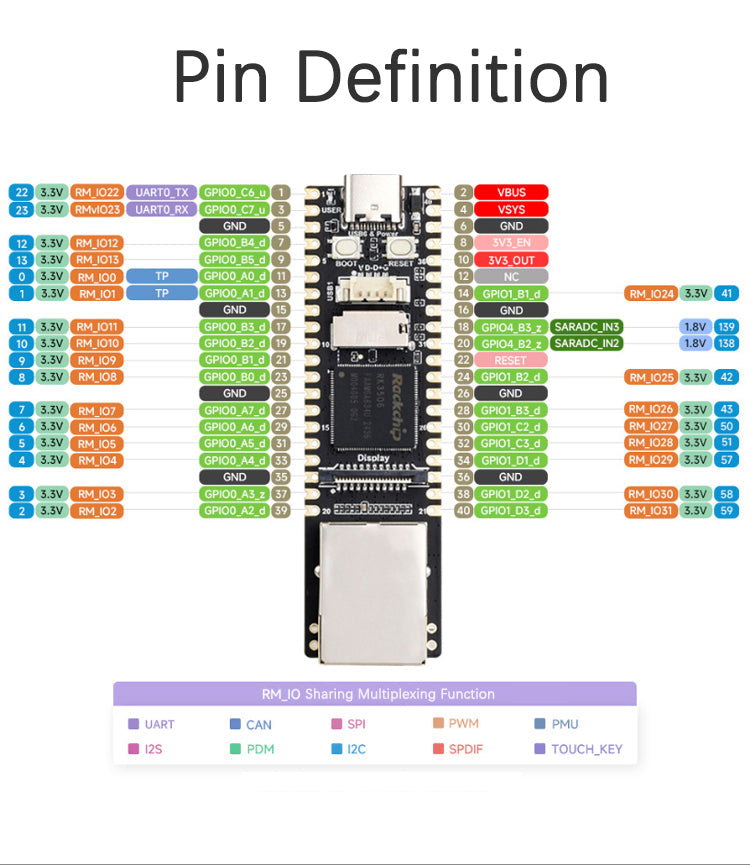

GPIO: 24 Rockchip Matrix 10 pins
Network port: 10/100M Ethernet controller

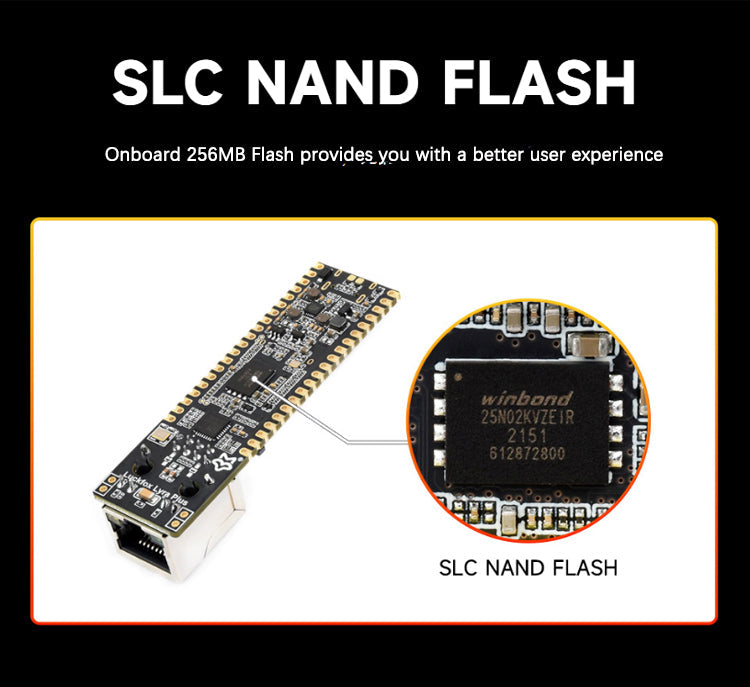

Default storage medium: SPI NAND FLASH (256MB)

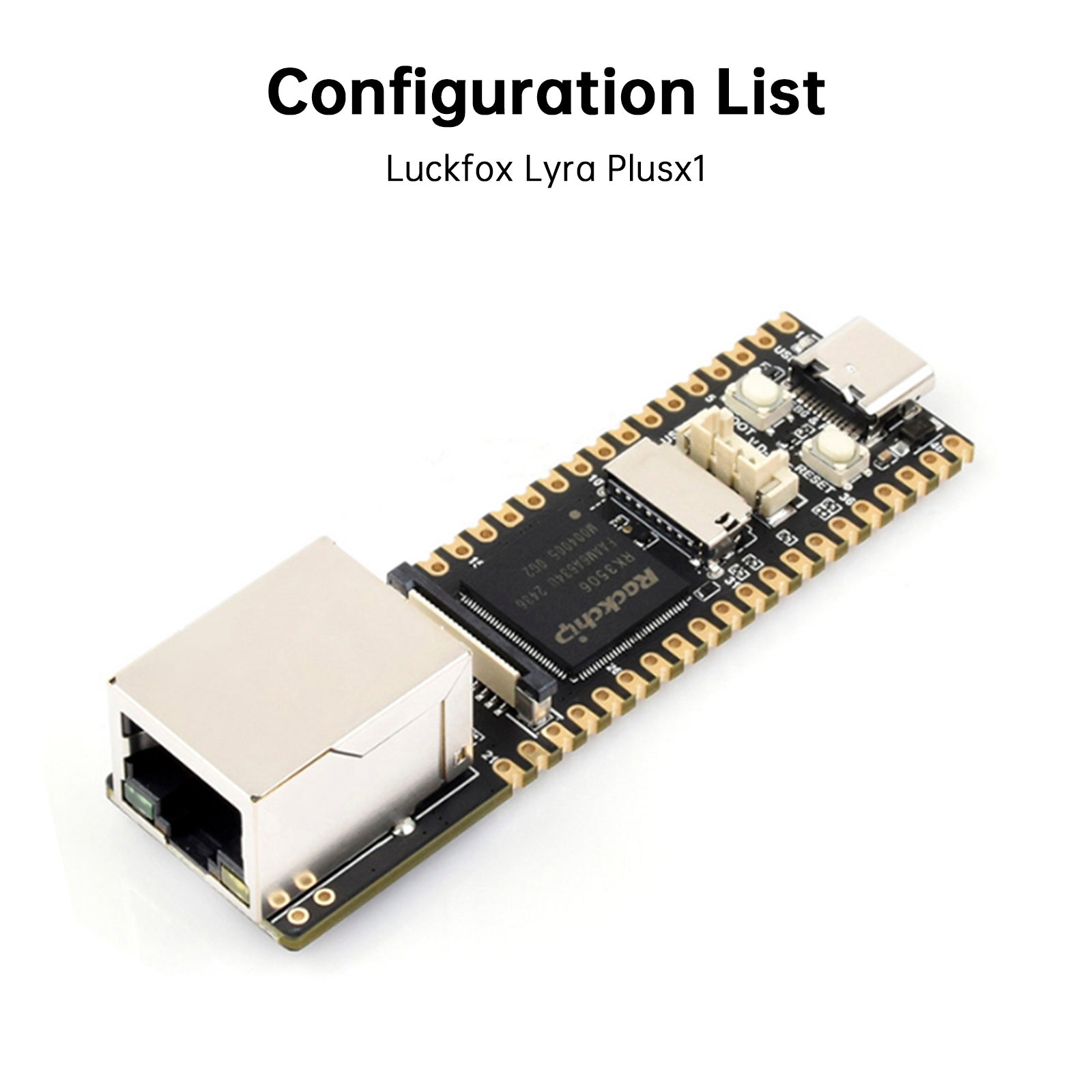

Package Included:

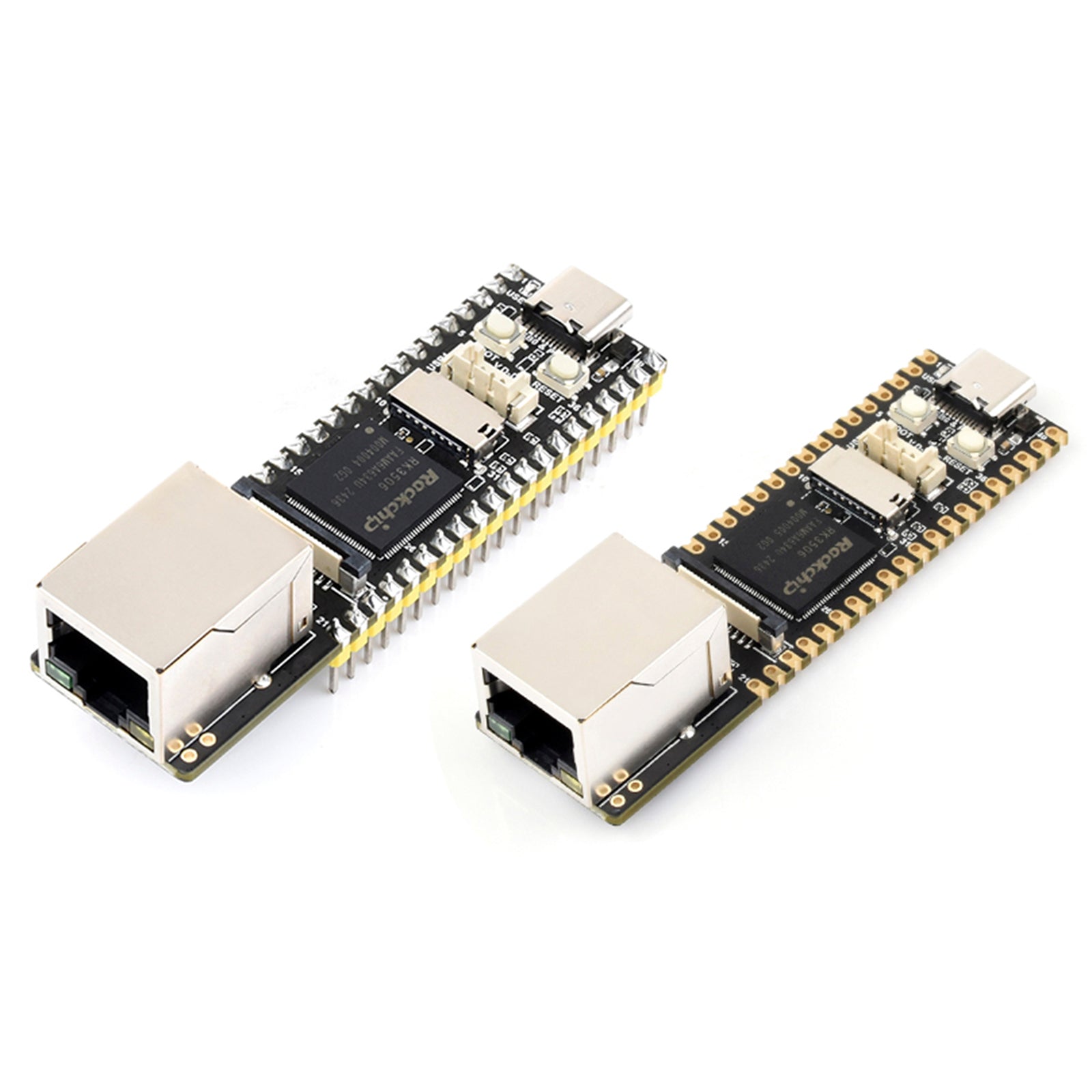

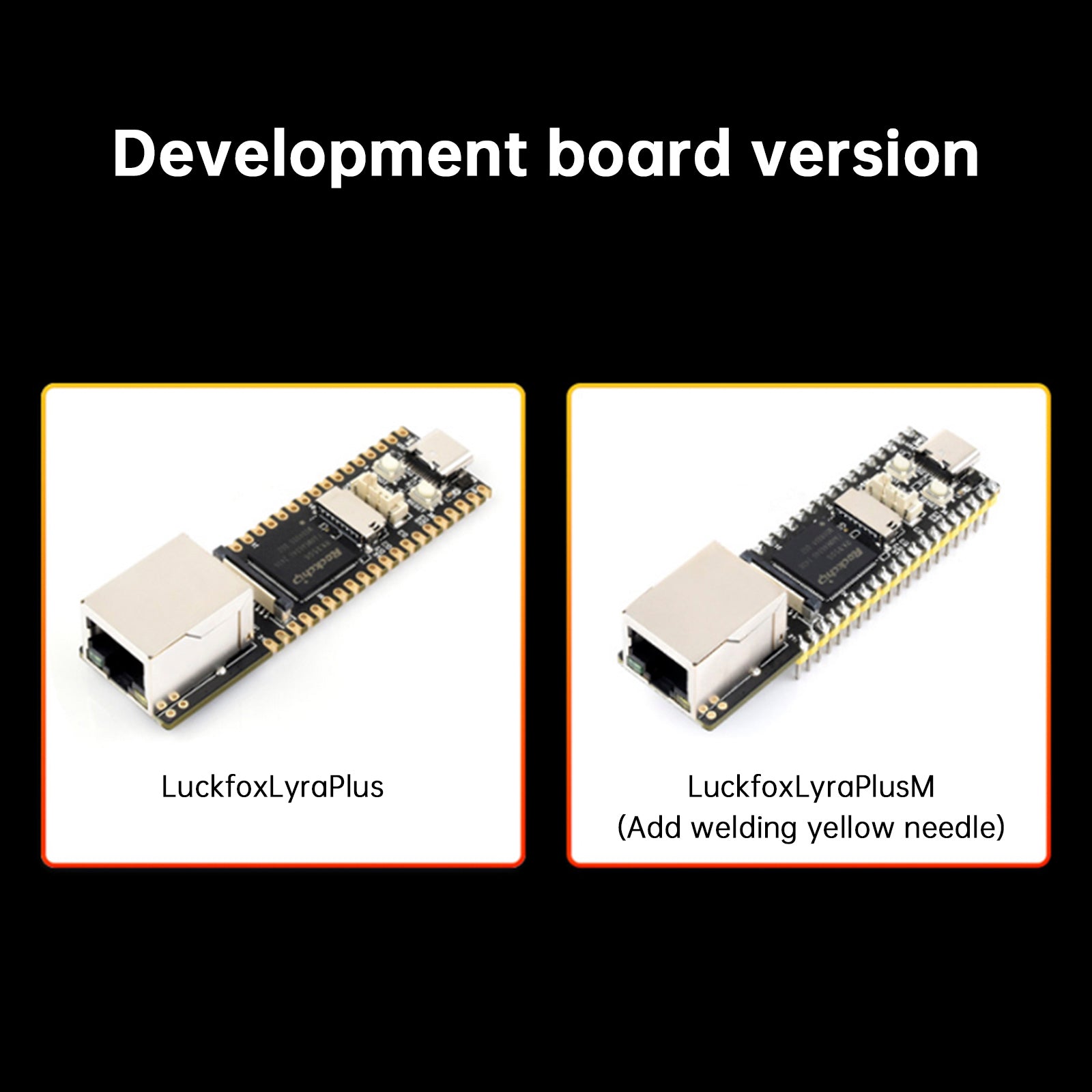

Option1:

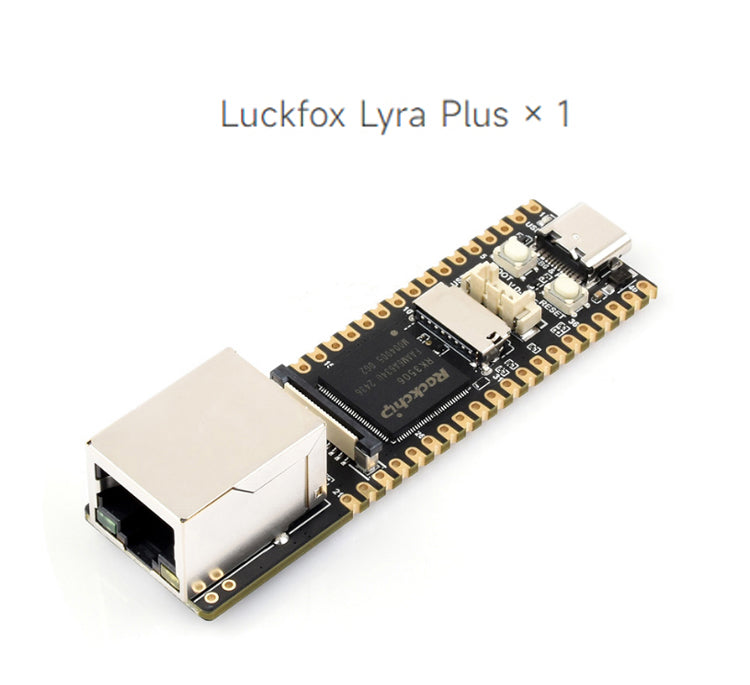

1x Luckfox Lyra Plus
Option2:

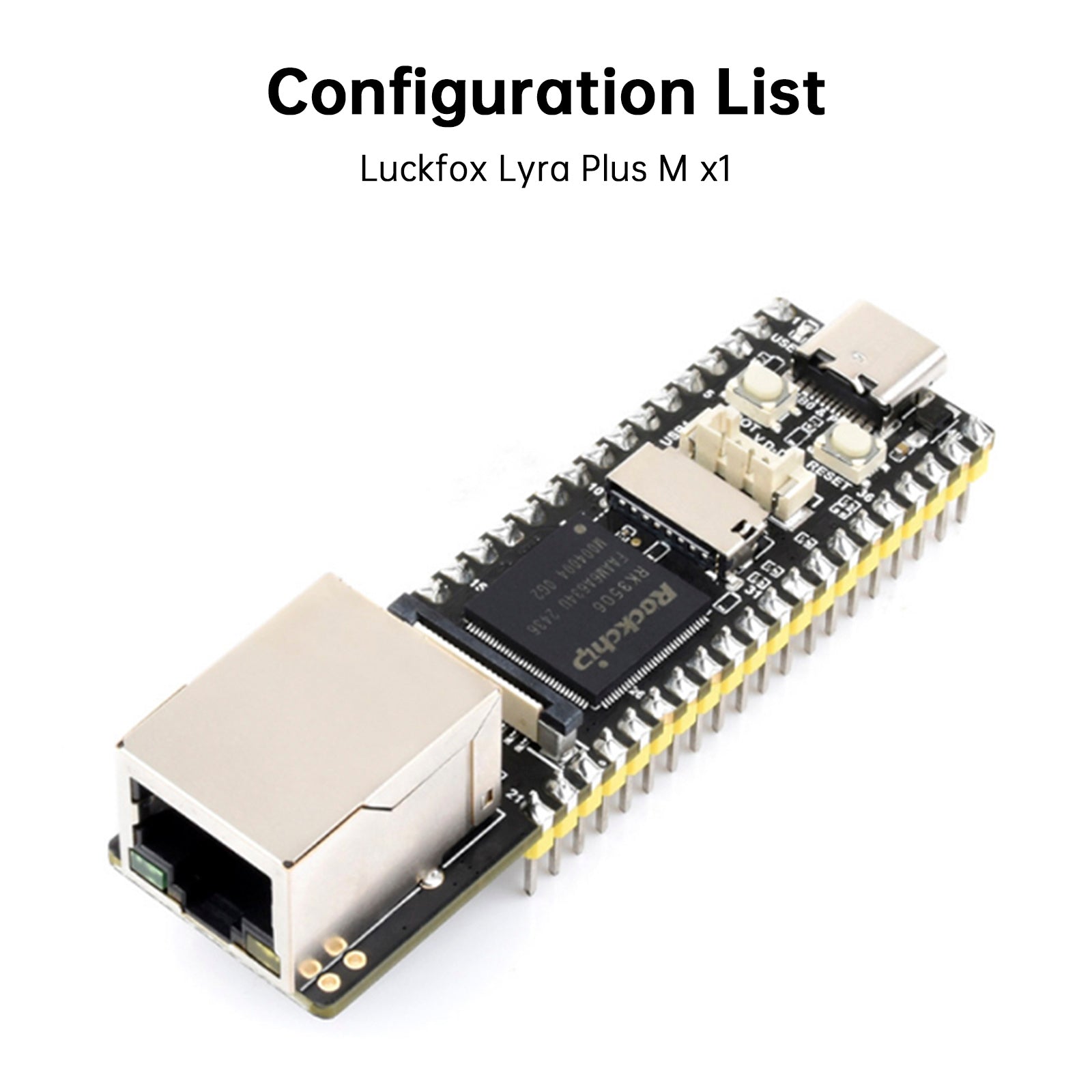

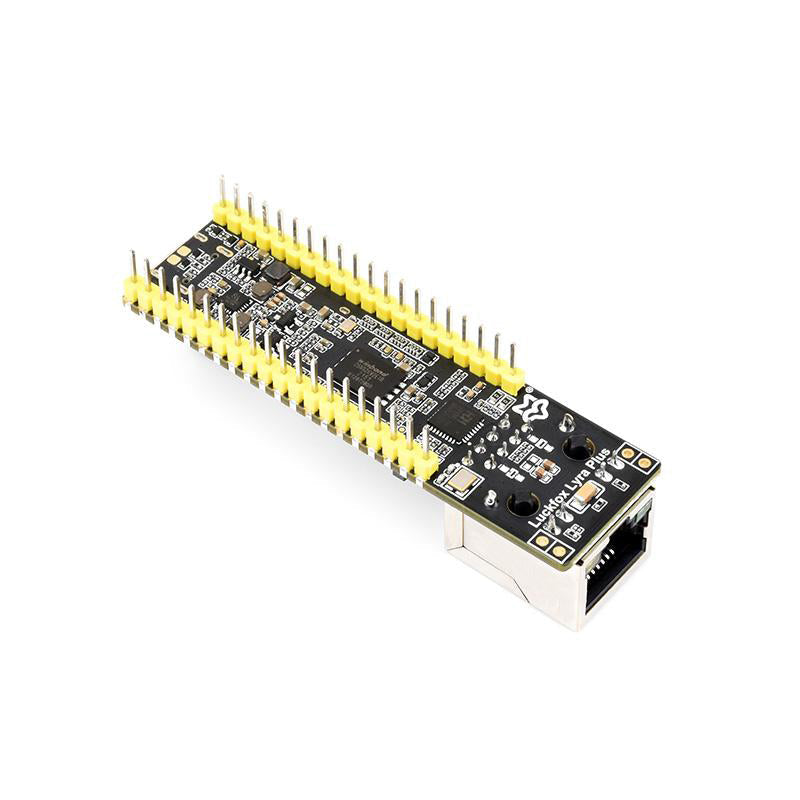

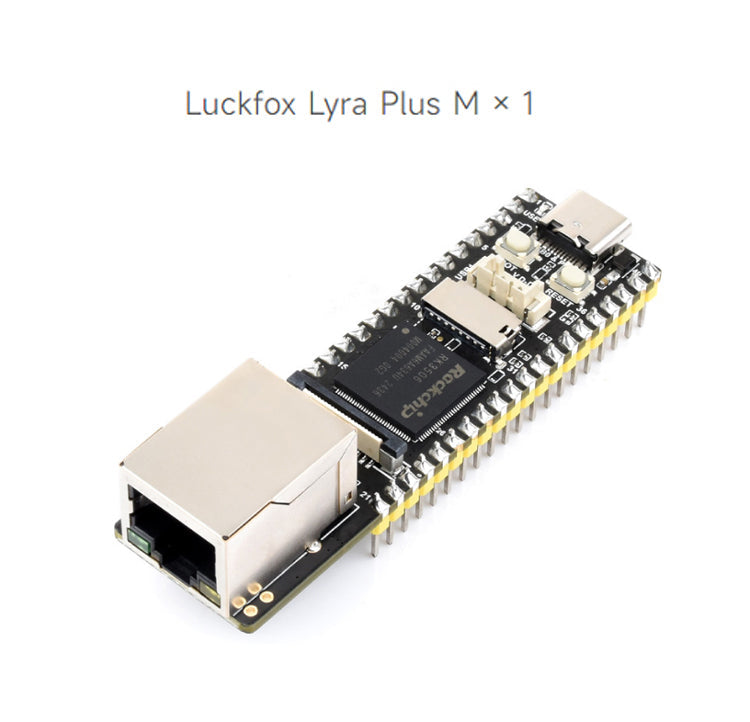

1x Luckfox Lyra Plus MLuckfox Lyra Plus M
