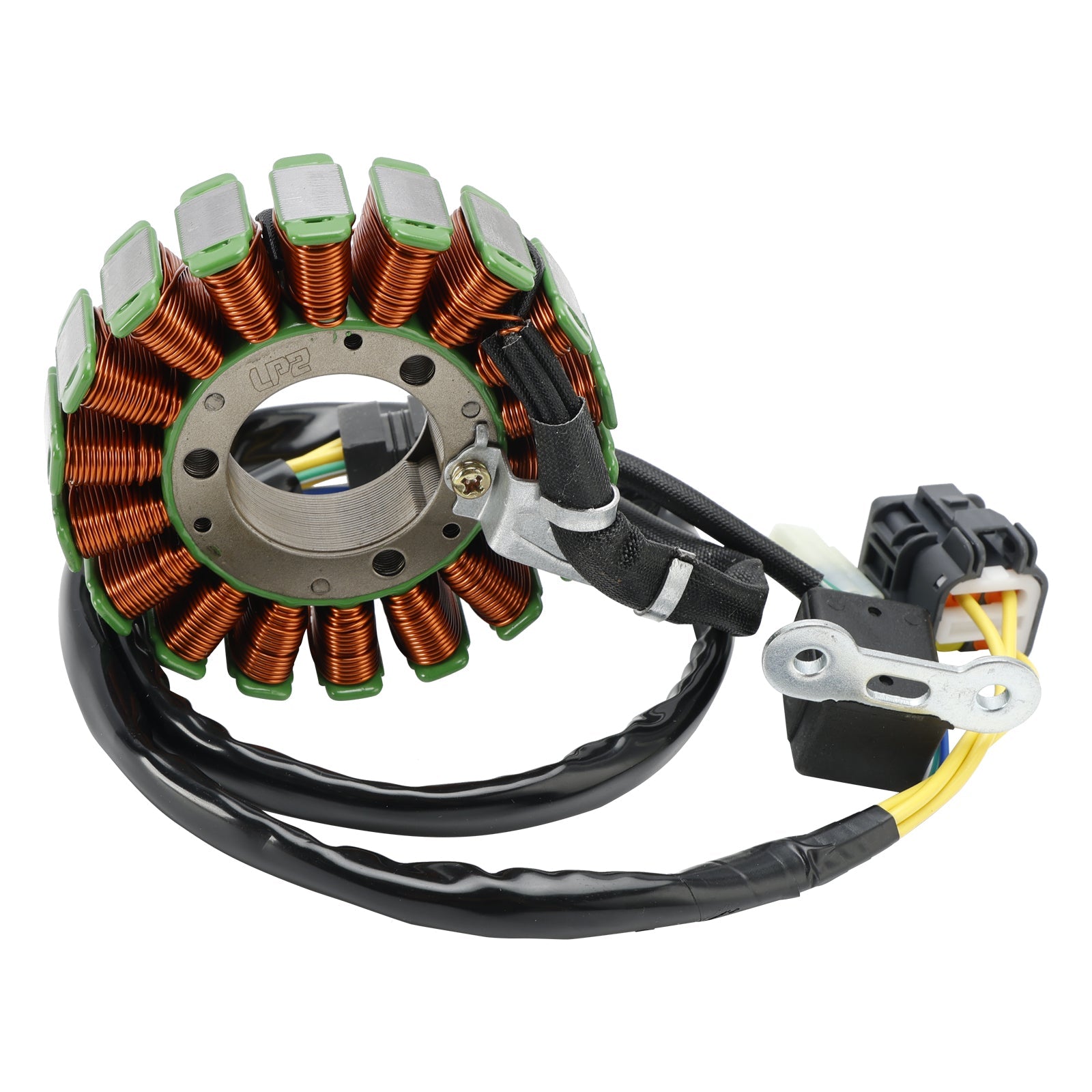

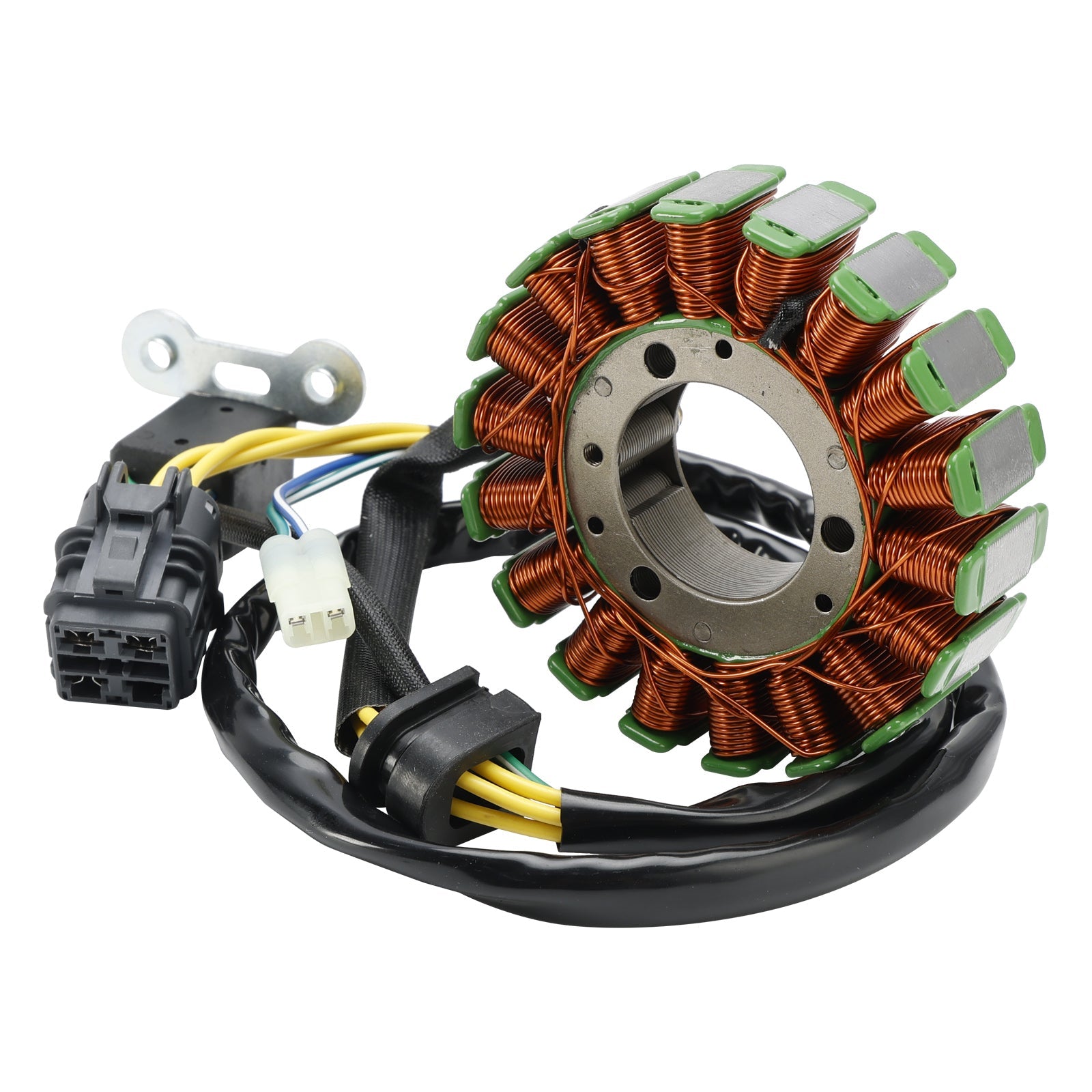

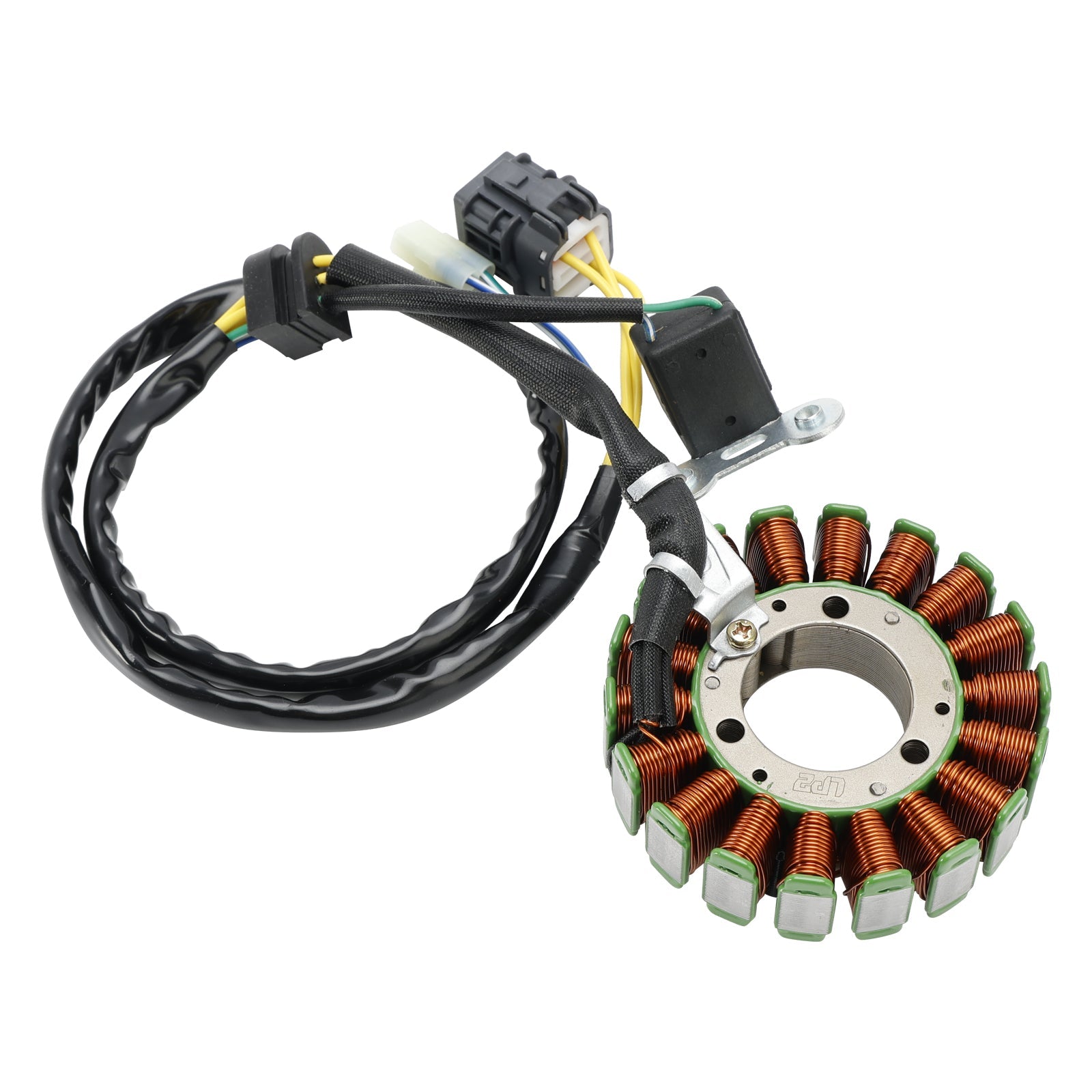

Magneto Generator Stator Fit for Kymco KXR 250 MAXXER 250 MXU 250 (D406)- 31120-LBA7-90A

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

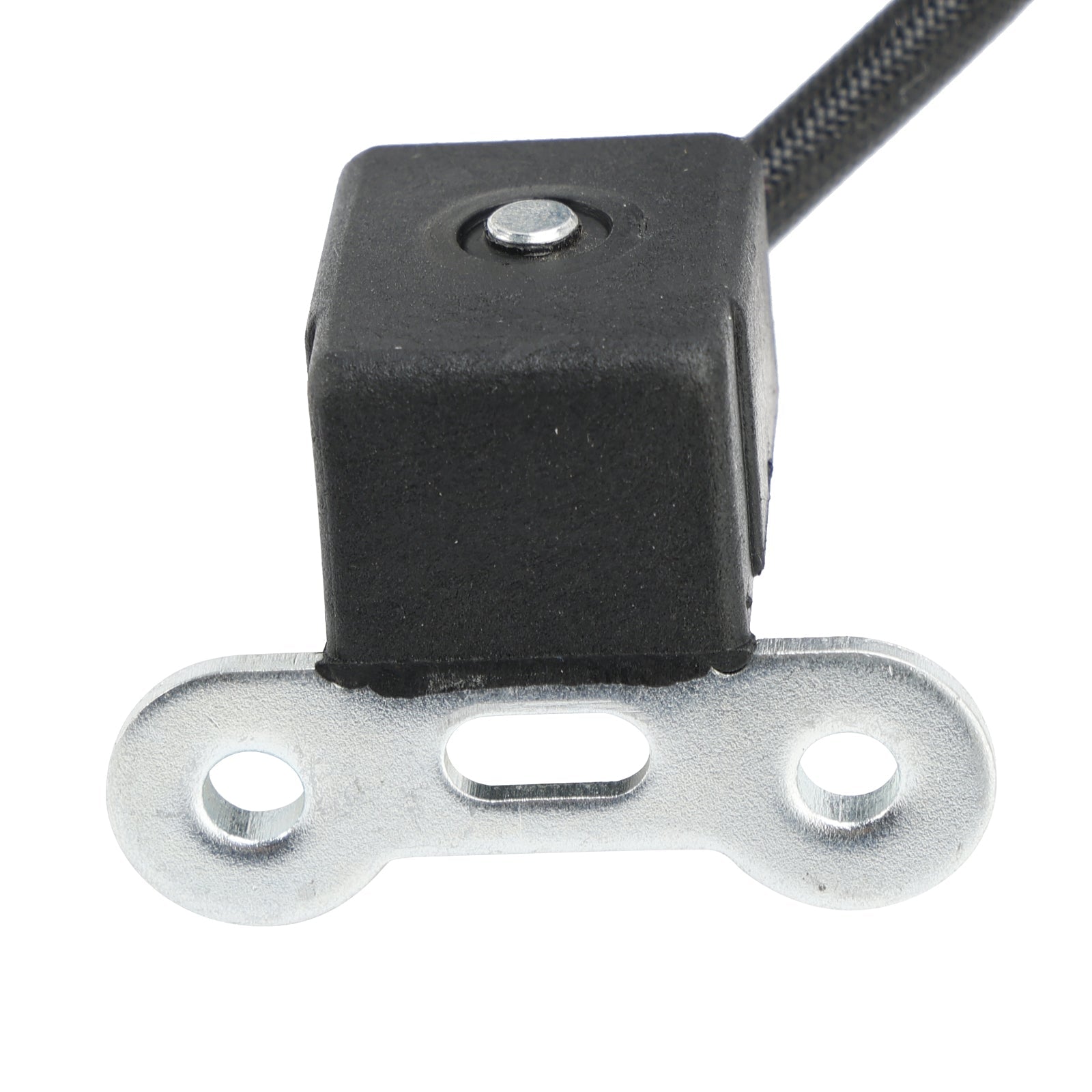

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 2

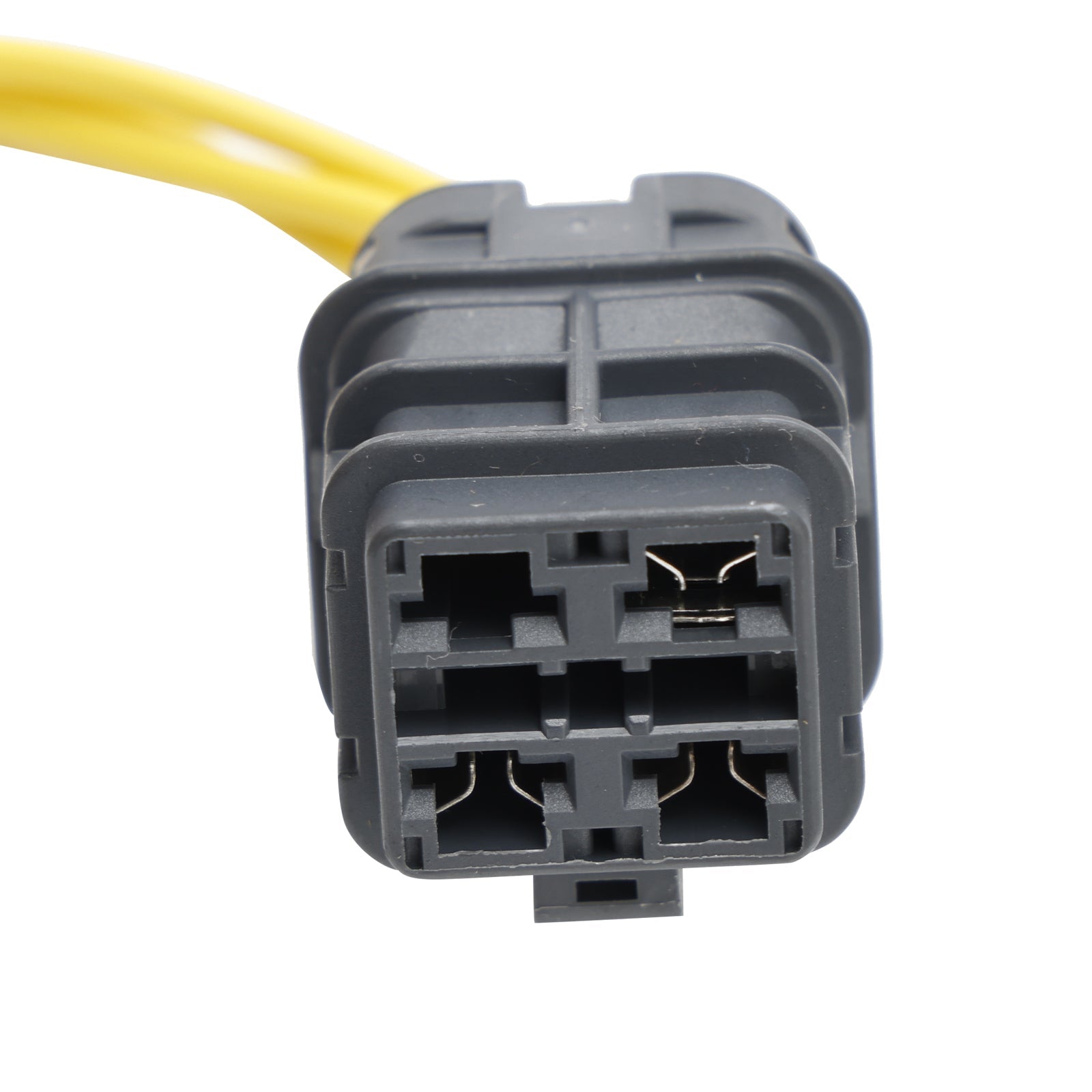

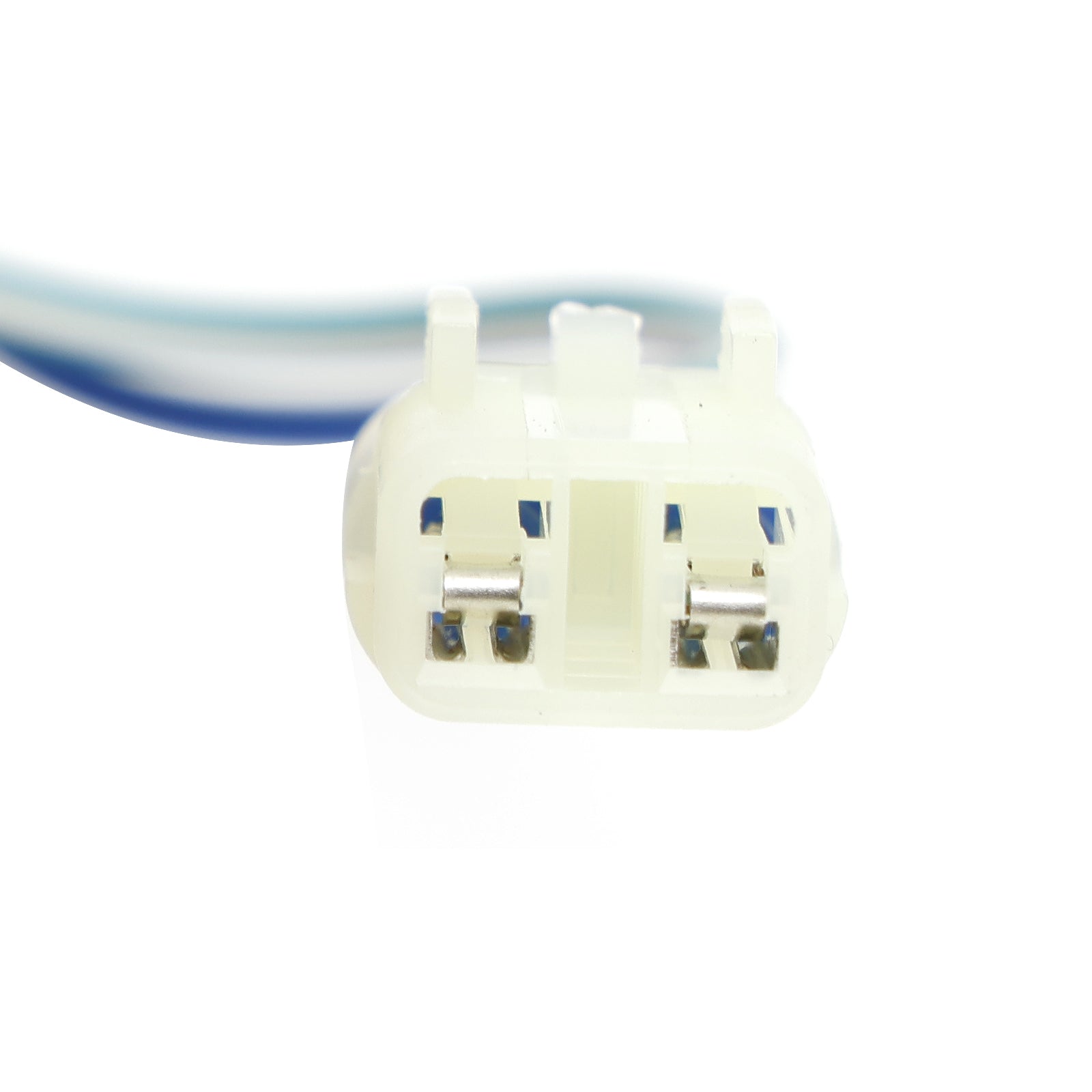

Number of pins: 2 + 3

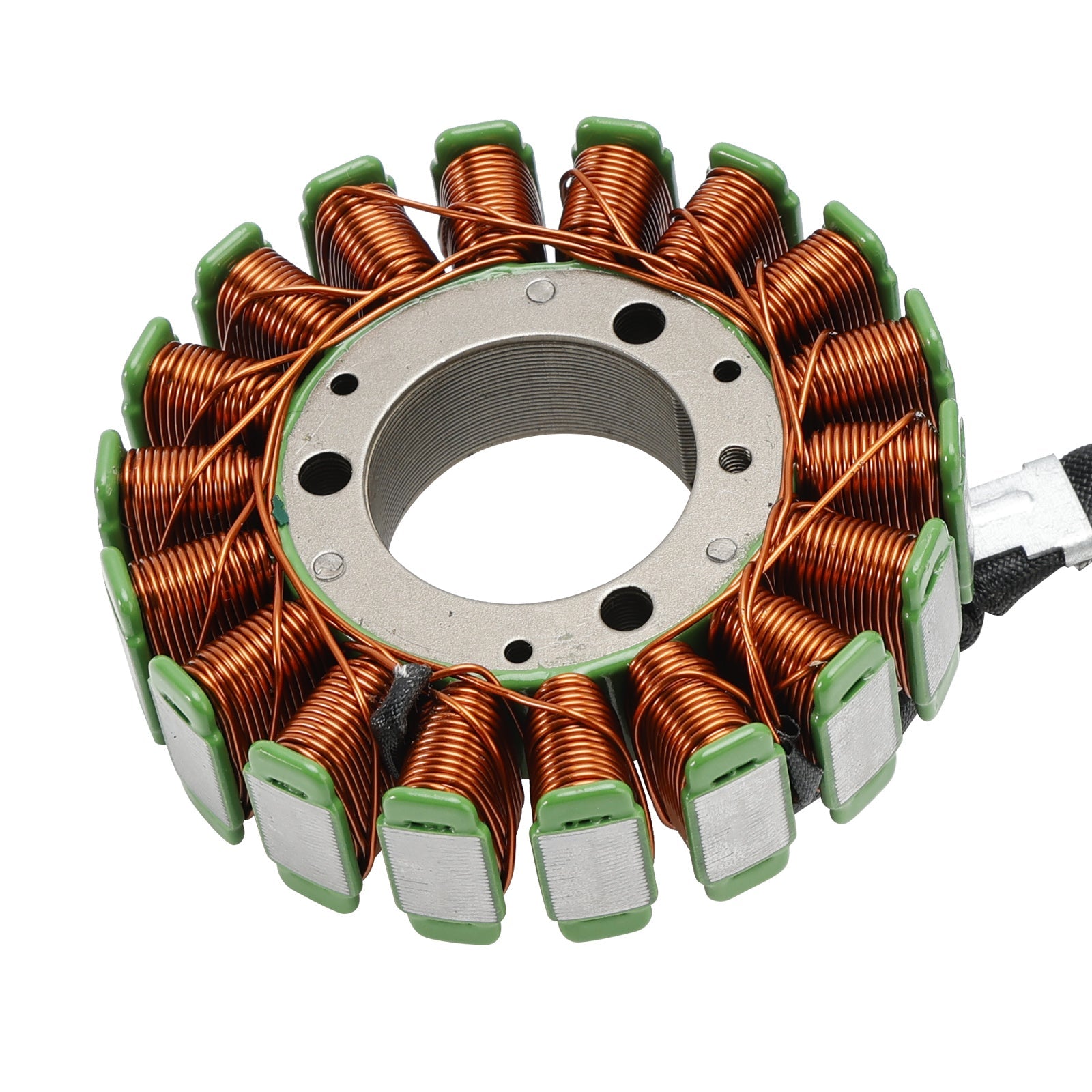

Number of poles: 18

Dimensions:
Exterior diameter: 92mm
Interior diameter: 35mm

Replacement Part Number:
31120-LBA7-90A
31120-LBA7-90B

Fits Make/Model/Year:
31120-LBA7-90A(D406)
Fit for Kymco KXR250 2006-2015
Fit for Kymco Maxxer 250 2010-2016
Fit for Kymco MXU250 2004-2016

Fits Carbureted Model Only (D406)!

31120-LBA7-90B(D414)
Fit for Kymco KXR 250 4T EURO II- MAXXER 250 4T EURO
Fit for Kymco Maxxer 250 SE EURO II
Fit for Kymco MXU 250 4T EUROII- MXU 250 4T EURO II URBAN QUAD

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
