Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

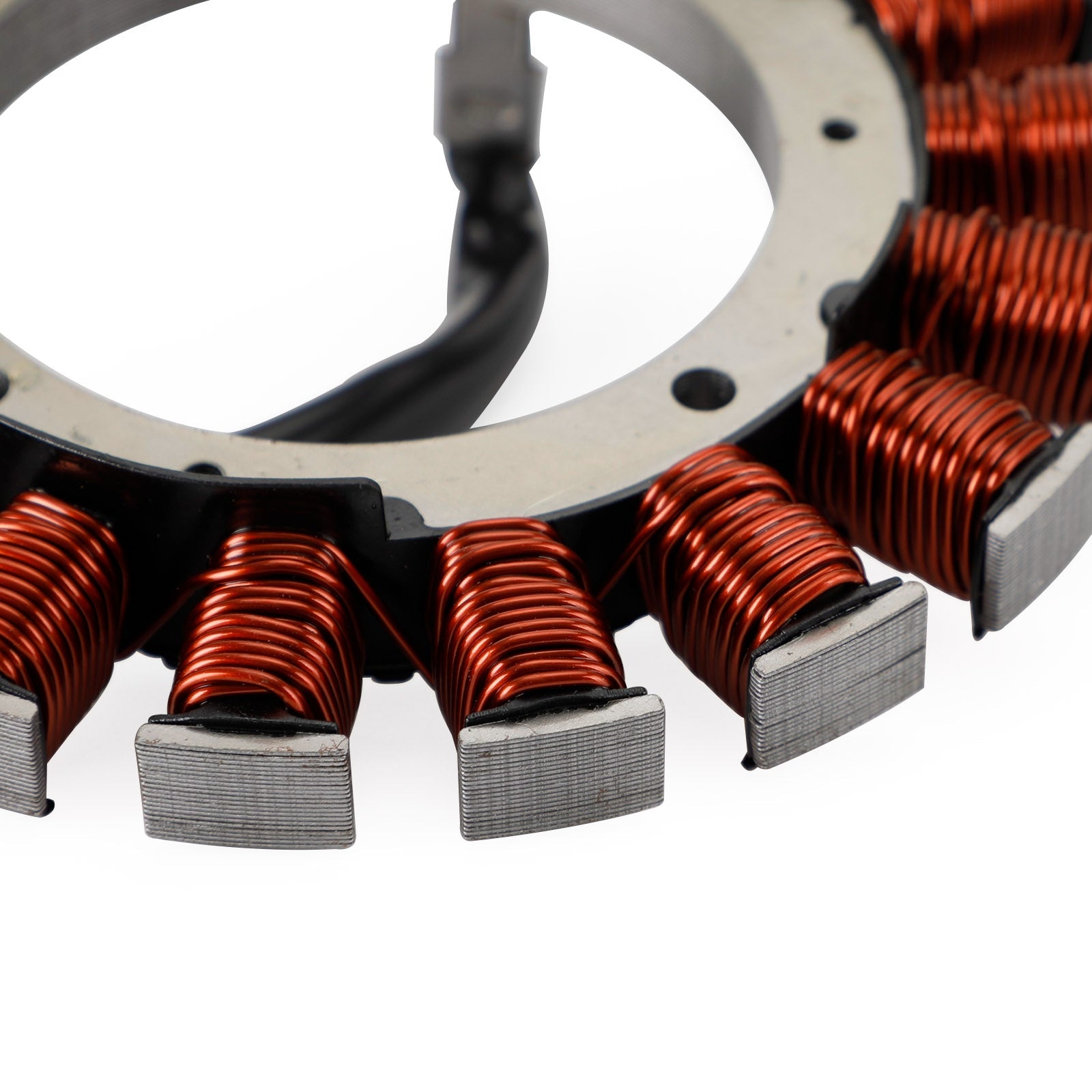

Highest grade copper windings, resistant to 200 degrees Celsius.

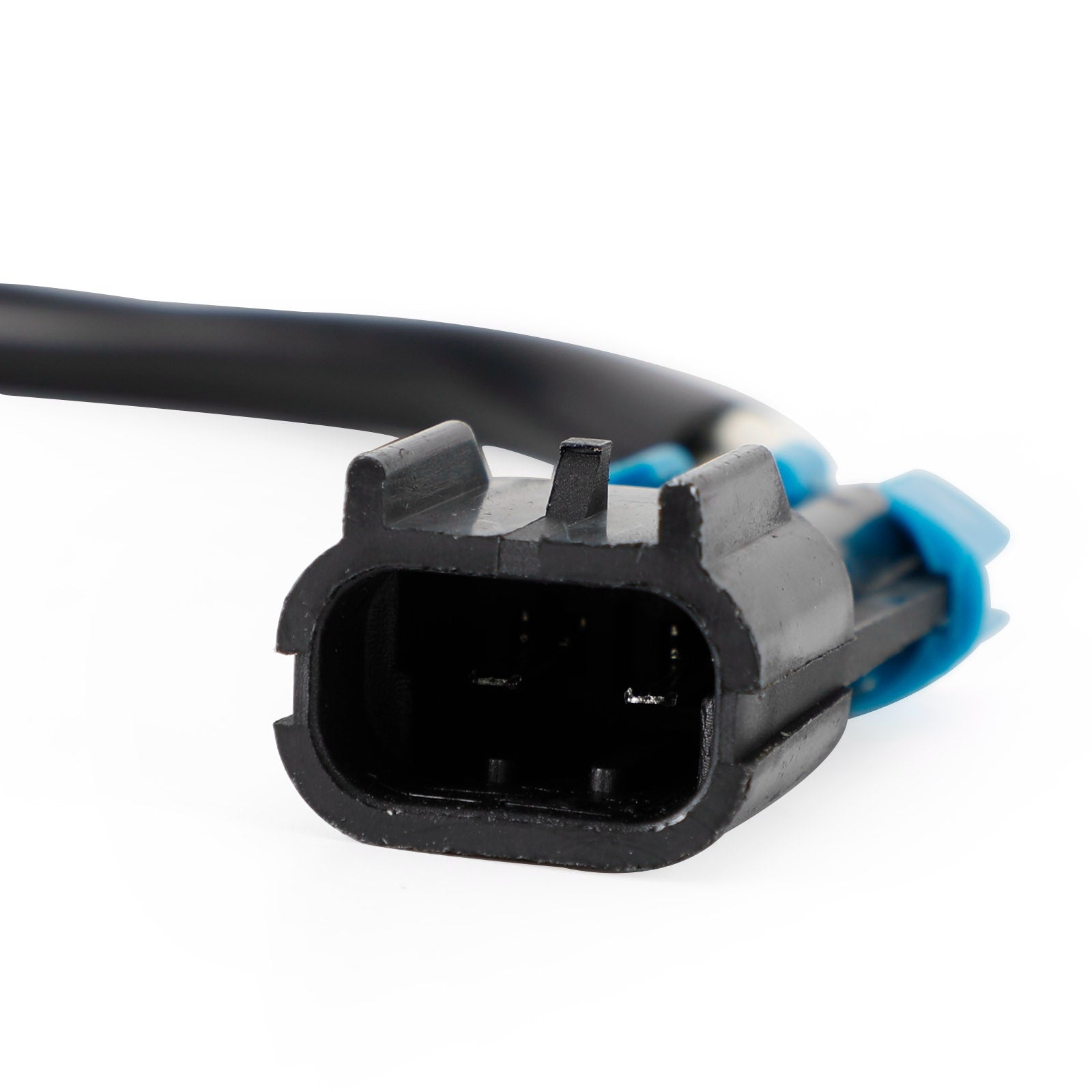

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

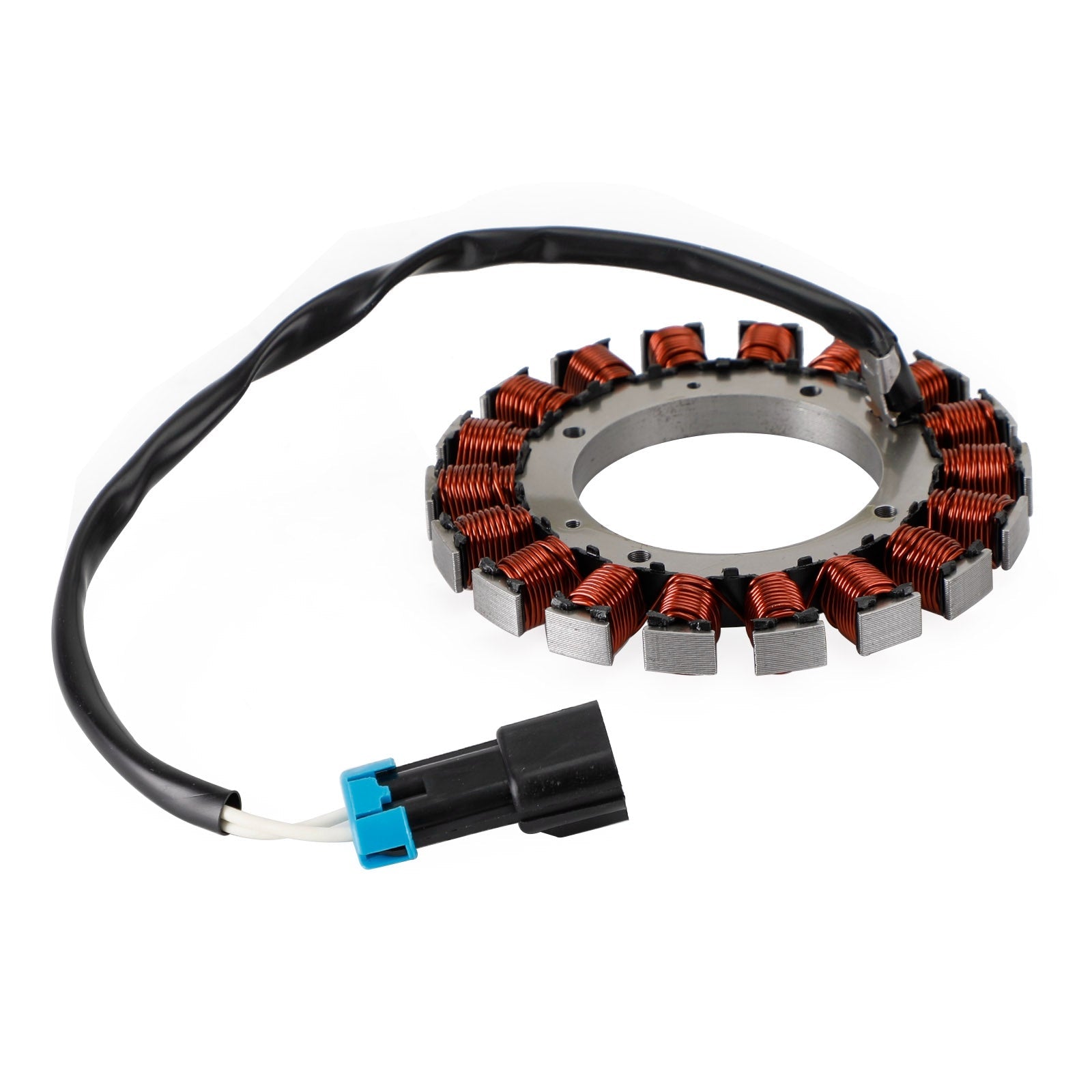

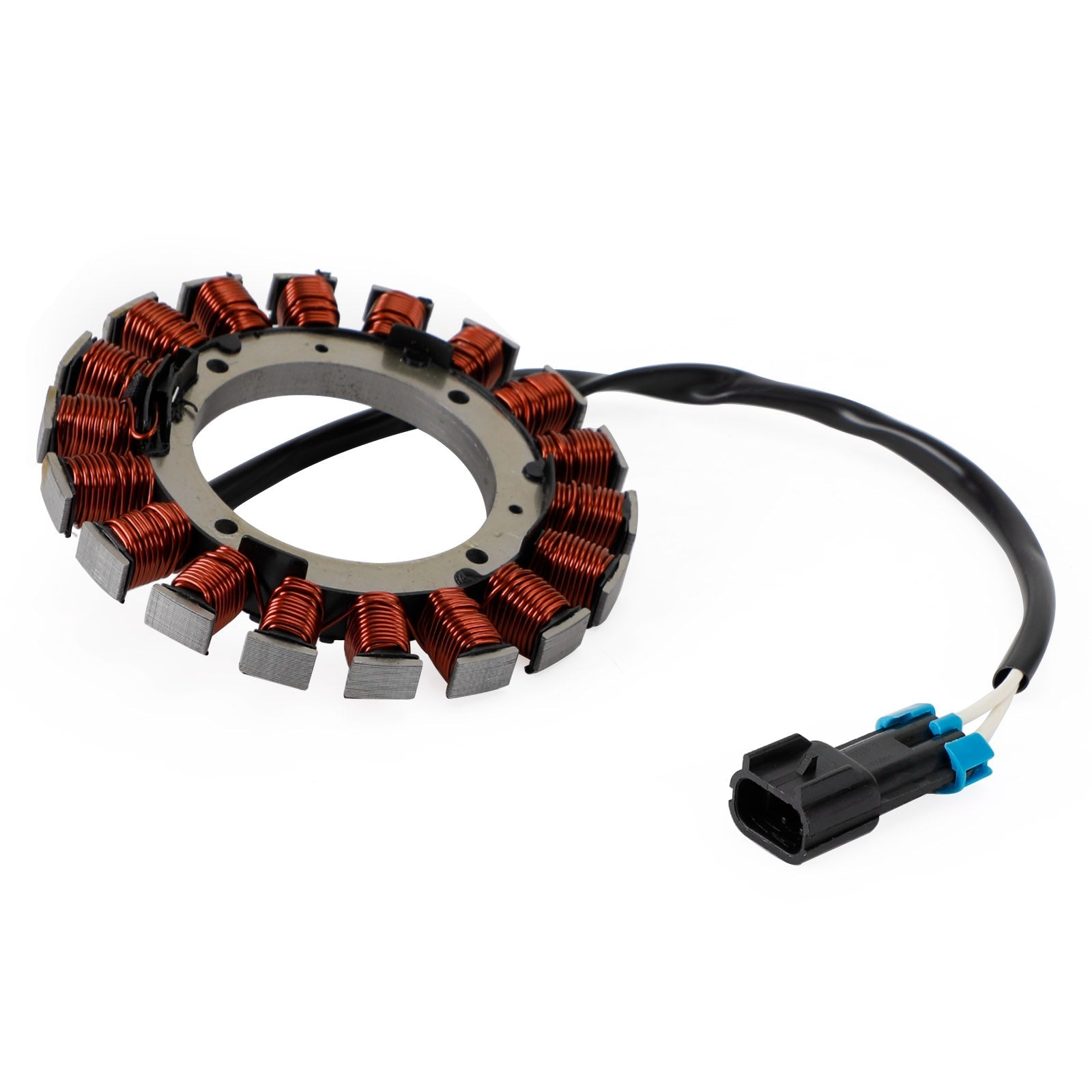

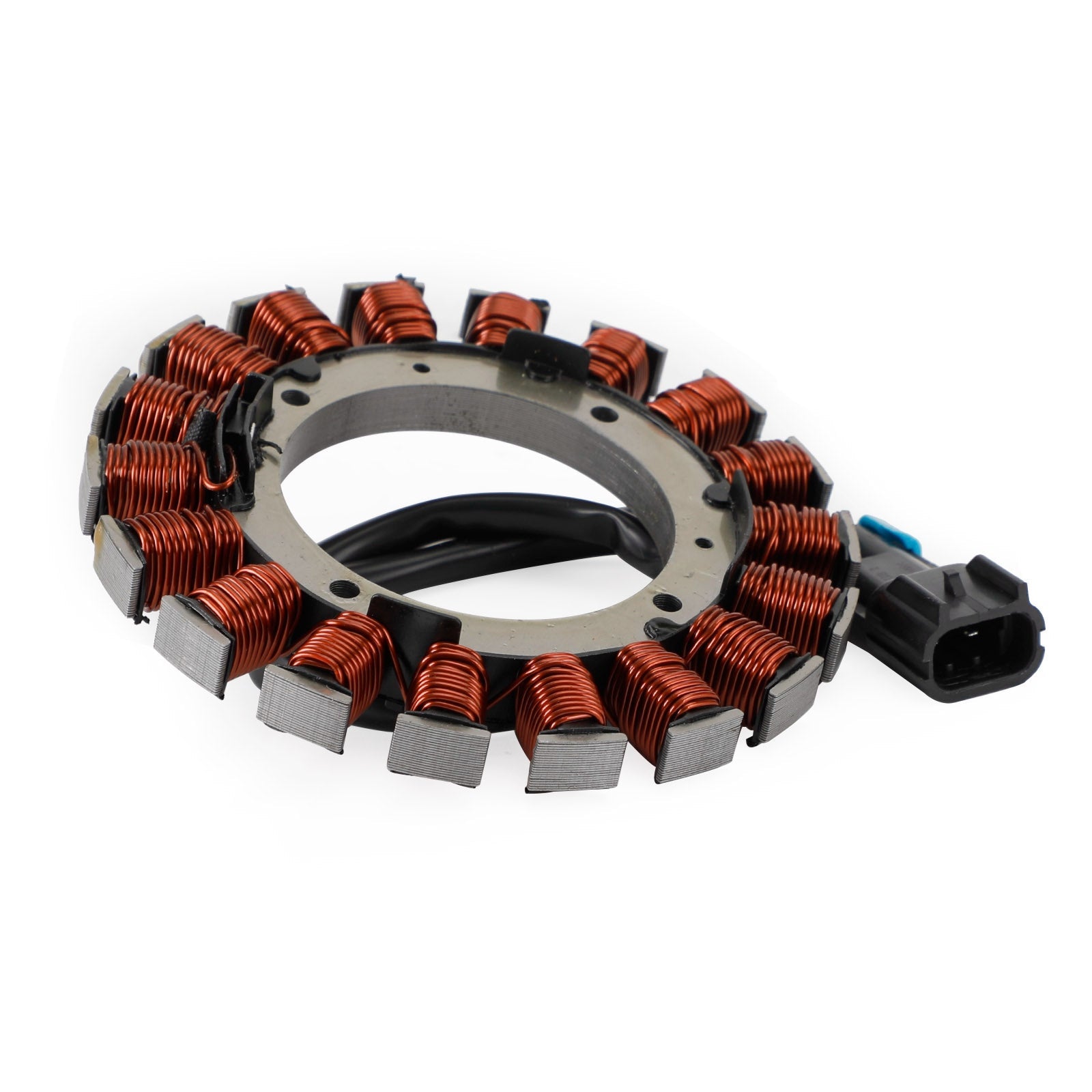

Type: Stator Charging Coil
Number of wires : 2
Number of plugs : 1
Number of pins : 2

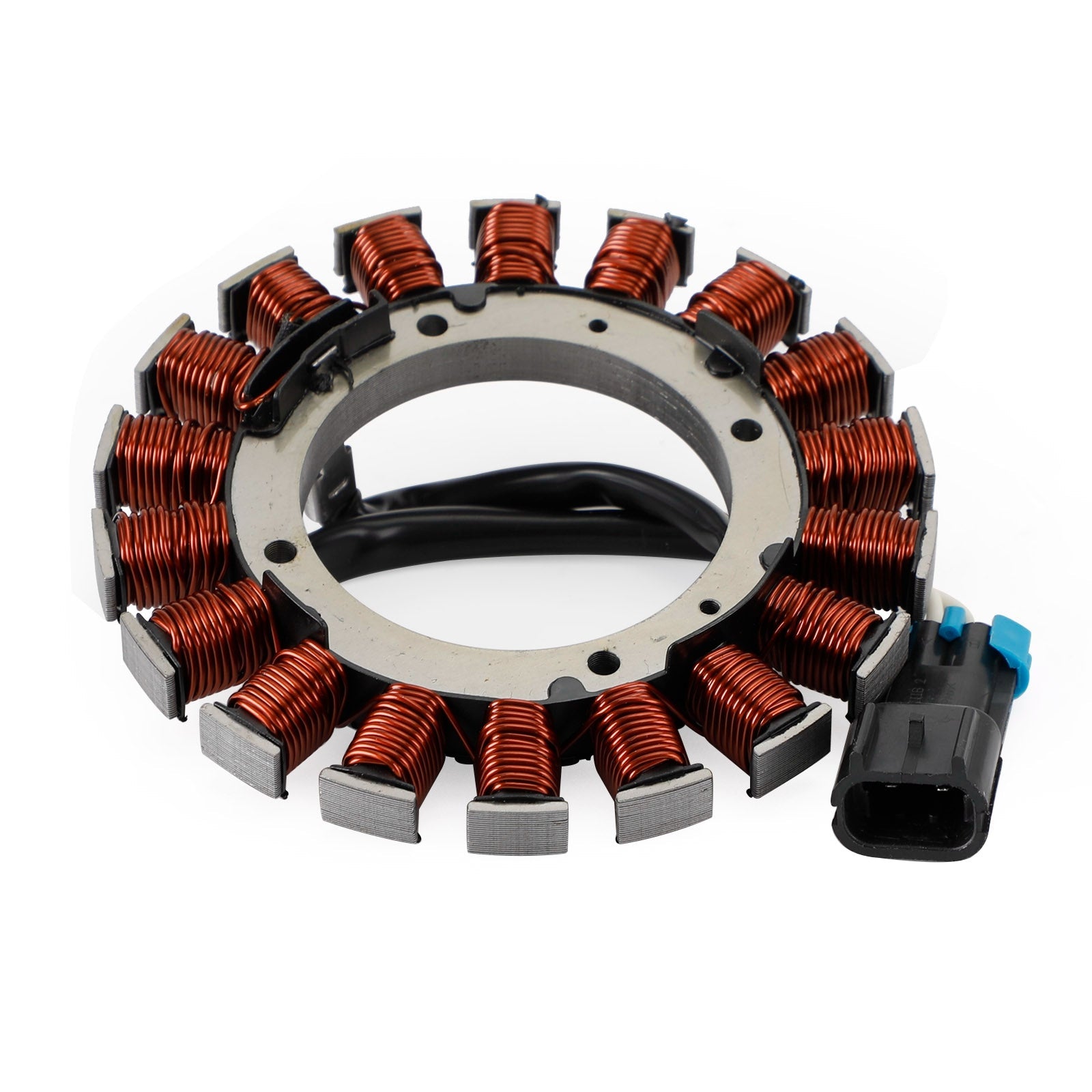

Number of poles : 18
Dimensions:
Inner Diameter 70.5mm / 2.77 inches
Outer Diameter 138mm / 5.43 inches
Bolt Mount Spacing 58mm / 2.28 inches
Stator Height 20mm / 0.78 inches

Replacement Part Number:
59031-7016
59031-2132

Fitments:
Fit for Kawasaki KAF400 Mule SX 2017-2023
Fit for Kawasaki KAF400 Mule SX 4X4 SE 2017-2018
Fit for Kawasaki KAF400 Mule SX 4X4 XC 2017-2018
Fit for Kawasaki KAF400 Mule 600 2005-2016
Fit for Kawasaki KAF400 Mule 610 4X4 2005-2016
Fit for Kawasaki KAF400 Mule 610 4X4 XC 2010-2014
Fit for Kawasaki KAF400 Mule 610 4X4 XC SE 2014-2016
Fit for Kawasaki KAF400 Mule 610 4X4 XC Camo 2014-2017
Fit for Kawasaki KAF400 Mule 610 4X4 XC Realtree APG HD 2011-2013
Fit for Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD 2005-2009

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Charging Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
