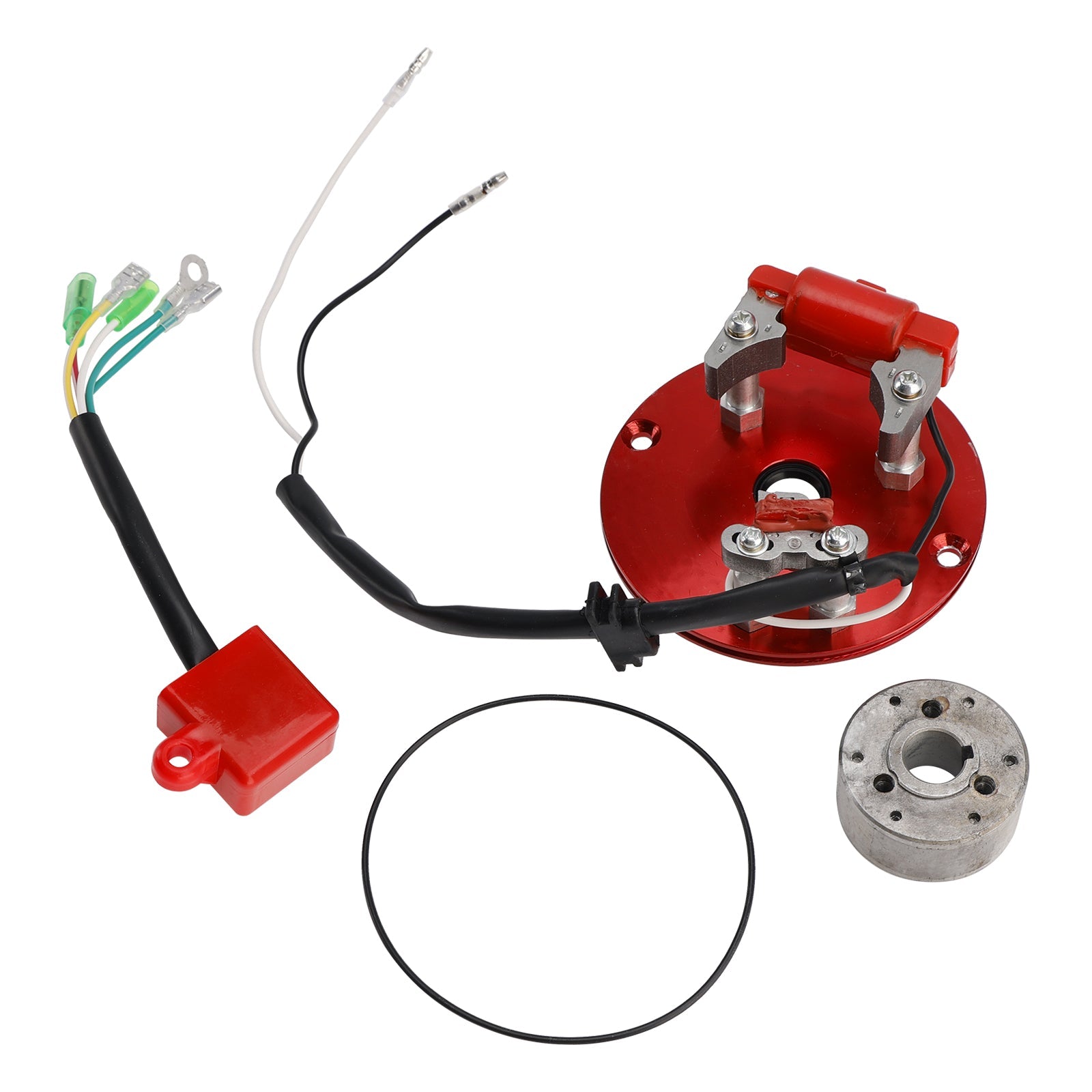

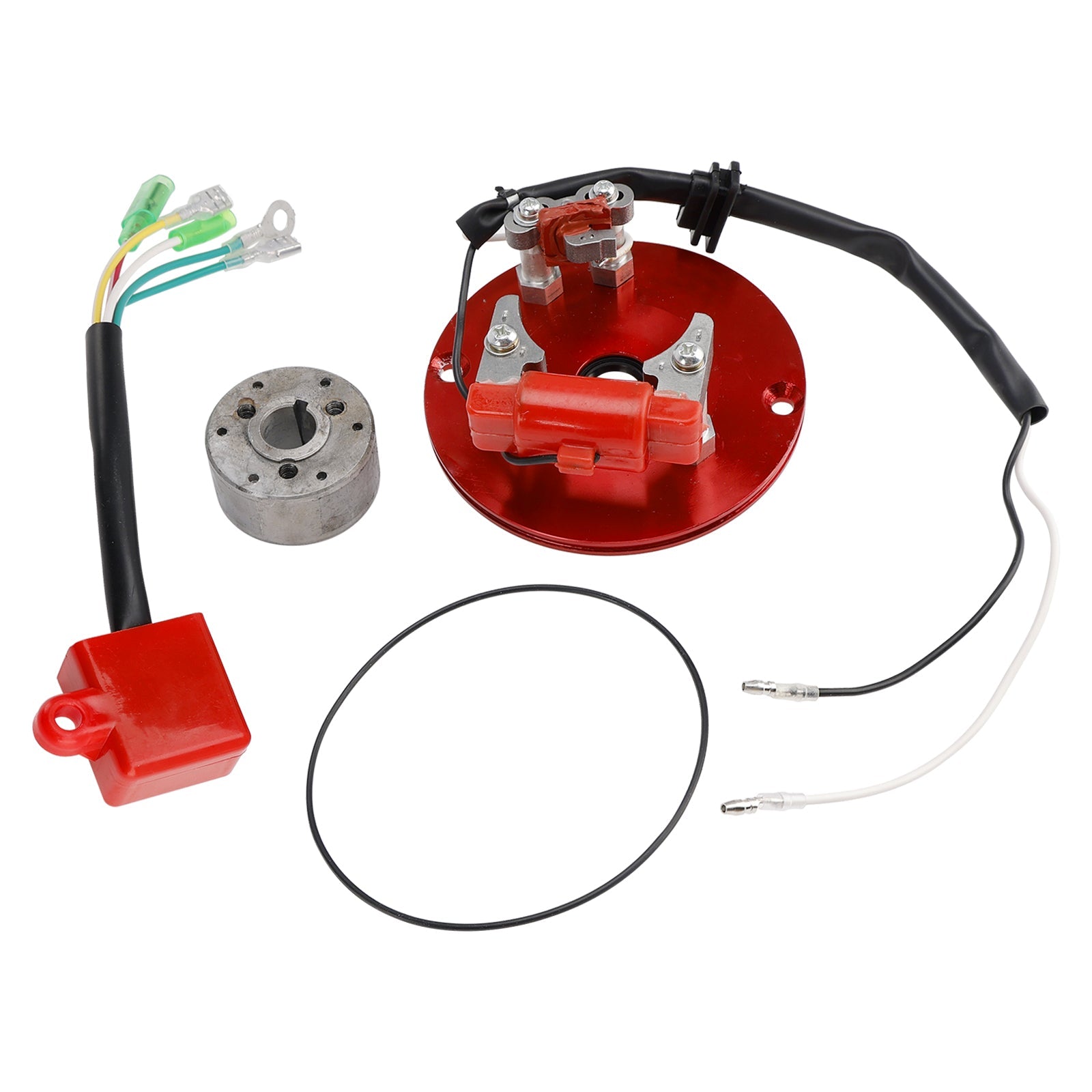

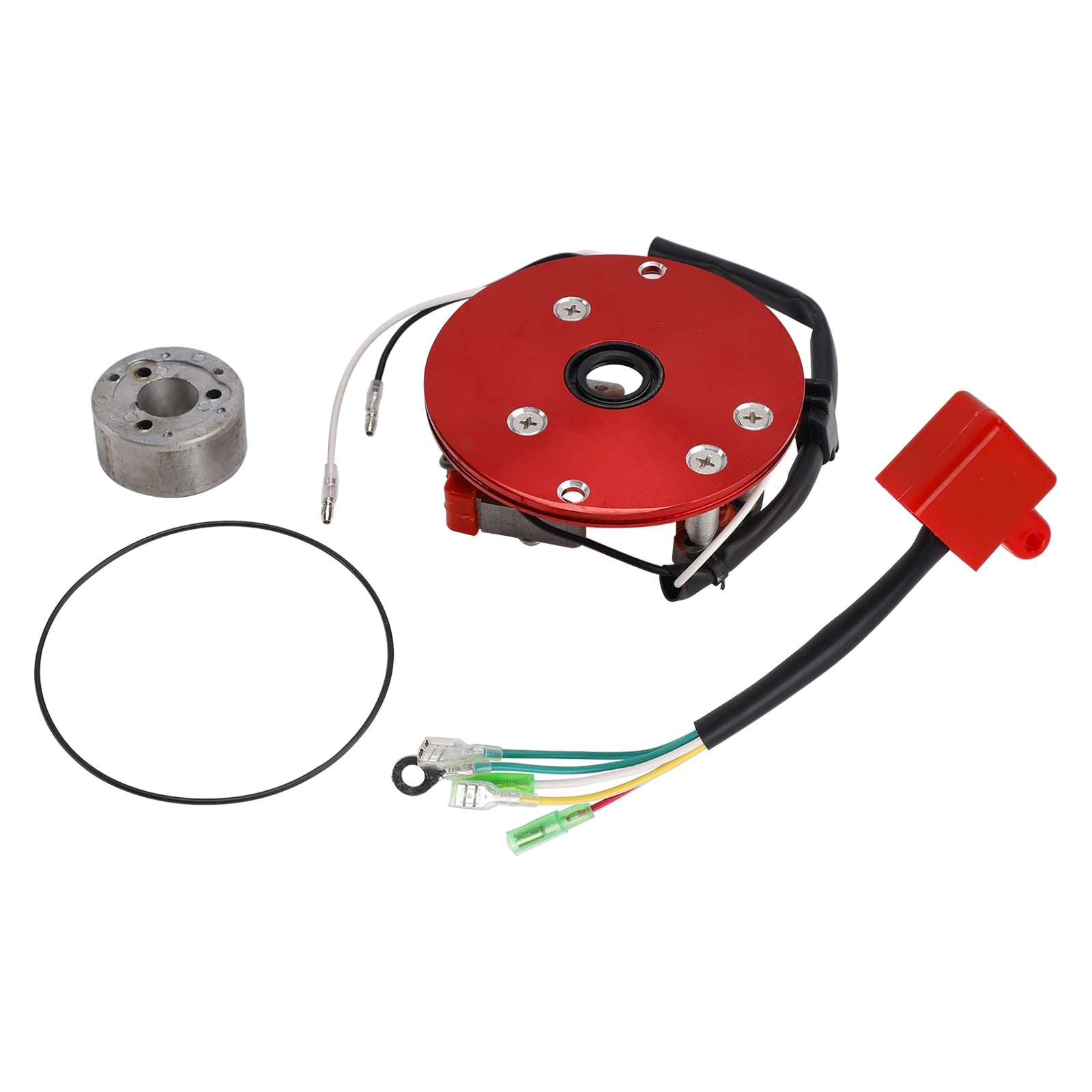

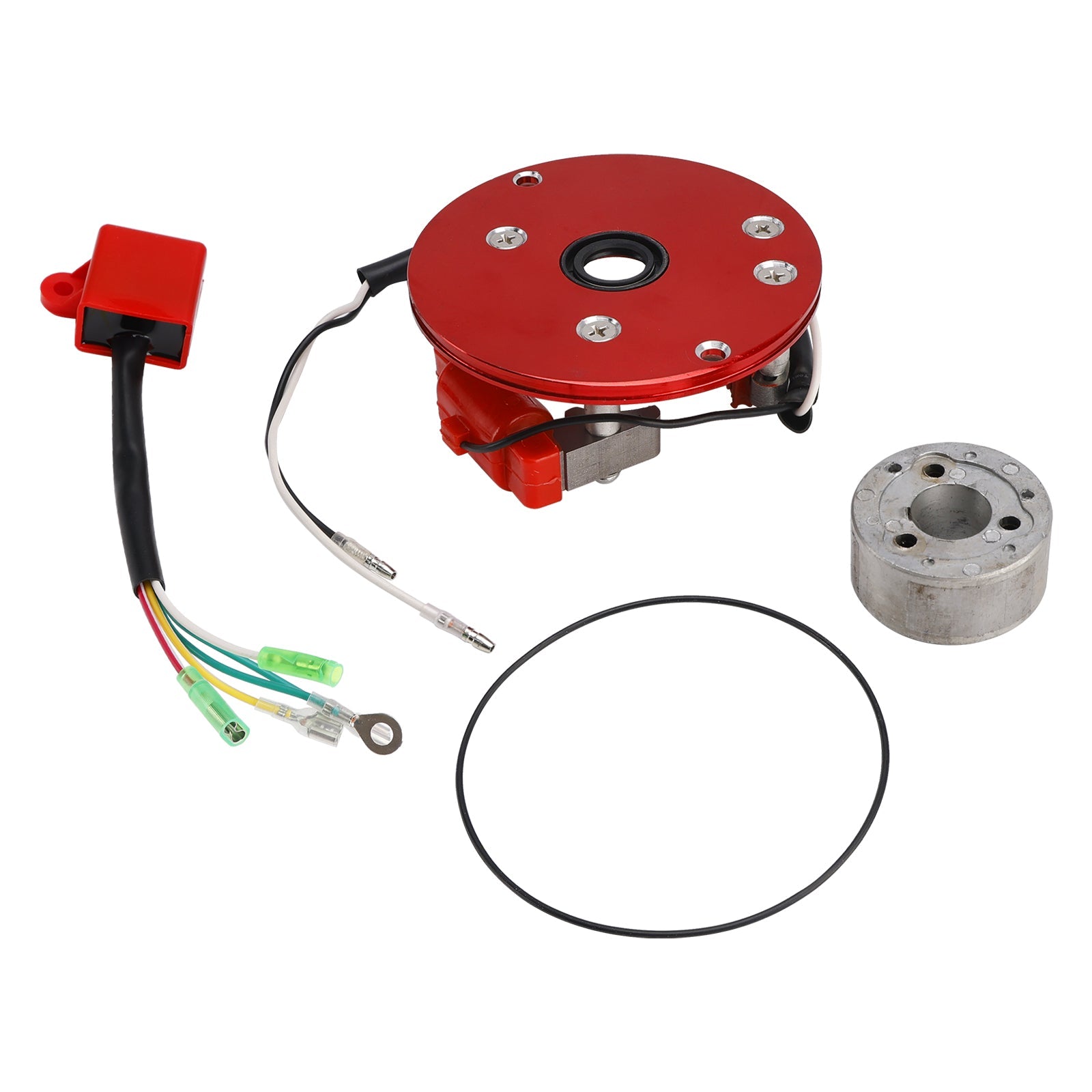

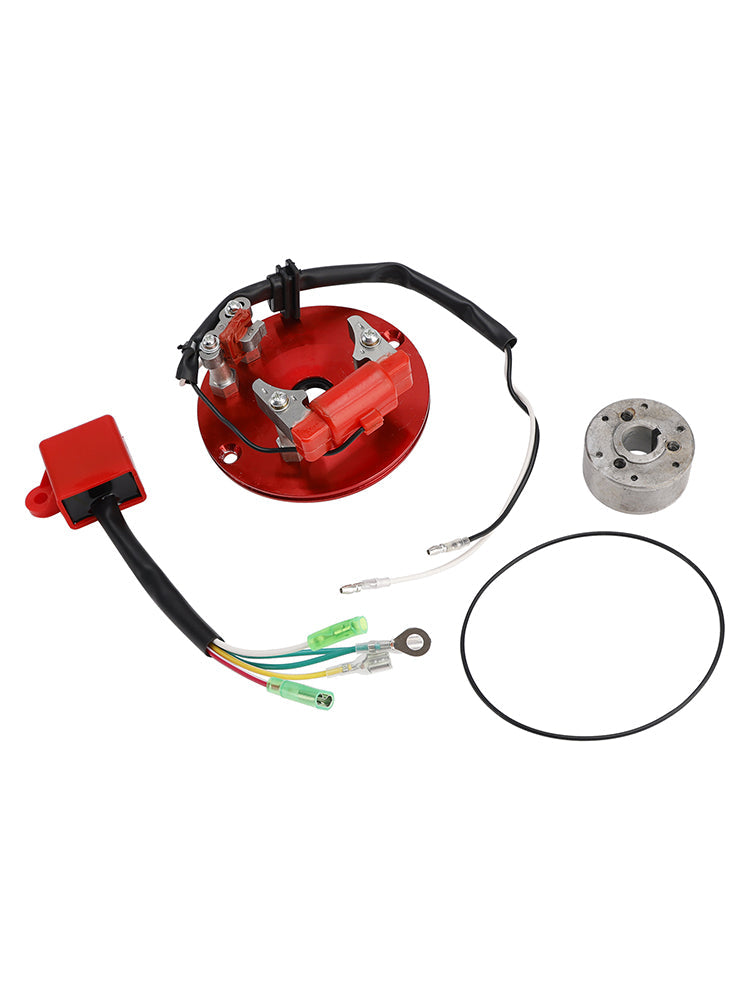

Magneto Inner Rotor Kit Stator CDI For Lifan YX140 110cc 125cc 140cc Pit Bike Dirt Bike

Features:
New condition, high-quality, durable.
It reduces the weight of the flywheel's magnetic rotor, making the engine lighter and faster.
This product can be used with various pit bike engines.
With this kit, you can adjust and install your motorcycle's timing.
Easy to install.

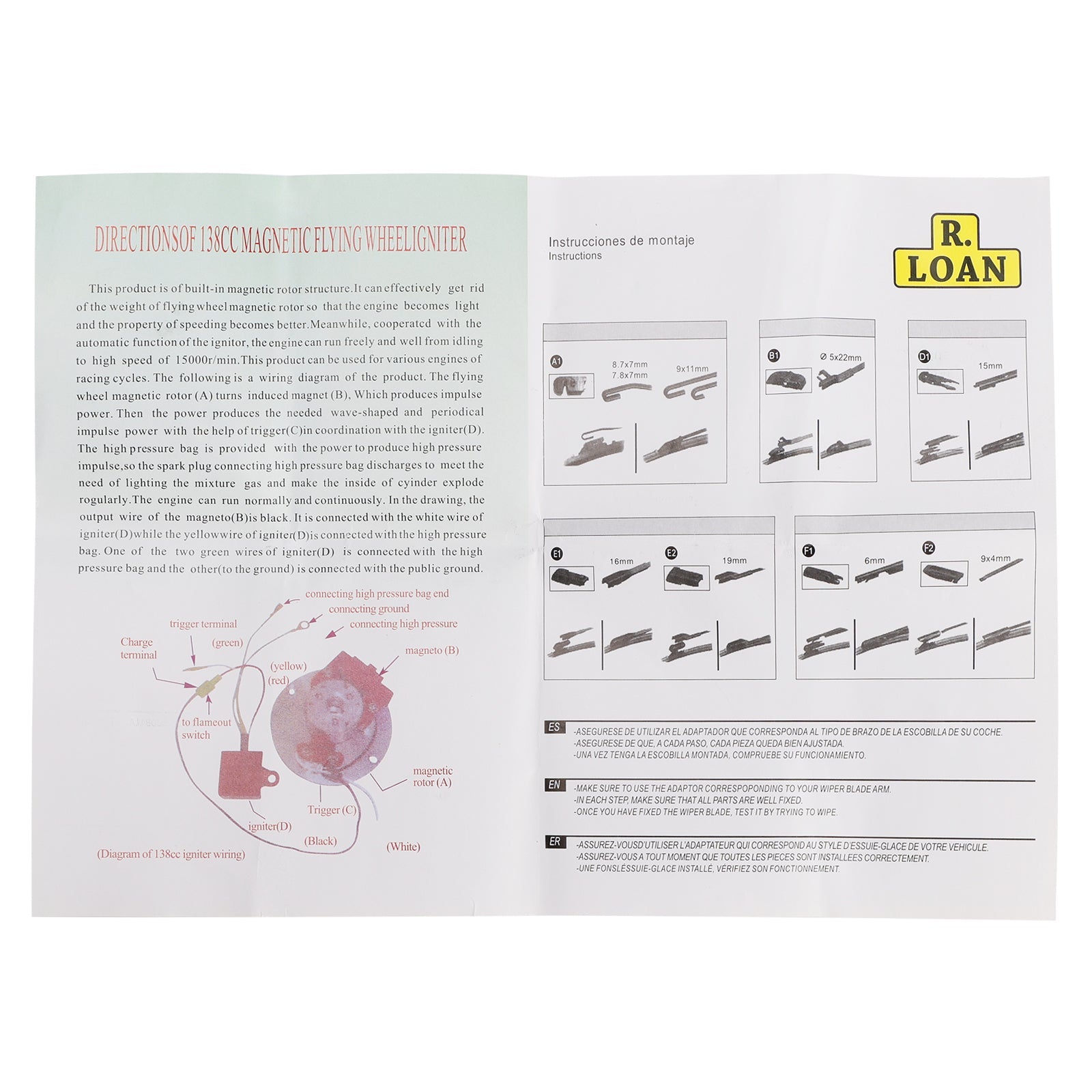

Wiring diagram:

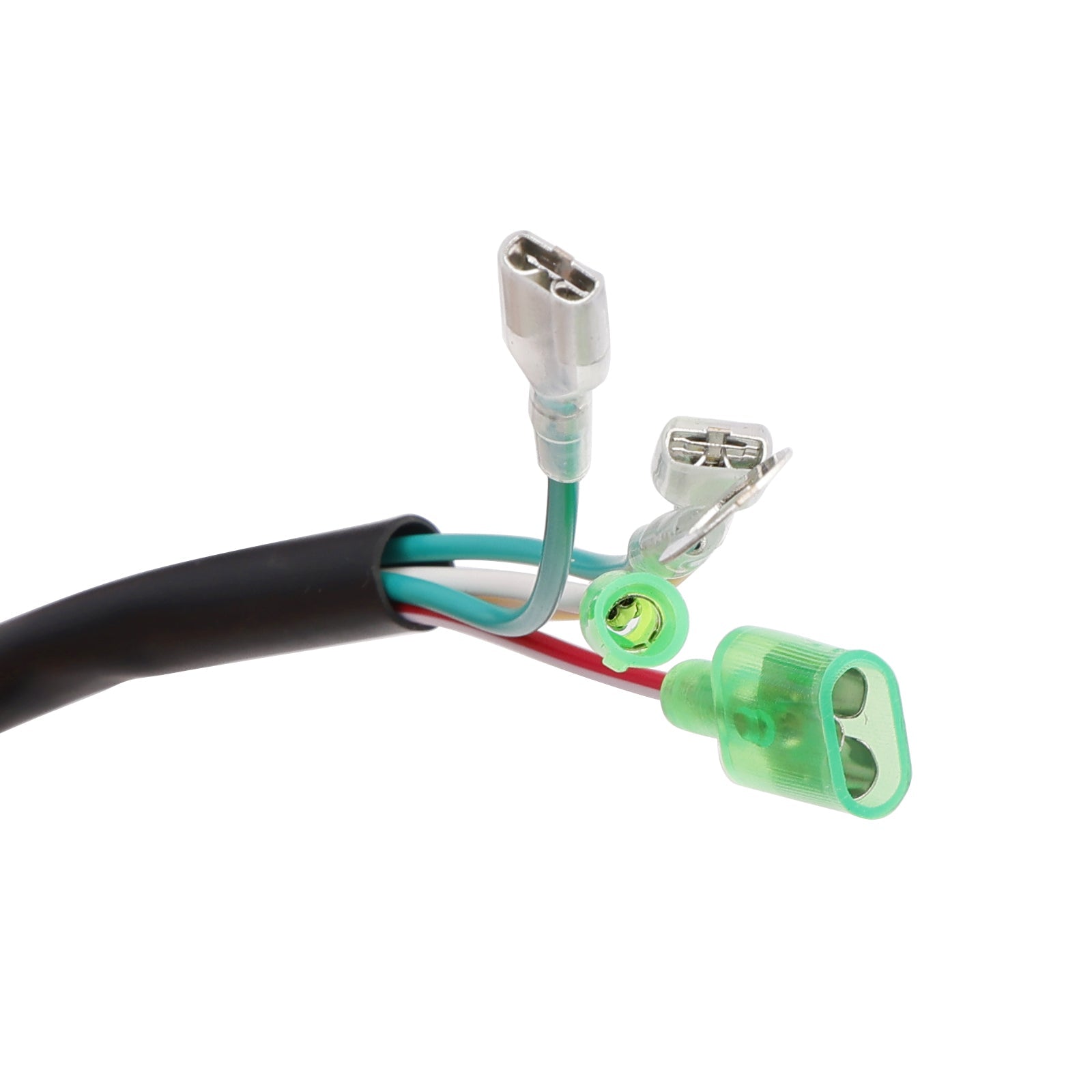

Green wire with (loop fitting) goes to Ground
Green wire with horseshoe fitting goes to Green terminal on coil
Yellow wire with horseshoe fitting goes to yellow terminal on coil
Brown wire goes to white off the stator
Red wire (has 2 connections) 1 is for Black wire off the stator the other is for a kill switch connection

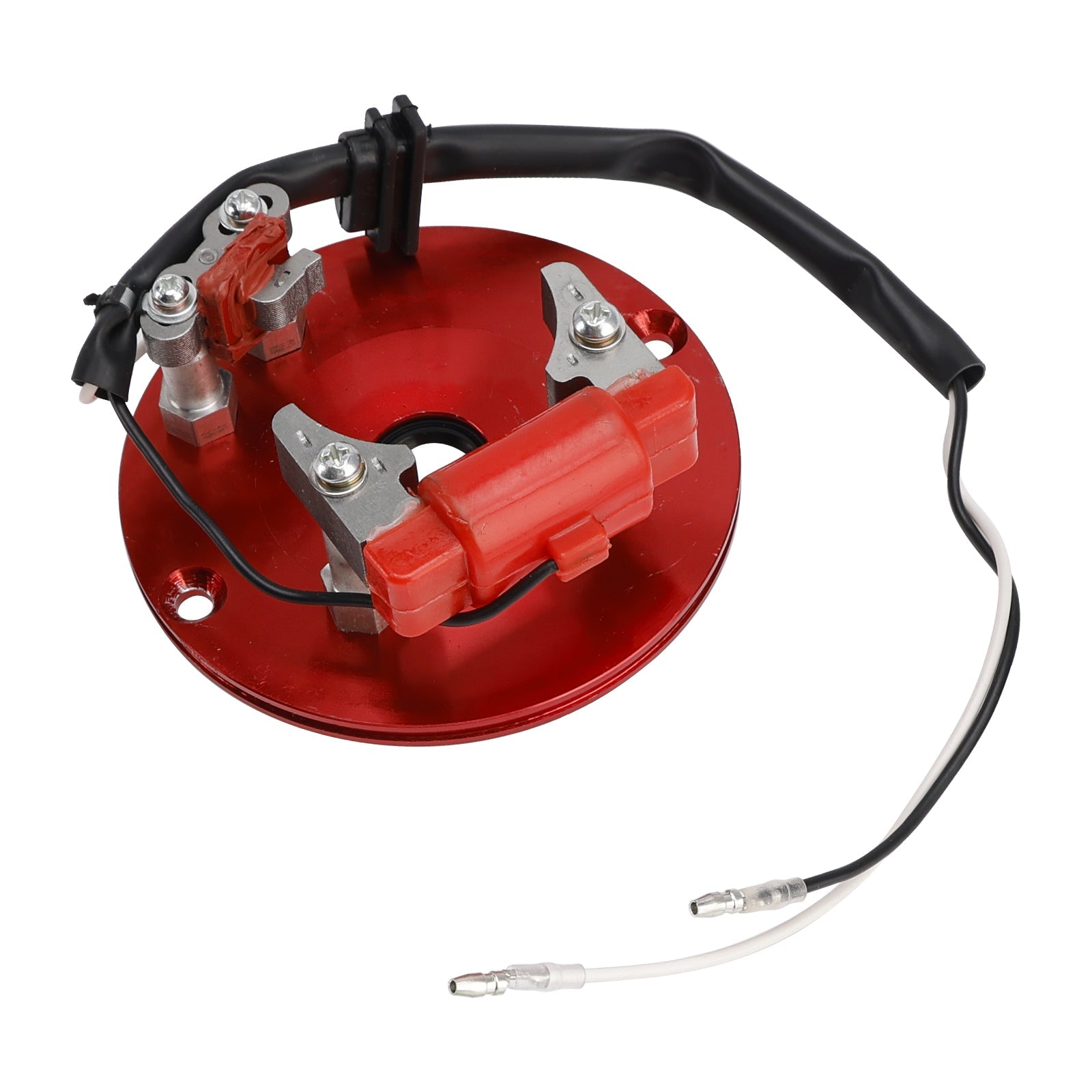

Set up the stator & Pick up in the Center of the adjustment and with a Business Card Thickness air gap or .012"
NOTE: If you're still having trouble try flipping the stator over.

Troubleshooting
Replace spark plug with another - many spark plugs have failed at over the years so exchange Spark plug & set gap at .030 on the spark plug
Set BOTH pickup (white wire device)& Stator(black wire device) at .010-.012 away from rotor with buiness card
Set BOTH pickup (white wire device)& Stator(black wire device) in the center of the slide screw adjustment
Double check your green ground wire is attached to the same bolt as the coil ground under tank on frame (make sure the the ground is clean from debris)
Last Resort ONLY , Flip the Stator

Specifications:
Condition: Aftermarket 100% Brand New
Material: Aluminum, Copper
Type: Rotor Kit

Fits Models:
Fit for Honda Z50, XR50, CRF50, XR70, Pitbike and Mini ATV Engines: XR/CRF 50, 70, Z50, BBR, Thumpstar, SSR, Sikk MX.
Most Chinese and most HONDA Horizontal Kick Start Engines.
Fit for Lifan YX 110cc 140cc 150cc Pitbike Dirtbike.

IT WILL NOT WORK ON ALL ELECTRIC START ENGINES!!!

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:

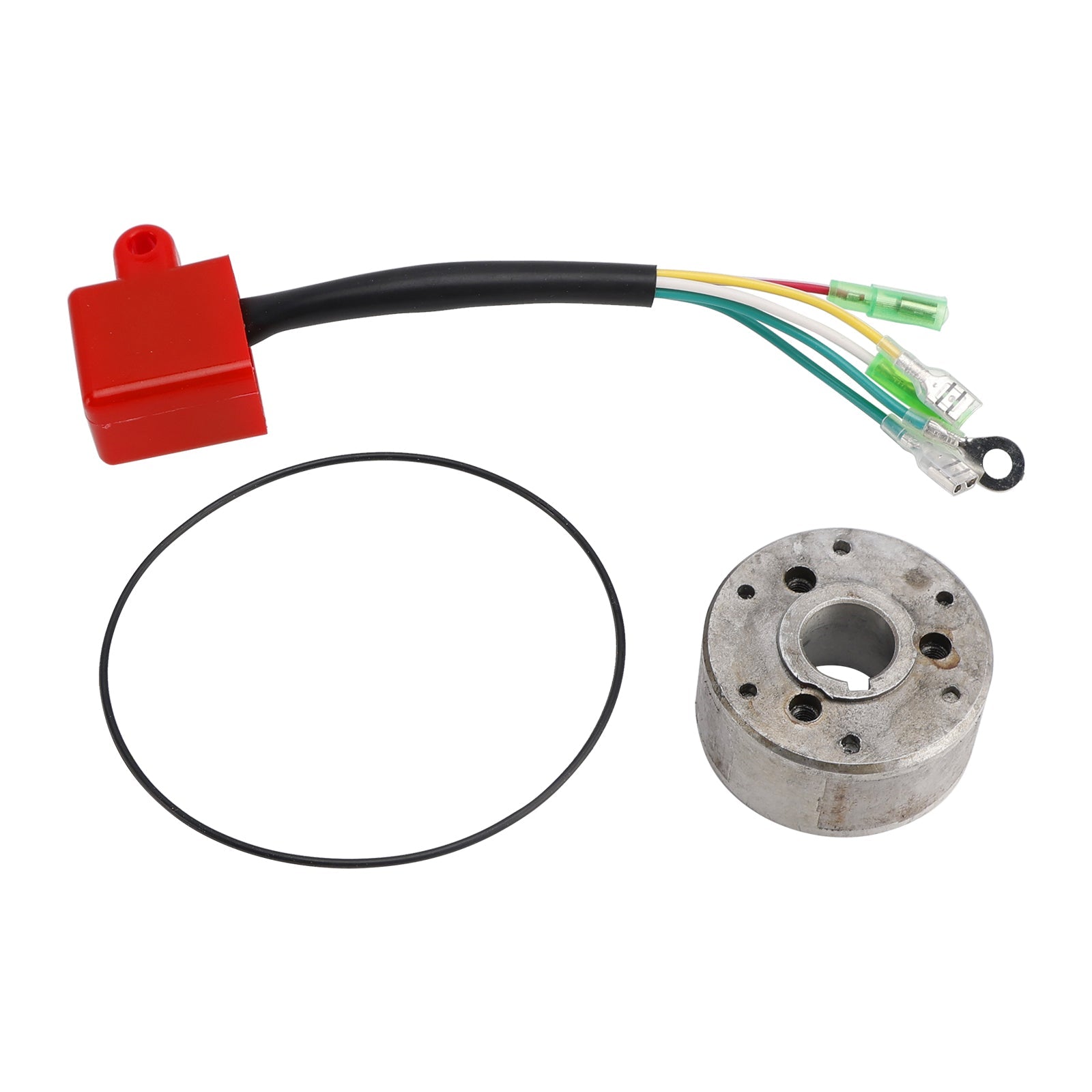

1x Inner Rotor Kit

Note:
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
