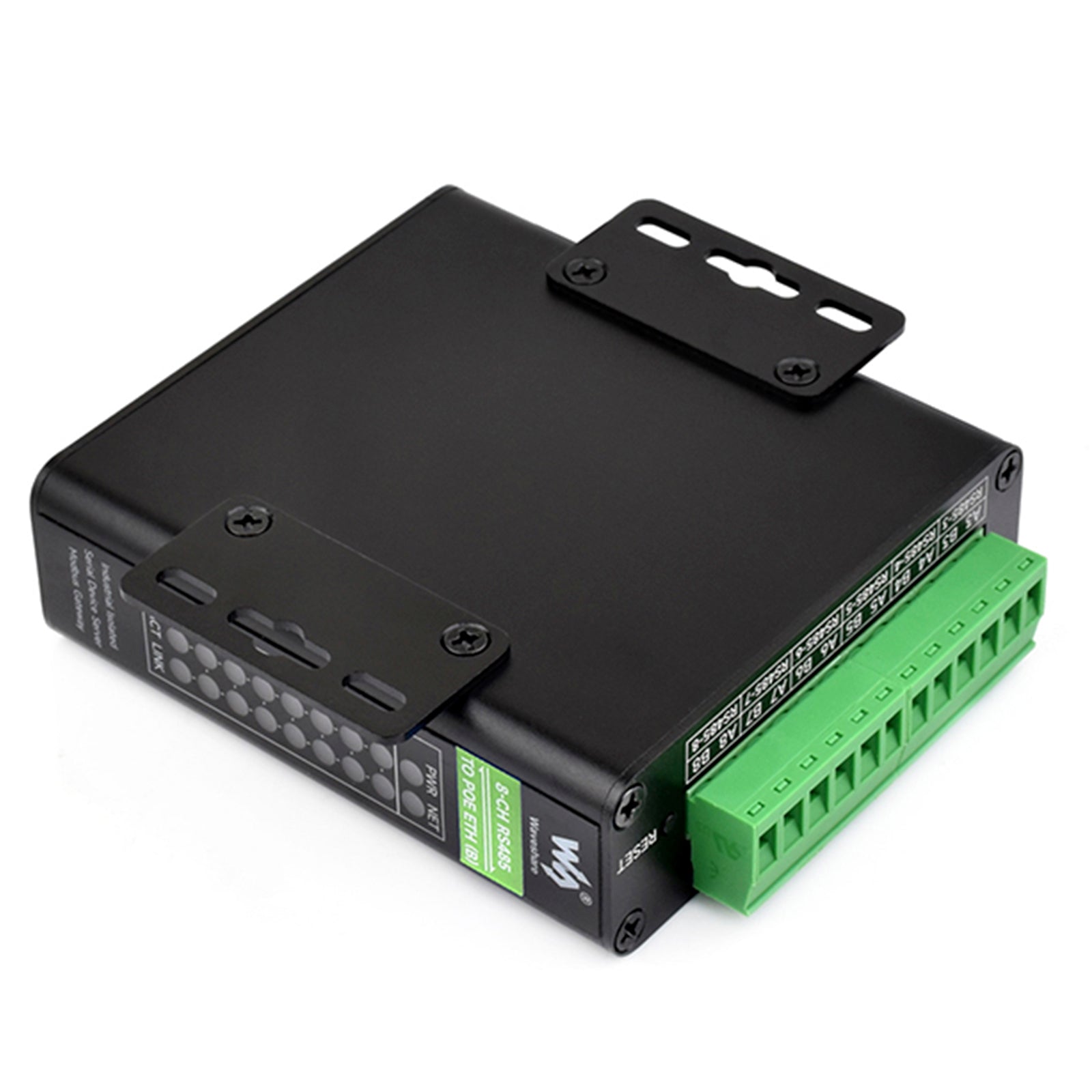

Industrial Isolated Serial Port Module Serial Port Server Eight-Way RS485 to RJ45 Ethernet Modbus Gateway

Features:
This product is an industrial-grade multi-functional serial device data collector/IoT gateway equipped with eight RS485 and Ethernet interfaces (optional version with PoE function). It has a unique design, compact size, easy installation, and high cost performance. It is suitable for data acquisition, IoT gateway, security IoT, and intelligent instrument monitoring, etc., to meet the various needs of different application scenarios.
The 8 serial ports can be configured with different baud rates, work independently, and do not interfere with each other
Support TCP server, TCP client, UDP mode and UDP multicast
It has multiple functions such as serial port server, Modbus gateway, MQTT gateway and RS485 to JSON, and can play an important role in various network environments
The power interface adopts terminal block power supply access to provide stable power supply guarantee

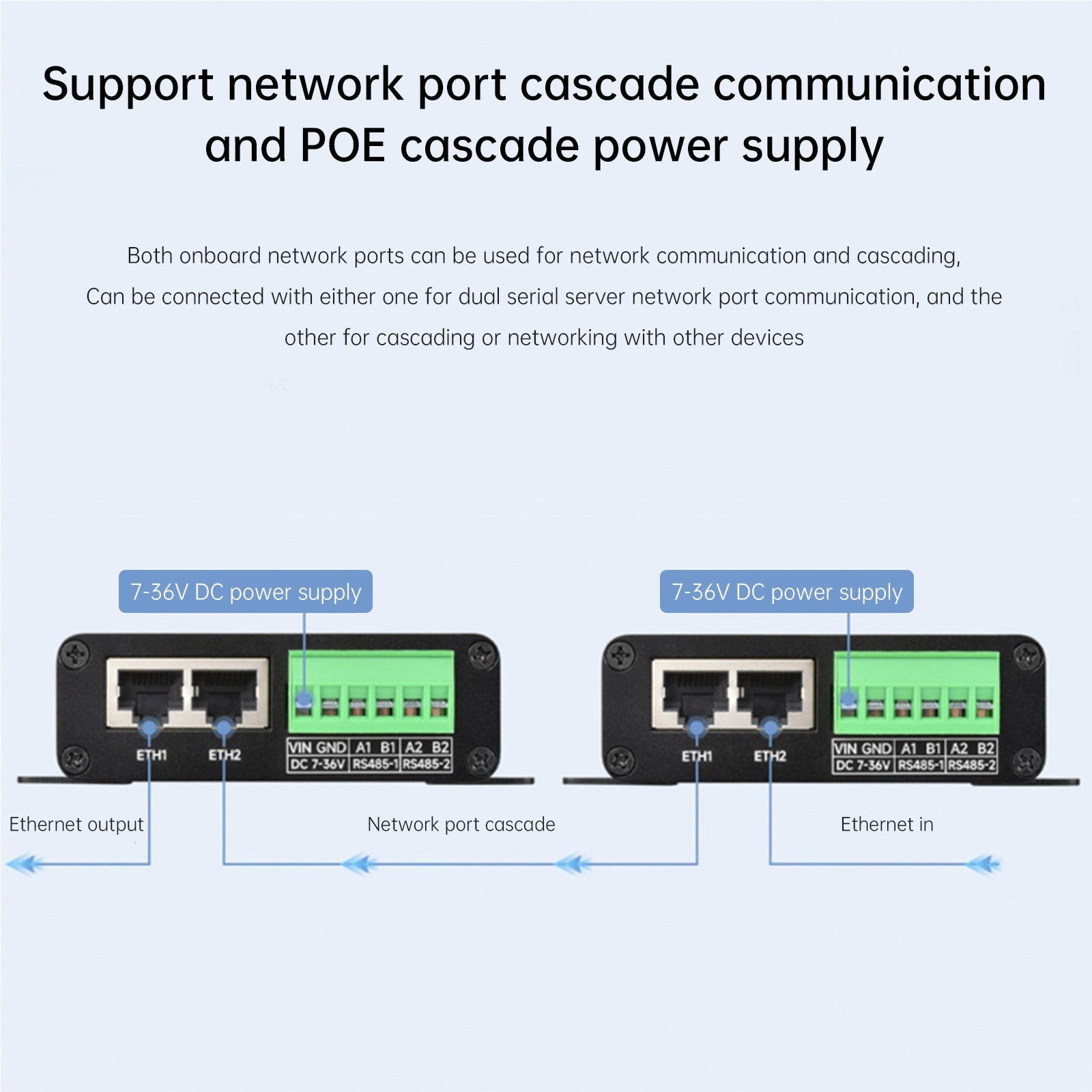

Onboard dual network ports can be used for network switch function (optional version with PoE function)
Multiple status indicator lights can observe the dynamics of the device more intuitively

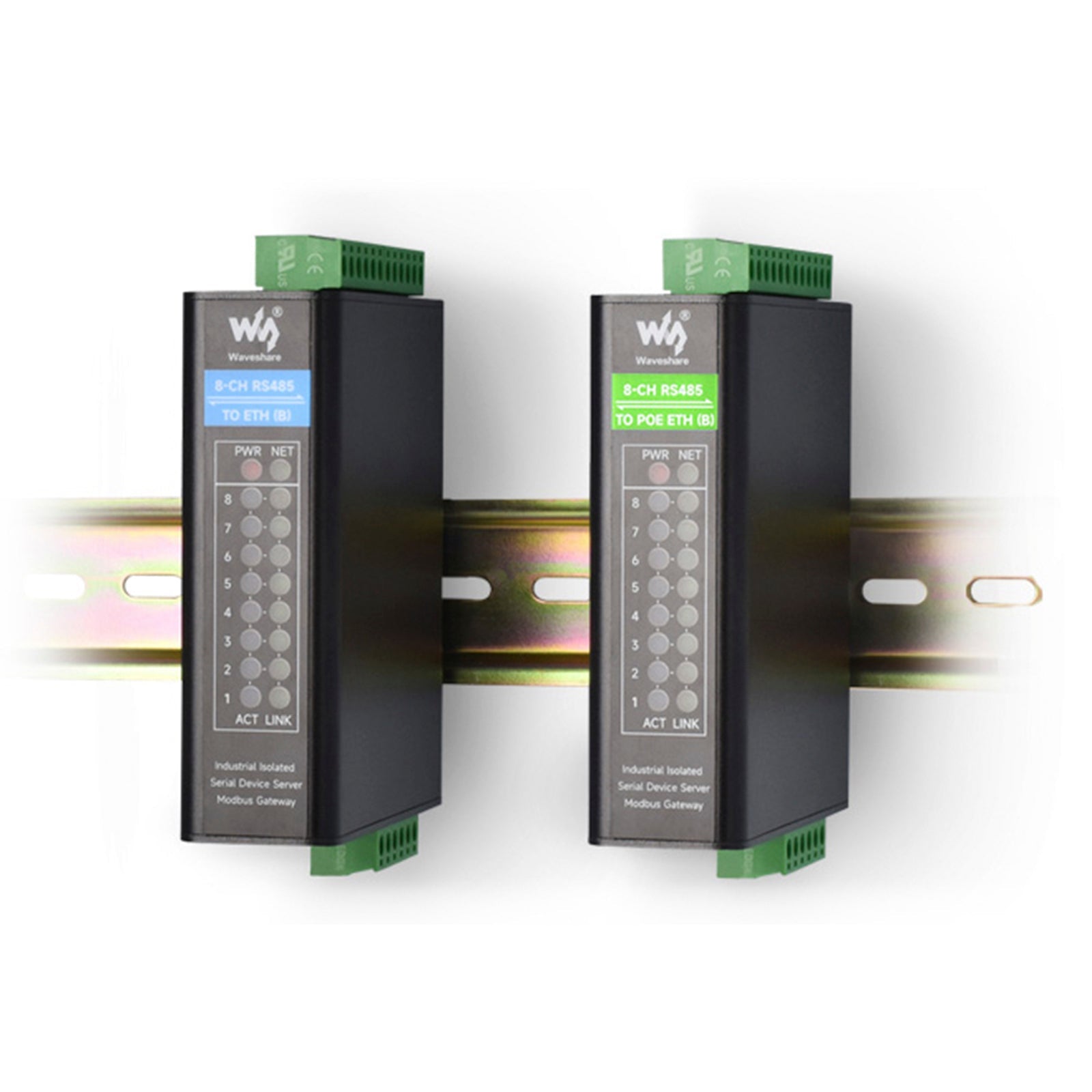

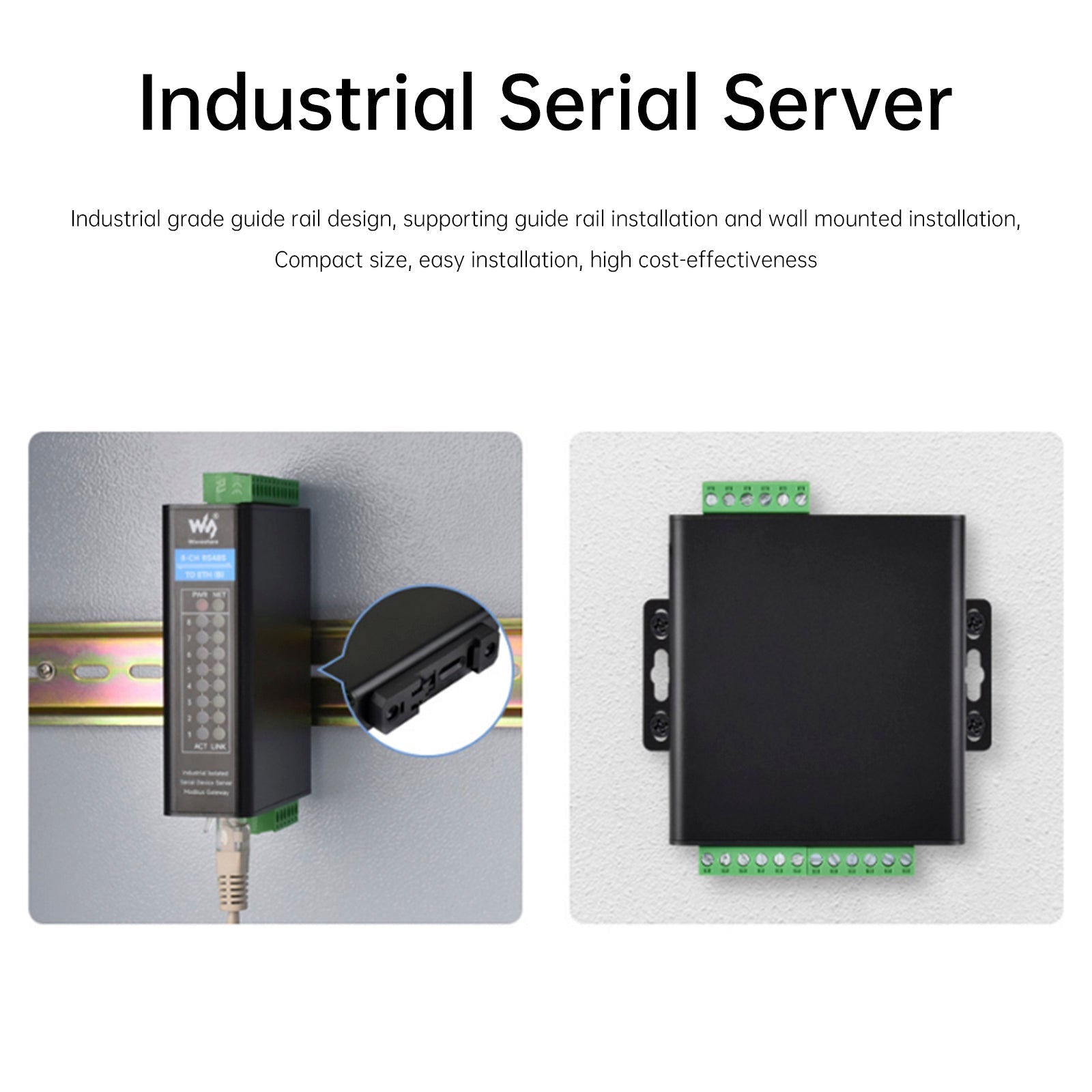

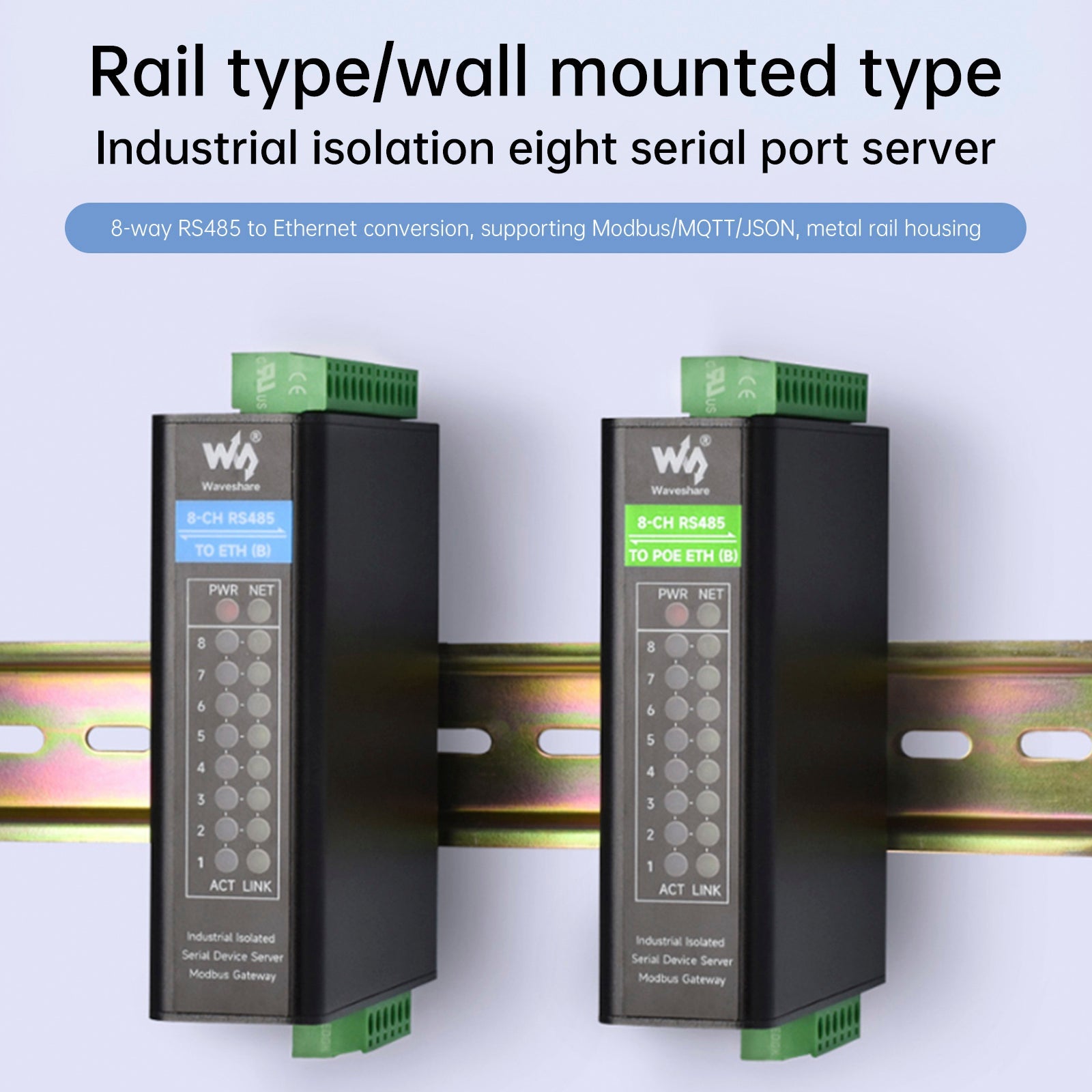

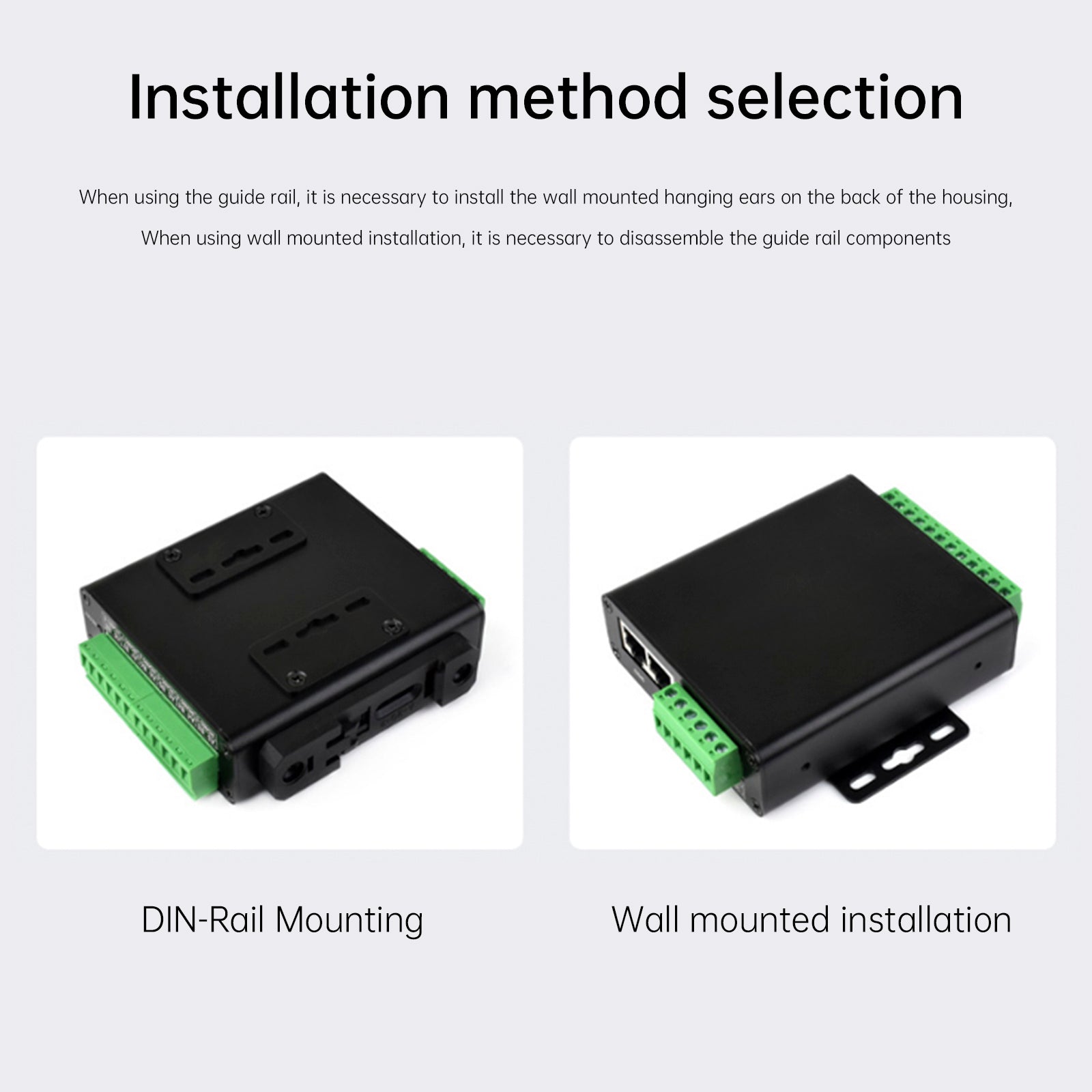

·The rail-type and wall-mounted shell design is easy to install and conducive to rapid deployment and expansion of equipment

Specifications:
Model: 8-CH RS485 TO ETH(B)
Product type: Serial port server, Modbus gateway, MQTT gateway
Basic function: Realize RS485 to Ethernet bidirectional transparent transmission function
Communication interface: RS485 x8, network port x2

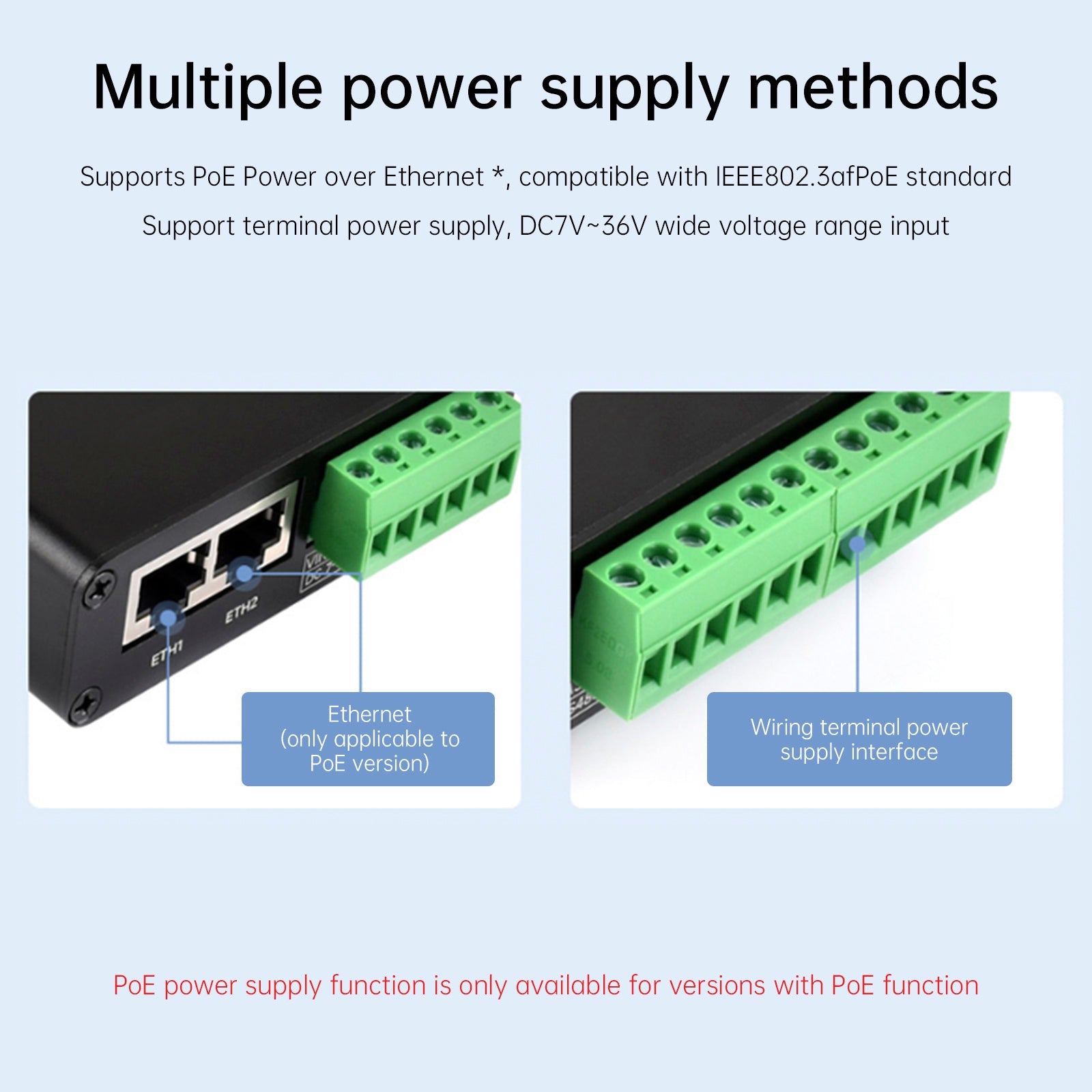

Power supply: Terminal block DC 7V~36V/Terminal block DC 7V~36V or PoE network port
Isolation protection: Power isolation, signal isolation protection
Ethernet: Ordinary network port/PoE network port, support IEEE 802.3af standard
Interface characteristics: 10/100M adaptive RJ45 interface, 2KV level surge protection
Serial port: Isolated RS485 (8 channels can send and receive independently at the same time)
Baud rate: 300bps~115200bps
Parity bit: None, odd parity, even parity, mark, space
Data bit: 5~9 bits
Flow control: No flow control
Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method: PC configuration, WEB browser, device management function library
Communication method: TCP/IP direct communication, virtual serial port method
Working mode: TCP server, TCP client (TCP server also coexists), UDP mode, UDP multicast
Operating temperature: -40°C~85°C
Humidity range: 5%~95% relative humidity

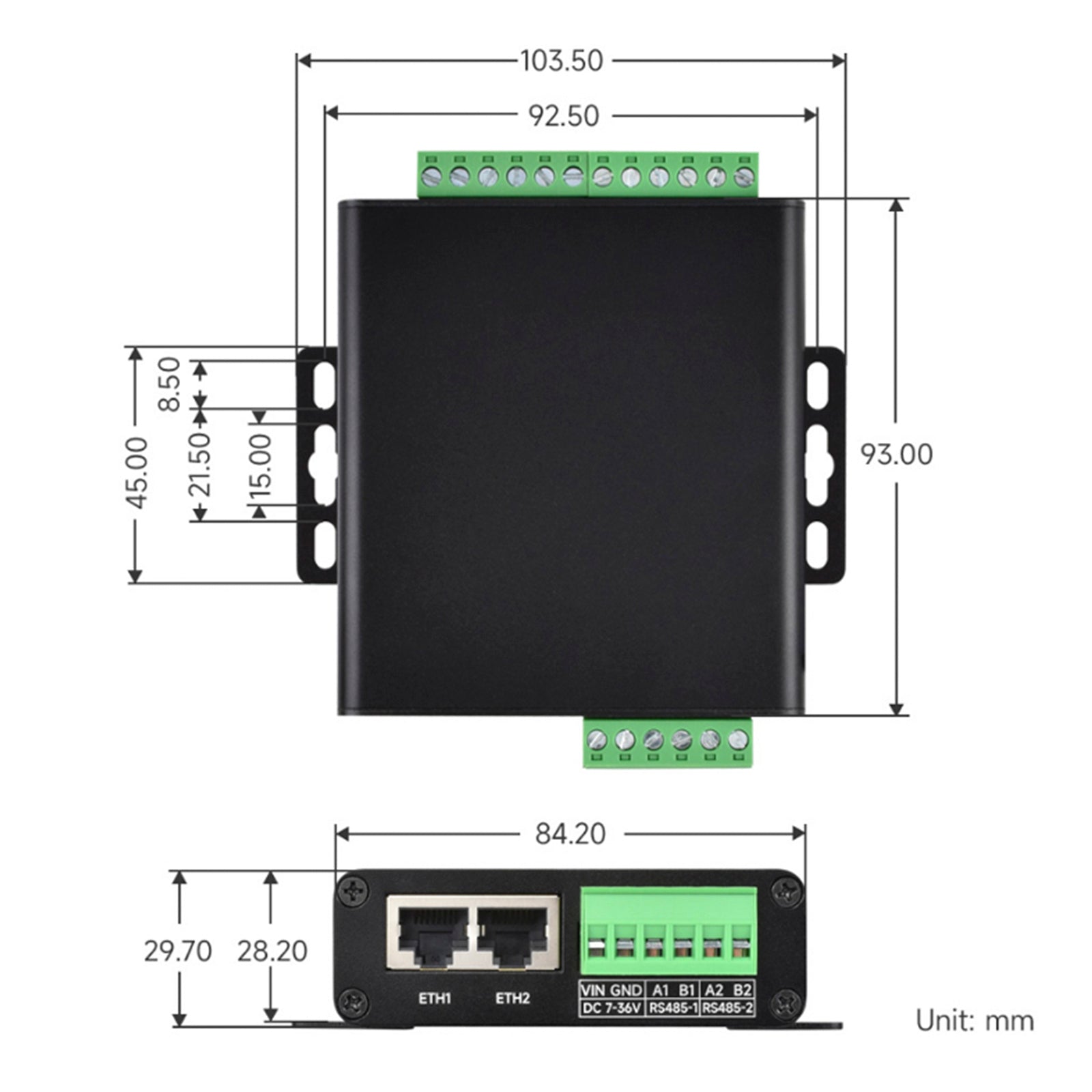

Product size (L xW xH): 93x103.5 x29.7(mm)

Package Included:

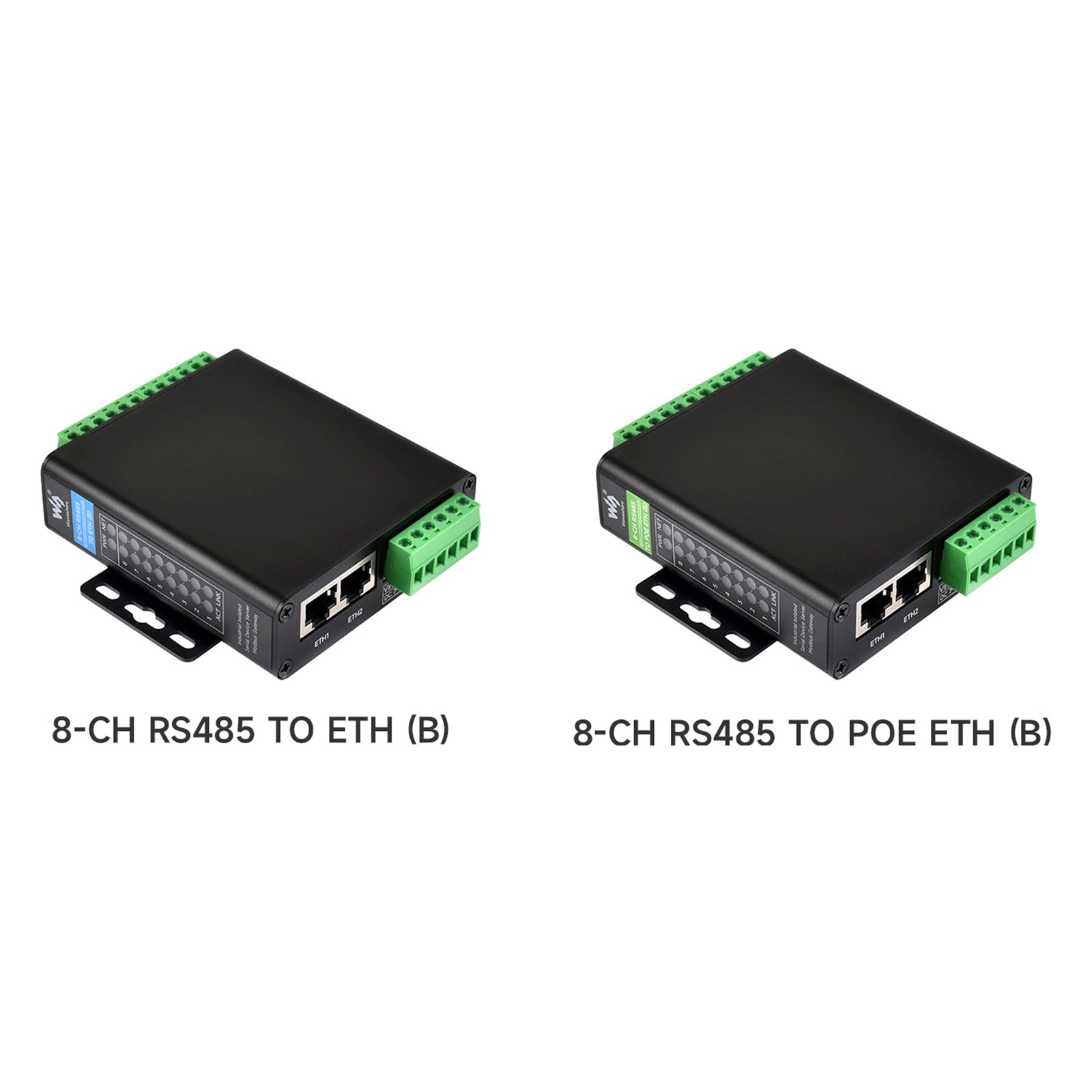

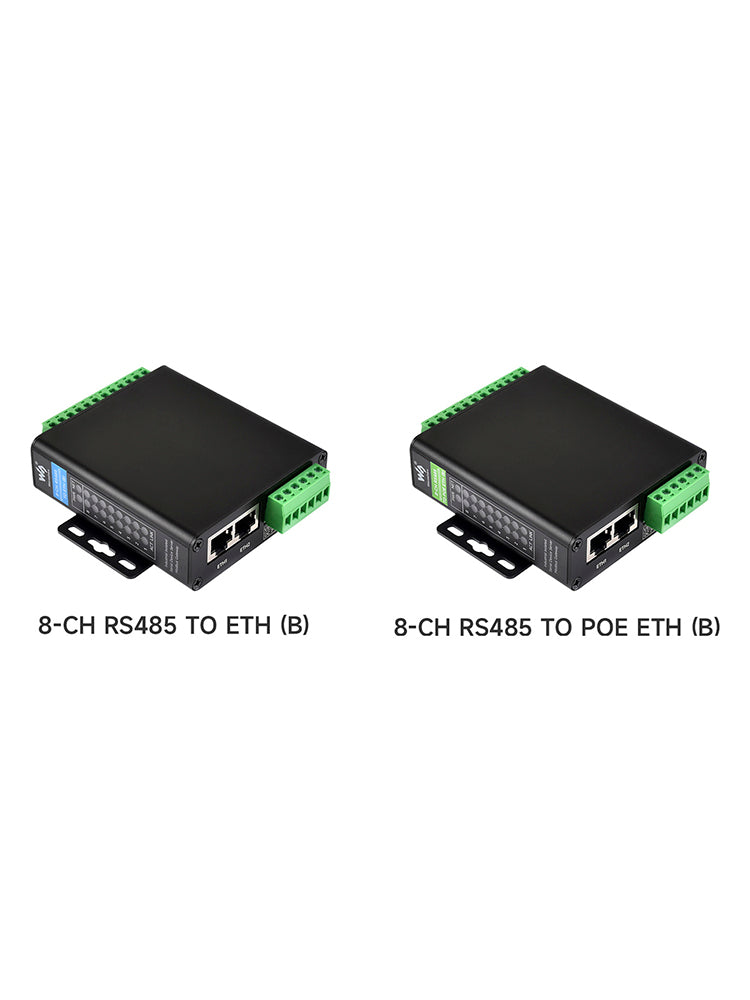

Option1:

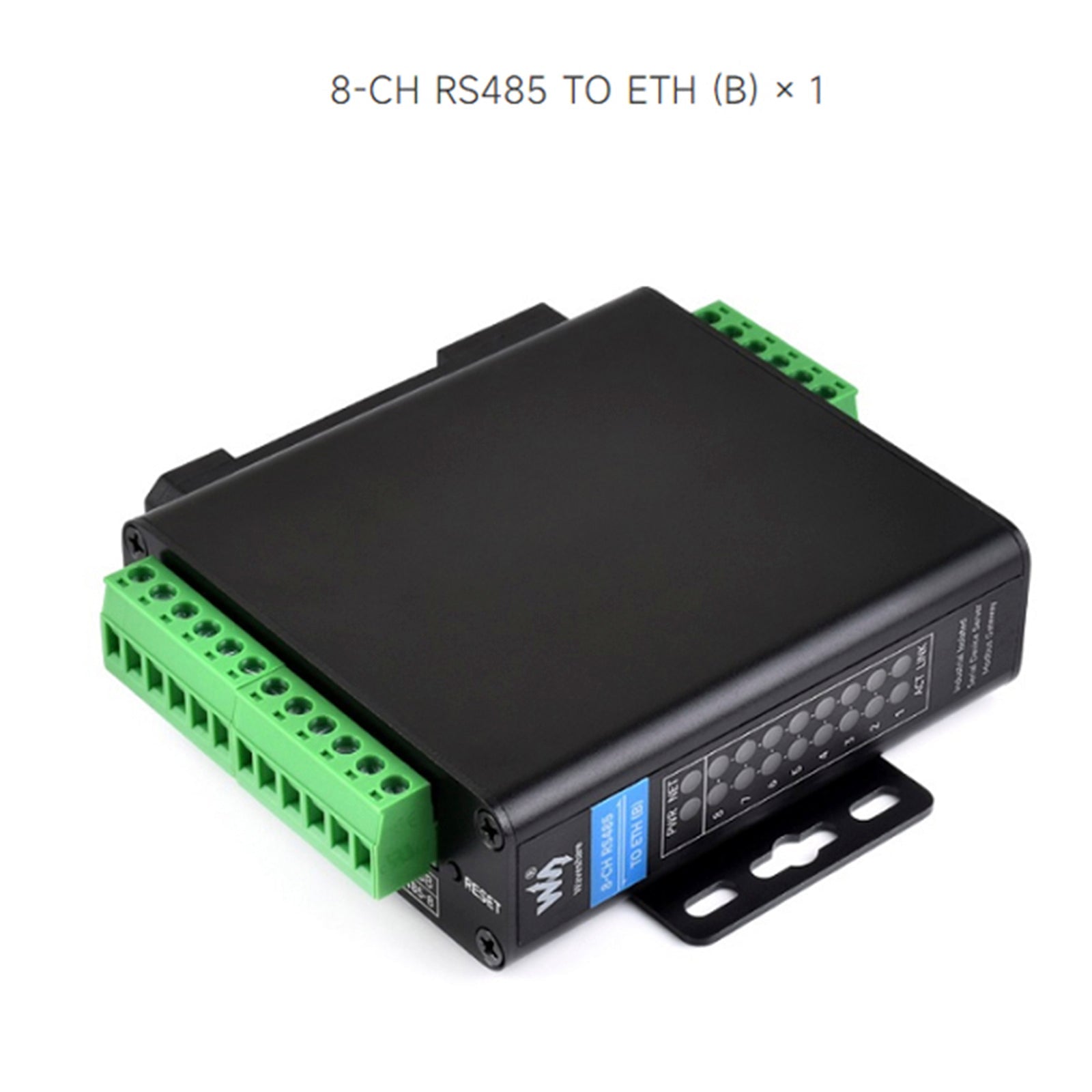

1x 8-CH RS485 TO ETH (B)
Option2:

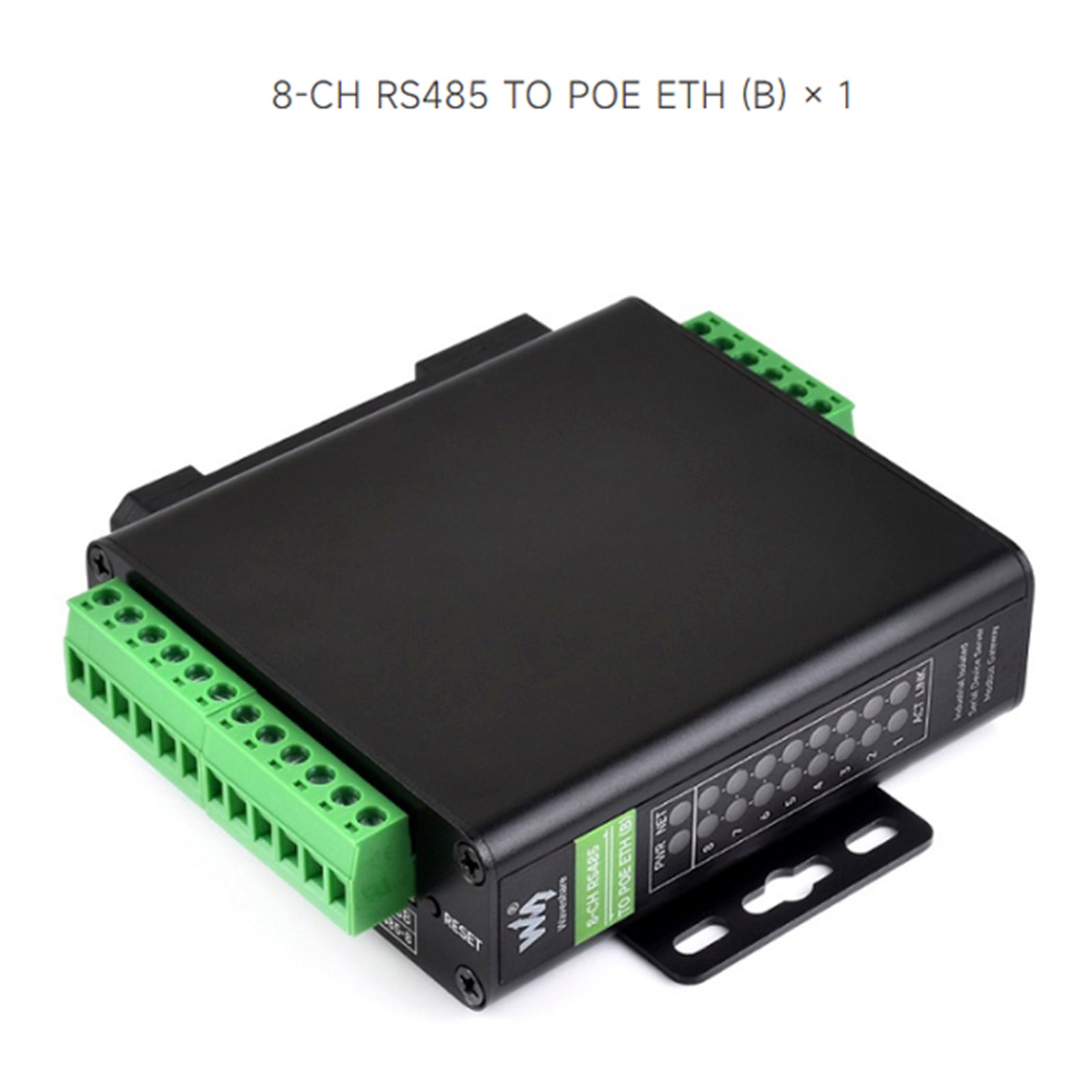

1x 8-CH RS485 TO POE ETH(B)

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
