Feature:
1: Made of high quality material, durable and practical to use.
2: High Performance,Long Working Life.
3: Easy installation and removal.
4: Professional install will be highly recommend,Installation instruction not included.
5: Designed and manufactured to exacting specifications which meet or exceed OEM performance.

Specifics:
Condition: 100% Brand New
Material :Rubber Plastic

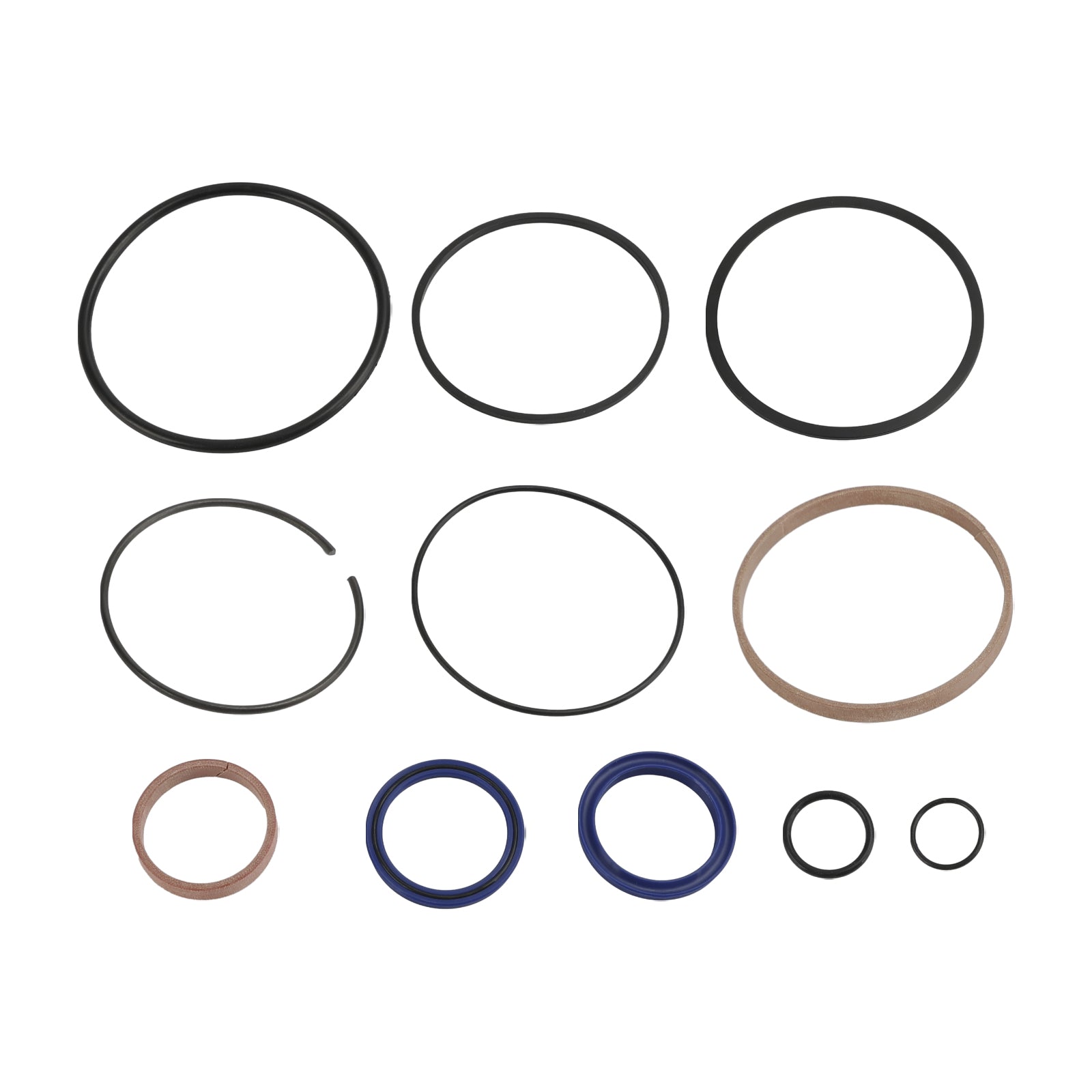

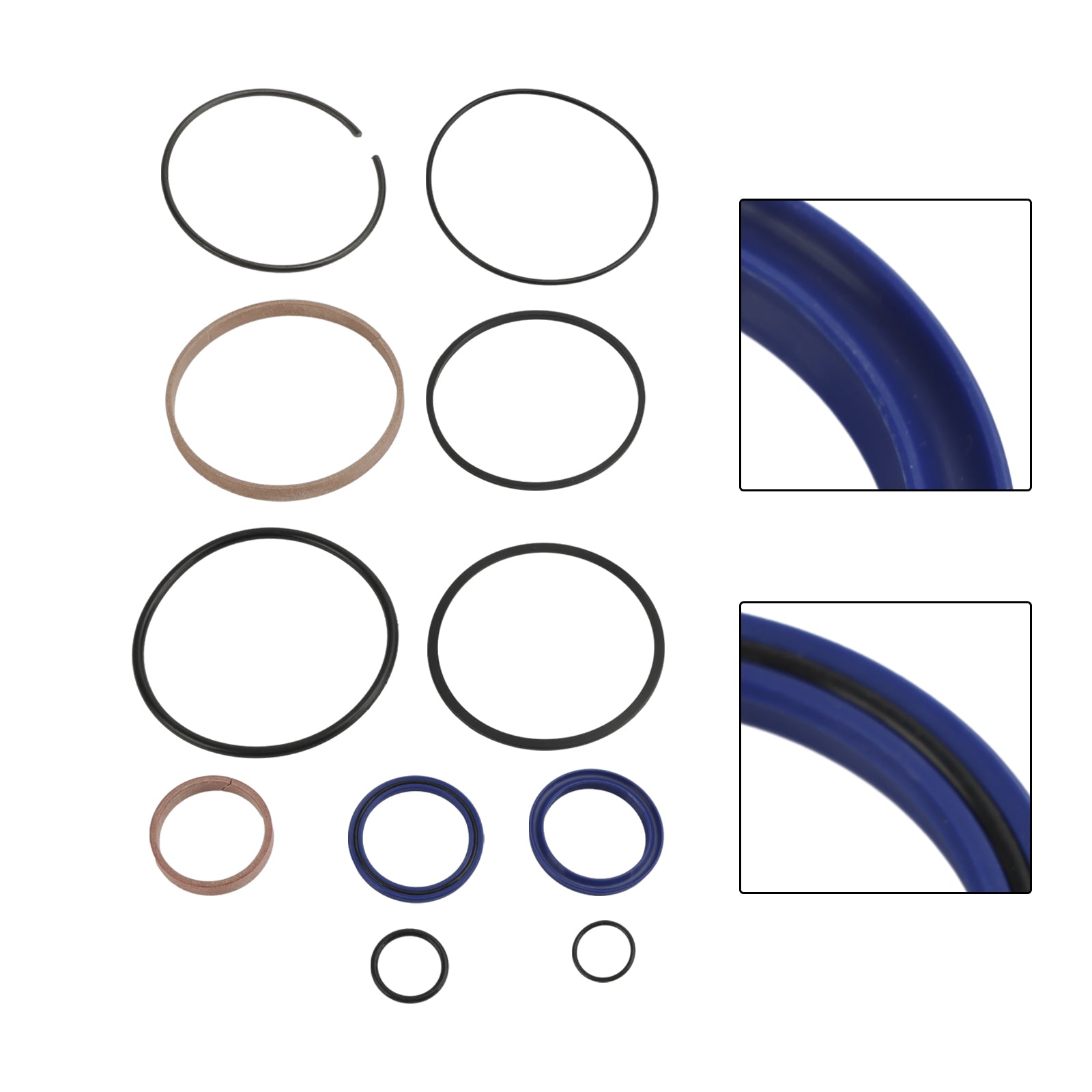

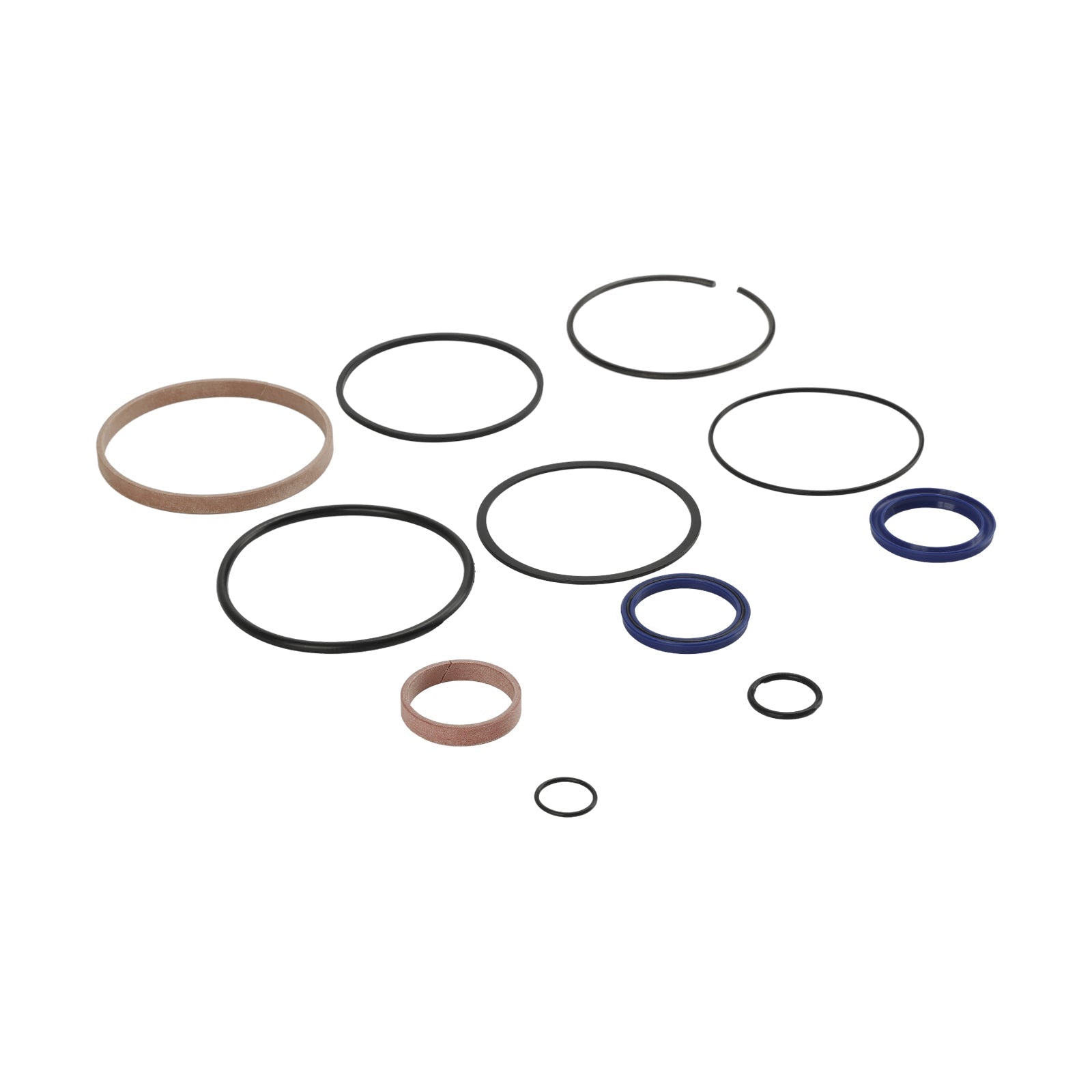

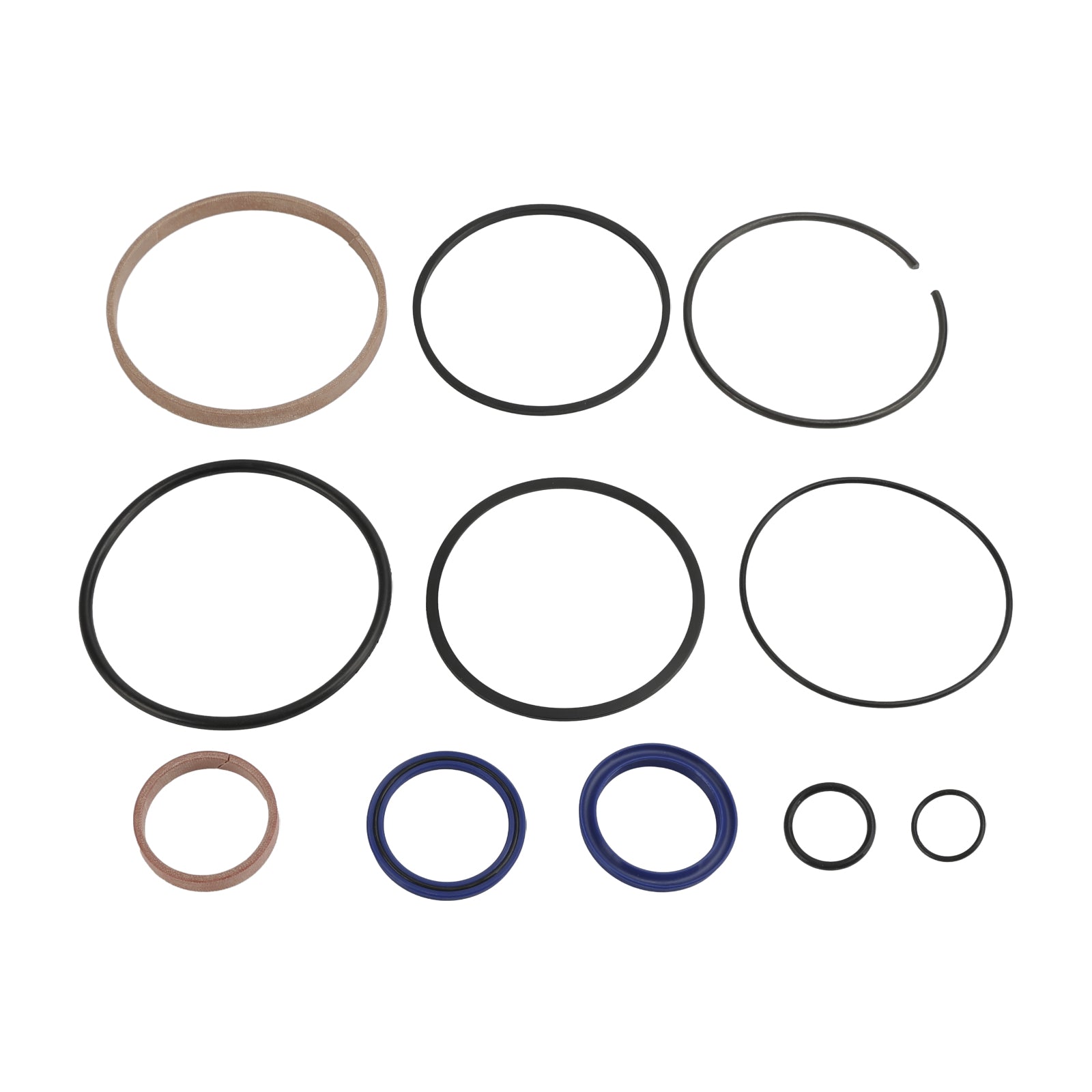

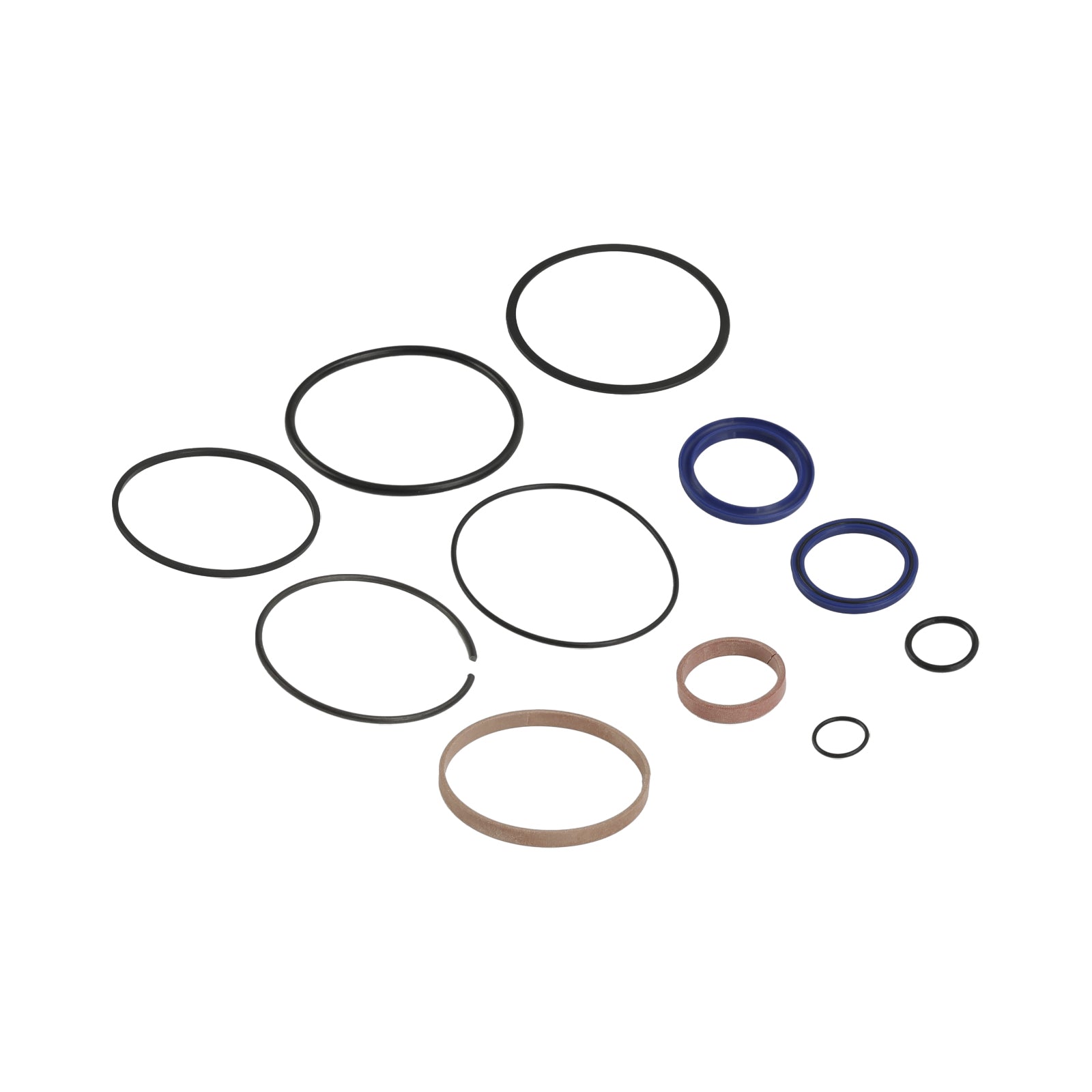

Type: Cylinder Rseal Kit
Seal Size: 4.0"Bore x 1.75"
Fitment Type: Direct Replacement

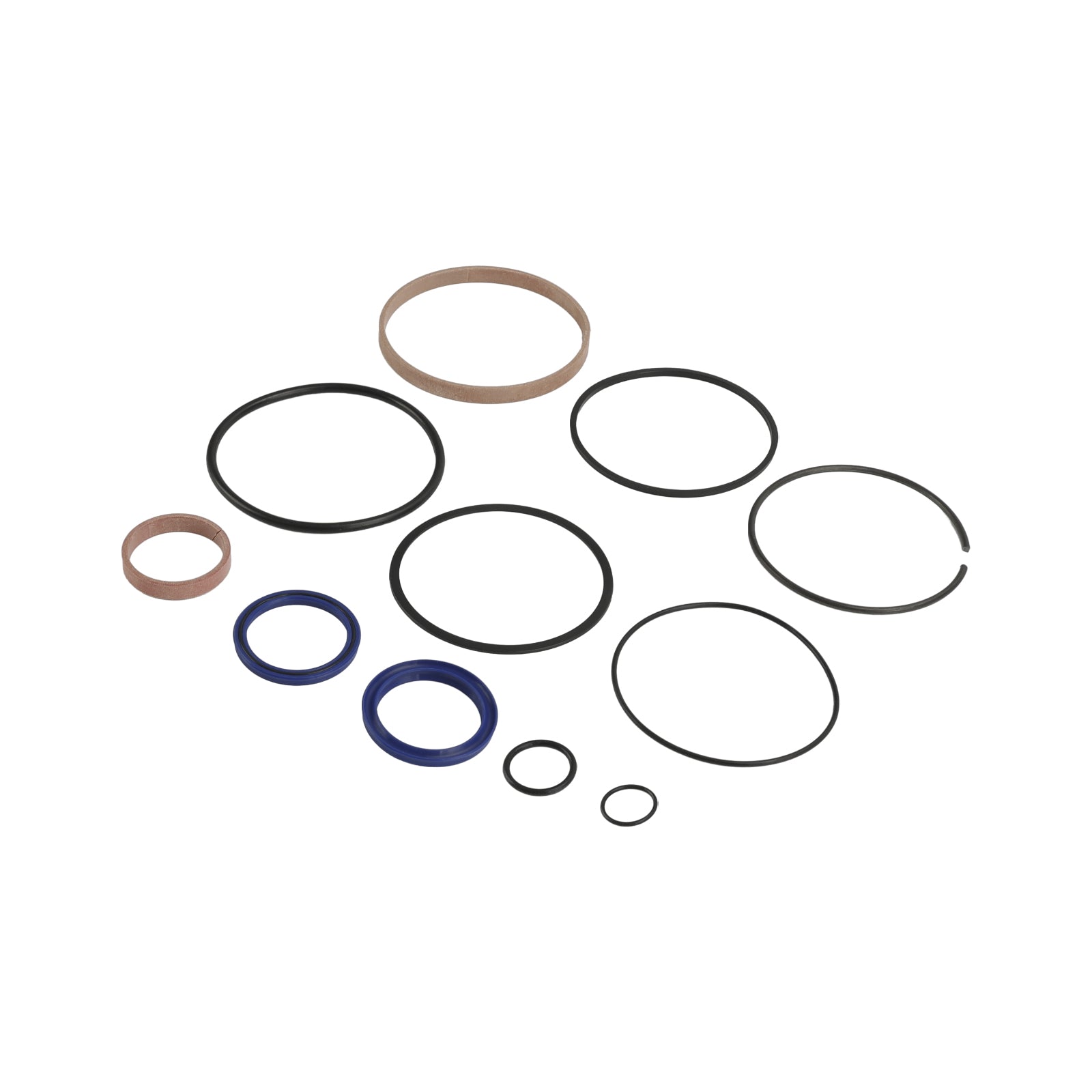

1. Cylinder tube Bore (I.D.) 4.0" x rod (O.D) 1.75". Please note some cylinder rod head OD size is not rod size.

2. Wear rings.
Piston wear ring : 101.6 mm ( OD 4") x 95.25mm (ID 3.75") ?x 9.53mm (0.375" wide), Nylon
Rod wear ring : 44.5mm (ID 1.752") x 50.8mm (OD 2”) x 9.53mm (0.375" wide), Nylon

3. Piston seals
1 square ring and 1 O-ring. ?Piston Square ring: D101.6 mm x91.6mm x 3.28mm; O-ring (installed under the square ring): 91.0 mm x 2.65 mm . CPU + NBR

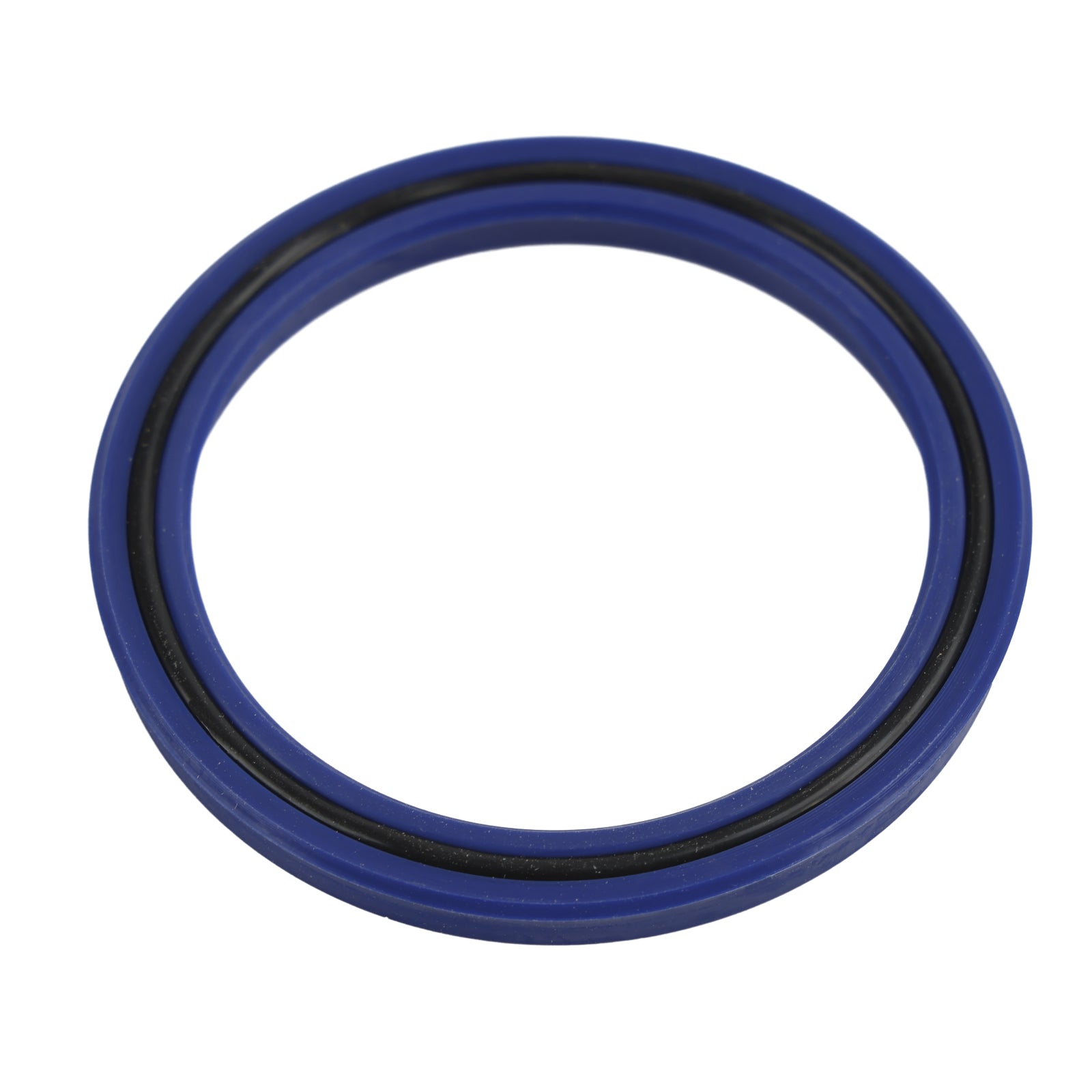

4. Rod O-ring (item 13): 44.5mm x 54mm x 5mm, CPU. There is O-ring inside.

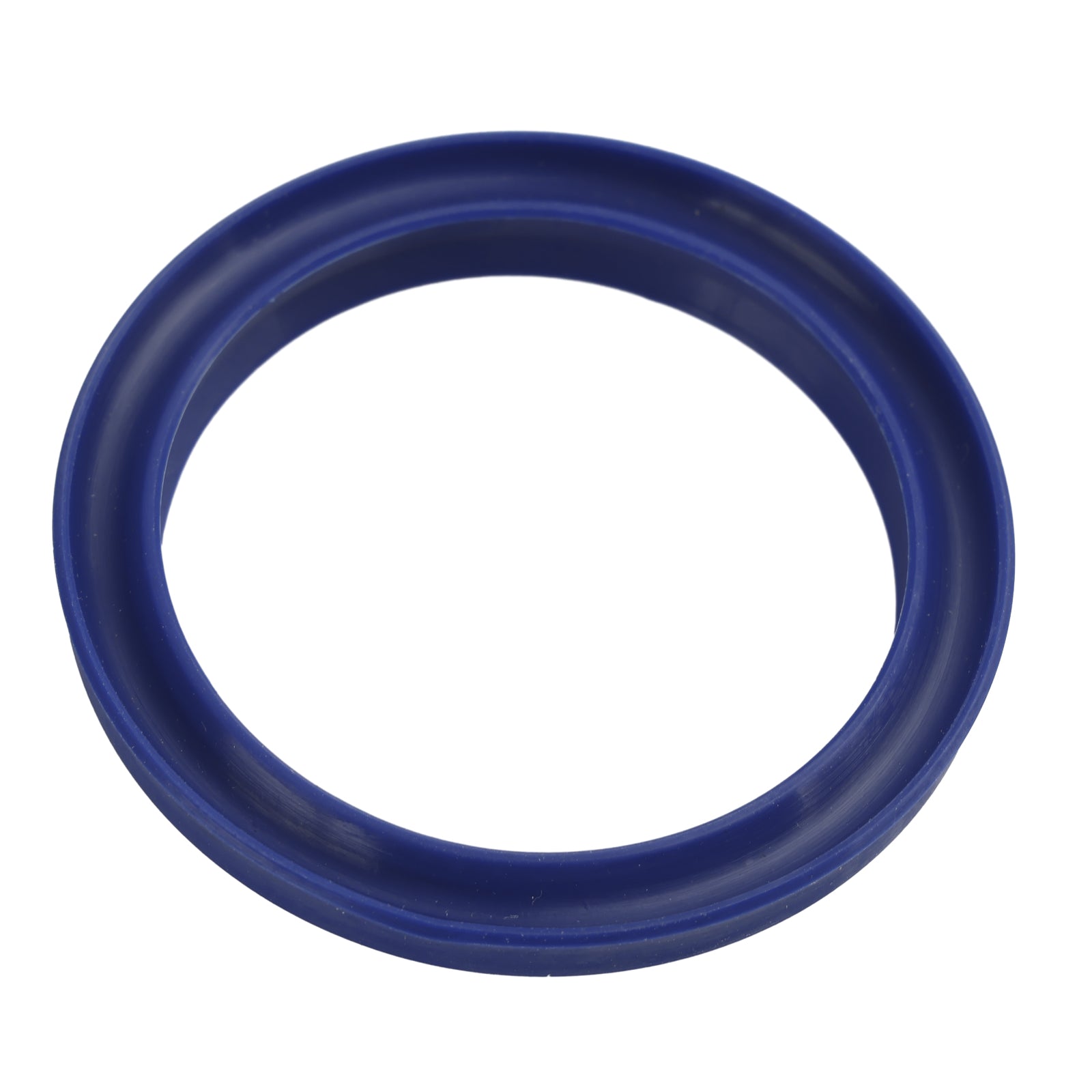

5. Rod dust ring (Item 12): 44.5mm x 54mm 5.5mm /7.3mm, TPU
Below is 4.0"Bore x 1.75" rod cylinder Specification that OEM made by this seal kit:
Retracted (center to center between rod mountain hole and clevis hole: 32.4”
Extended (center to center same as above): 56.4”
Stroke: ?24±0.05”
Dimension from center of clevis hole to back face of cylinder: ?2.95”
Dimension from center of rod end hole to front face of rod: 1.06”
Dimension from center of rod end hole to front face of cylinder: 1.18”
Ports: ?1/2" NPT
Dimension from port to port: 25.4”
Rod: 1.75" rod
Rod end mountain hole: ?0.55”
Clevis Mountain hole: ?1.16”
Dimension between mountain clevis to clevis: ?0.87”
Thickness of each mountain clevis: ?0.375”
Length of each mounting clevis: ?4.125”

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Please be awared of this part is not original part, is aftermarket part.
3.Before you purchase,Please confirm whether suitable for you need.

Package Included:
1 X Cylinder Rseal Kit
