Flywheel Rotor+Stator+ Regulator+Gasket Fit for 06-15 Yamaha R1 04-08 FZ8N FZ8S FZ1 Generic

Features:
1. Made of high grade magnetically conductive material to minimize the magnetic losses.
2. Computerized winding to optimize quality of copper wiring
3. Higher grade of electric components.
4. Dramatically improves reliability and durability comparing to stock units.
5. Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
6. Rectifier made of highest quality electro-conducting lamination materials.
7. Improved heat sink and charging capabilities.
8. Direct replacement to your original unit.
9. Plug-and-play, direct fit, instruction is NOT Included.

Specifications:
1. Condition: Aftermarket 100% Brand New
2. Type: Stator + Flywheel + Regulator + Gasket

Replacement Part Number:
1. Stator Assy: 5VY-81410-00, 2D1-81410-00, 2D1-81410-01, 2D1-81410-10, 22C-81410-10
2. Stator Flywheel:5VY-81450-00, 2SH-81450-00
3. Rectifier, regulator: 5VY-81960-00, 1D7-81960-00, 1D7-81960-01
4. Gasket, generator cover: 5VY-15451-00, 5VY-15451-10, 2D1-15451-10

Fitment:
Fit for Yamaha YZF R1 2004-2008
Fit for Yamaha YZF R1 RaceBase 2005-2008
Fit for Yamaha YZF R1S 2006
Fit for Yamaha FZ1 FZ1-N FAZER Naked 2006-2012
Fit for Yamaha FZ1 FZ1-S FAZER S-TYPE 2006-2015
Fit for Yamaha FZ1 FZ1-NA FAZER Naked ABS 2008-2012
Fit for Yamaha FZ1 FZ1-SA FAZER S-TYPE ABS 2007-2012
Fit for Yamaha FZ8 FZ8-N Naked 2011-2015
Fit for Yamaha FZ8 FZ8-NA Naked ABS 2011-2015
Fit for Yamaha FZ8 FZ8-S FAZER 2011-2015
Fit for Yamaha FZ8 FZ8-SA FAZER ABS 2011-2015

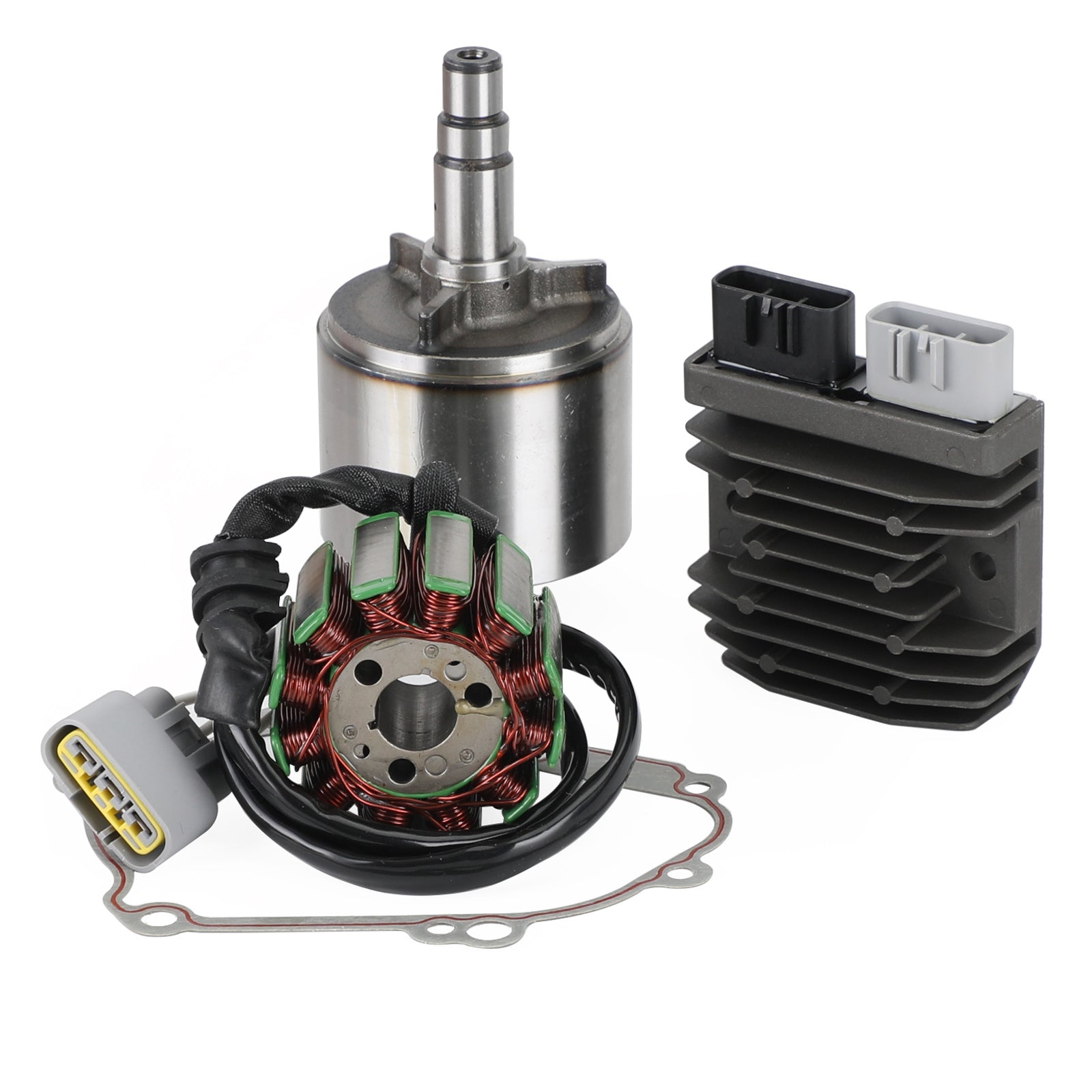

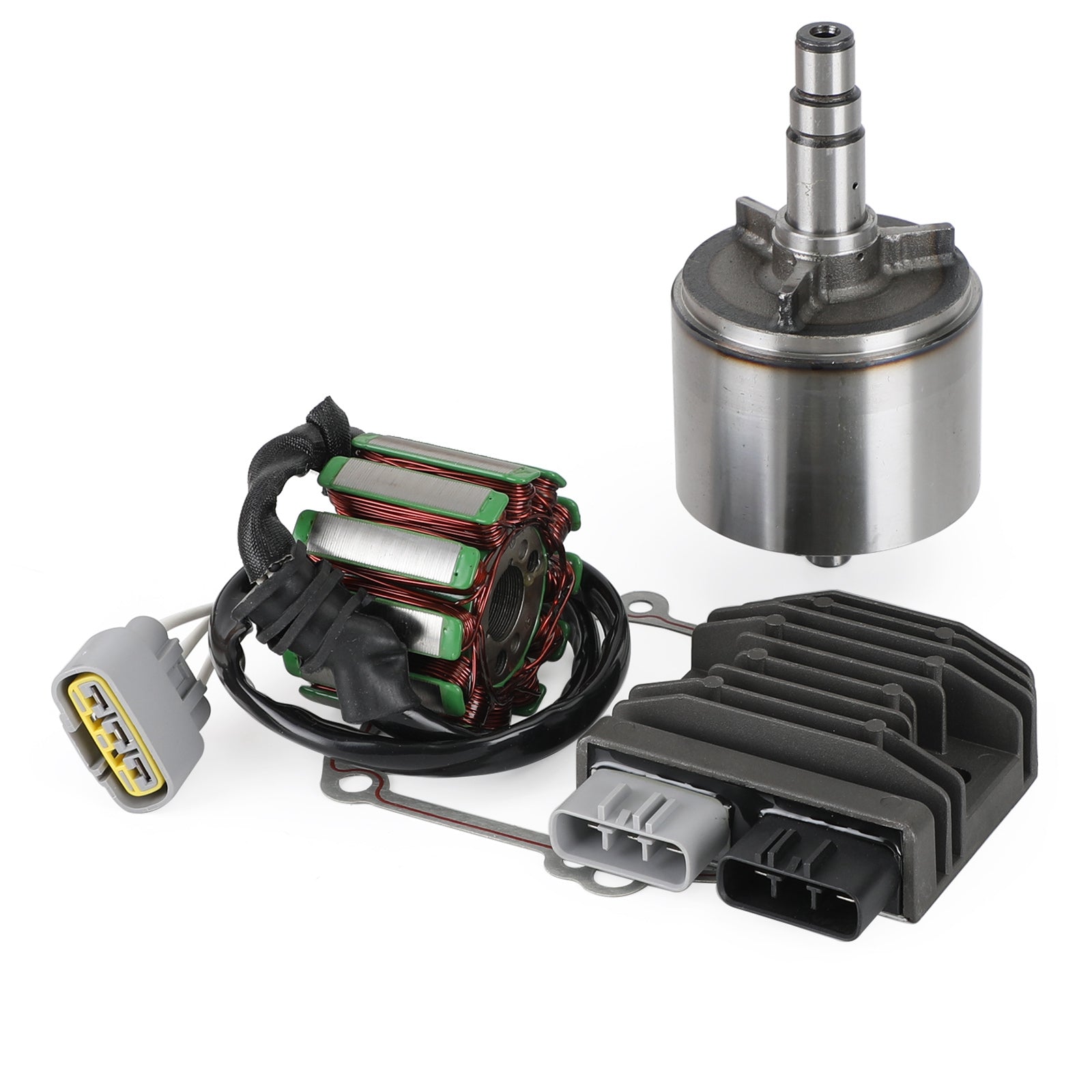

Package Includes:

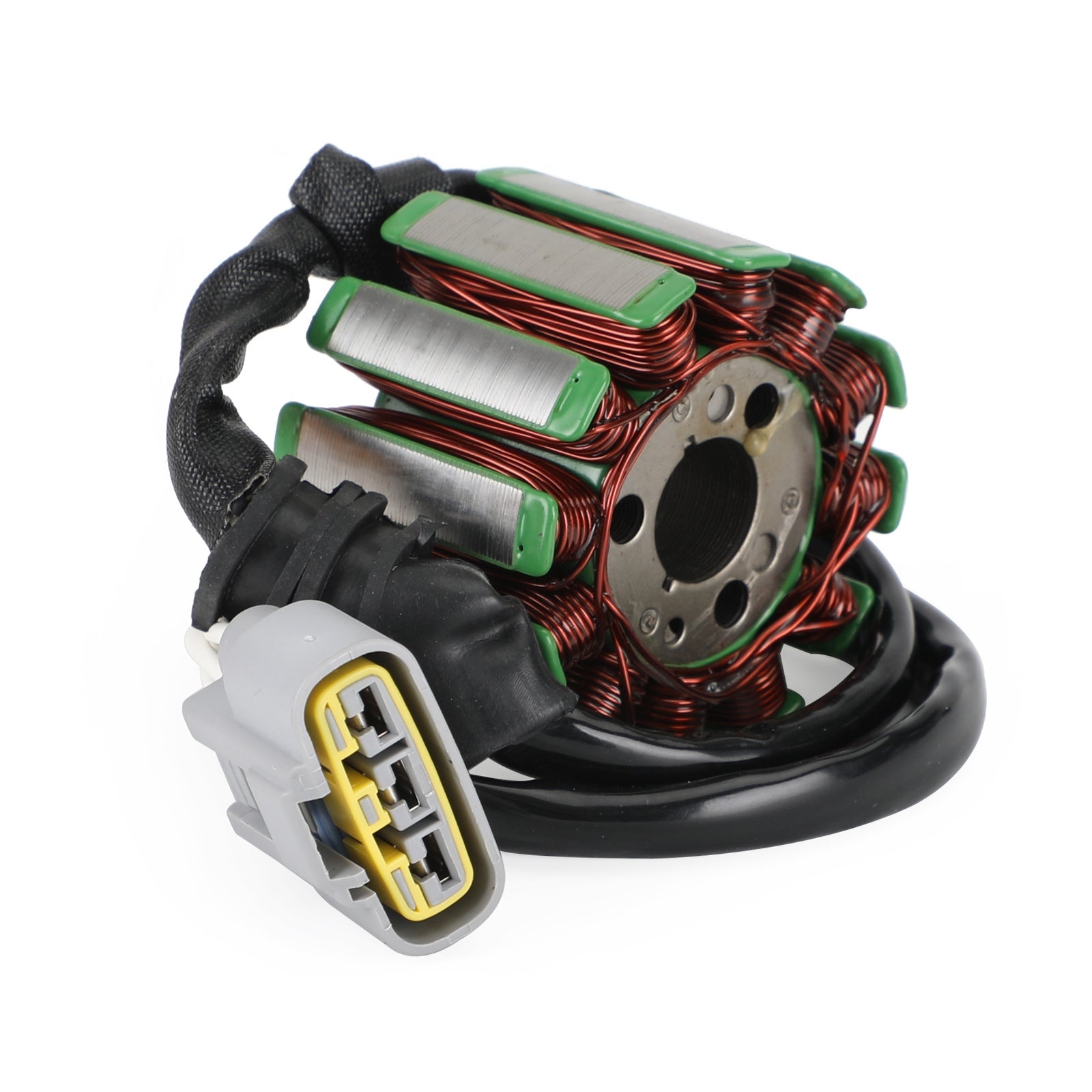

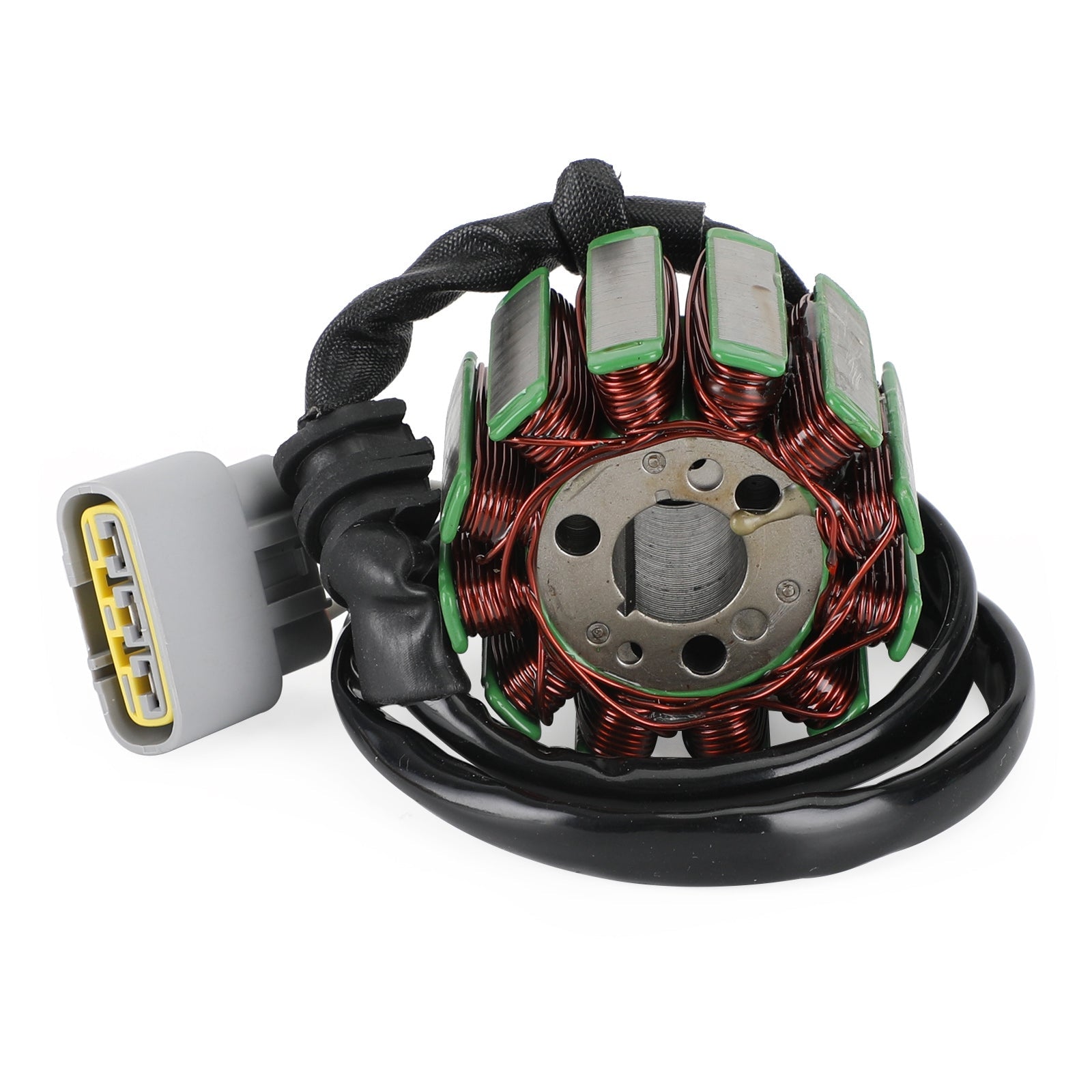

1 x Stator Coil

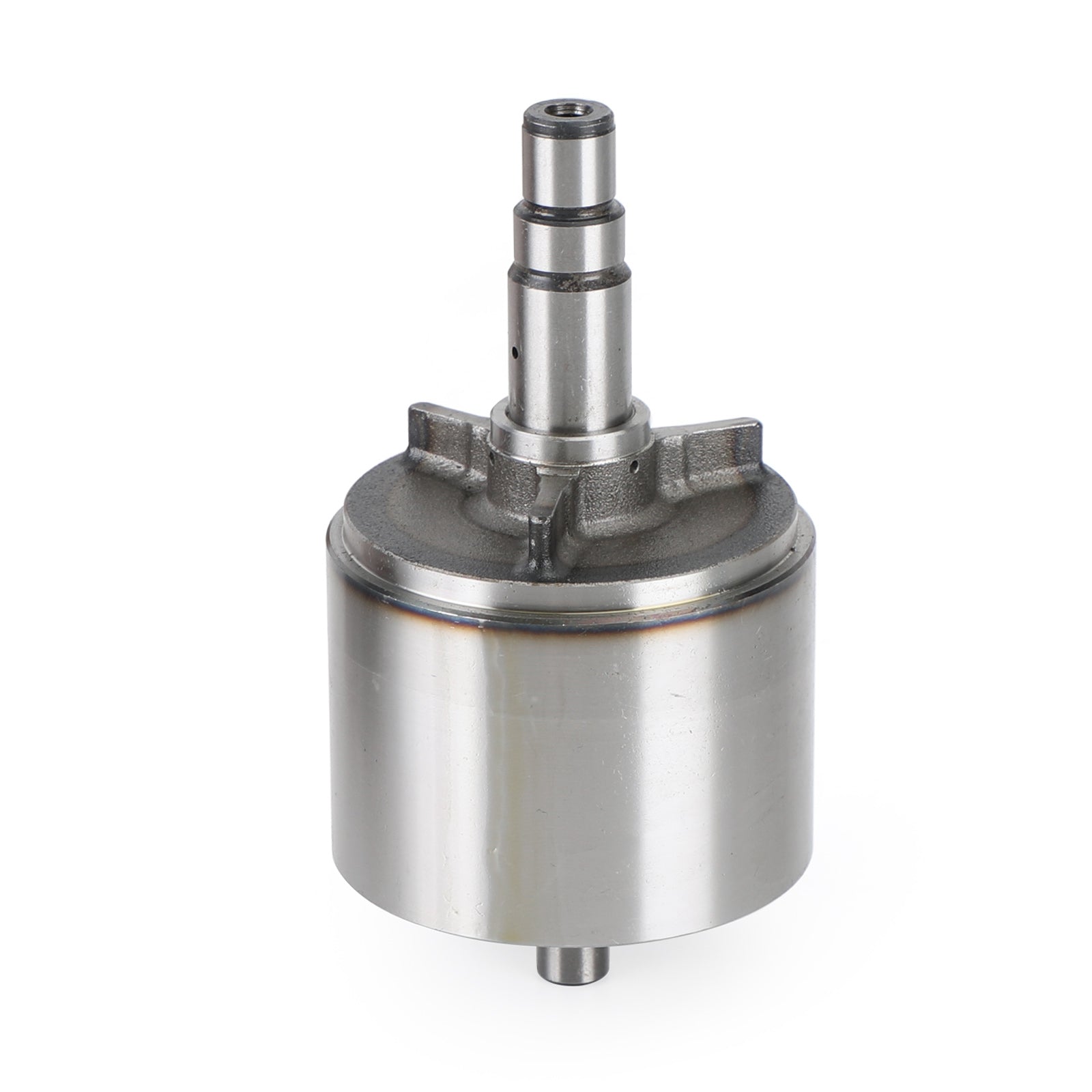

1 x Stator Flywheel

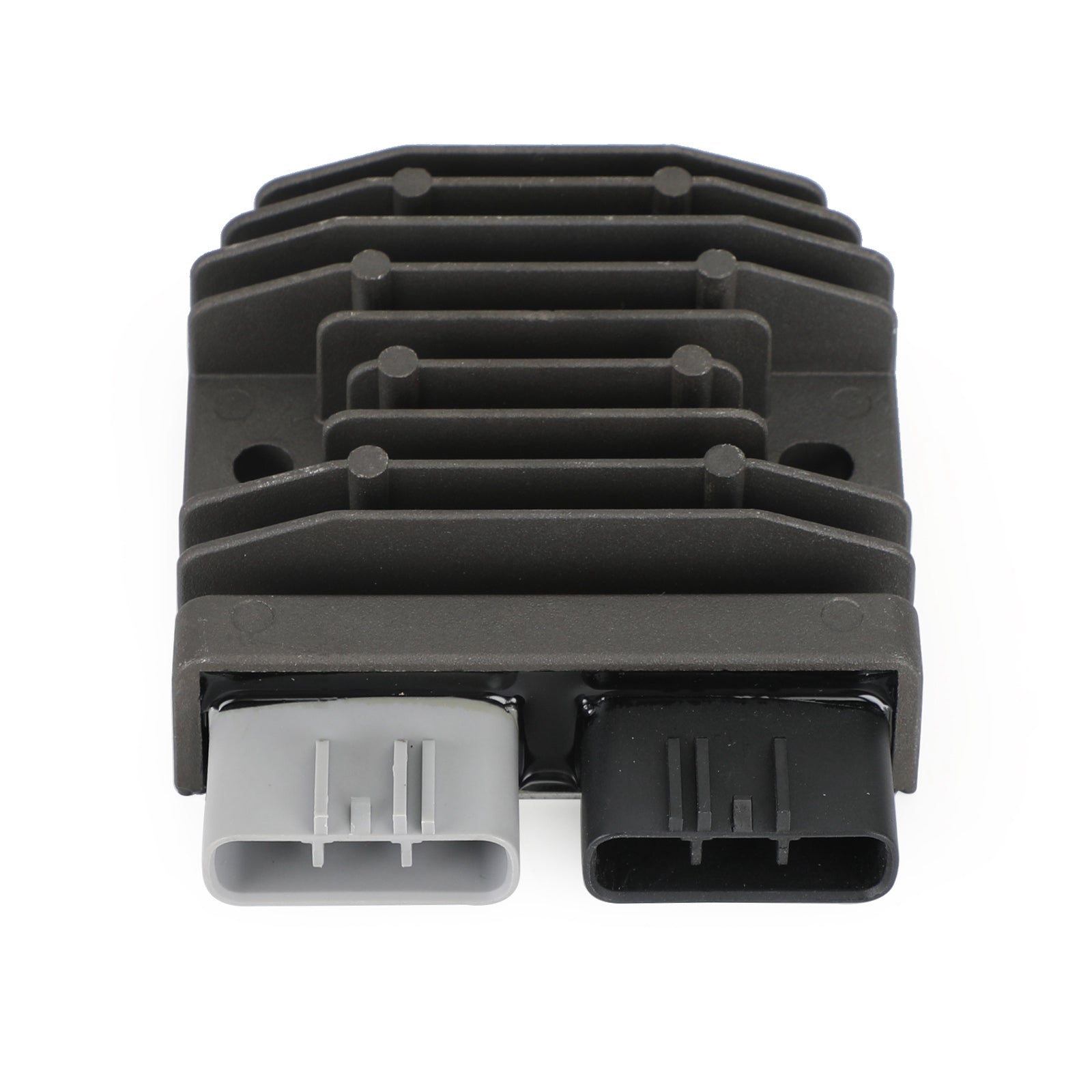

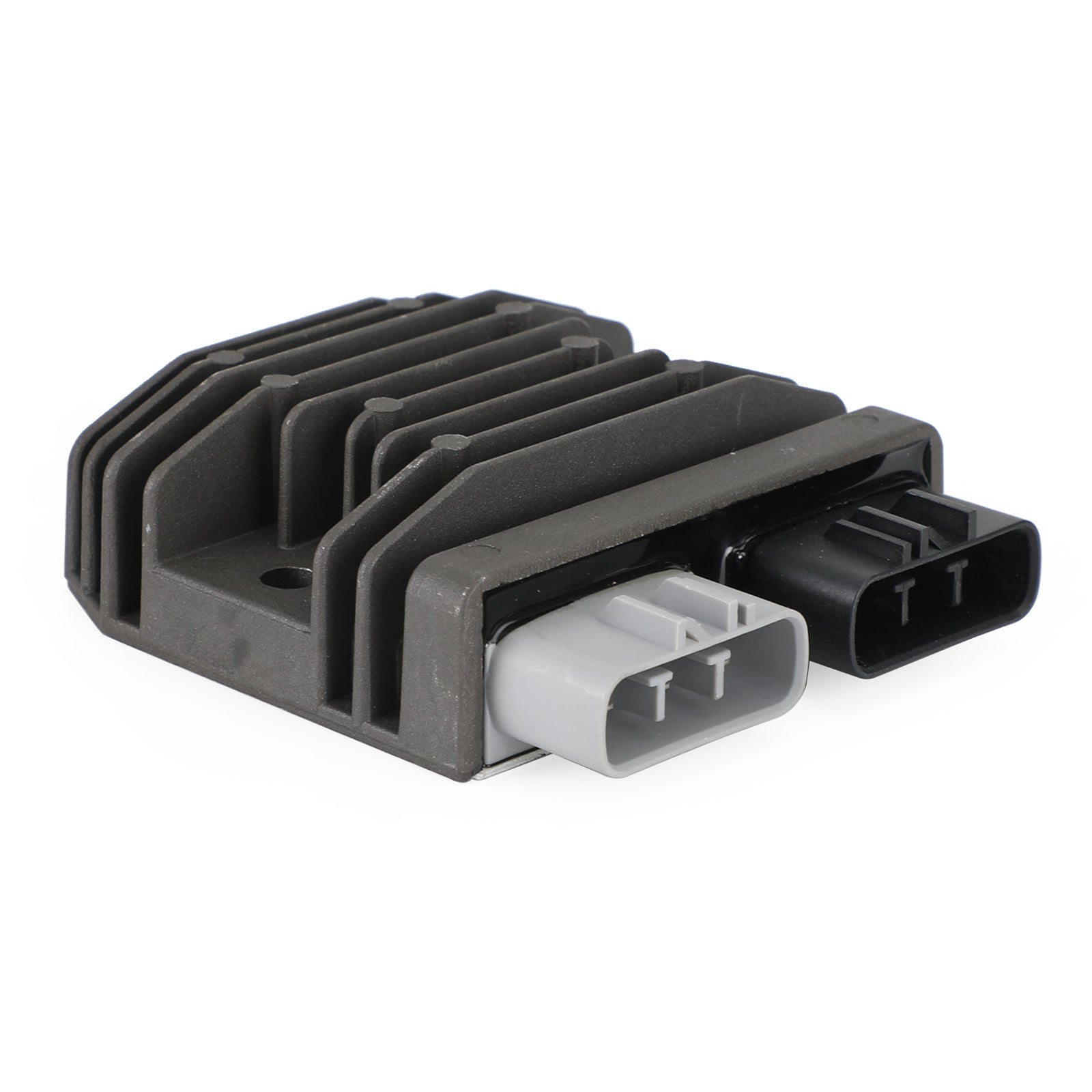

1 x Regulator Rectifier

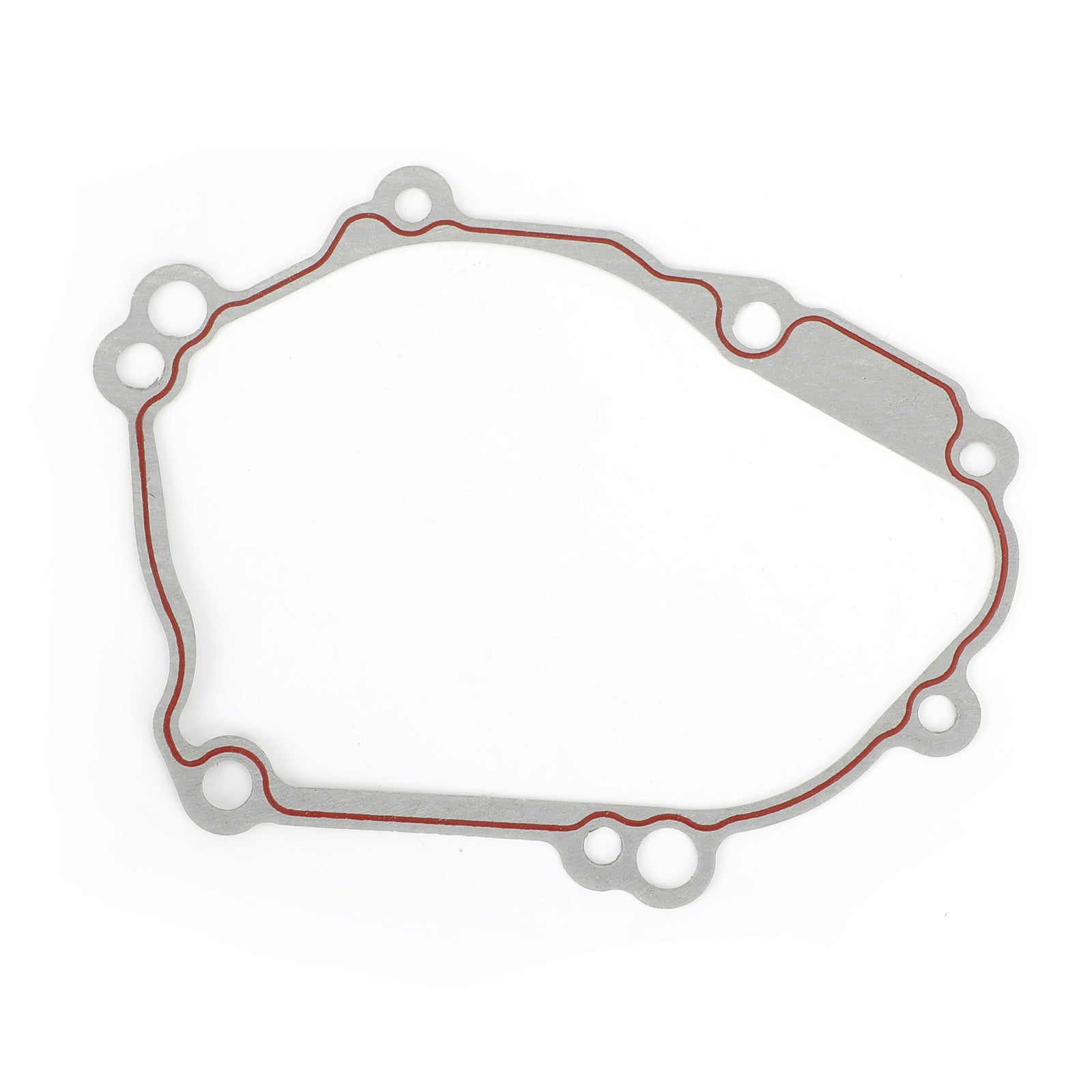

1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
1. Replace any burned or corroded connectors on stator and regulator/rectifier.
2. Check and repair any melted wiring.
3. Use hi-temp dielectric grease on all connectors.
4. Our stator / regulator may use a different wire color code than your original.
5. All of the wires are installed in the correct order; please do not change any of the wiring configurations.
6. This stator is designed as a direct plug-in replacement and should be used as such.
7. When bolting stator in, always use locking compound.
8. If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
9. You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.

INSTALLATION VIDEO (FOR REFERENCE ONLY):

https://youtu.be/EedpRHDzT6E?si=2XeB4EoJ8jWFVvZZ

(Please note, the installation video is for reference only and may not be completely accurate. If you're unsure about installation, we recommend consulting a local professional mechanic for assistance.)
