Engine Rebuild Kit for Ford Transit & Ranger 2.2 TDCi RWD Duratorq

Feature:
1) All parts are hand inspected off the line before packaging and once again by our team before shipment.
2) According to the original factory specifications. Superior performance and reliability
3) Perfect match for the original car.
4) High quality components and materials. Stable characteristics, high reliability.
5) Aftermarket Products with Premium Quality. Designed to meet or exceed OE specifications in form, fit and function

Specifications:
Condition: Brand New
Manufacturer Part Number: BK3Q-6051-C1C, 9677428680, 1372302, 1709144

Fitment:
Fits Models: Transit & Ranger,
Engine Codes: CV24, CVR5, CVRA, CVRB, CVRC, CY24, CYR5, CYRA, CYRB, CYRC, DRR5, DRRA, DRRB, DRRC, GBVAJPF, GBVAJQJ, GBVAJQW, USR6, USRA, USRB, UYR6
Engine Type: 4 Cylinder 16v Turbo Diesel
Engine Size: 2198cc

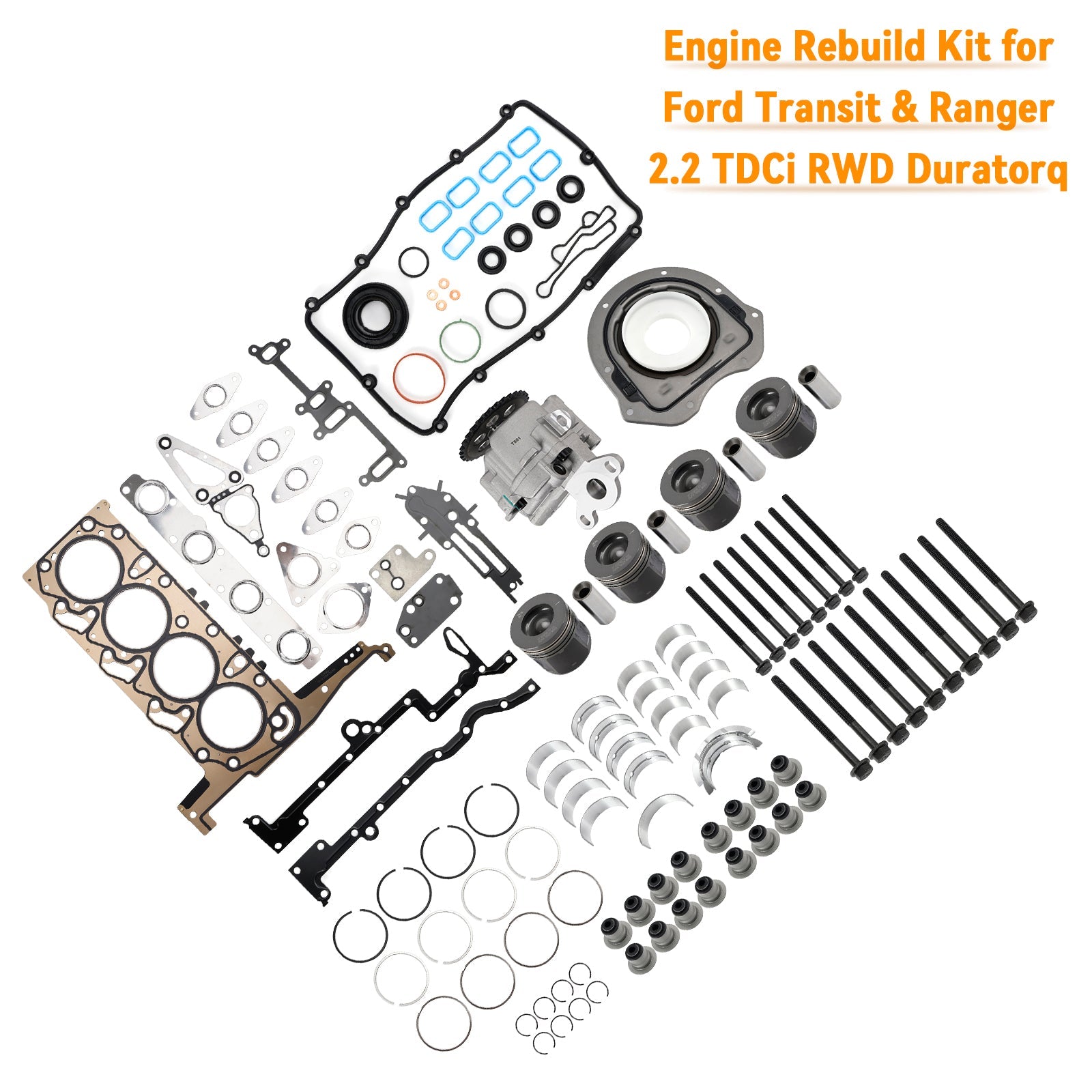

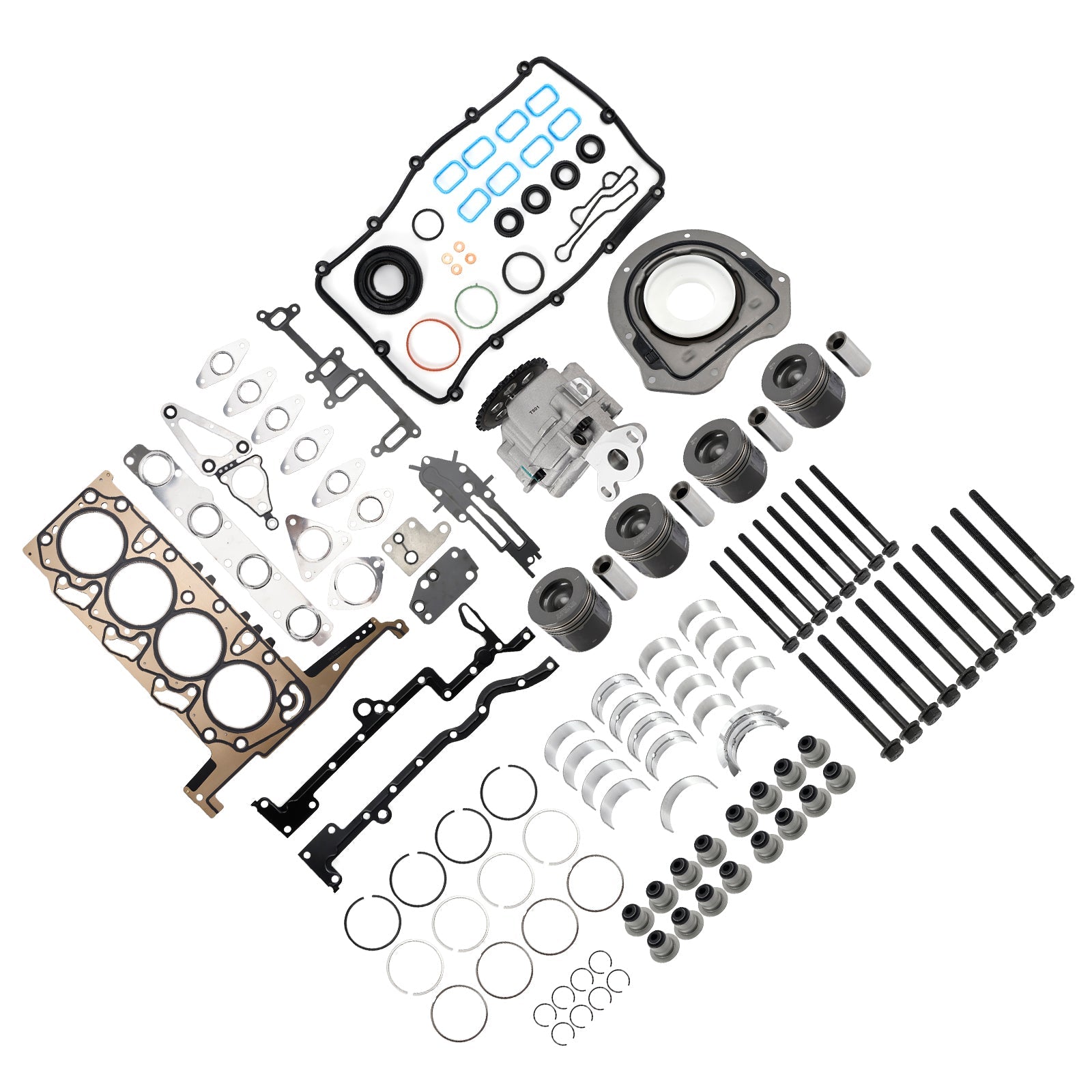

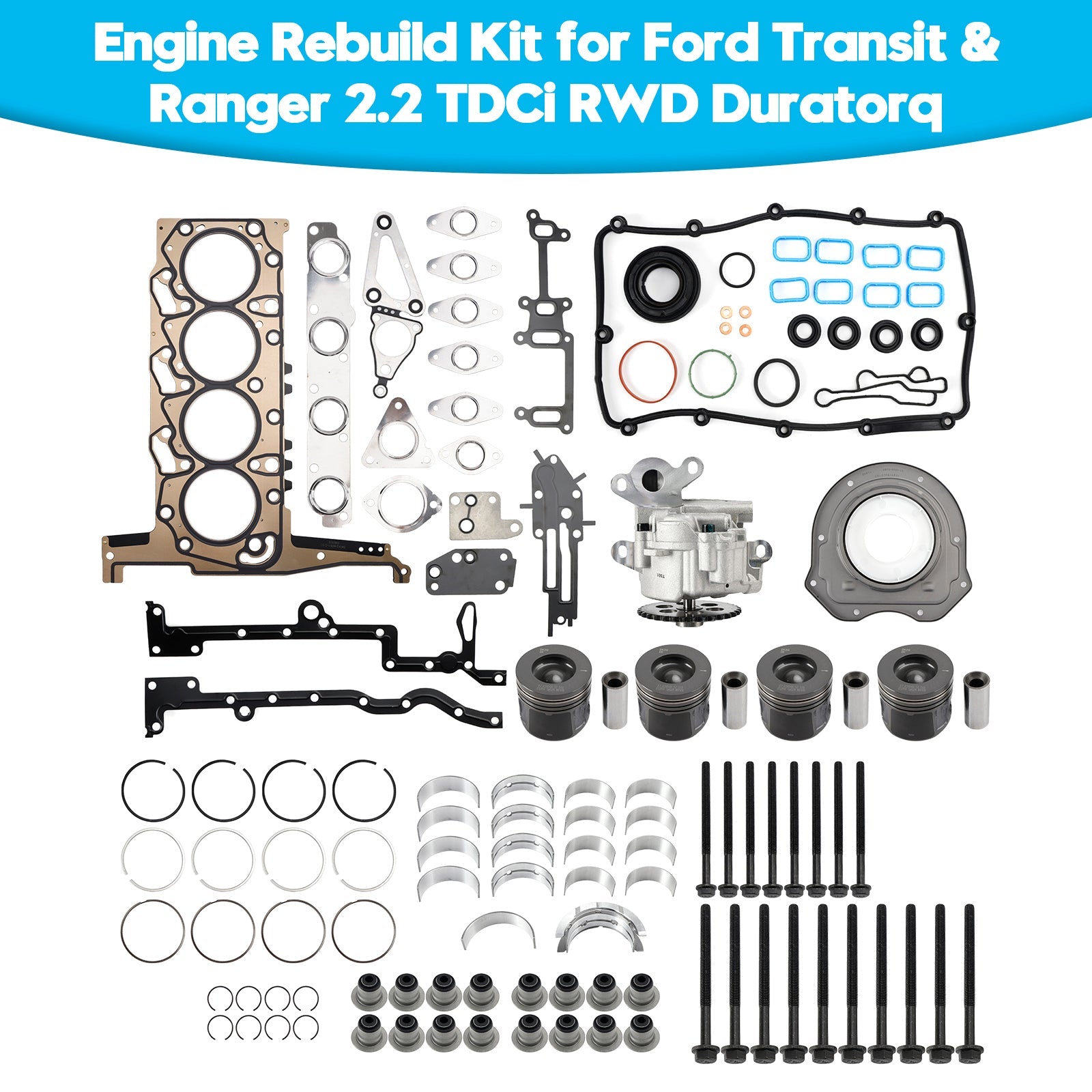

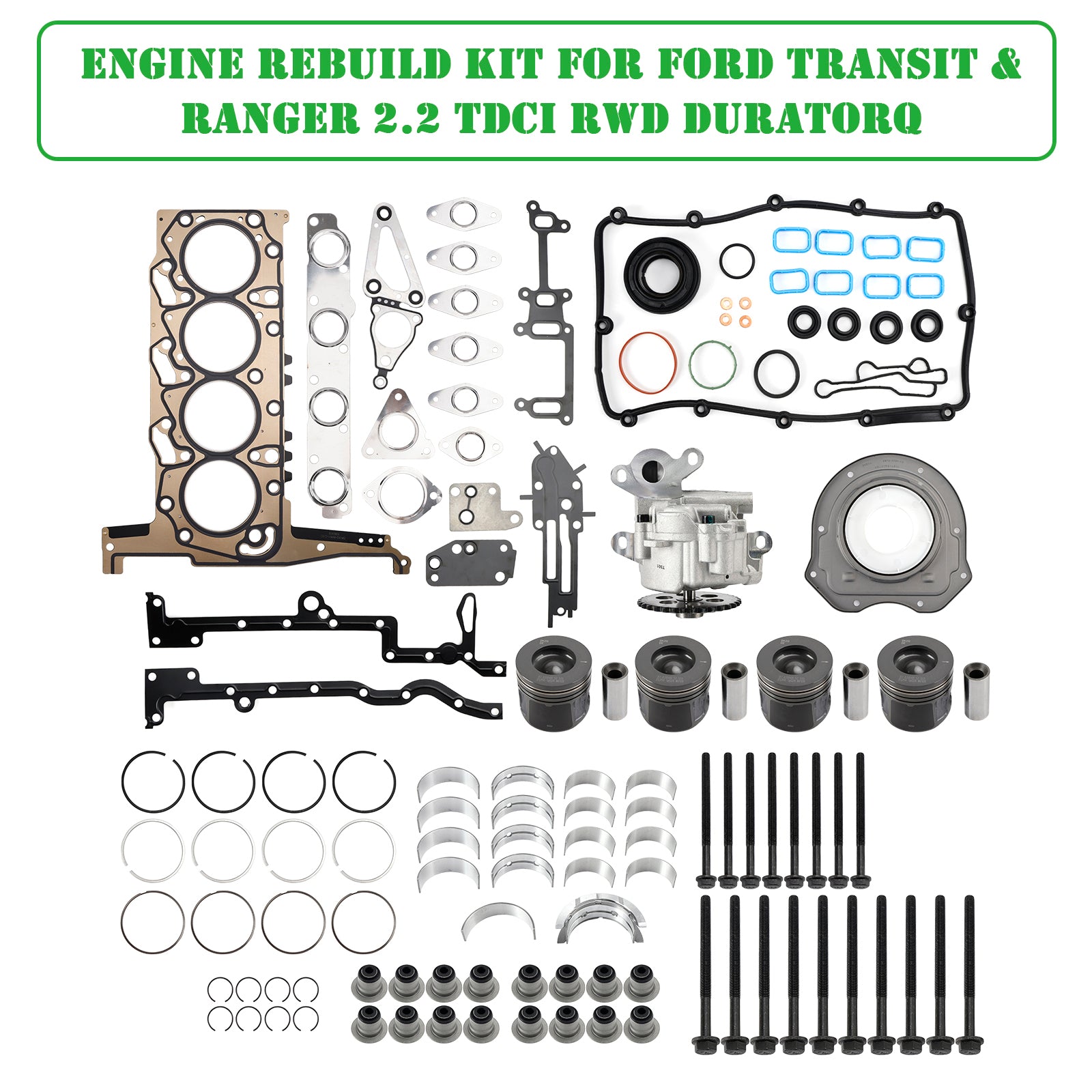

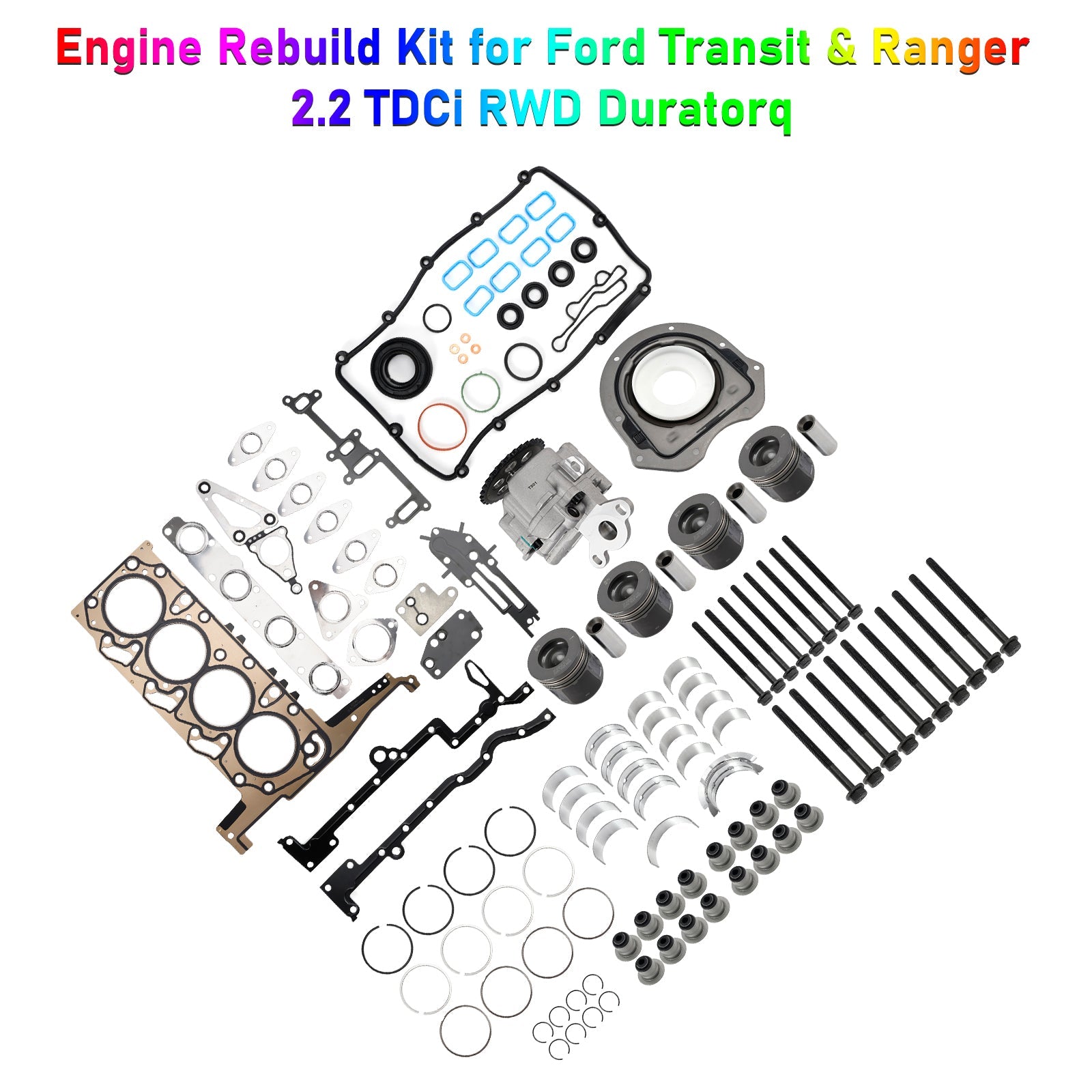

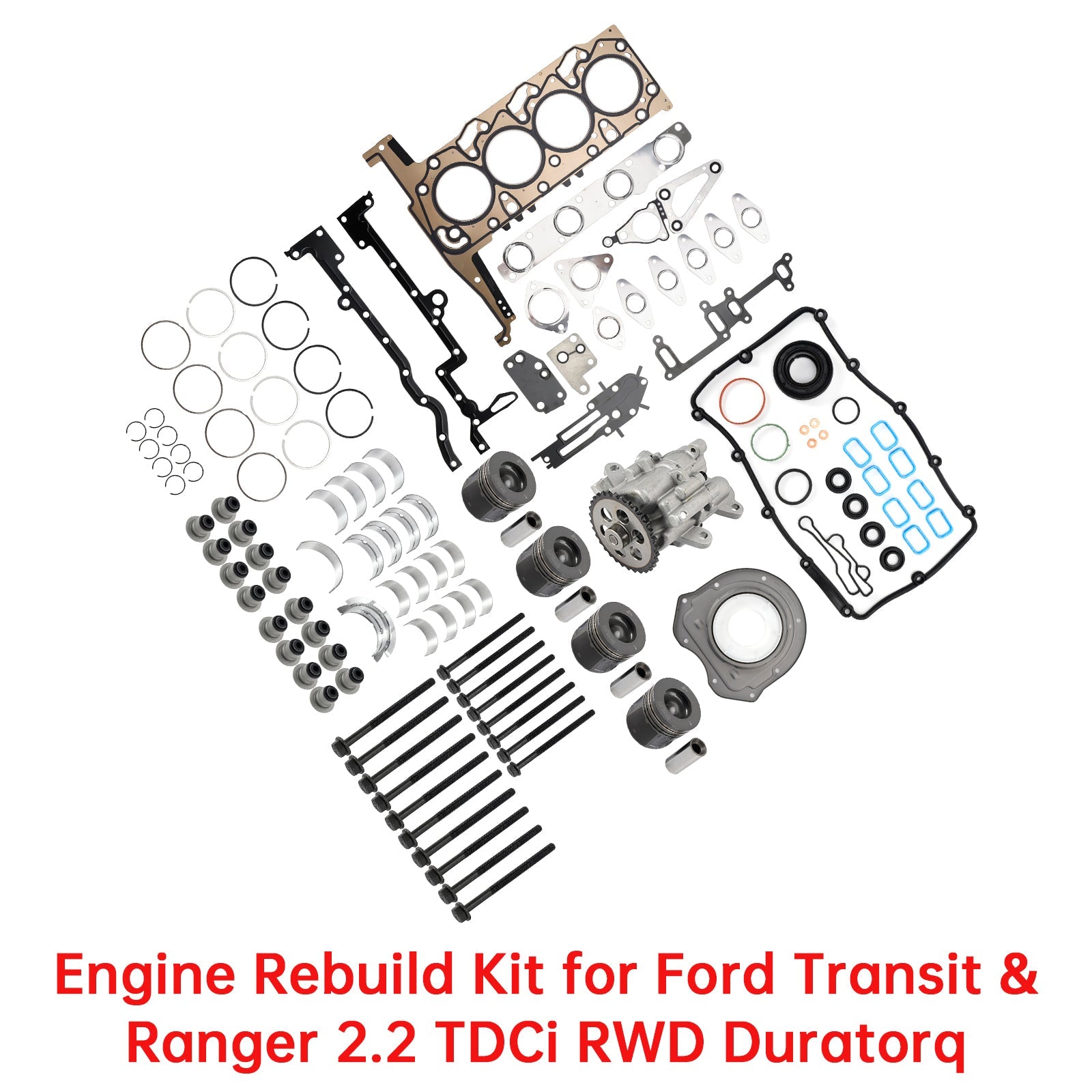

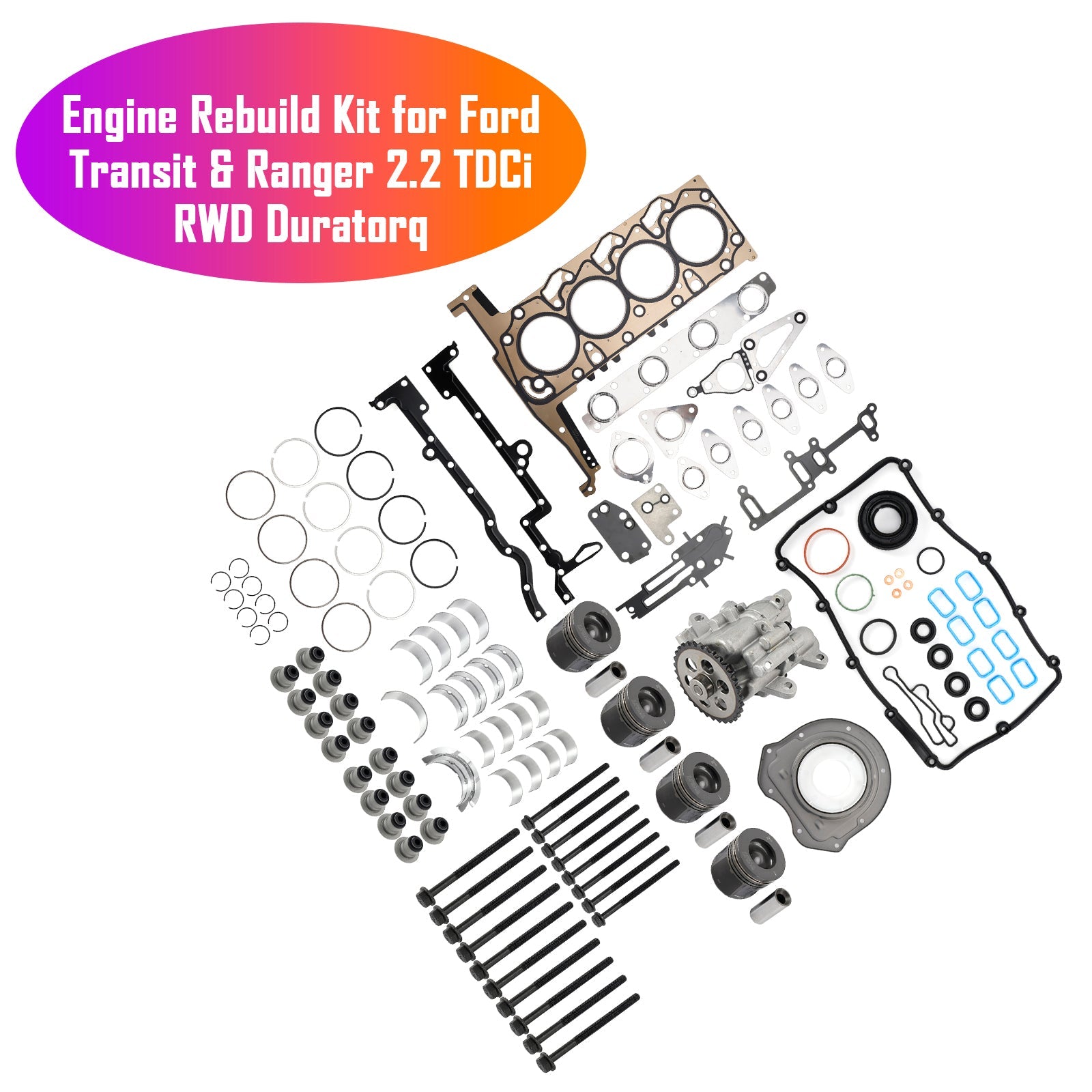

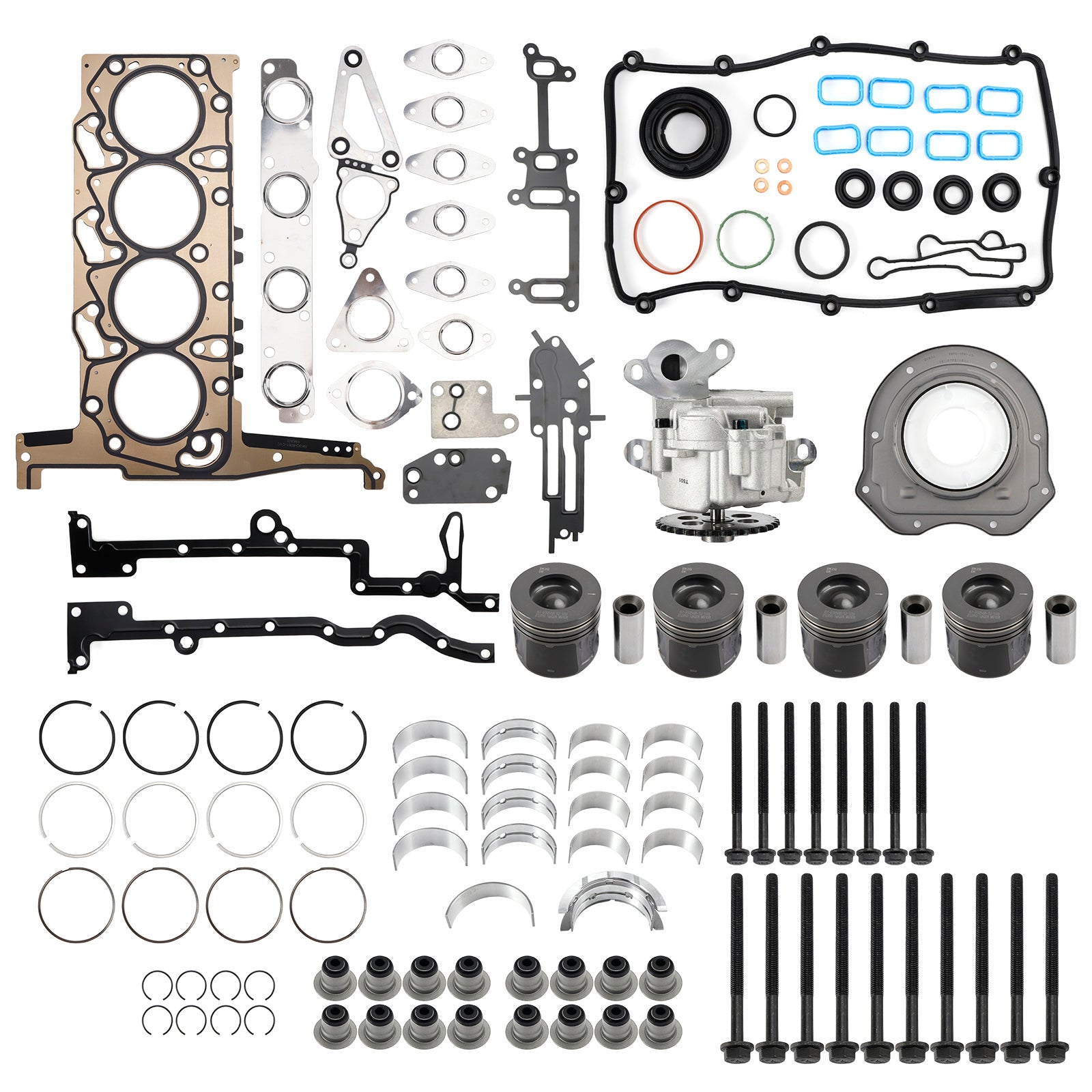

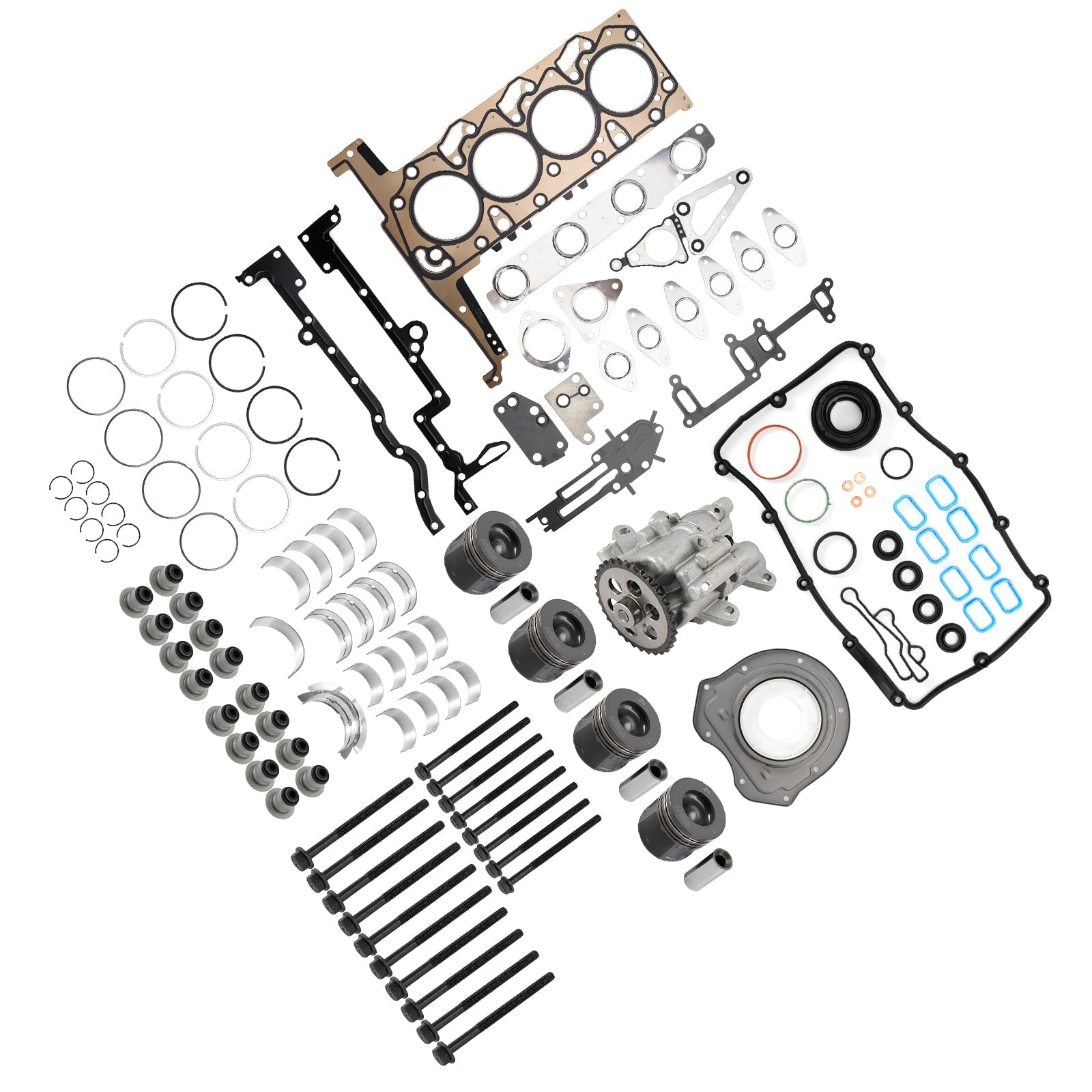

Package included:

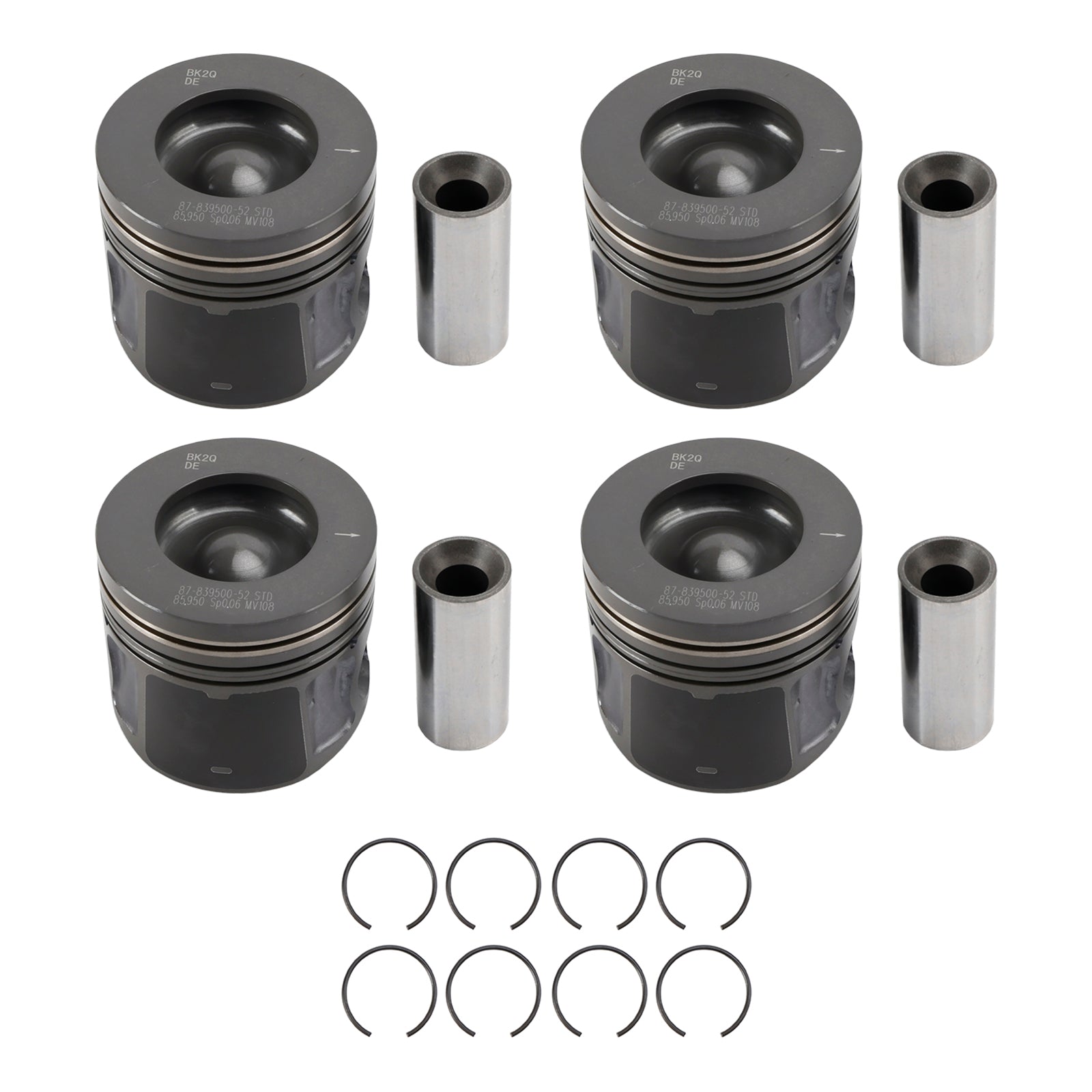

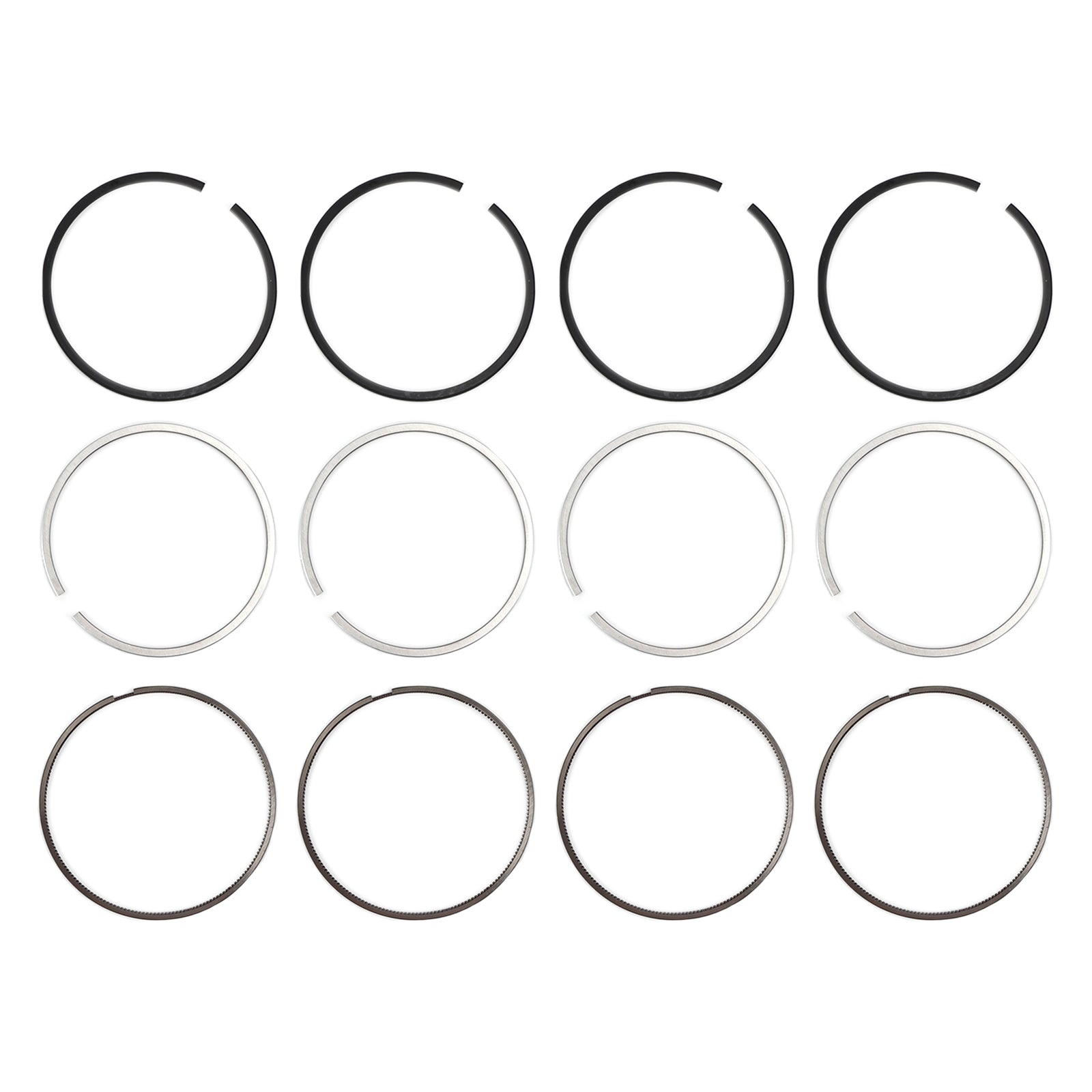

Four pistons, including piston rings, circlips and gudgeon pin

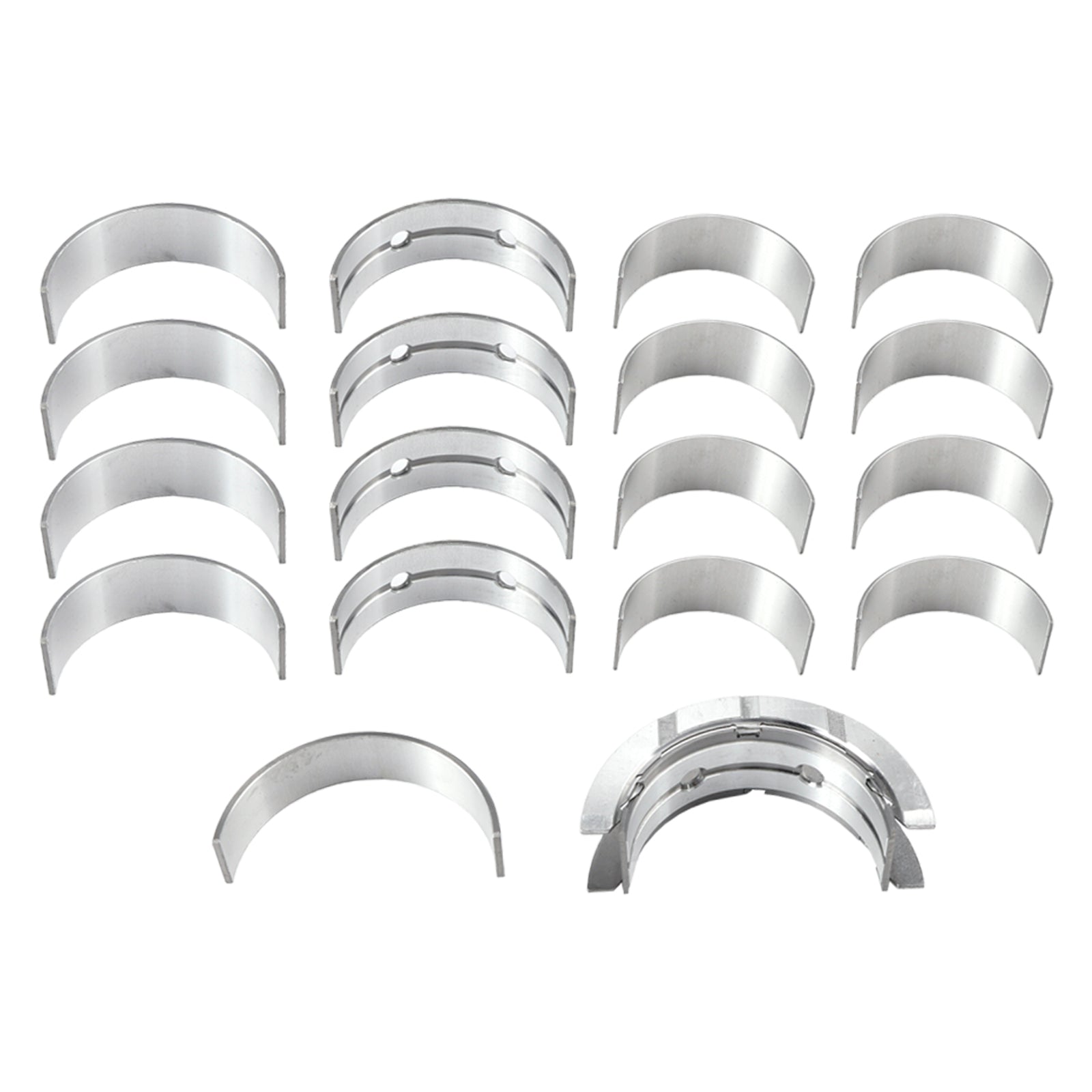

Big end / conrod bearings set
Main crankshaft bearings, includes flanged bearing

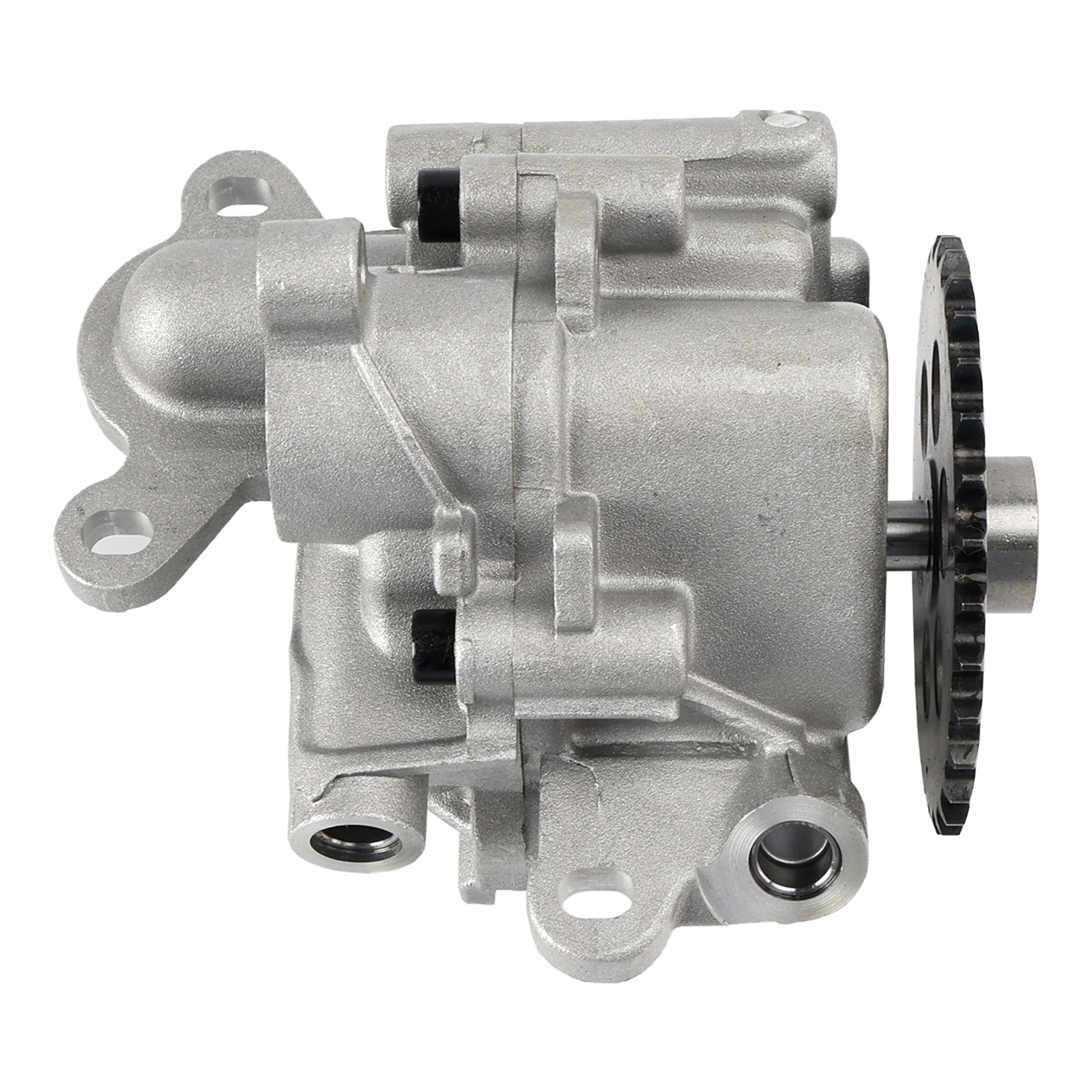

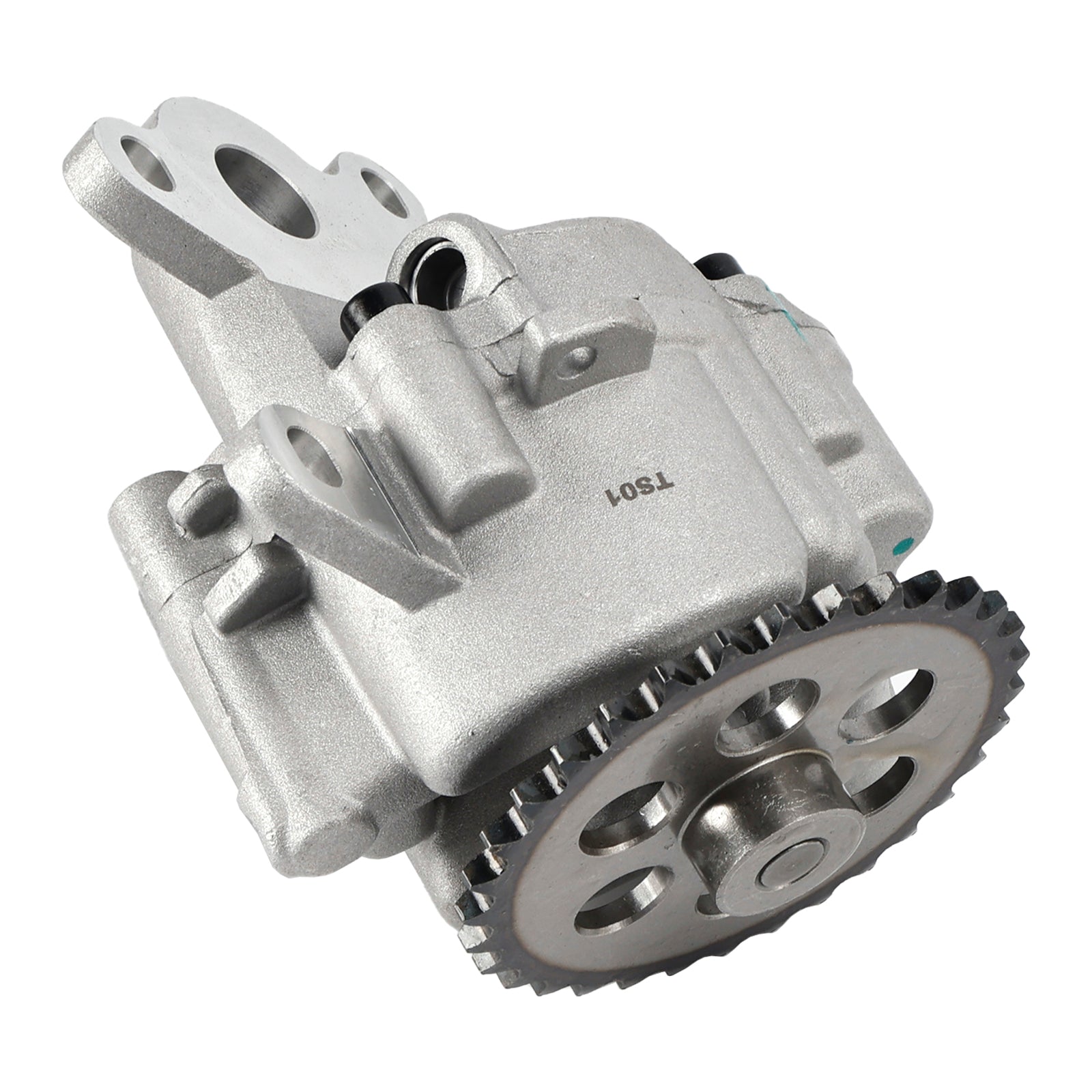

Oil Pump

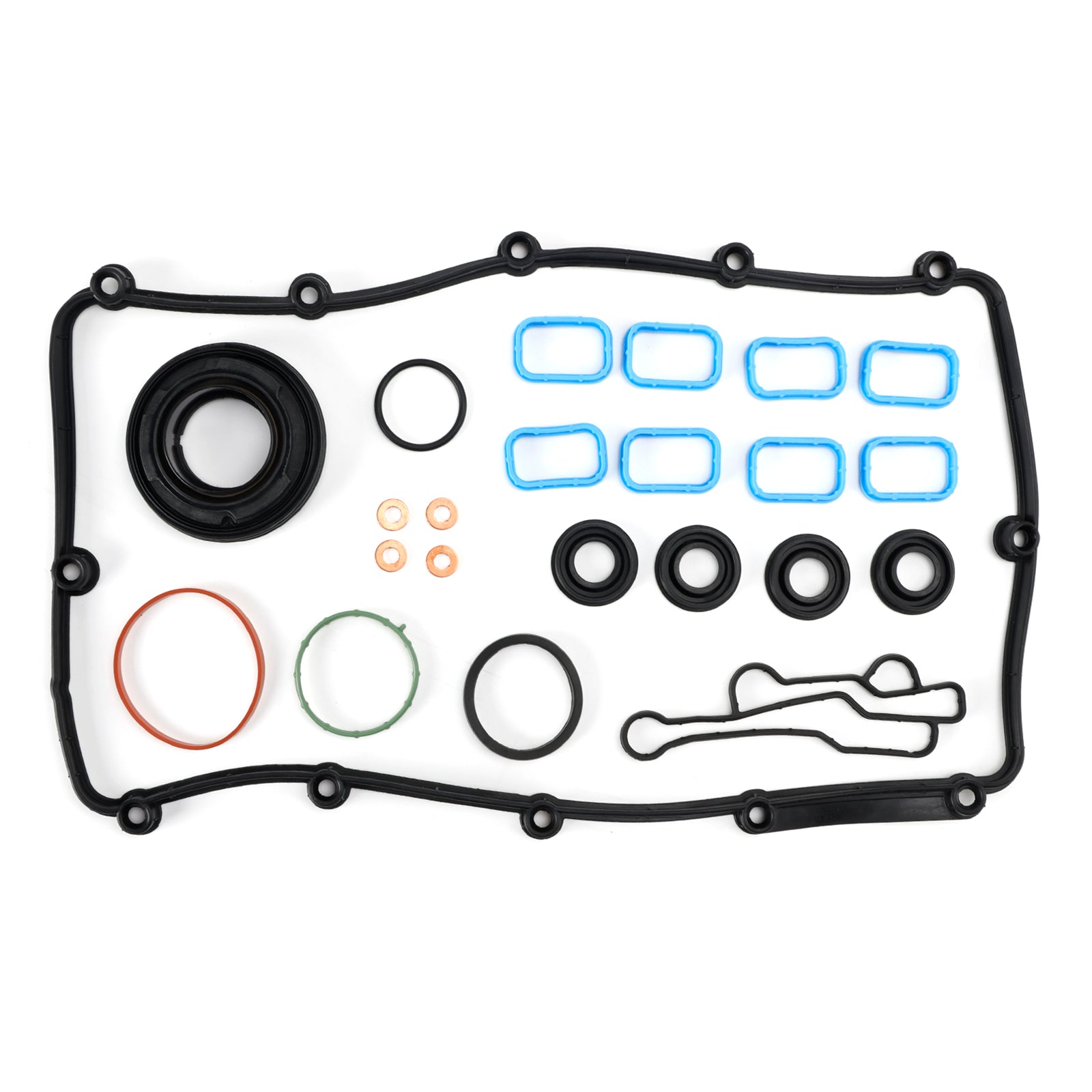

Full Engine gasket set

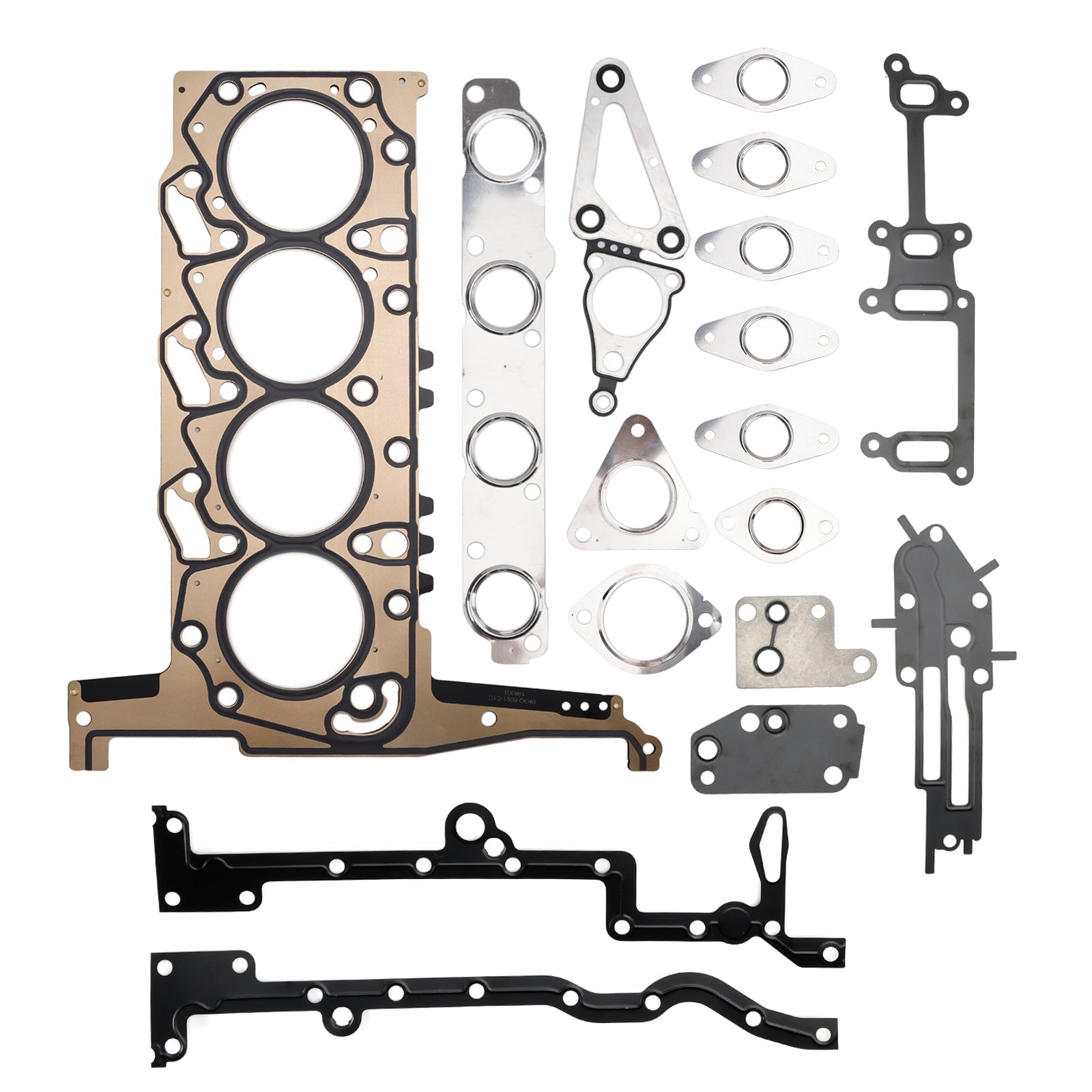

The Gasket Set includes the following
Cylinder head gasket - 1.2mm Thick = 3 Notch / 3 Holes

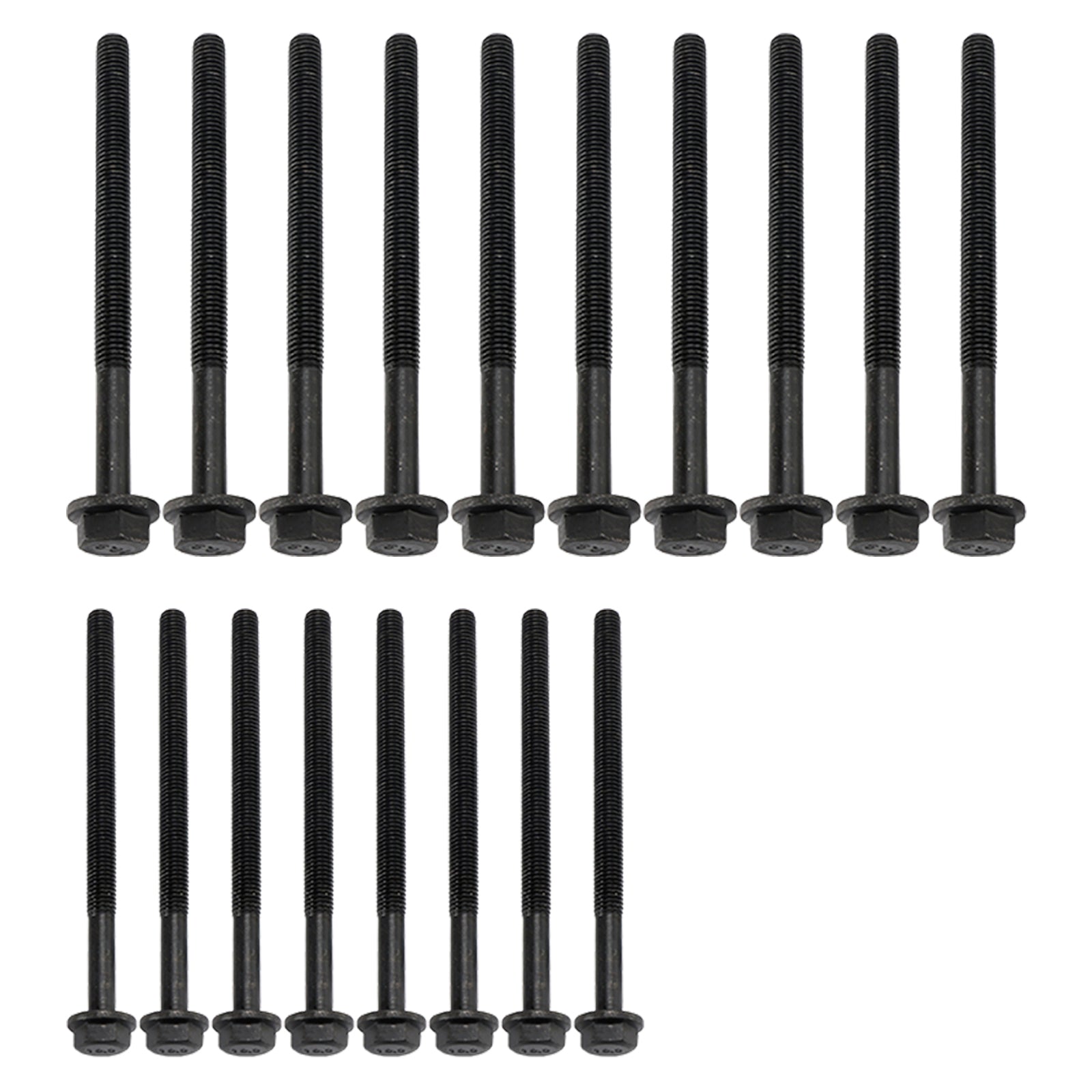

Cylinder Head Bolts

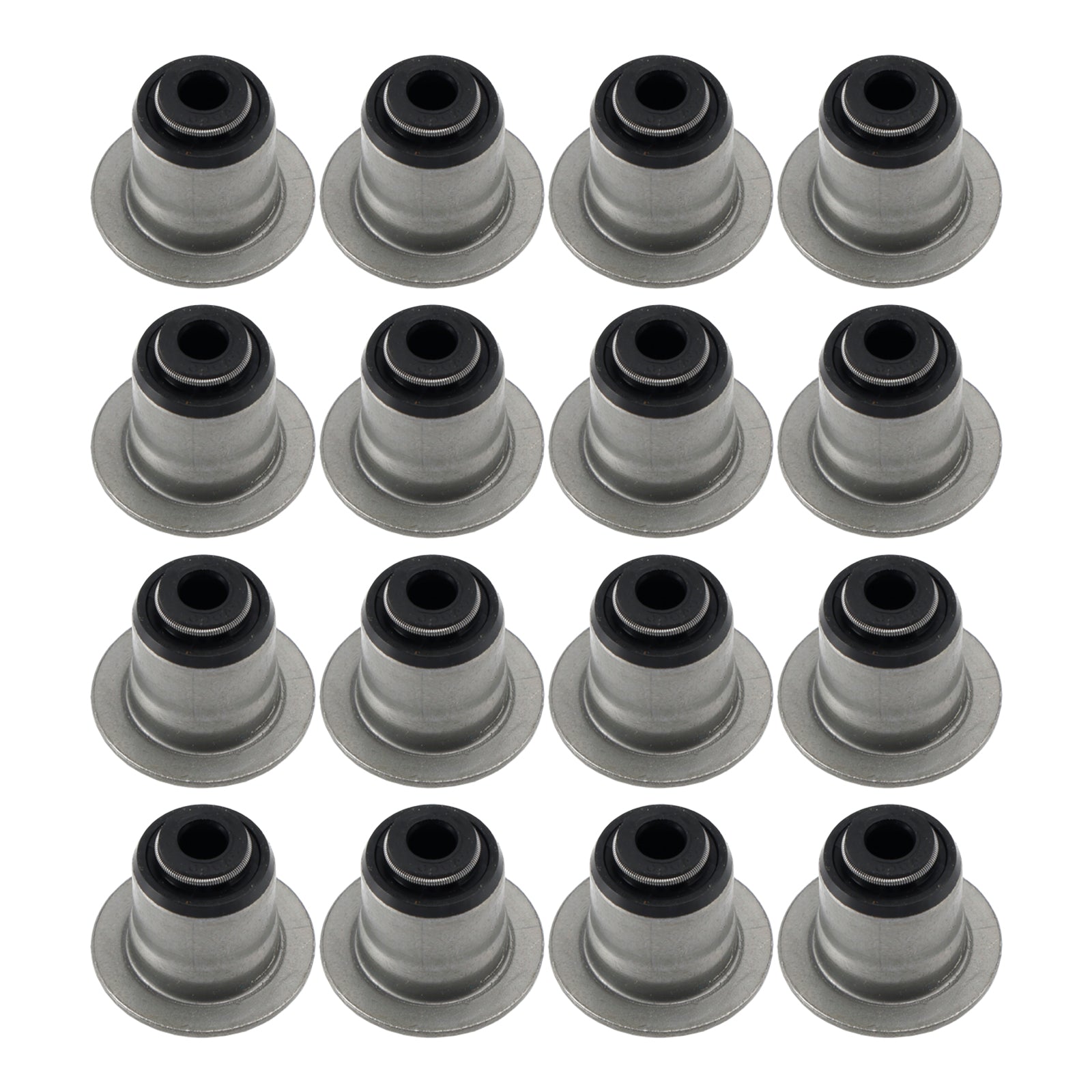

Valve stem oil seals
Injector washers
Inlet manifold gaskets
Exhaust manifold gasket
Rocker cover gasket (valve cover gasket)
Front crankshaft oil seal

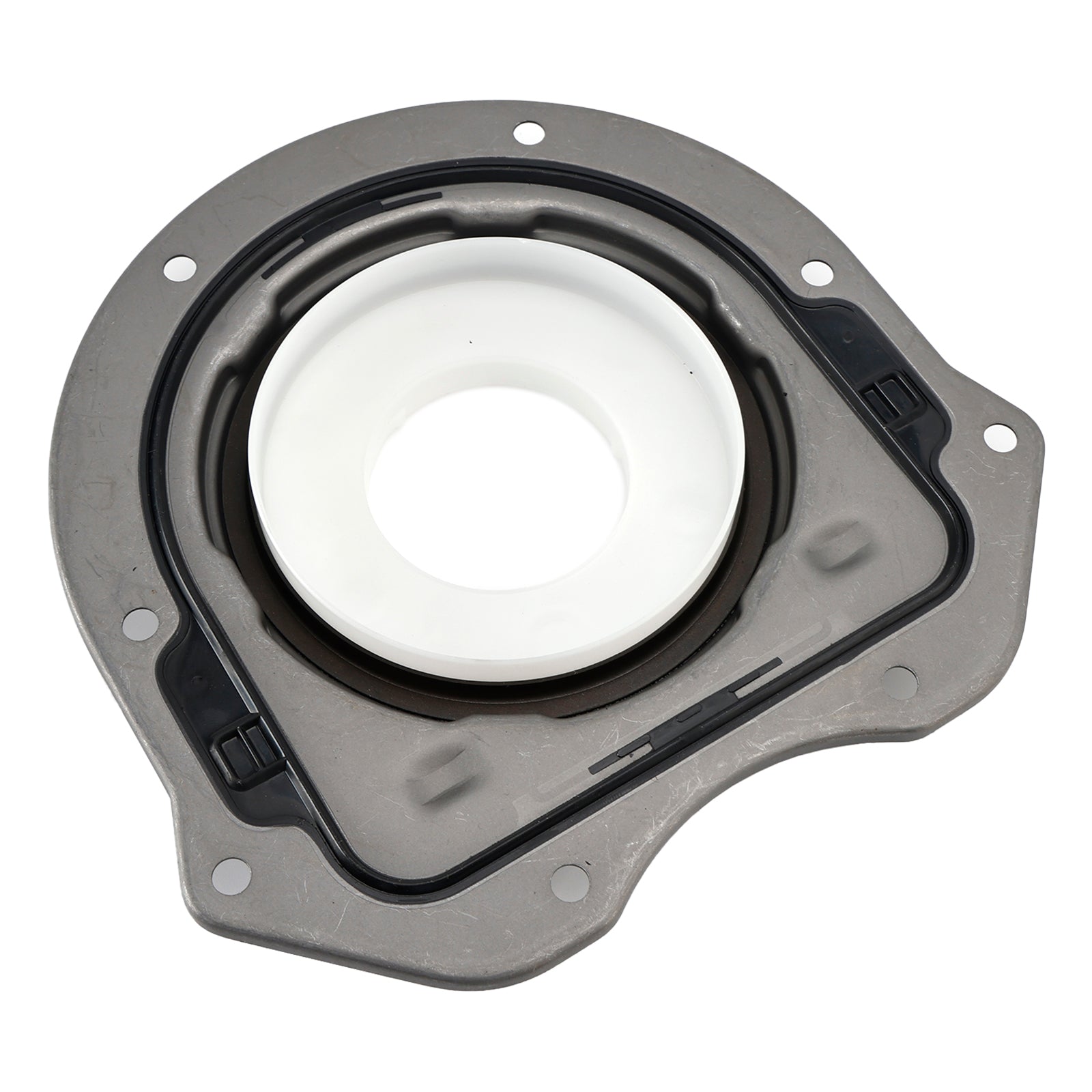

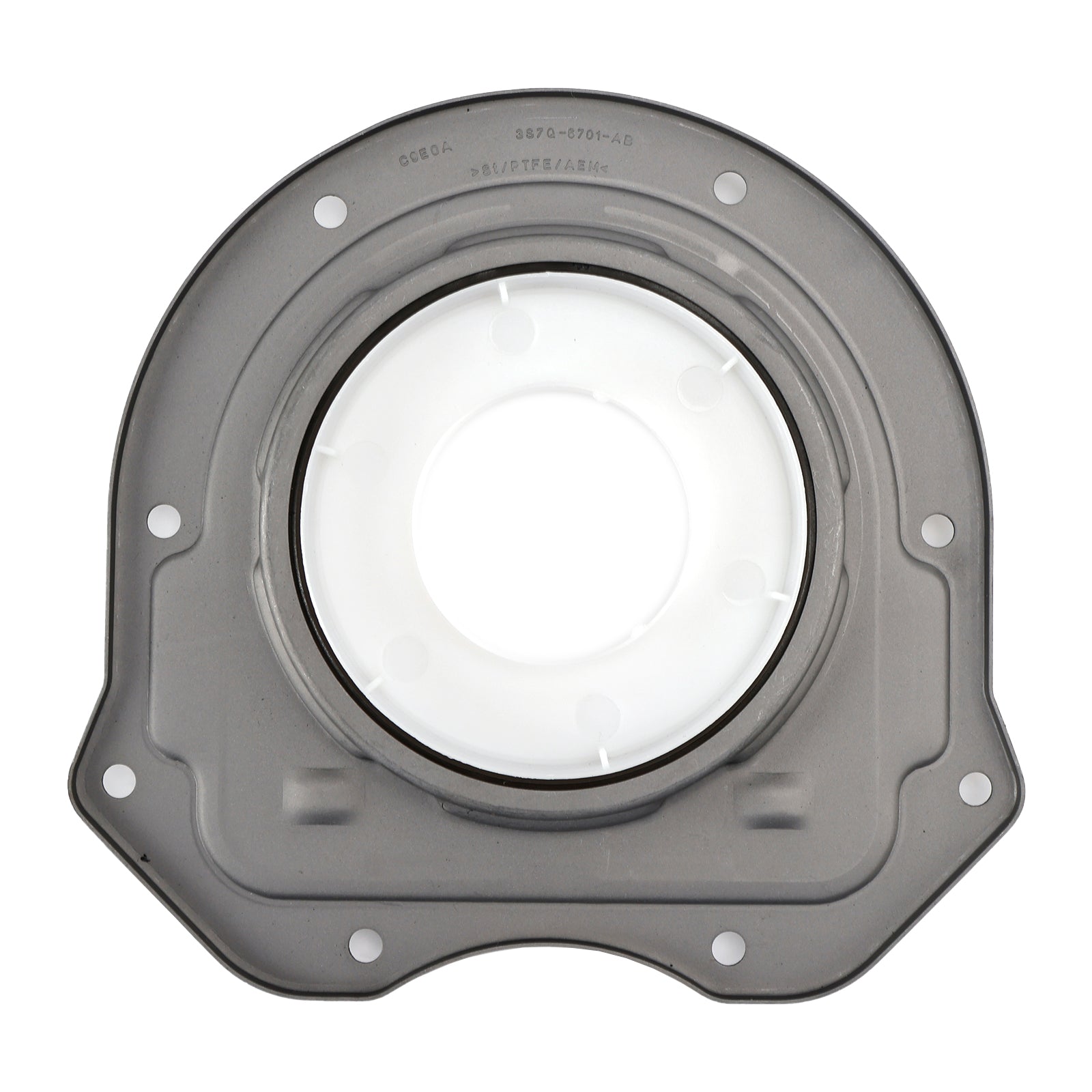

Rear main crankshaft oil seal
Sump Gasket
Various other gaskets, seals and washers for the cylinder head and engine block.

Piston Dimensions
STD bore size - 86.00mm
Suitable for Tapered conrod
Oil Cooled
Pin Diameter - 30mm
Pin Length - 66.85mm
Bowl Diameter - 46.9mm
Bowl Depth - 15.85mm
Overall length - 74.82mm
Rings - 2mm / 2mm / 2mm
Compression Height - 48.42mm

Note:
YOU MUST CHECK THE PISTON LENGTH! - THIS kit includes pistons with an overall length of 74.82mm

Installation Video (FOR REFERENCE ONLY):

https://youtu.be/haWr6XdDWpQ?si=7CYMB6C5OhRvMFlU
(Please note, the installation video is for reference only and may not be completely accurate. If you're unsure about installation, we recommend consulting a local professional mechanic for assistance.)
