56.5mm Cylinder Piston Gasket Top End Rebuild Kit For Honda CG125 ES 2004 -2009

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

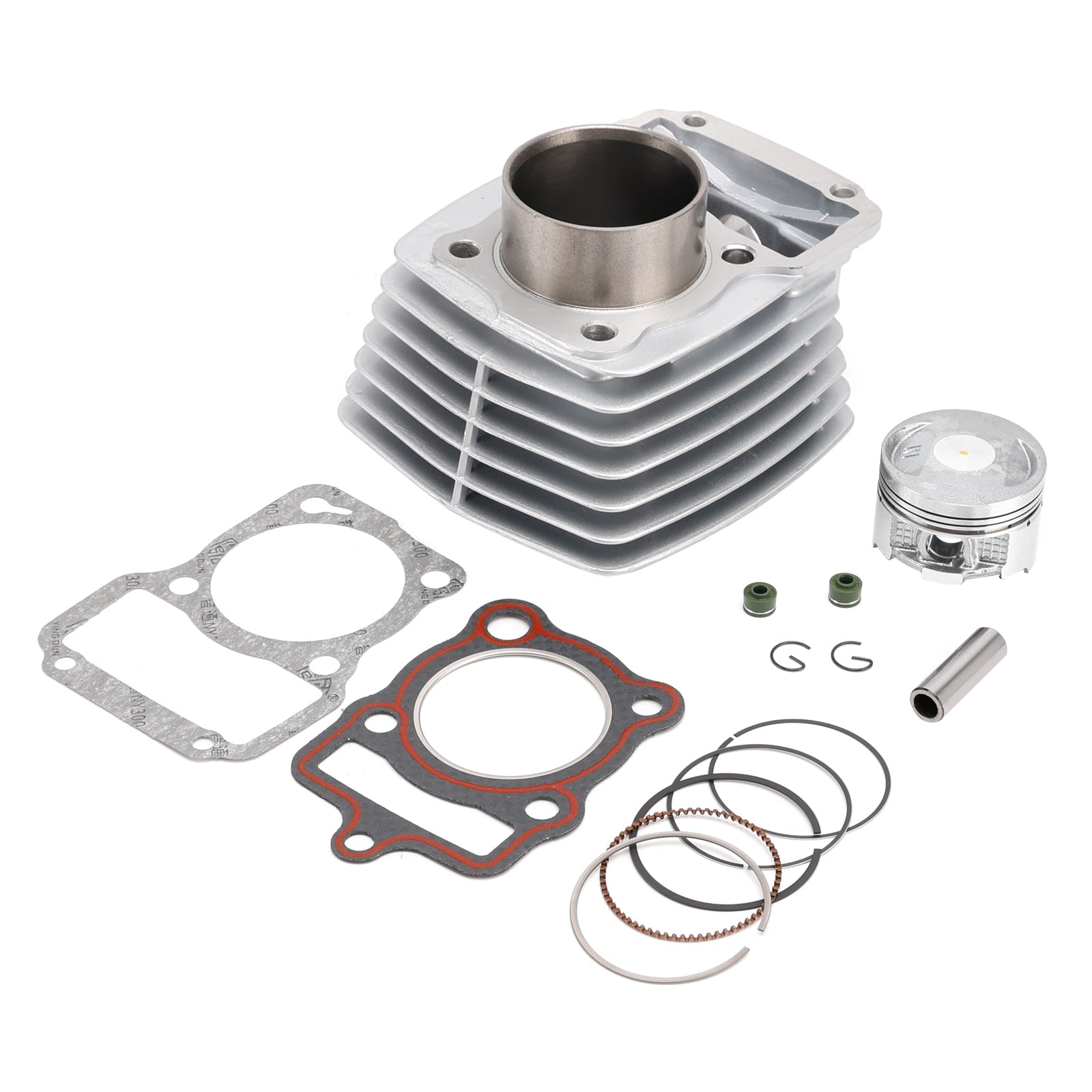

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 56,50 mm, 13mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Easy installation; professional assistance recommended if needed.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 124cc
Engine: 4 Stroke
Bore Type: Standard Bore
Bore diameter: 56.50mm
Pin diameter: 13mm
Pin Overall Length: 40mm

Replacement Part Number:
Cylinder: 12100-KGA-900
Cylinder Base Gasket: 12191-KGA-900
Cylinder Head Gasket: 12251-KY0-891
Piston: 13101-KGA-B00
Pin, Piston: 13111-KGA-B00
Piston Ring Set (Std): 13011-KGA-B00
Circlips, piston (2): 13115-GN5-910

Always compare part numbers to your parts schematics and cross reference appropriately.

Fits Make/Model/Year:
Fit for Honda CG125 (M) Models (2001-2003)
Fit for Honda CG125 Electric Start Models (2004-2009)
Fit for Honda XR125L (2003-2011)
Fit for Honda XR125L3/L4/L5/L6 (2003-2009)
Fit for Honda NXR125 BROS (2003-2006)

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 56.5mm Cylinder
1x Piston
1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
