92mm Cylinder Piston Gasket Top End Rebuild Kit For Honda Rubicon TRX 500 FA FGA FPA 2001-2014

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

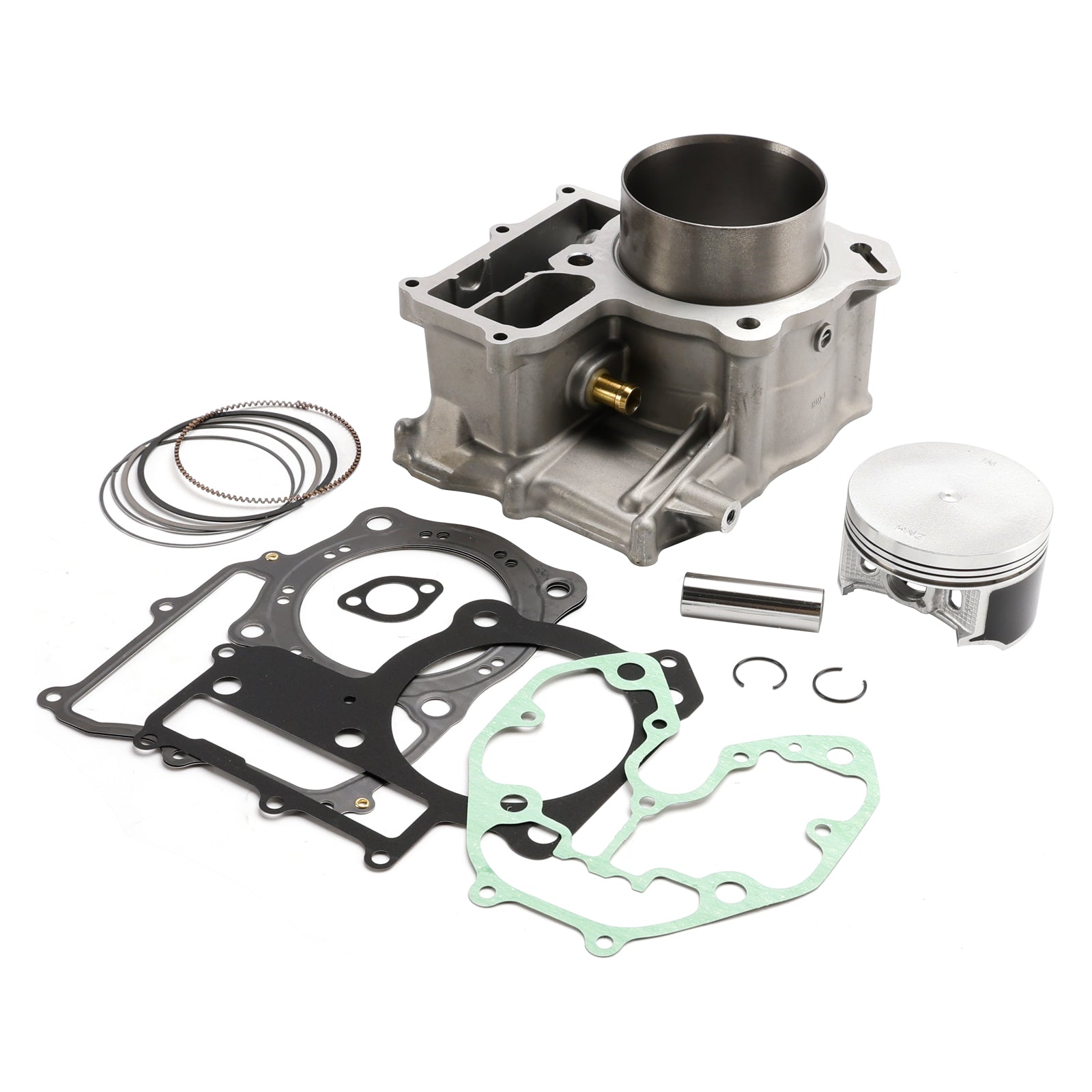

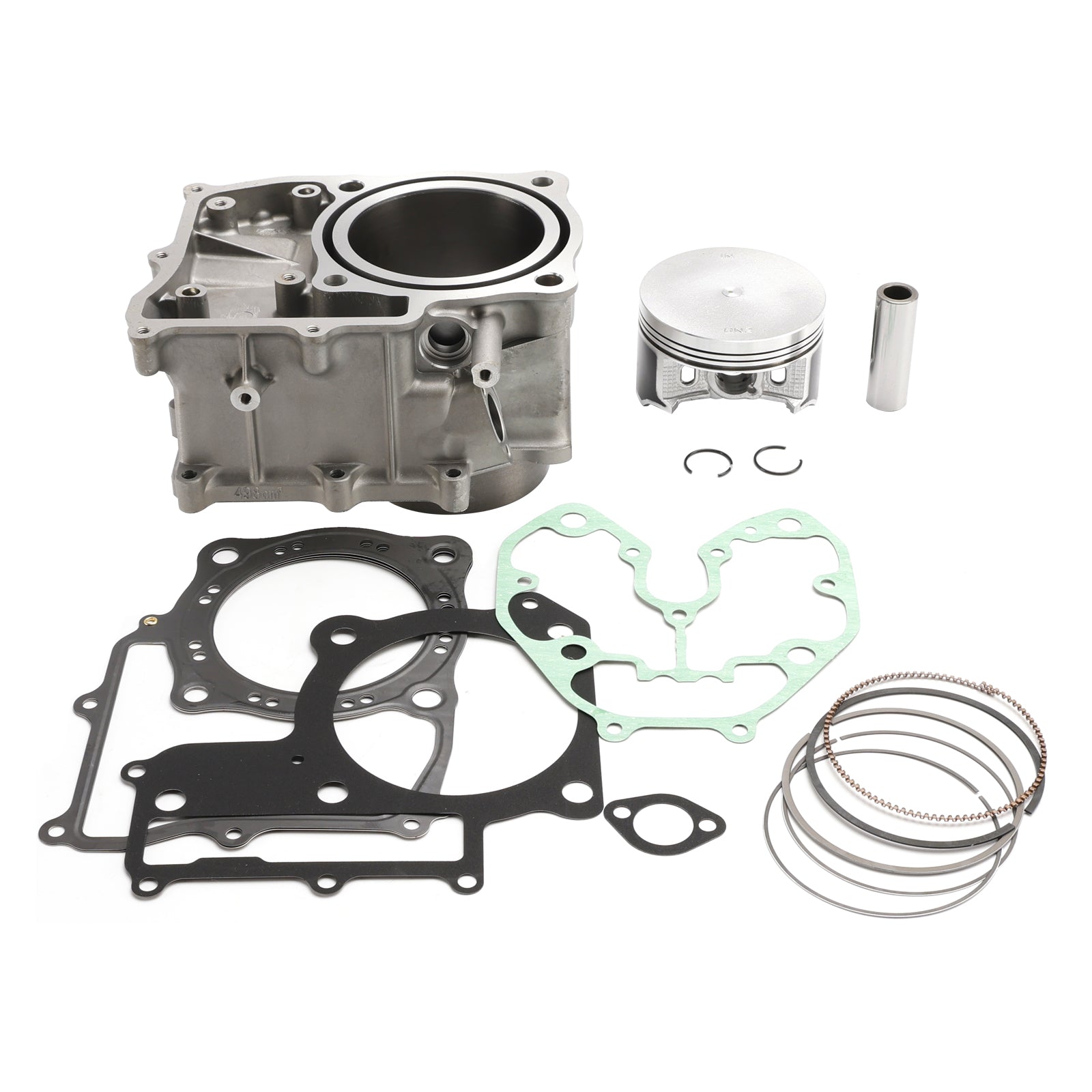

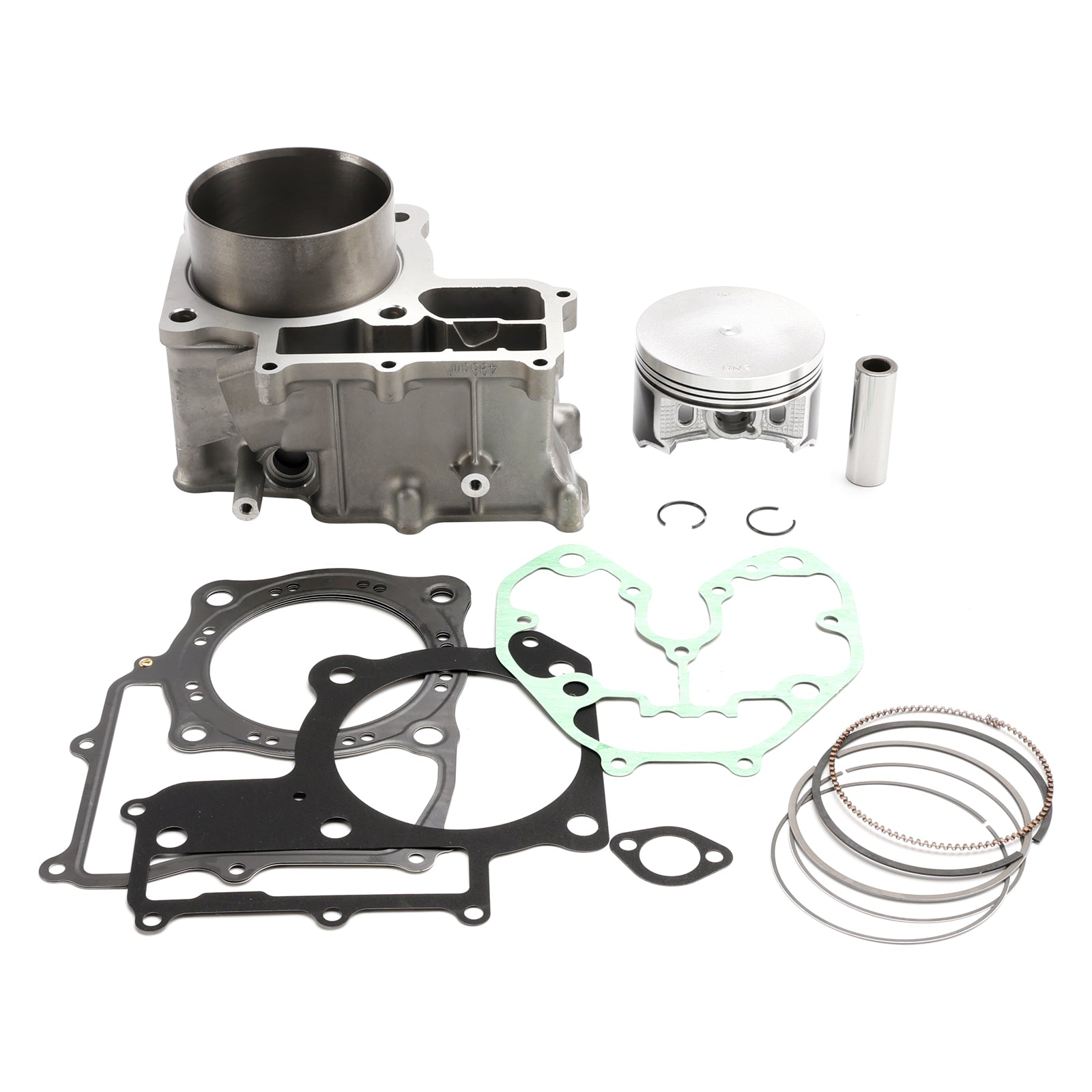

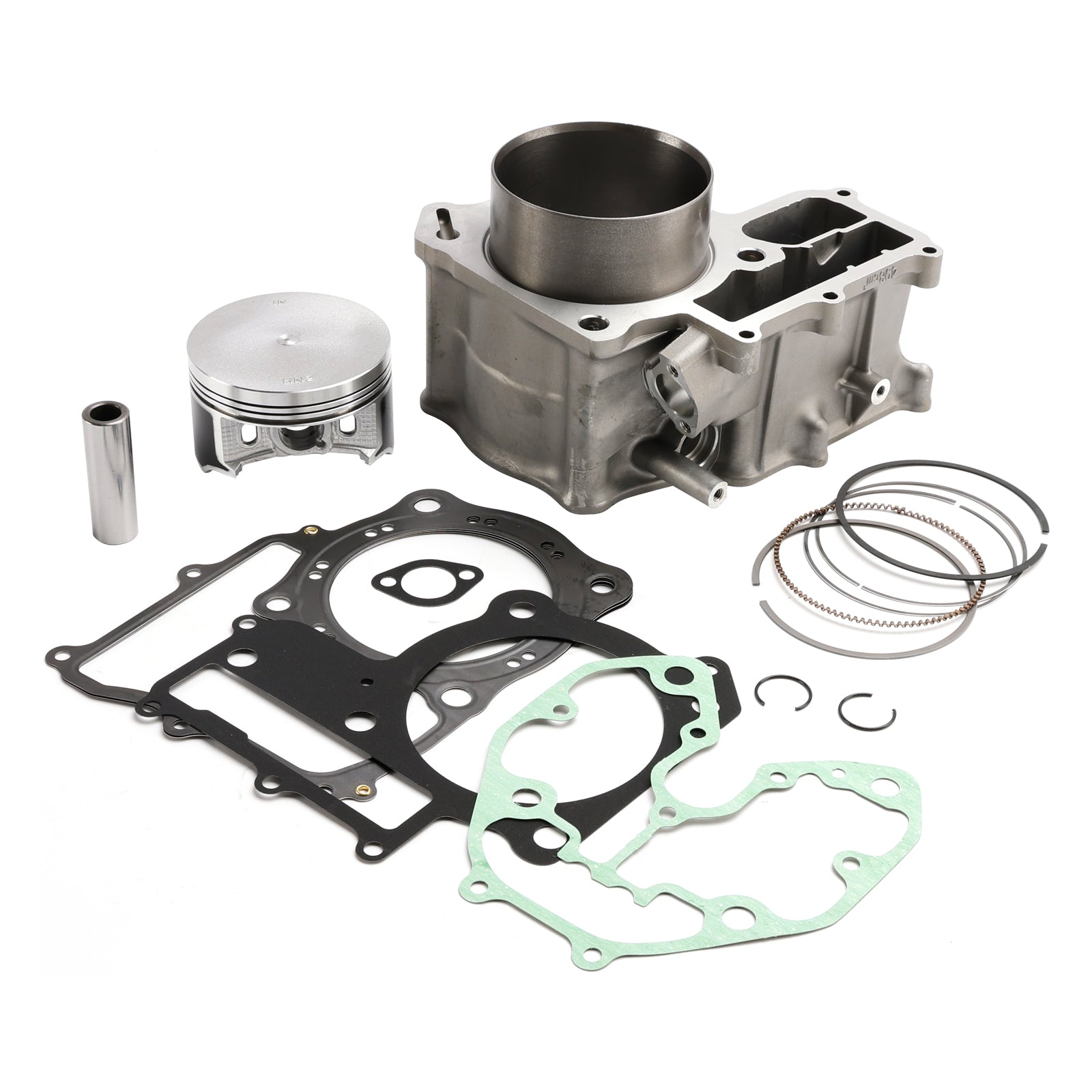

Kit includes cylinder, domed piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

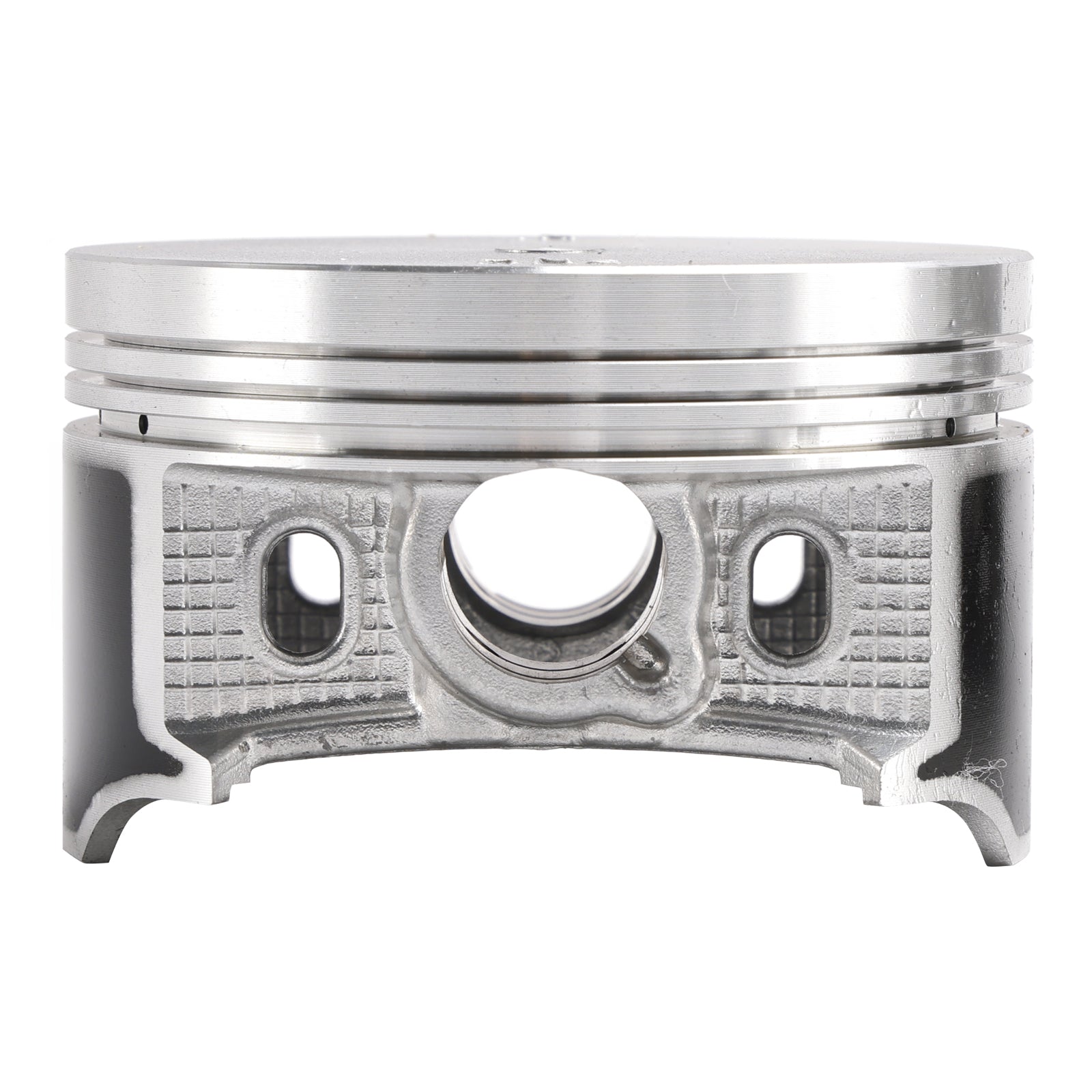

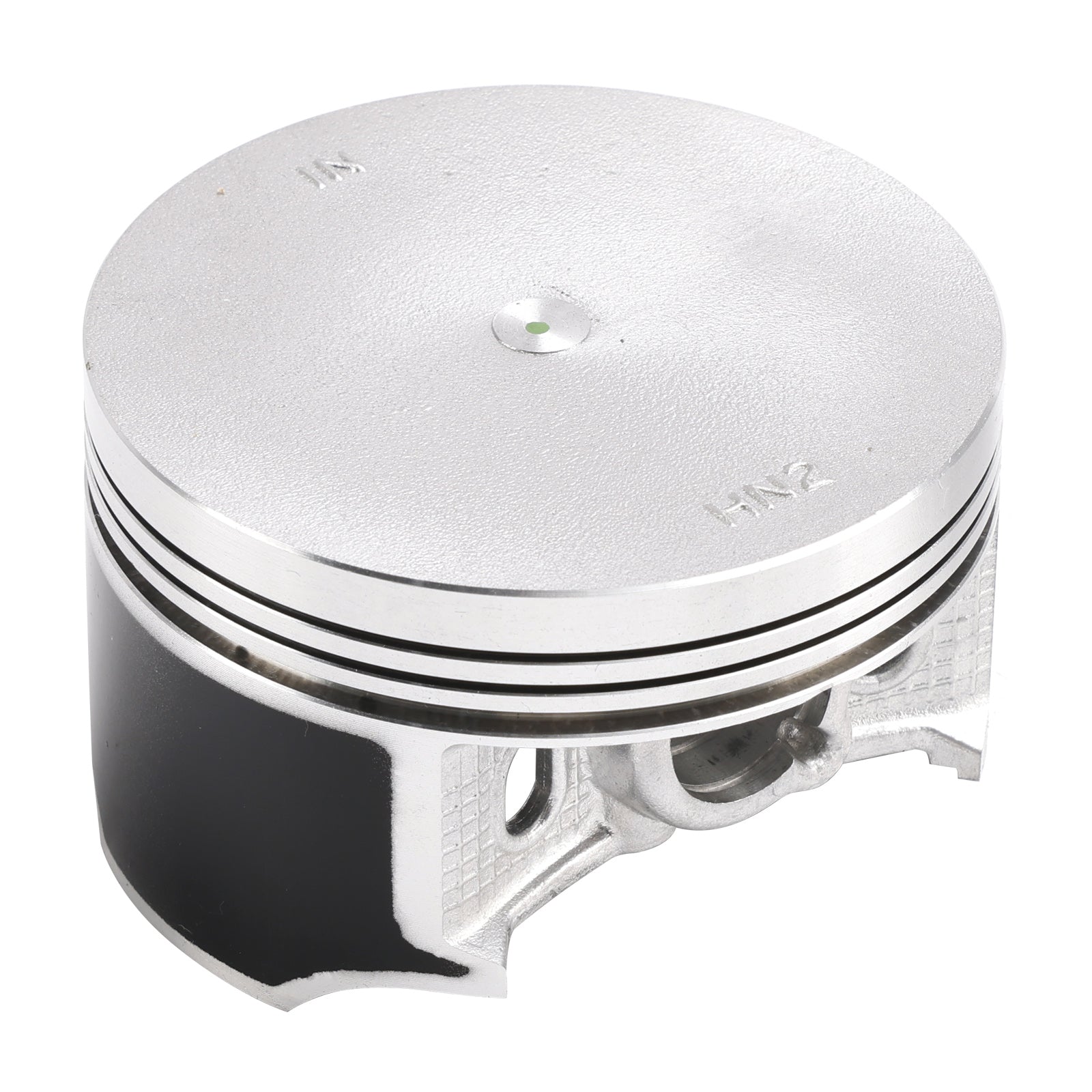

Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 92.0 mm x 75.0 mm stroke, 20mm steel piston pin.
Compression Ratio 9.2 : 1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 498cc
Bore Type: Standard Bore
Bore diameter: STD 92mm
Stroke: 75mm
Pin diameter: 20mm
Pin Height: 62mm

Replacement Part Number:

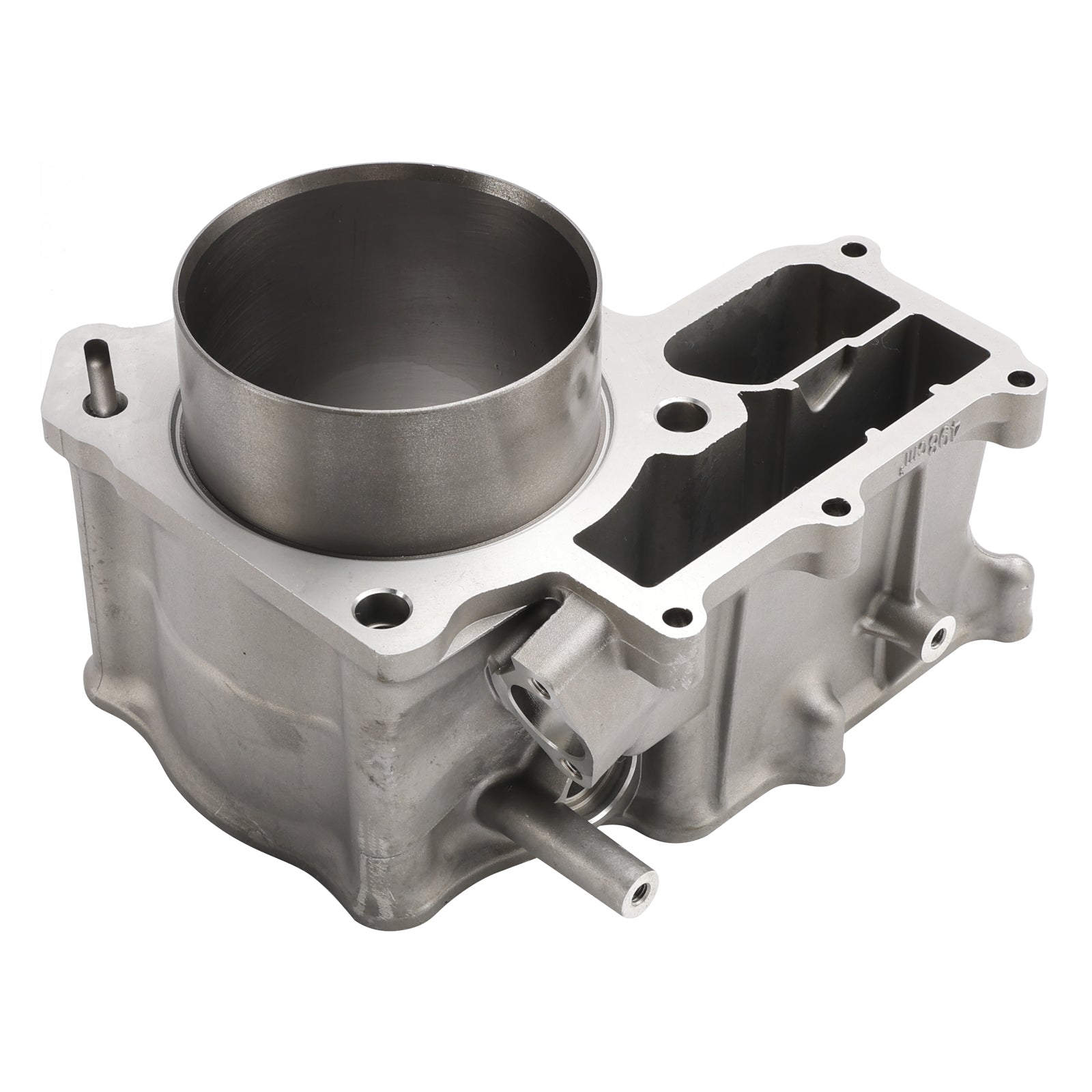

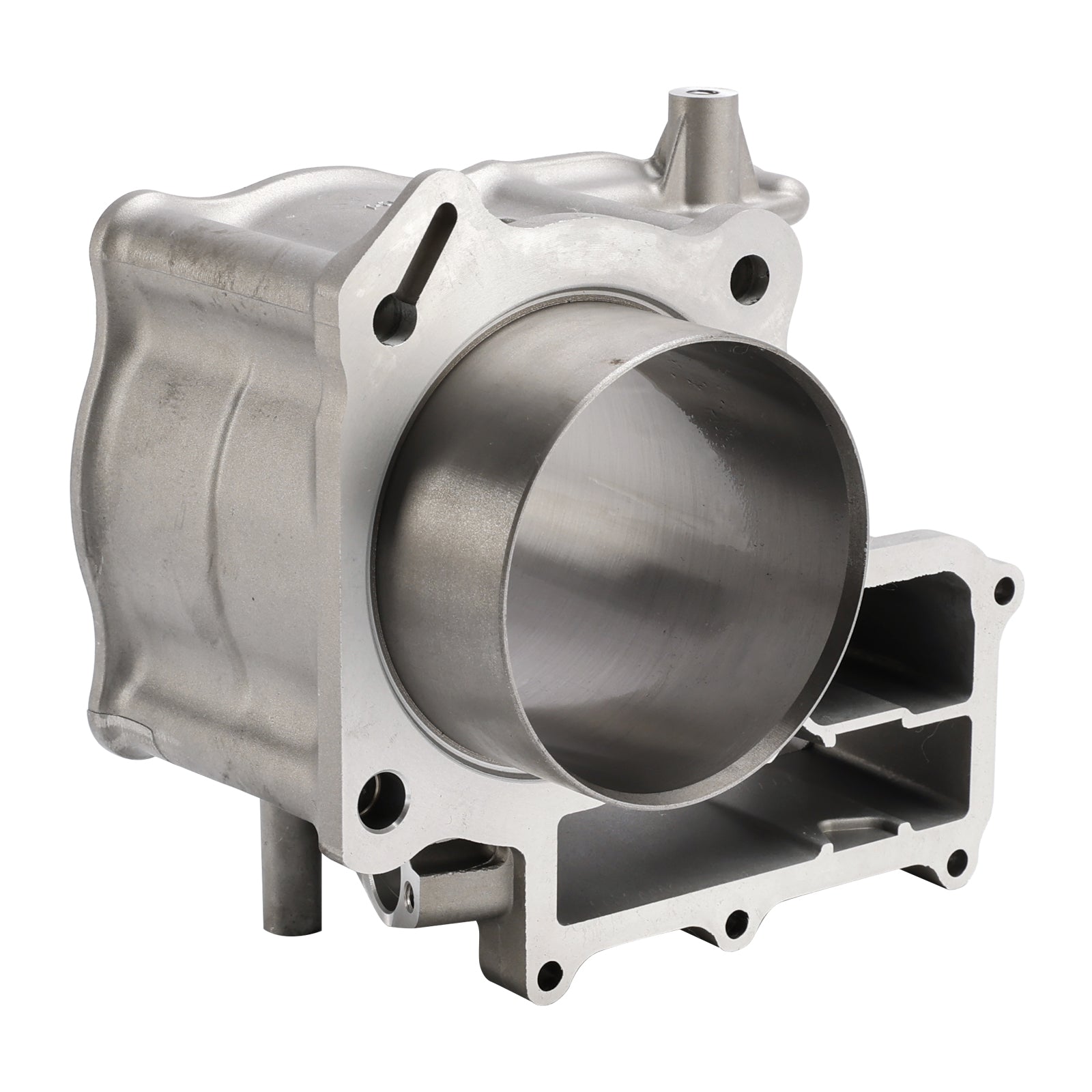

Cylinder: 12100-HN2-000
Cylinder Base Gasket: 12191-HN2-000
Cylinder Head Gasket: 12251-HN2-003
Cylinder Head Cover Gasket: 12315-HN2-003
Chain Tensioner Gasket: 12194-HC5-740
Piston (Std): 13101-HN2-000, 13101-HN2-010
Pin, Piston: 13111-HN2-000
Piston Ring Set (Std): 13010-HN2-003
Circlips, piston (2): 90601-KA5-000

Fits Make/Model/Year:
Fit for Honda TRX500FA FourTrax Foreman Rubicon 2001-2014
Fit for Honda TRX500FGA FourTrax Foreman Rubicon GPScape 2004-2009/2011
Fit for Honda TRX500FPA FourTrax Foreman Rubicon with EPS 2009/2011-2014

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

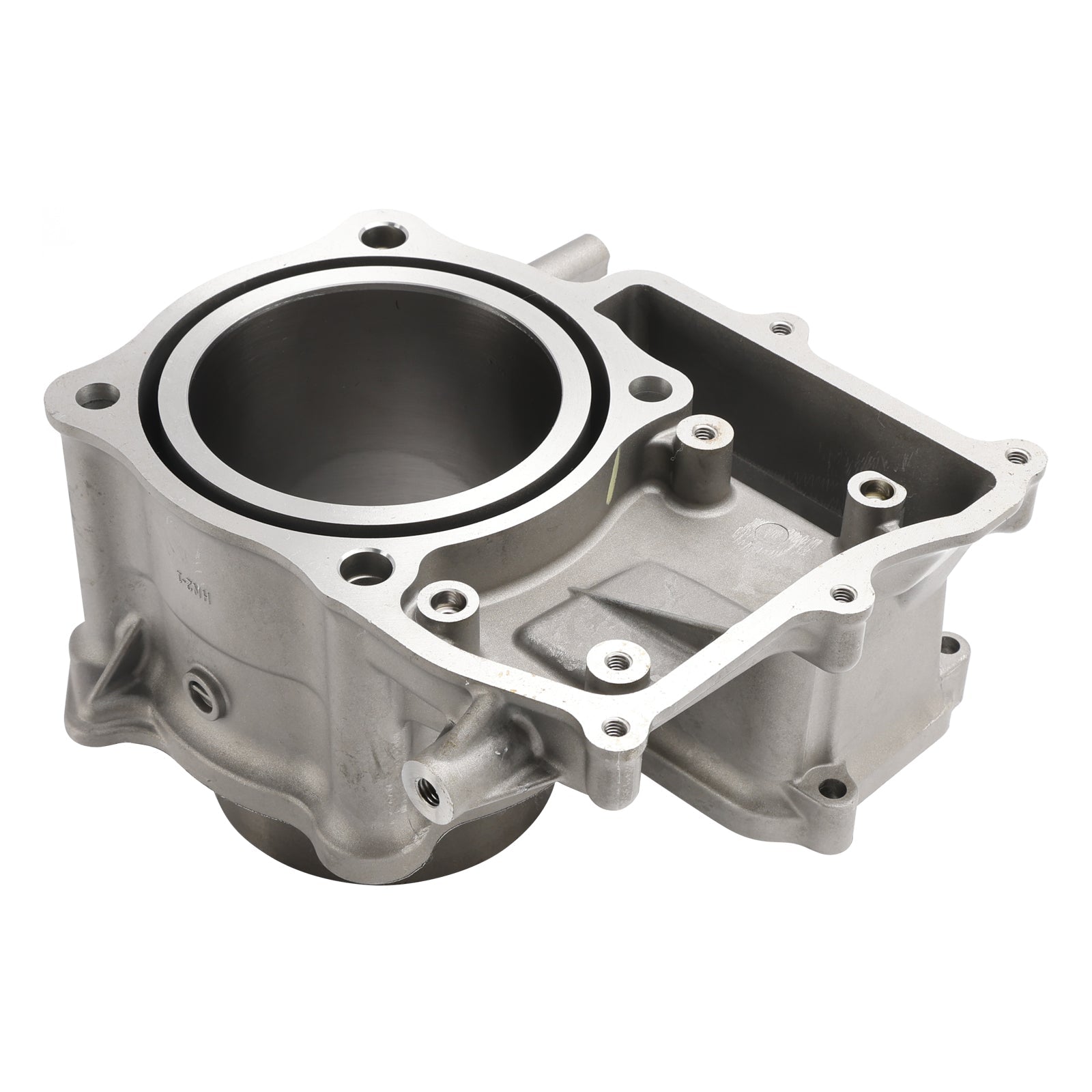

1x Cylinder
1x Piston

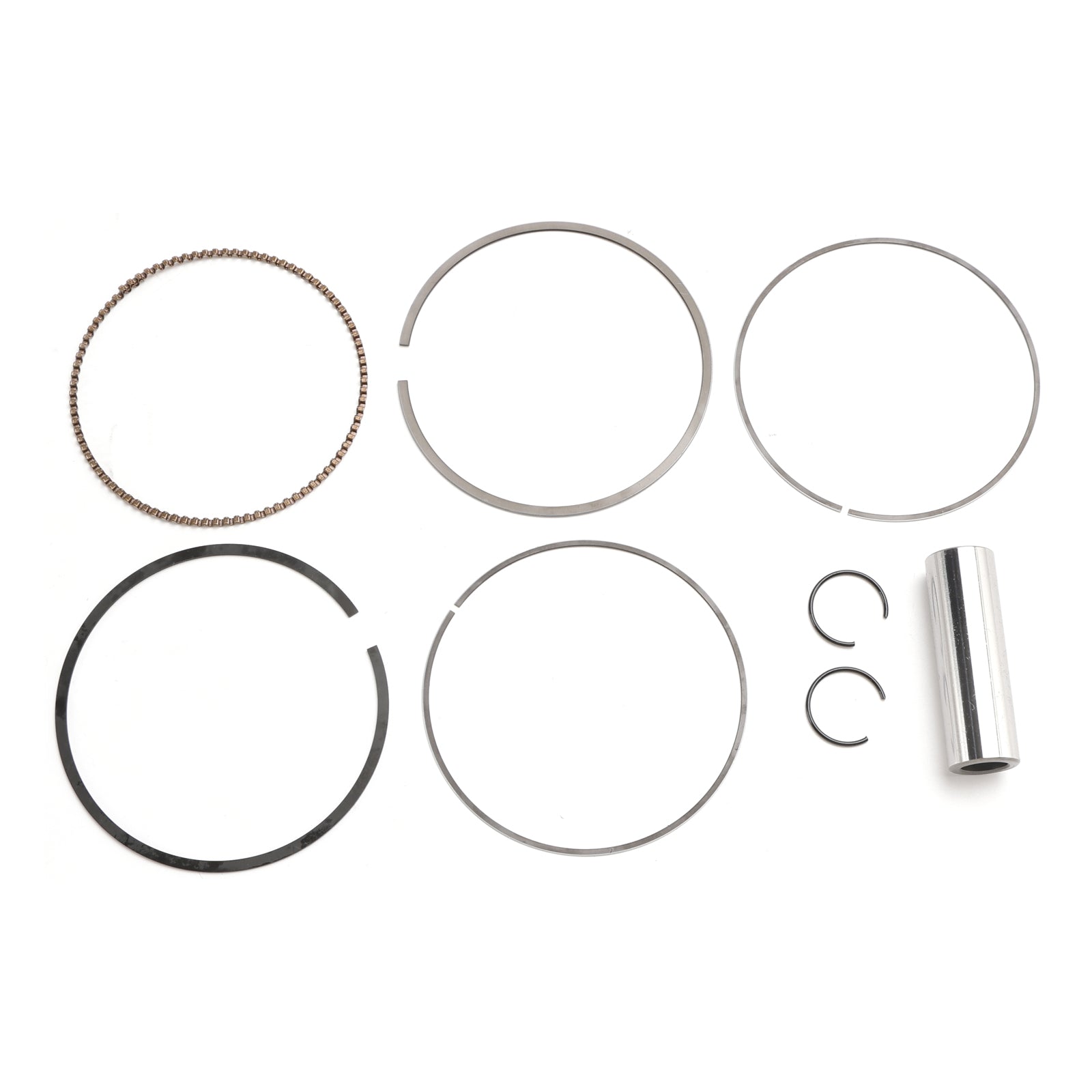

1x Piston Ring Set
1x 20mm Wristpin
1x Circlip(2)

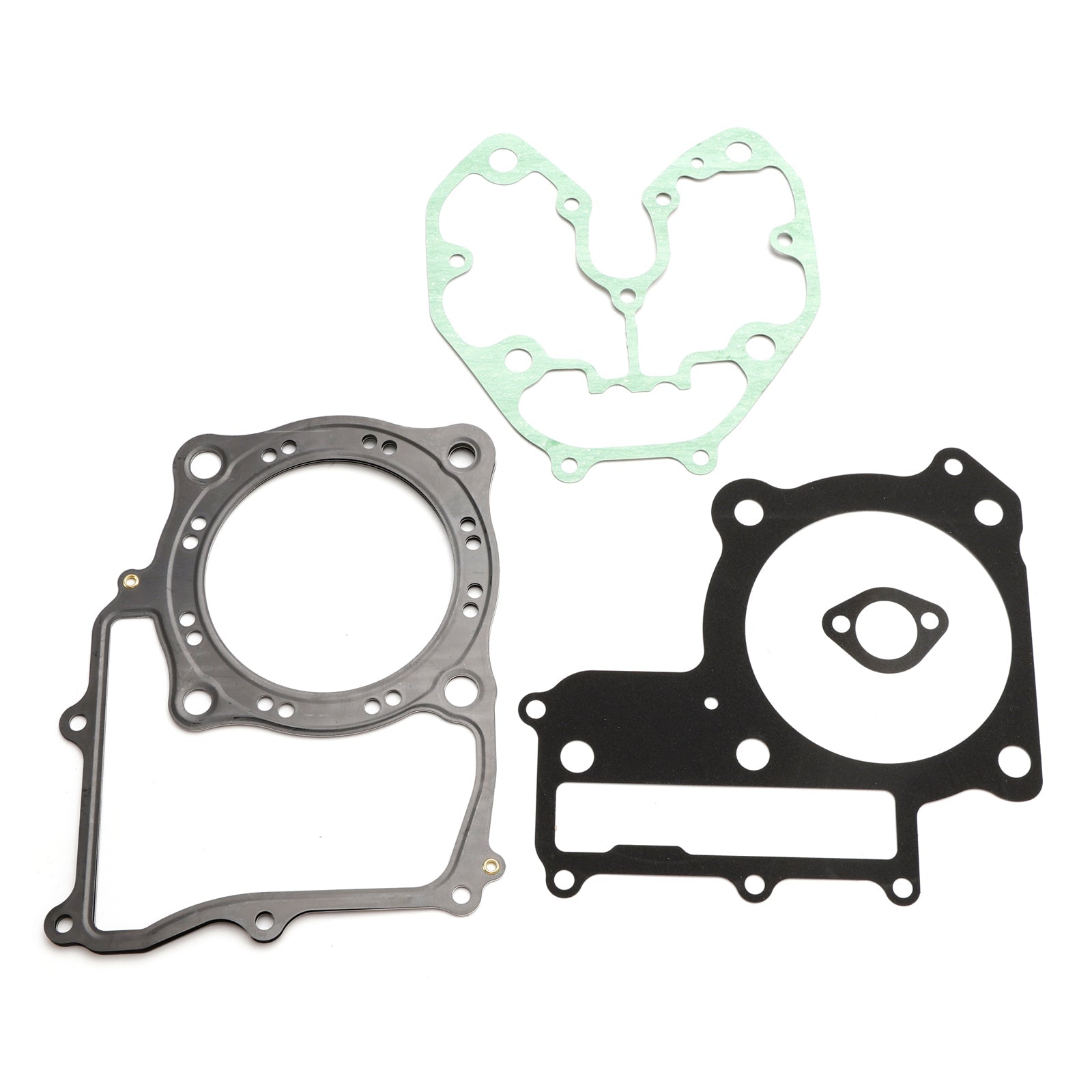

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cylinder Head Cover Gasket
1x Chain Tensioner Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
