50mm Cylinder Piston Gasket Rebuild Kit For Honda NHX110WH Lead 2008 - 2012 12100-GFM-900

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

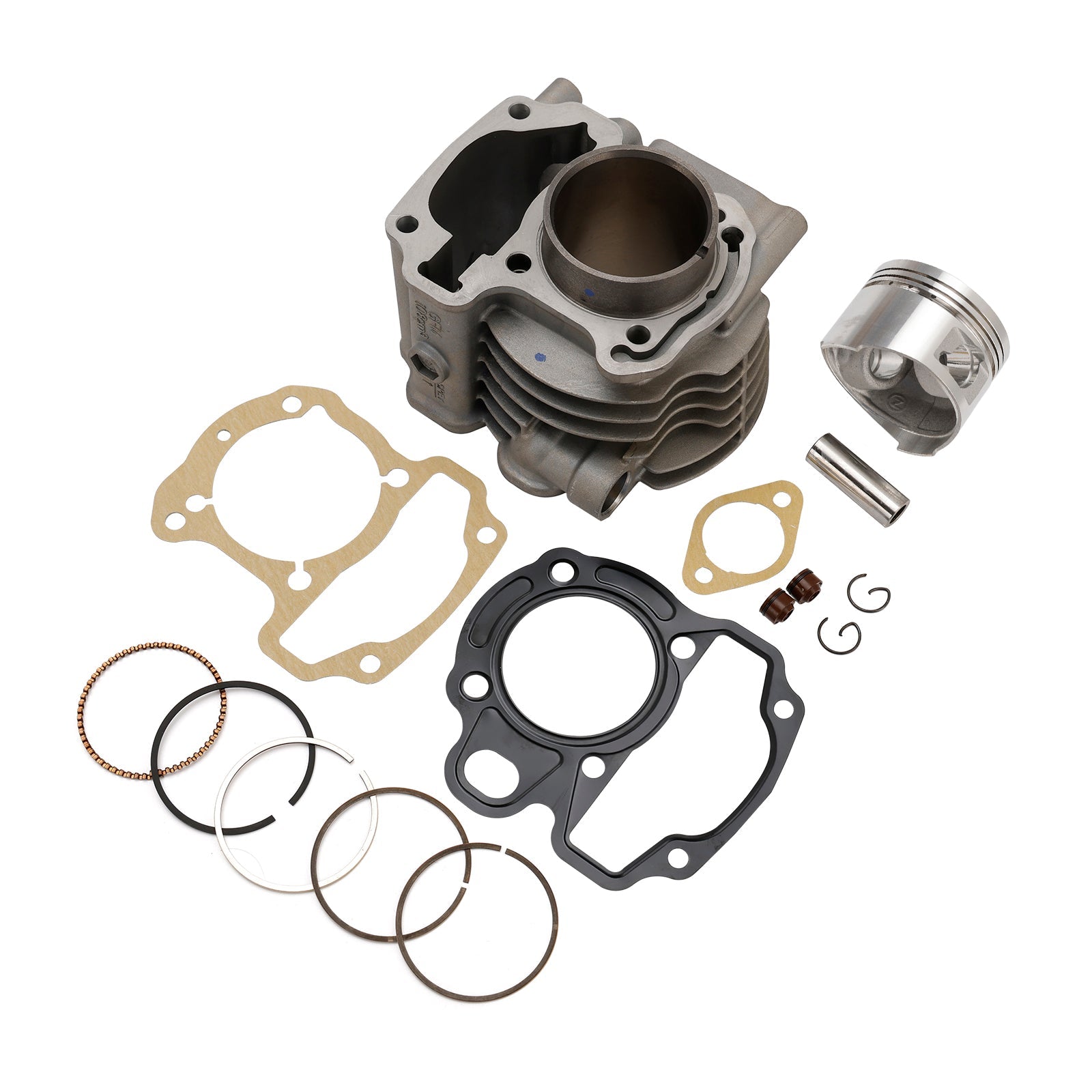

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 50mm x 55mm stroke, 13mm steel piston pin.
Compression Ratio: 11:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 108cc
Bore Type: Standard Bore
Cylinder Type: GFM
Bore diameter: STD 50mm
Stroke: 55mm
Pin diameter: 13mm

Replacement Part Number:
Cylinder: 12100-GFM-900
Cylinder Base Gasket: 12191-GFM-901
Cylinder Head Gasket: 12251-GFM-890
Piston (Std): 13101-GFM-900
Pin, Piston: 13111-GCC-C50
Piston Ring Set (Std): 13011-KWW-740
Circlips, piston: 94601-13000
Tensioner Gasket: 14560-GFC-902
Valve Stem Seal: 12209-GB4-682

Fits Models:
Fit for Honda LEAD NHX110 2008 - 2015

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x 50mm Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
2x Valve Stem Seals

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
