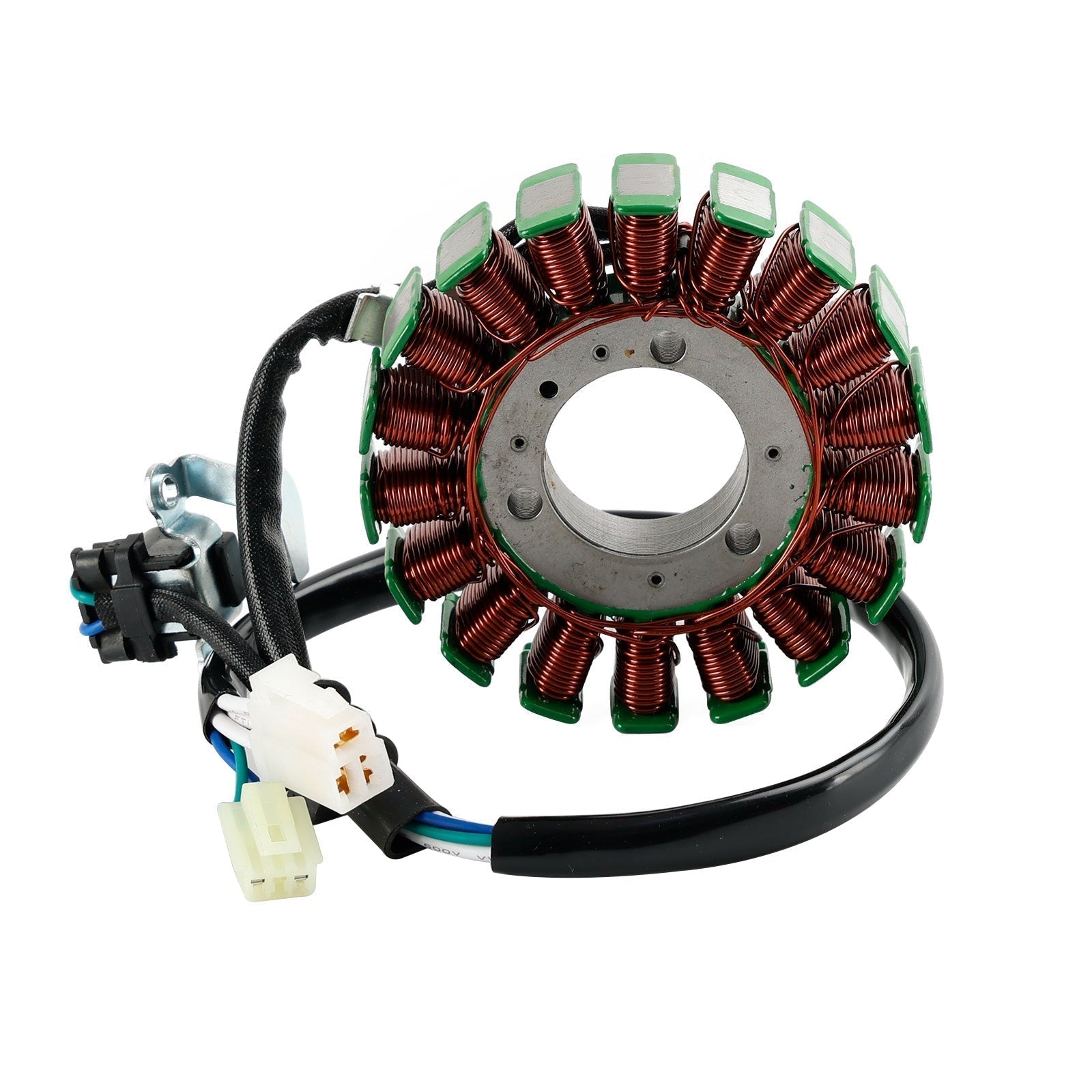

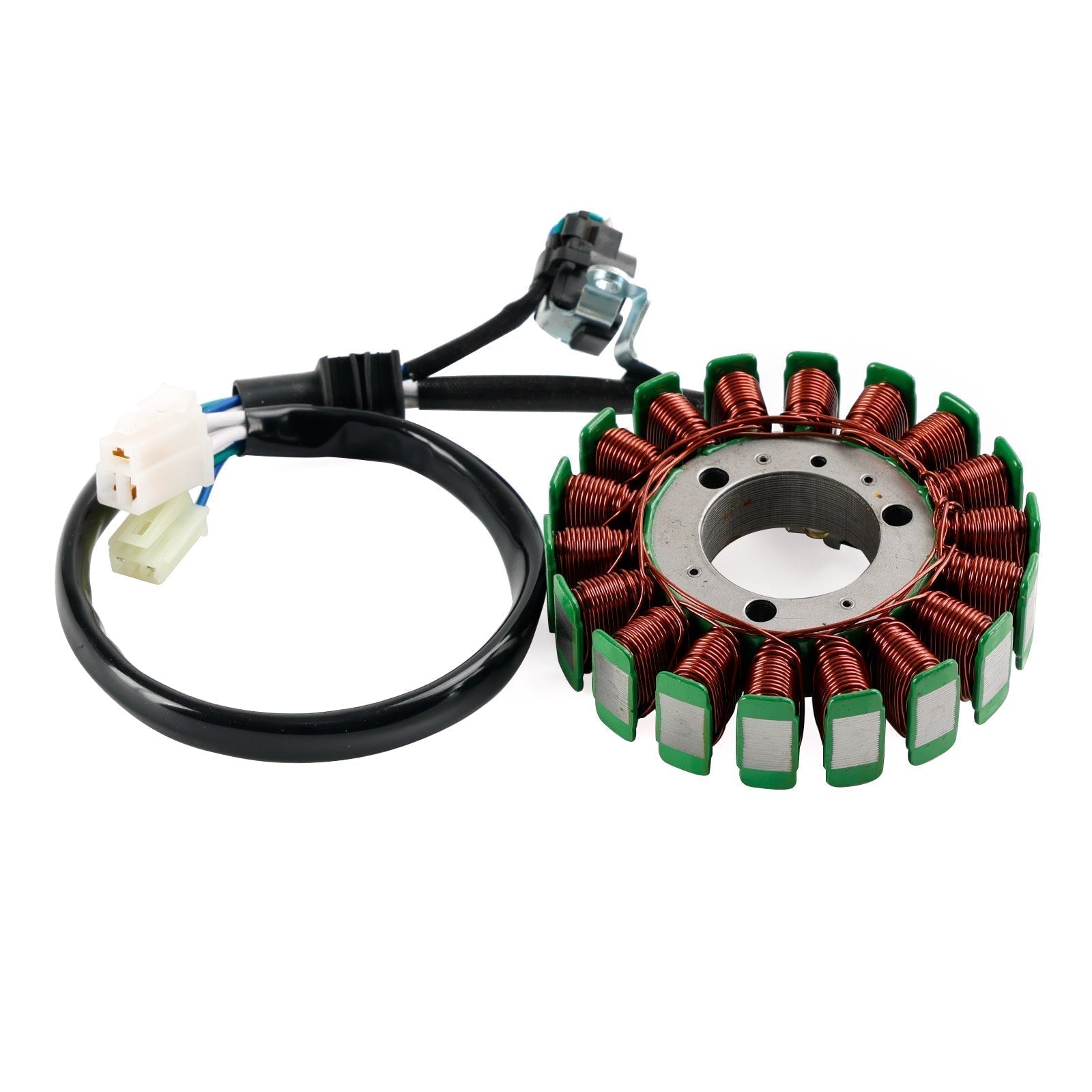

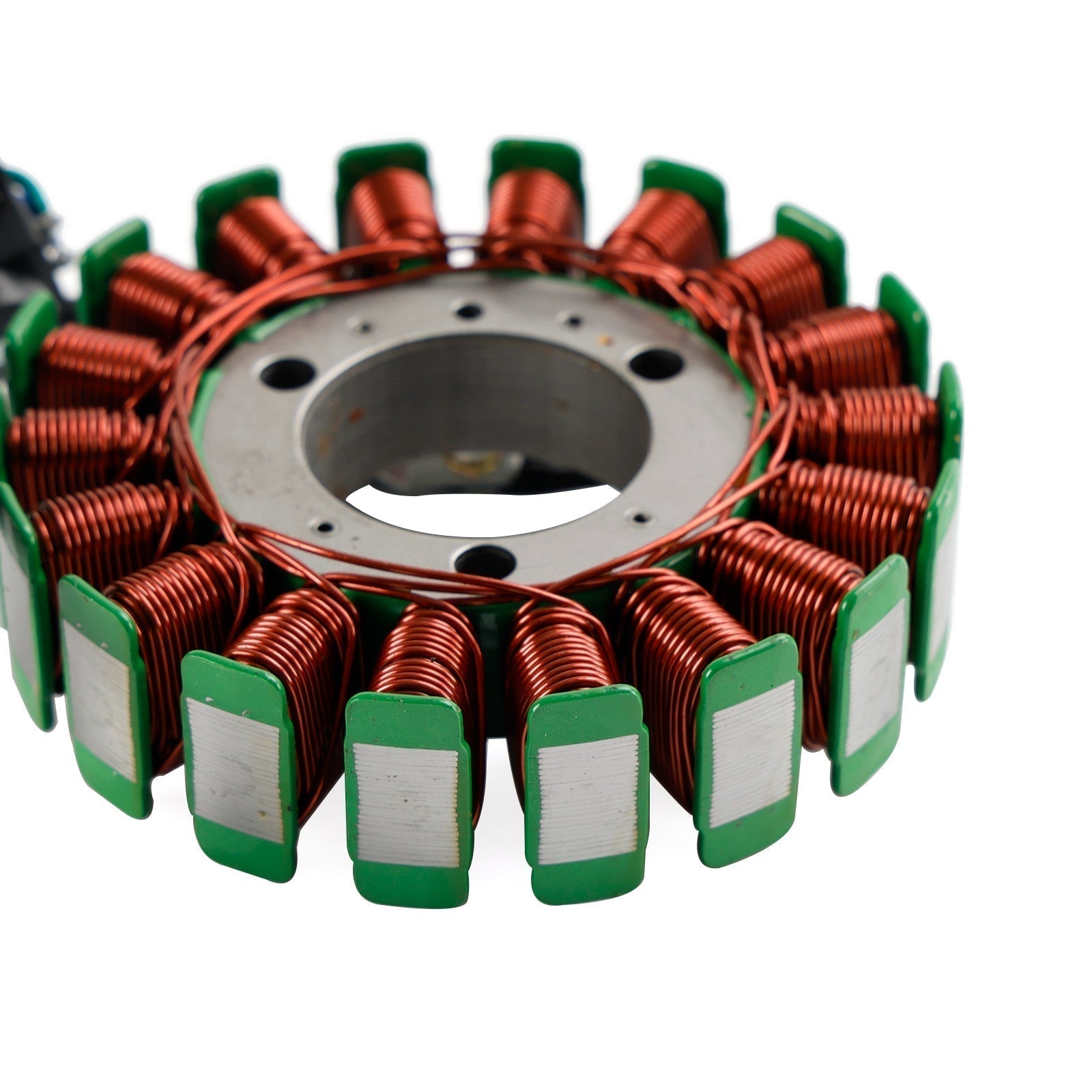

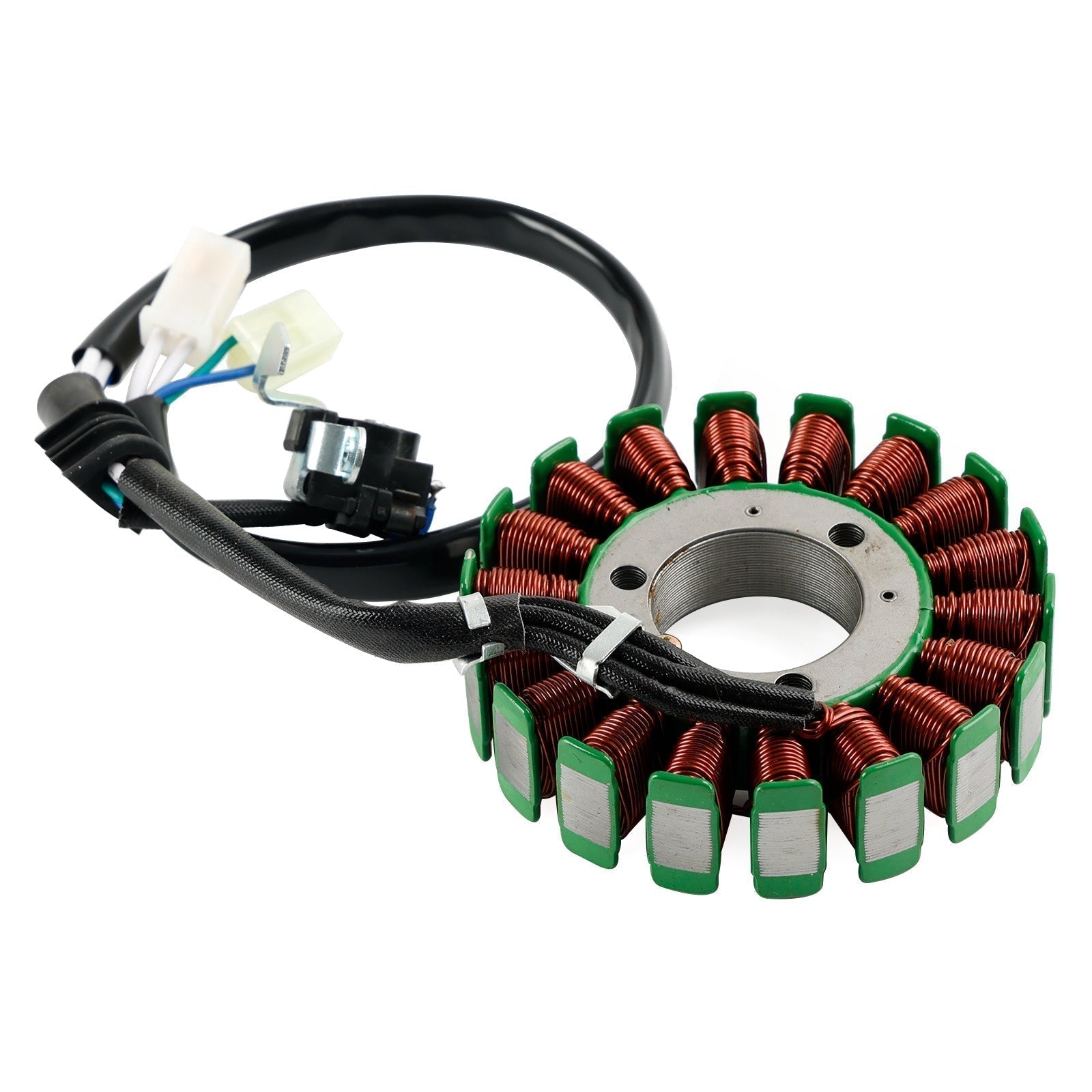

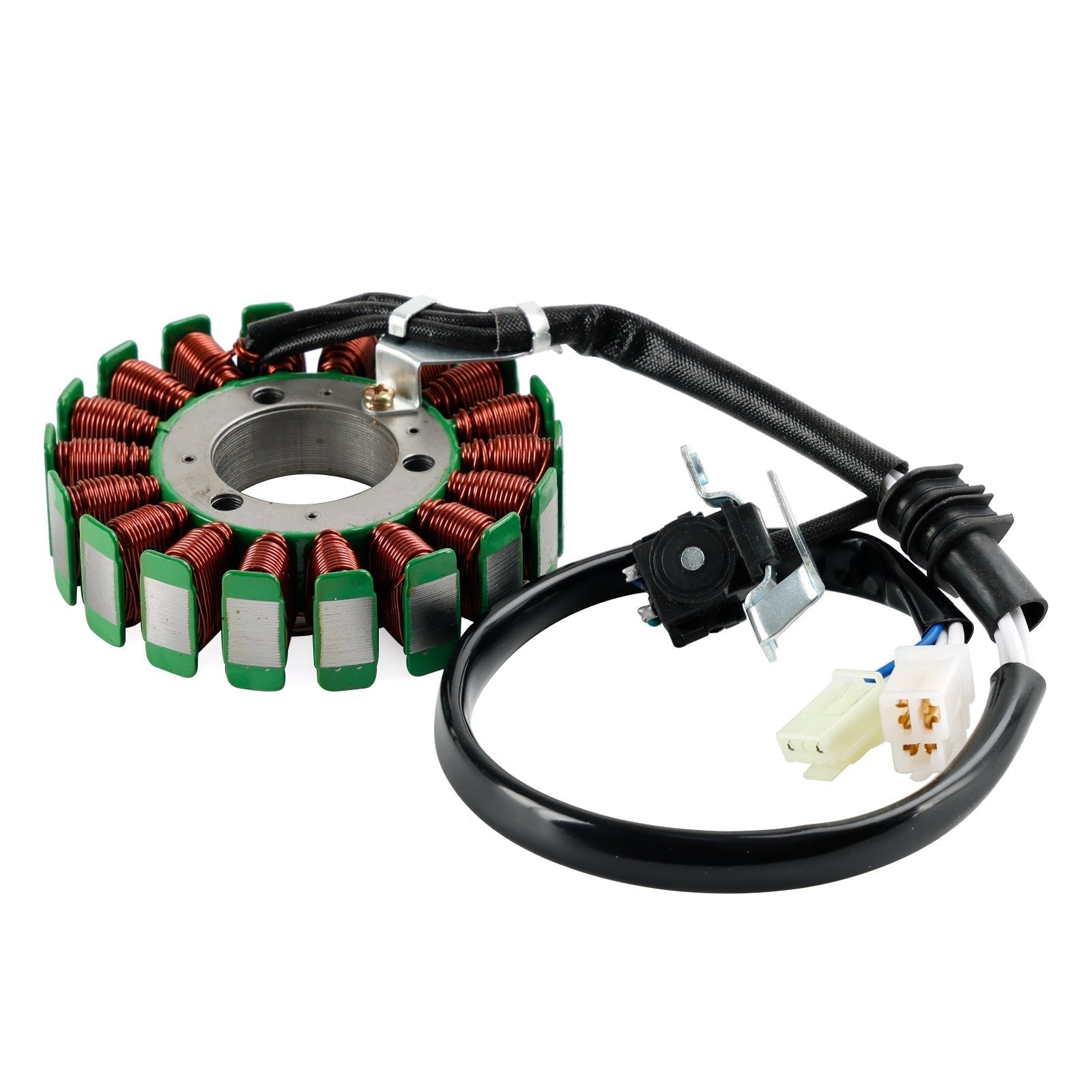

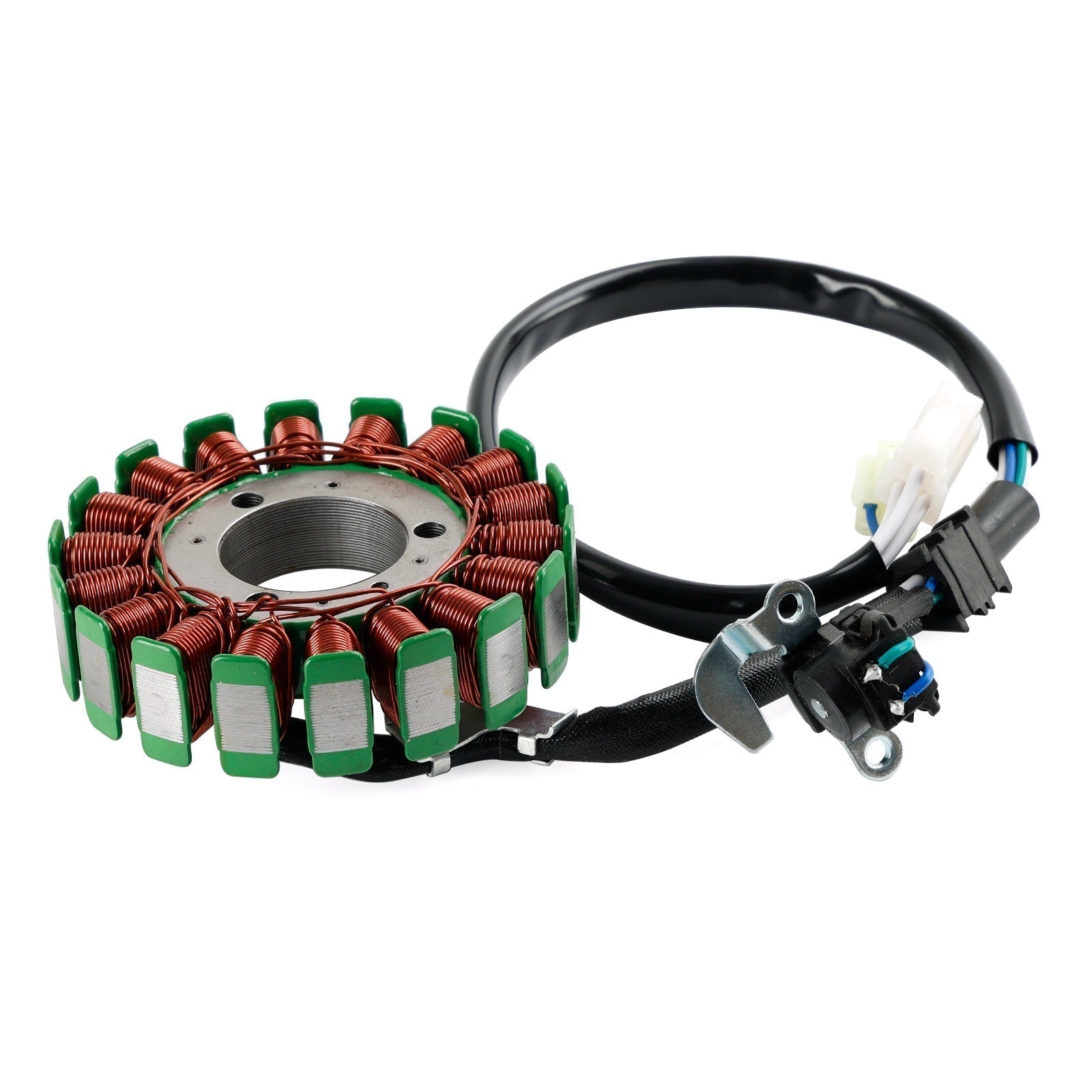

Magneto Generator Stator Fit for Yamaha YZF R3 YZF-R3 MT-03 2015-2018

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

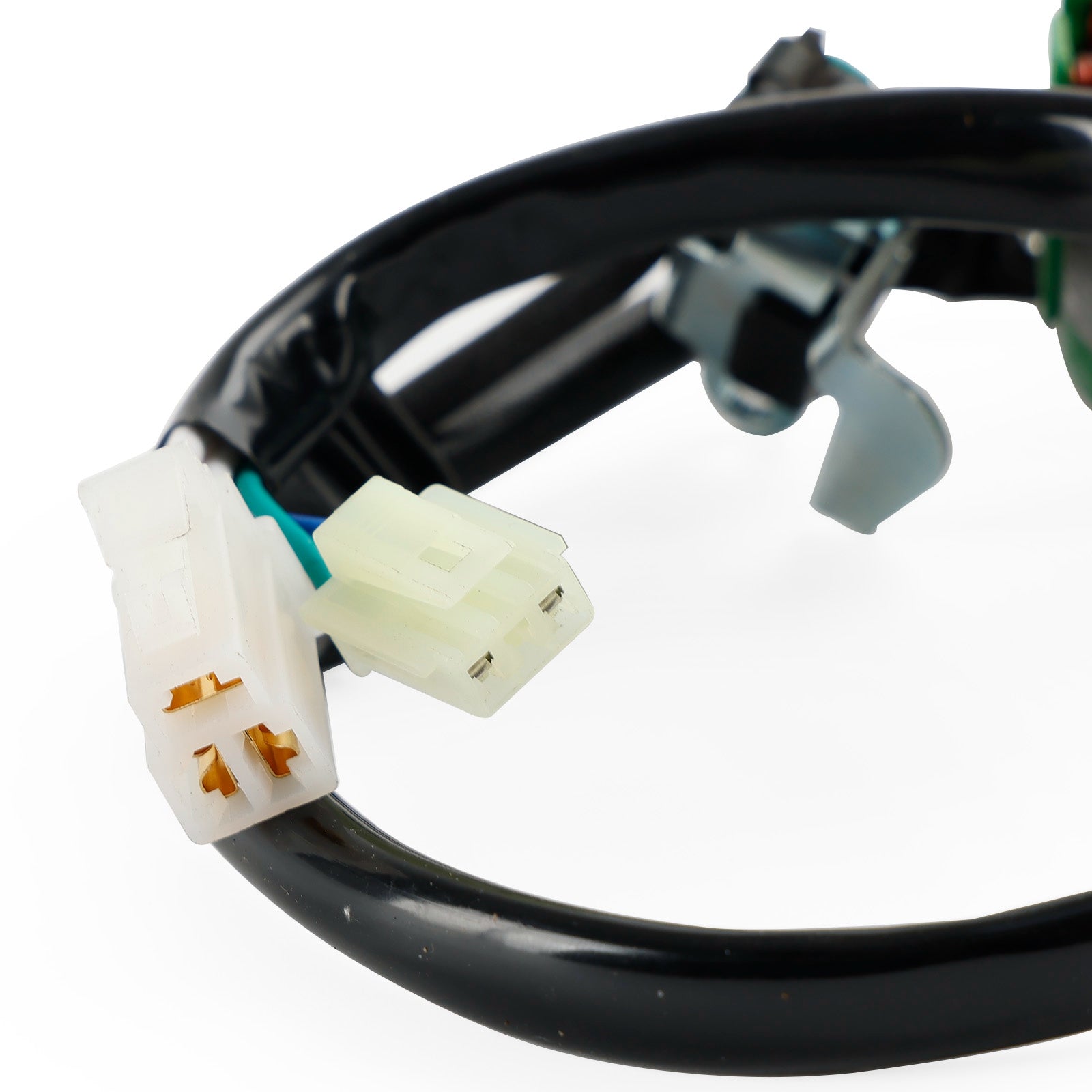

Connector included.
Rubber grommet included.
Pick up pulsar coil included.
All products shipped are tested.
As an inexpensive alternative to the expansive original part.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 2 + 3
Number of poles: 18

Replacement Part Number:
1WD-H1410-00
1WD-H1410-01

Fits Make/Model/Year:
Fit for Yamaha YZF R3 2015-2018
Fit for Yamaha YZF R3A (ABS) 2015-2018
Fit for Yamaha YZF R25 2015-2017
Fit for Yamaha MTN320 MT-03 2016-2017
Fit for Yamaha MTN320A MT-03 (ABS) 2016-2018
Fit for Yamaha MTN250 MT-25 2016-2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
