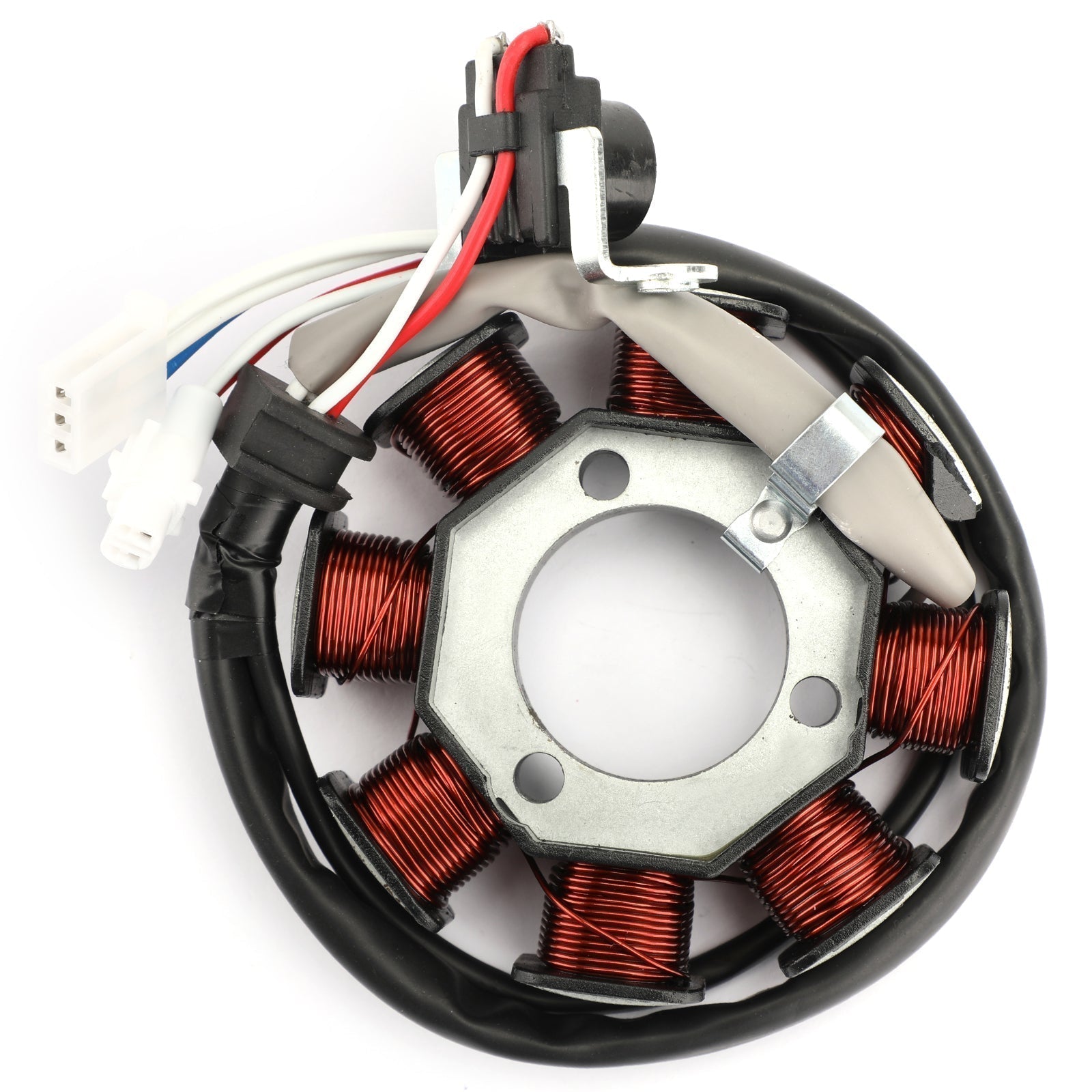

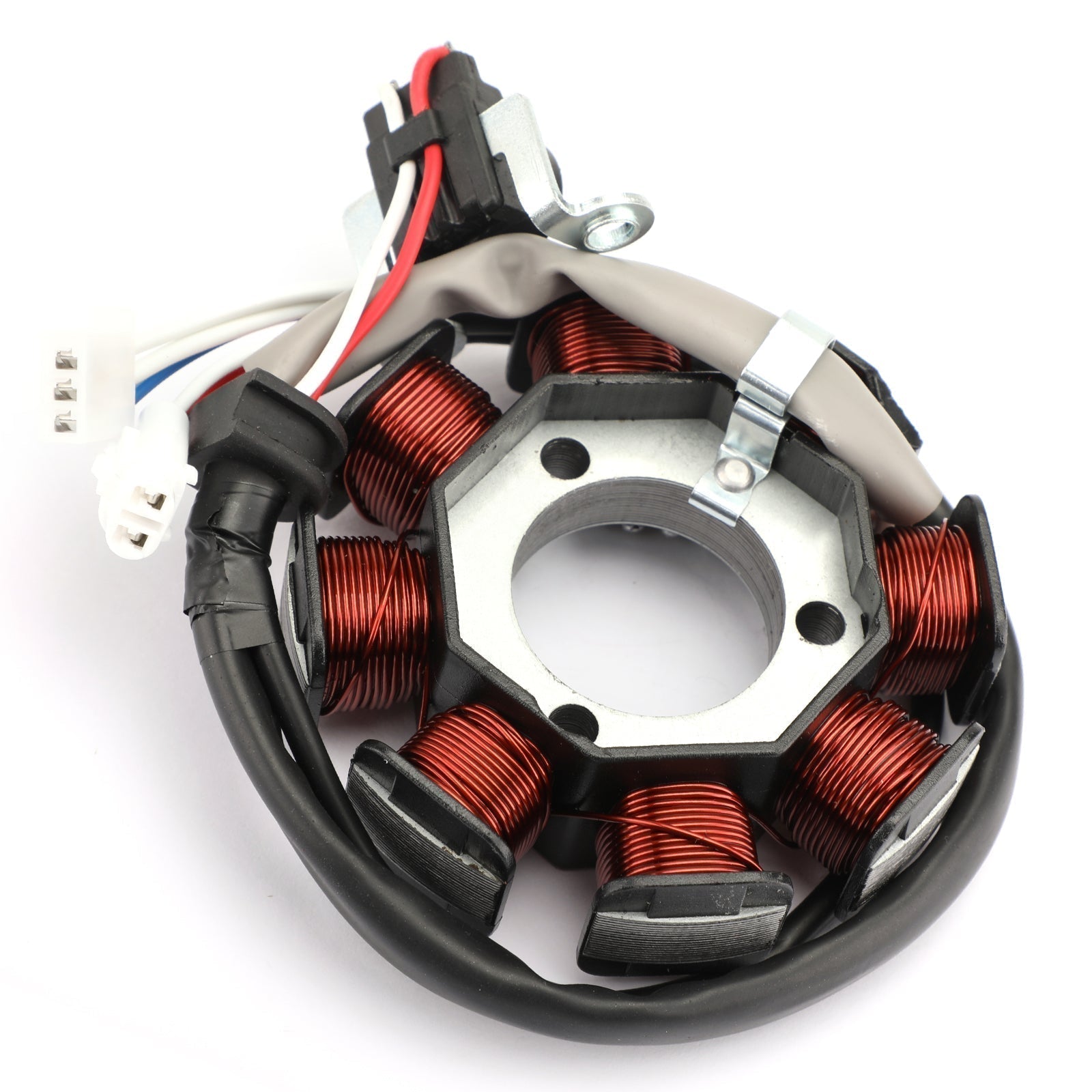

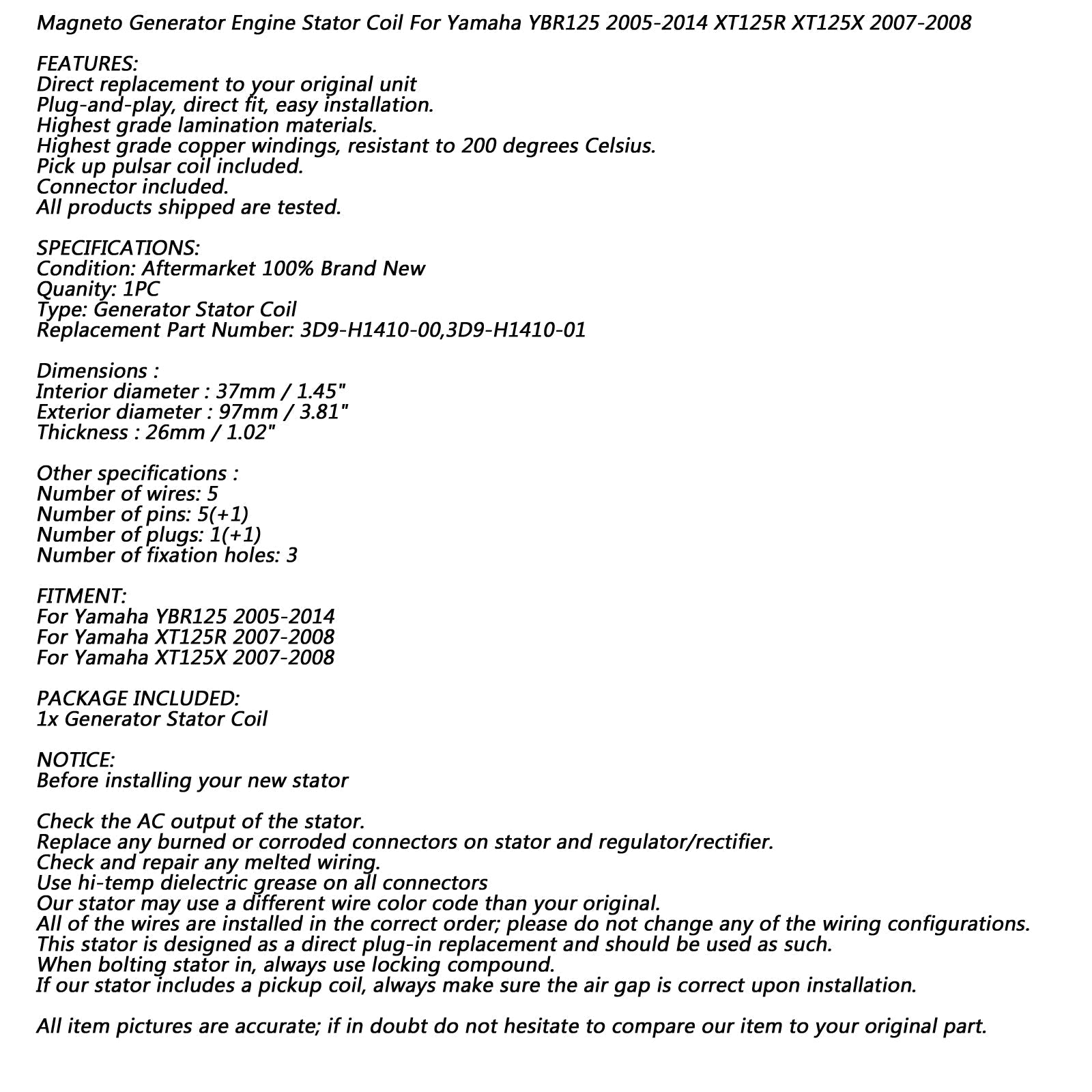

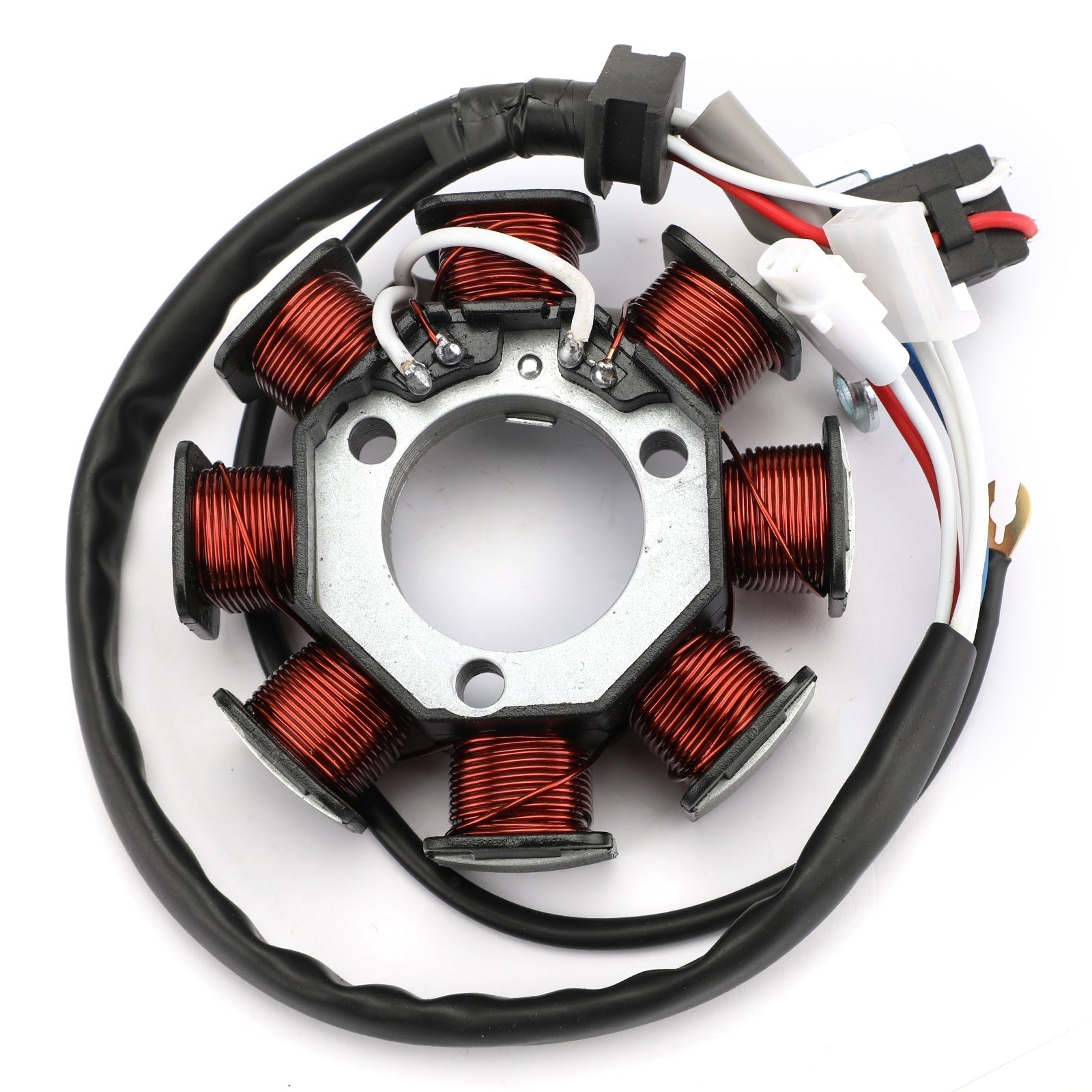

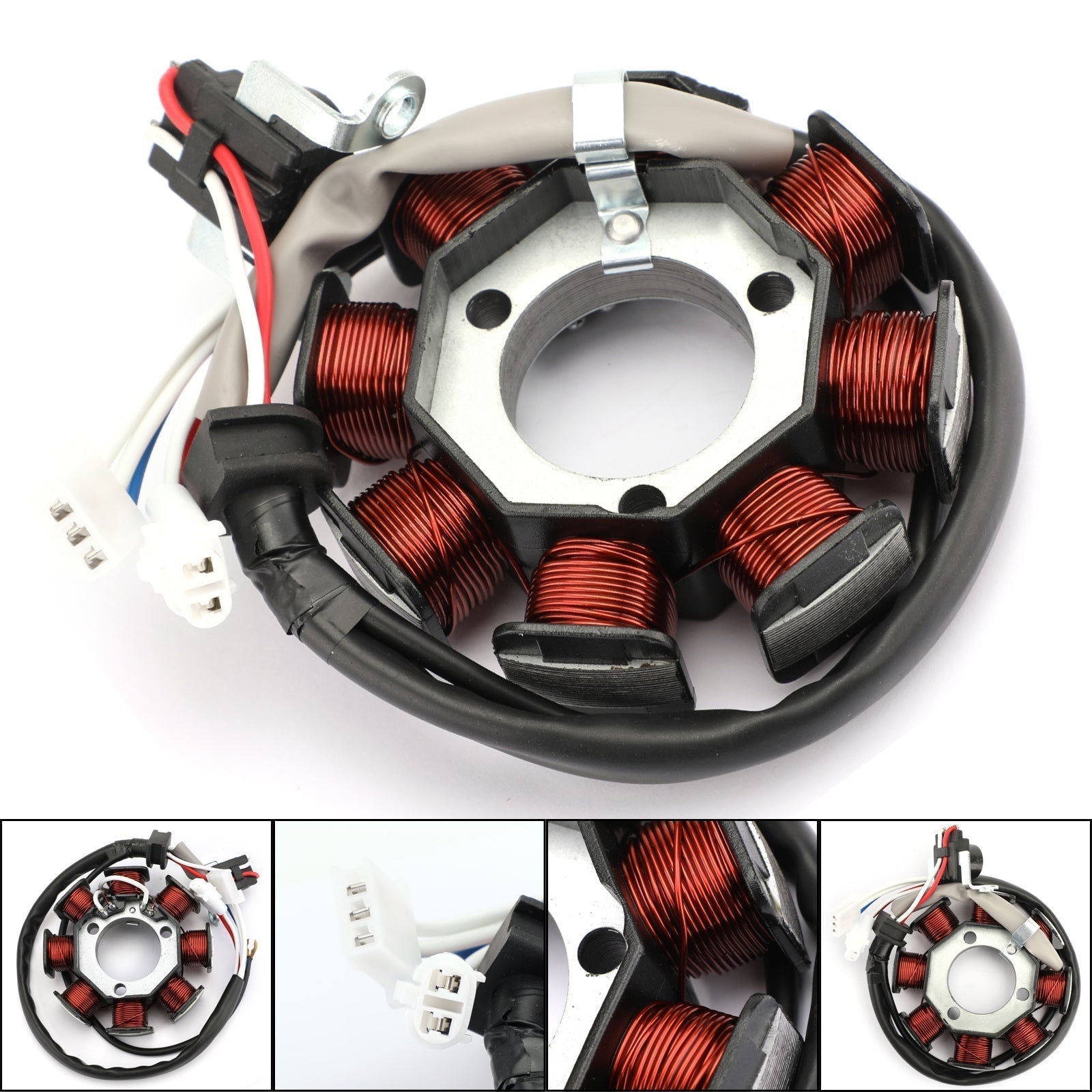

Magneto Generator Engine Stator Coil Fit For Yamaha YBR125 2005-2014 XT125R XT125X 2007-2008

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

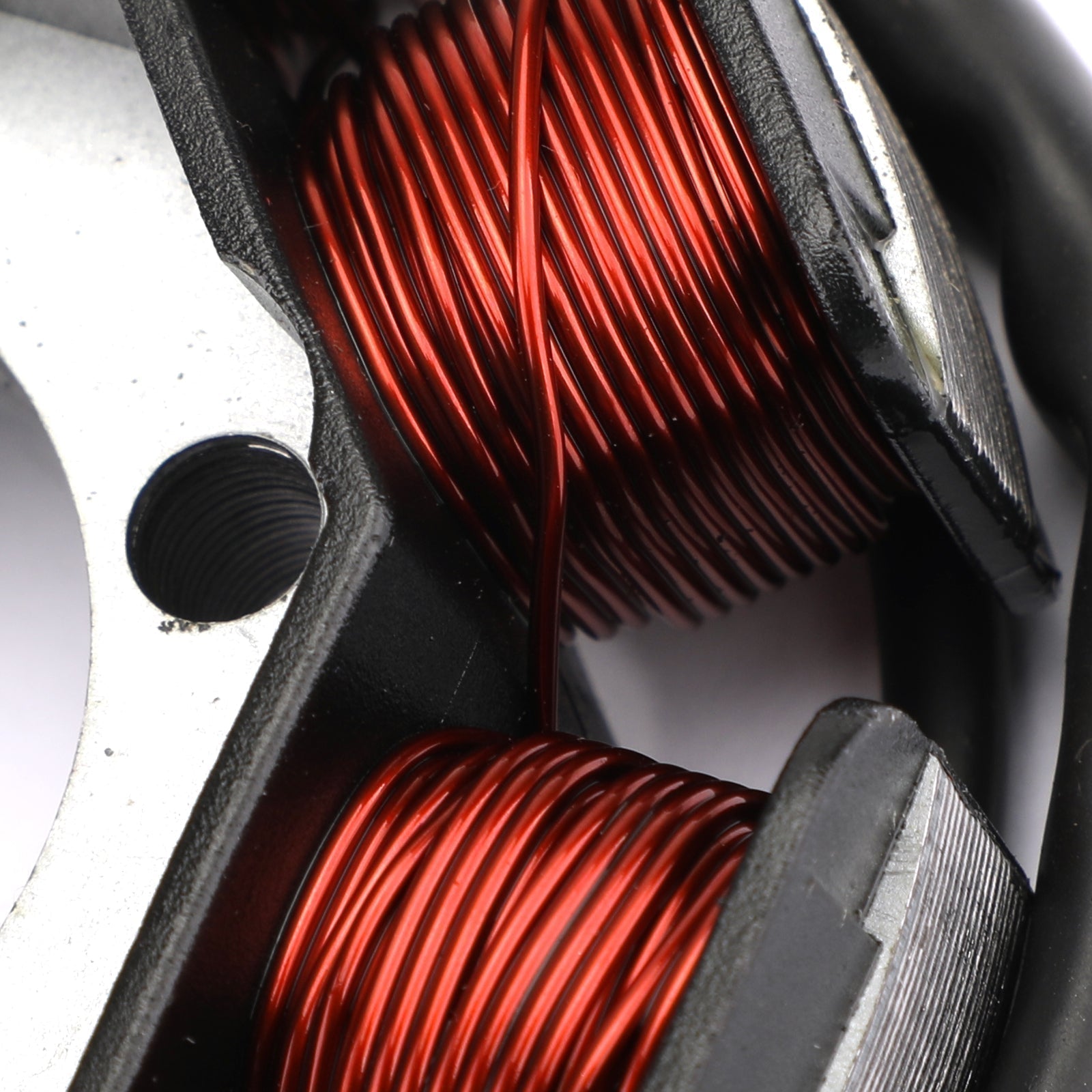

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

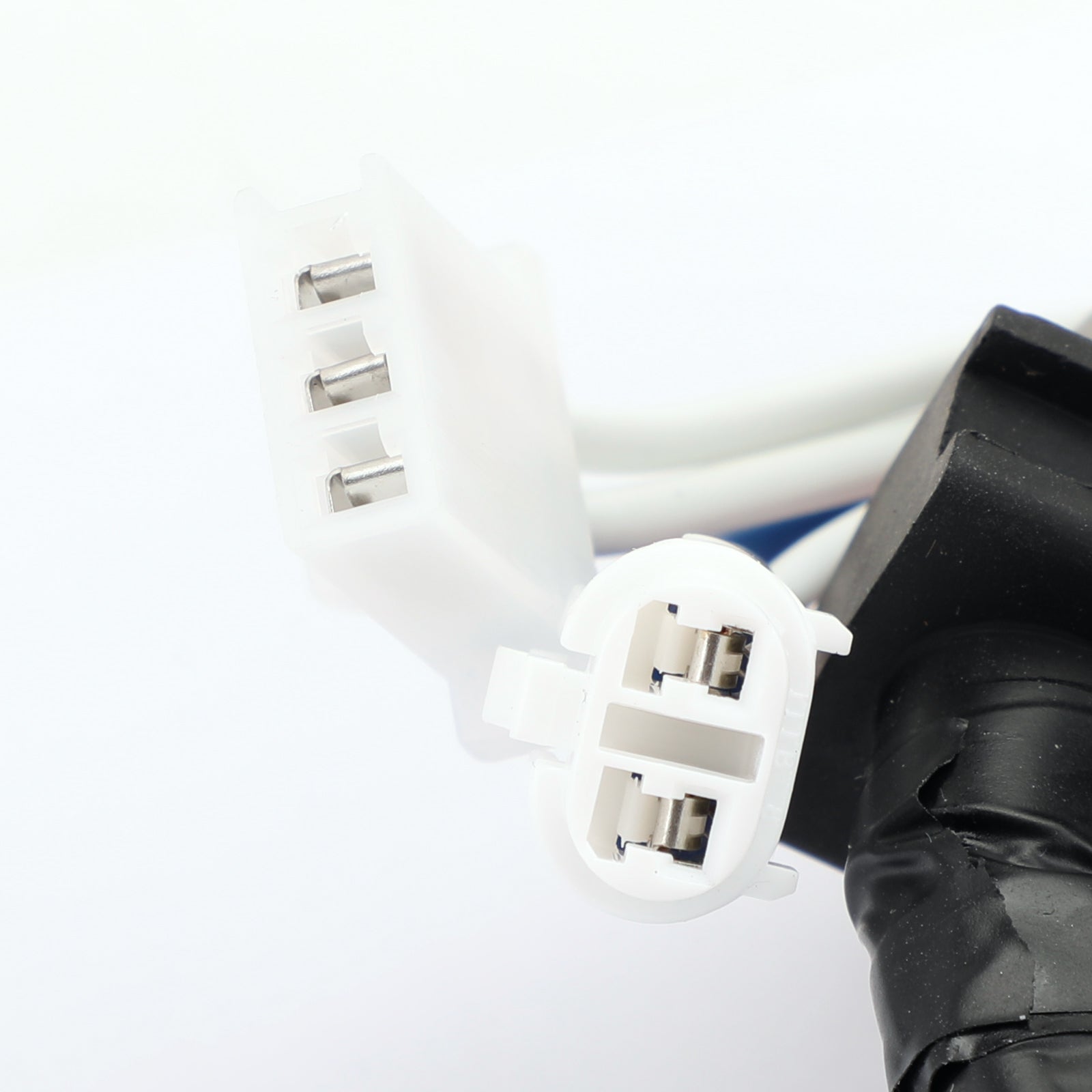

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 3D9-H1410-00,3D9-H1410-01

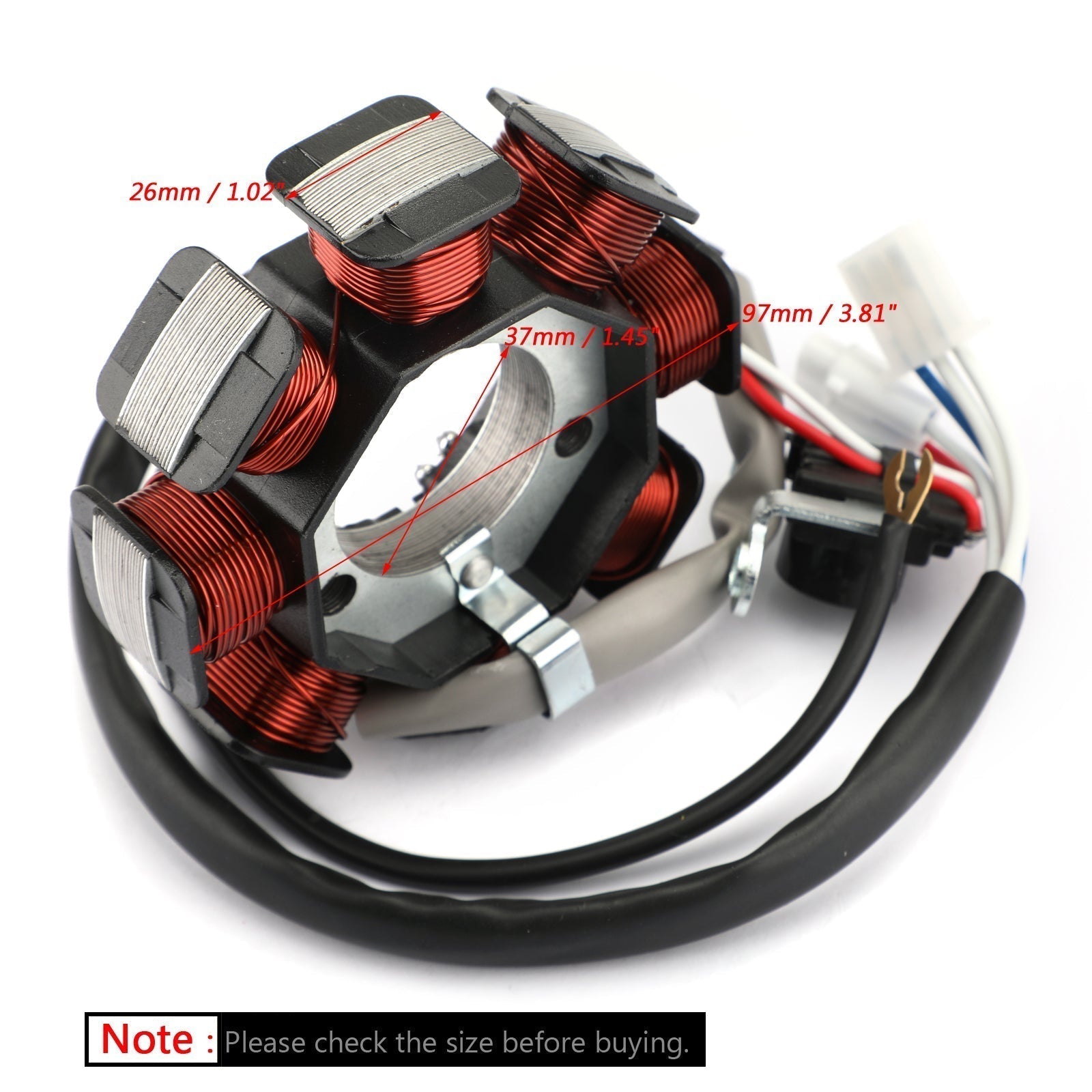

Dimensions :
Interior diameter : 37mm / 1.45"
Exterior diameter : 97mm / 3.81"
Thickness : 26mm / 1.02"

Other specifications :
Number of wires: 5
Number of pins: 5(+1)
Number of plugs: 1(+1)
Number of fixation holes: 3
Number of poles:8

FITMENT:
This is an 8 poles stator,it will be NOT fit if you need a 18 poles stator
For Yamaha YBR125 2005-2014
For Yamaha XT125R 2007-2008
For Yamaha XT125X 2007-2008

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
