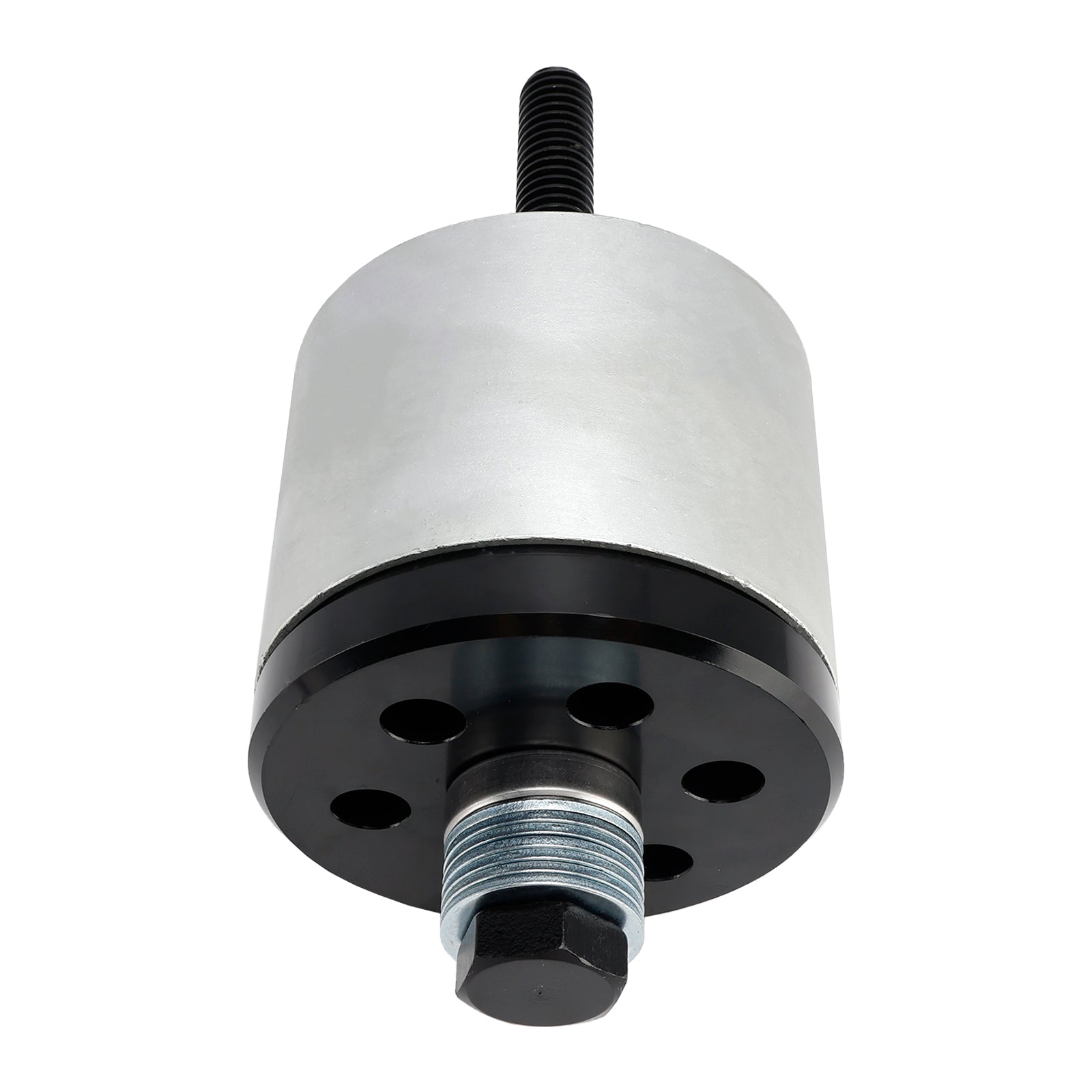

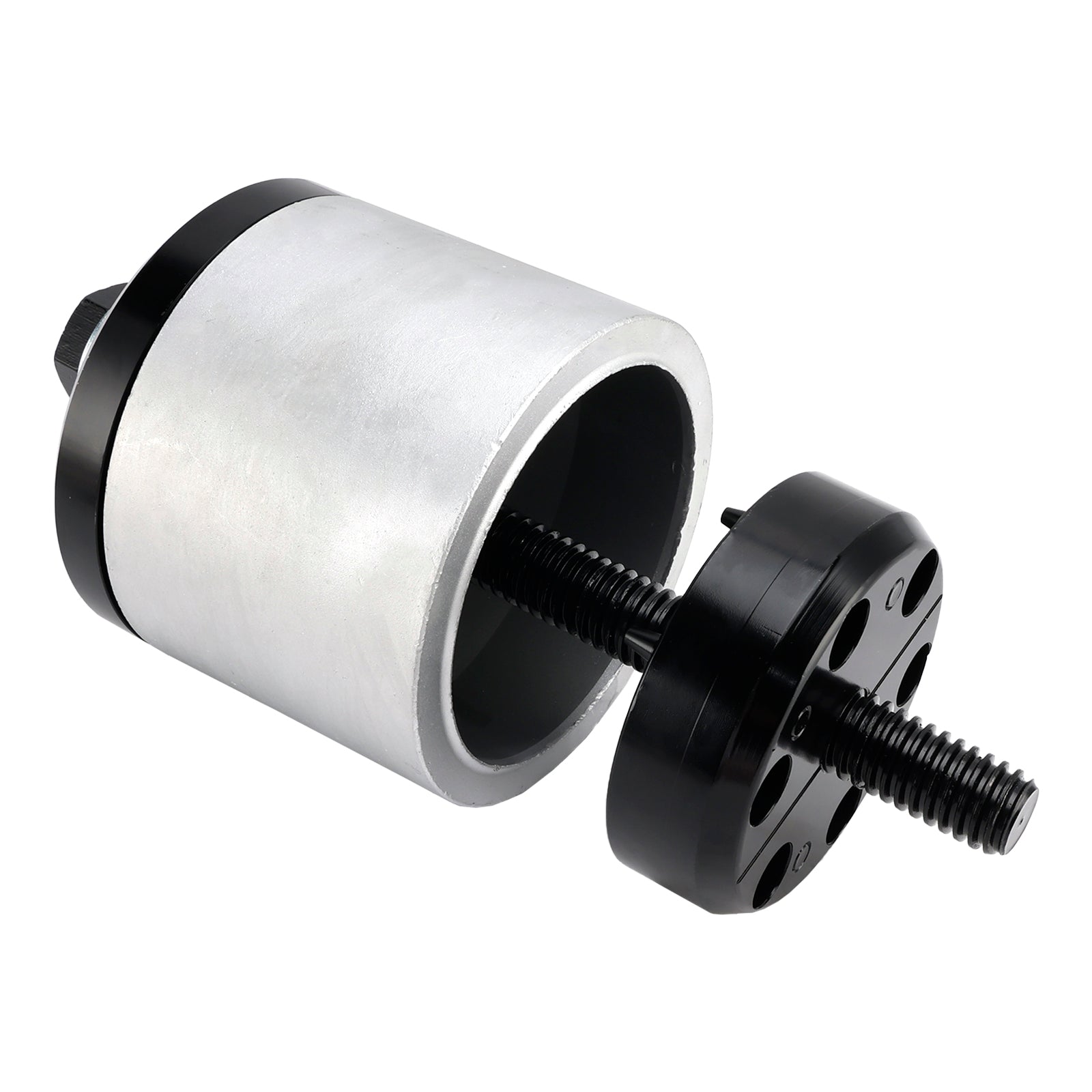

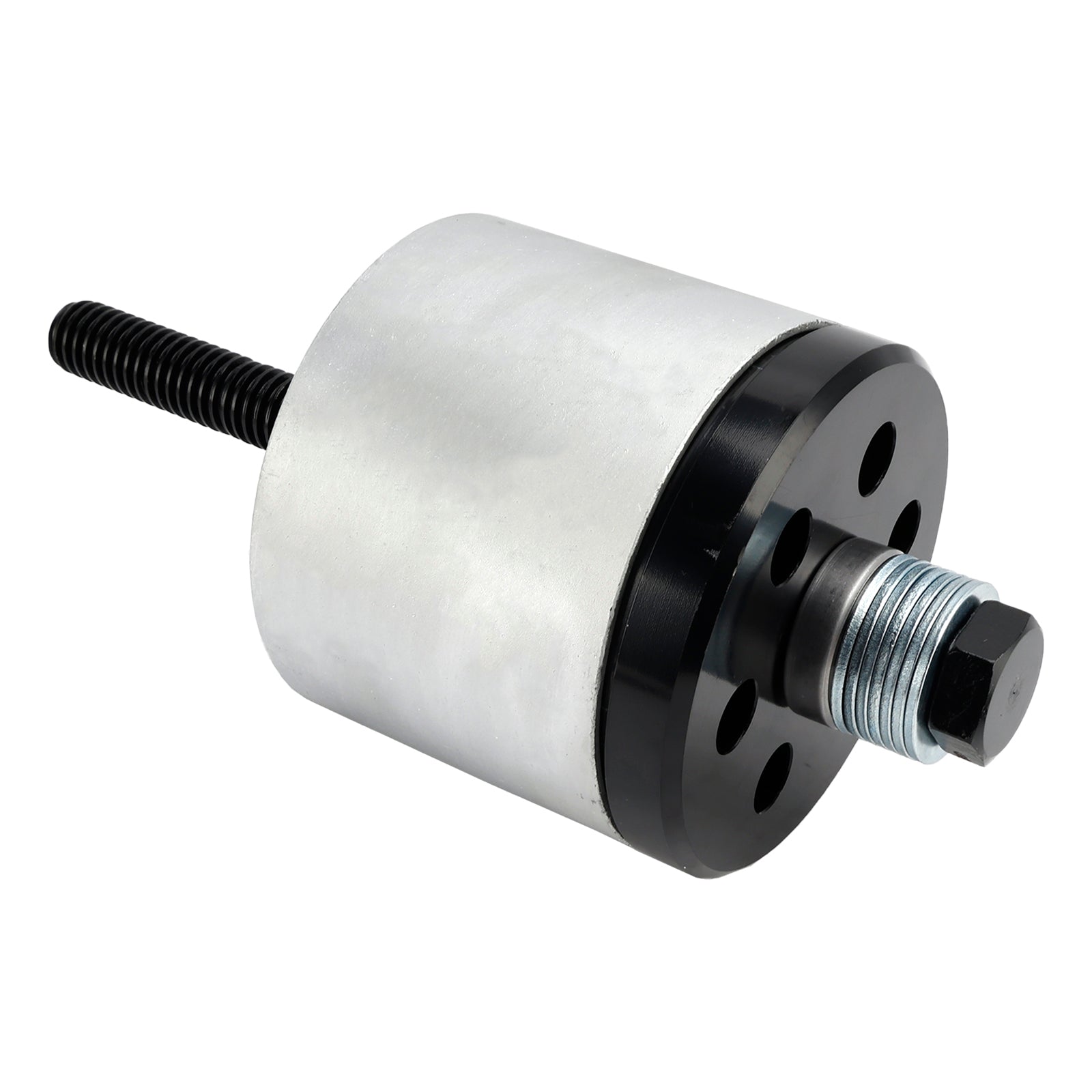

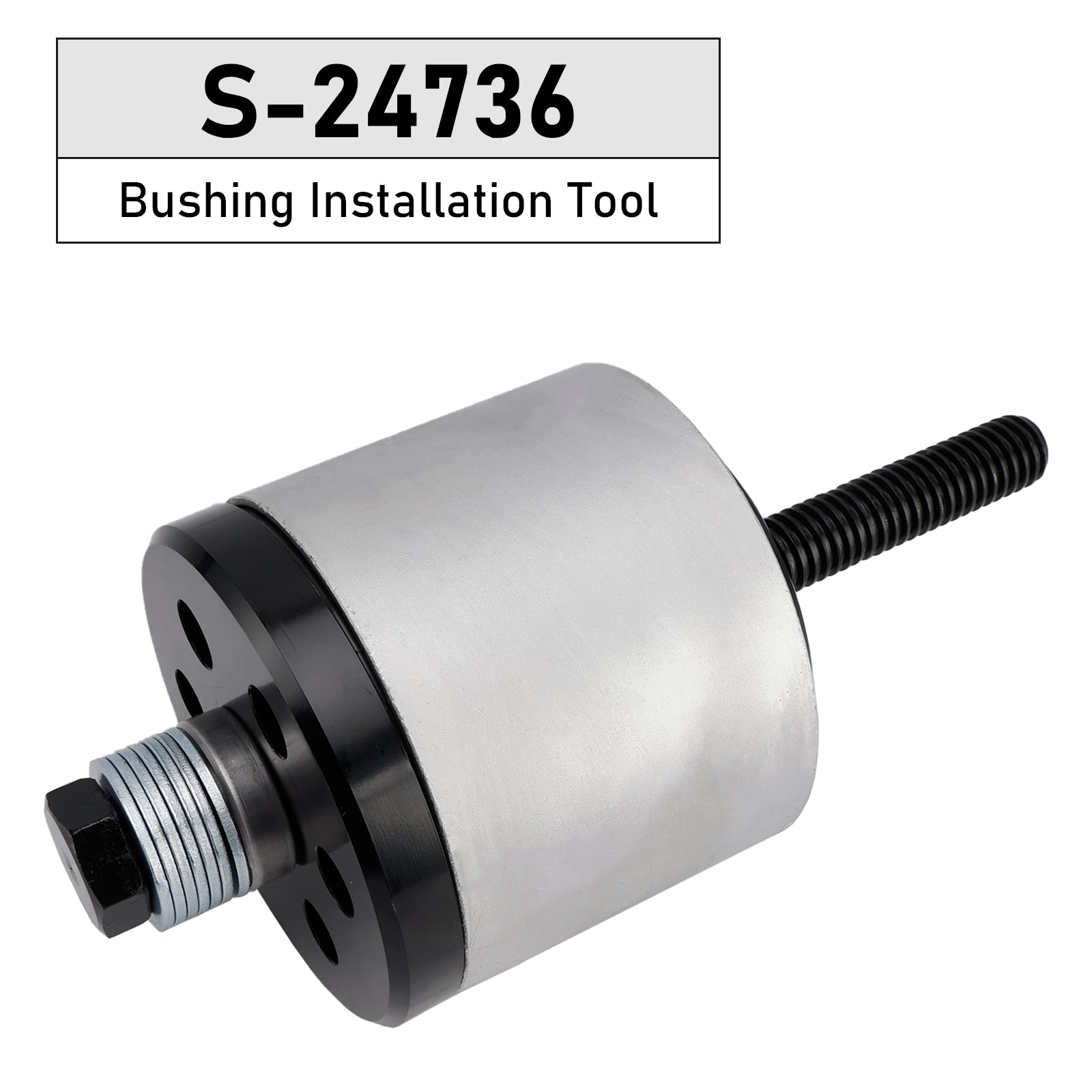

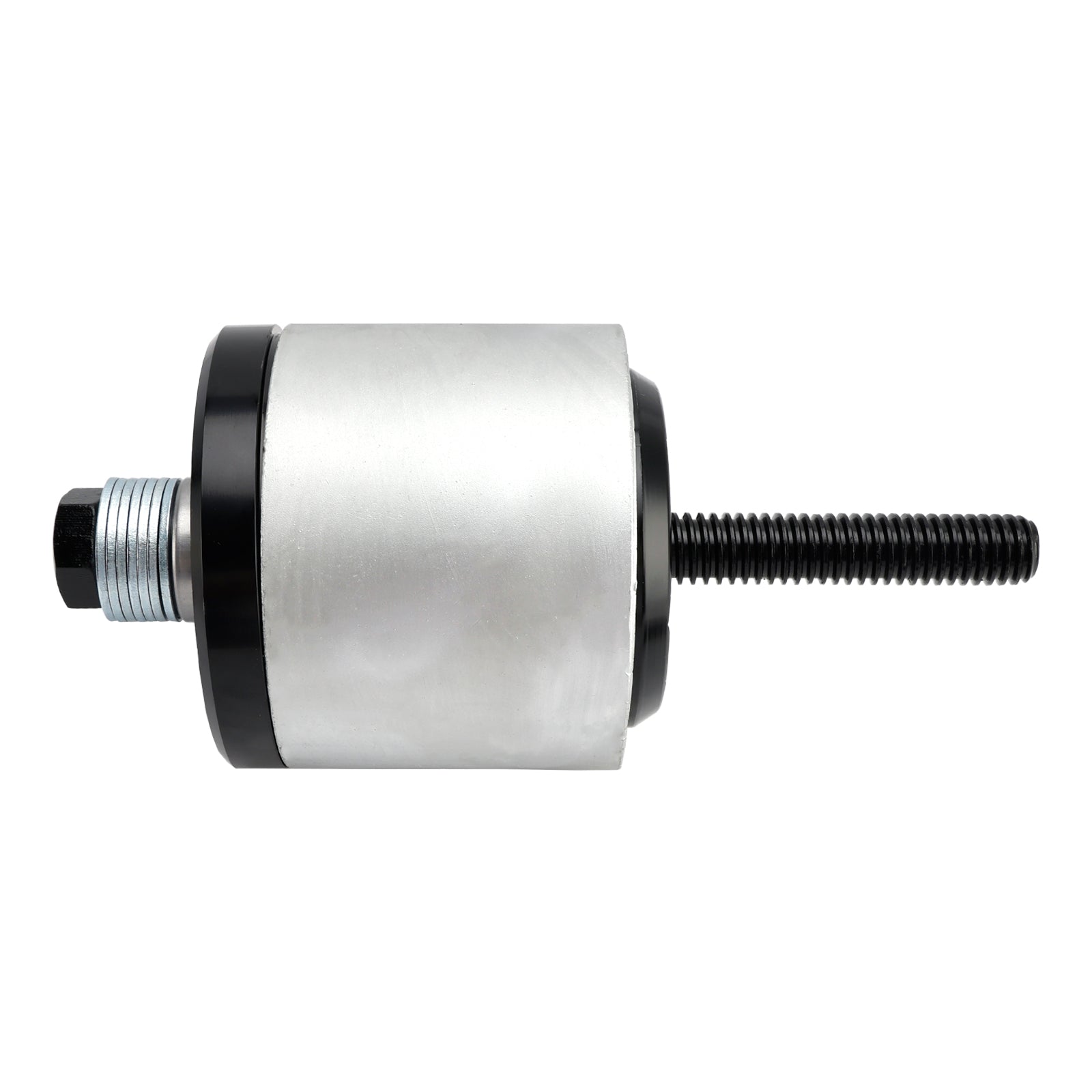

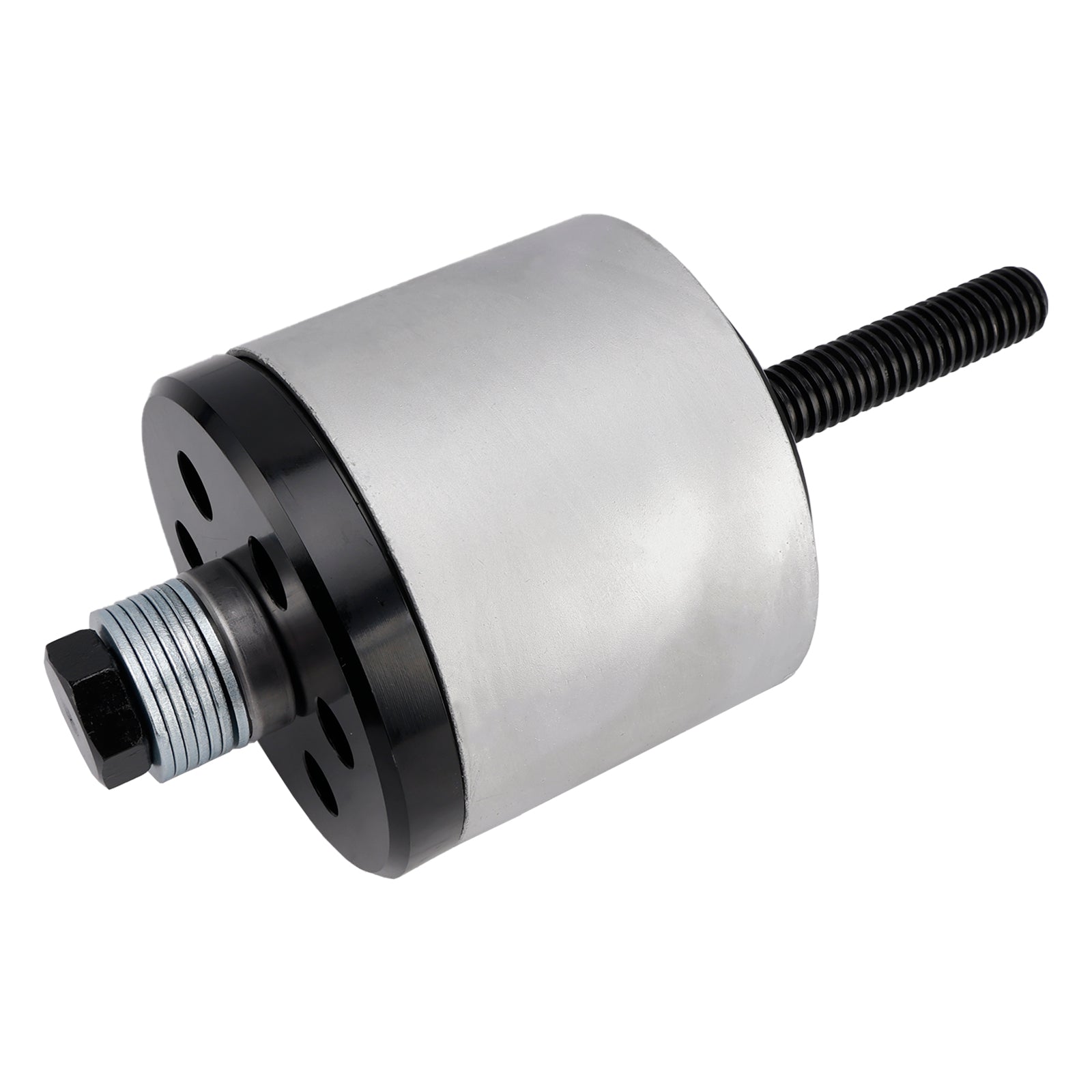

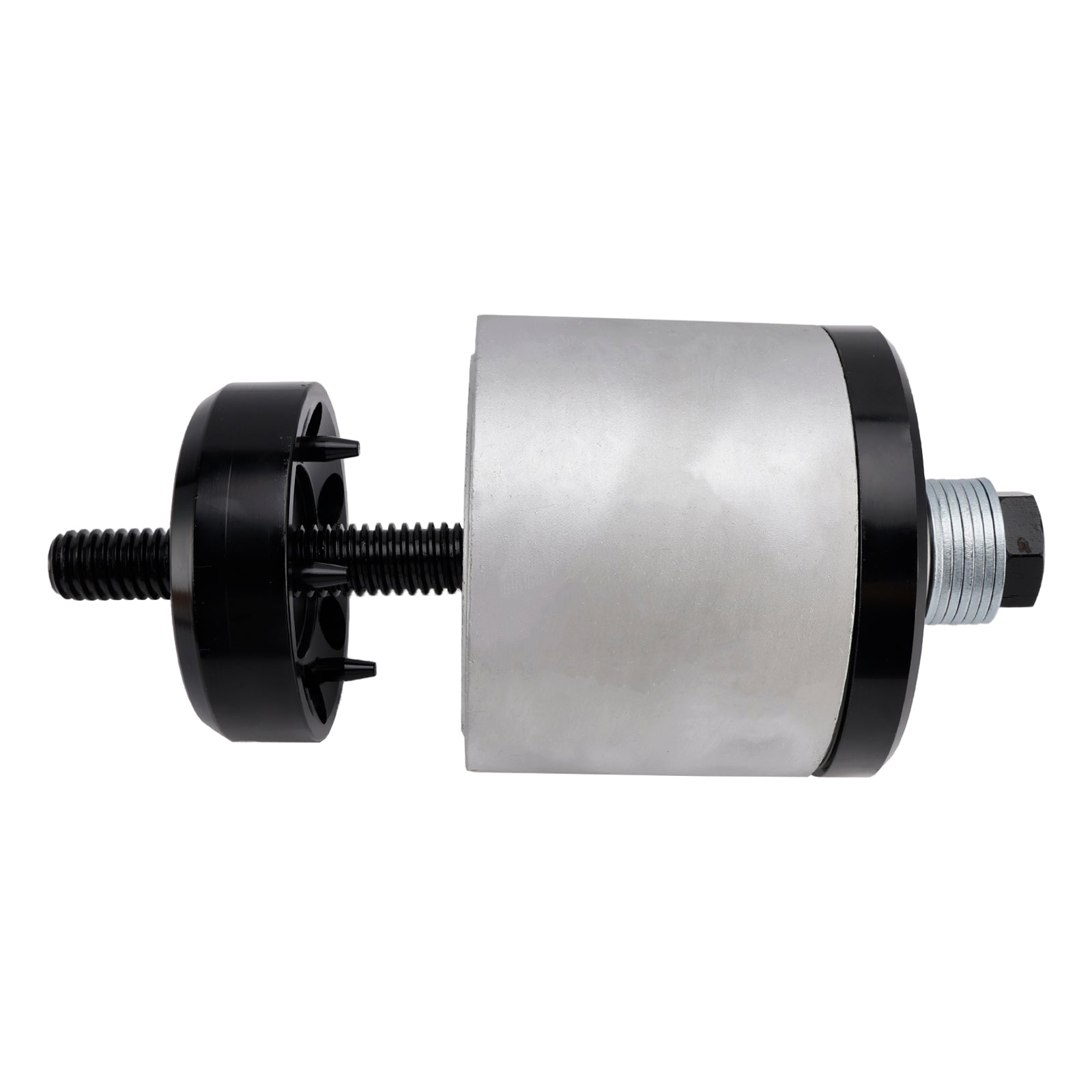

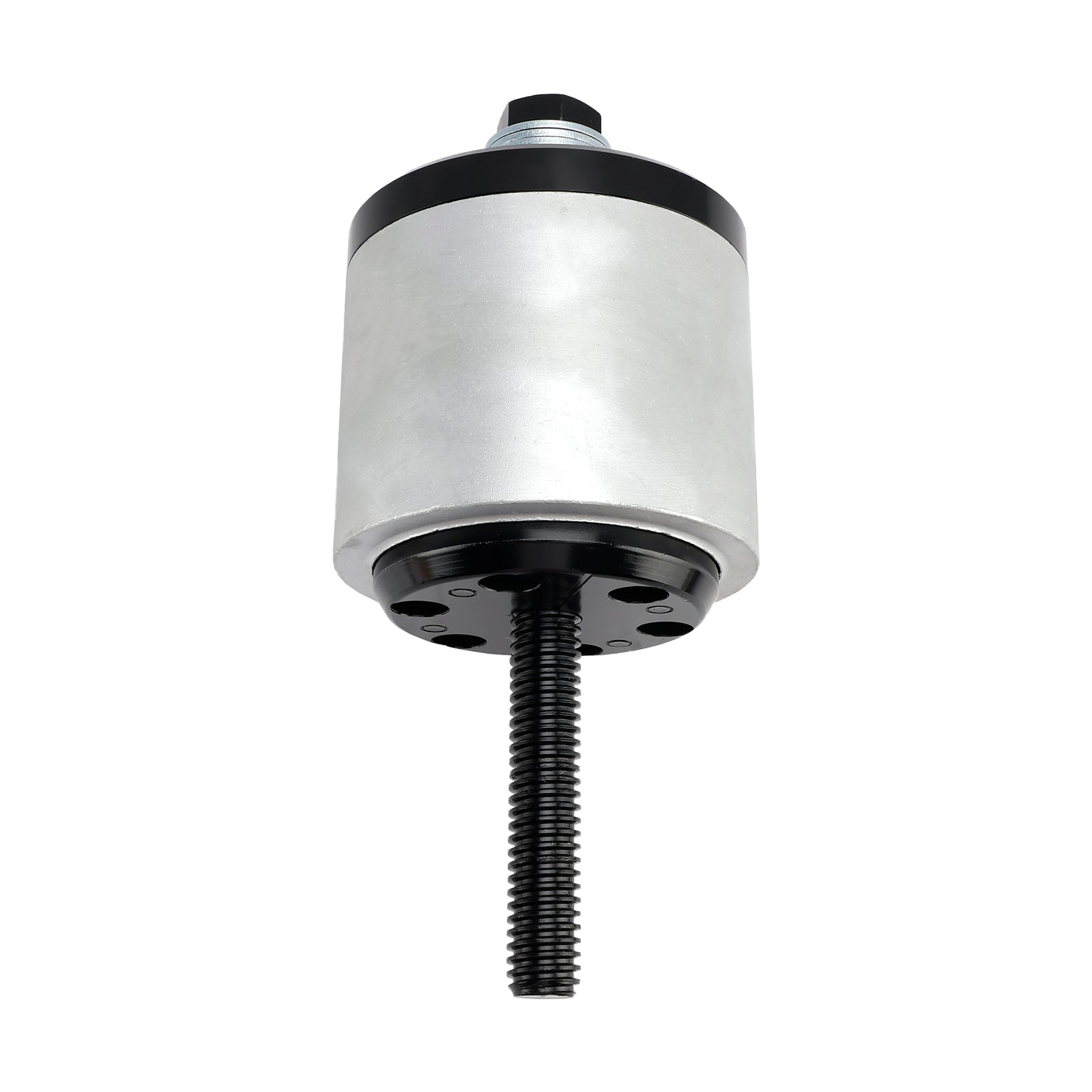

Bushing Installation Tool for Hendrickson Vantraax Narrow S-24736 TRB5914-T

Feature:
Easily remove and install the Hendrickson Vantraax Tri-Functional Narrow Bushing while the suspension remains on the trailer.
Significantly cut down shop service time by a maximum of 75%. Makes bushing alignment & replacement a simple procedure.

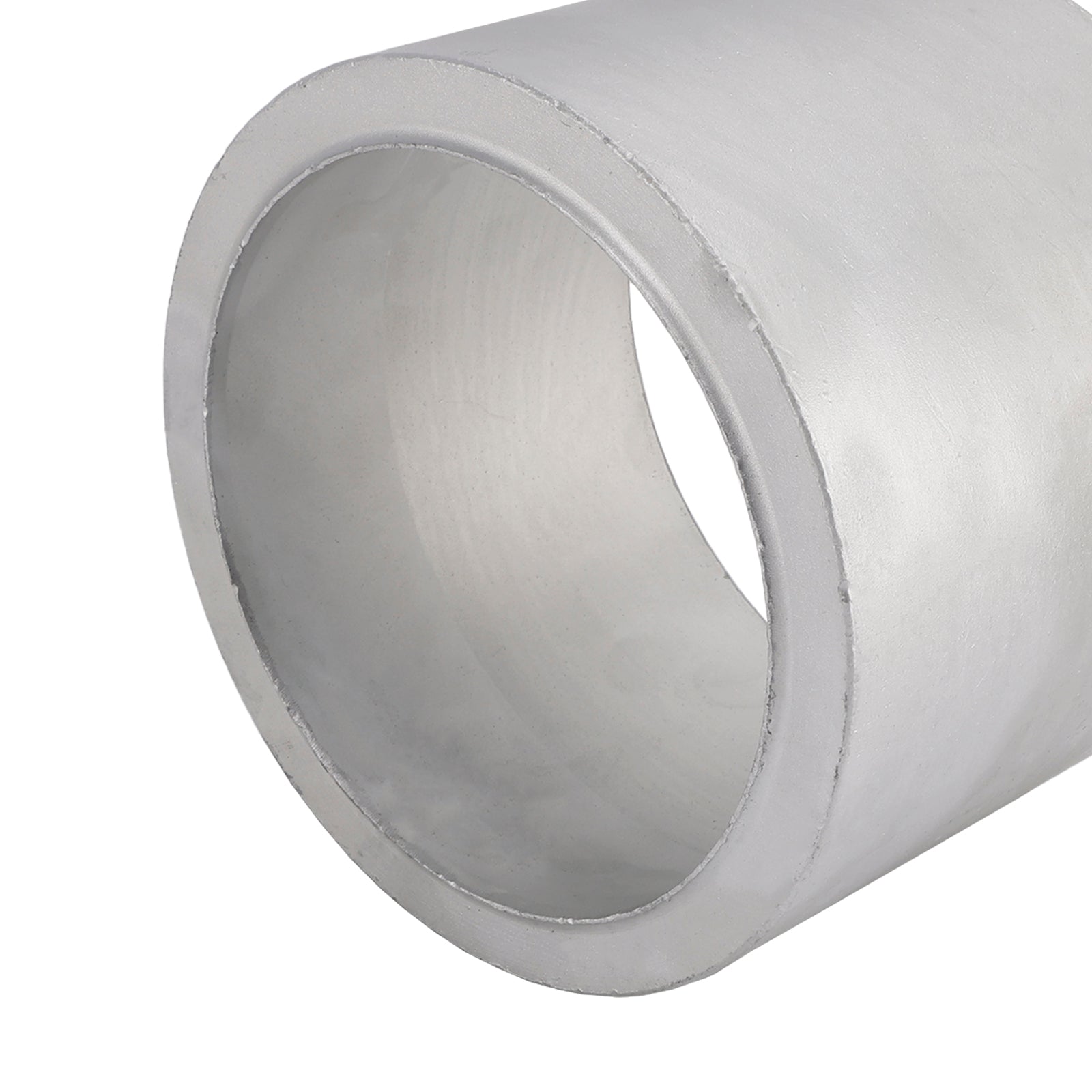

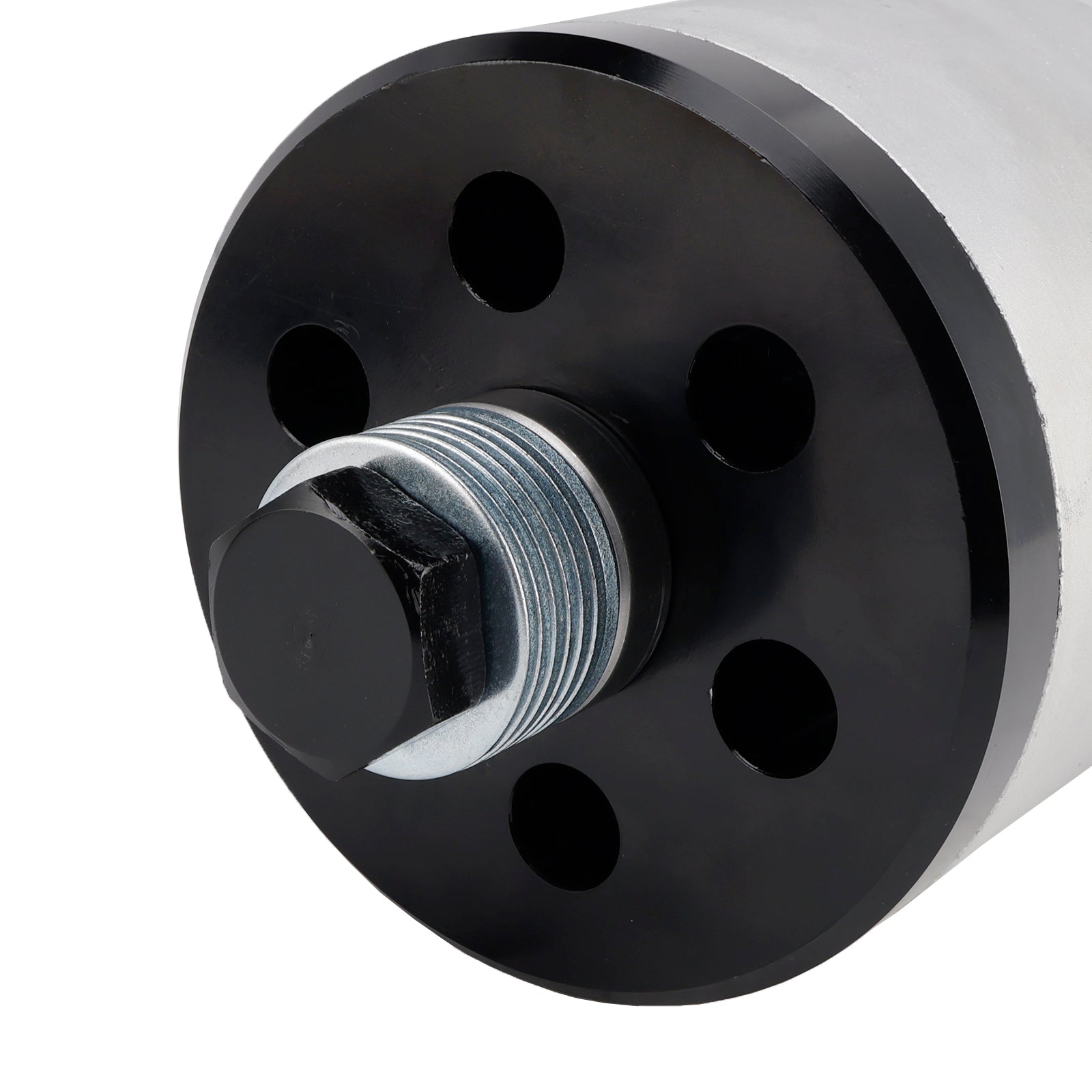

Made from heat-treated alloy steel, our machined face ring offers unparalleled strength and durability. The black oxide coating enhances its corrosion resistance, prolonging its lifespan.

Specifications:
Condition: 100% Brand New
Manufacturer Part Number:S-24736
Bushing Type:Wide Beam Bushing

Fitment:
Compatible With Dana Webb: RF/S-20,23,25,30 Trailer Air Ride Suspension, Hendrickson: HK/HS190-230 HT190-230-250-300 Air Suspensio, Intraax AA-EDT/NT/T Vantraax HKA/NT/T Air Suspension, Intraax AA-L/NL/NLS/EDL HKA-L/RL/NL Air Suspension, T-4/6/9/15/17 Air Suspension, Toughlift FM/W/B LK Lift Axle Air Suspension and Watson & Chalin: TA250/300T Trailer Air Suspension

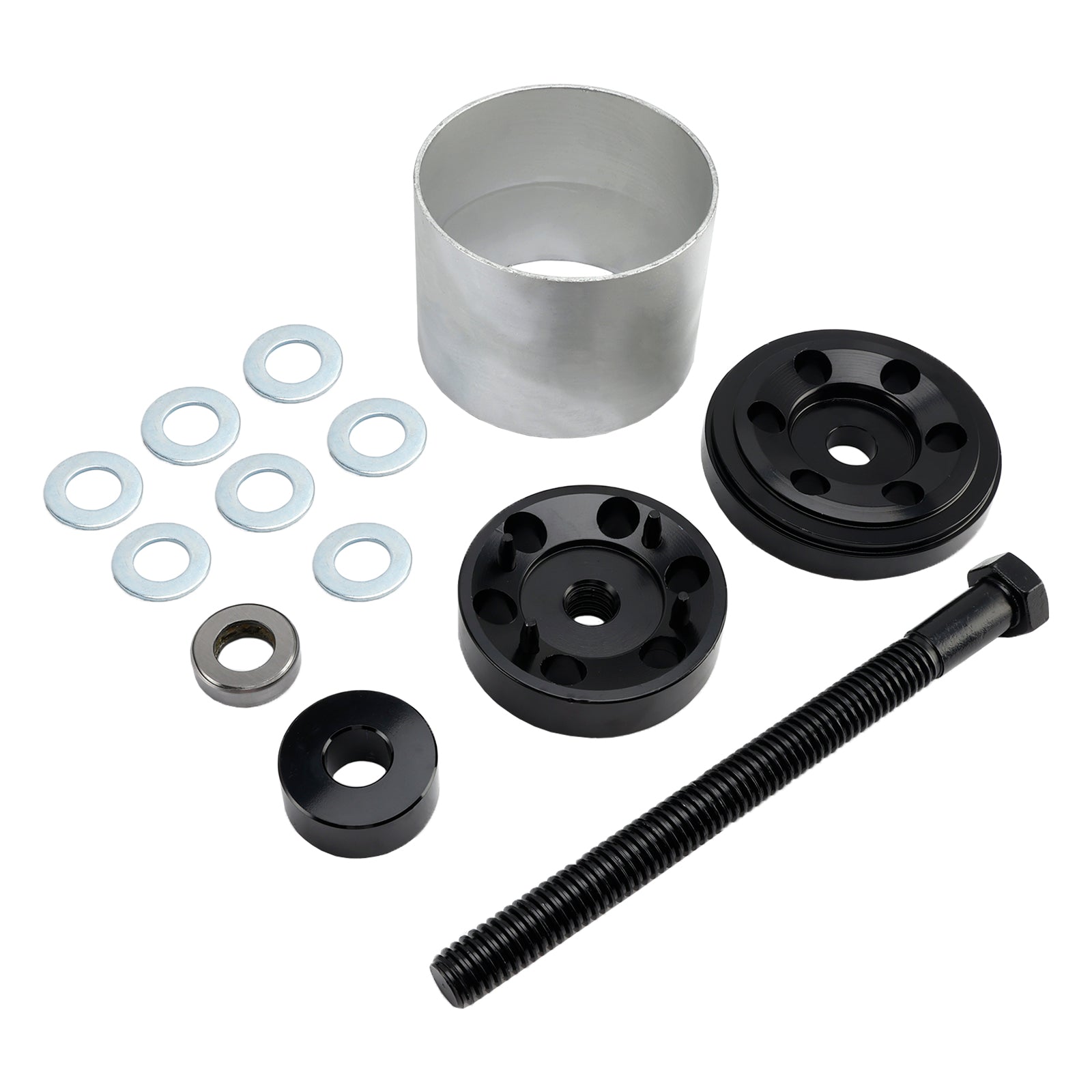

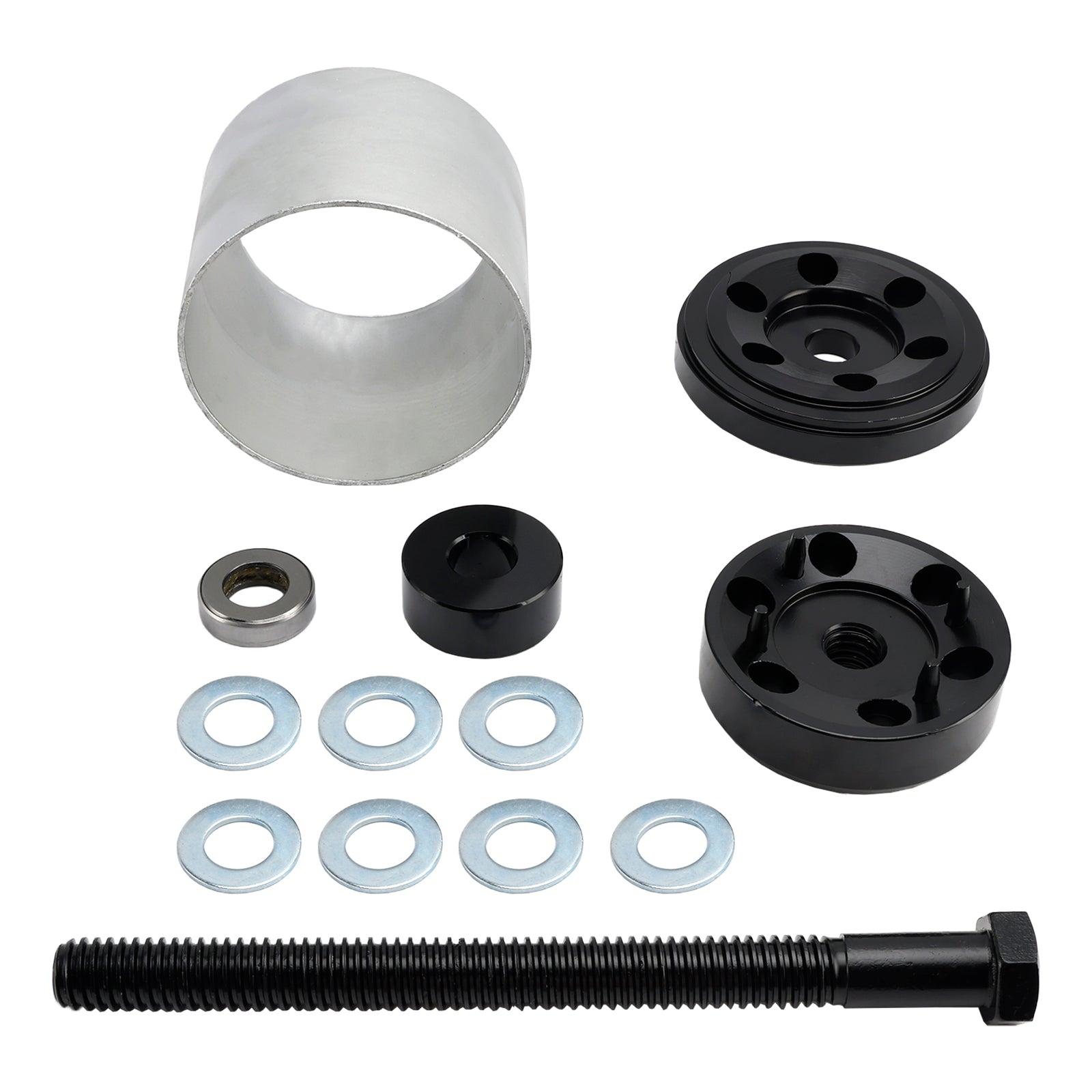

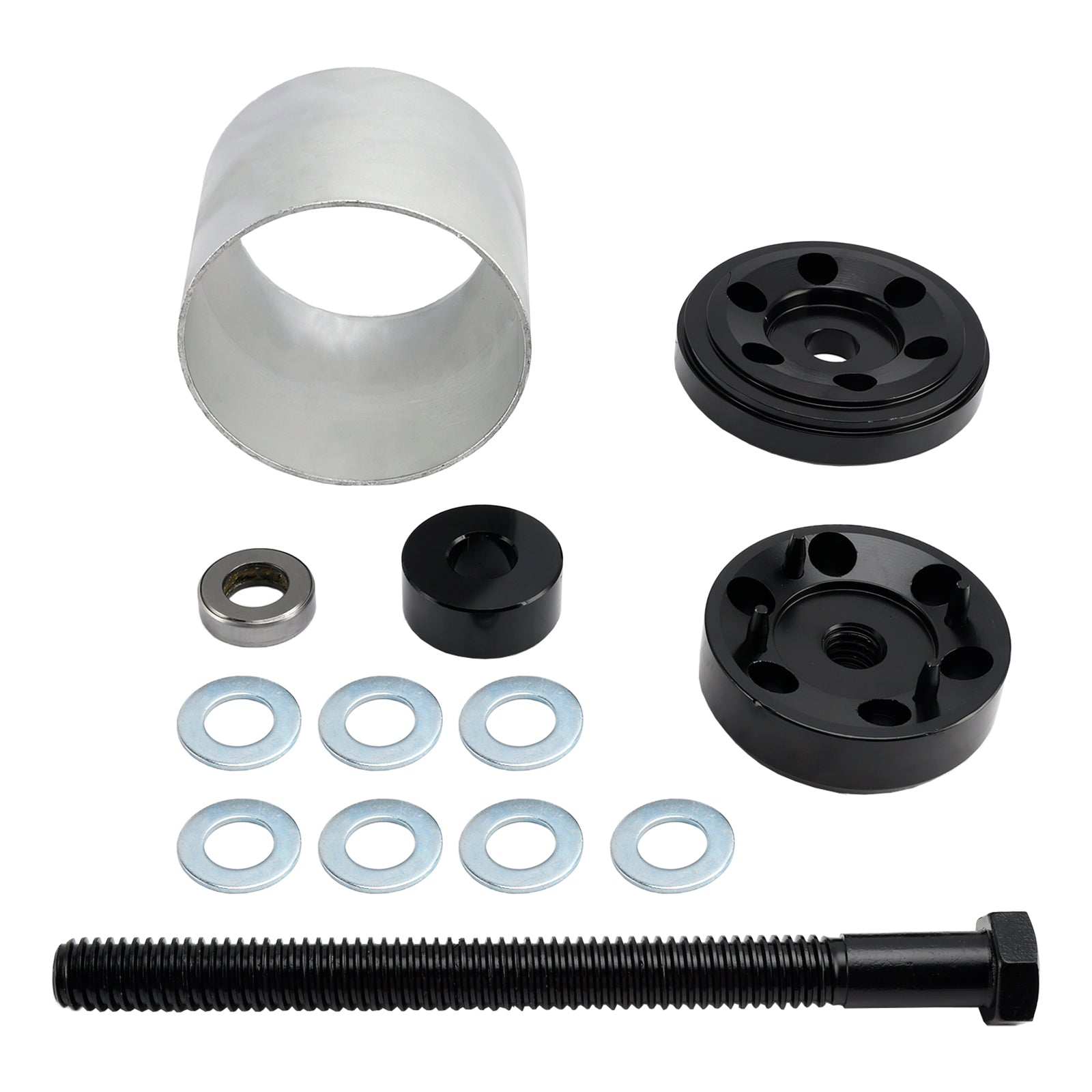

Package included:

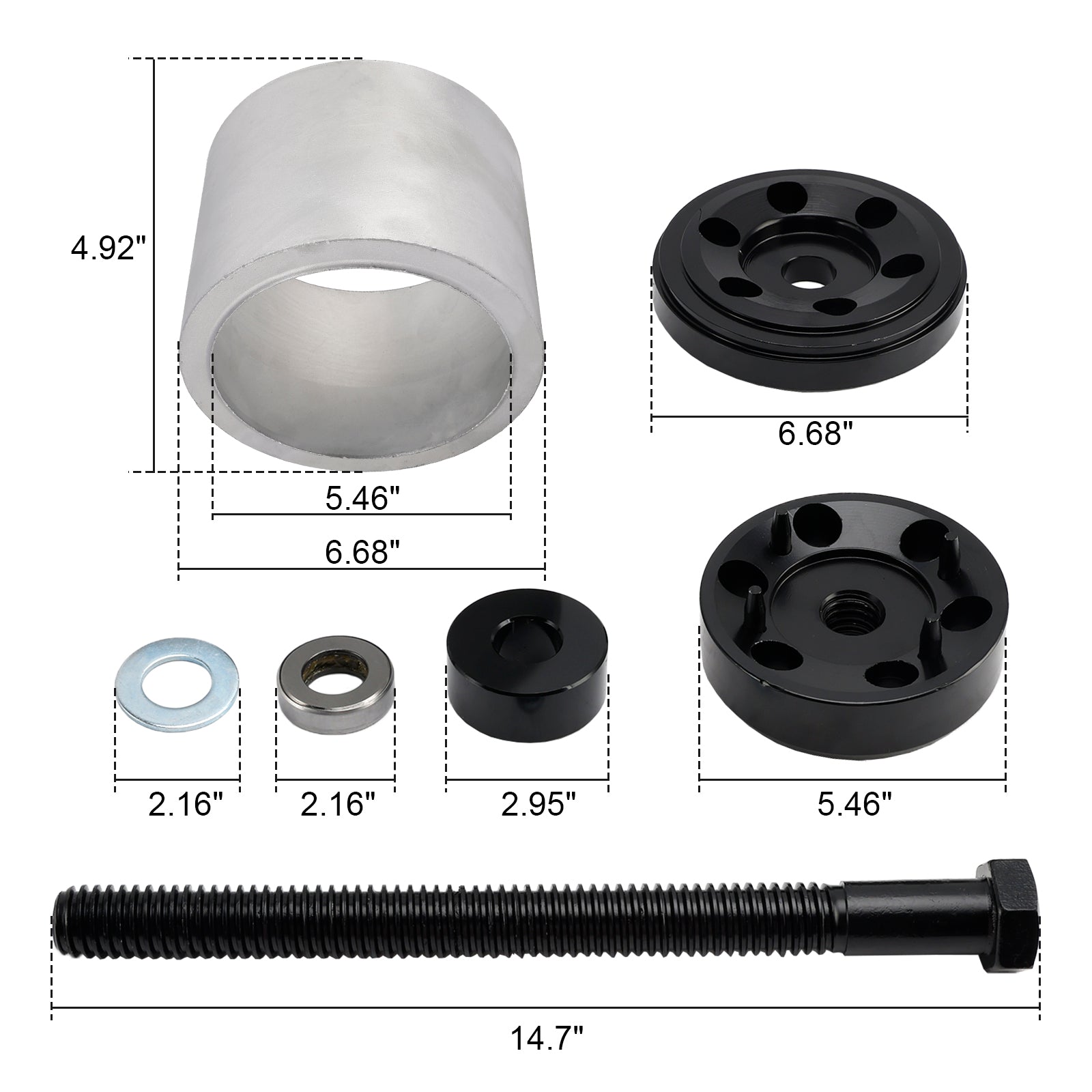

1 x Bushing Installation Tool

Removal of Bushing：
1.Scribe the bushing orientation on the beam tube and compression tube.
2.The spring pins are not required to line up with the bushing holes during removal.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)

Installation of Bushing：
1.Lubricate the bushing and insert the bushing into compression cylinder.

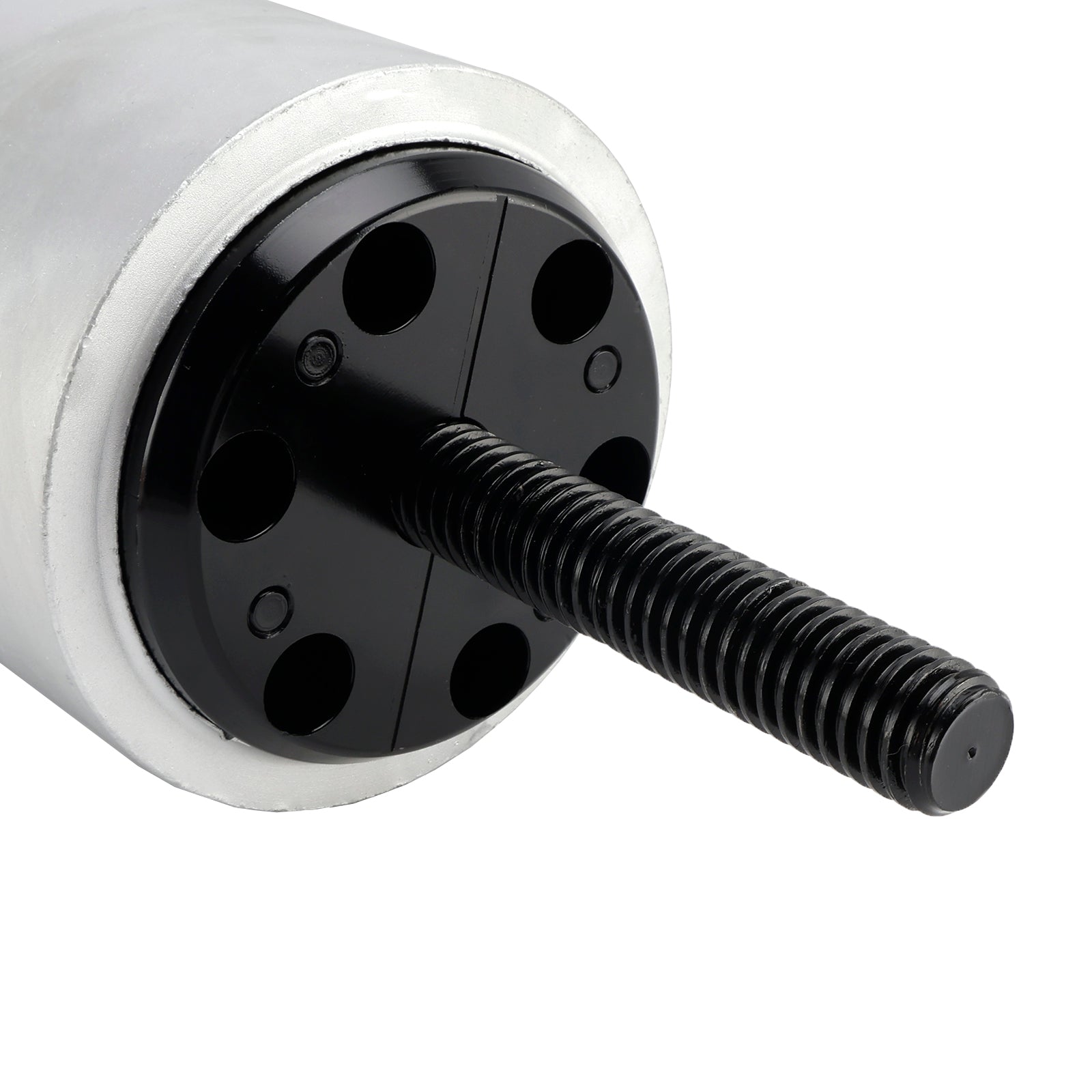

2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing. Hook up hydraulics and begin installation operation.
4.After each 2 inch stroke, retighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
