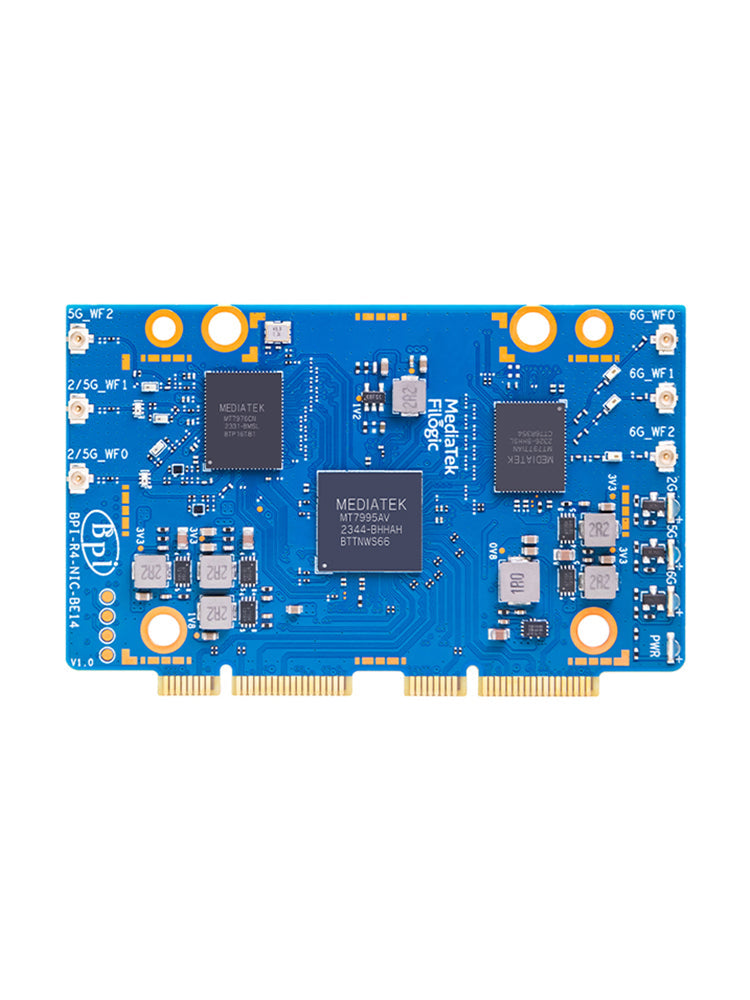

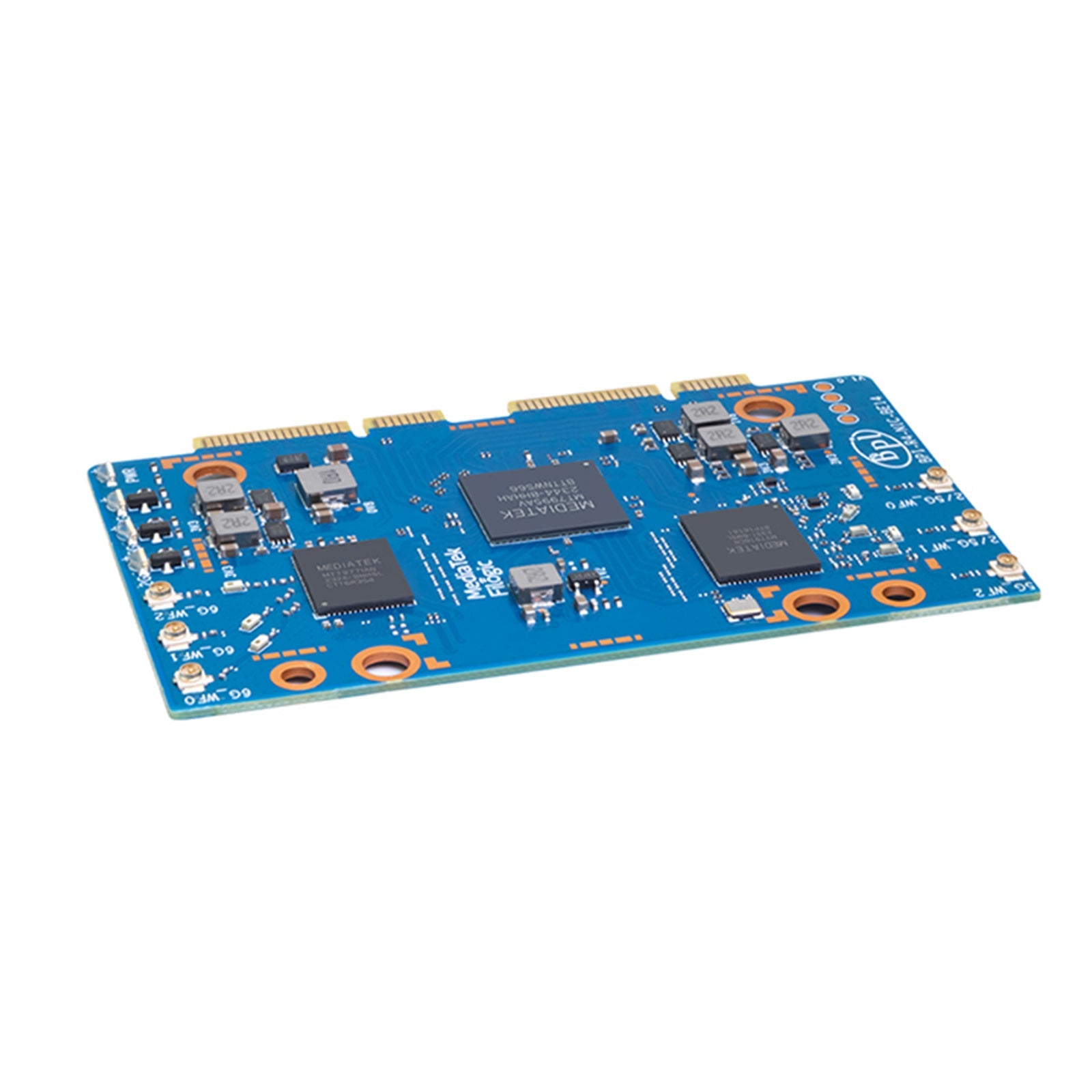

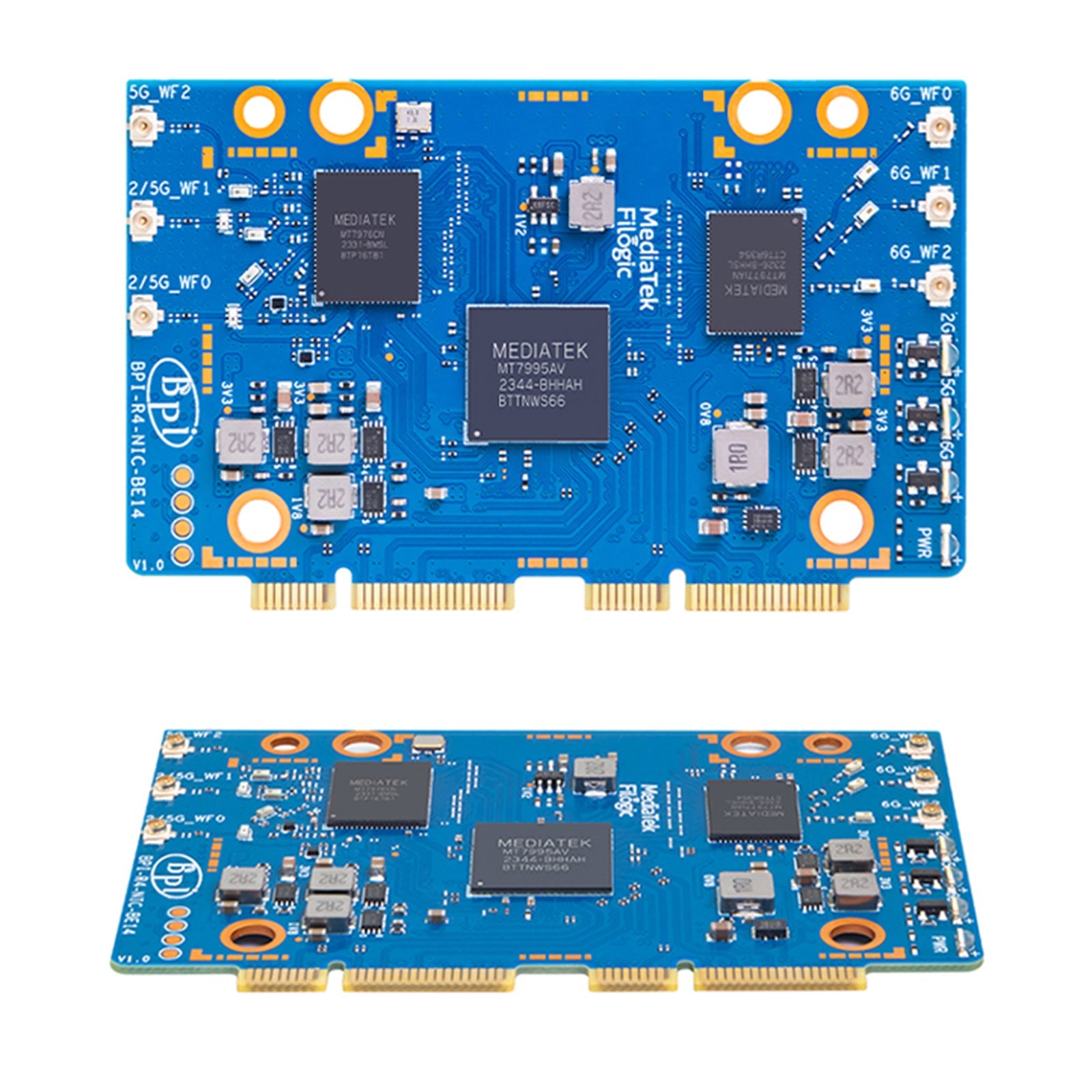

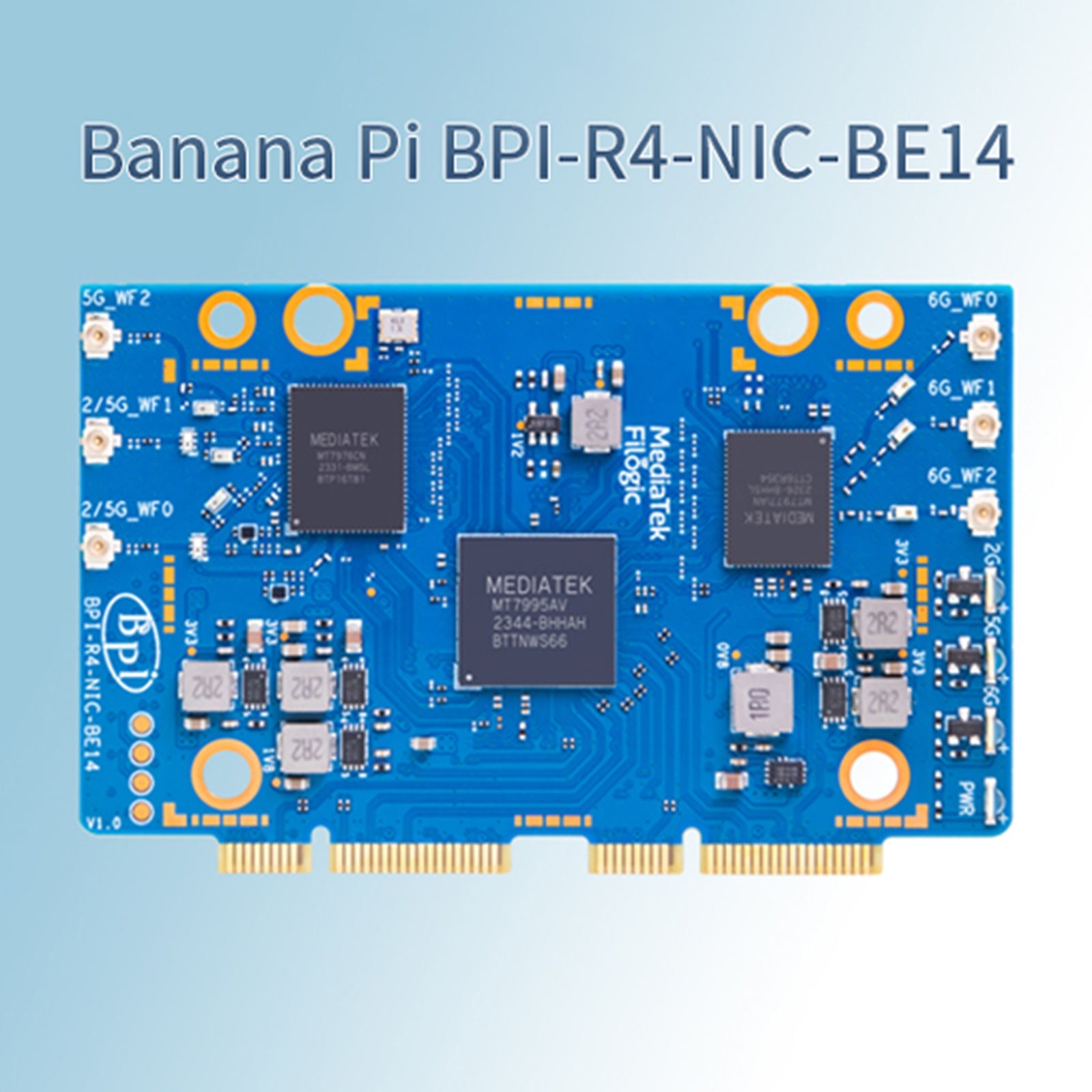

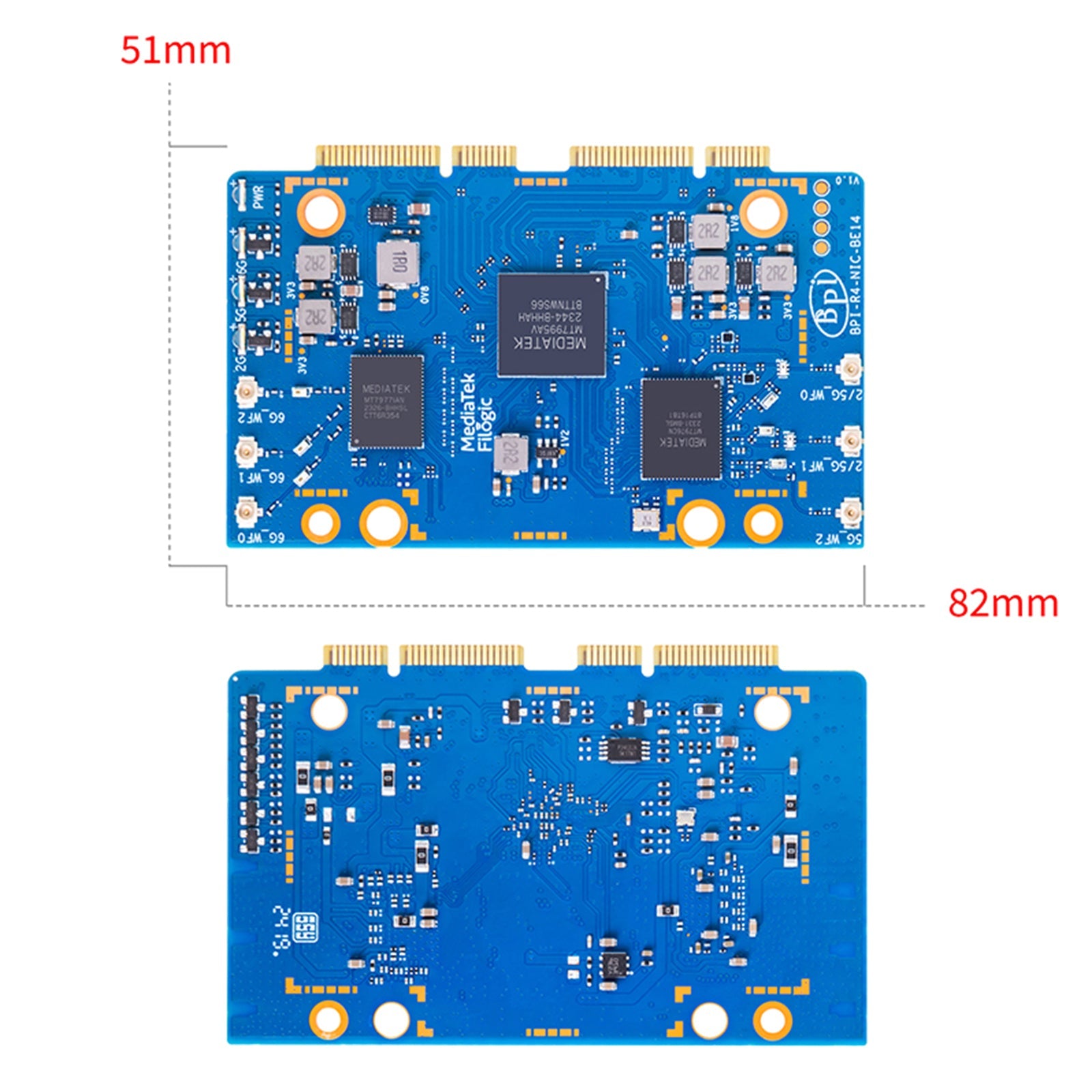

Banana Pi R4 WiFi7 Module BPI-R4-NIC-BE14 Open Source Router

Features:

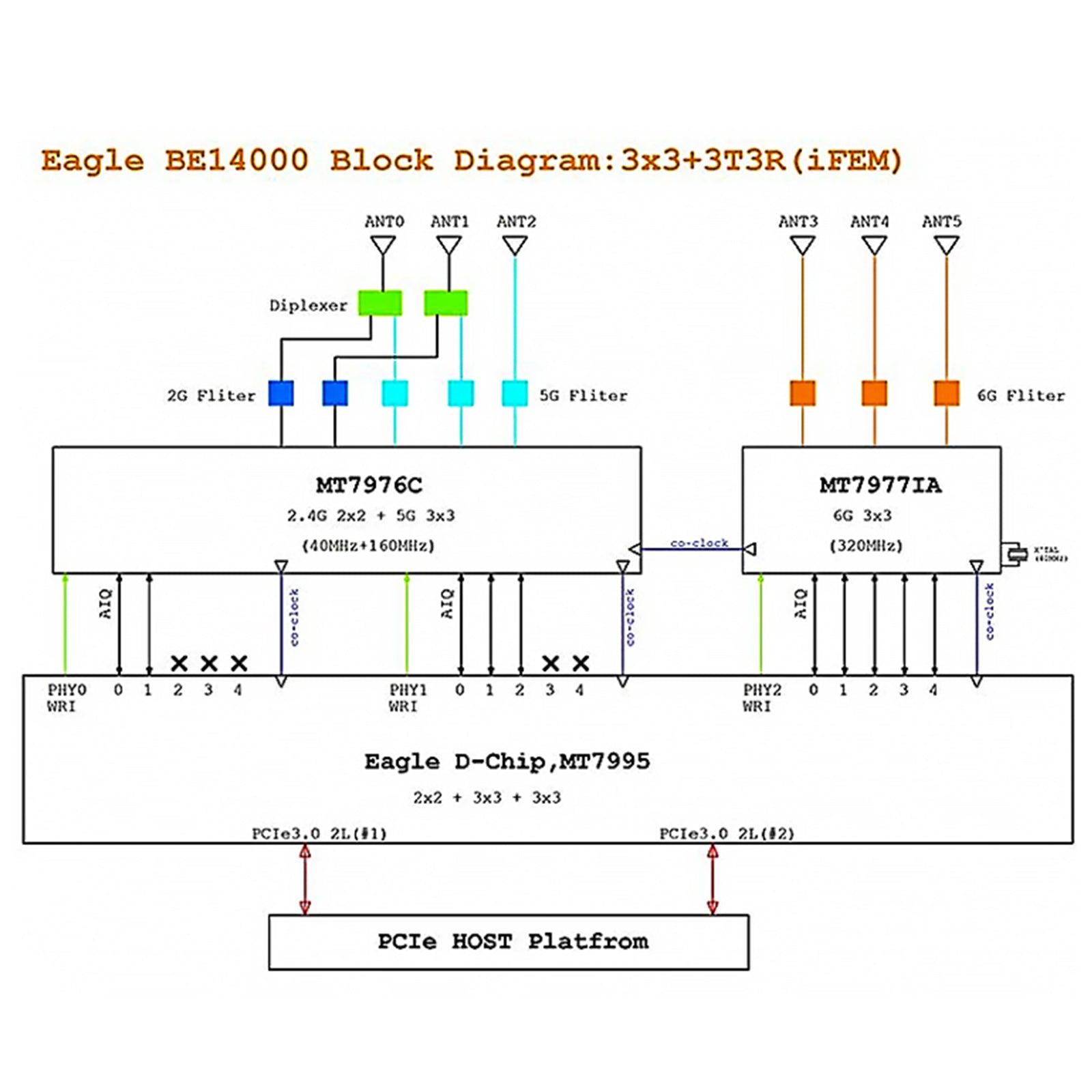

Platform
MediaTek MT7995AV chipset
32-bit RISC-V MCU for Wi-Fi protocol and Wi-Fi offload
Embedded SRAM and ROM
UART interface with hardware flow control support
2PCle3.0 interface, dual channel
Wireless LAN
Compliant with IEEE 802.11 a/b/g/n/ac/ax/be standards
2.4GHz band
Bandwidth: 20 and 40MHz
2T2R
5GHz band
Bandwidth: 20, 40, 80 and 160MHz
3T3R3ss
6GHz band
Bandwidth: 20, 40, 80, 160 and 320MHz
3T3R3ss
Tr band three-way parallel (TBTC)
PHY rate: up to 13700Mbps/9500Mbps
MU-MIMO transmit and receive
MU-OFDMA transmit and receive
STBC, LDPC, TX beamformer and RX beamformer
Greenfield mode, hybrid mode and legacy mode
Security: WFA WPA, WPA2, WPA3 Personal, WPS2.0
QoS: WFA WMM and WMM-PS

How to use:

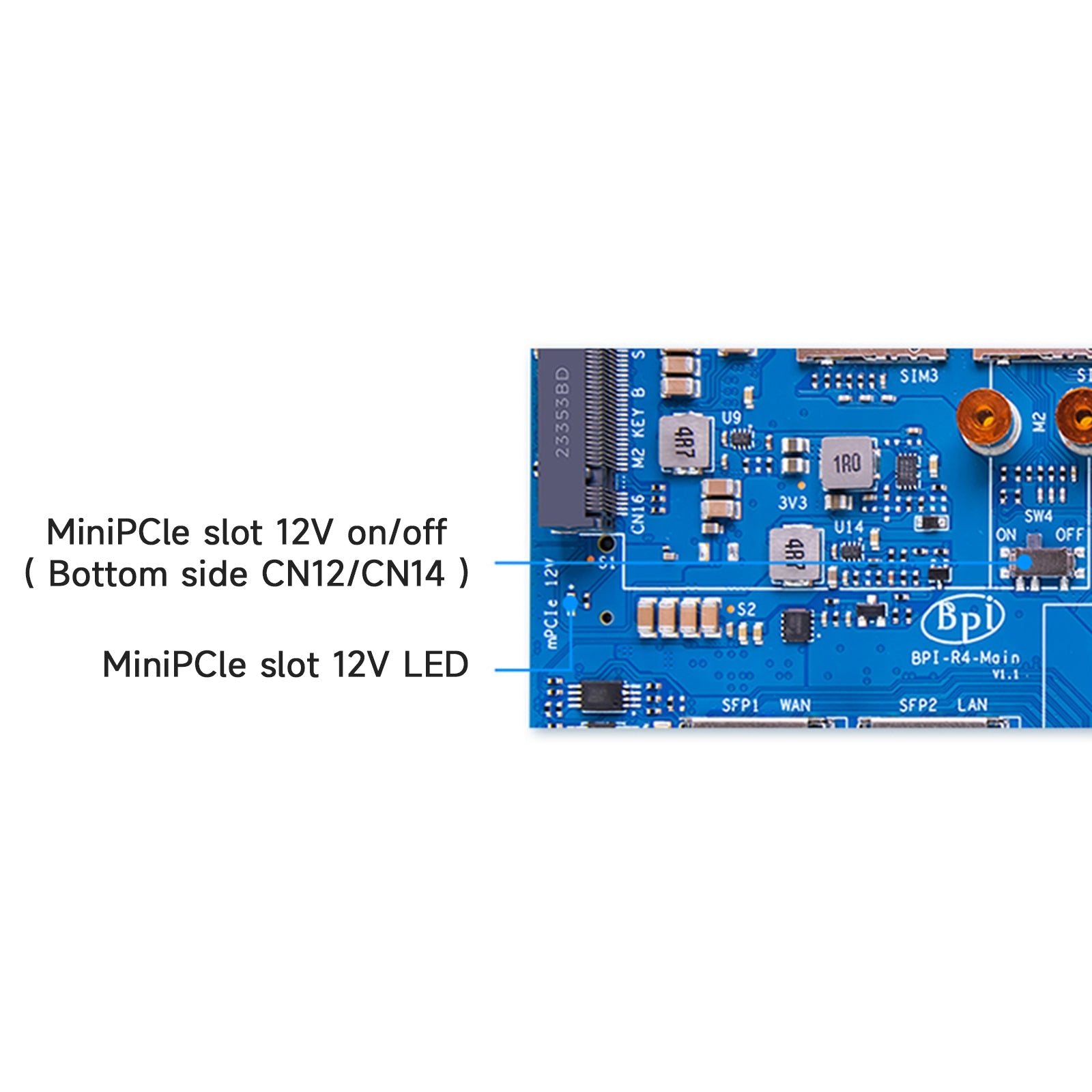

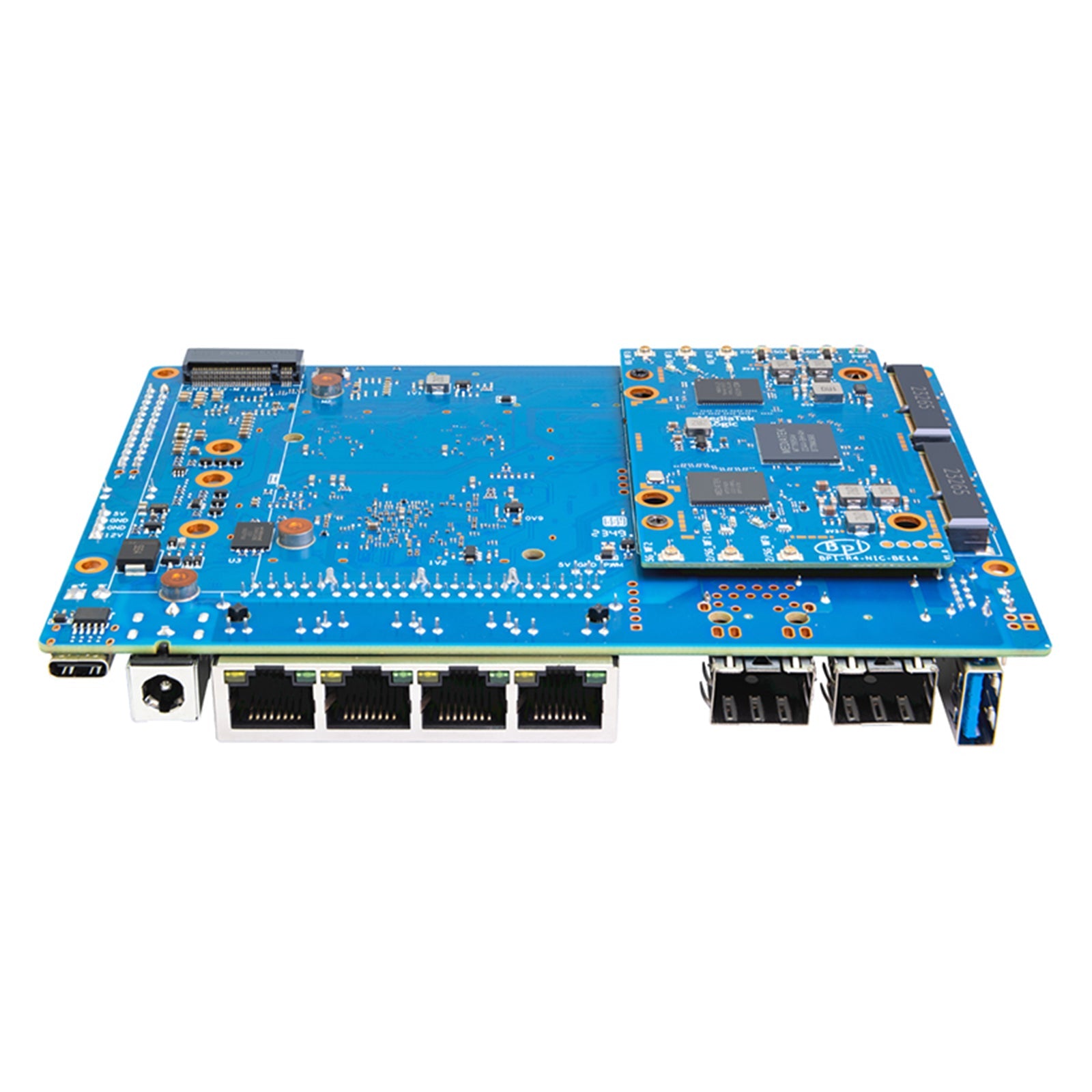

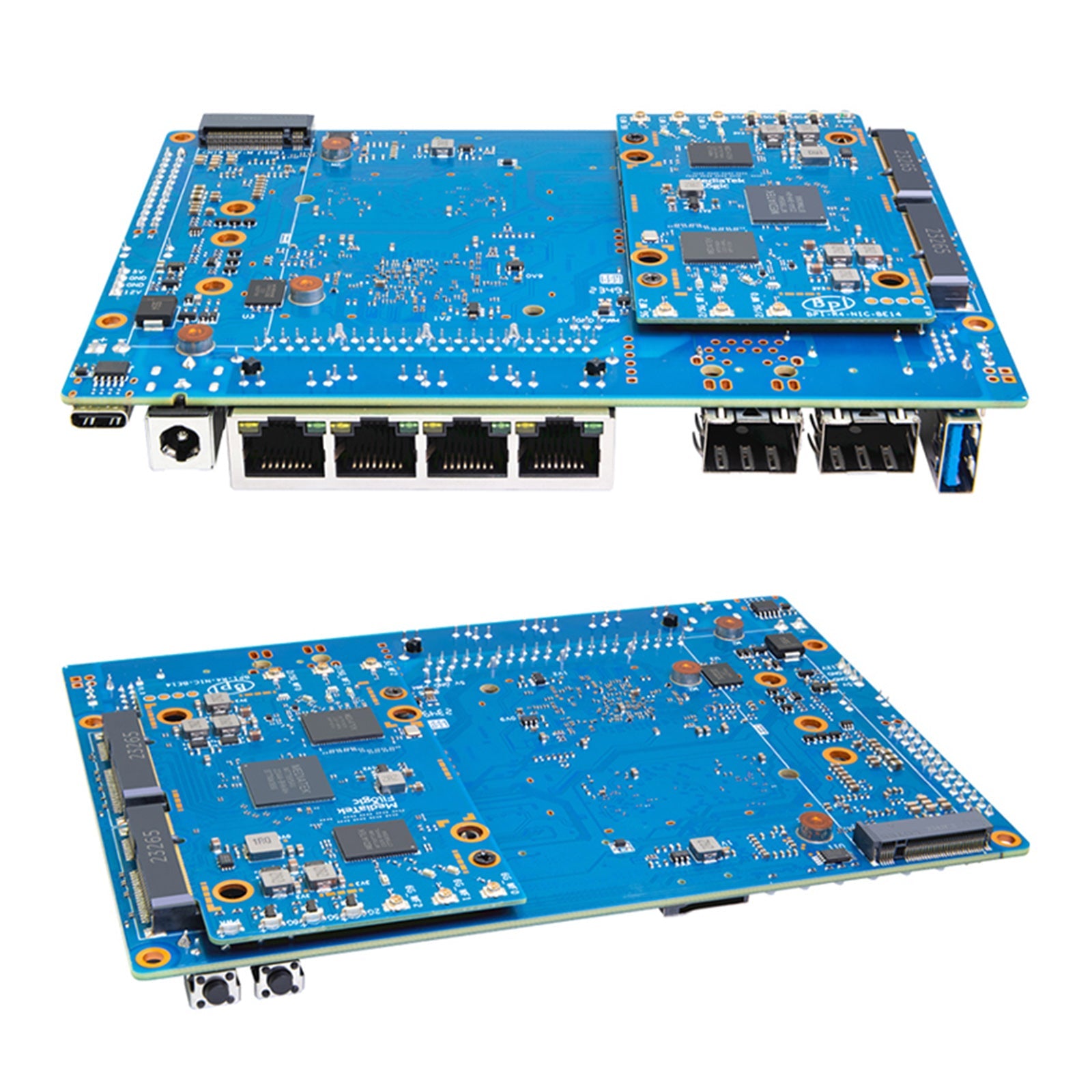

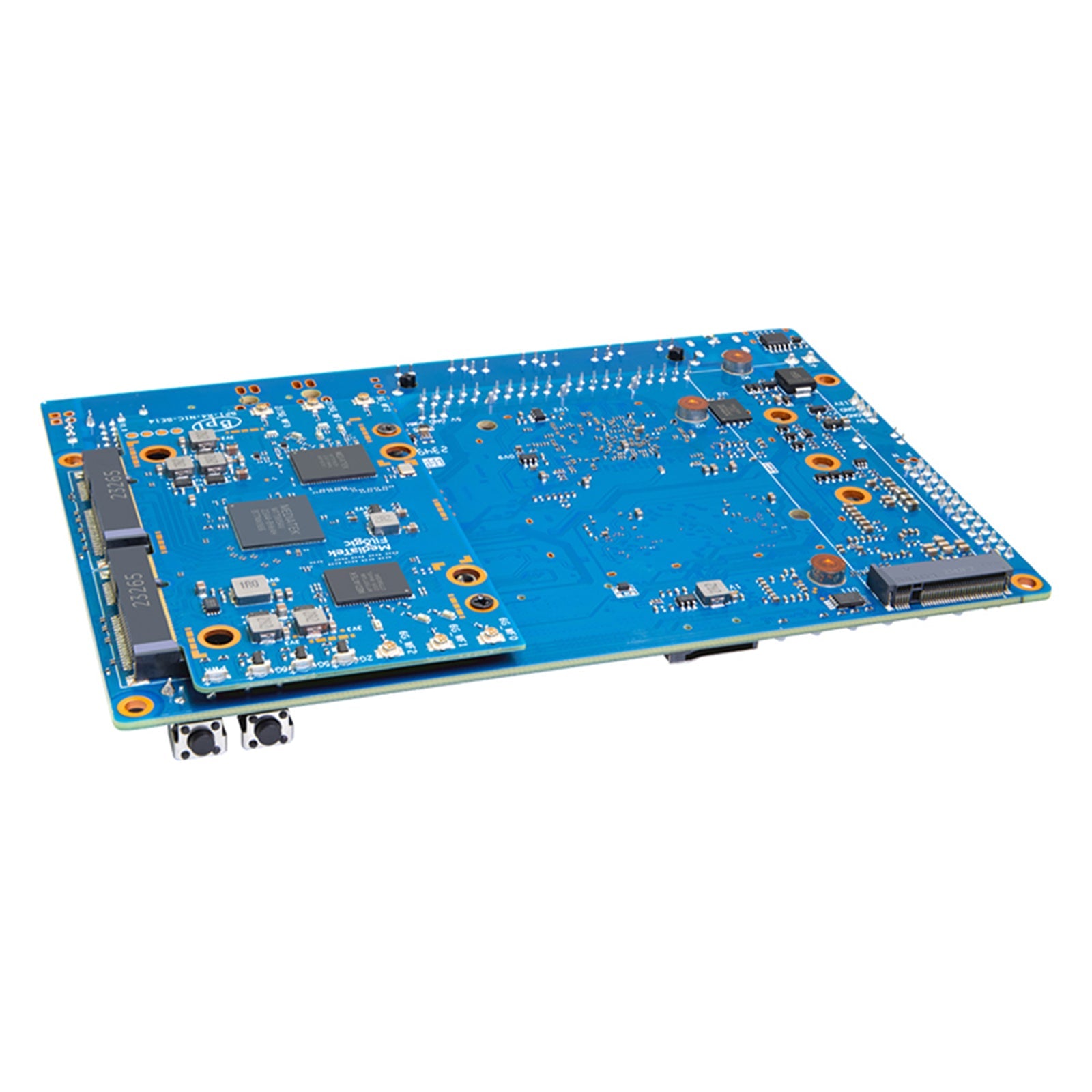

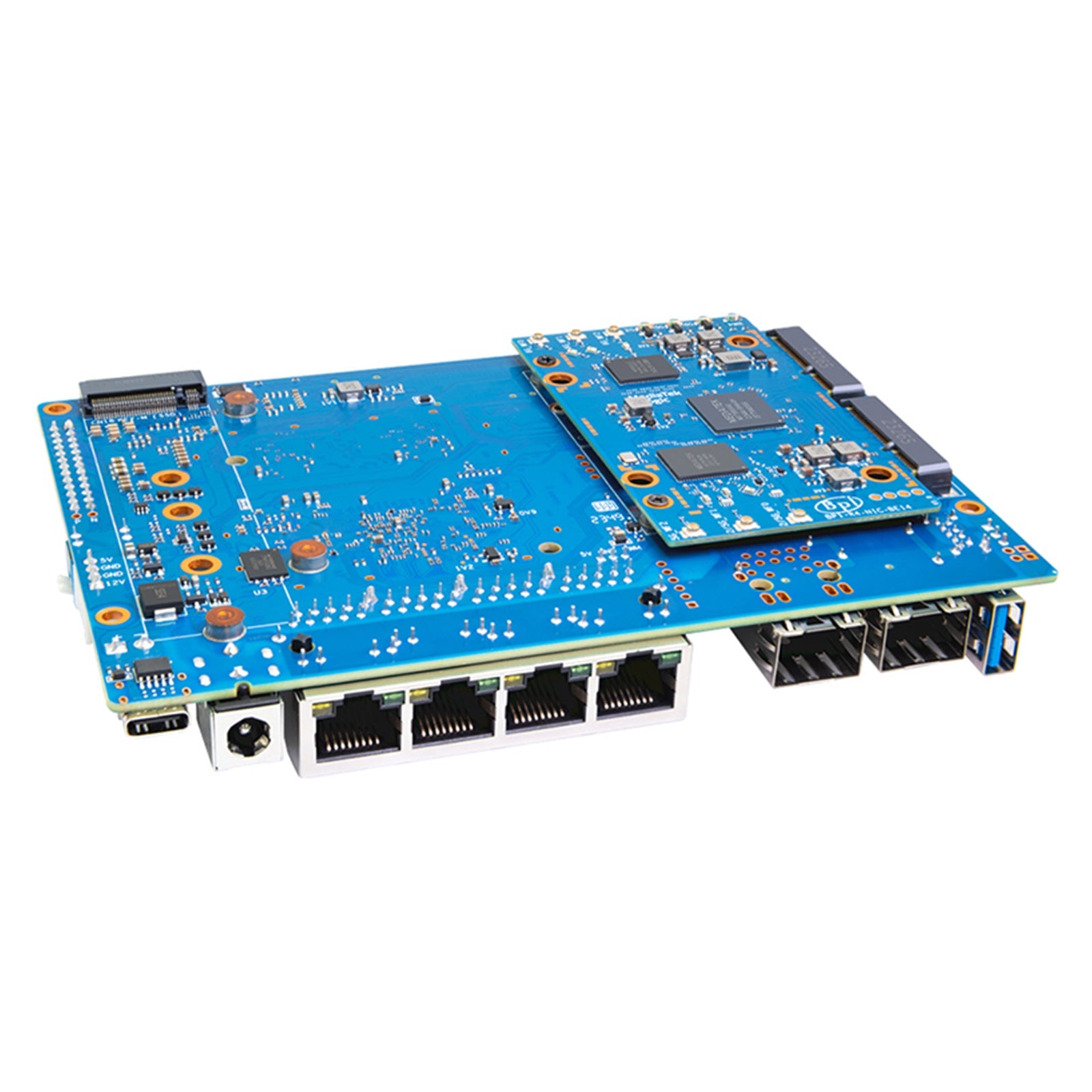

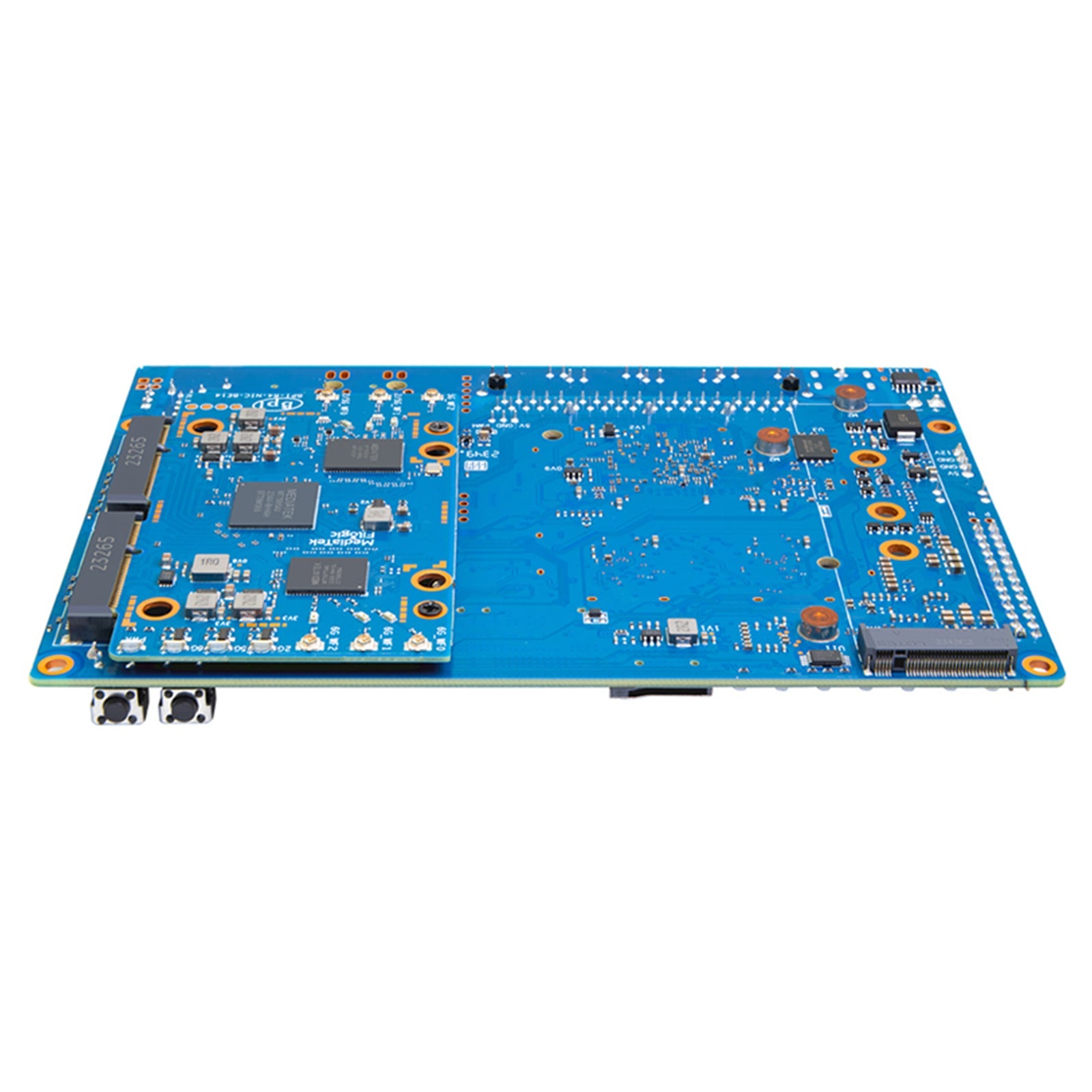

You can insert the BPI-R4 NIC into CN12 and CN14 at the bottom of BPI-R4-Main, and then fix it with two M2 screws. The BPI-R4-NIC module requires 12V power, so the power on the BPI-R4-Main must be turned on before powering on (SW4 turns to the "on" position, and the 12V LED will light up when powering on)

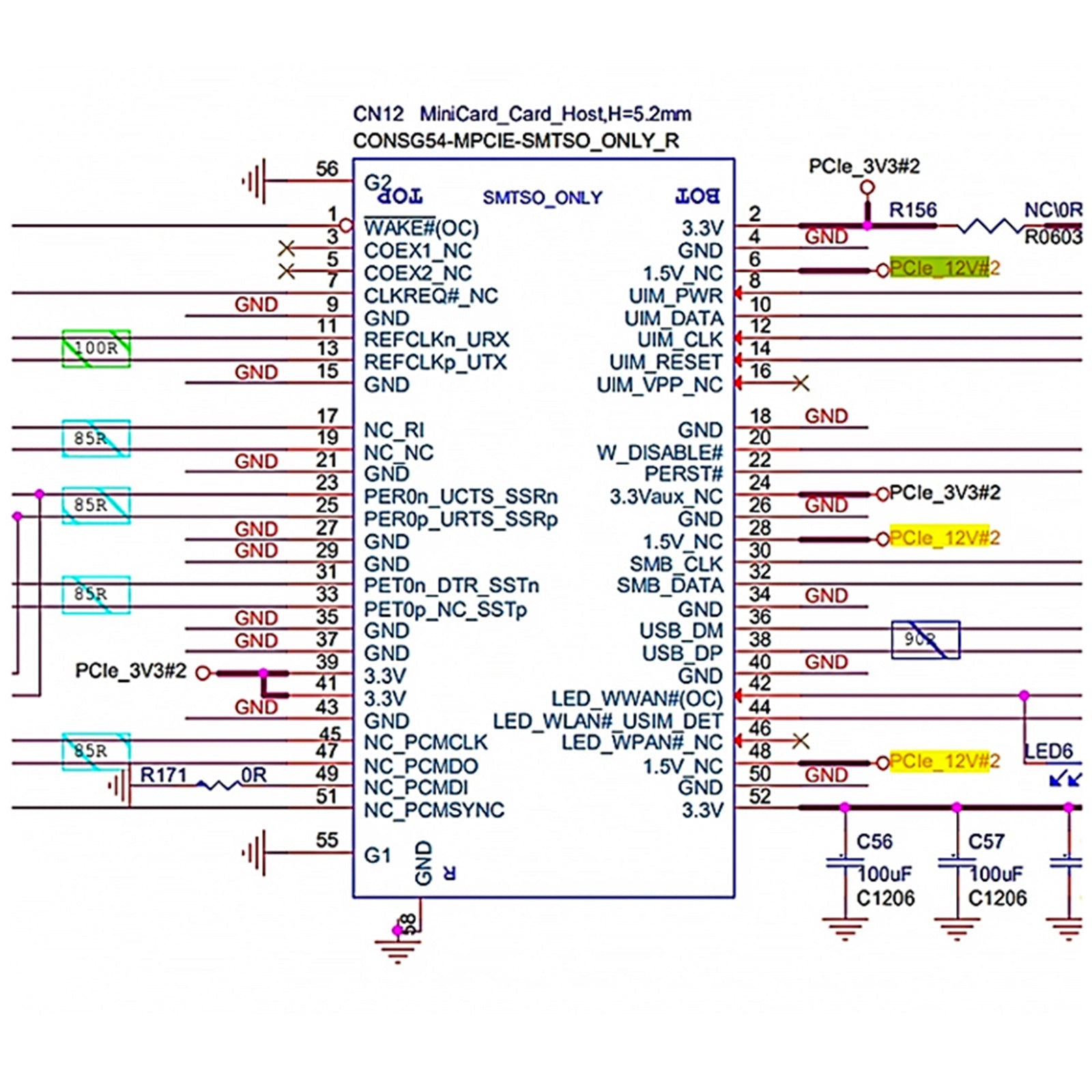

Tip: 12V power will be provided to the BPI-R4-NIC through PIN6/28/48 of the miniPCI socket. When inserting other modules, be sure to turn off SW4 if you are not sure whether the module can withstand 12V.

Package Include:
1x BPI-R4-WiFi 7 Module
