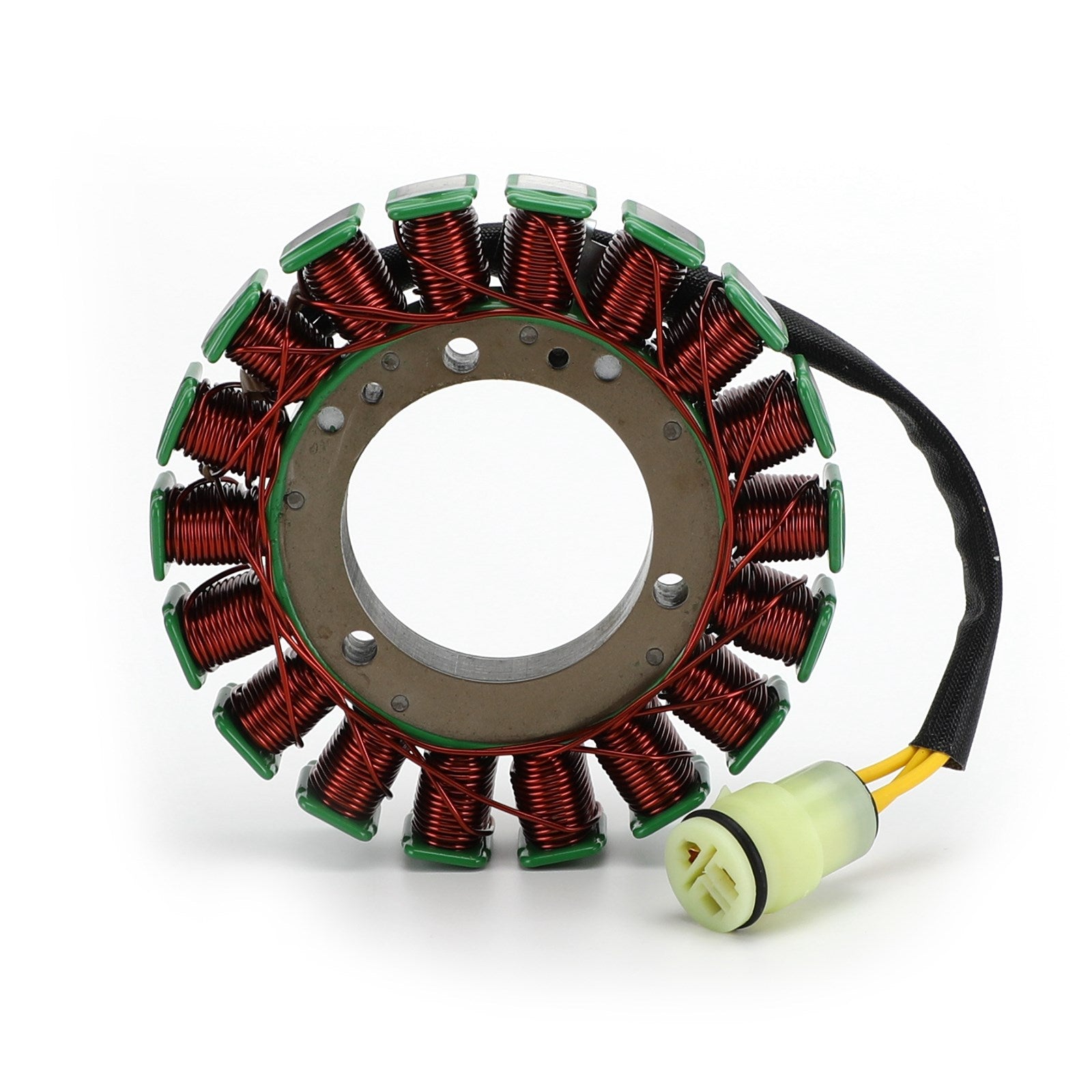

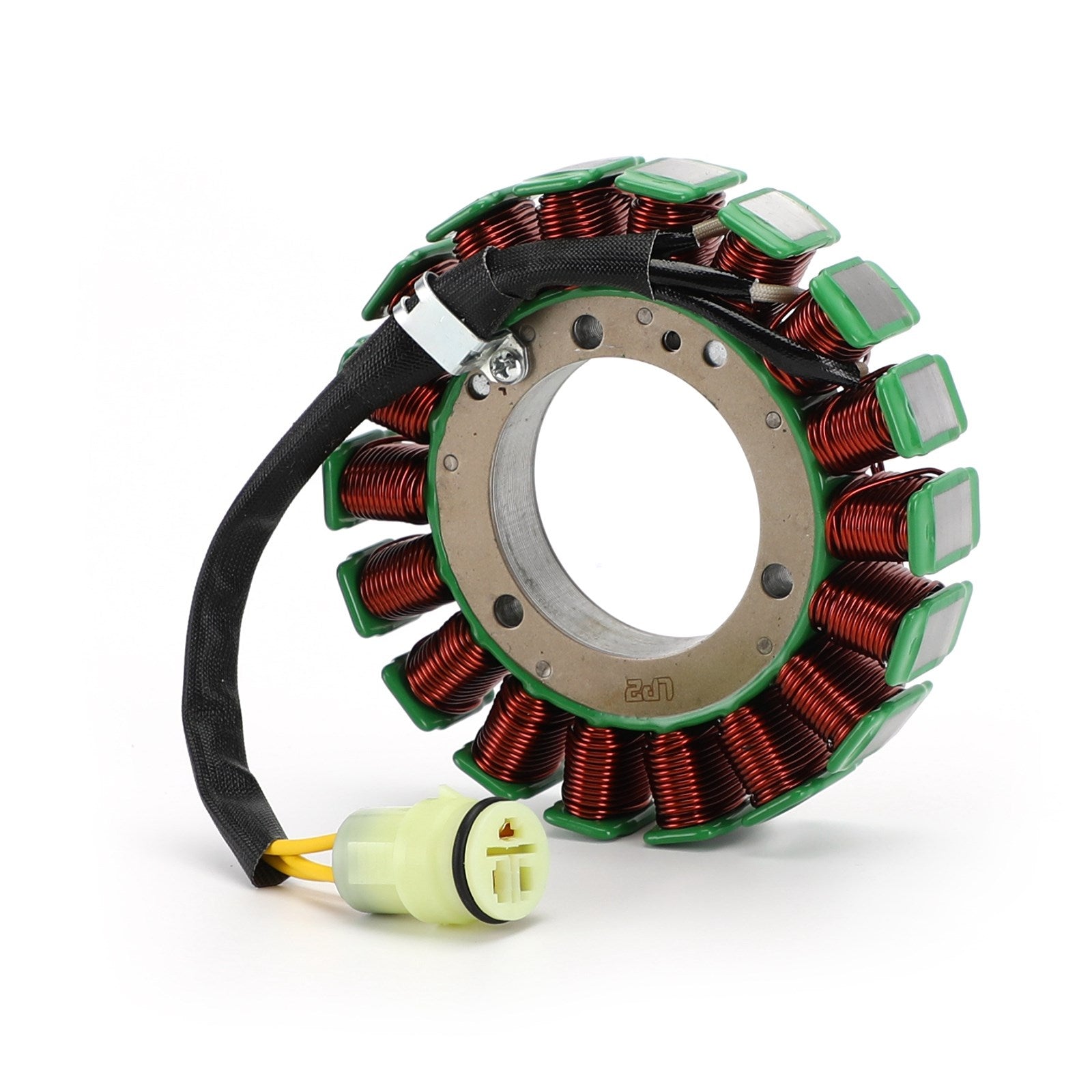

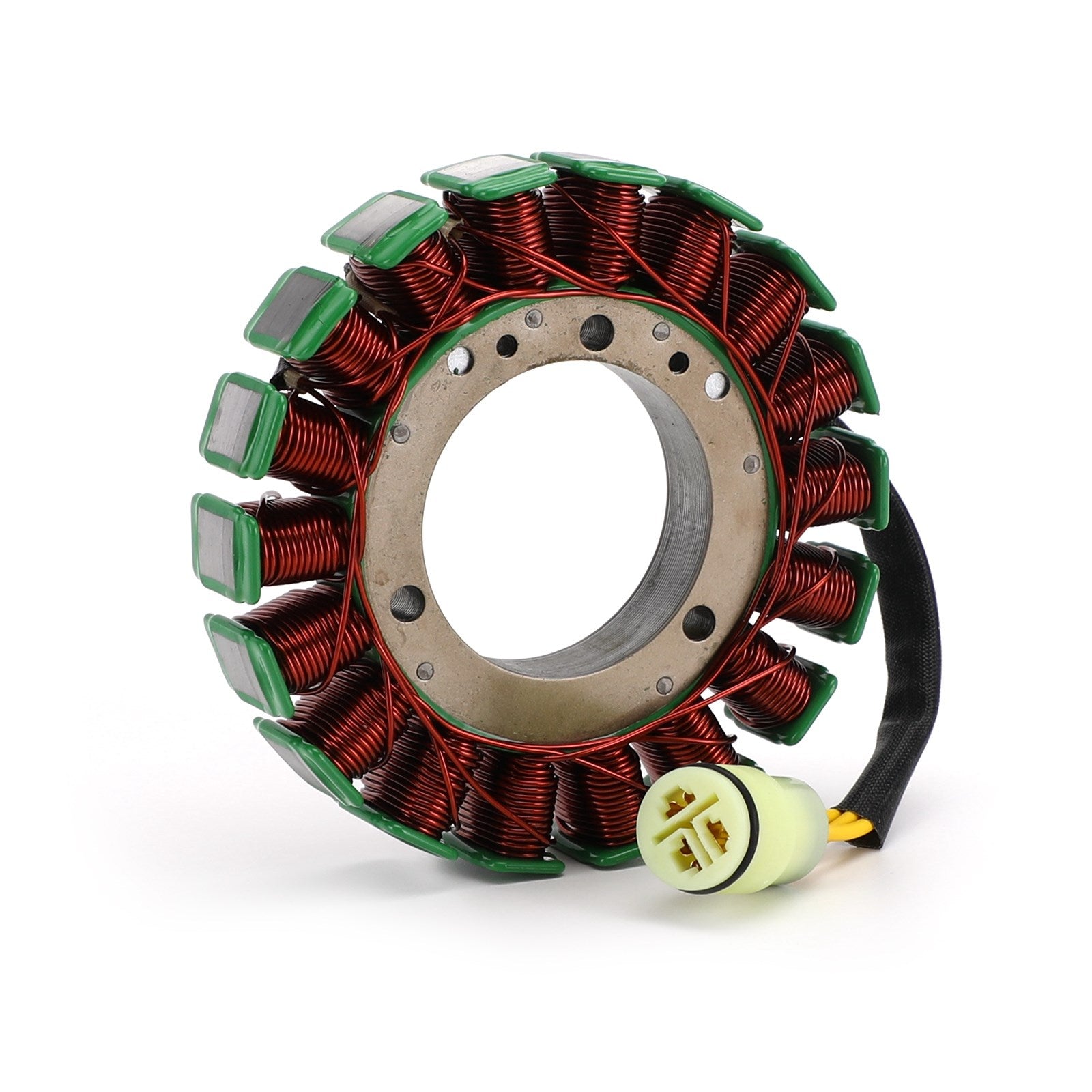

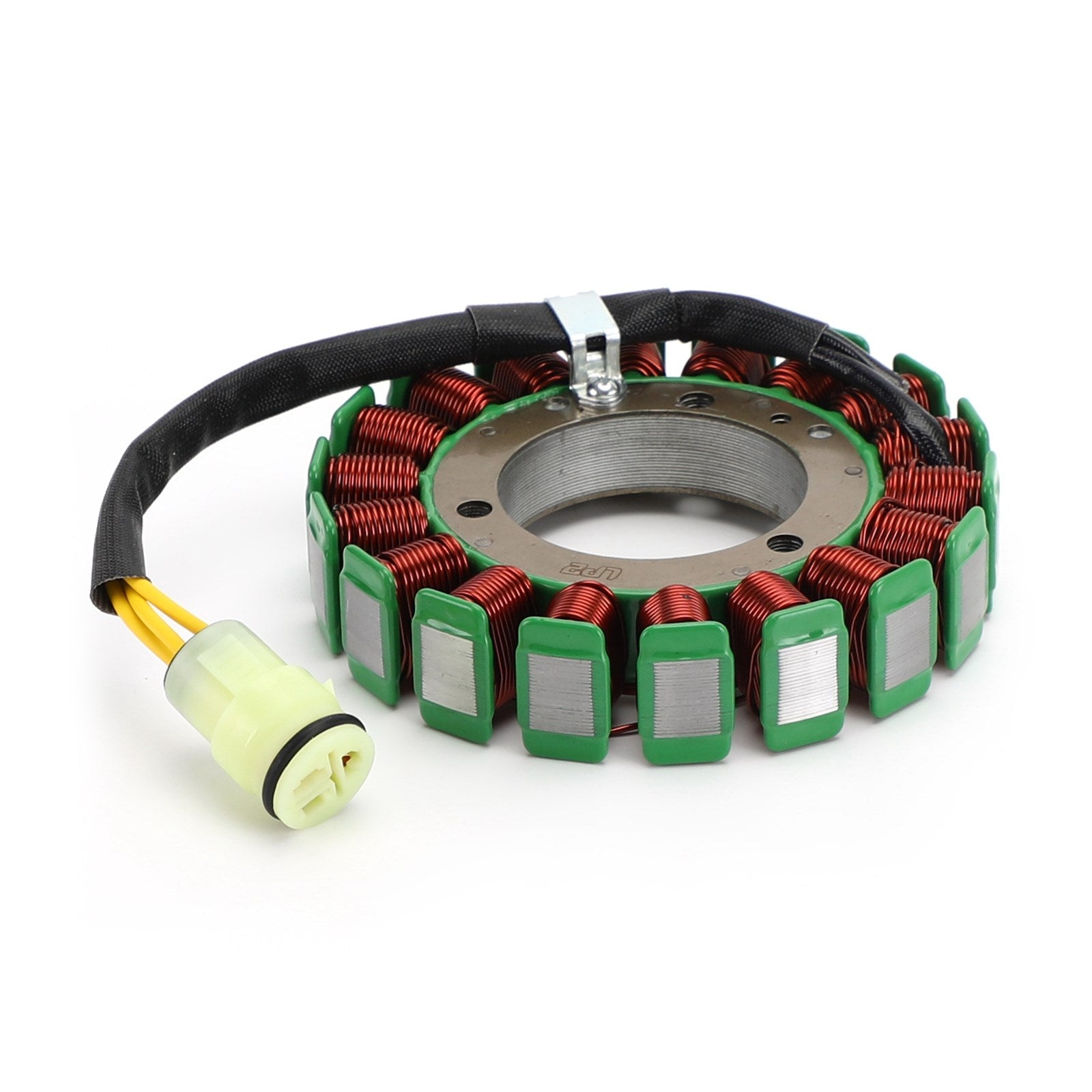

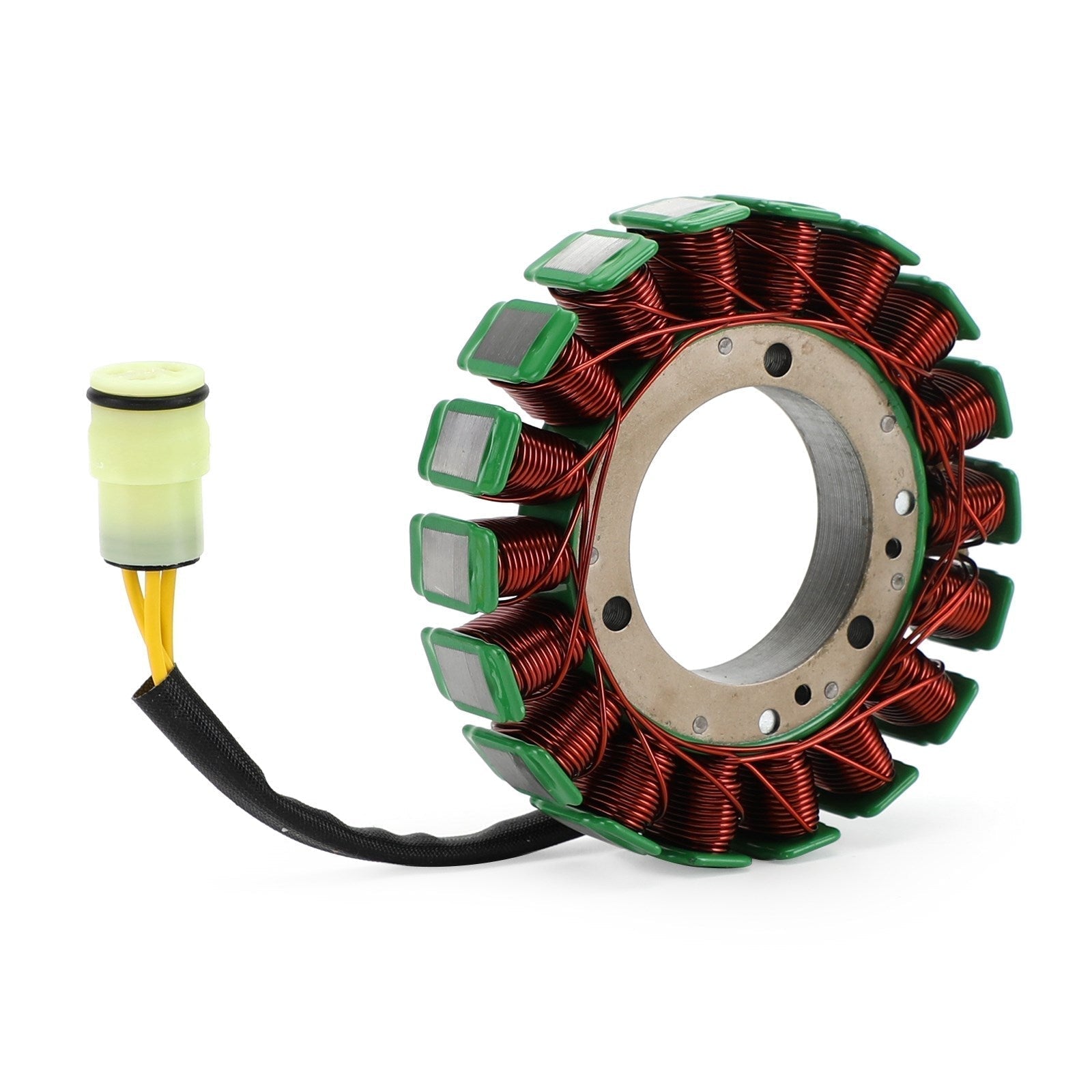

Battery Charging Coil Assembly Fit for Johnson Evinrude E 60 70 HP 4 Stroke 1998-2006 5030789 5032684

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

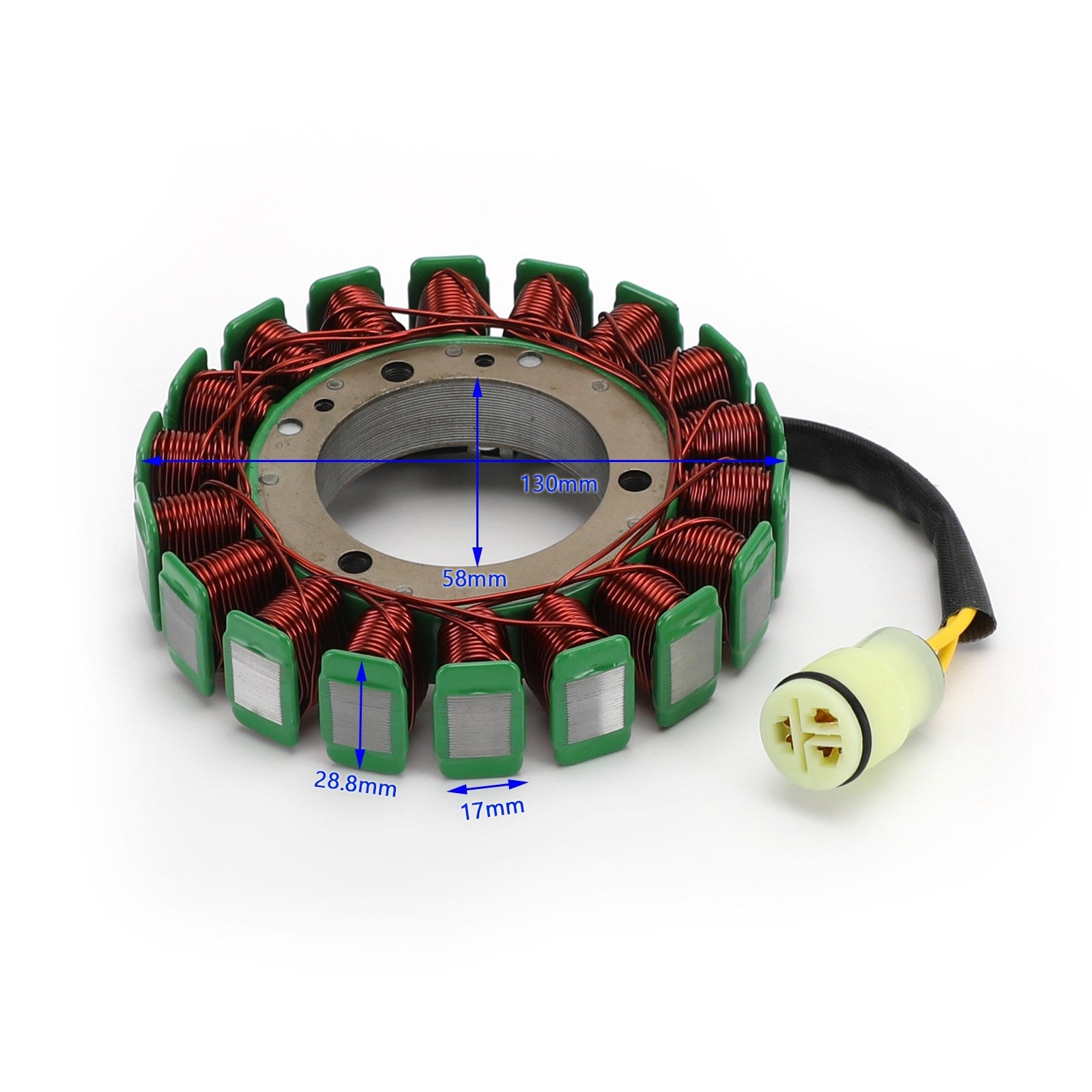

Dimensions :
Interior diameter : 58mm
Exterior diameter : 130mm
Pole's Thickness : 28.8mm
Pole's Width : 17mm

Other Specifications :
Number of wires: 3
Number of pins: 3

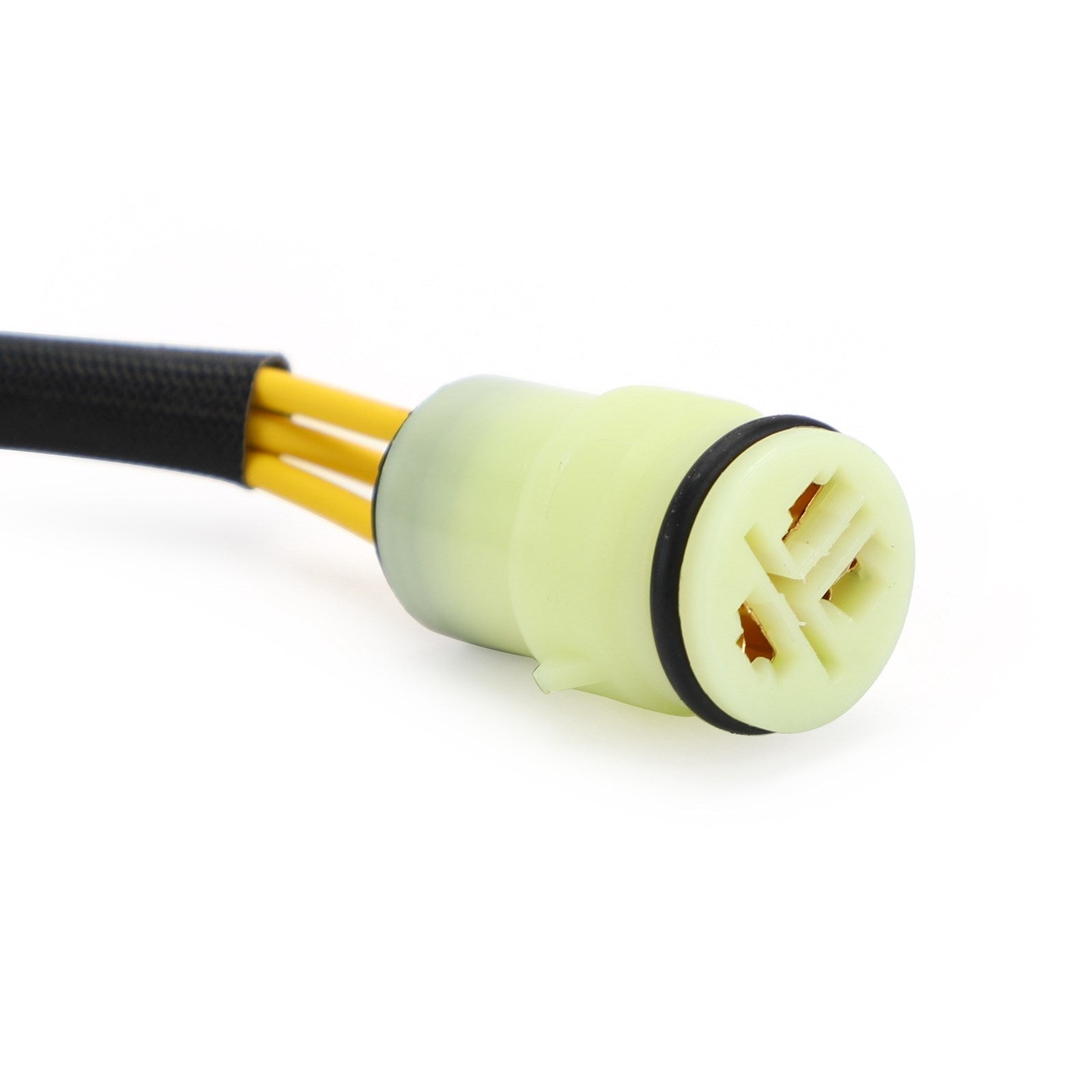

Number of plugs: 1
Number of fixation holes: 3(+1)

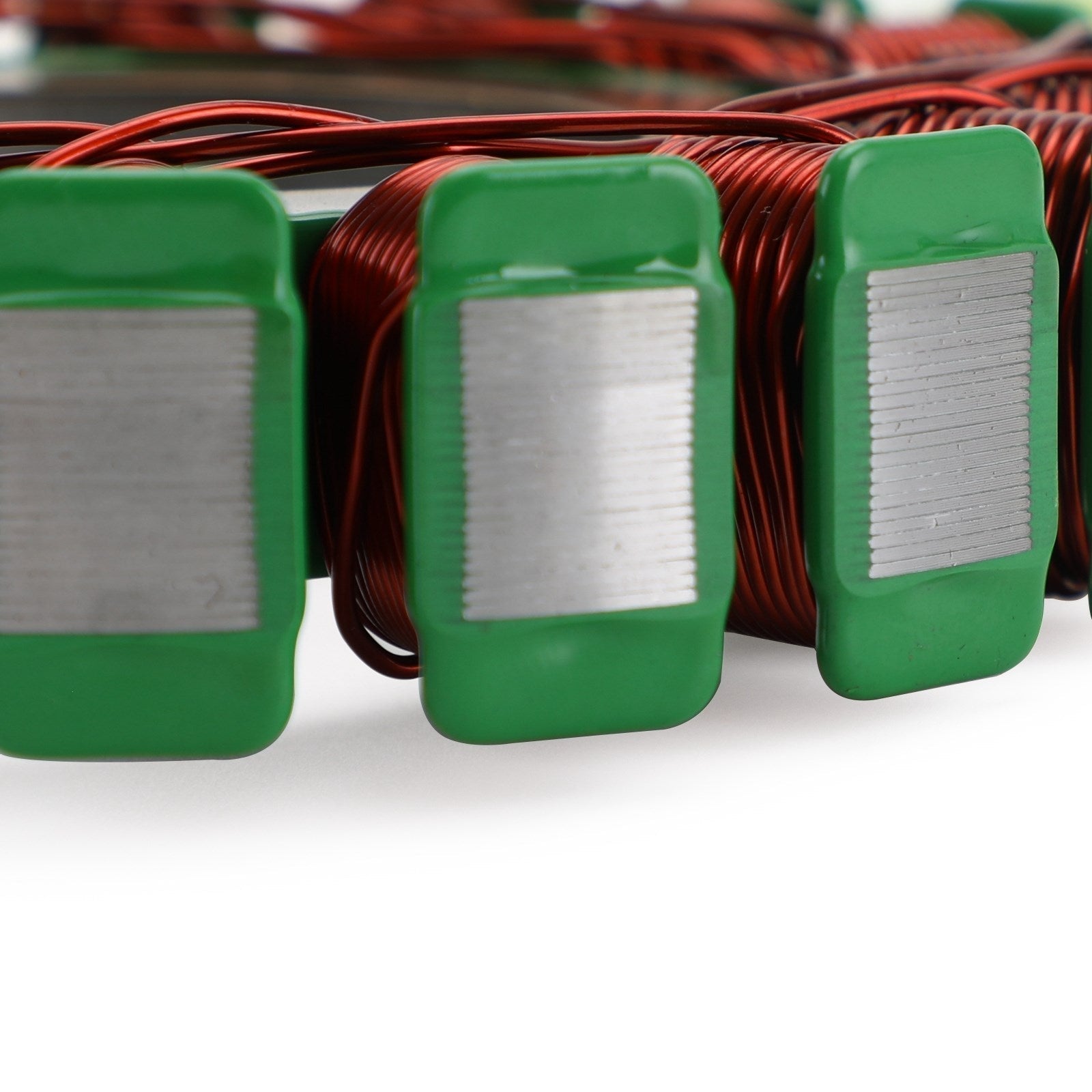

Number of poles: 18

Replacement Part Number:
5030789
5032684

Fitments:
Fit for Johnson Evinrude 70HP 1998-2006
Fit for Johnson Evinrude 60HP 2002-2006

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Battery Charging Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
