Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

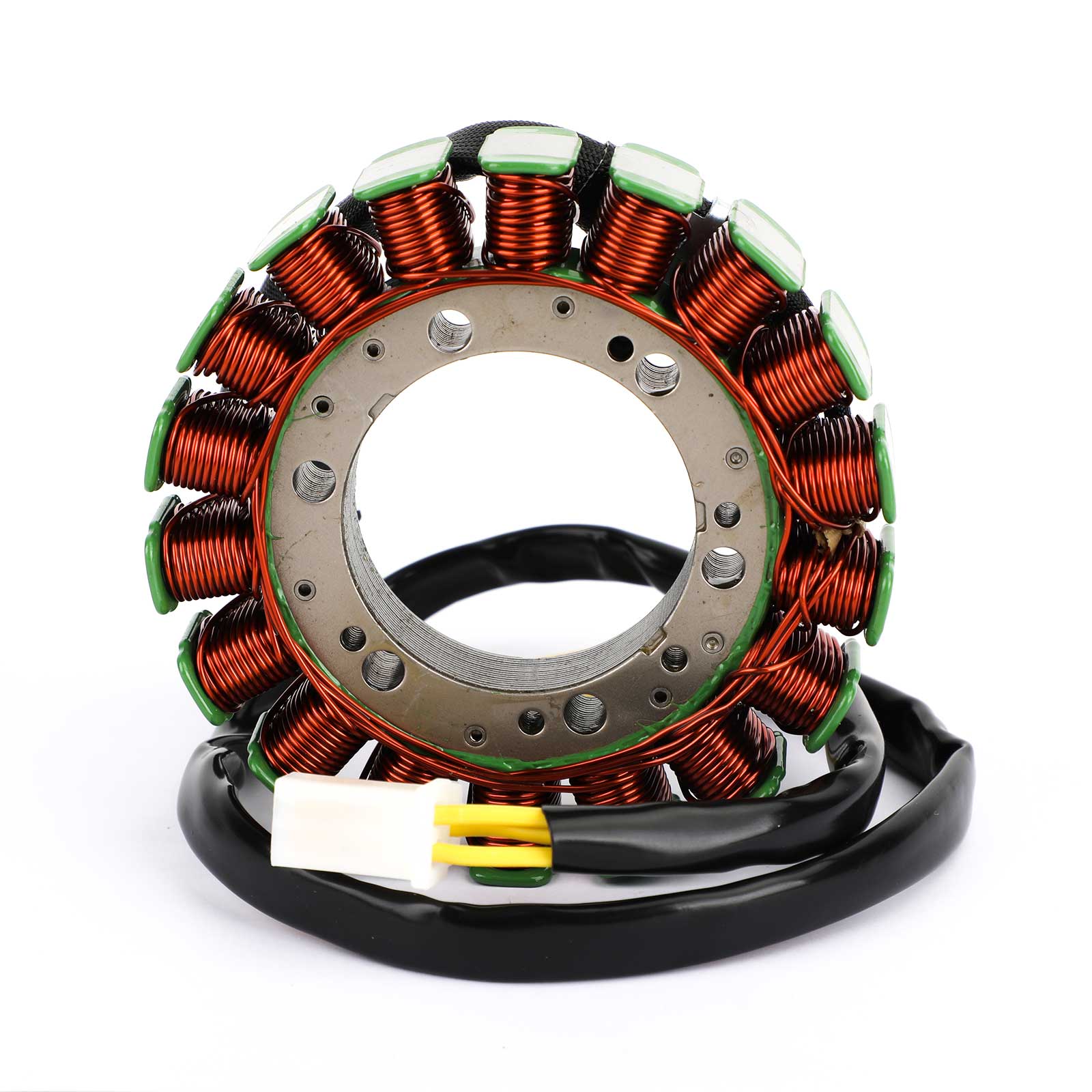

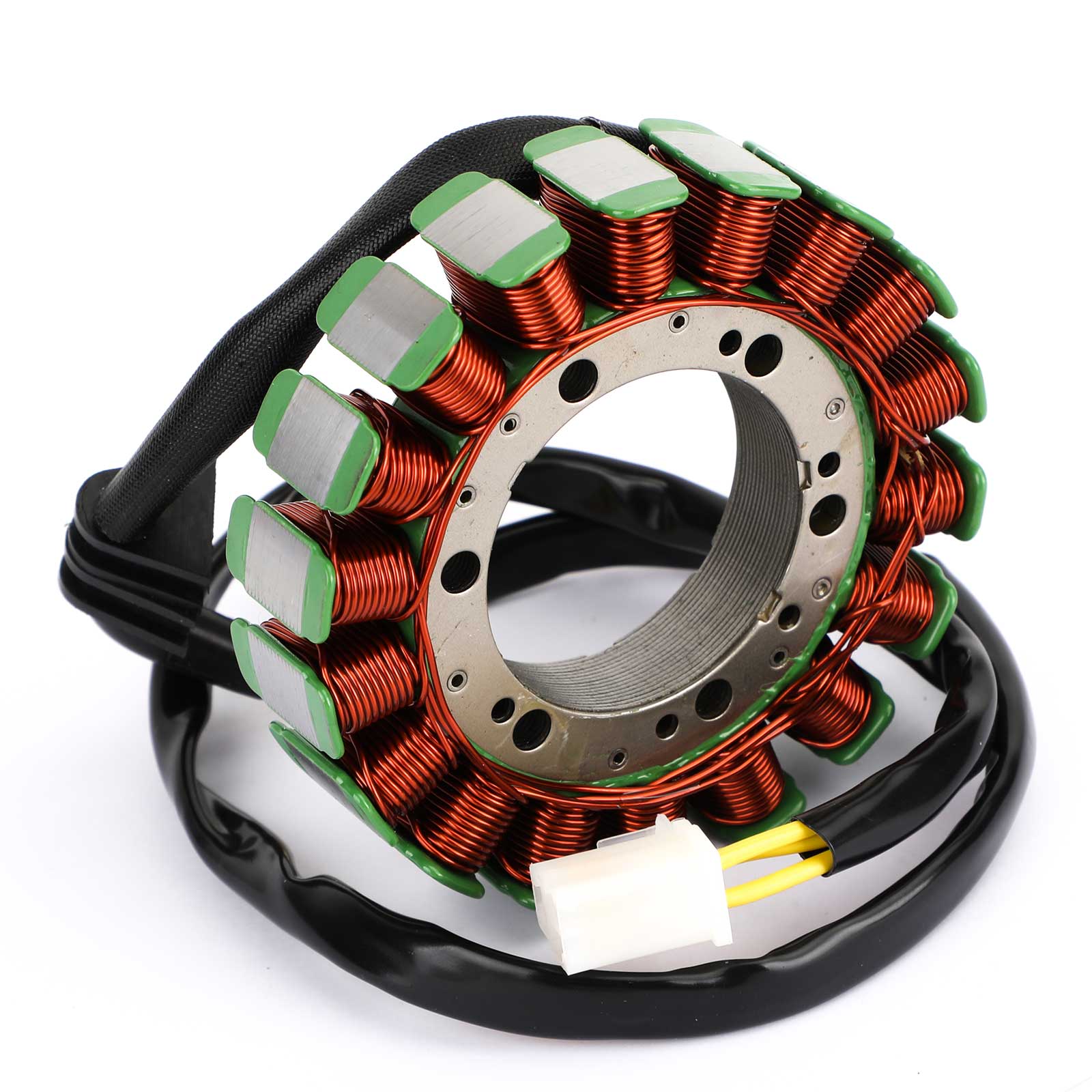

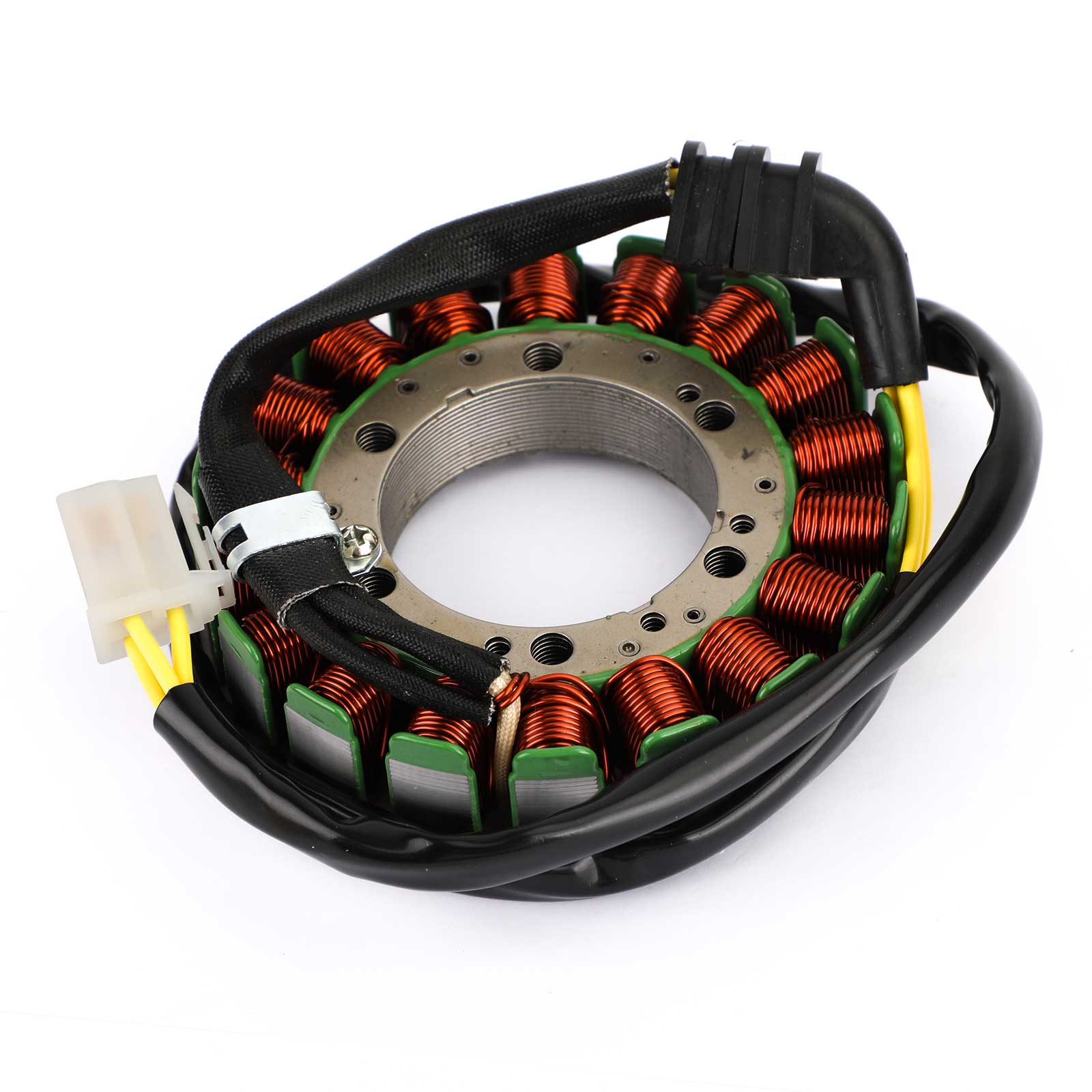

Type: Generator Stator Coil

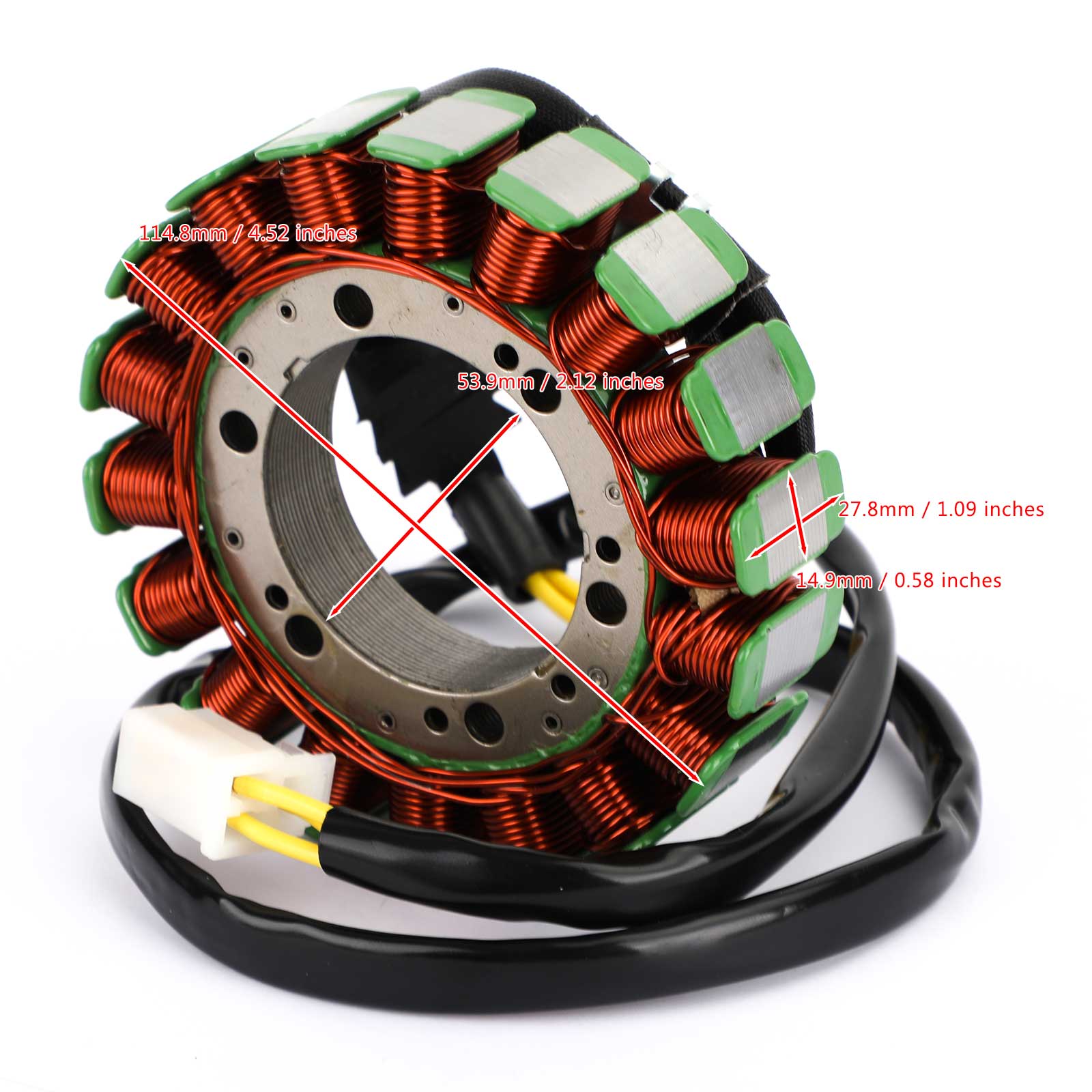

Dimensions :
Interior diameter : 53.9mm / 2.12 inches
Exterior diameter : 114.8mm / 4.52 inches
Pole's Thickness : 27.8mm / 1.09 inches
Pole's Width : 14.9mm / 0.58 inches

Other Specifications :
Number of wires: 4

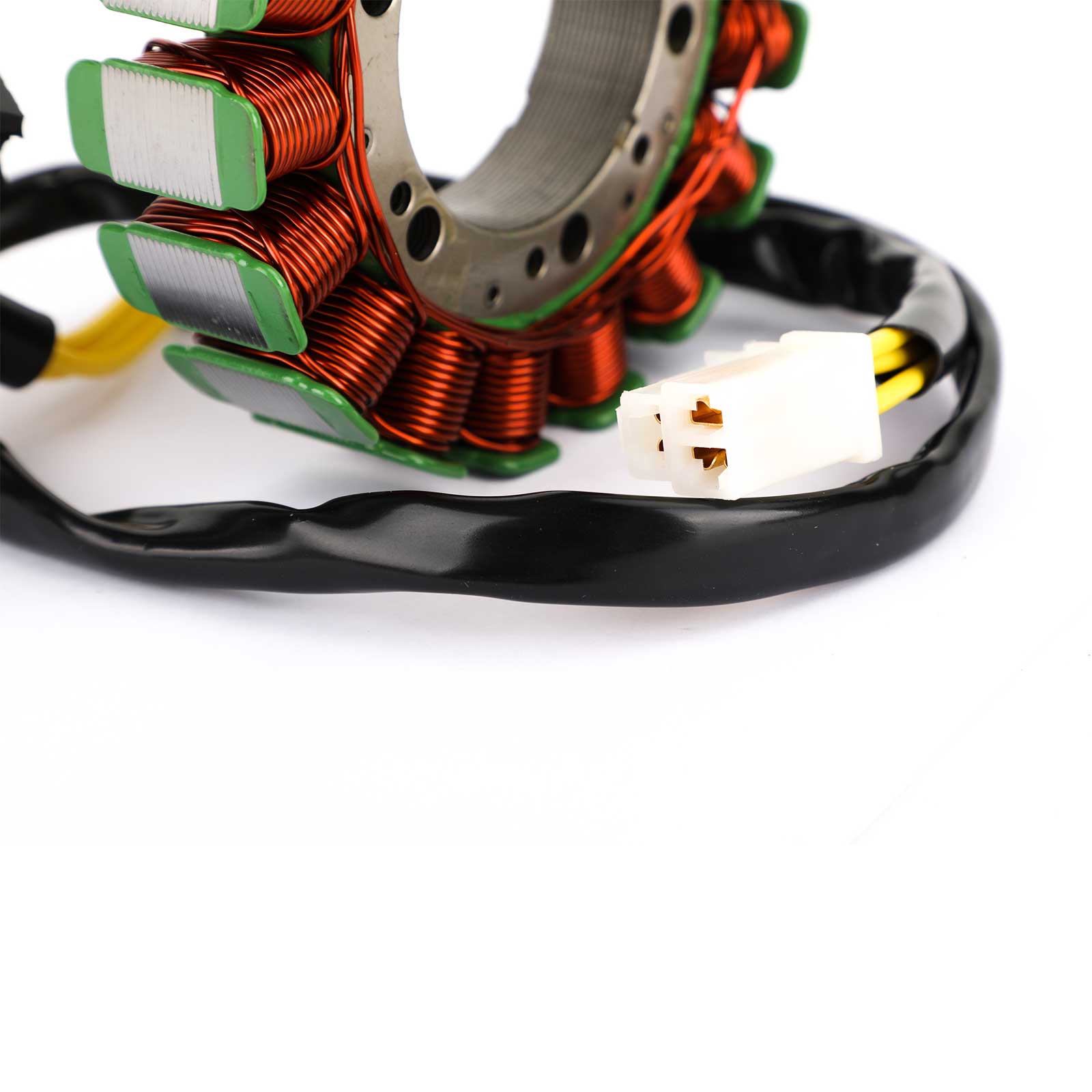

Number of pins: 4
Number of plugs: 1
Number of fixation holes: 5(+4)
Number of poles: 18

PART NUMBER(S):
31120-MAZ-003

Fitments:
For Honda CB1300 Super Four 1998-2002
For Honda X4 CB1300 SC38 1997-2003

Package Included:
1x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
