Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

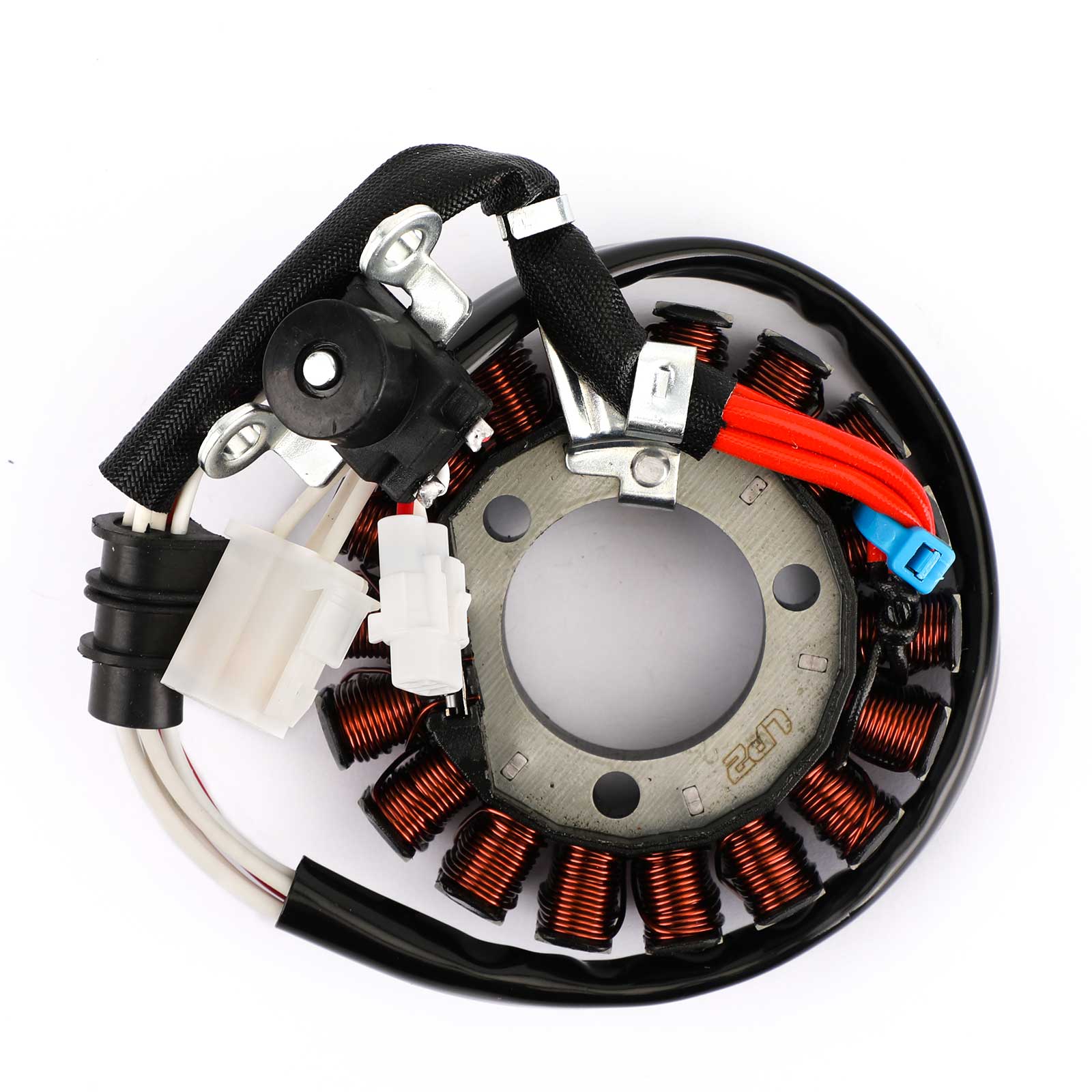

Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

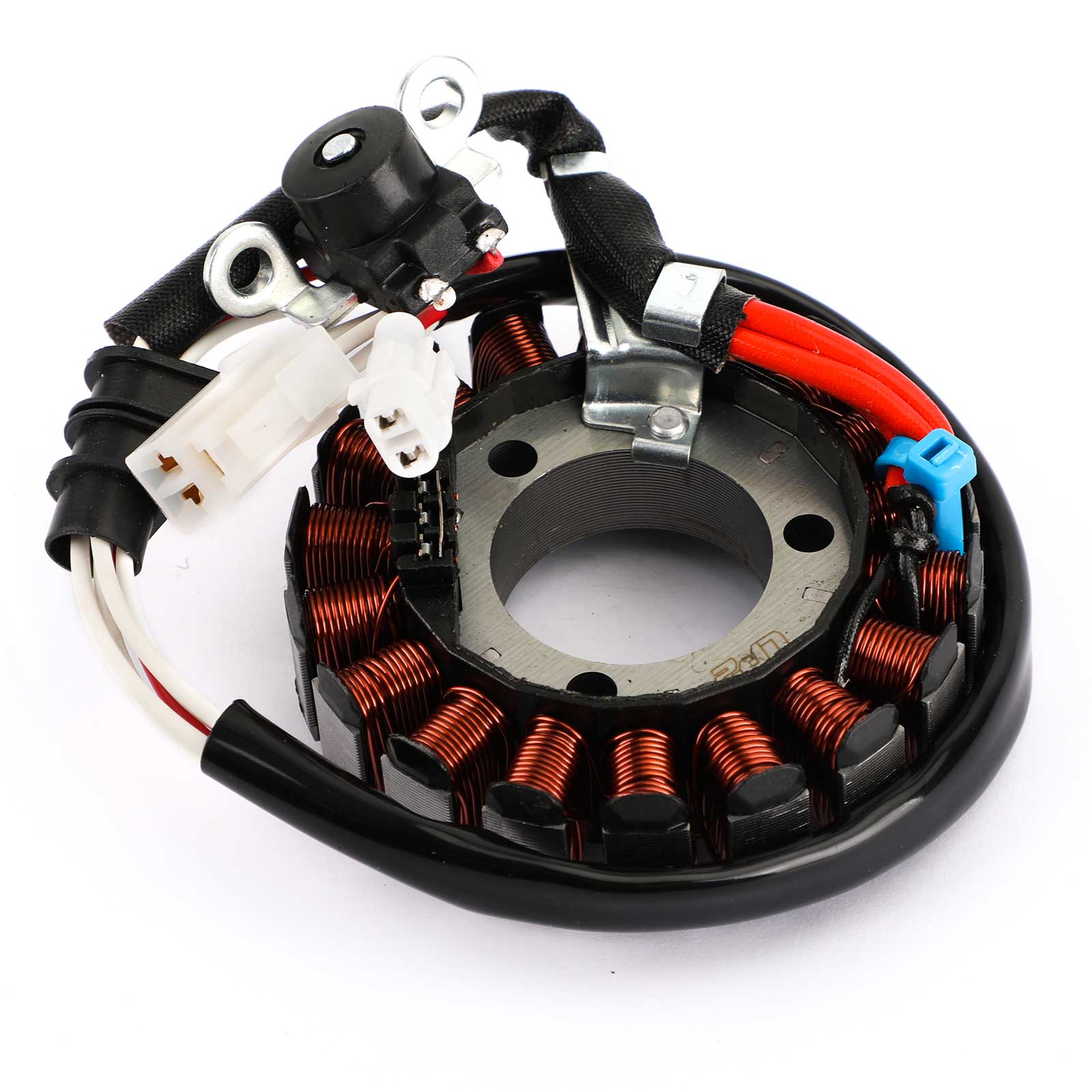

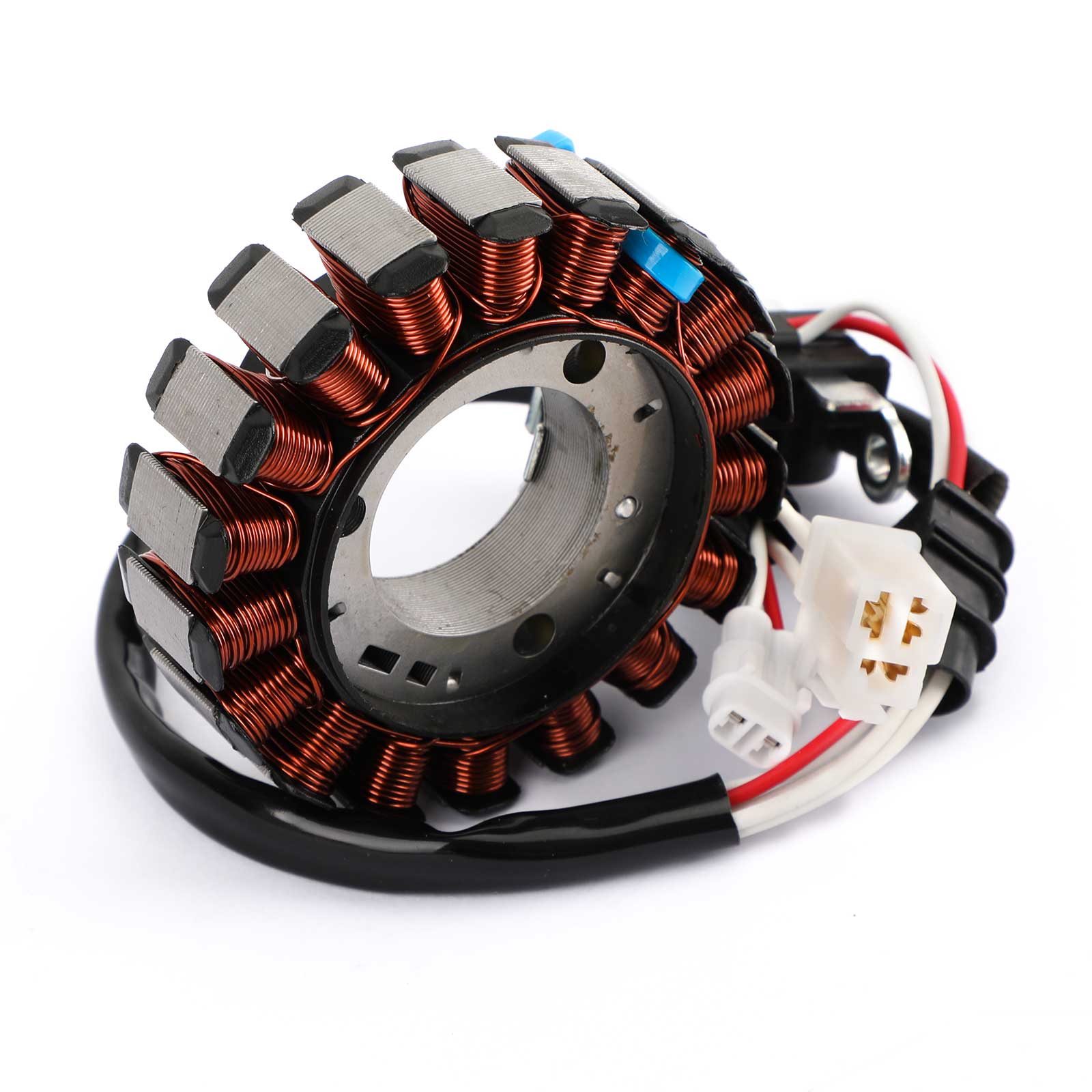

Type: Generator Stator Coil

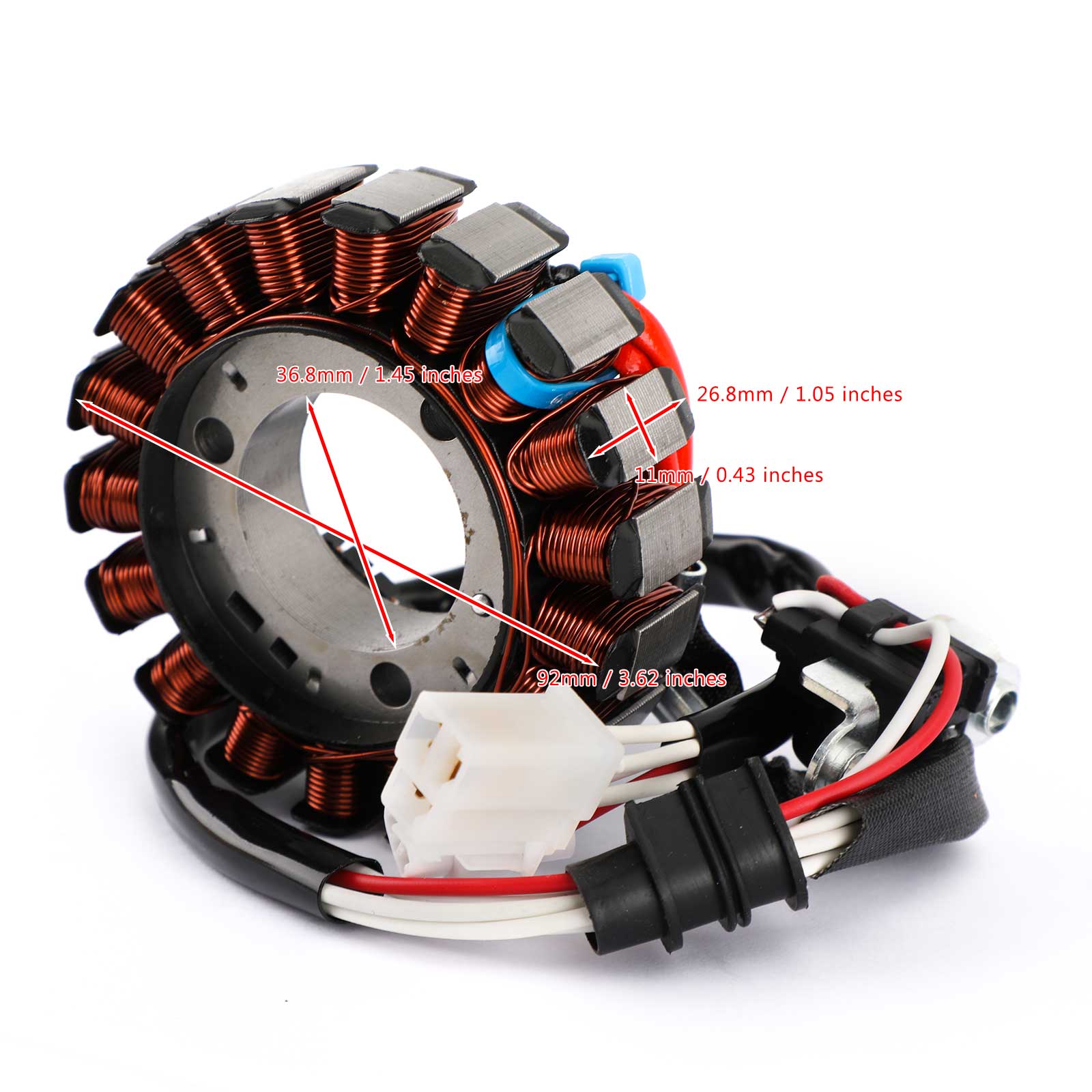

Dimensions :
Interior diameter : 36.8mm / 1.45 inches
Exterior diameter : 92mm / 3.62 inches
Pole's Thickness : 26.8mm / 1.05 inches
Pole's Width : 11mm / 0.43 inches

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18

PART NUMBER:
22B-H1410-00-00
3C1-H1410-11-00

Fitments:
Fit for Yamaha MT125 MT-125 2015-2016
Fit for Yamaha MT125 MT-125 ABS 2015-2019
Fit for Yamaha WR125 WR125R 2009-2014
Fit for Yamaha WR125 WR125X 2009-2014
Fit for Yamaha YZF R125 YZF-R 125 2014-2016
Fit for Yamaha YZF-R125 ABS 2015-2018
Fit for Yamaha YZF R15 2011-2014
Fit for Yamaha YZF R15 SP 2014
Fit for Yamaha FZ150

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
