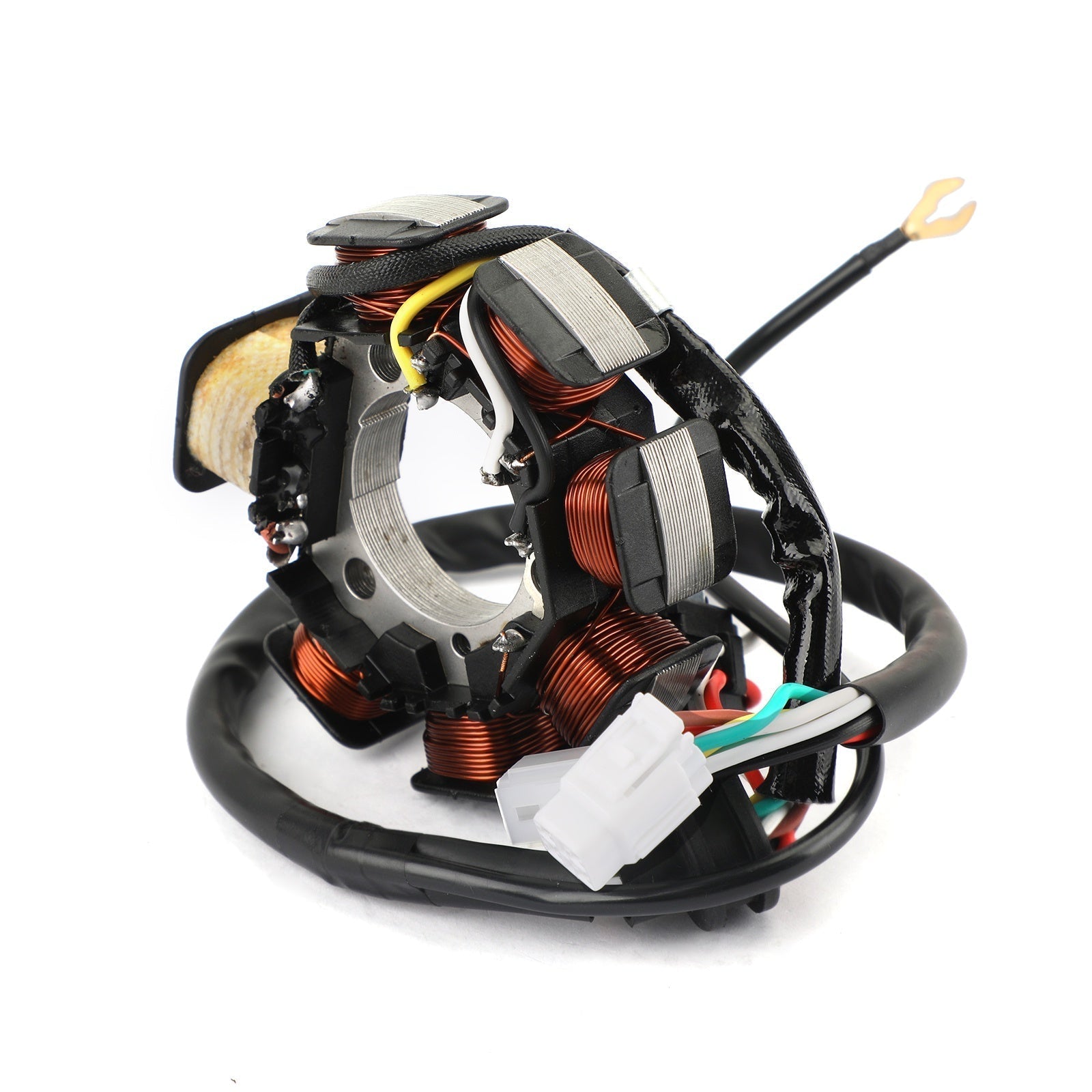

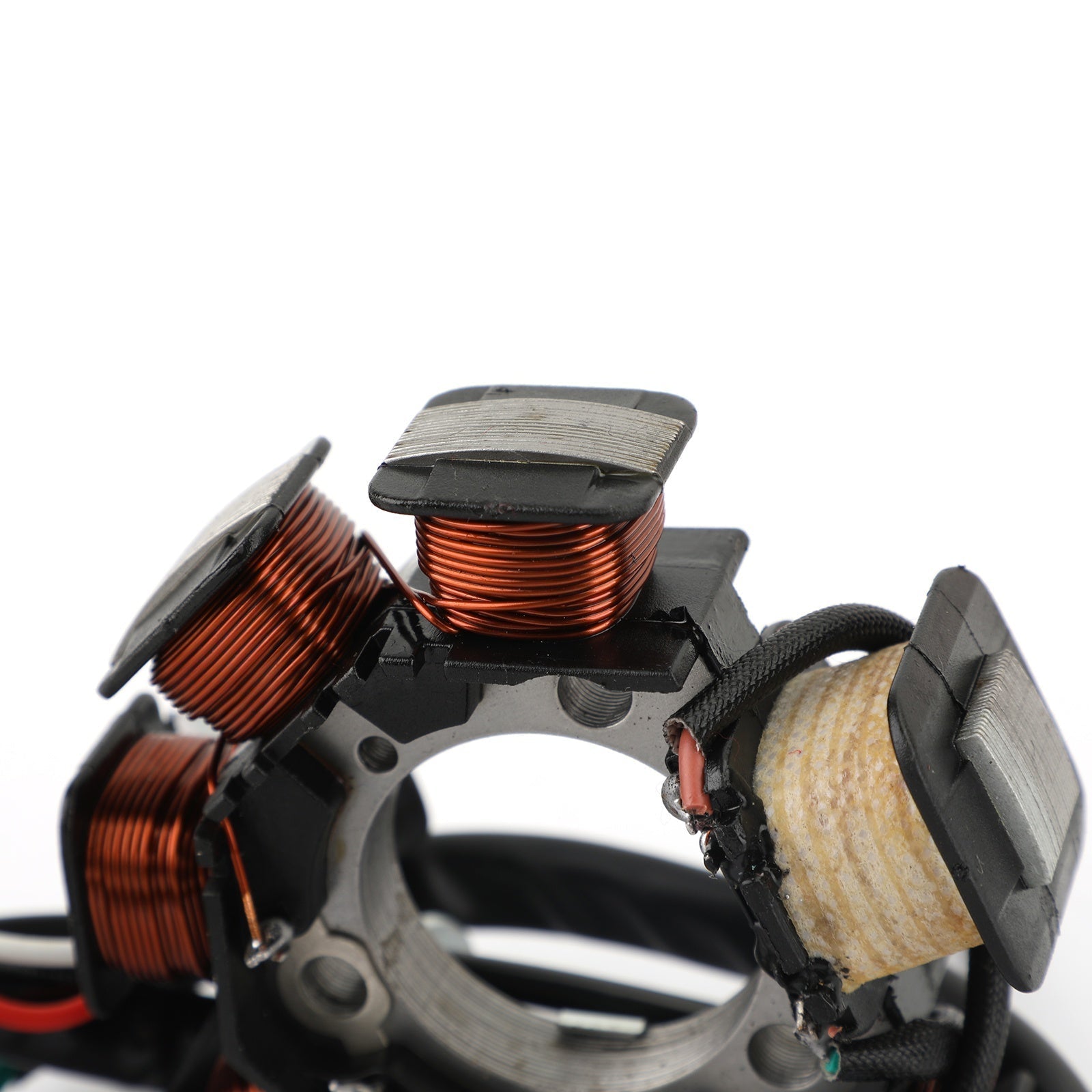

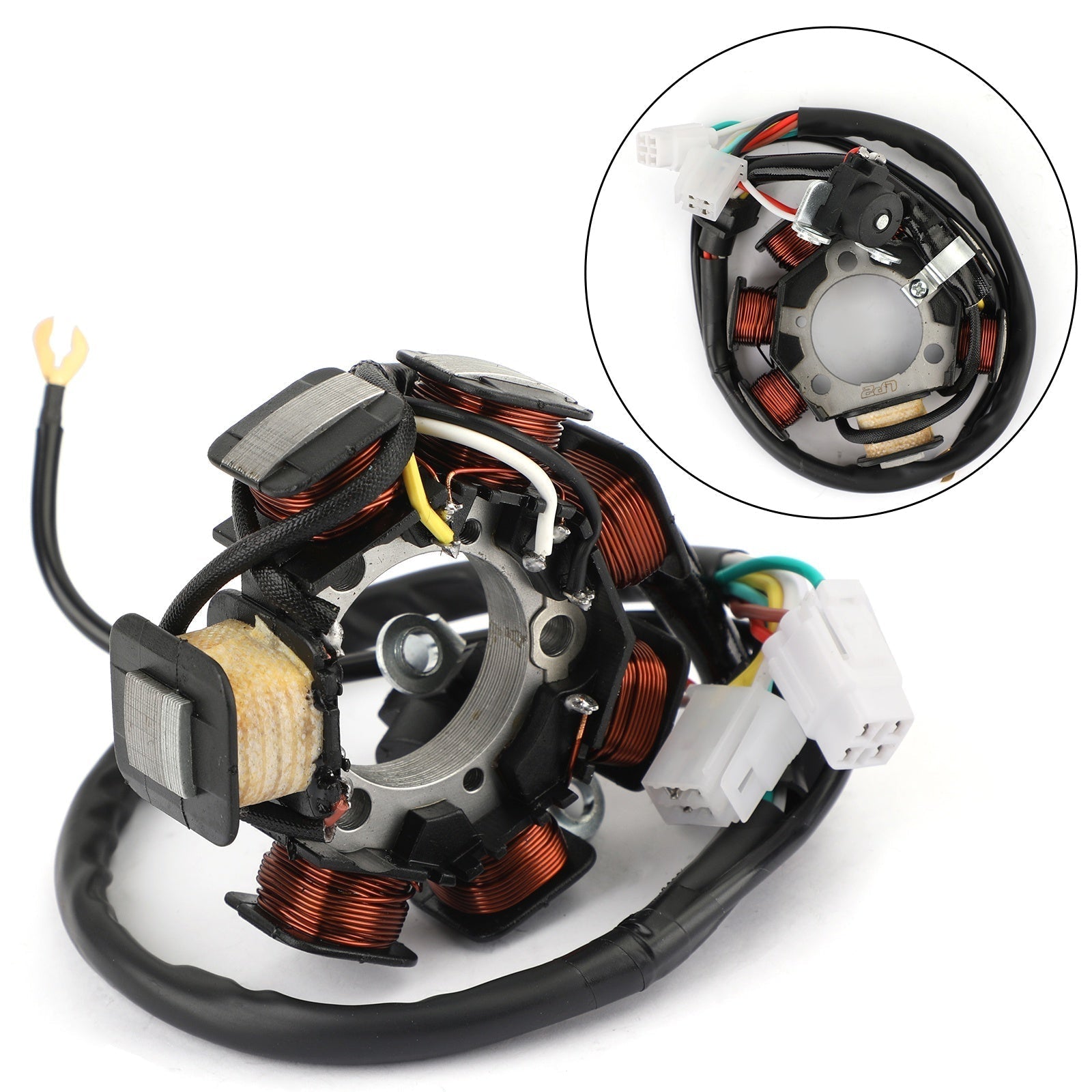

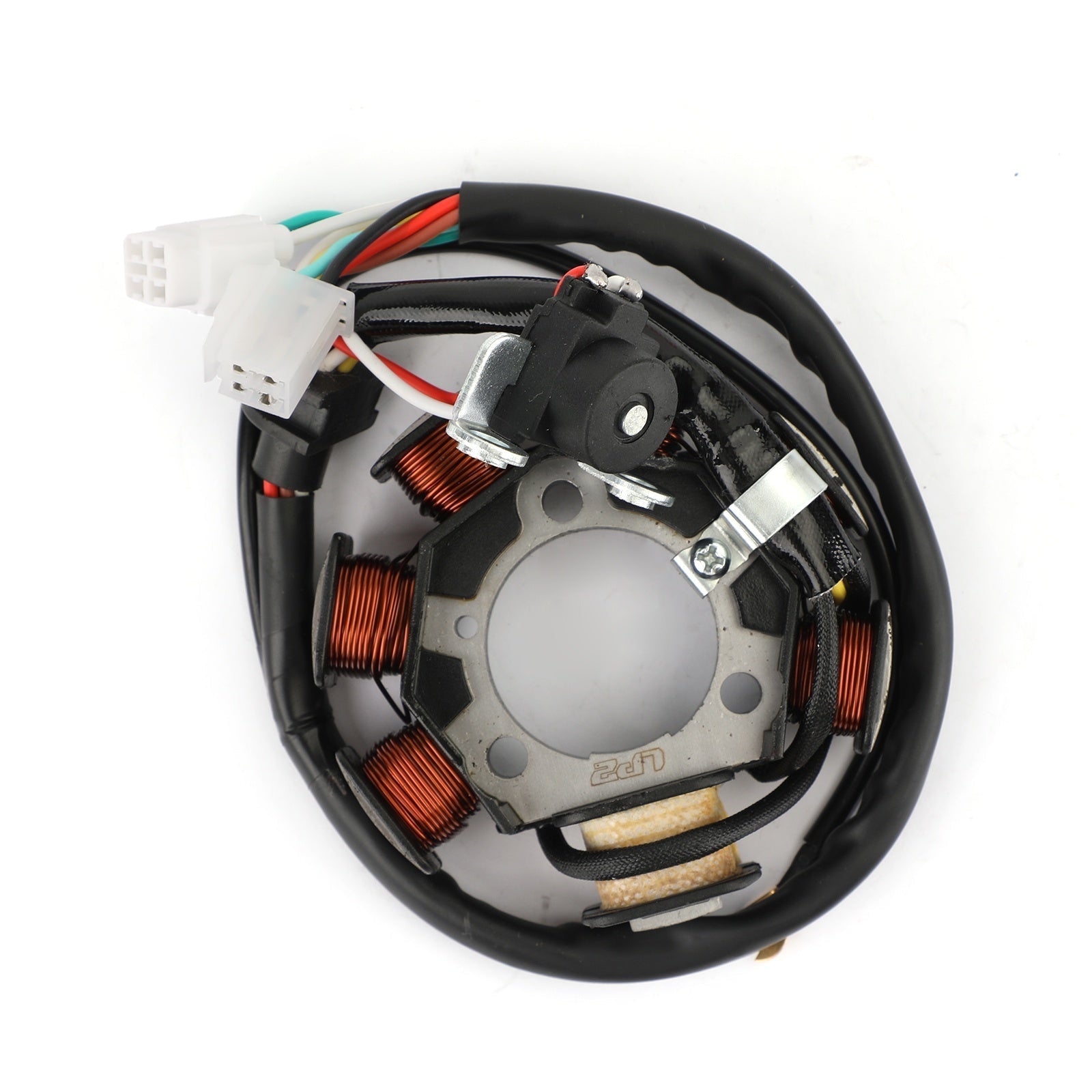

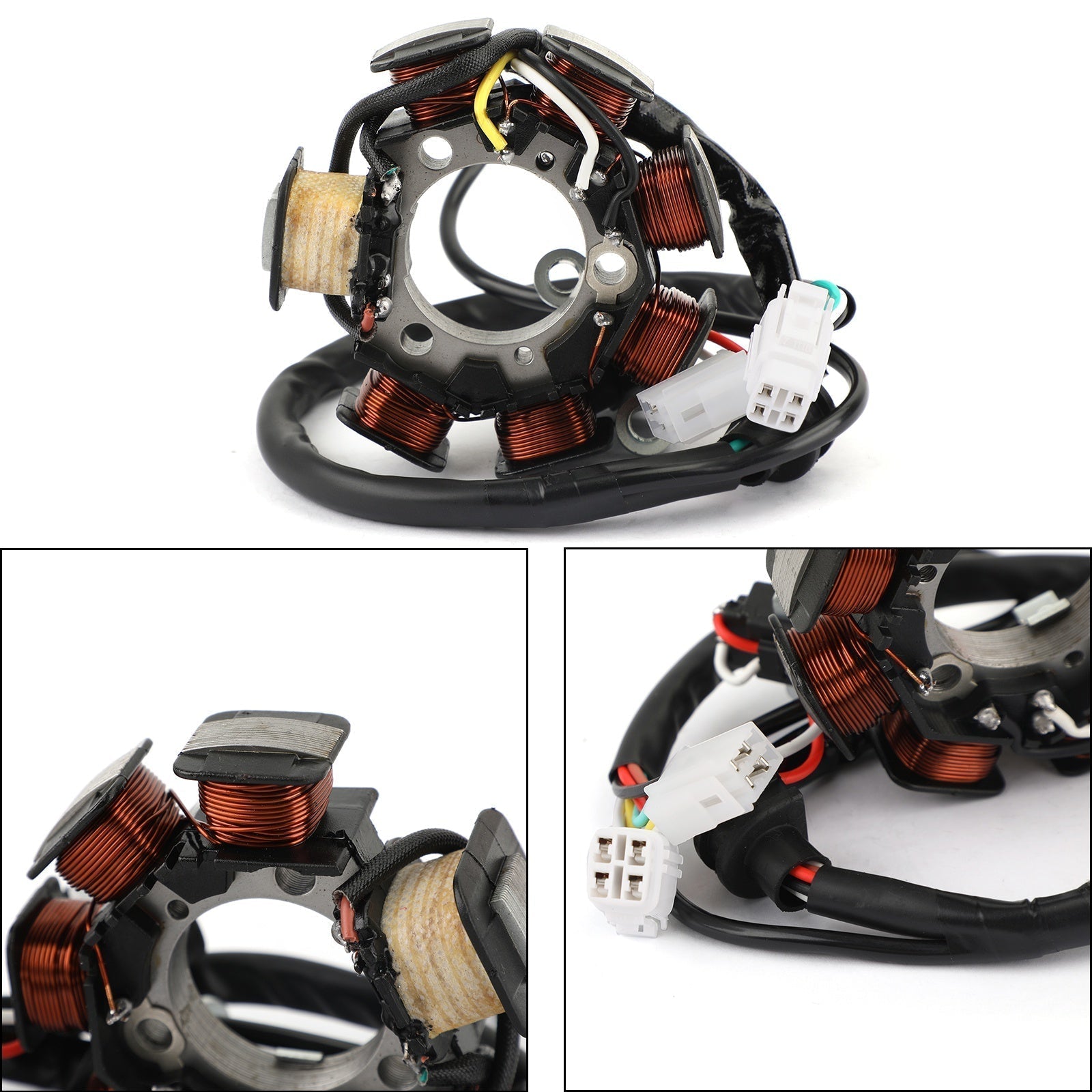

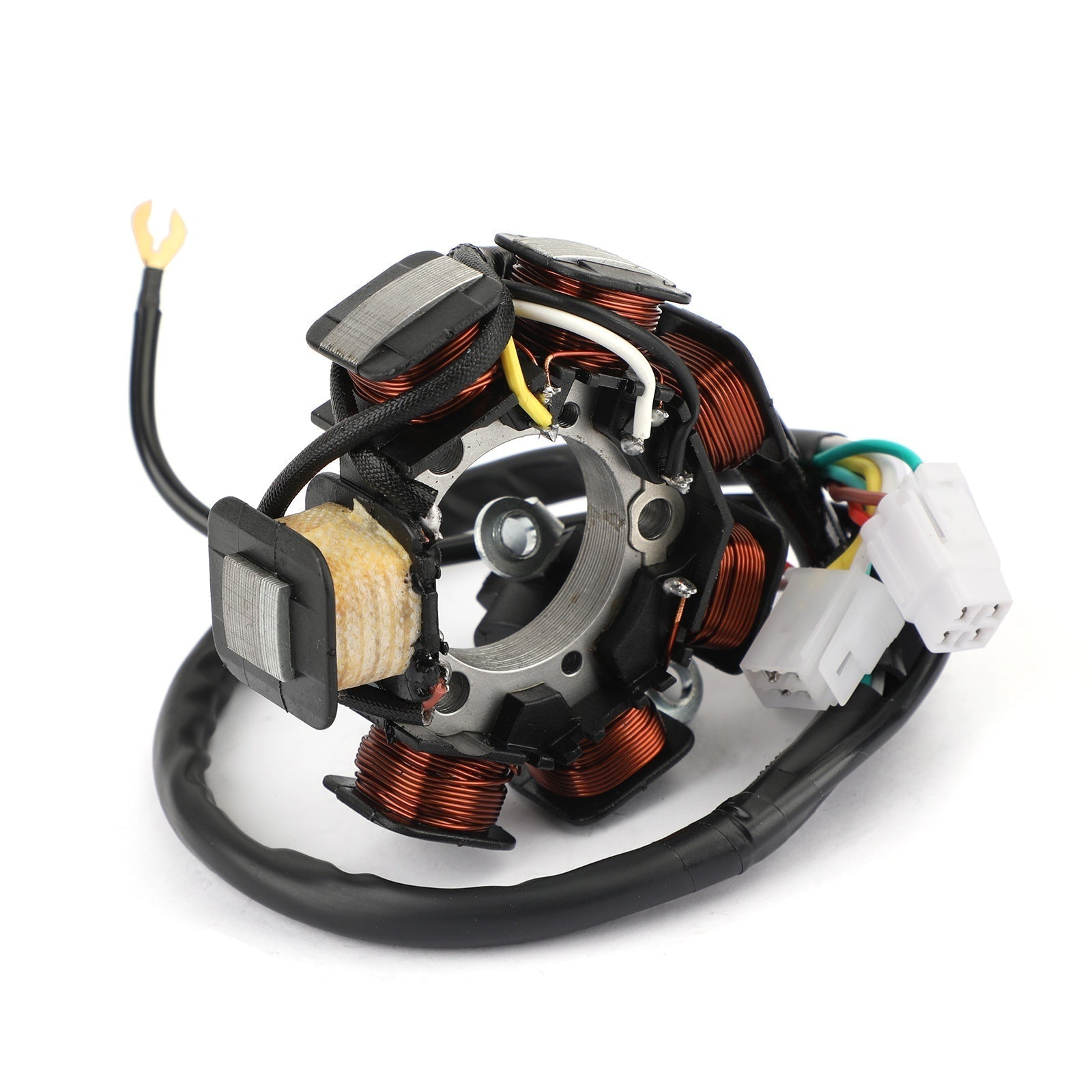

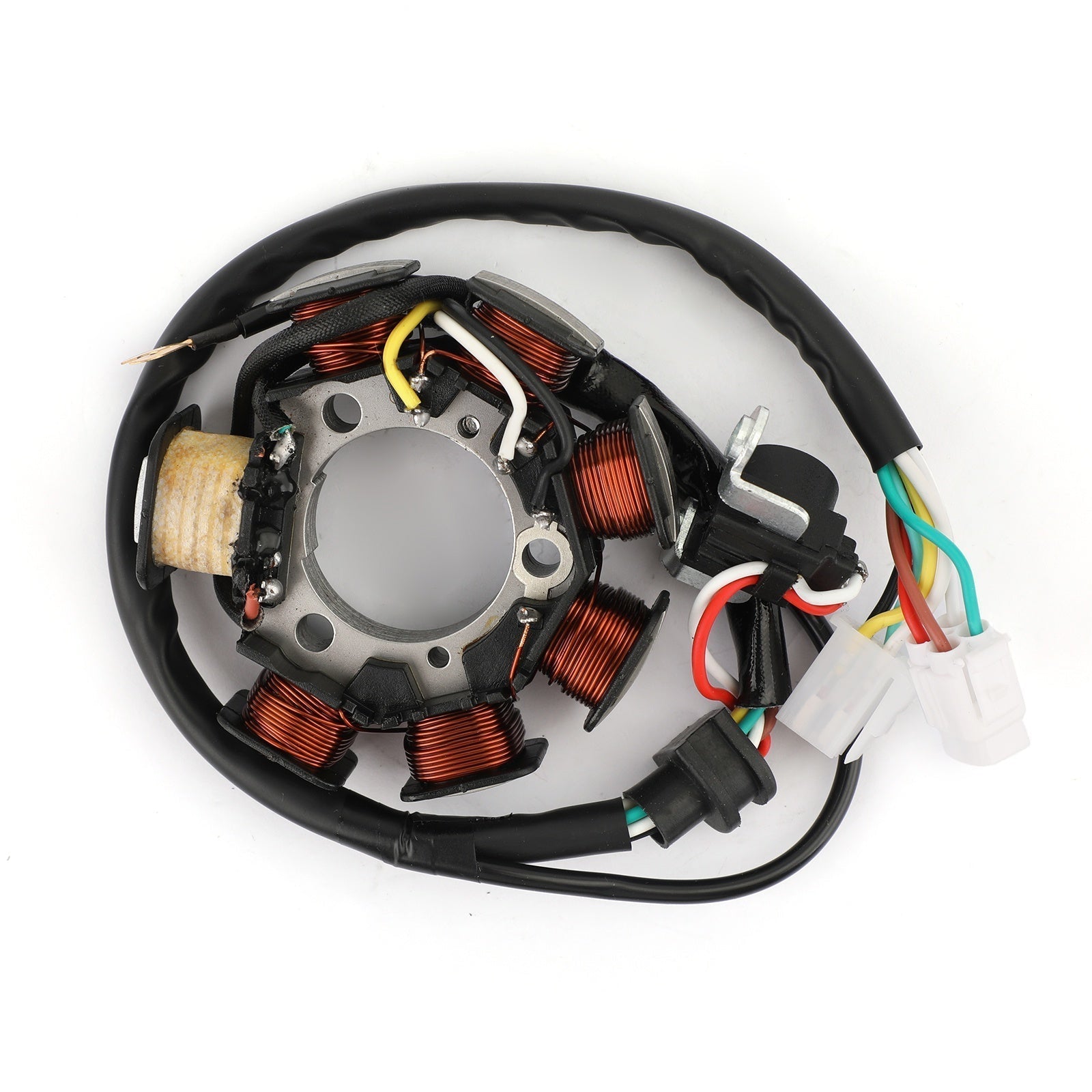

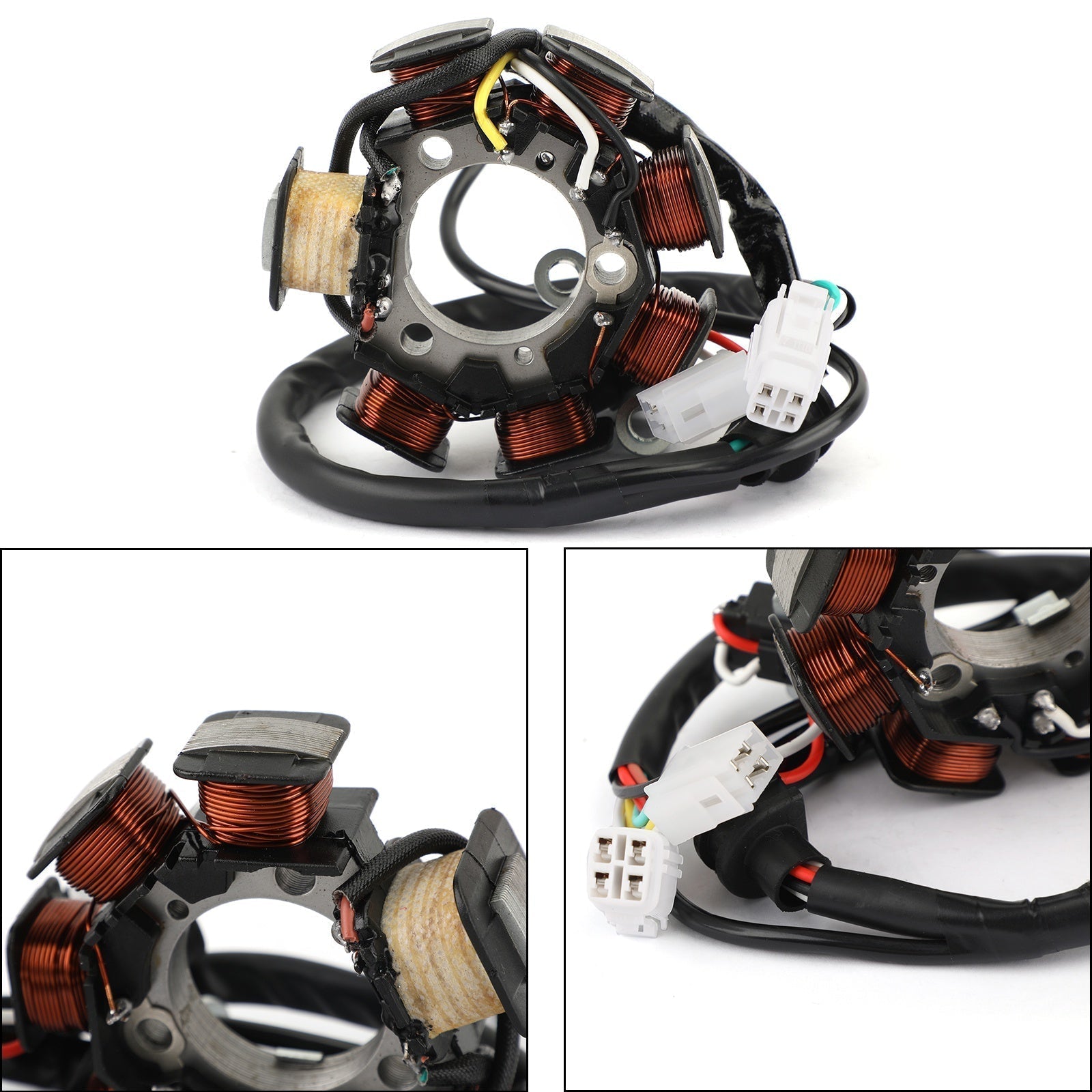

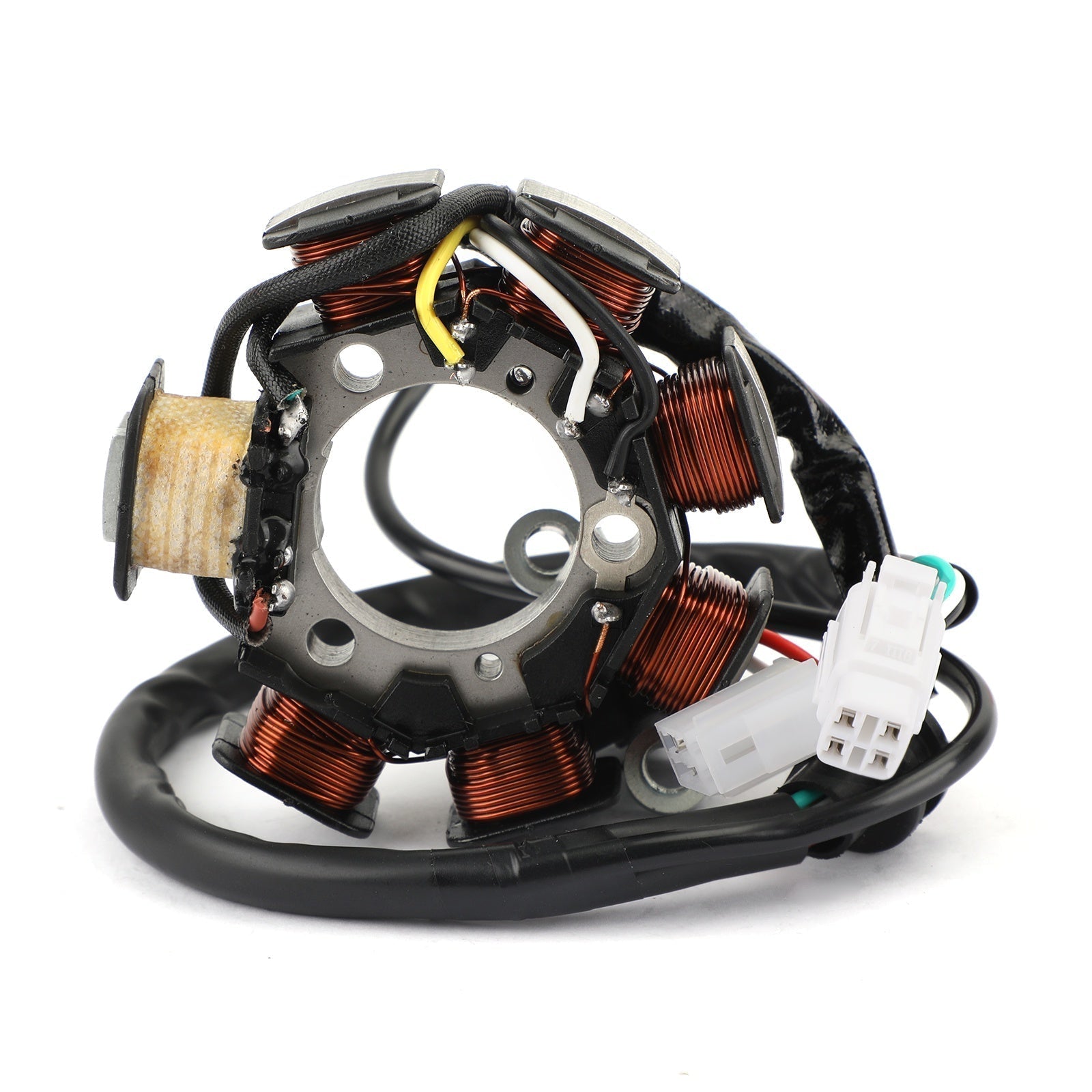

Yamaha TTR 125 TT-R 125 E LE 2003-2017 5HP-85510-10-00 Alternator Stator Generic
Yamaha TTR 125 TT-R 125 E LE 2003-2017 5HP-85510-10-00 Alternator Stator Generic
Regular price
$49.78
Sale price
$49.78
Regular price
Couldn't load pickup availability
Specifications
Specifications
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

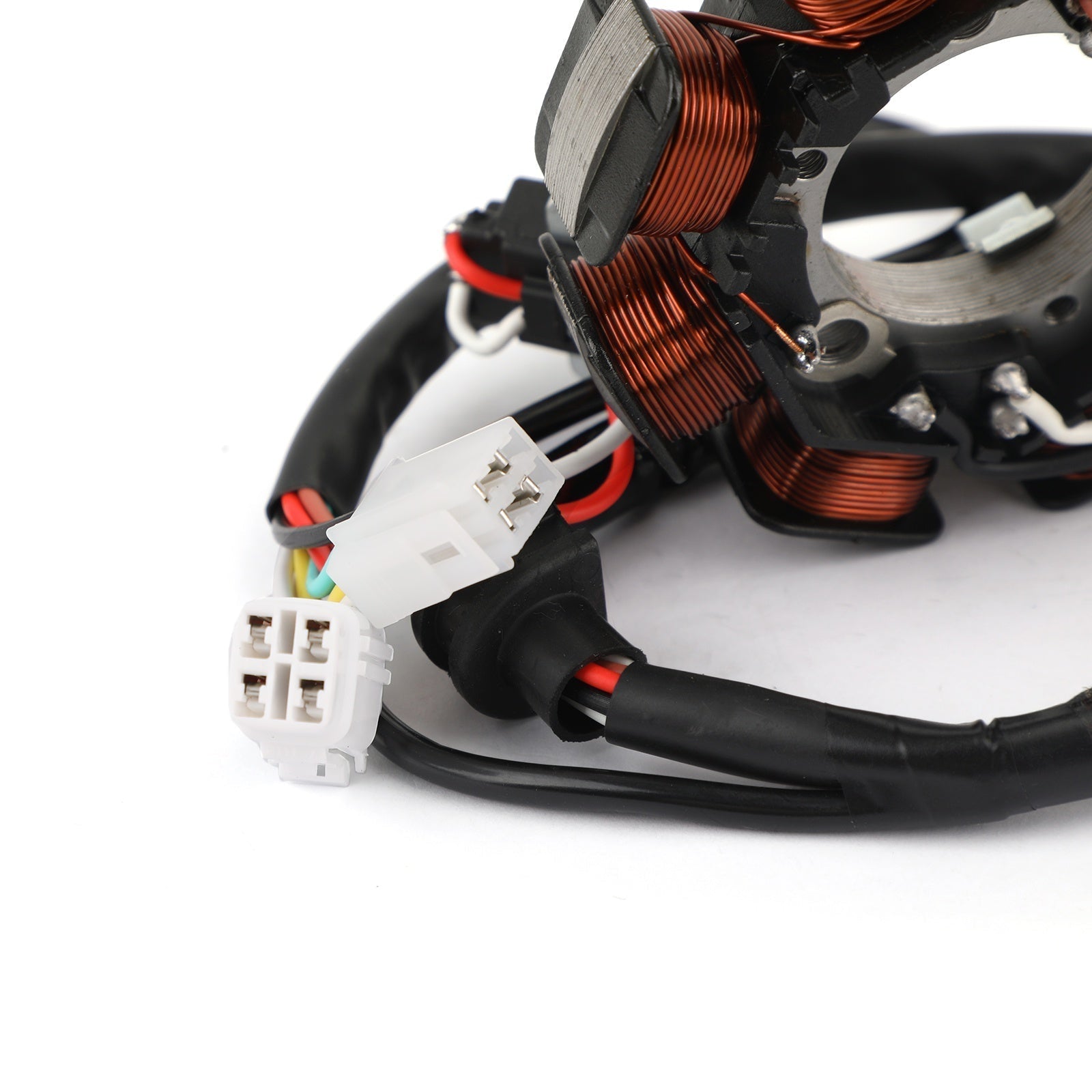

Connector included.
All products shipped are tested.
Specifications:
Condition: 100% Brand New
Quantity: 1 PC
Type: Generator Stator Coil

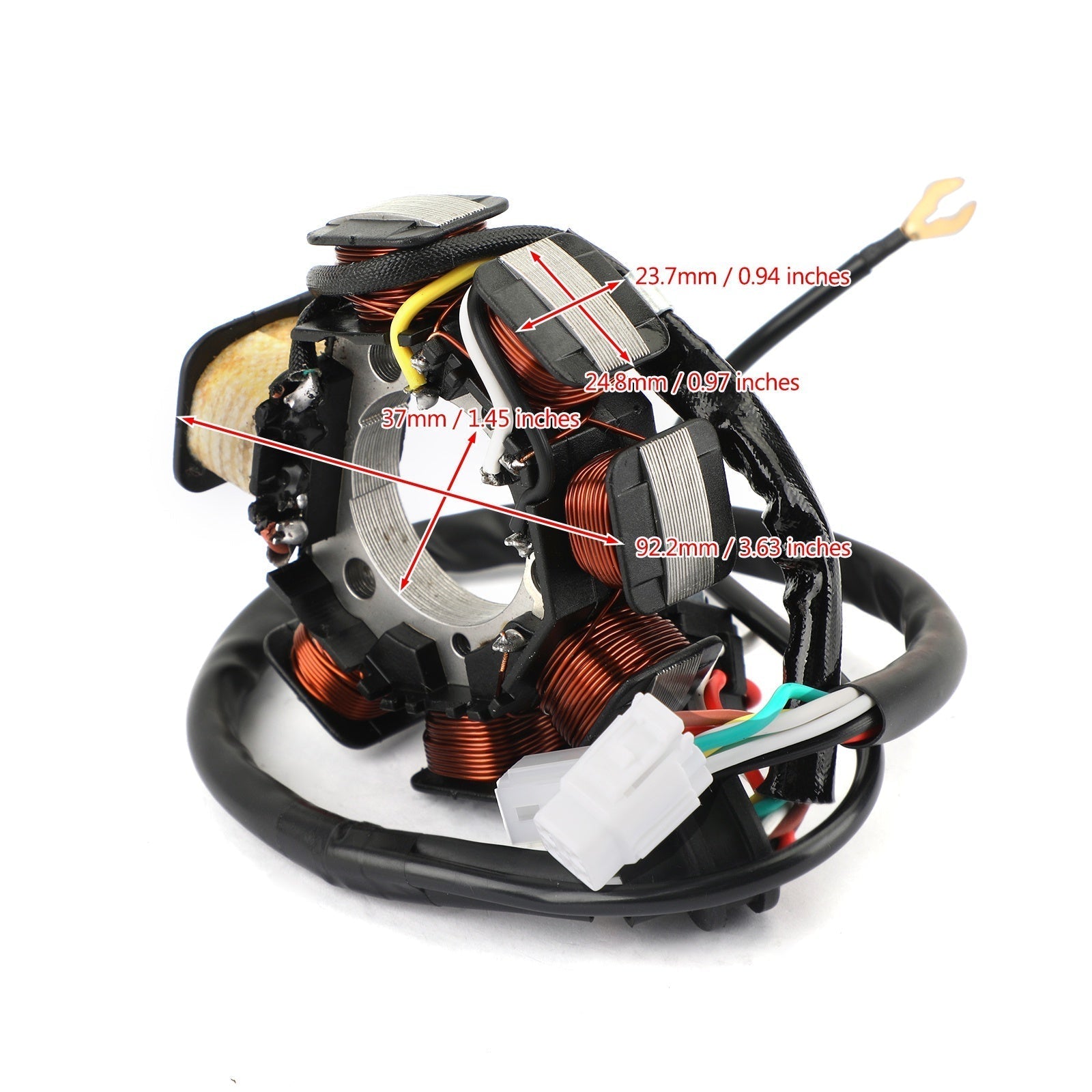

Dimensions :
Interior diameter : 37 mm / 1.45 inches
Exterior diameter : 92.2 mm / 3.63 inches
Pole's Thickness : 24.8 mm / 0.97 inches
Pole's Width : 23.7 mm / 0.94 inches
Other Specifications :
Number of wires: 8
Number of pins: 8
Number of plugs: 2(+1)
Number of fixation holes: 3(+1)
Number of poles: 7
Part Number(s):
5HP-85510-10-00
5HP-H5510-10-00
Fitments:
For Yamaha TTR125ER TT-R125 2003
For Yamaha TTR125ES TT-R125 2004
For Yamaha TTR125ET TT-R125 2005
For Yamaha TTR125EV TT-R125 2006
For Yamaha TTR125EW TT-R125 2007
For Yamaha TTR125EX TT-R125 2008
For Yamaha TTR125EY TT-R125 2009
For Yamaha TTR125LER TT-R125 2003
For Yamaha TTR125LES TT-R125 2004
For Yamaha TTR125LET TT-R125 2005
For Yamaha TTR125LEV TT-R125 2006
For Yamaha TTR125LEW TT-R125 2007
For Yamaha TTR125LEX TT-R125 2008
For Yamaha TTR125LEY TT-R125 2009
For Yamaha TTR125LEA TT-R125 2011
For Yamaha TTR125LEB TT-R125 2012
For Yamaha TTR125LED TT-R125 2013
For Yamaha TTR125E TT-R125 2003-2010
For Yamaha TTR125L TT-R125 2003-2004
For Yamaha TT-R125LE TT-R125 2004-2013
For Yamaha TTR125LEE TT-R125 2014
For Yamaha TTR125LEF TT-R125 2015
For Yamaha TTR125LEG TT-R125 2016
For Yamaha TTR125LEH TT-R125 2017
For Yamaha TT-R125LWE TT-R125 2014-2017
Package Included:
1 x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
