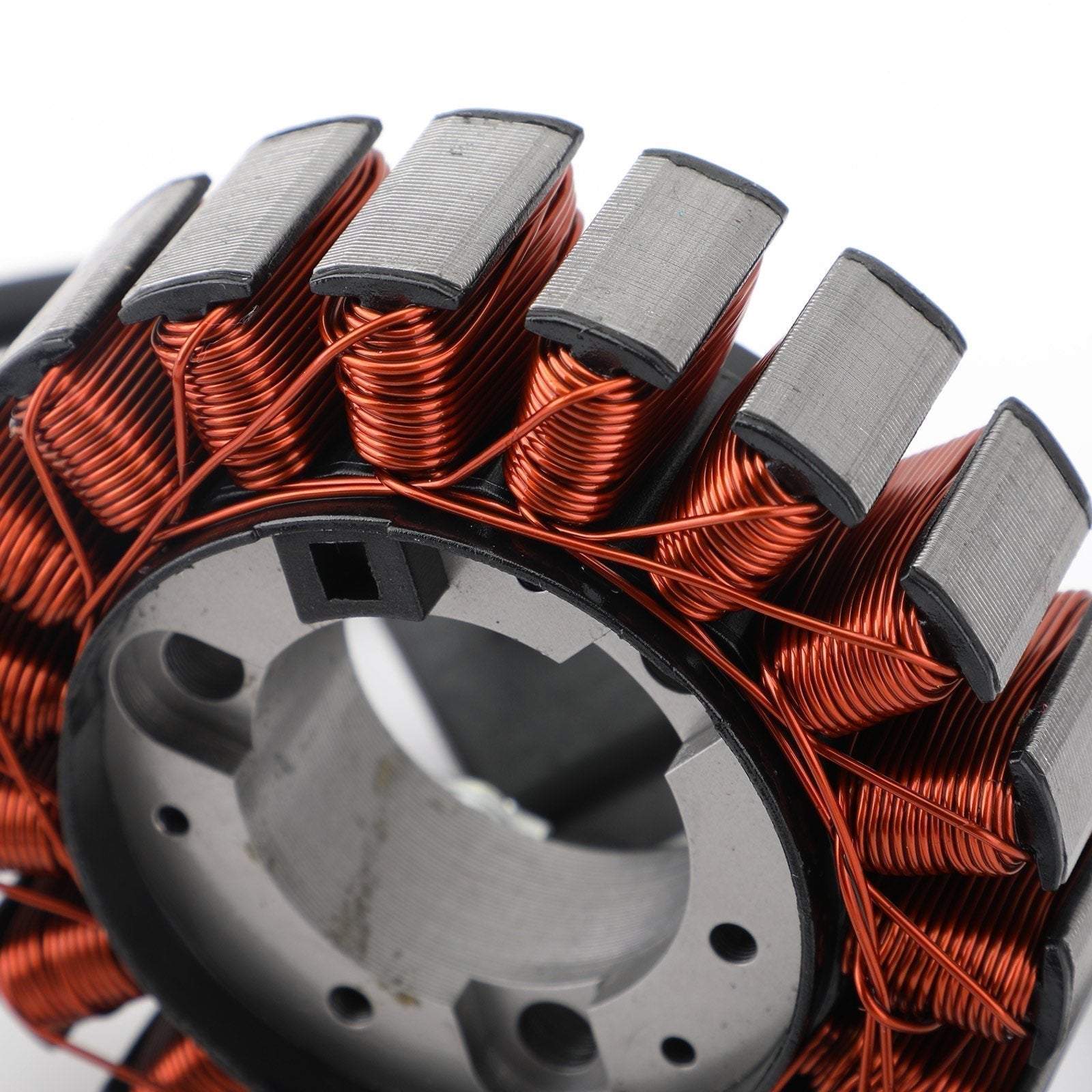

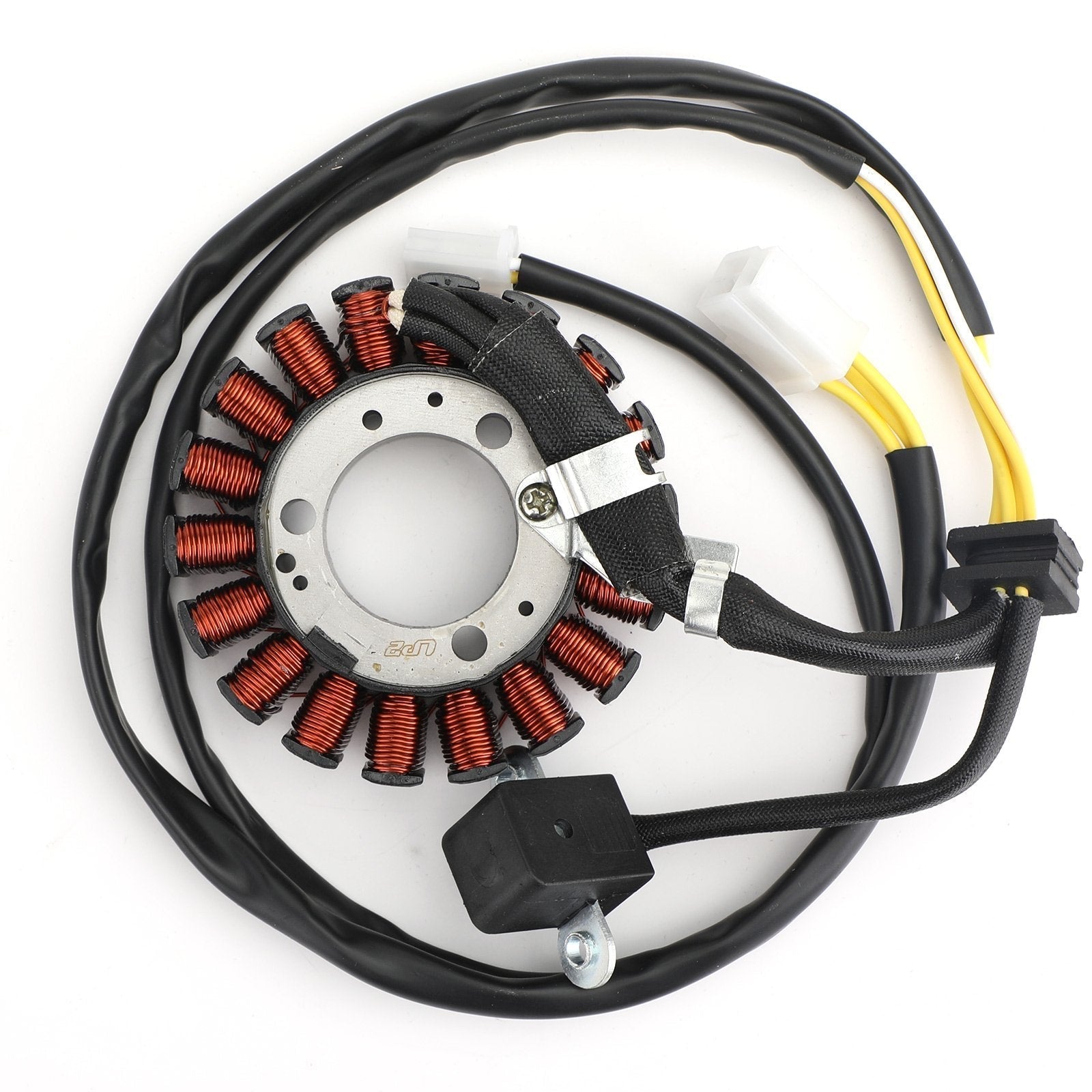

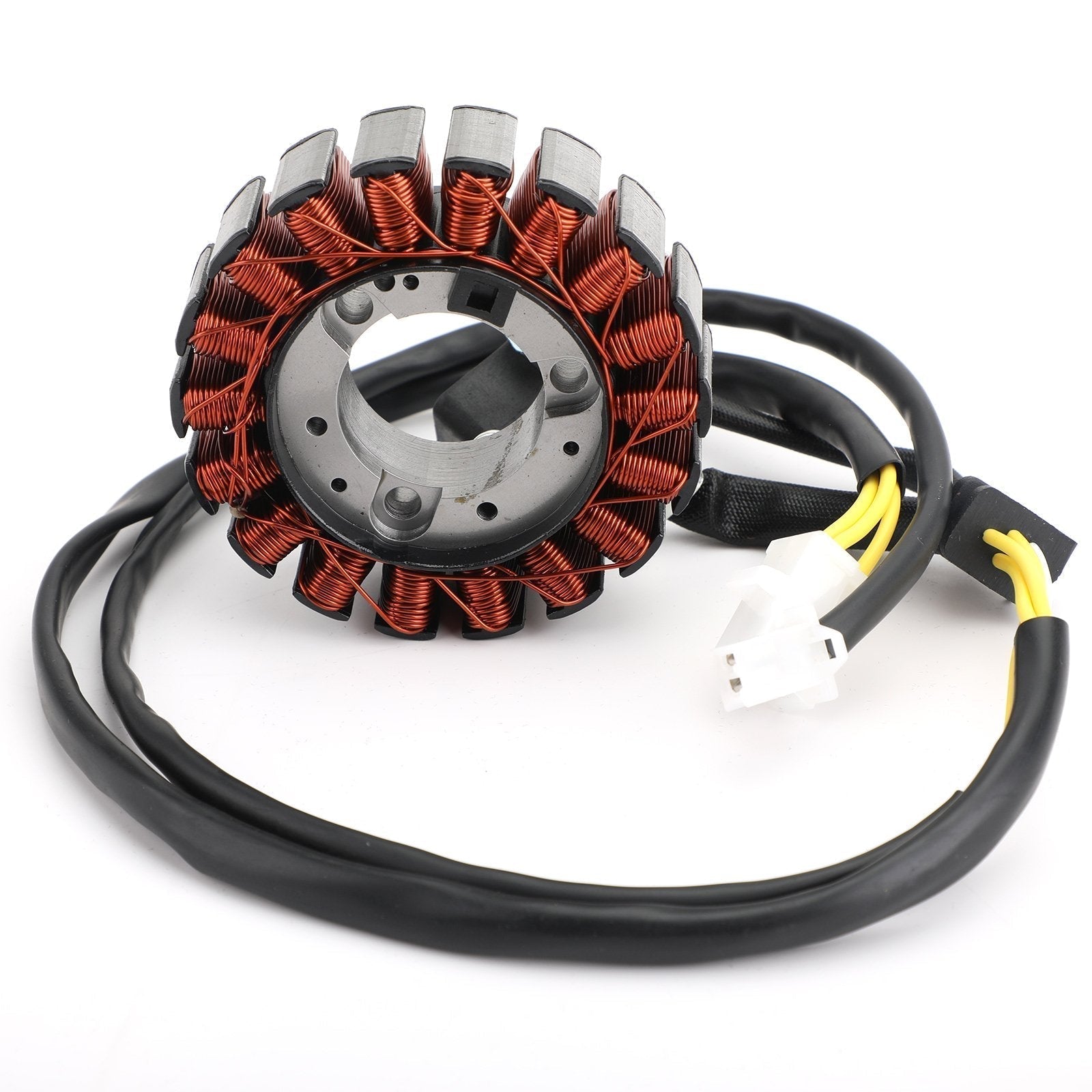

Alternator Stator Fit For Honda VT125 Shadow 99-07 XL125V XLV125 Varadero JC32 01-06 Generic

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

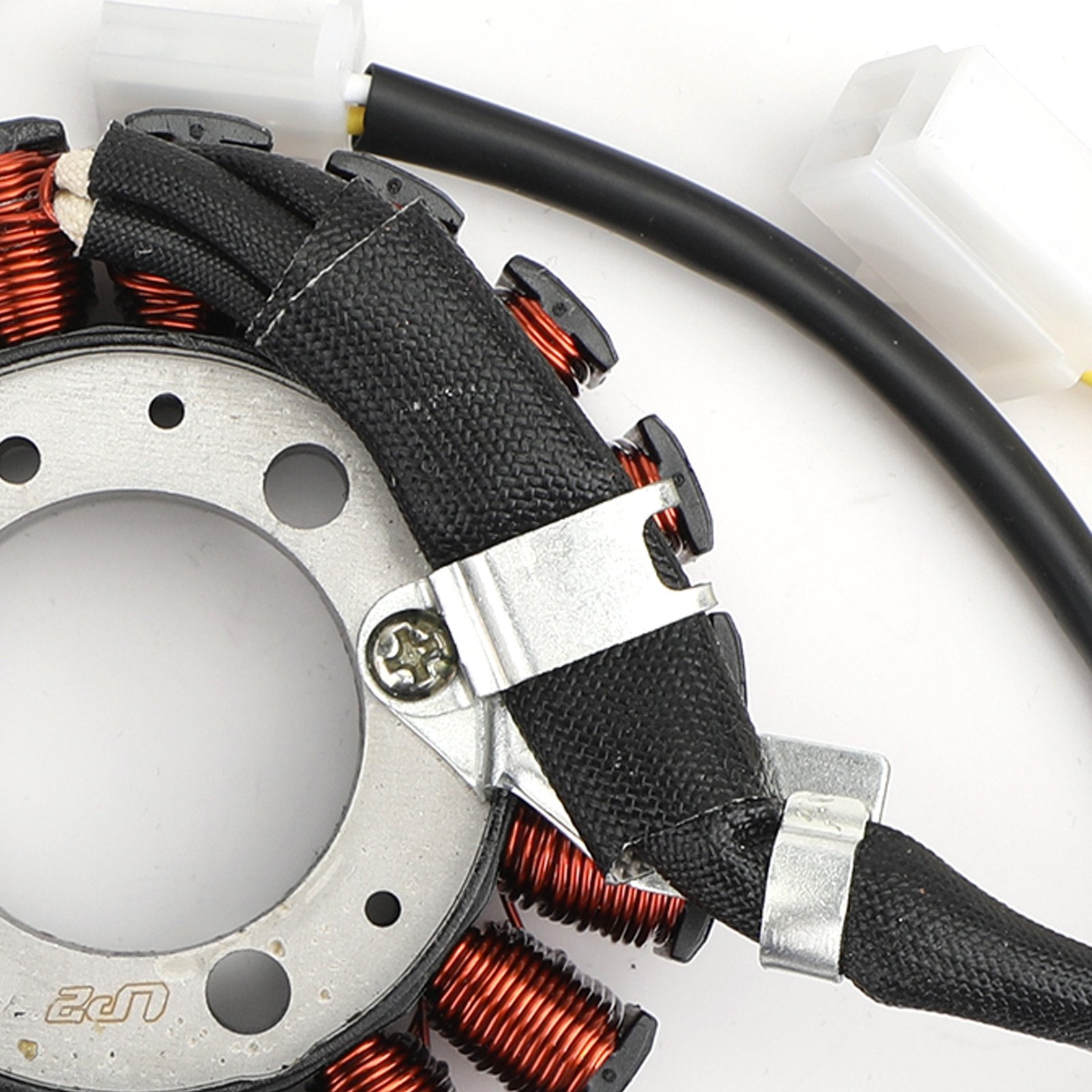

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:31120-KPC-640 / 31120-KPC-D21 / 31120-KGB-D11

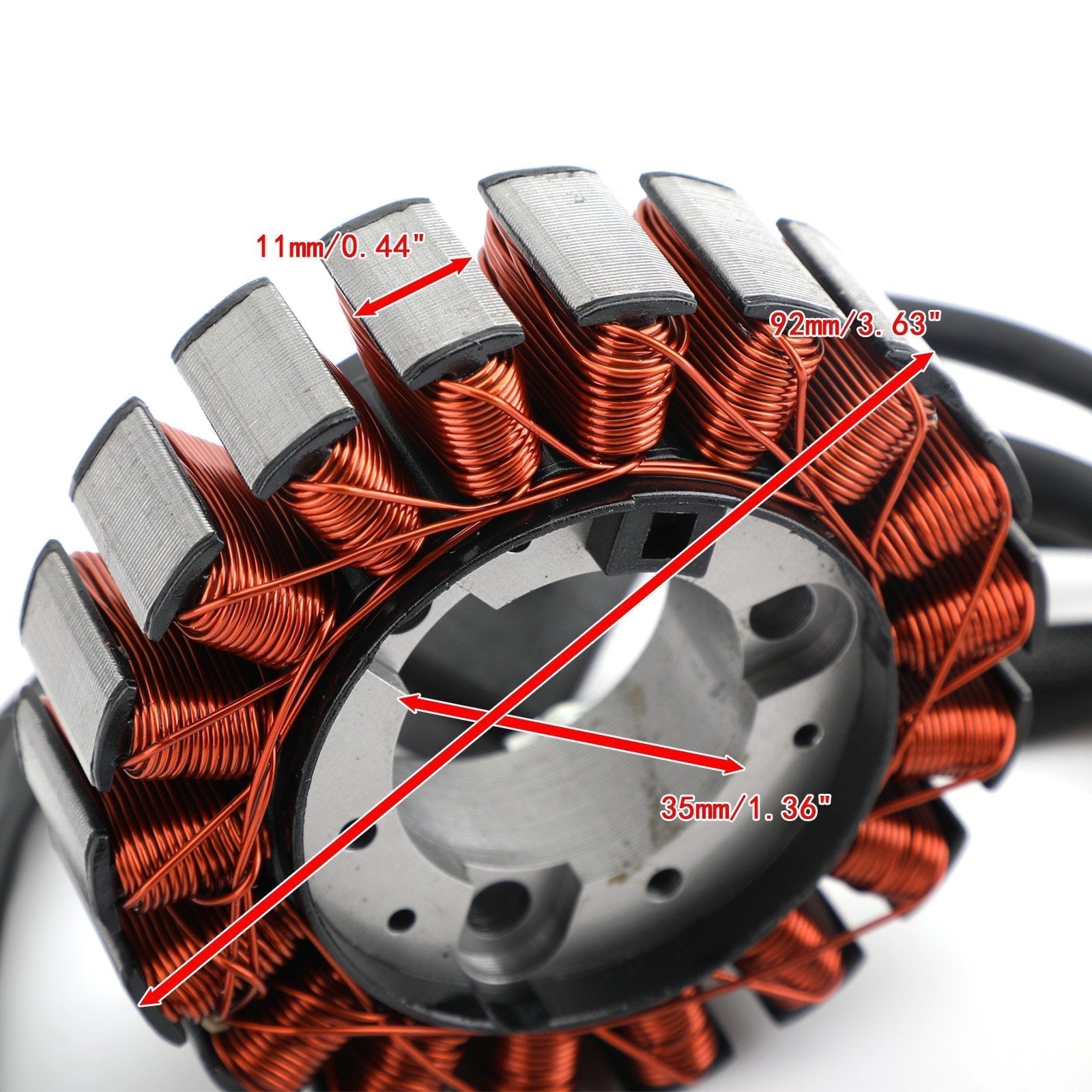

Dimensions :
Interior diameter : 35mm / 1.36"
Exterior diameter : 92mm / 3.63"
Thickness : 11mm / 0.44"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 42mm/1.64"

FITMENT:
For Honda VT125 Shadow 125 1999-2007
For Honda VT125C2 Shadow125 2000-2001
For Honda XL125V XLV125 Varadero 125 JC32 2001-2006

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
