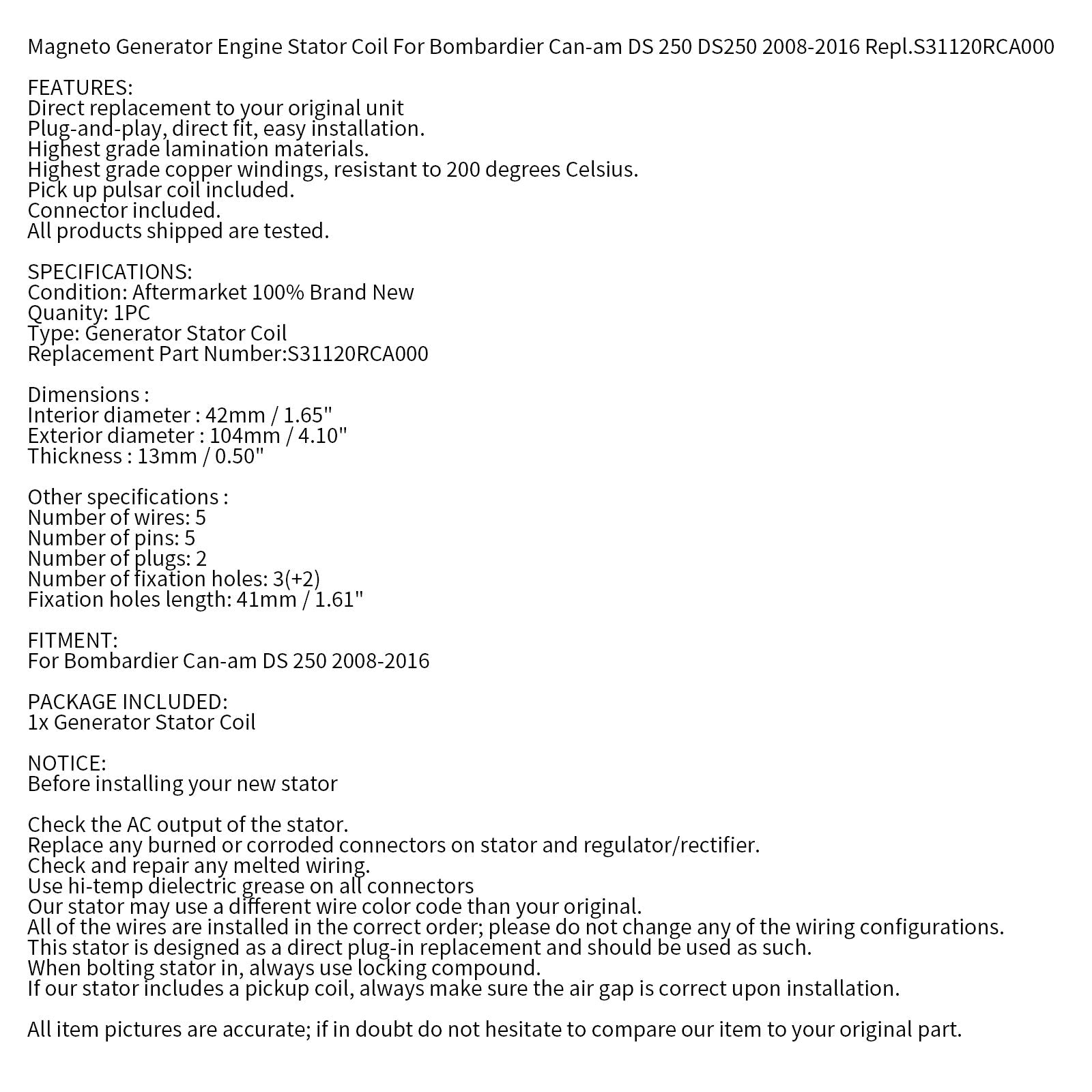

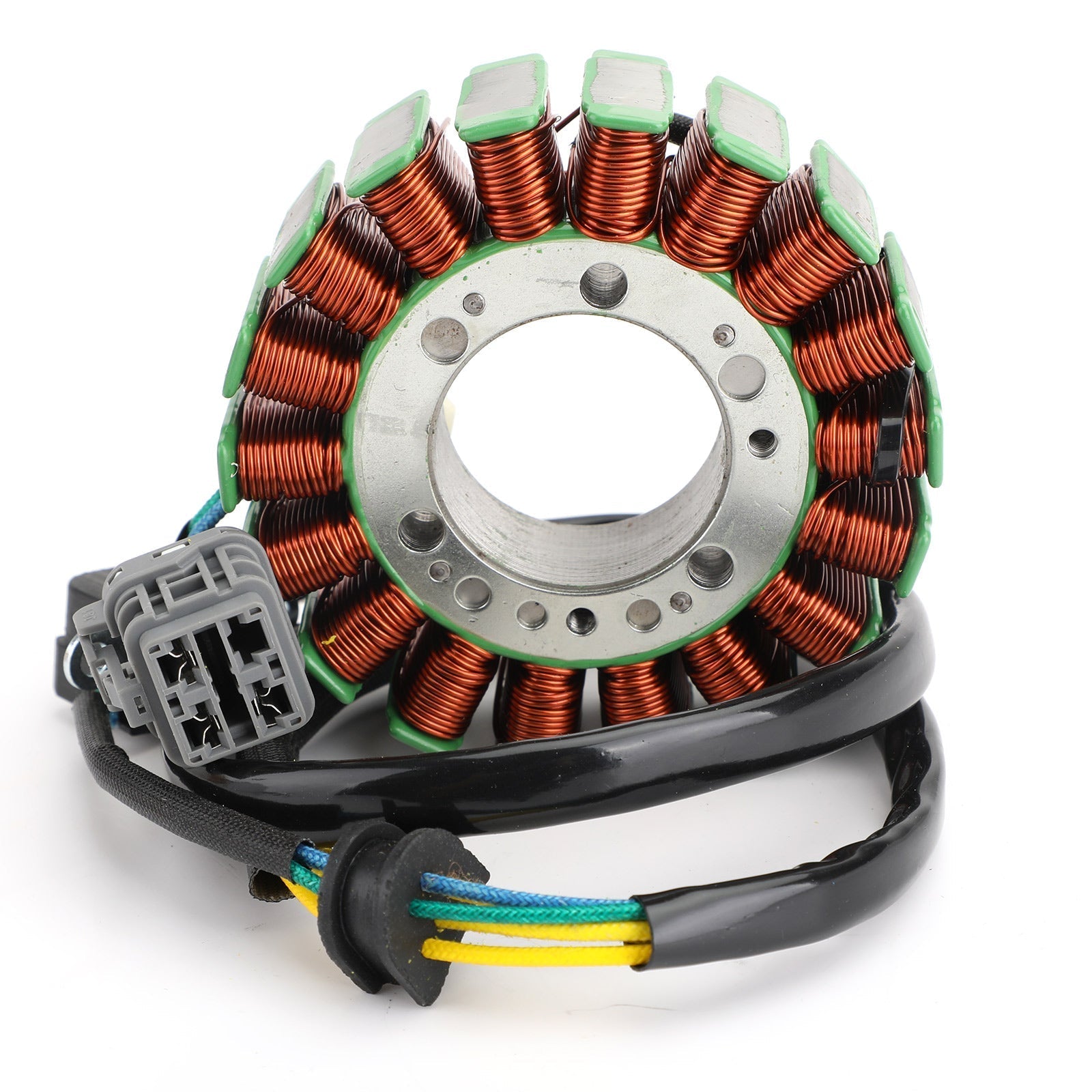

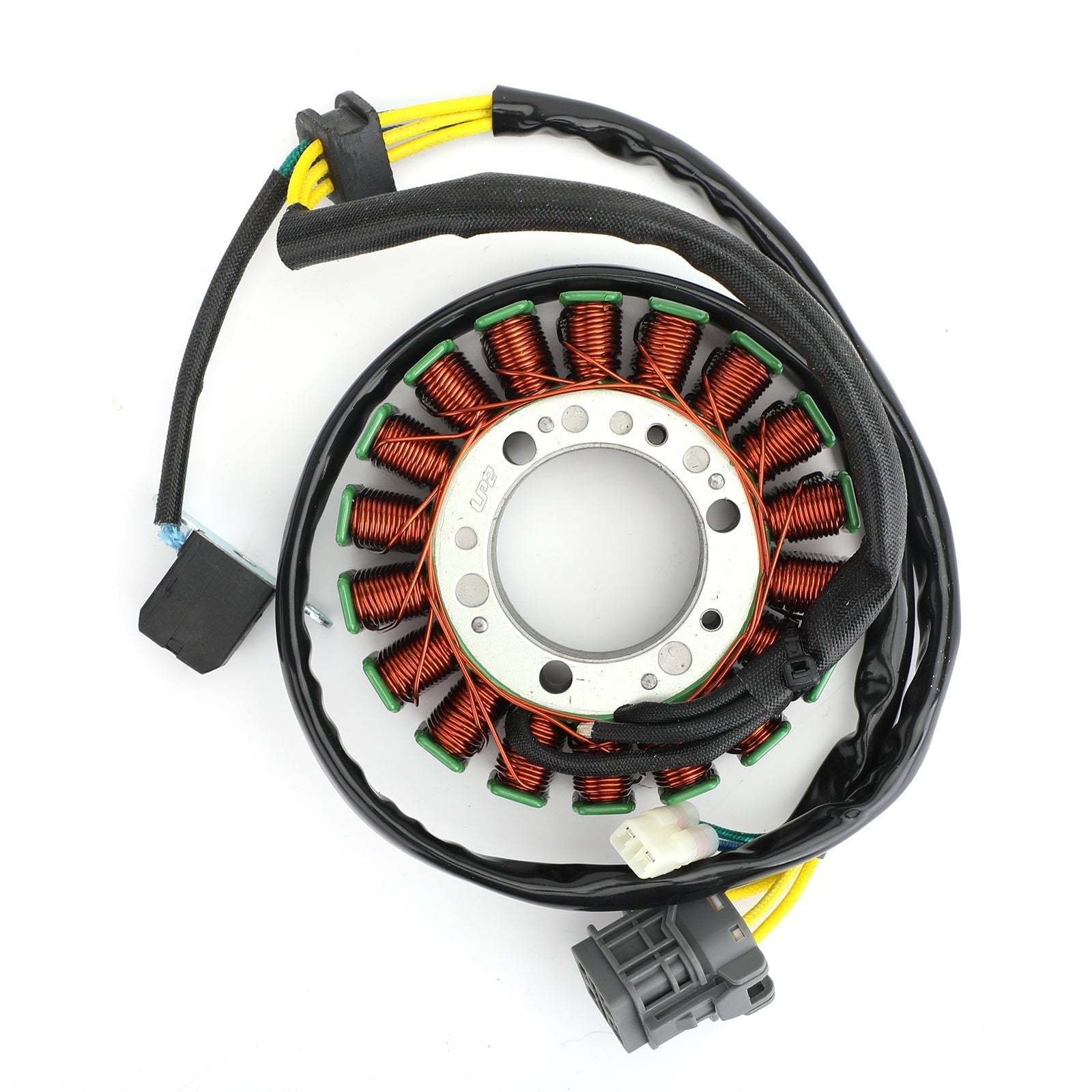

Alternator Stator Assembly For Can-Am DS 250 DS250 2008-2016 Repl.S31120RCA000 Generic

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

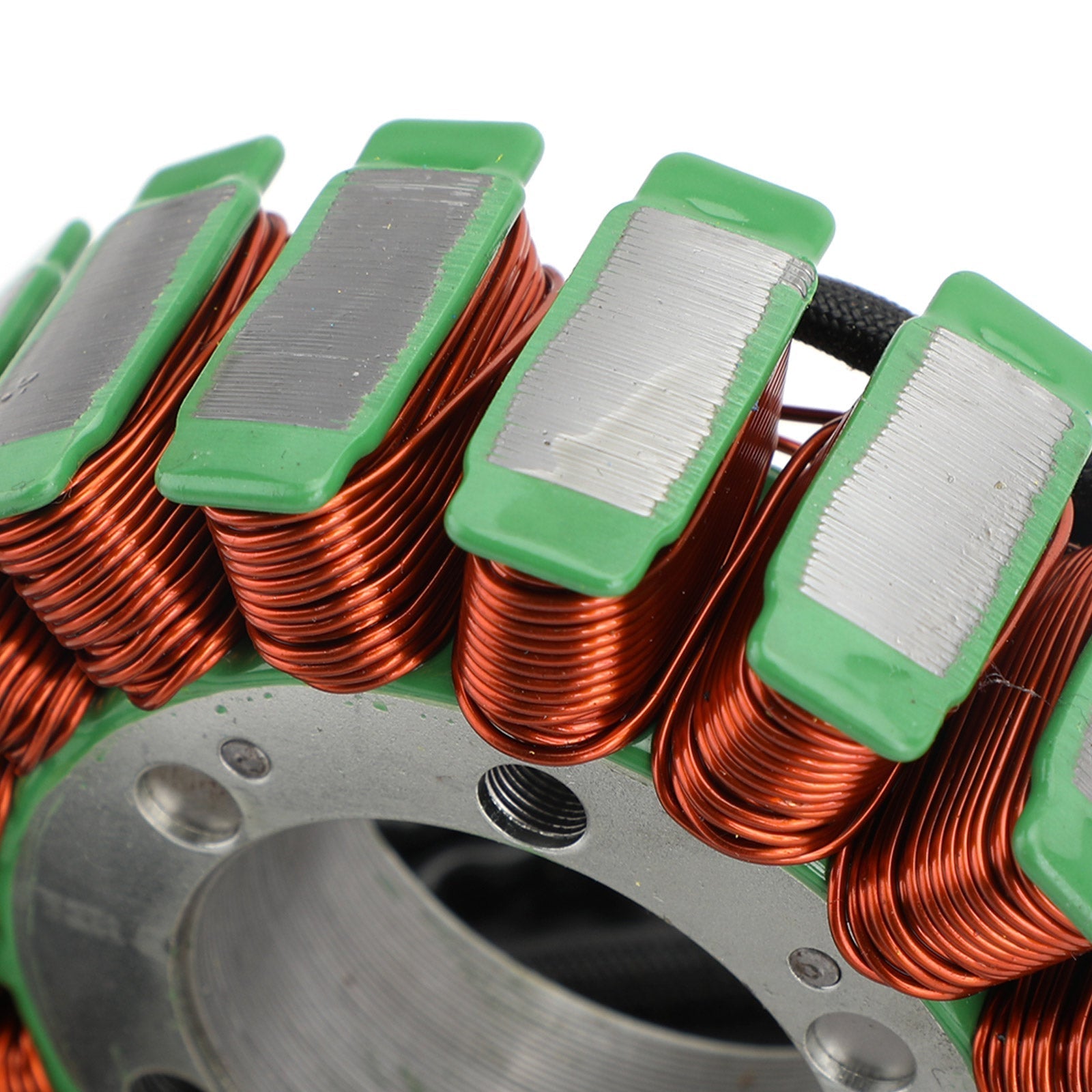

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

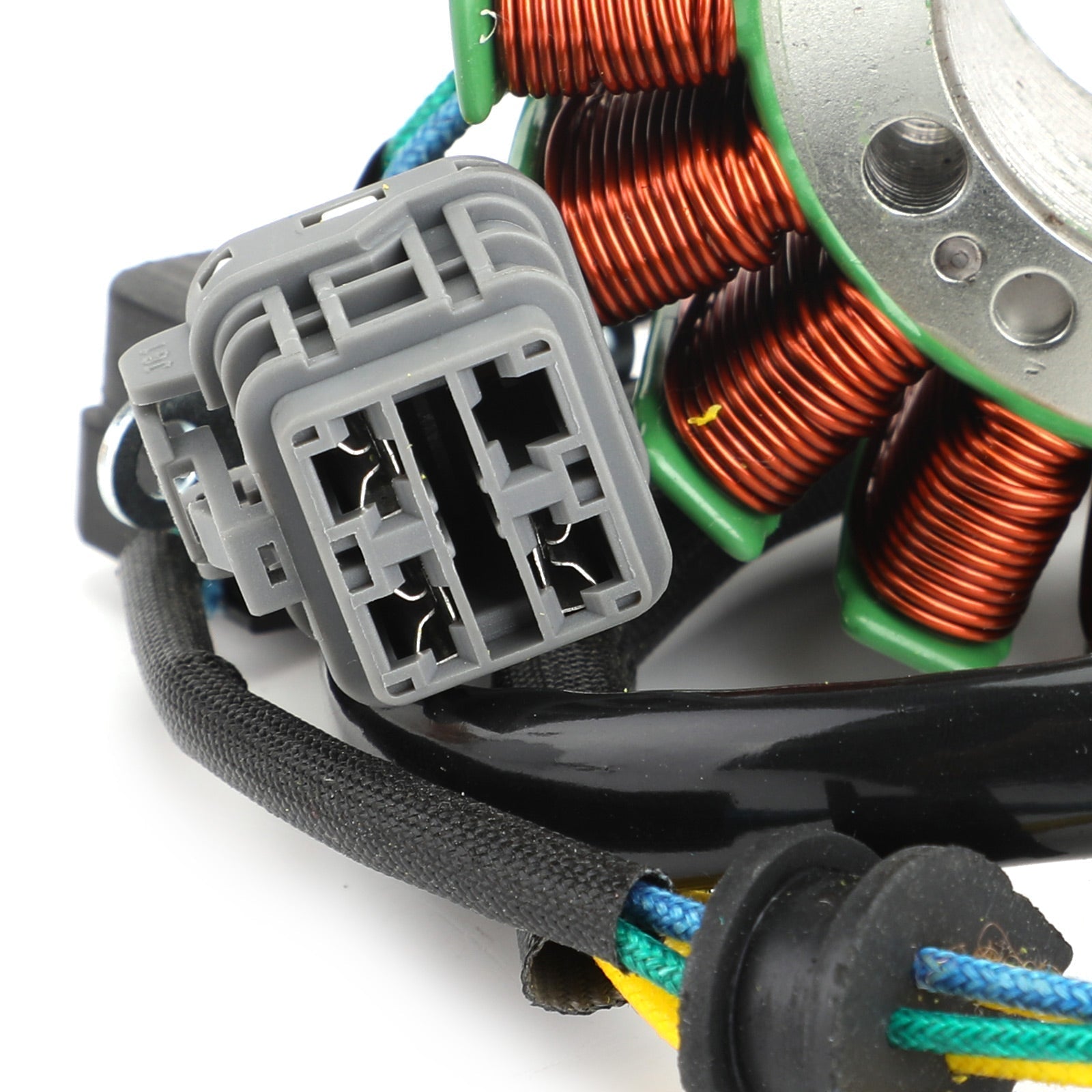

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:S31120RCA000

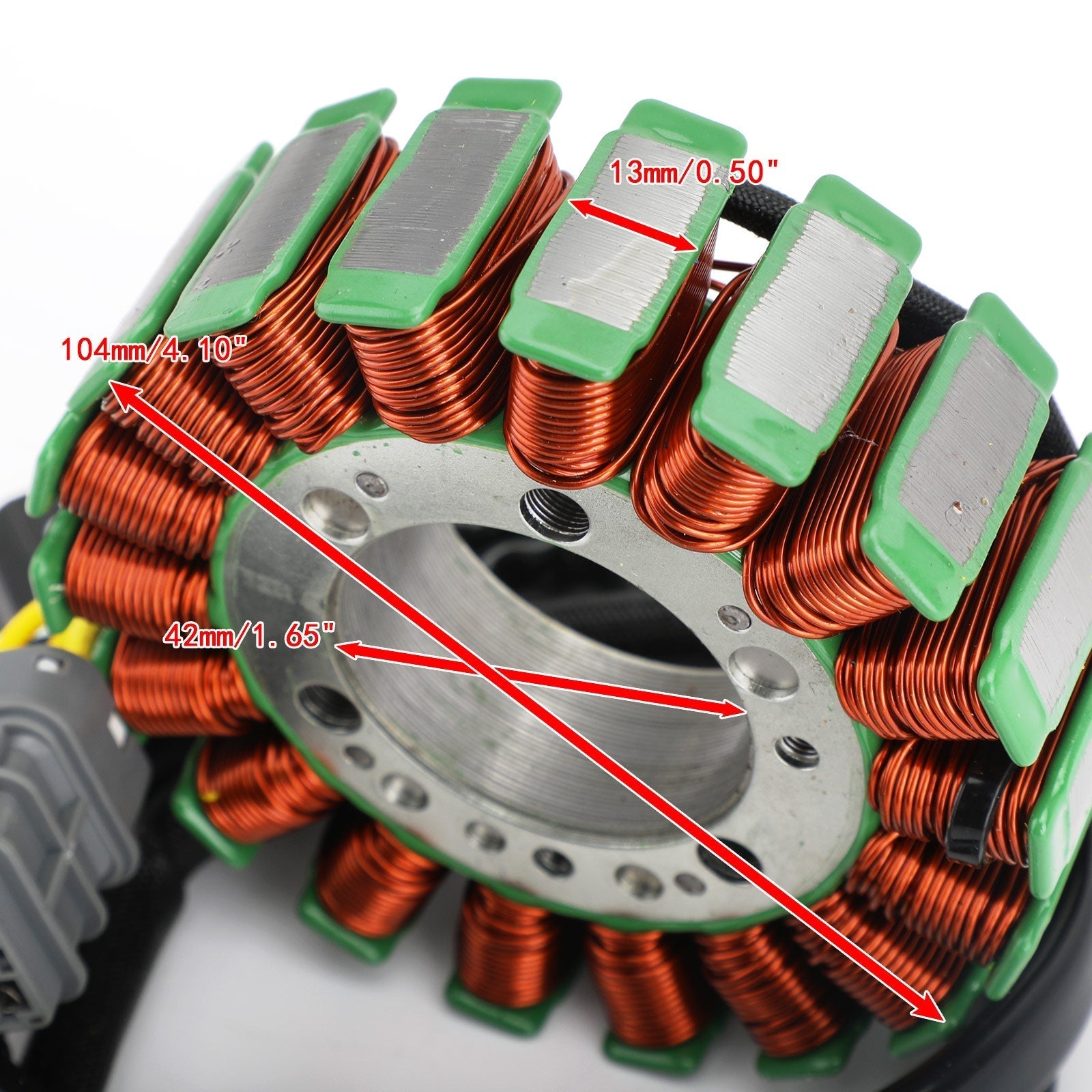

Dimensions :
Interior diameter : 42mm / 1.65"
Exterior diameter : 104mm / 4.10"
Thickness : 13mm / 0.50"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+2)
Fixation holes length: 41mm / 1.61"

FITMENT:
For Bombardier Can-am DS 250 2008-2016

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
