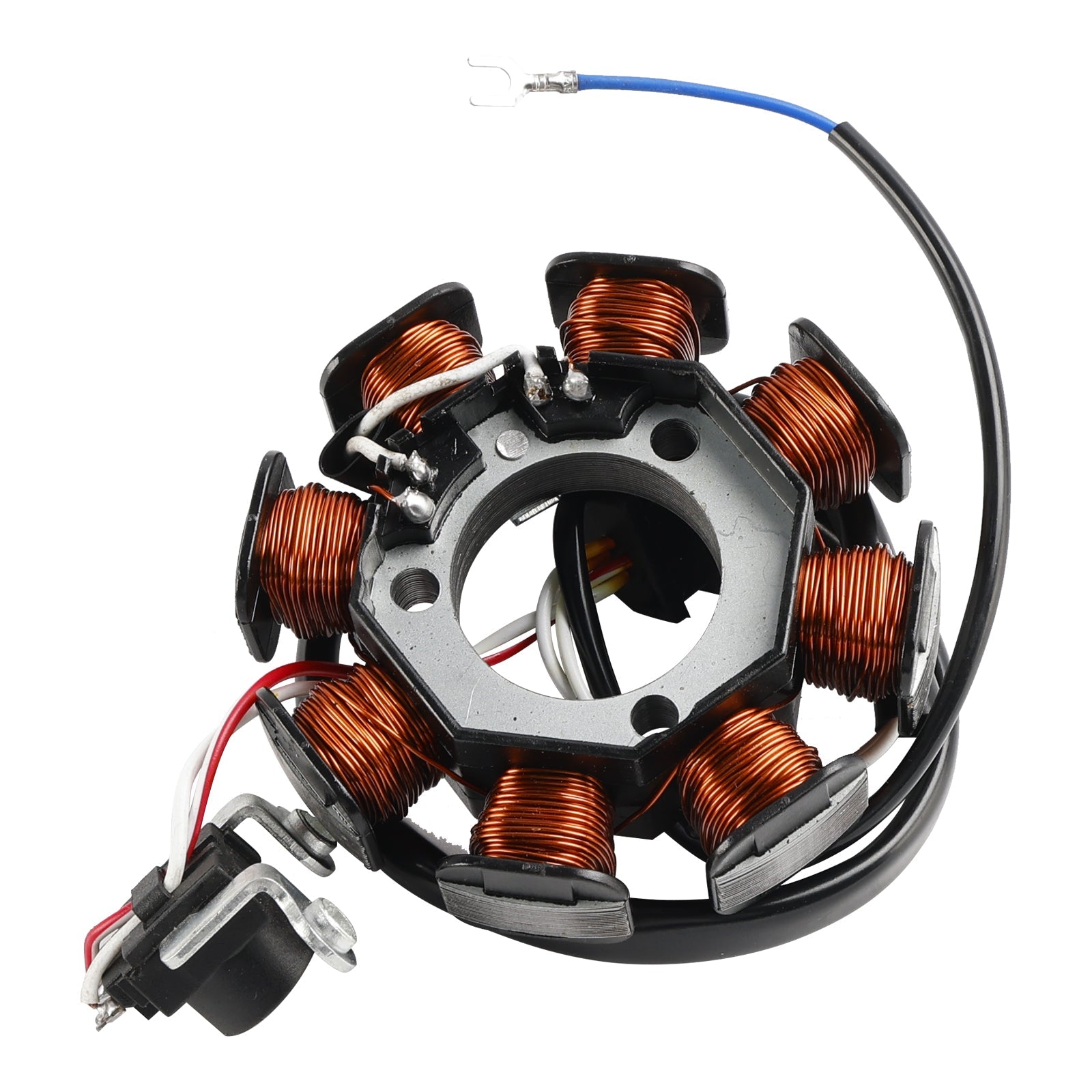

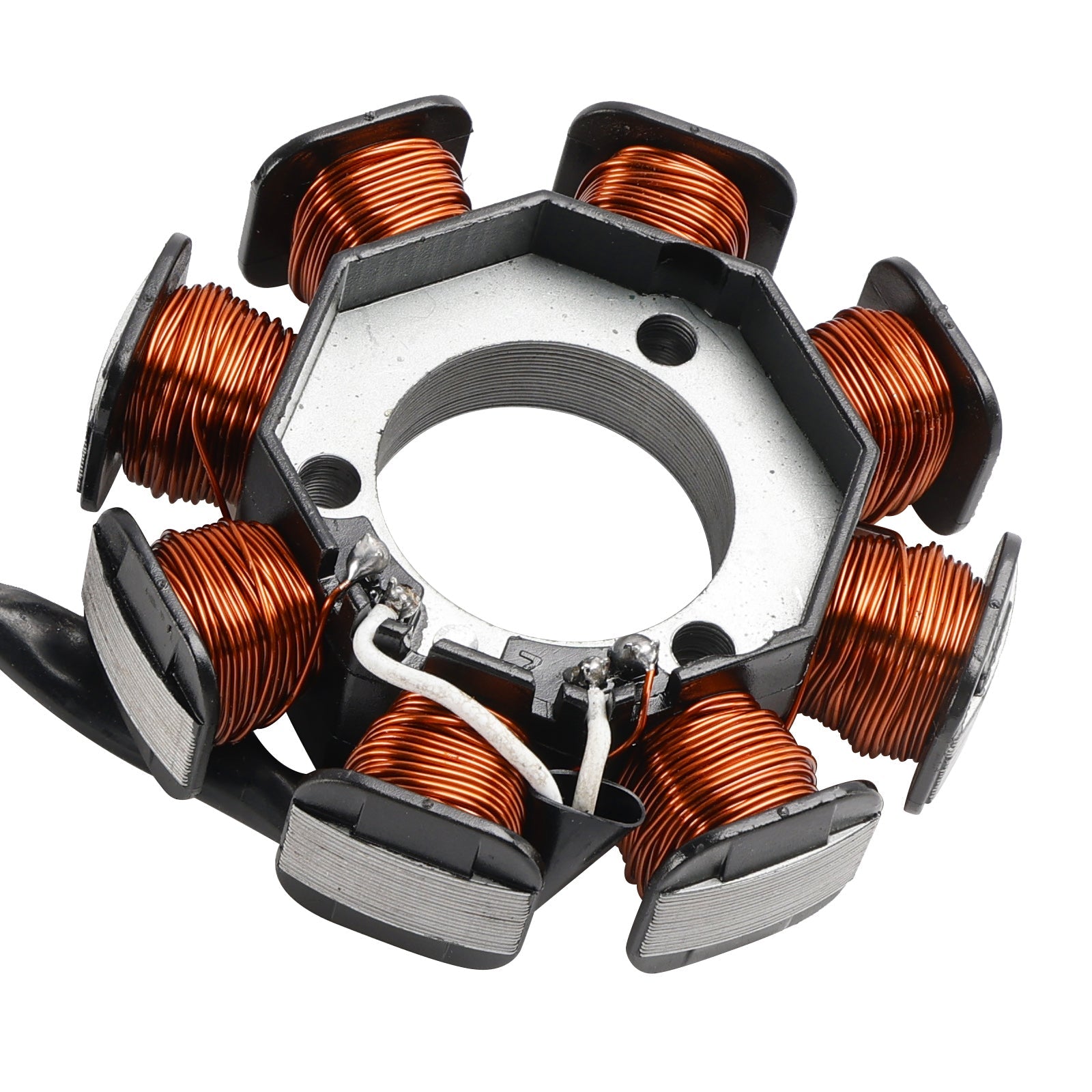

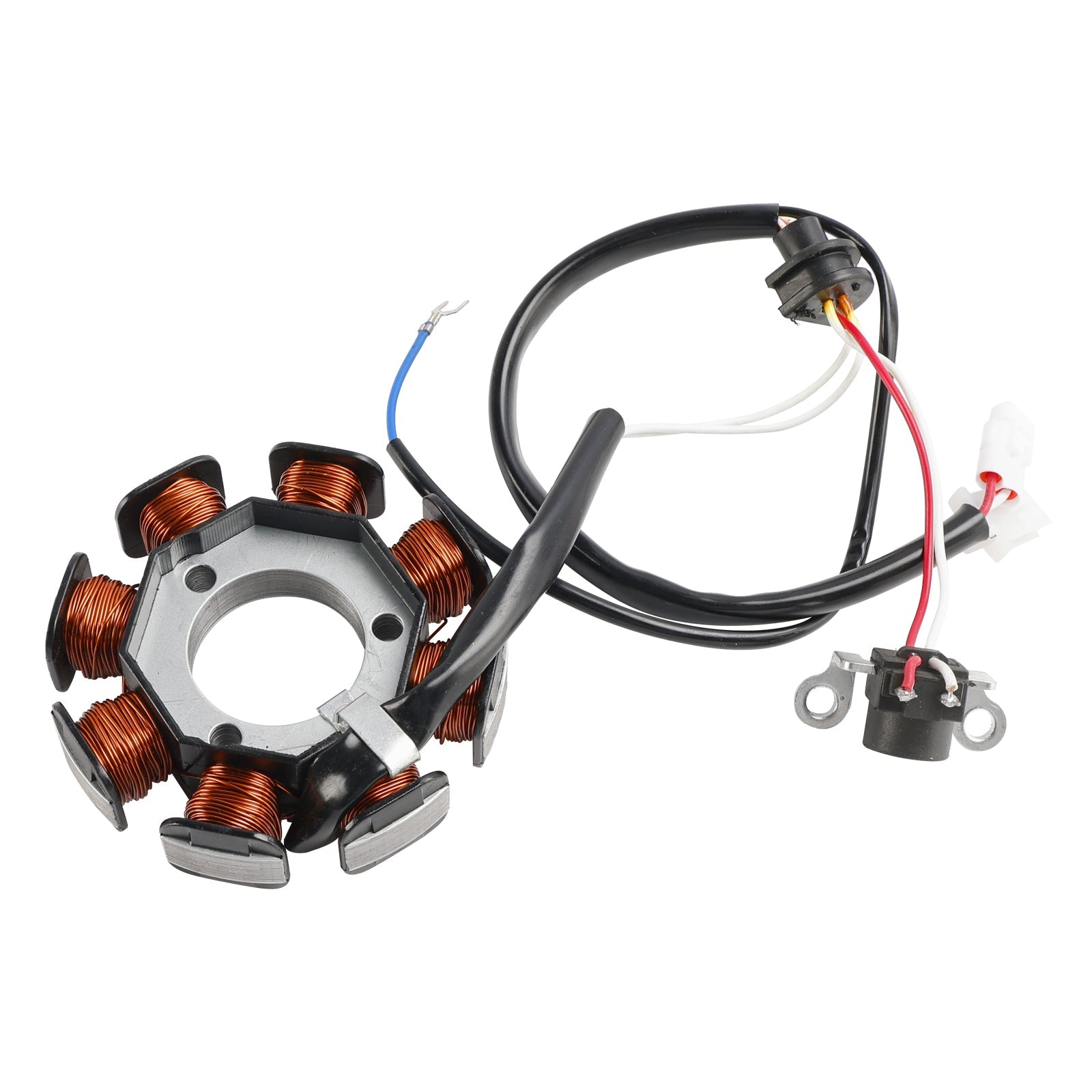

8-Pole Magneto Generator Stator Fit for Yamaha YBR125 XT125 3D9-H1410-01-00

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

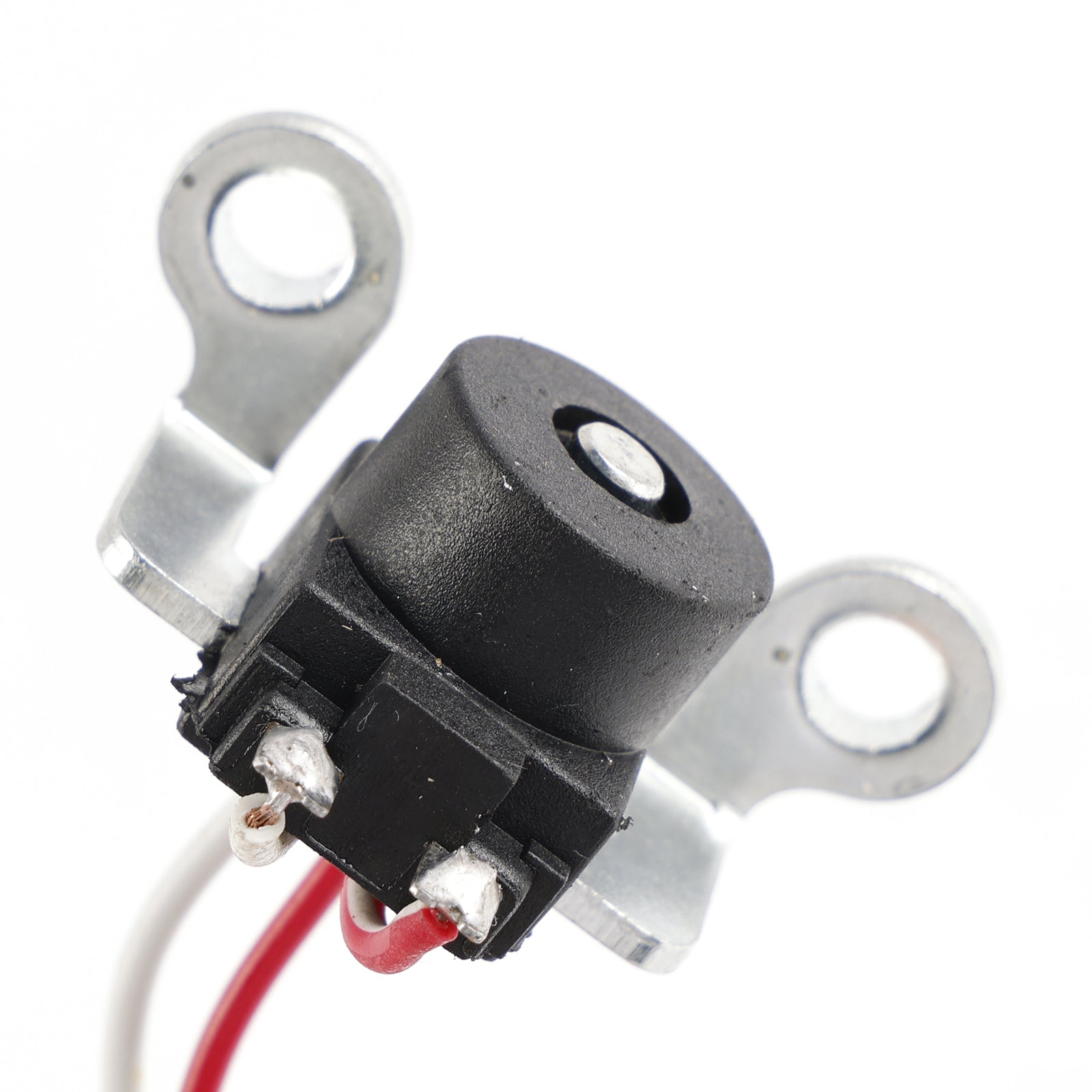

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 5

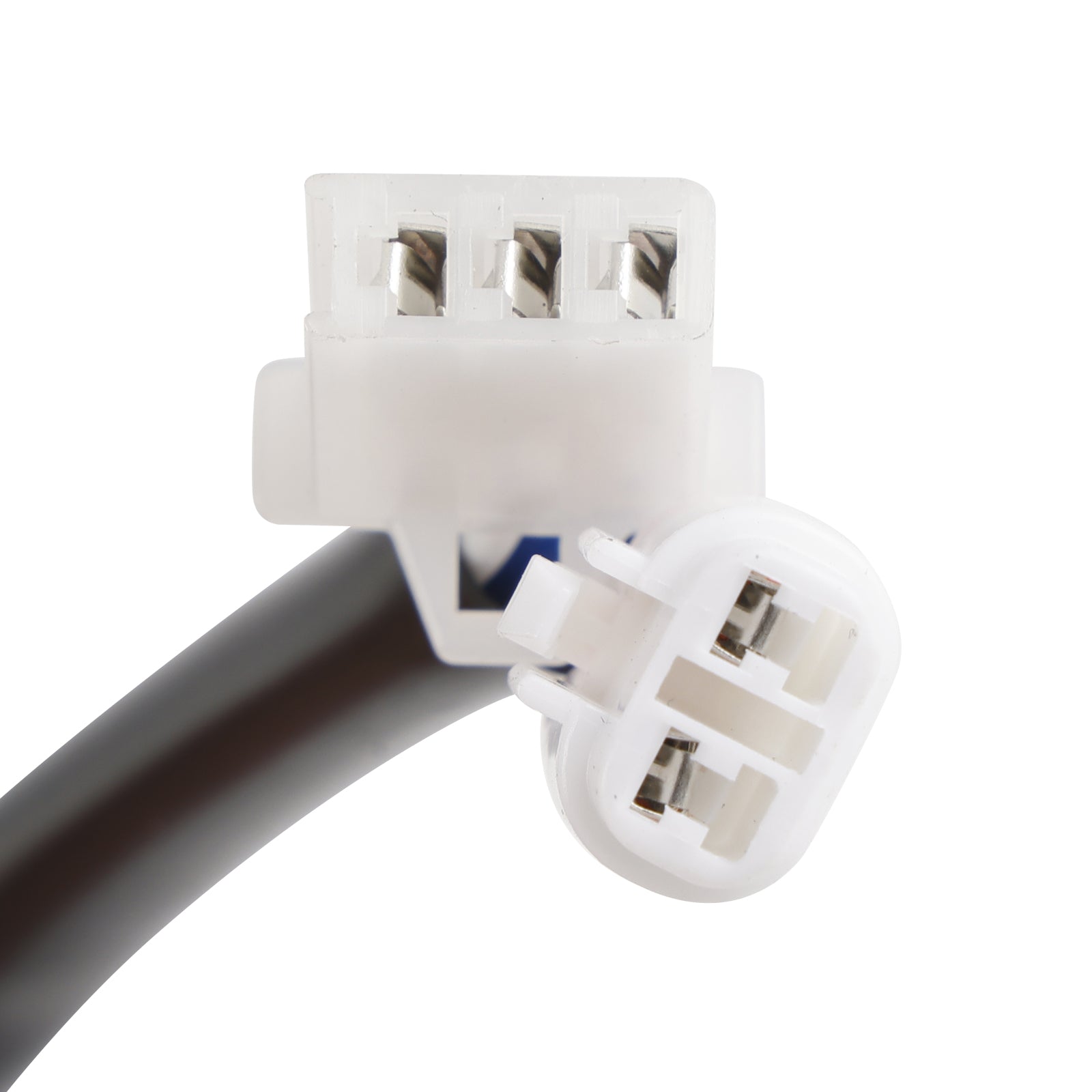

Number of plugs: 1x 2-Pin Male Plug, 1x 3-Pin Male Plug
Number of pins: 2 + 3
Number of fixation holes: 3
Number of poles: 8

Please compare the number of pins and plugs with the old part before purchasing.

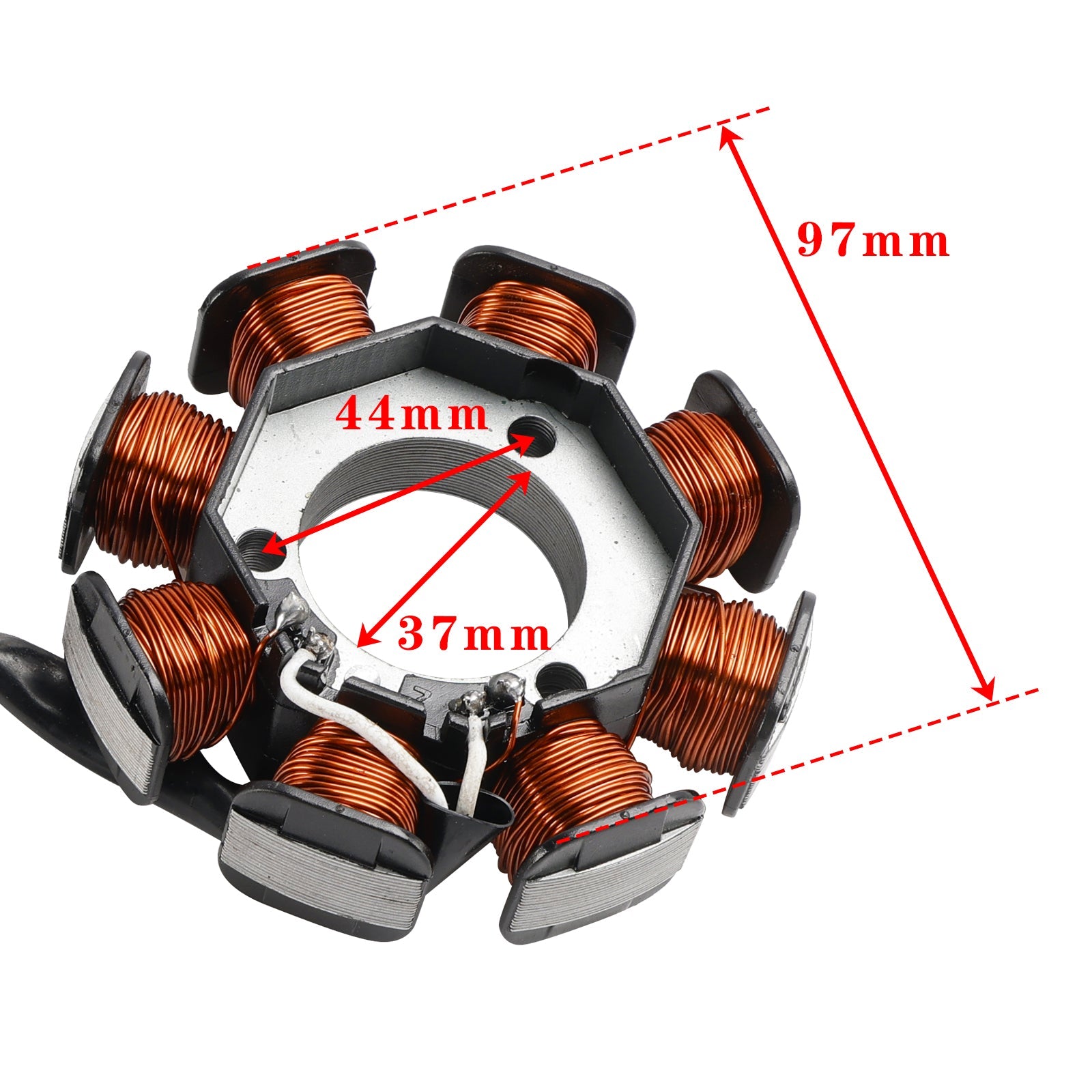

Size:
Inner diameter: 37mm
Outer diameter: 97mm
Mount hole spacing center to center: 44mm

Replacement Part Number:
3D9-H1410-00
3D9H1410-00
3D9-H141000
3D9H141000
3D9-H1410-01
3D9H1410-01
3D9-H141001
3D9H141001

(Use the part number to verify fitment to your application. )

Fits Make/Model/Year:
Fit for Yamaha YBR125ED 2005-2006
Fit for Yamaha YBR125ESD 2008-2012
Fit for Yamaha XT125R 2007-2008
Fit for Yamaha XT125X 2005-2012

Only for YBR125 model with 97mm diameter stator - with Pick up Pulse- 8 Coil and a 2-pin connector and 3-pin connector.
Please check your original parts before ordering to ensure they match the details supplied as some versions of these engines may be different.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 8-Pole Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
