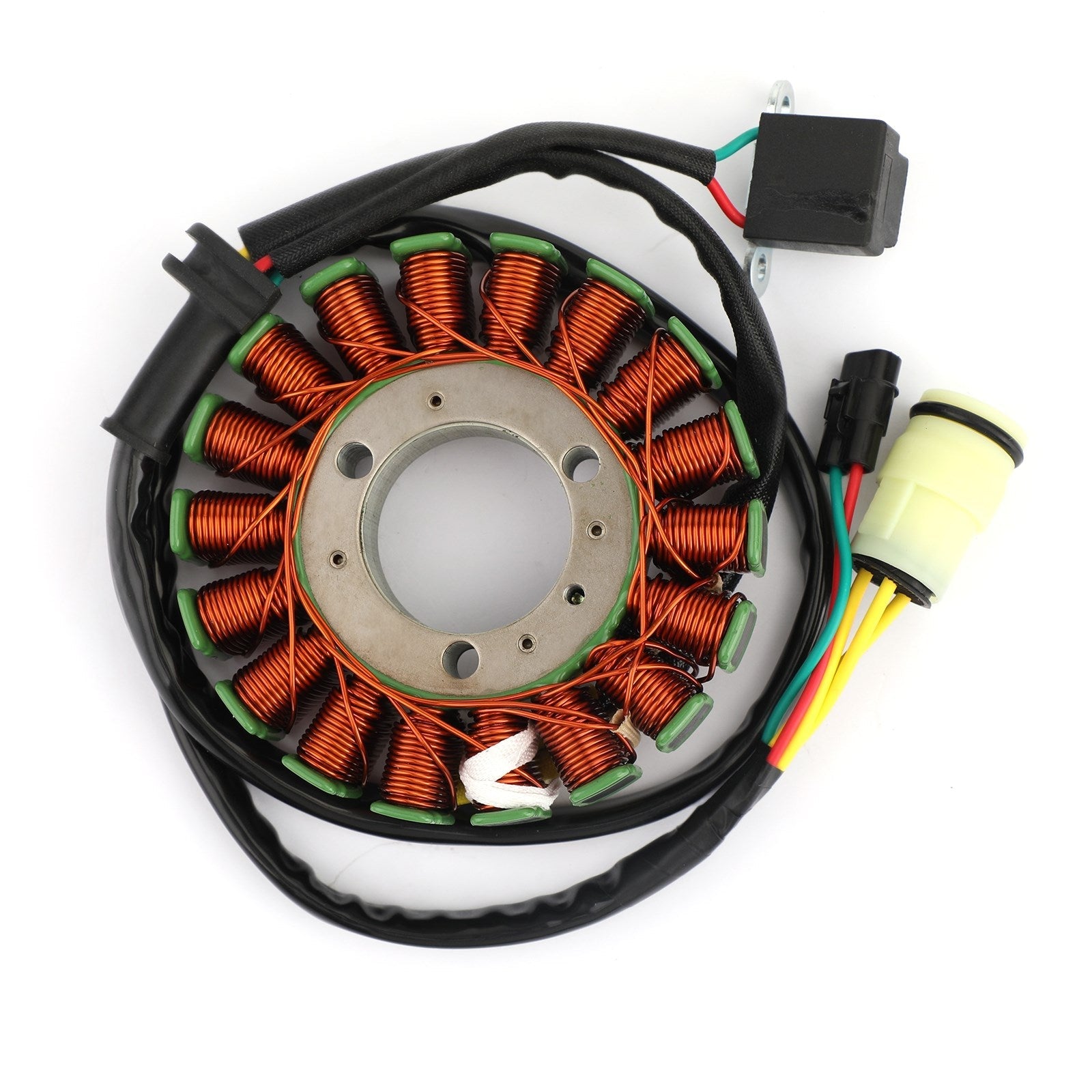

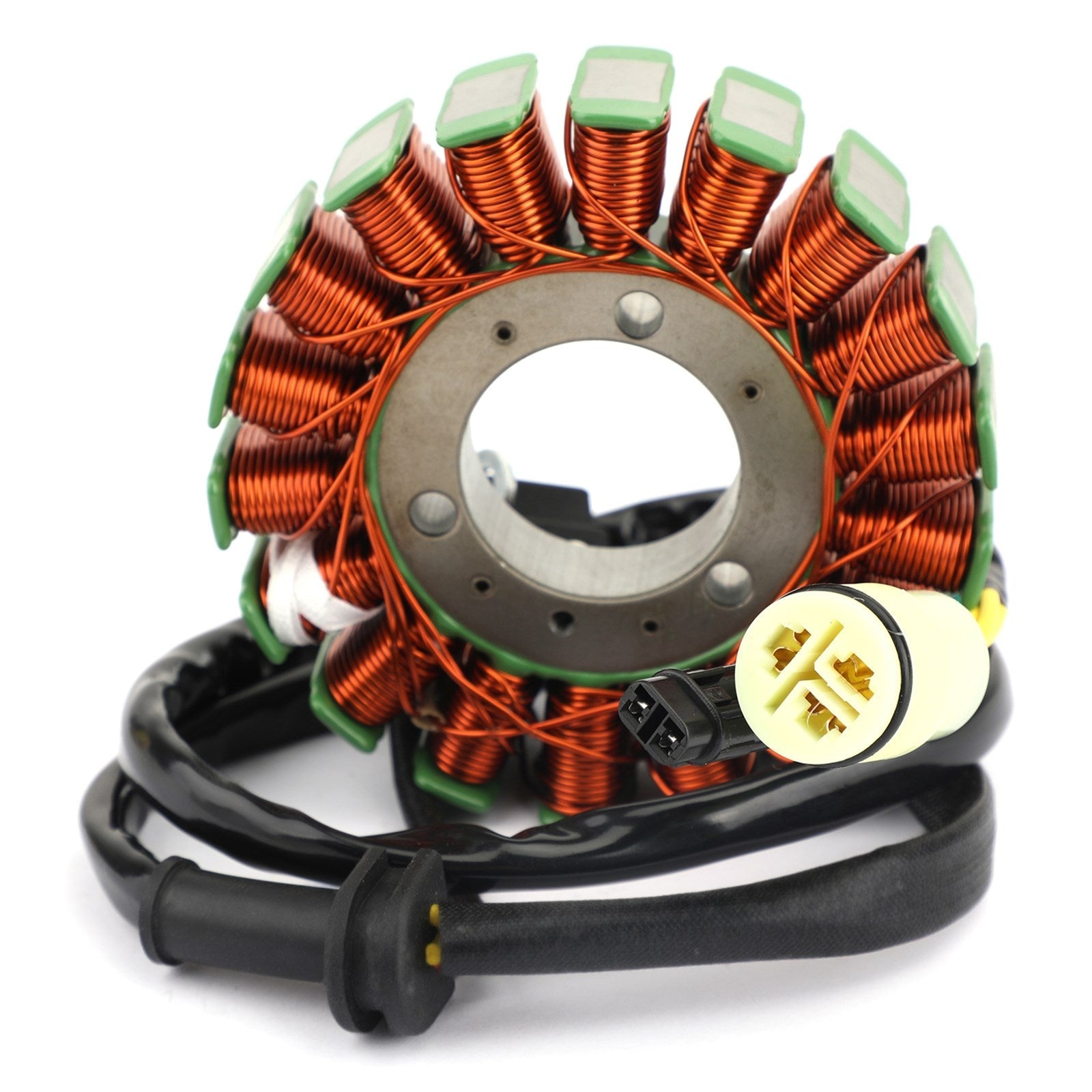

Alternator Magneto Stator Fitfor Husqvarna SM610 TE610 SM SMS 630 TE 630 8000A6767

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

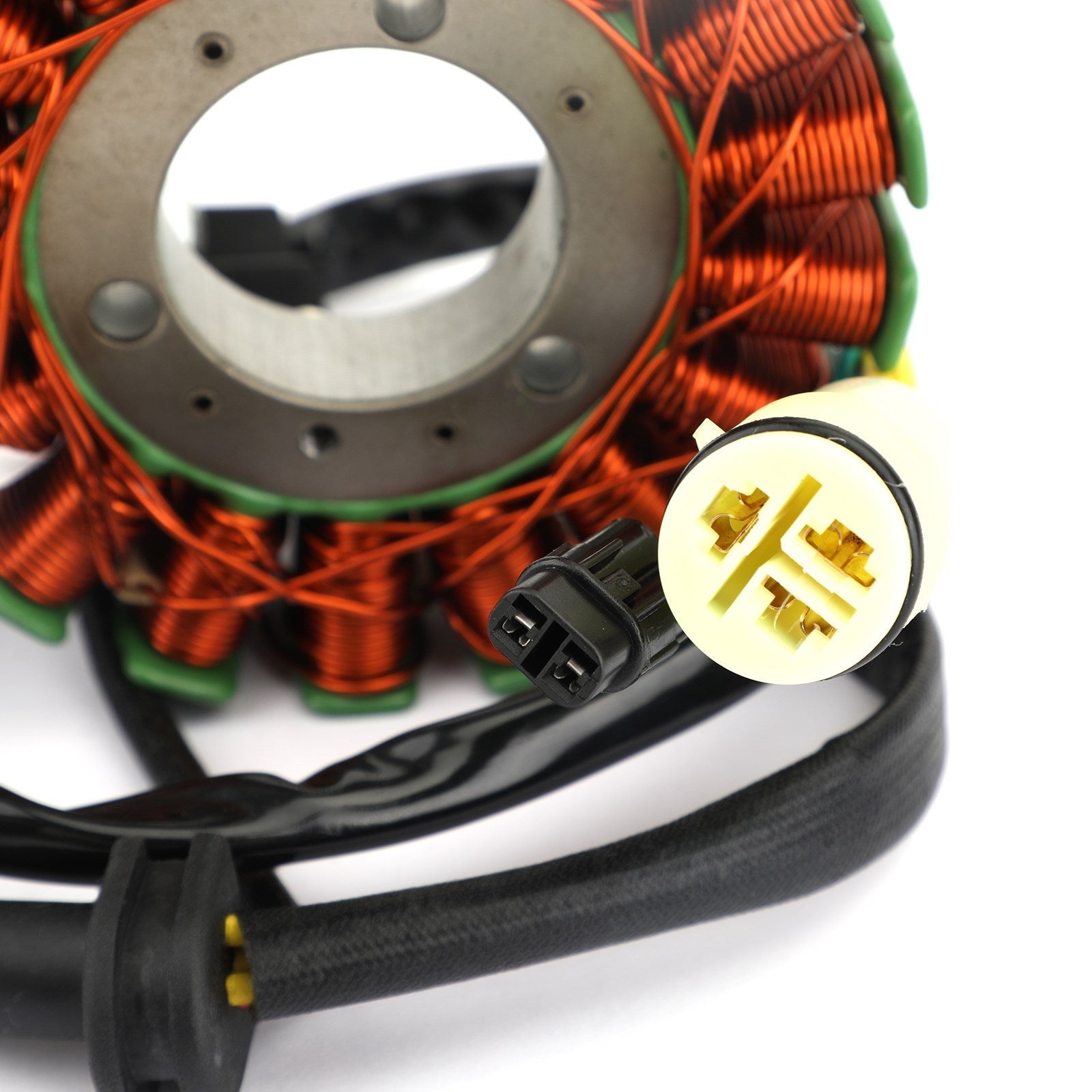

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

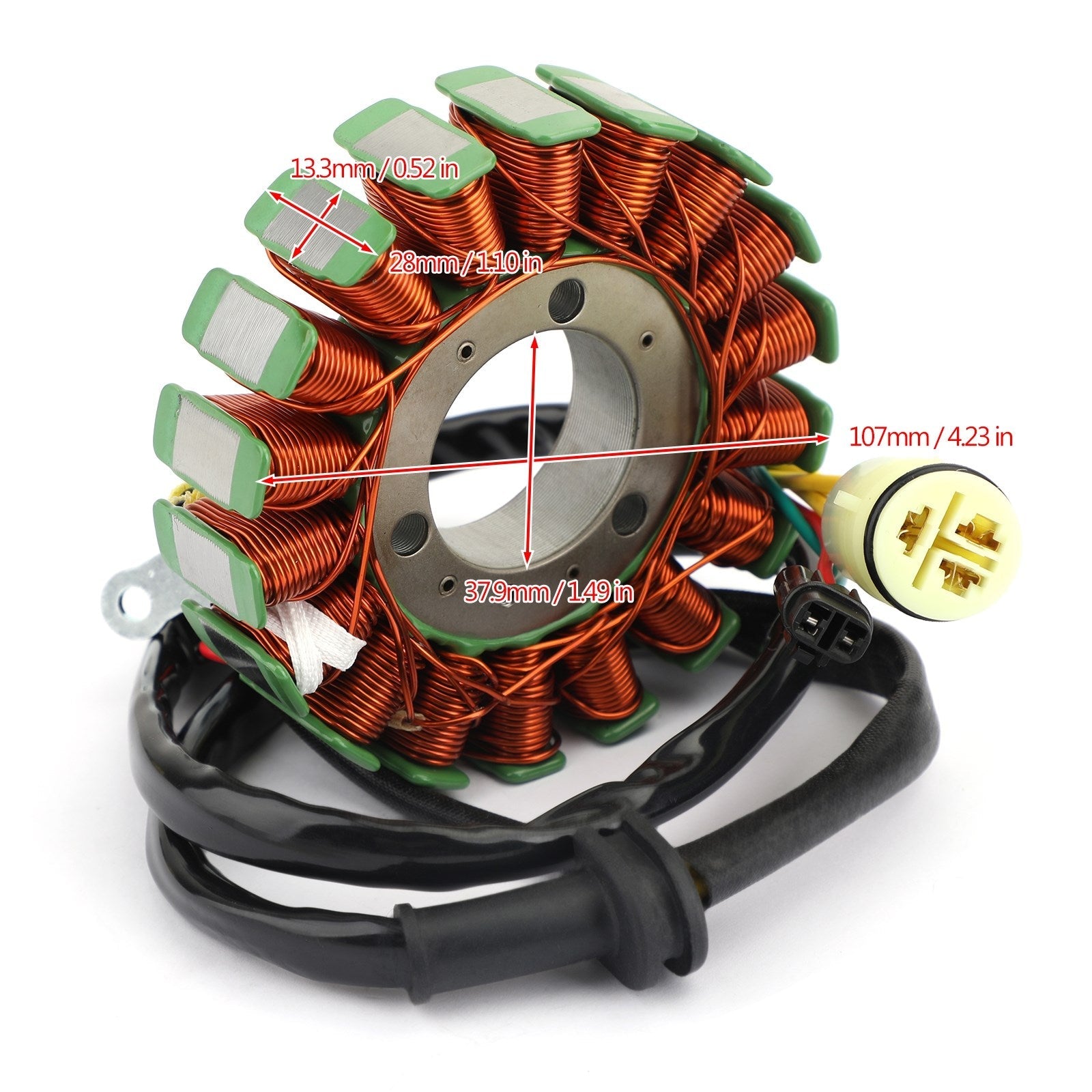

Dimensions :
Interior diameter : 37.9mm / 1.49 inches
Exterior diameter : 107mm / 4.23 inches
Pole's Thickness : 28mm / 1.10 inches
Pole's Width : 13.3mm / 0.52 inches

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18

PART NUMBER(S):
8000A6778
8000A6767

FITMENT:
Fits Husqvarna TE610 2007-2009
Fits Husqvarna SM610 2007-2009
Fits Husqvarna TE630 2007-2011
Fits Husqvarna TE630 Depot 2011
Fits Husqvarna SM630 2007-2011
Fits Husqvarna SMS630 2011
Fits Husqvarna SMS630 Depot 2011

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
