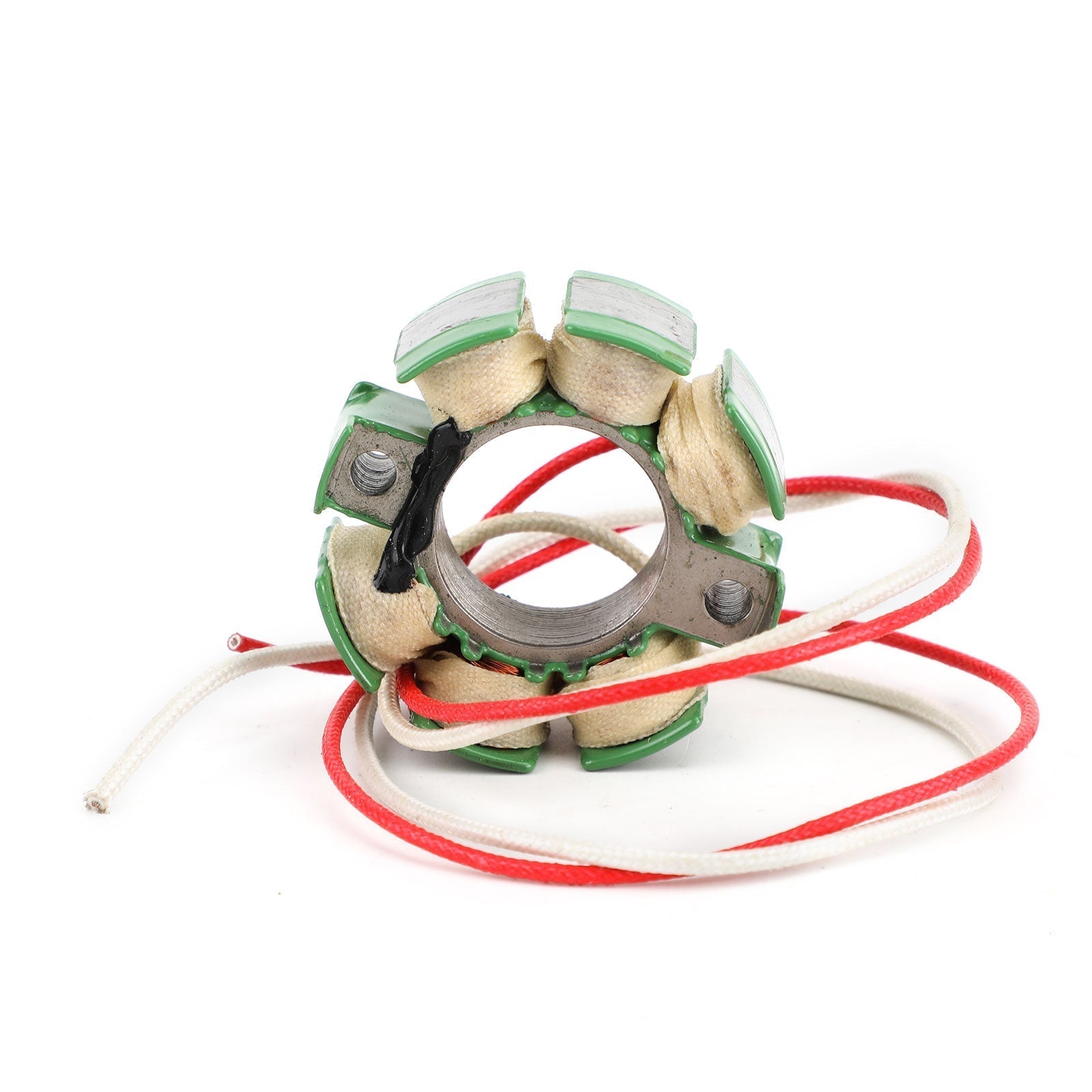

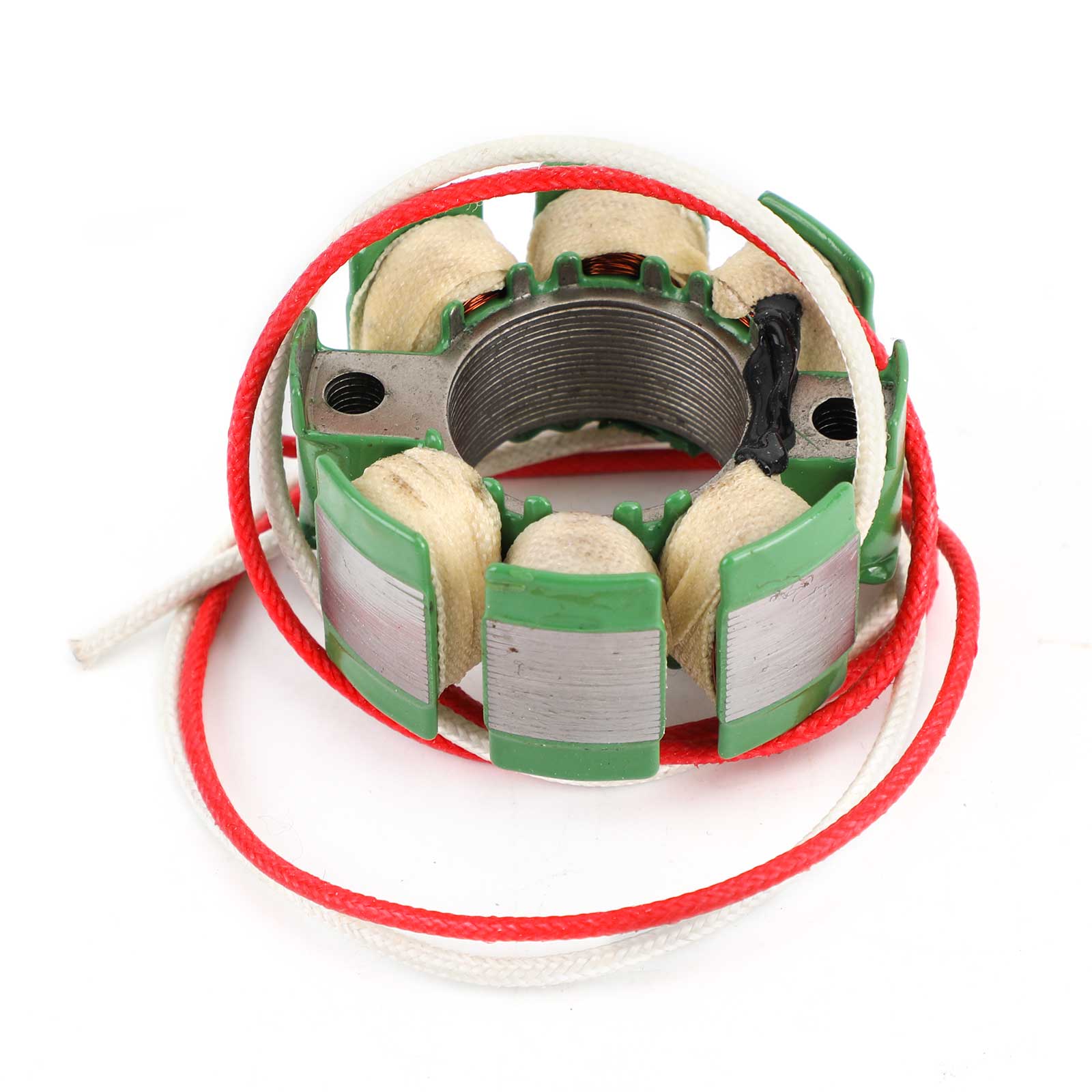

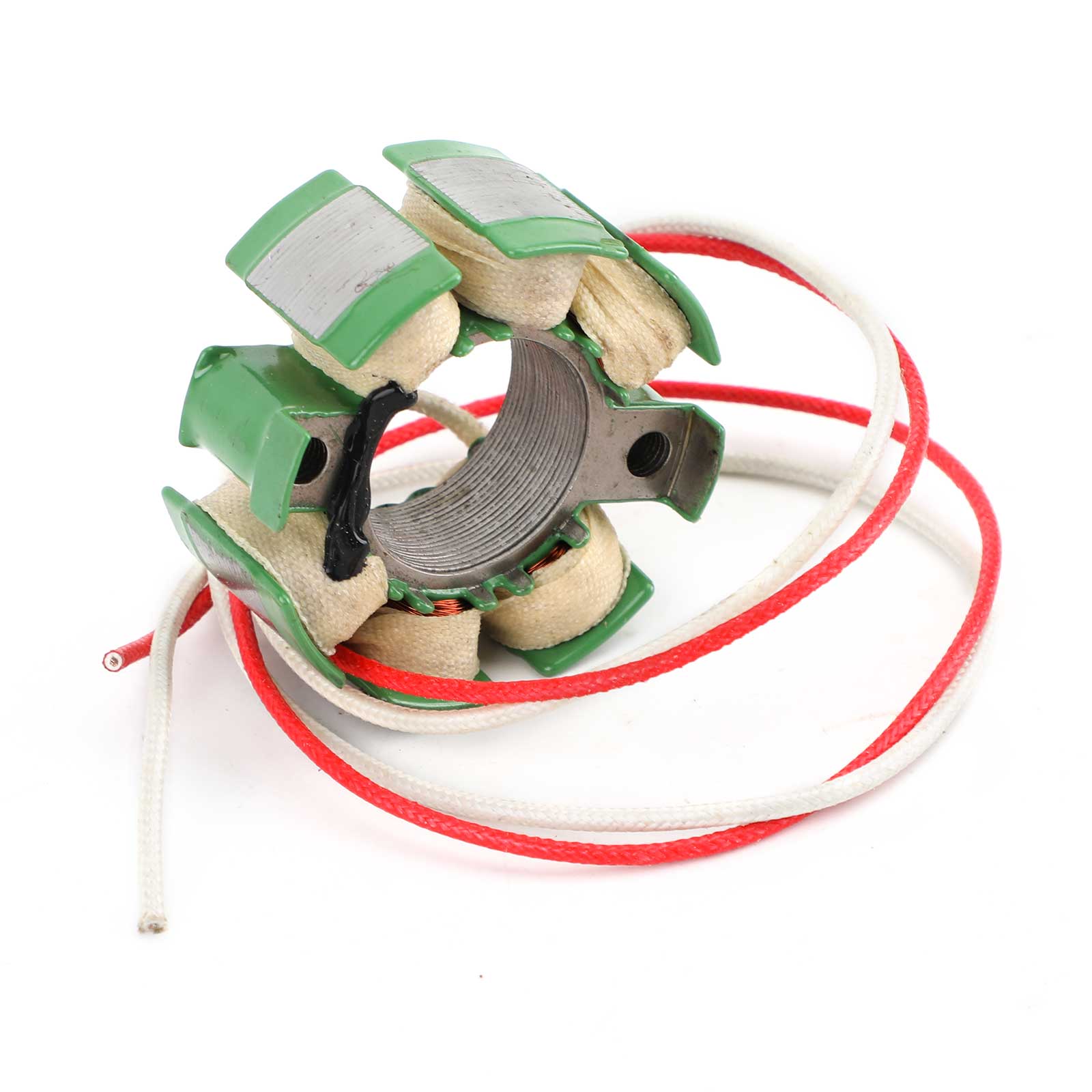

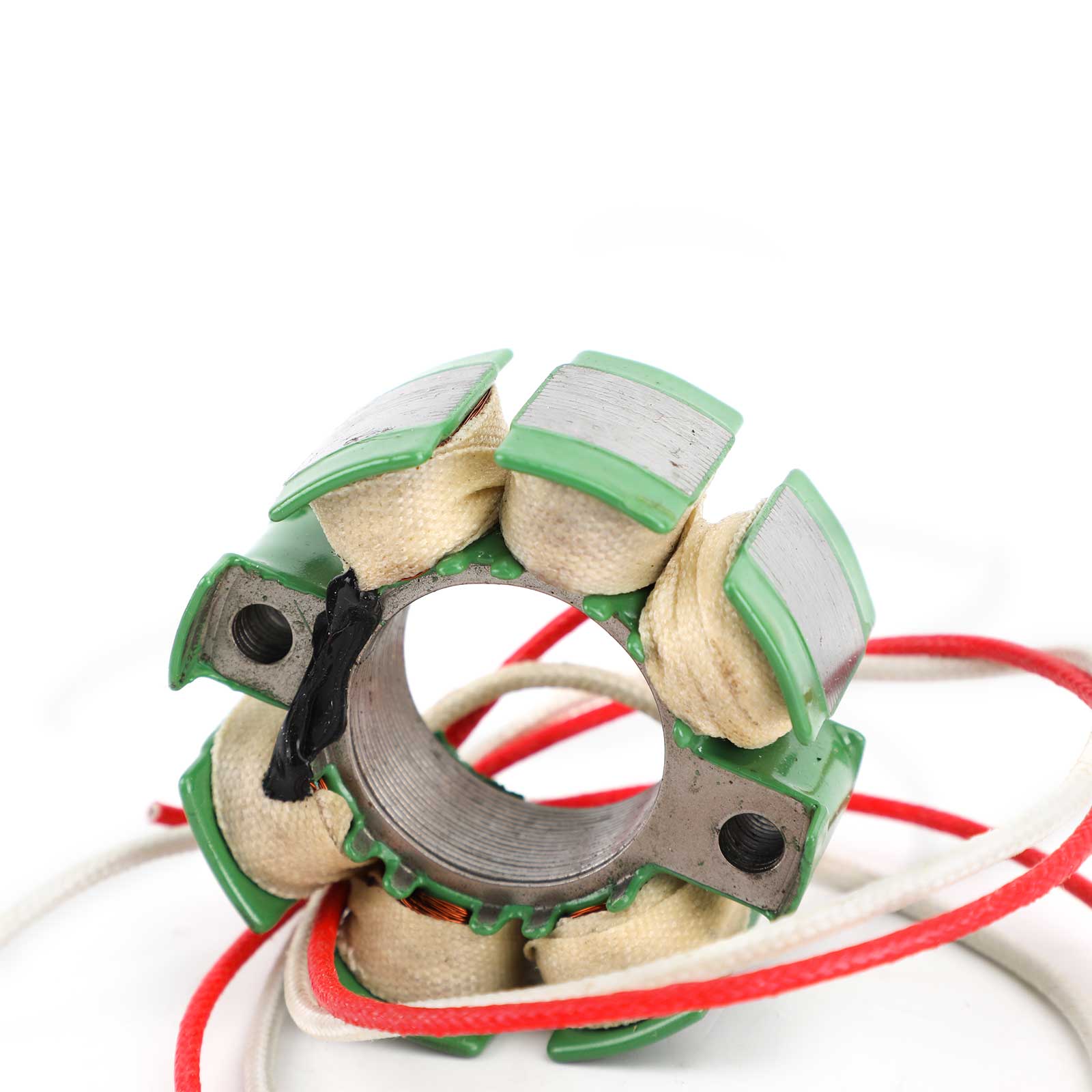

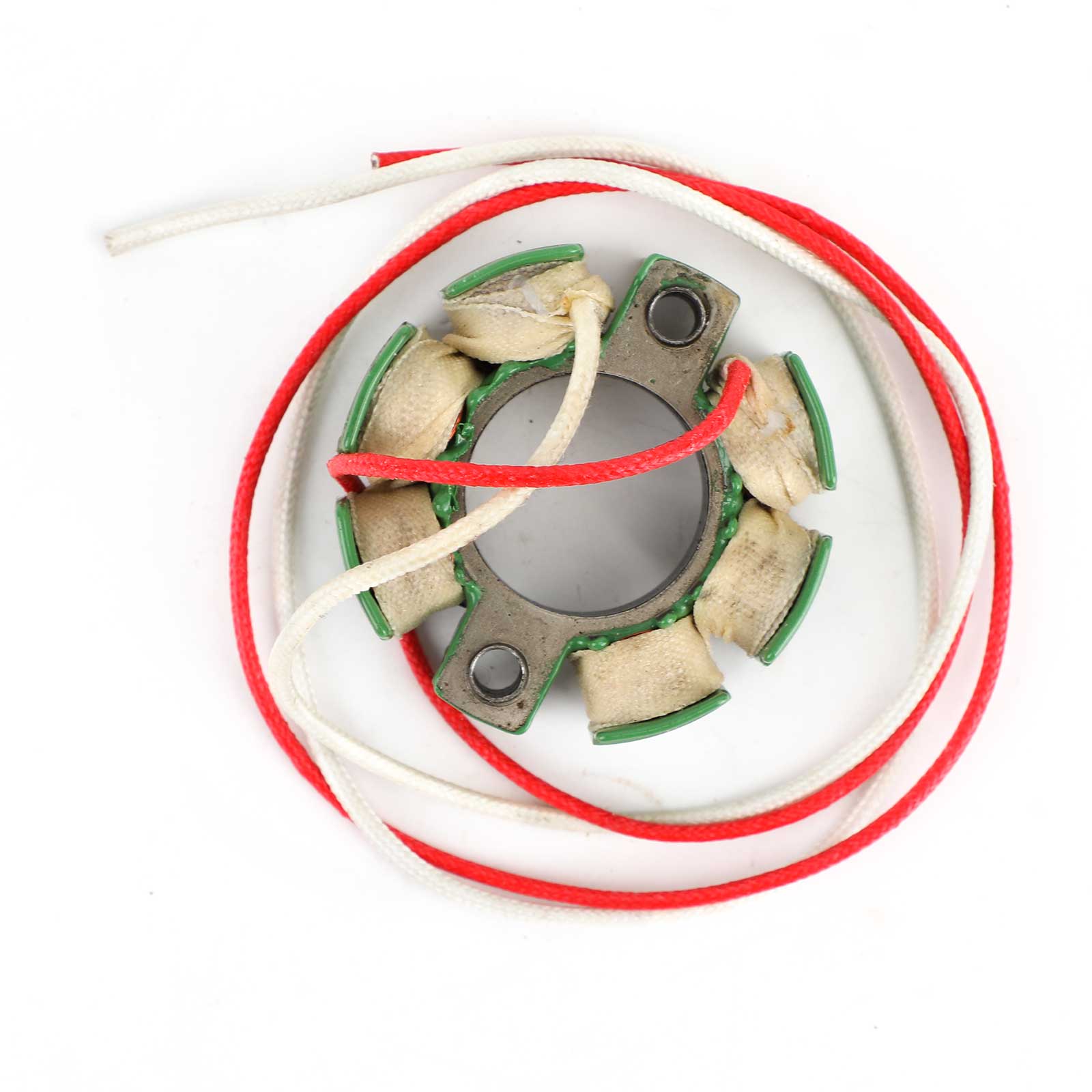

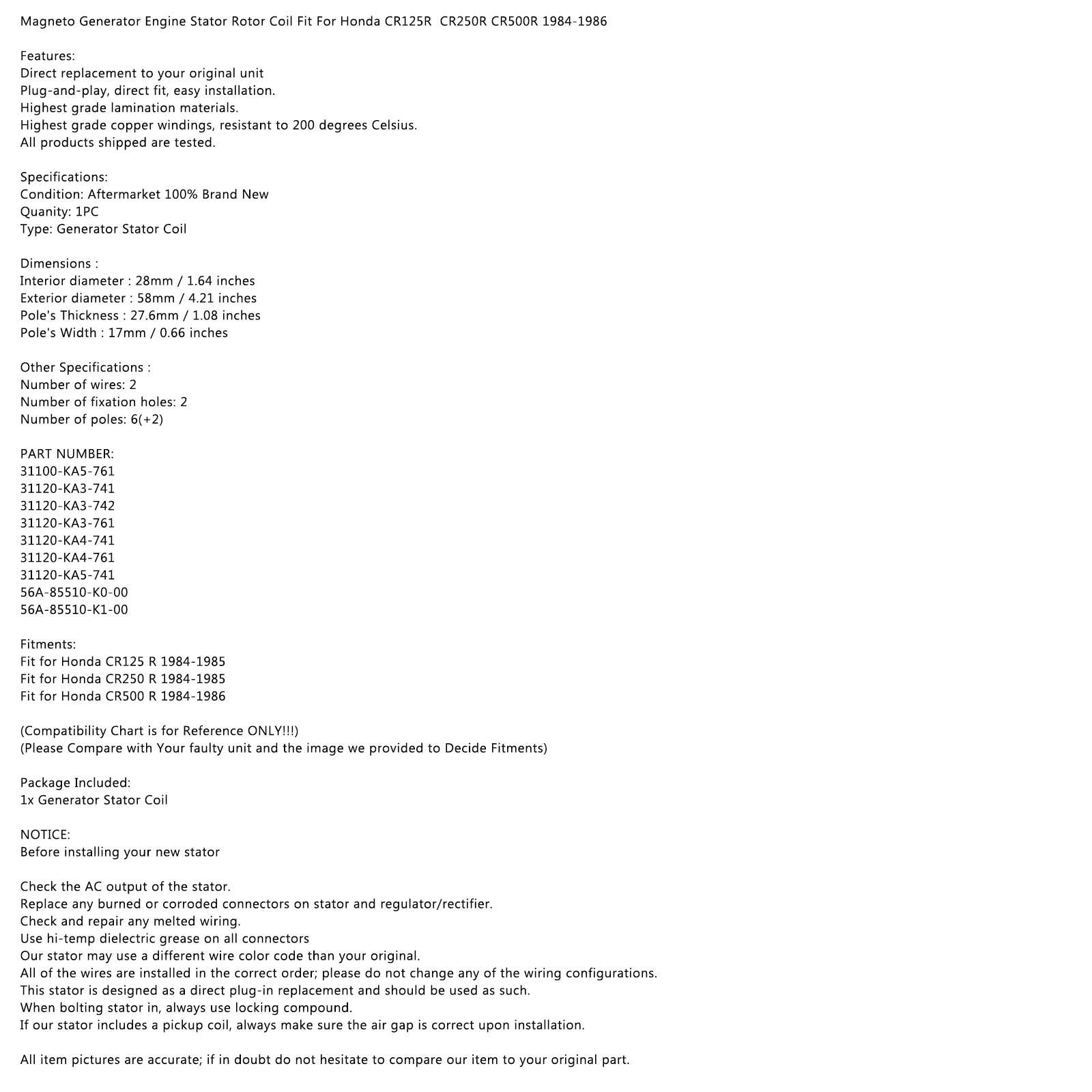

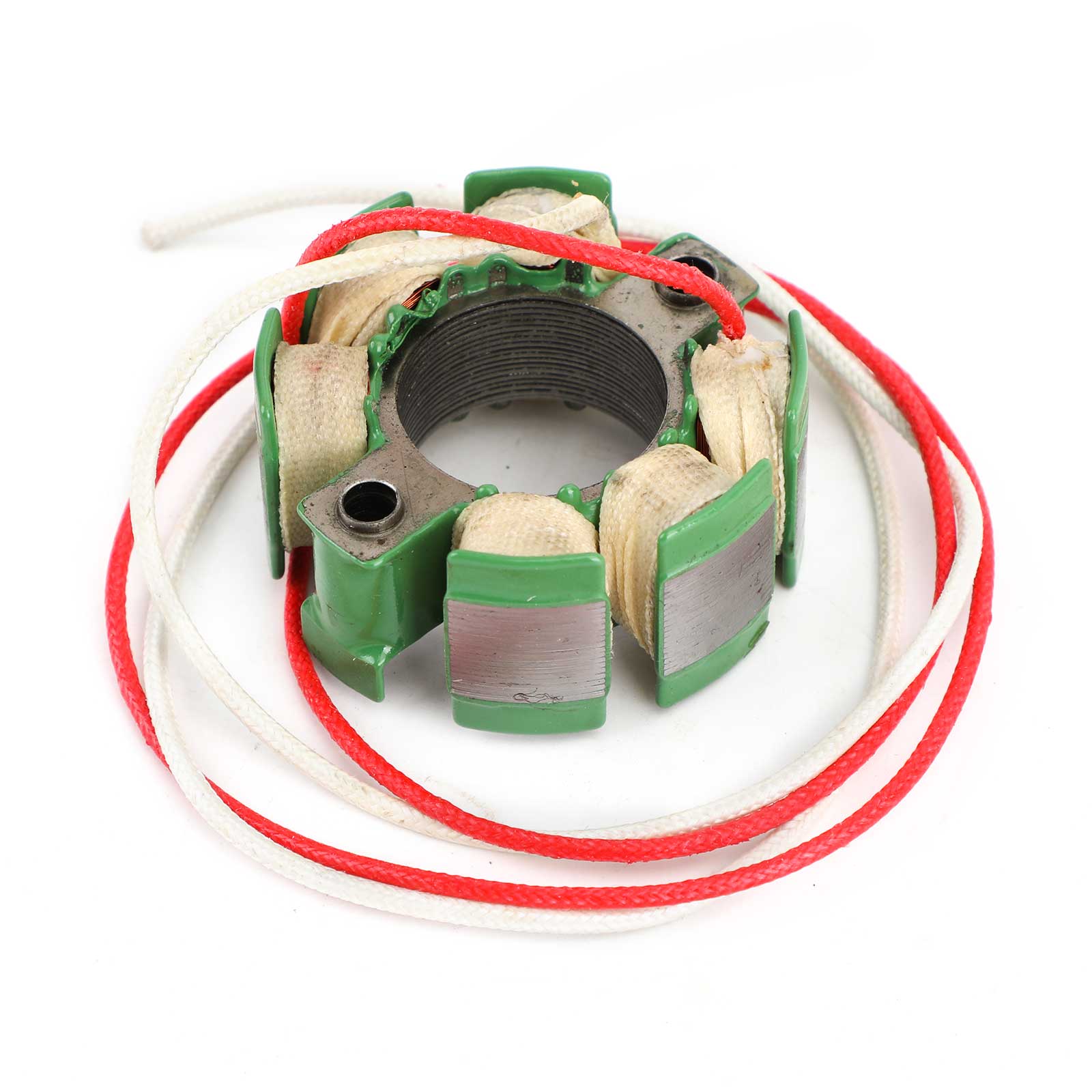

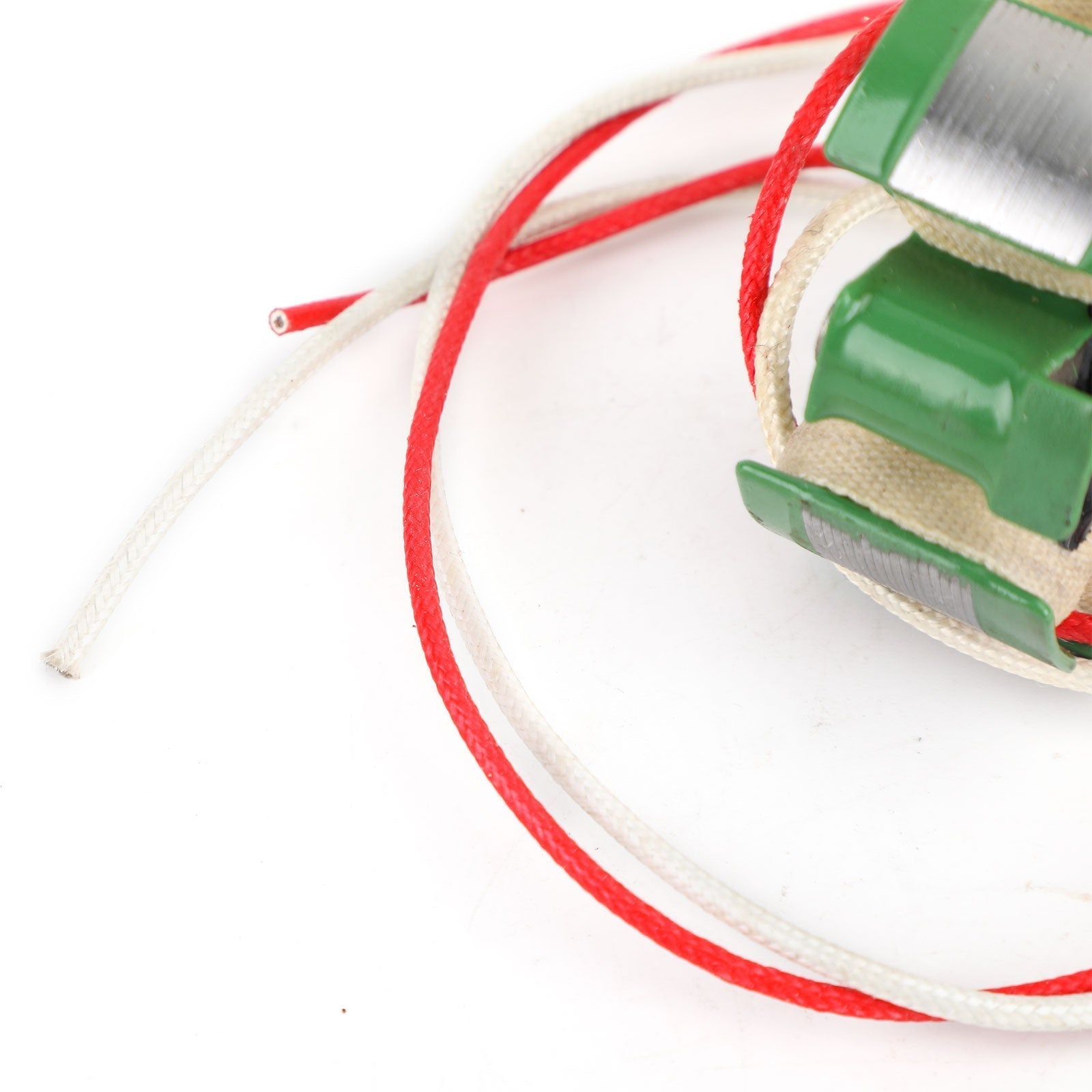

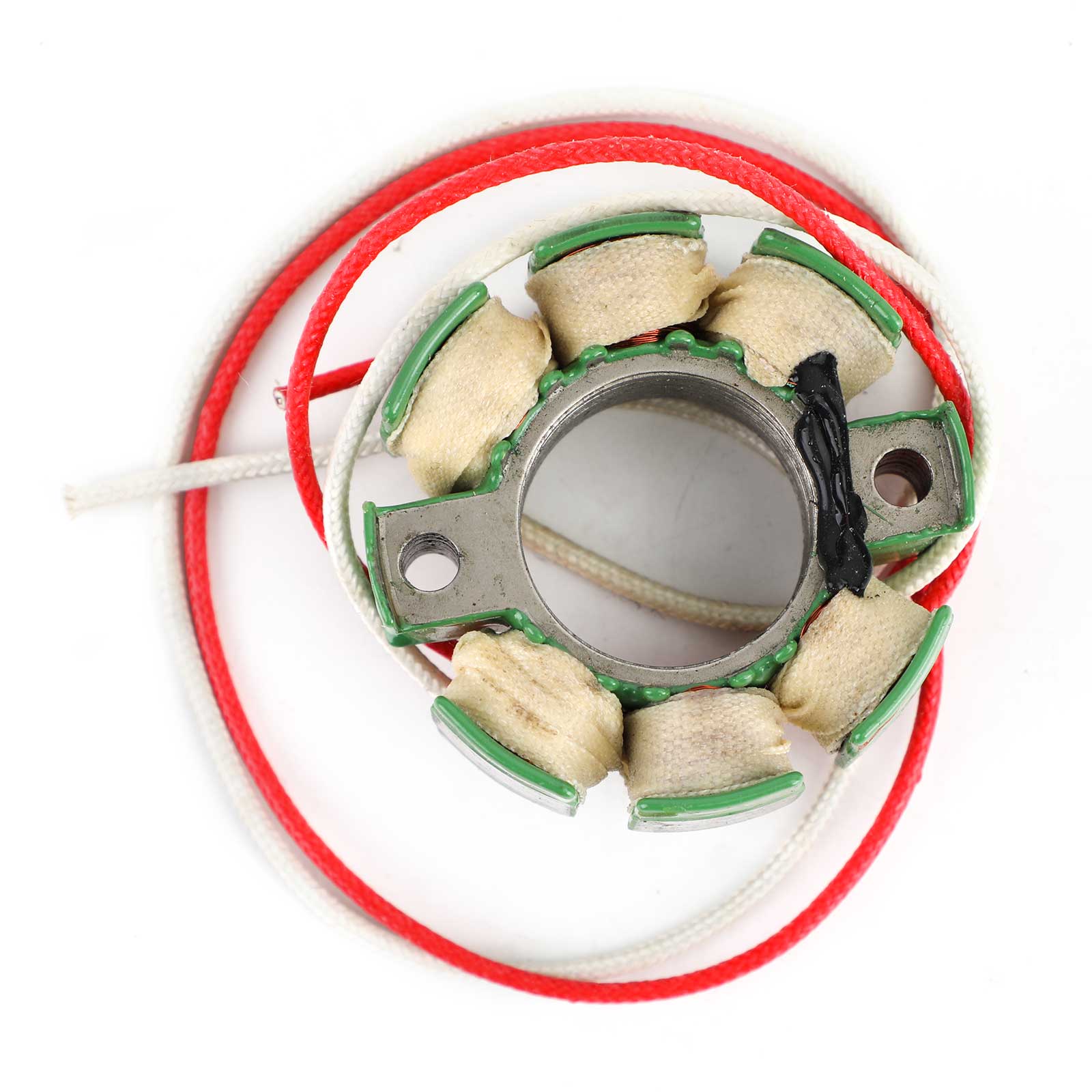

Magneto Generator Engine Stator Rotor Coil Fit For Honda CR125R CR250R CR500R 1984-1986

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

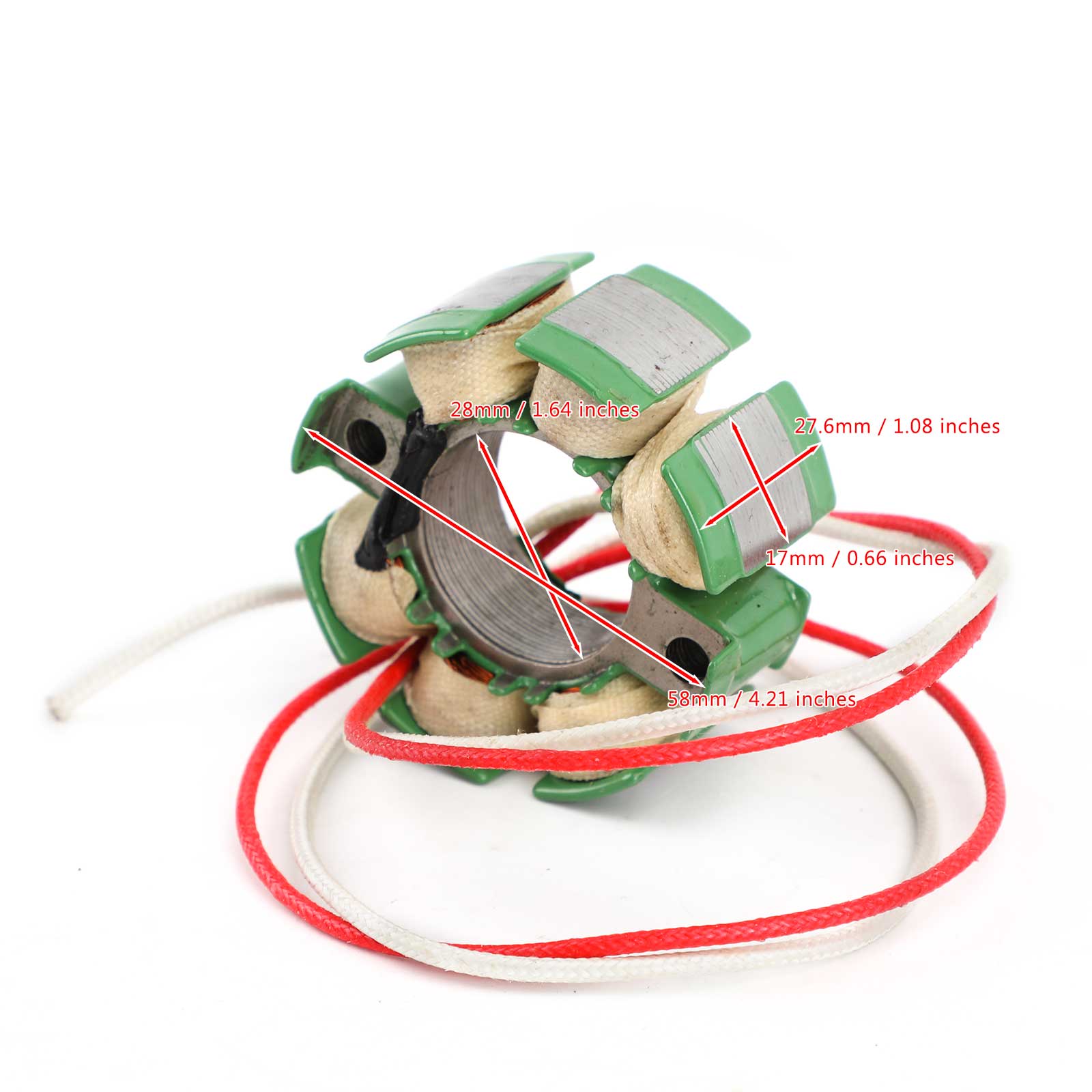

Dimensions :
Interior diameter : 28mm / 1.64 inches
Exterior diameter : 58mm / 4.21 inches
Pole's Thickness : 27.6mm / 1.08 inches
Pole's Width : 17mm / 0.66 inches

Other Specifications :
Number of wires: 2
Number of fixation holes: 2
Number of poles: 6(+2)

PART NUMBER:
31100-KA5-761
31120-KA3-741
31120-KA3-742
31120-KA3-761
31120-KA4-741
31120-KA4-761
31120-KA5-741
56A-85510-K0-00
56A-85510-K1-00

Fitments:
Fit for Honda CR125 R 1984-1985
Fit for Honda CR250 R 1984-1985
Fit for Honda CR500 R 1984-1986

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
