93mm Magneto Coil Stator + Voltage Regulator + Gasket Assy For Linhai ATV 260 290 300 310 320 400 410 420

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

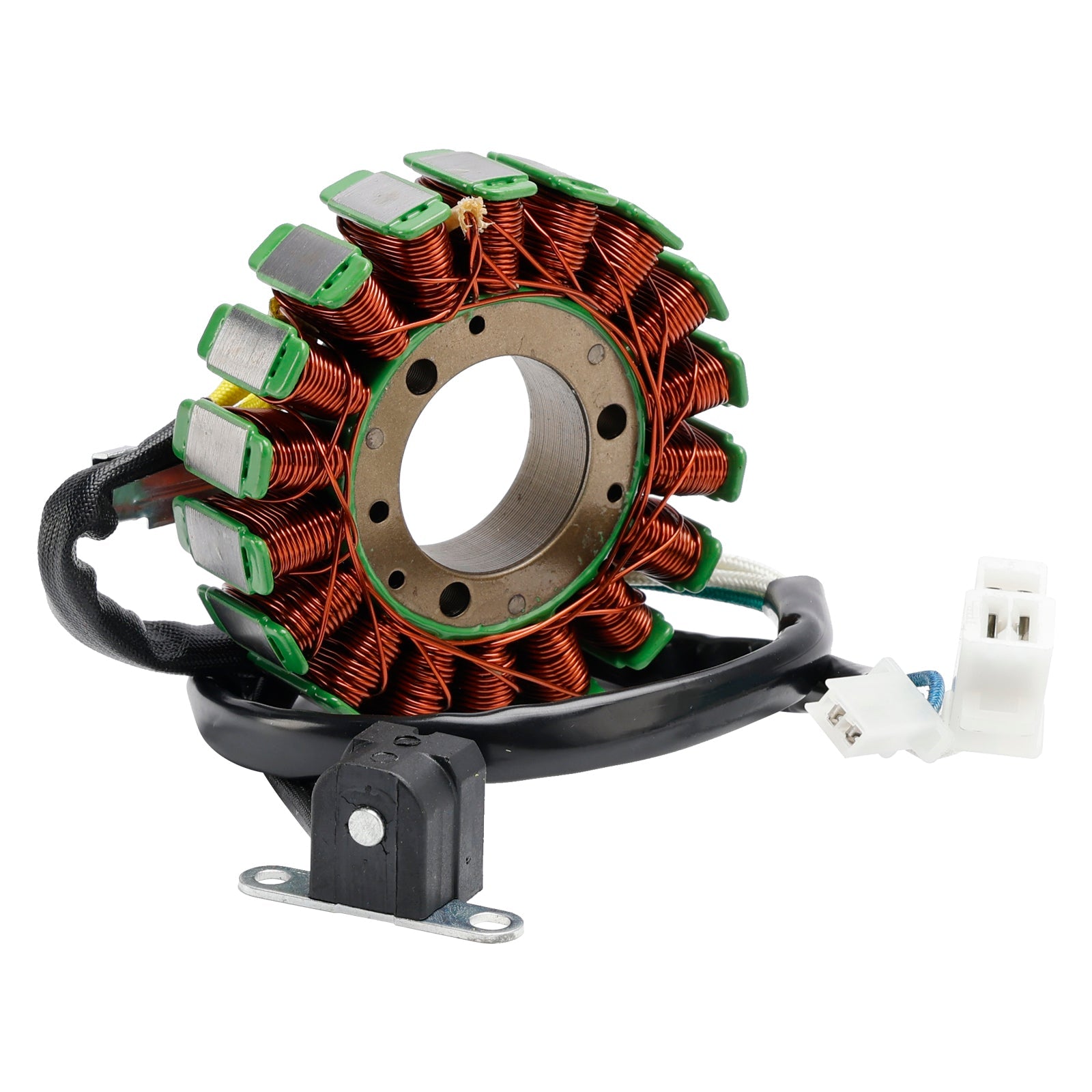

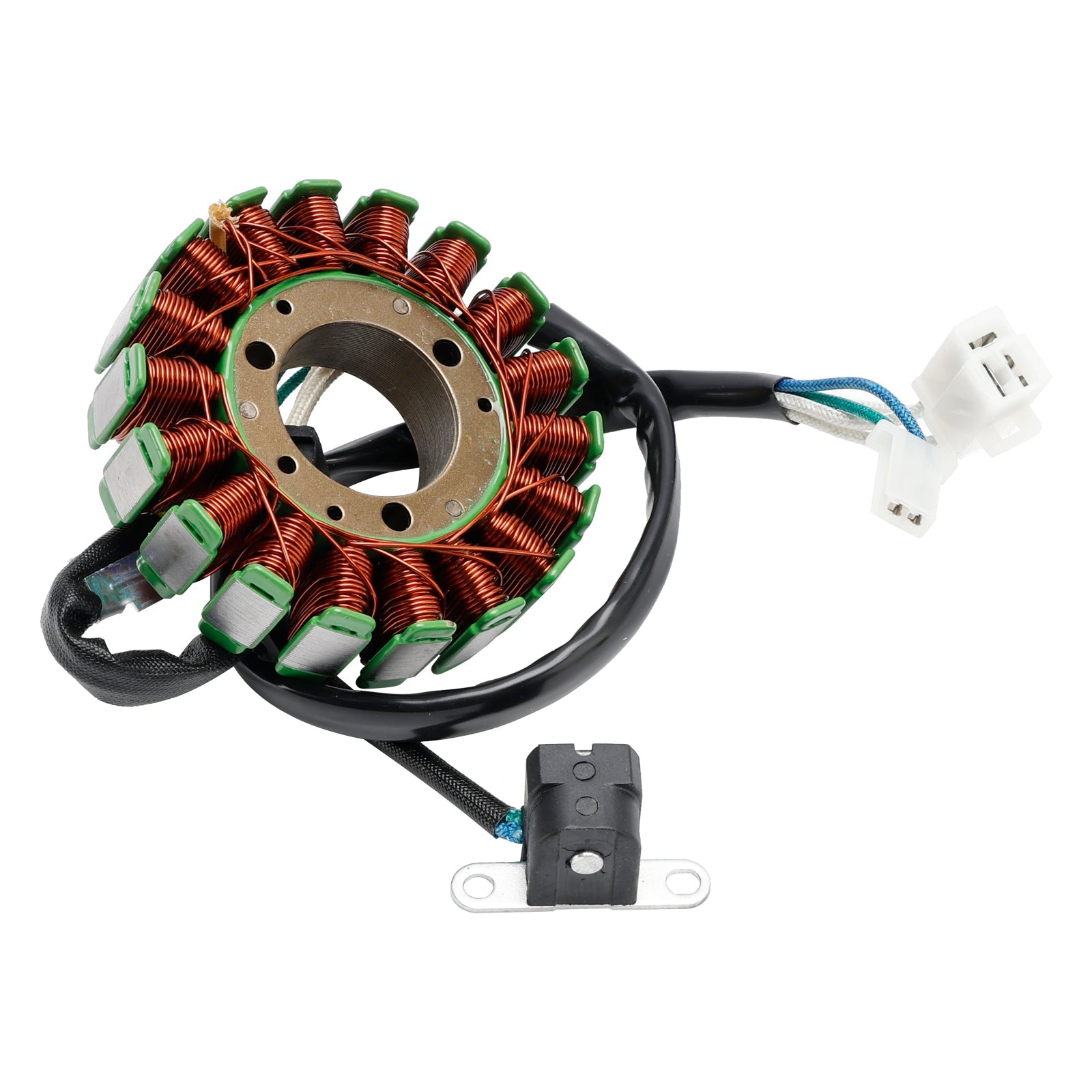

Stator
Number of wires: 5
Number of plugs: 2

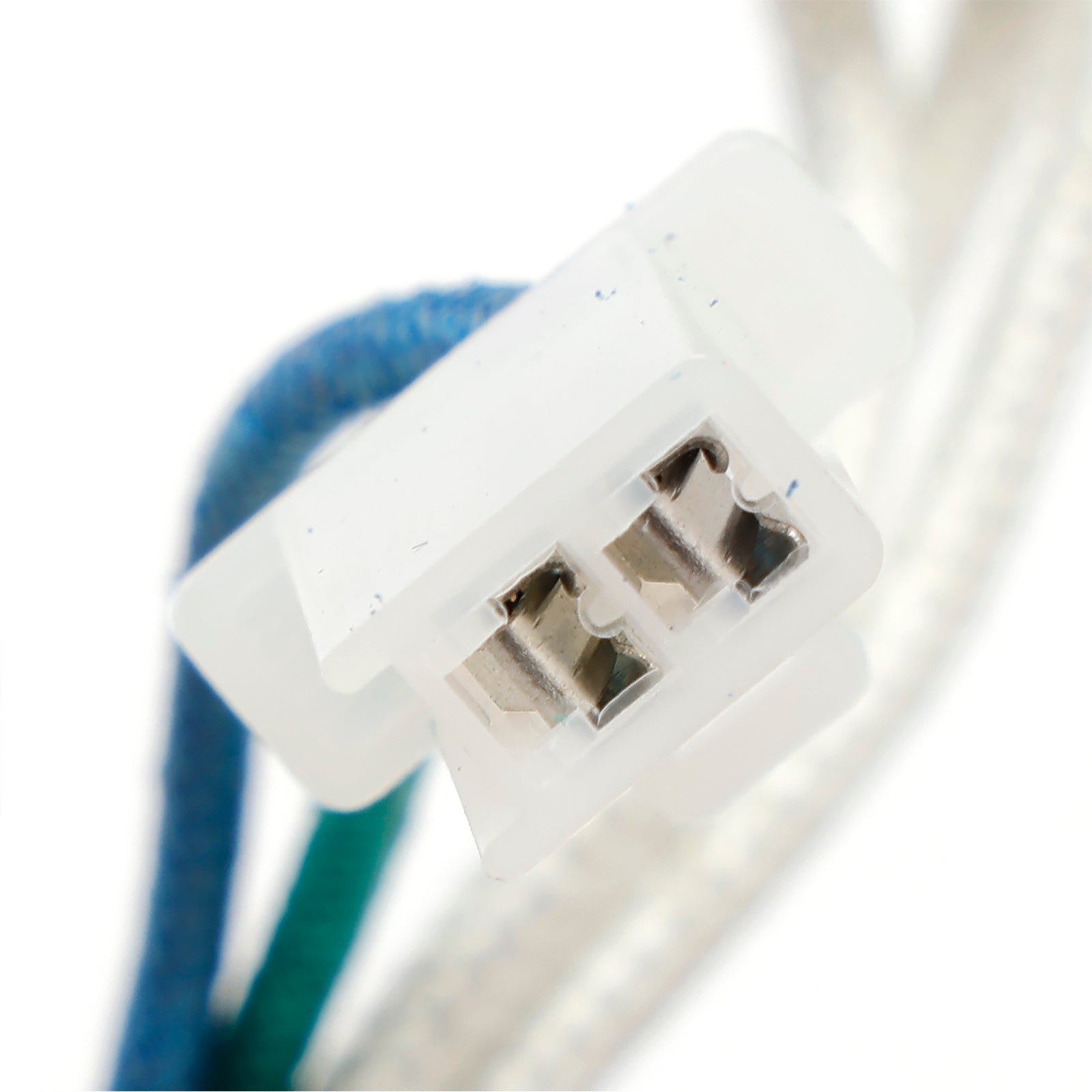

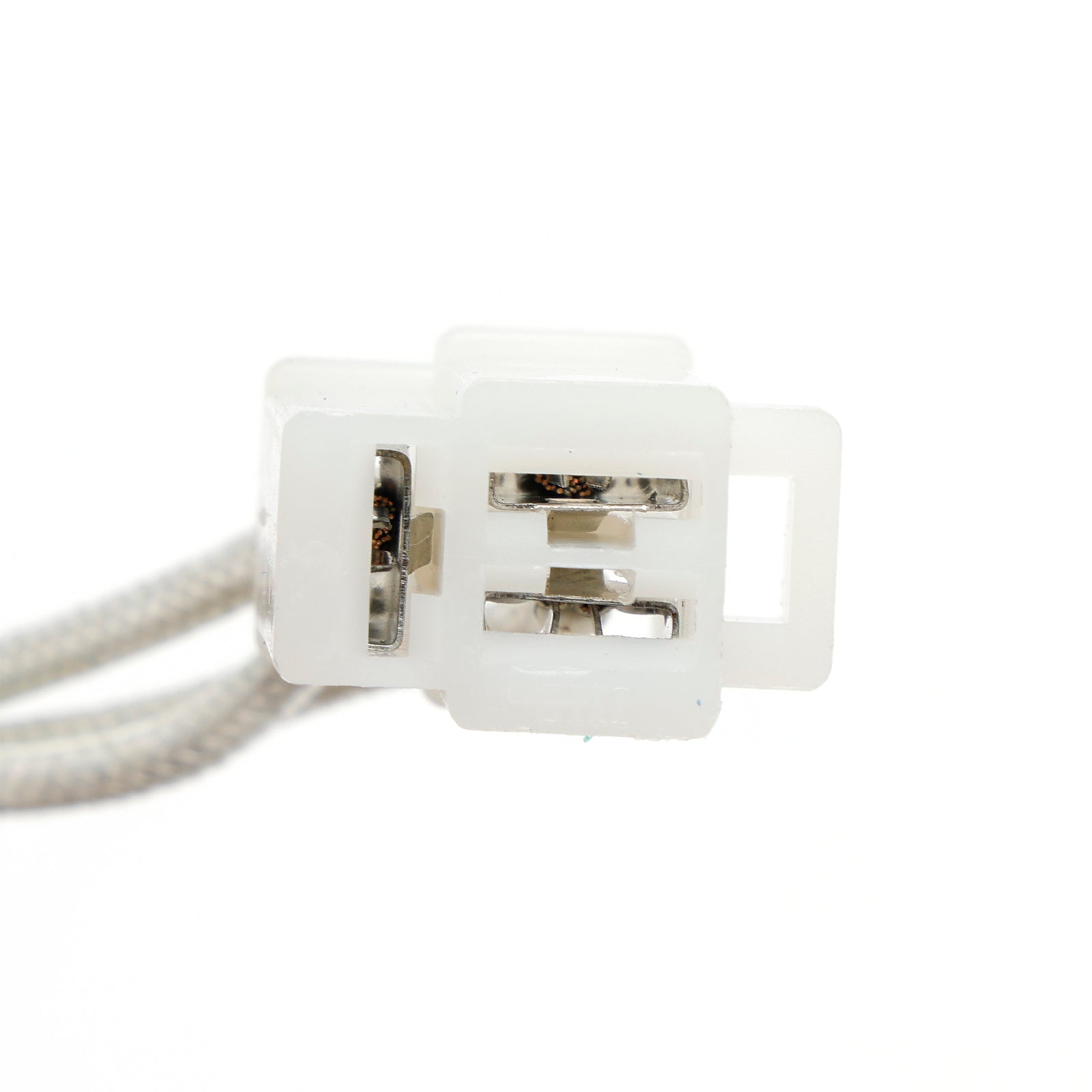

Number of pins: 2 + 3
Number of poles: 18
Number of fixing holes: 3
Inner diameter: 35 mm
Outer diameter: 93 mm
Thickness(Height): 26 mm

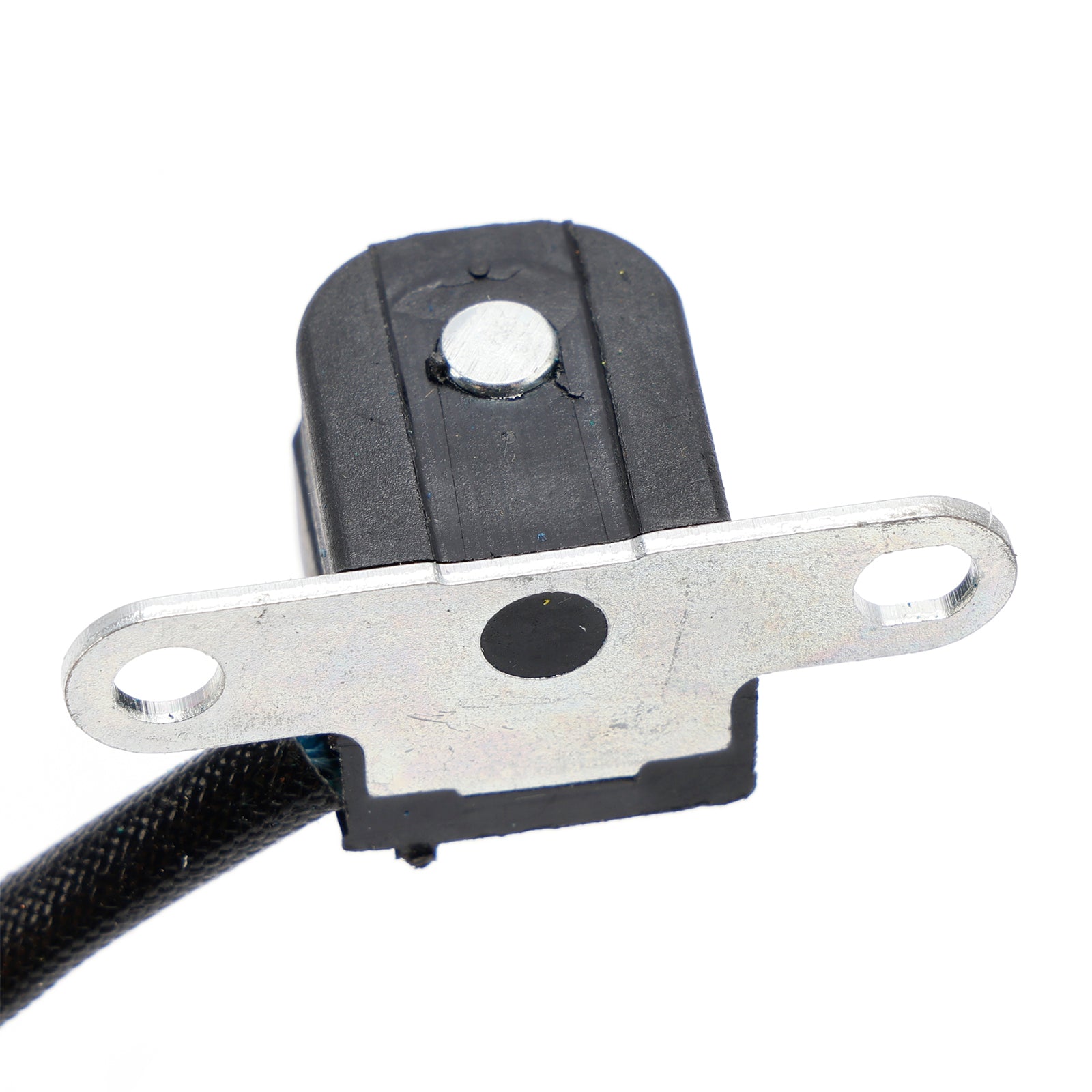

Pick up pulsar coil included.

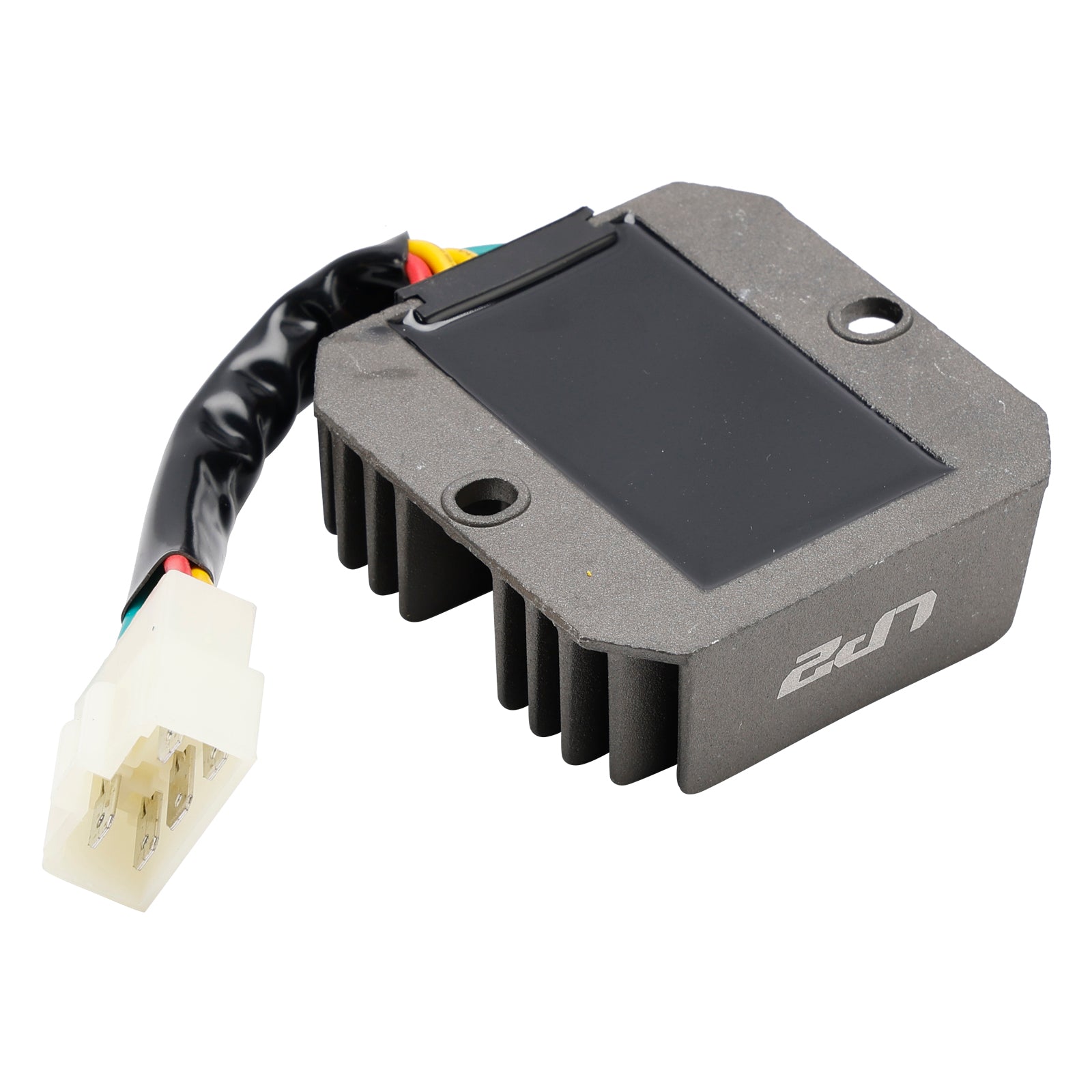

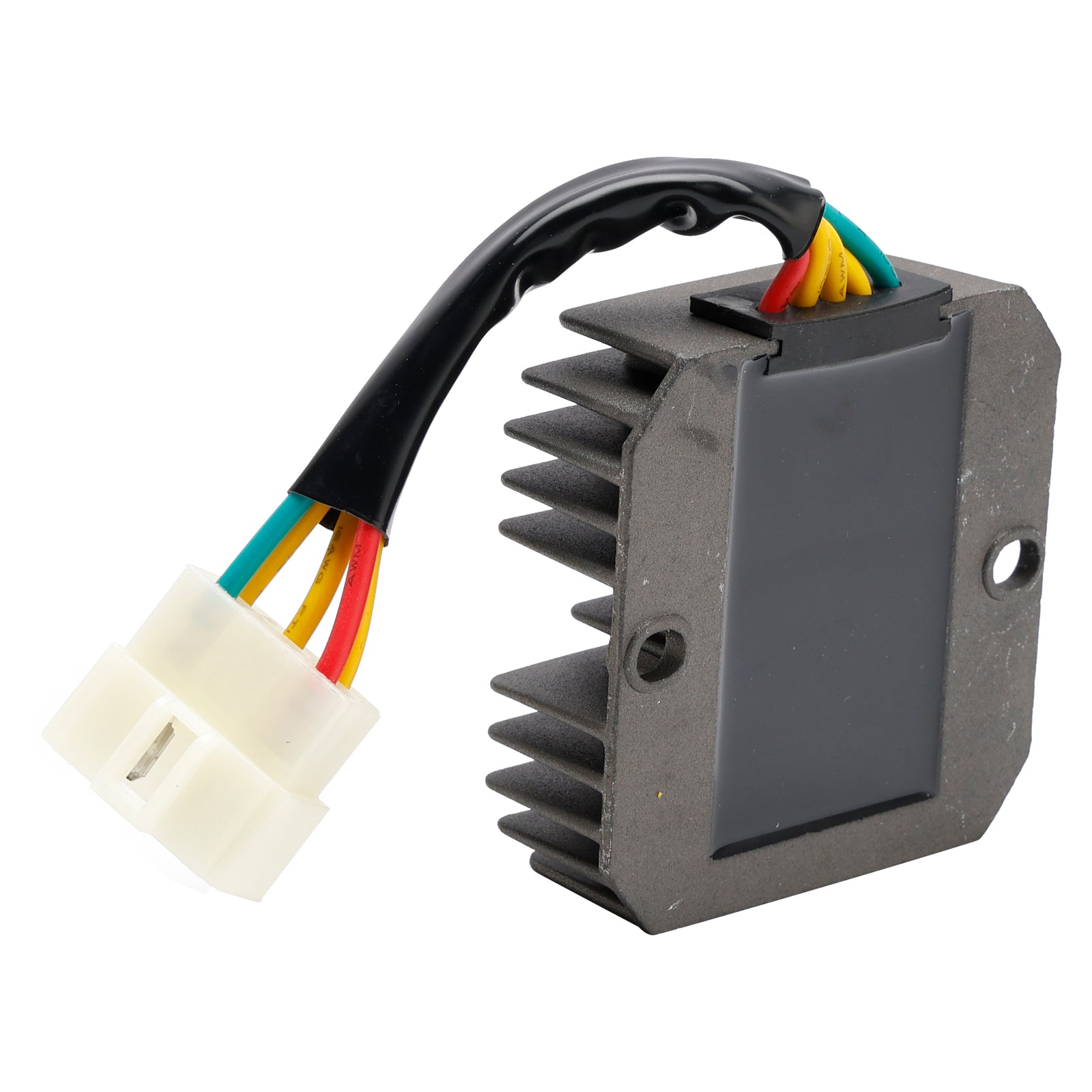

Regulator
Number of wires: 5
Number of plugs: 1

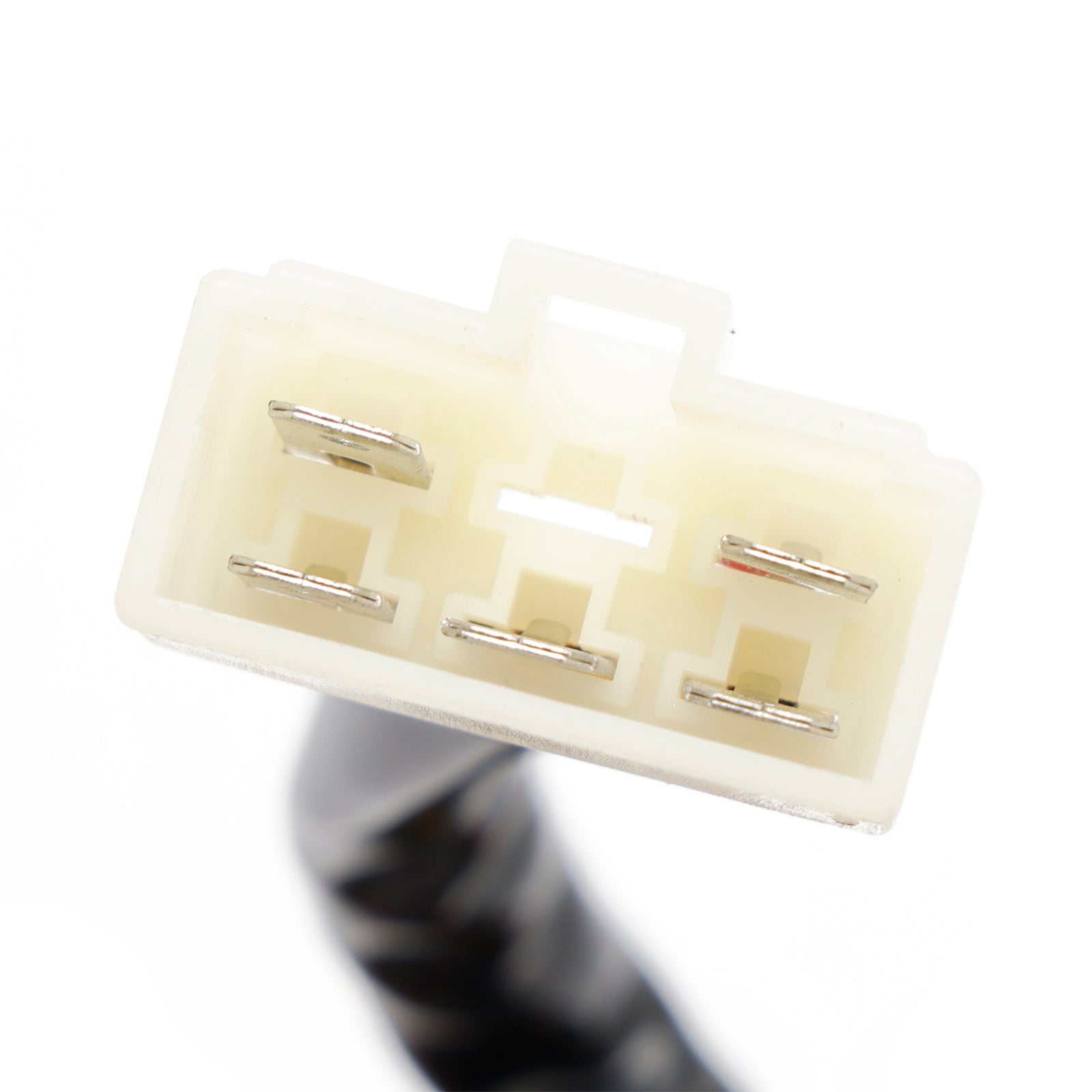

Number of pins: 5

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: 24001
Rectifier, regulator: 22007

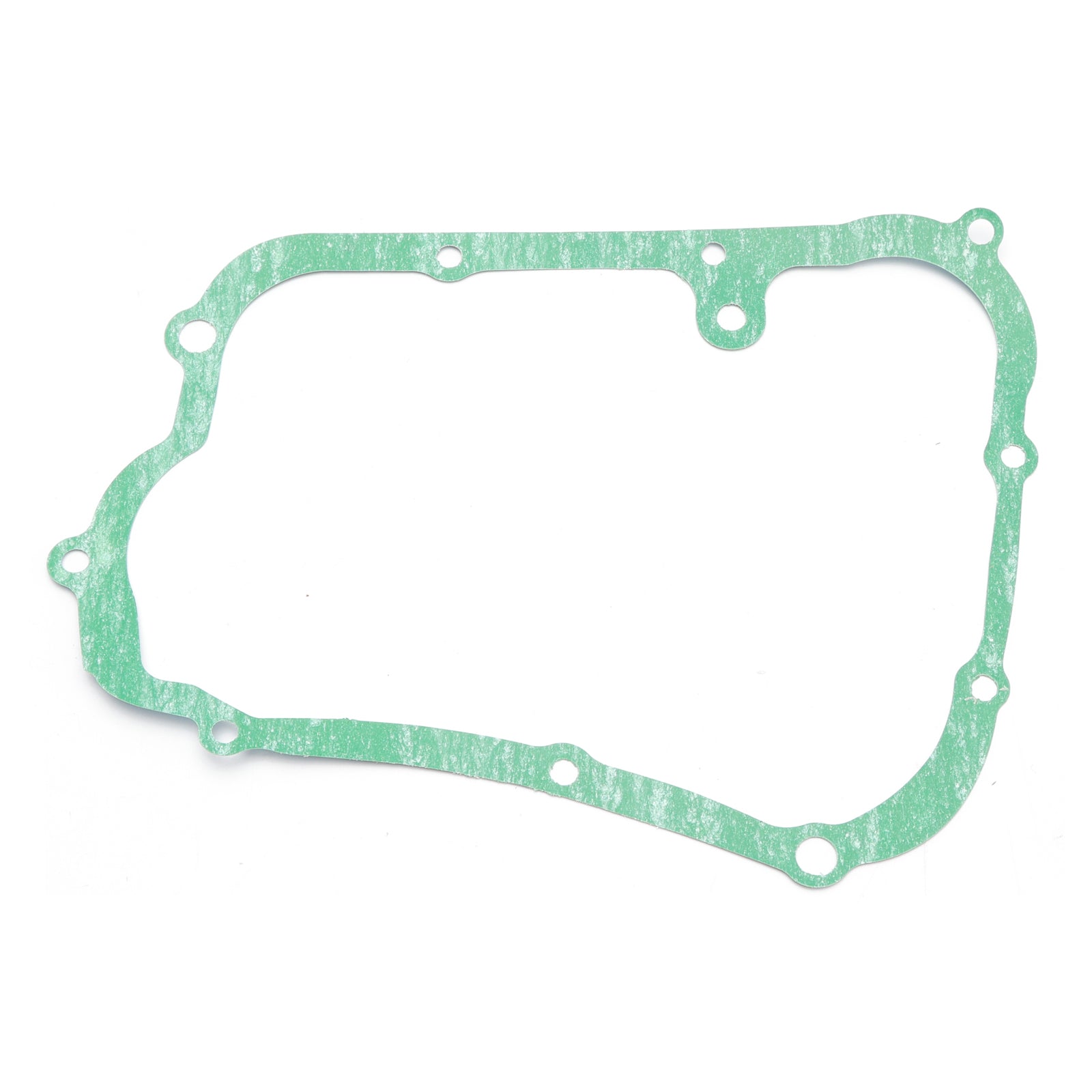

Gasket, generator cover: 23617

(Use the part number to verify fitment to your application. )

Fits Make/Model:
Fit for Linhai ATV 260
Fit for Linhai ATV 290 2006-2012
Fit for Linhai ATV 300
Fit for Linhai ATV 300 3D
Fit for Linhai ATV 310 S
Fit for Linhai ATV 310T T3
Fit for Linhai ATV 320
Fit for Linhai ATV 400 2D
Fit for Linhai ATV 410
Fit for Linhai ATV 420 D
Fit for Linhai CUV 400

Only fits the smaller stator version( P.N. 24001, I.D. 35mm, O.D. 93mm), there are another bigger one ( P.N. 24001A, I.D. 39mm, O.D. 103mm).

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

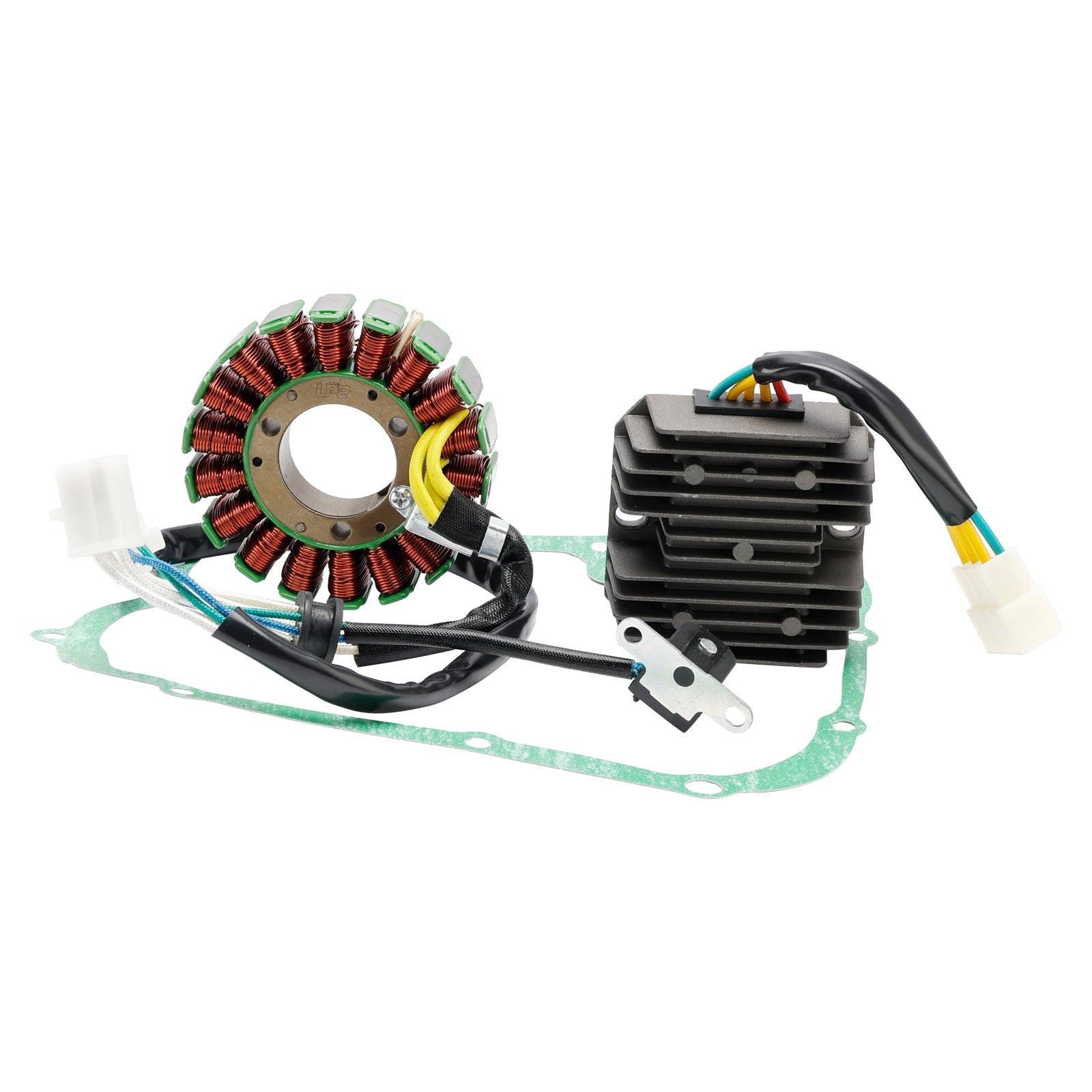

Package Includes:
1 x 93mm Generator Stator
1 x 5-Wire Voltage Regulator

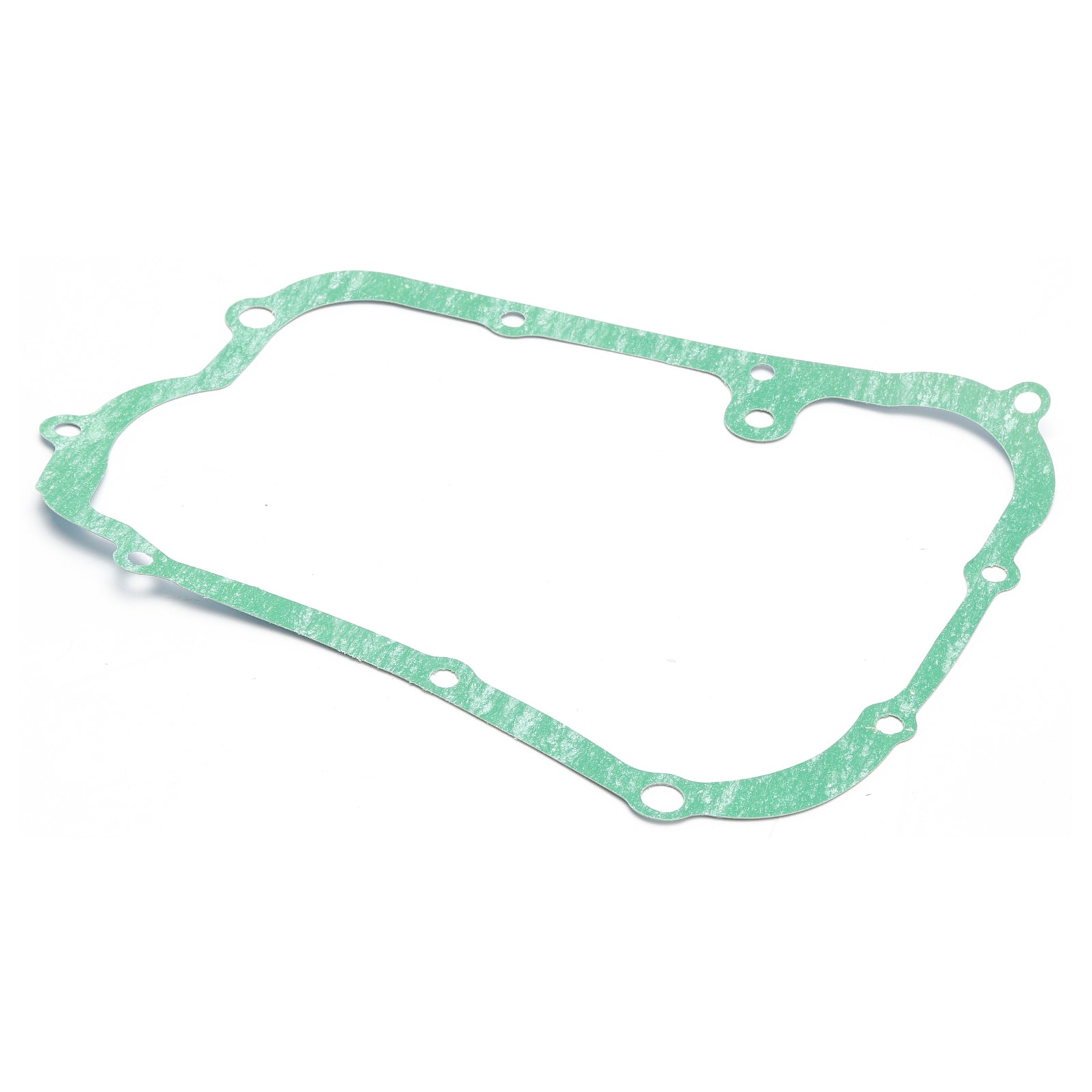

1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
