78mm Stock Bore Cylinder Piston Gasket Top End Rebuild Kit Fit For Honda CRF250R 2004-2009 CRF250X 2004-2017

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

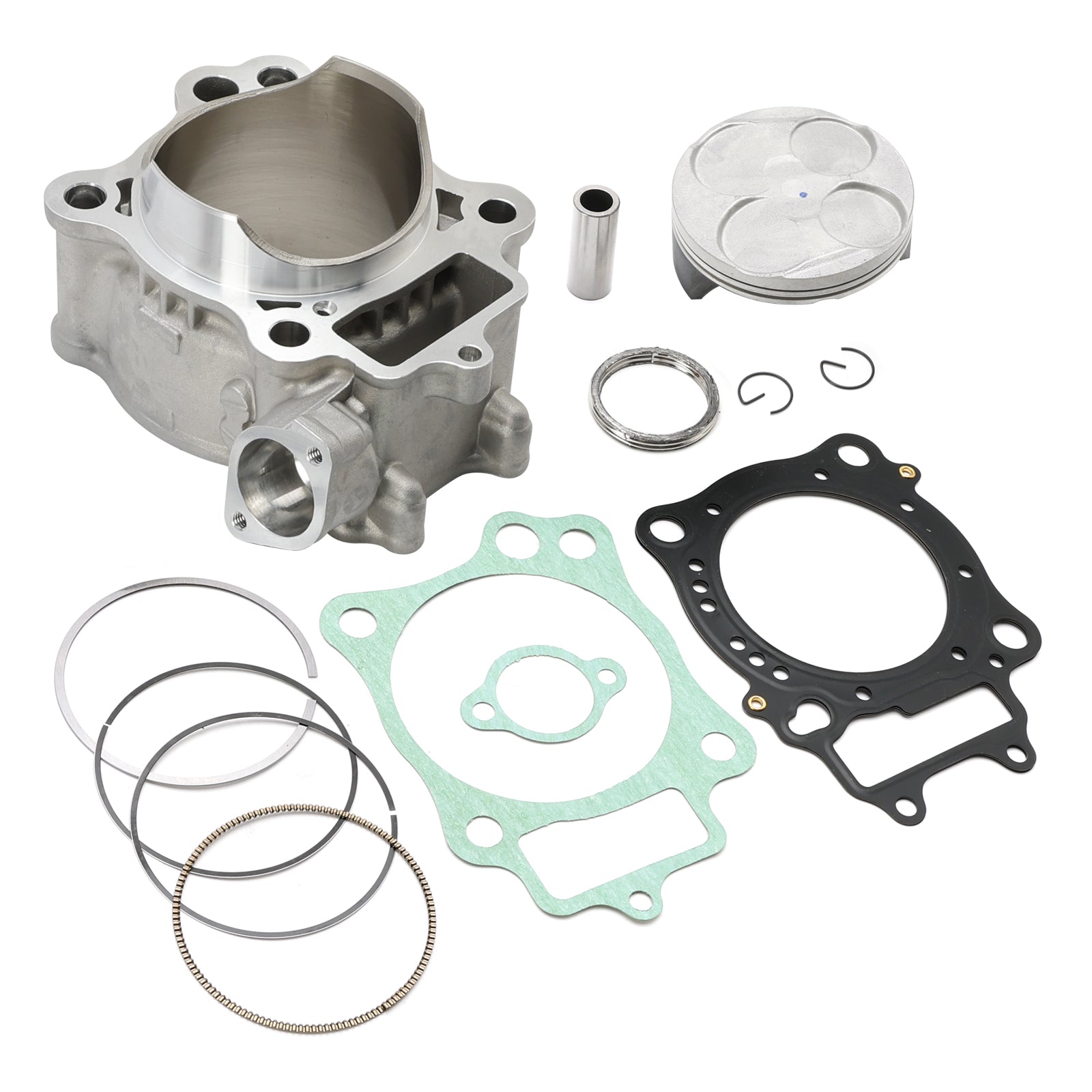

Kit includes cylinder, forged piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

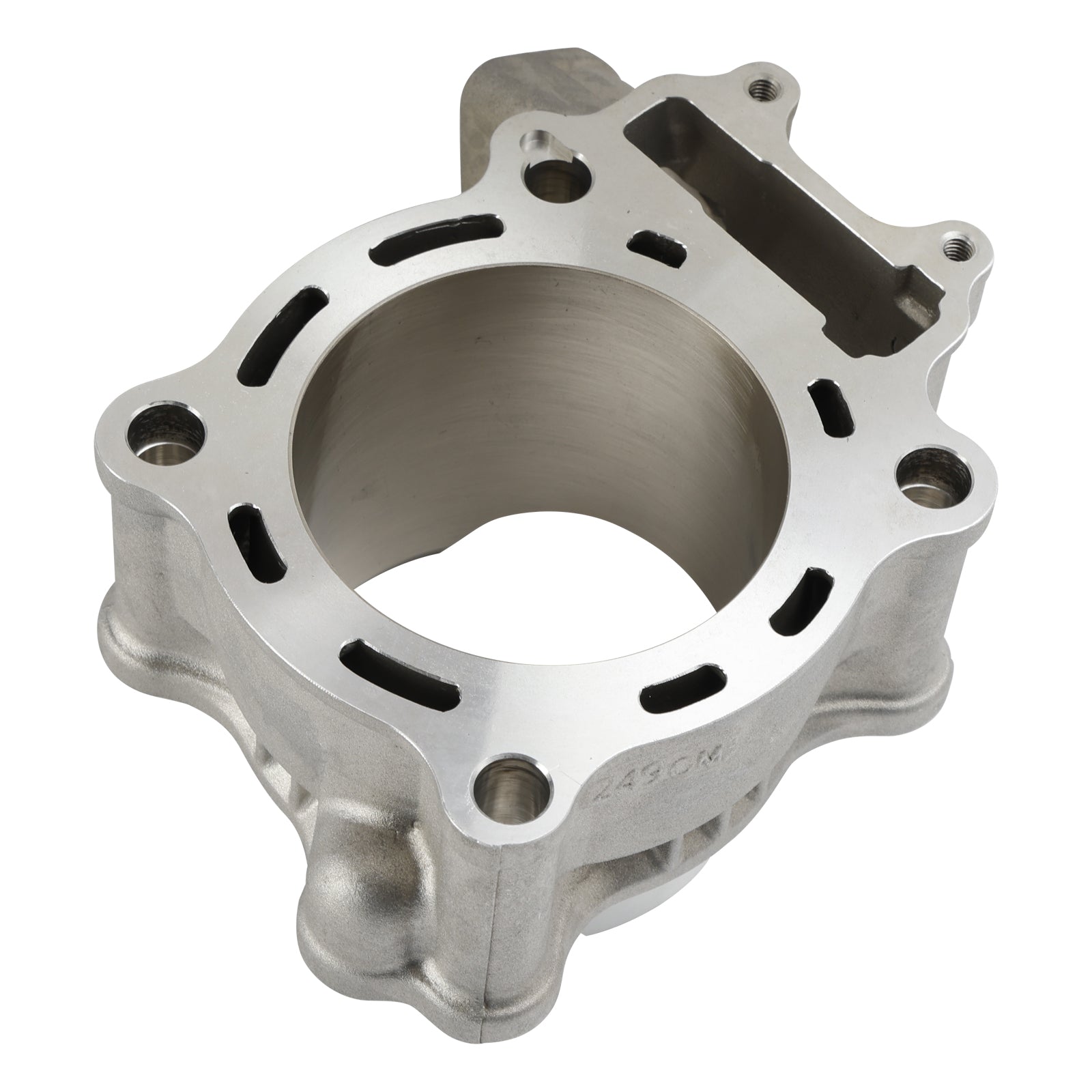

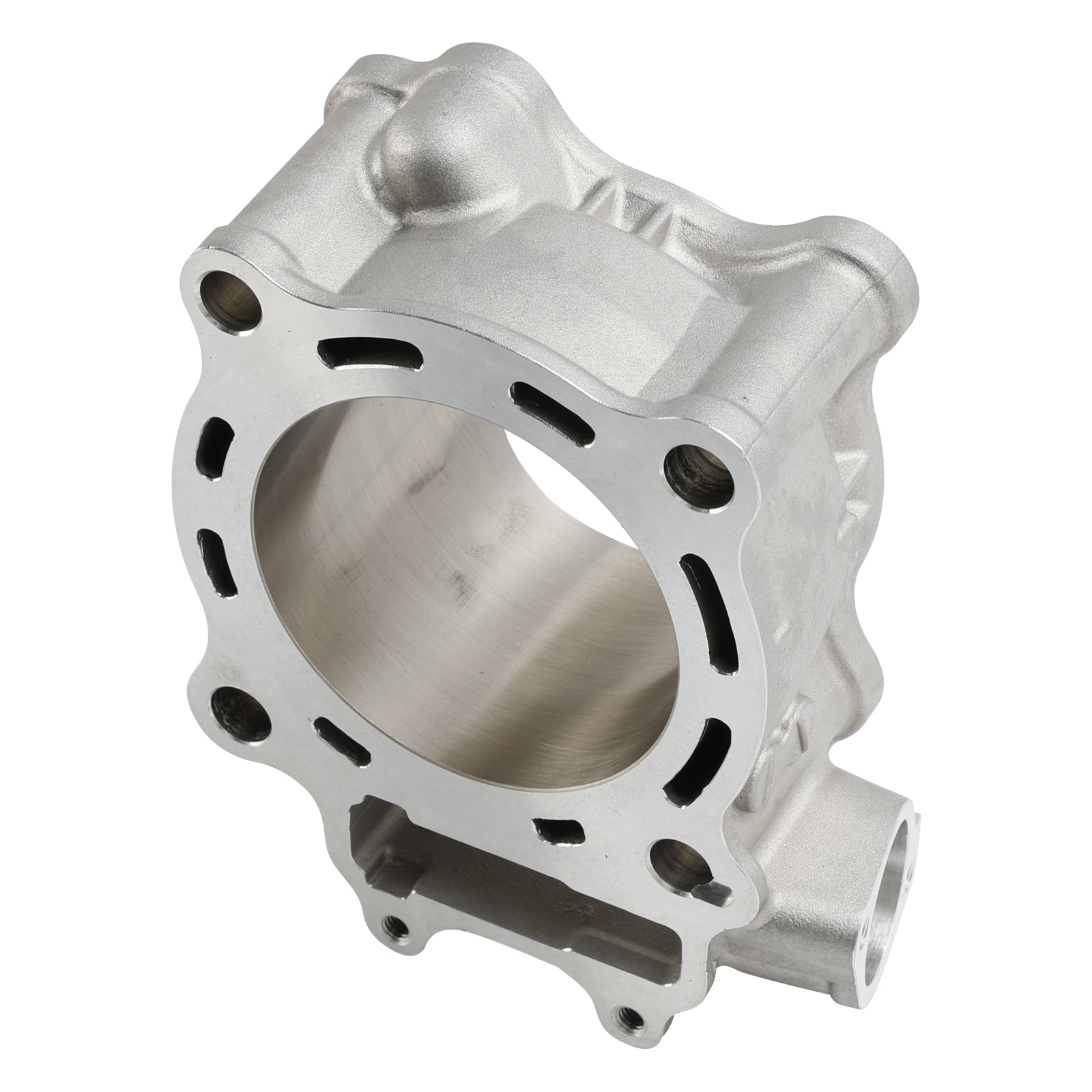

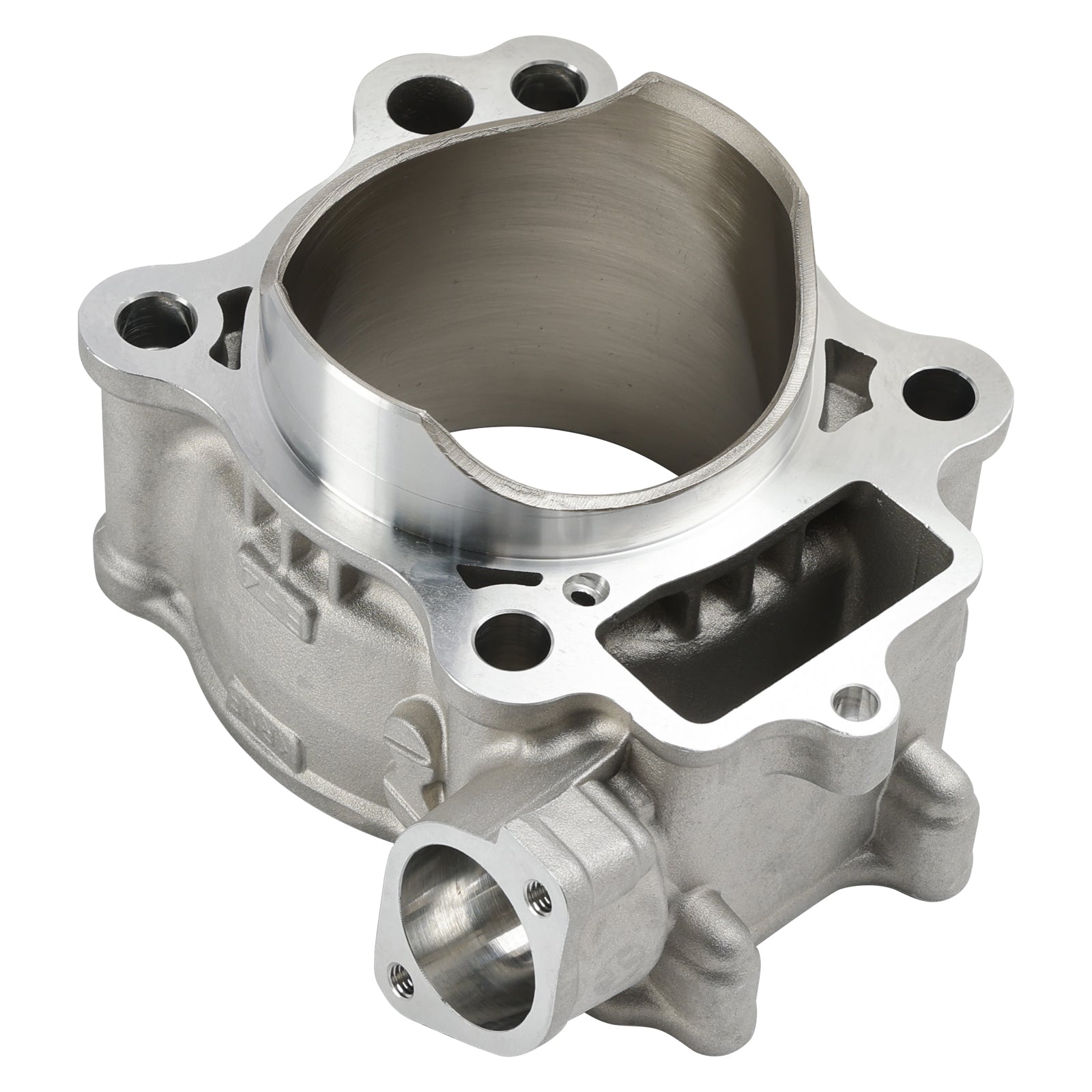

Nickel Silicon Carbide plated for long life.

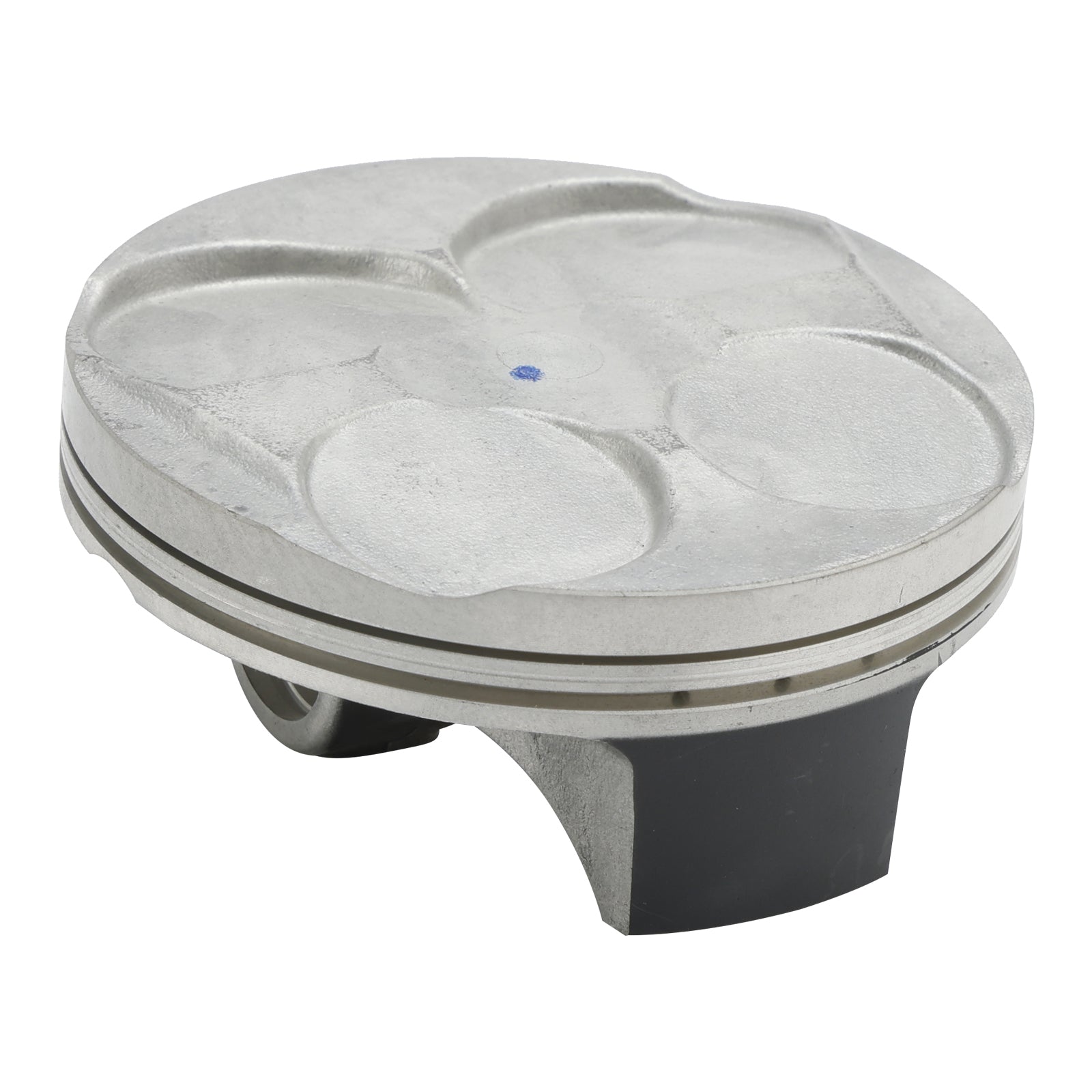

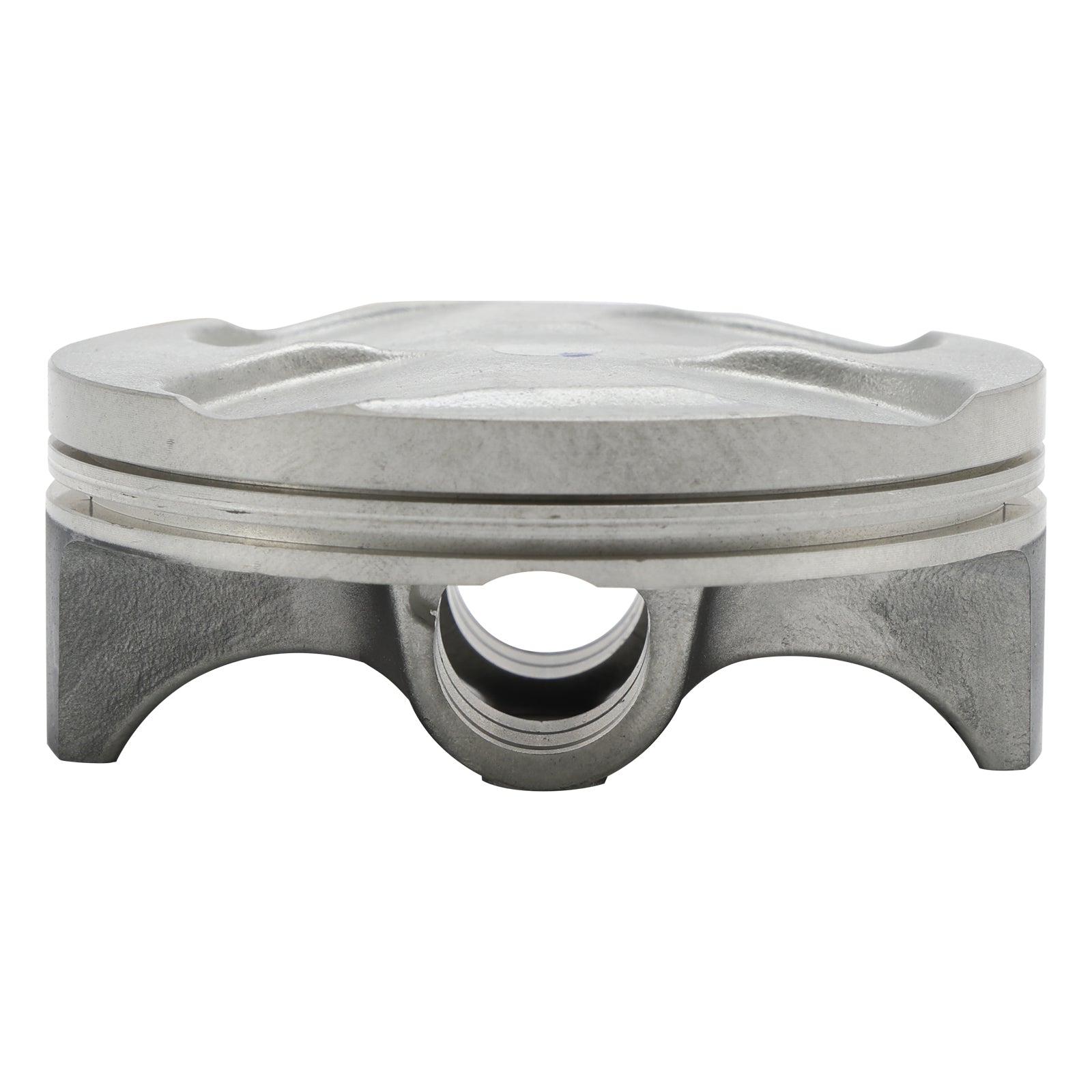

Piston is anodized for superior heat resistance and longer lifespan.

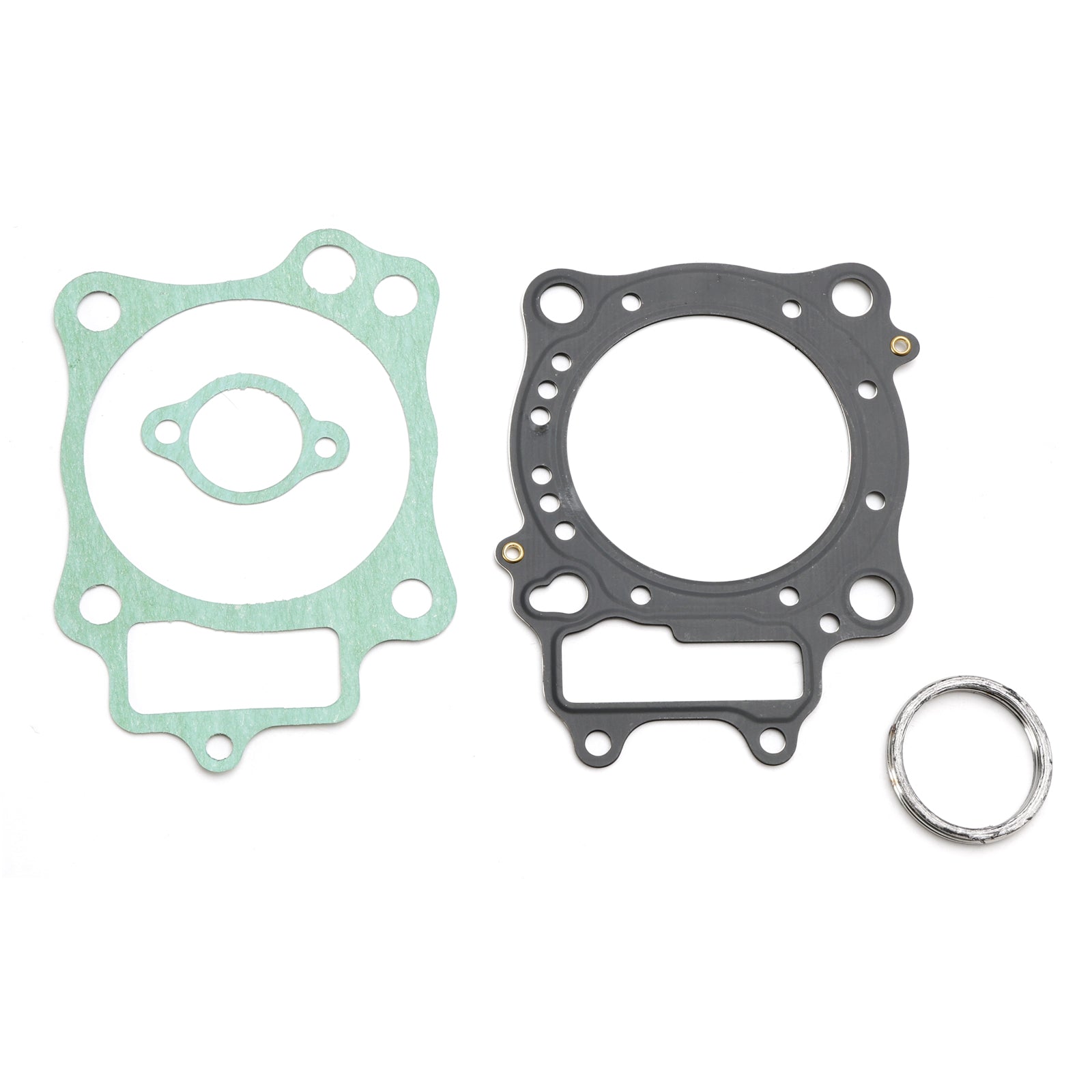

The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 78.0 mm x 52.2 mm stroke, 16mm steel piston pin.
Compression Ratio: 12.9:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 249cc
Engine type: 4-Stroke
Bore Type: Standard Bore
Bore diameter: 78.00mm
Stroke: 52.2 mm
Pin diameter: 16mm
Pin Length: 40mm

Replacement Part Number:
Cylinder: 12100-KRN-670, 12100-KRN-732
Cylinder Base Gasket: 12191-KRN-731
Cylinder Head Gasket: 12251-KRN-671, 12251-KRN-731
Piston (Std): 13101-KRN-670, 13101-KRN-850
Pin, Piston: 13111-KRN-850
Piston Ring Set (Std): 13011-KRN-A10, 13011-KRN-850
Circlips, piston (2): 13115-KM7-700
Exhaust Gasket: 18291-KPS-900
Chain Tensioner Gasket: 14560-MEN-671

Fits Make/Model/Year:
Fit for Honda CRF250R 2004-2009
Fit for Honda CRF250X 2004-2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x Cylinder
1x Piston

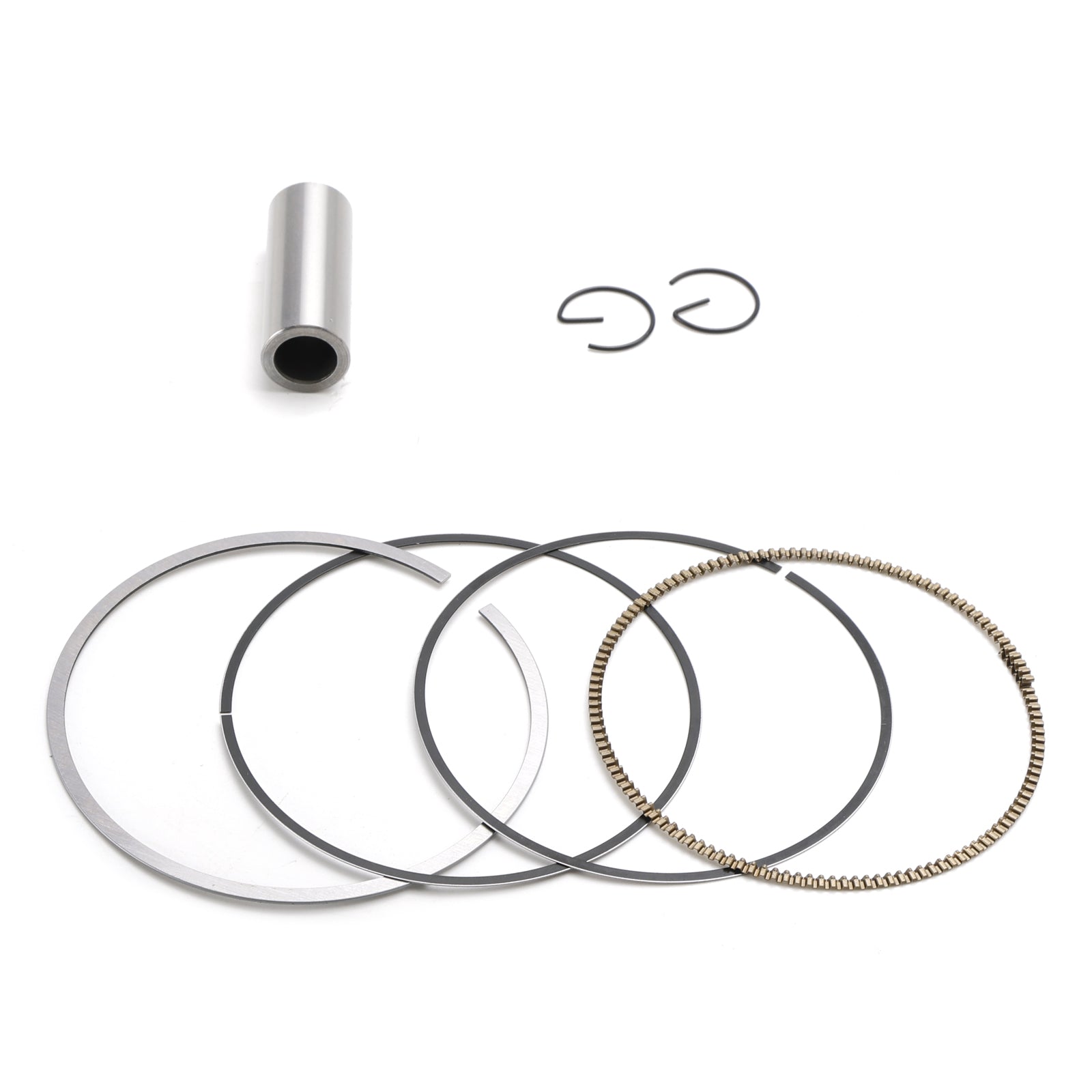

1x Piston Ring Set
1x 16mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
1x Chain Tensioner Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
