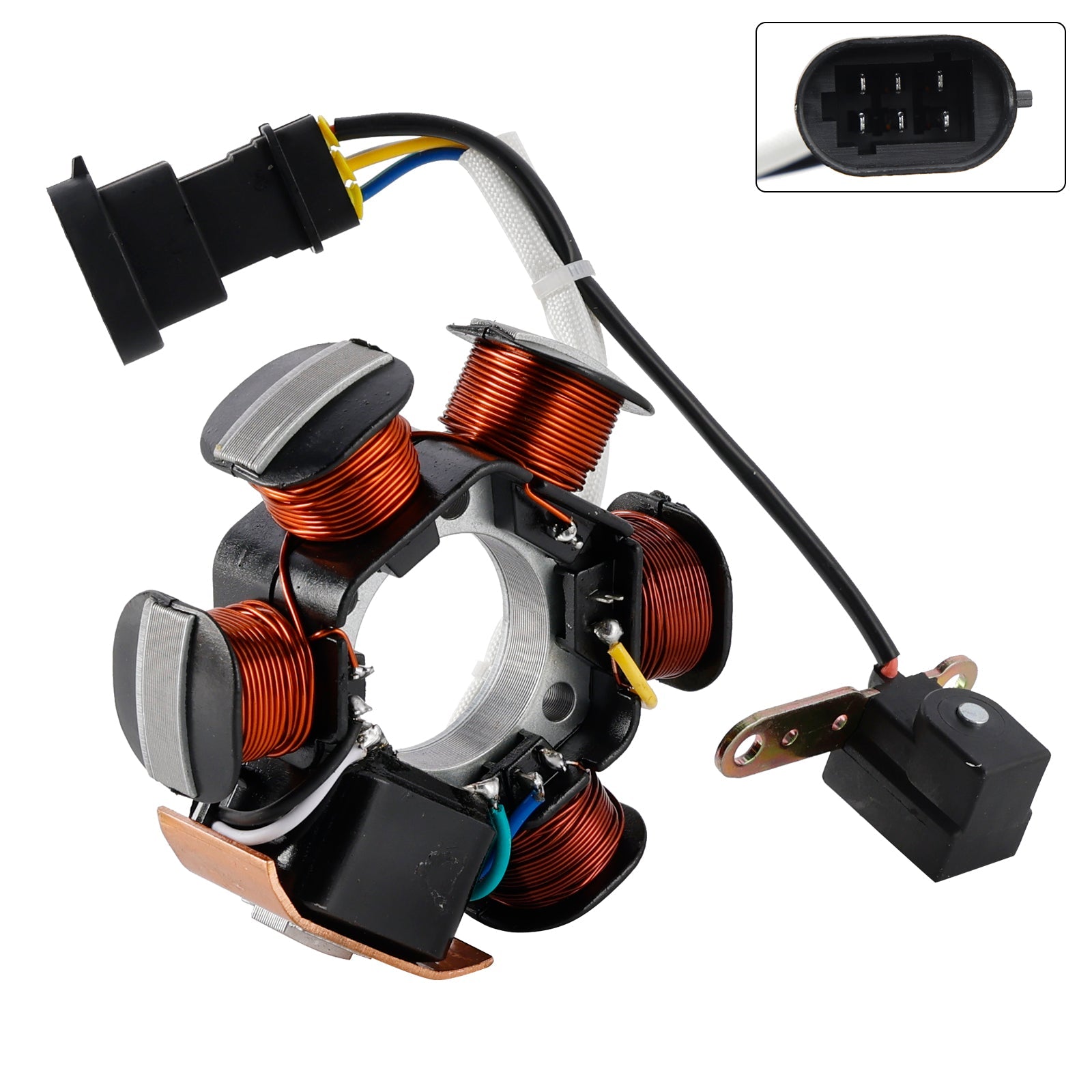

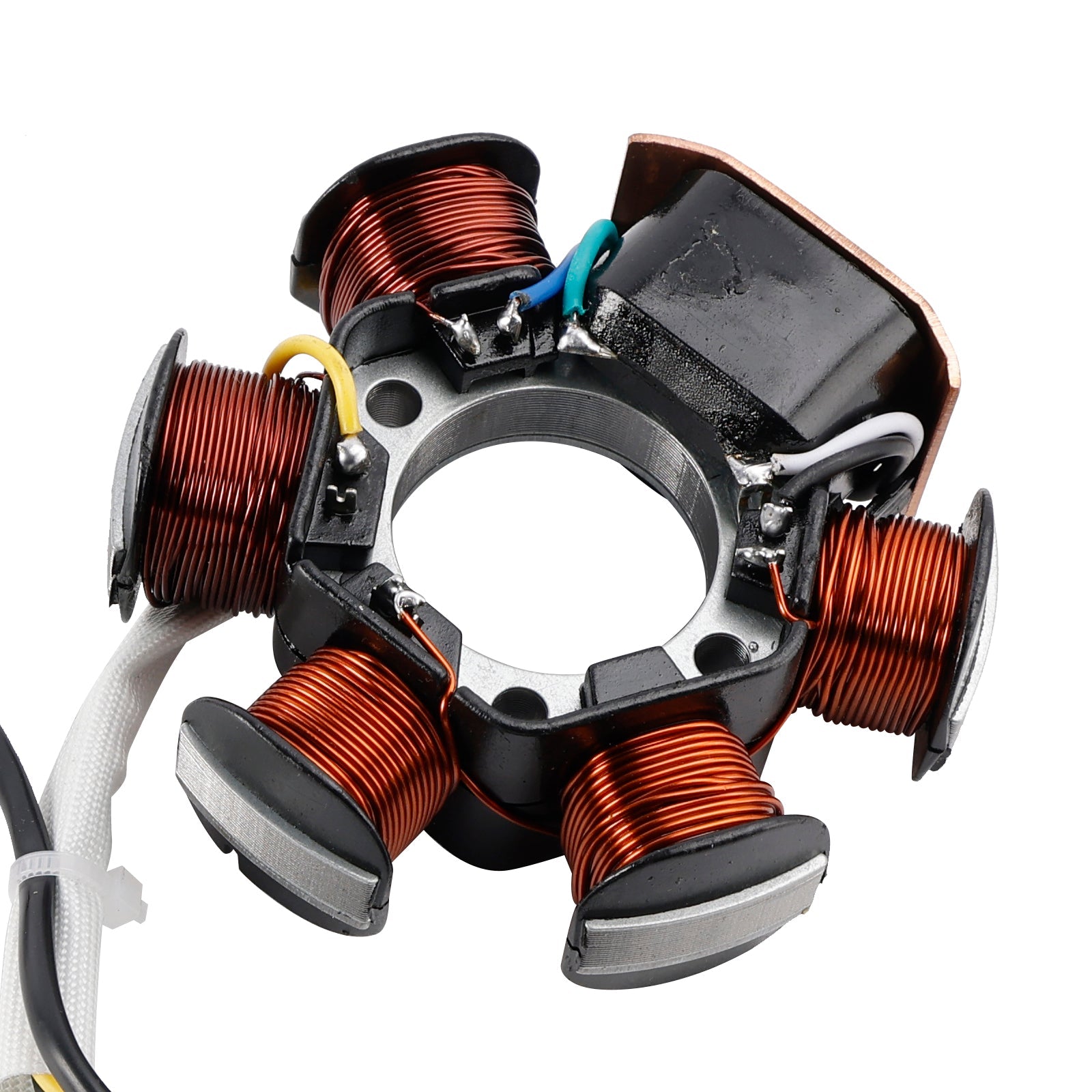

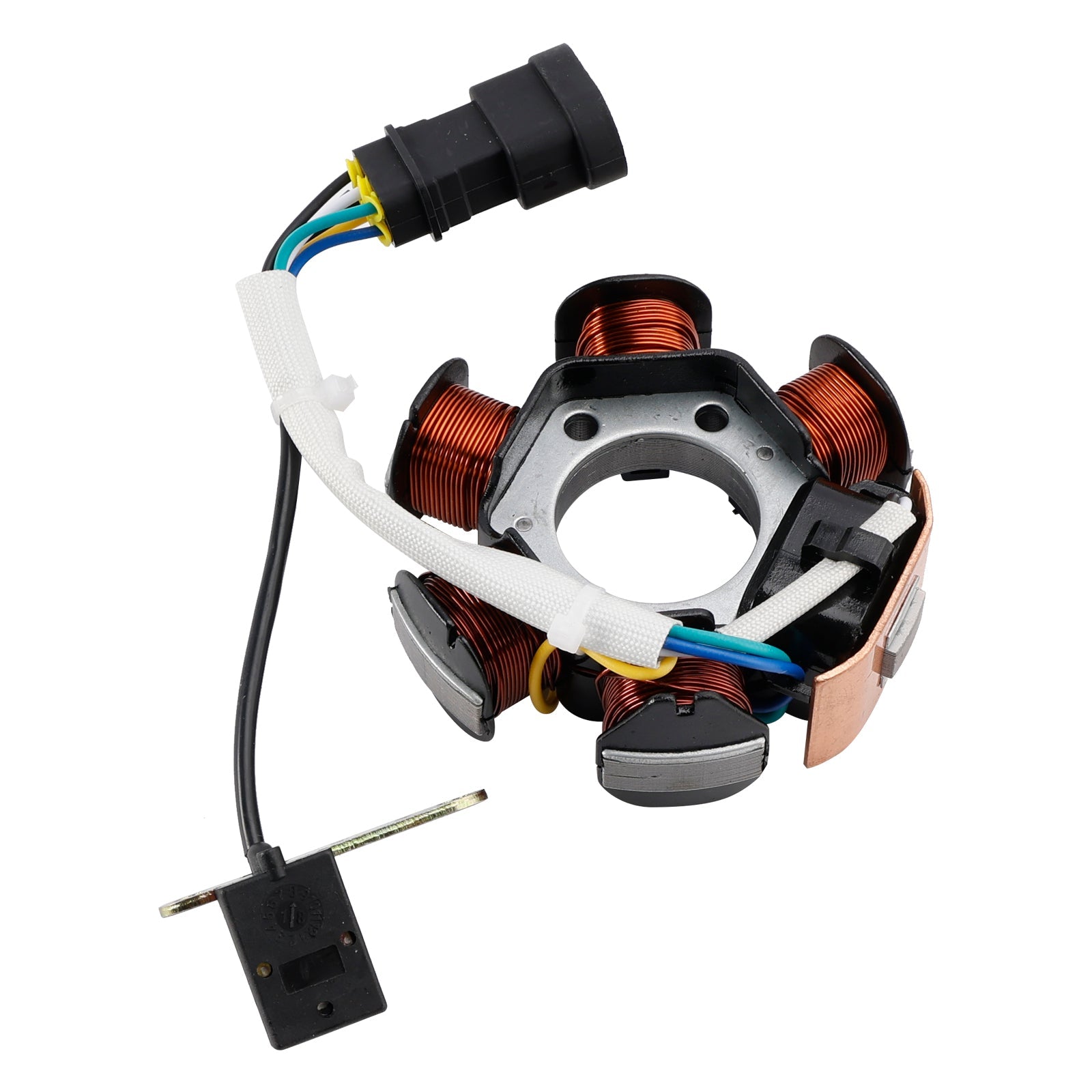

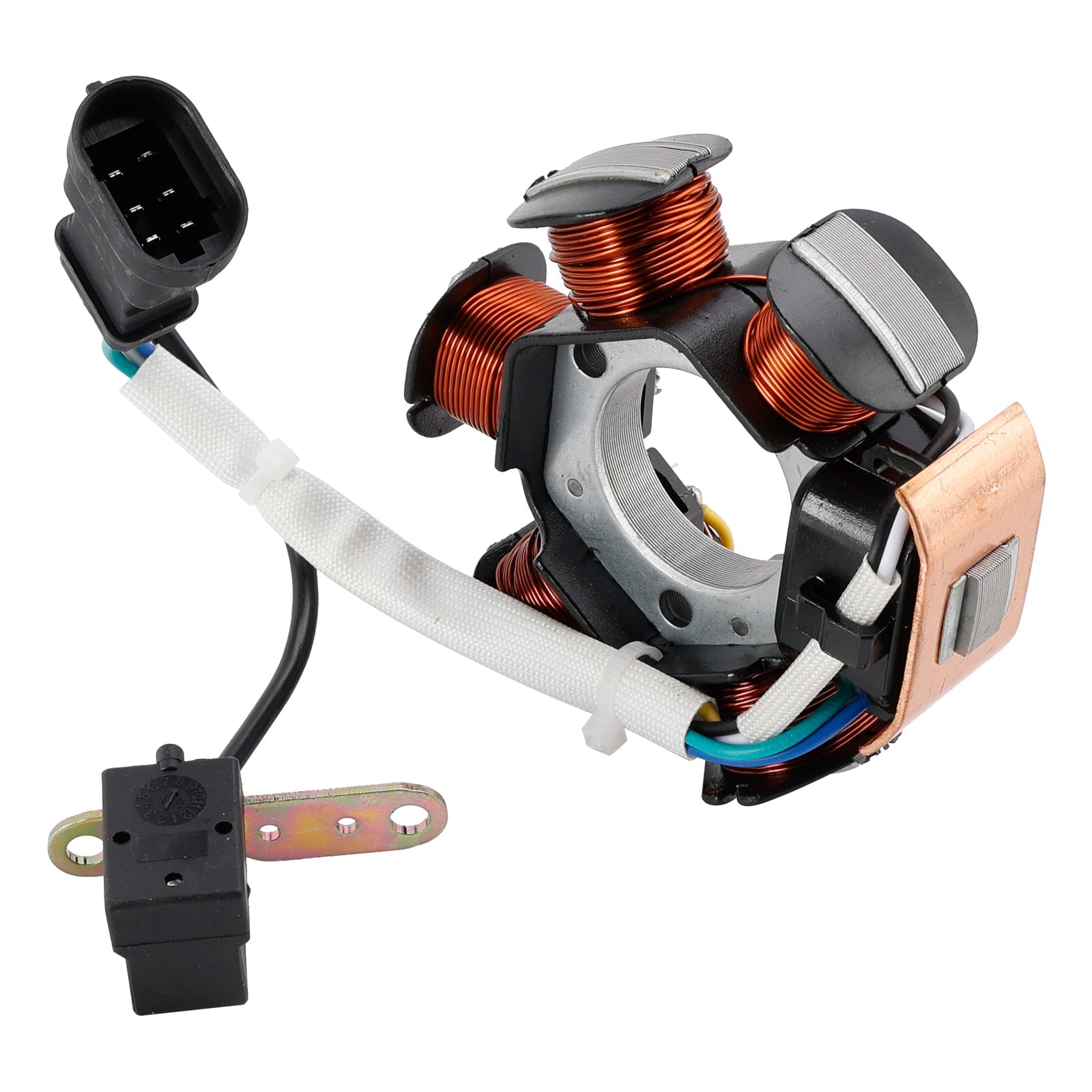

6-Pin Magneto Generator Stator Fit for Piaggio Zip SP TPH Typhoon NRG Power Mc3 Vespa ET2 LX LXV

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

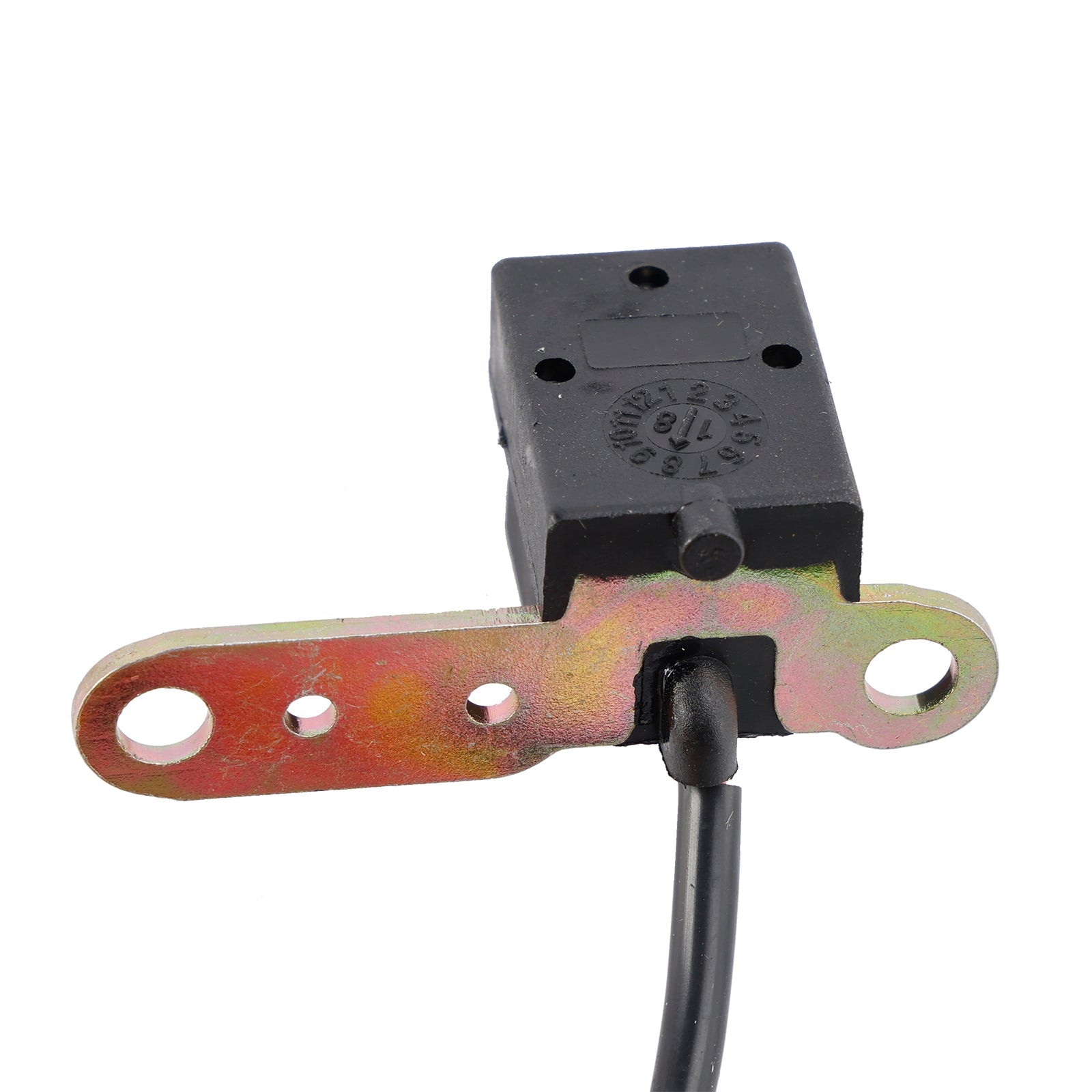

Pick up pulsar coil included.

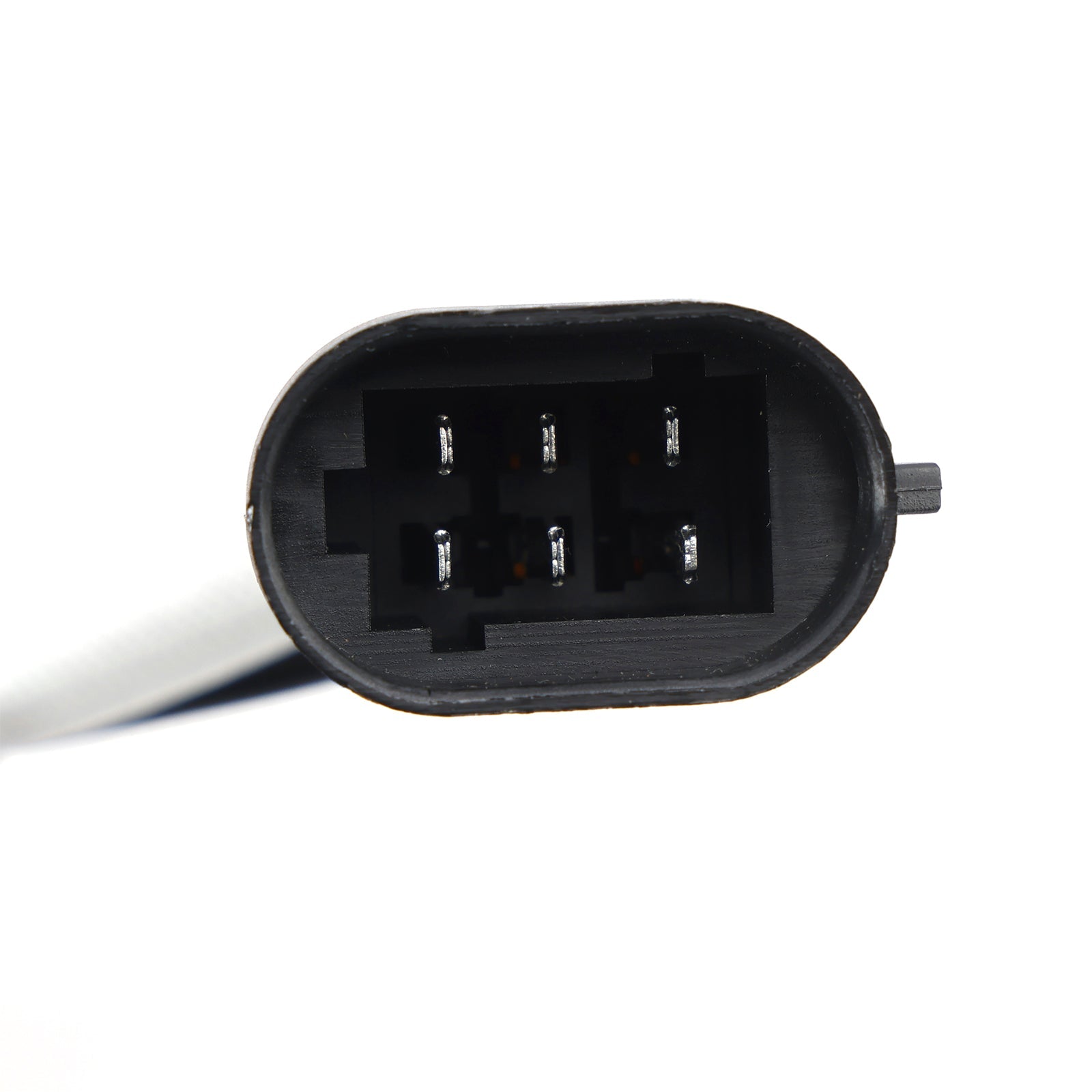

6-pin connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of fixation holes: 3
Number of poles: 5

Please compare the number of pins and plugs with the old part before purchasing.

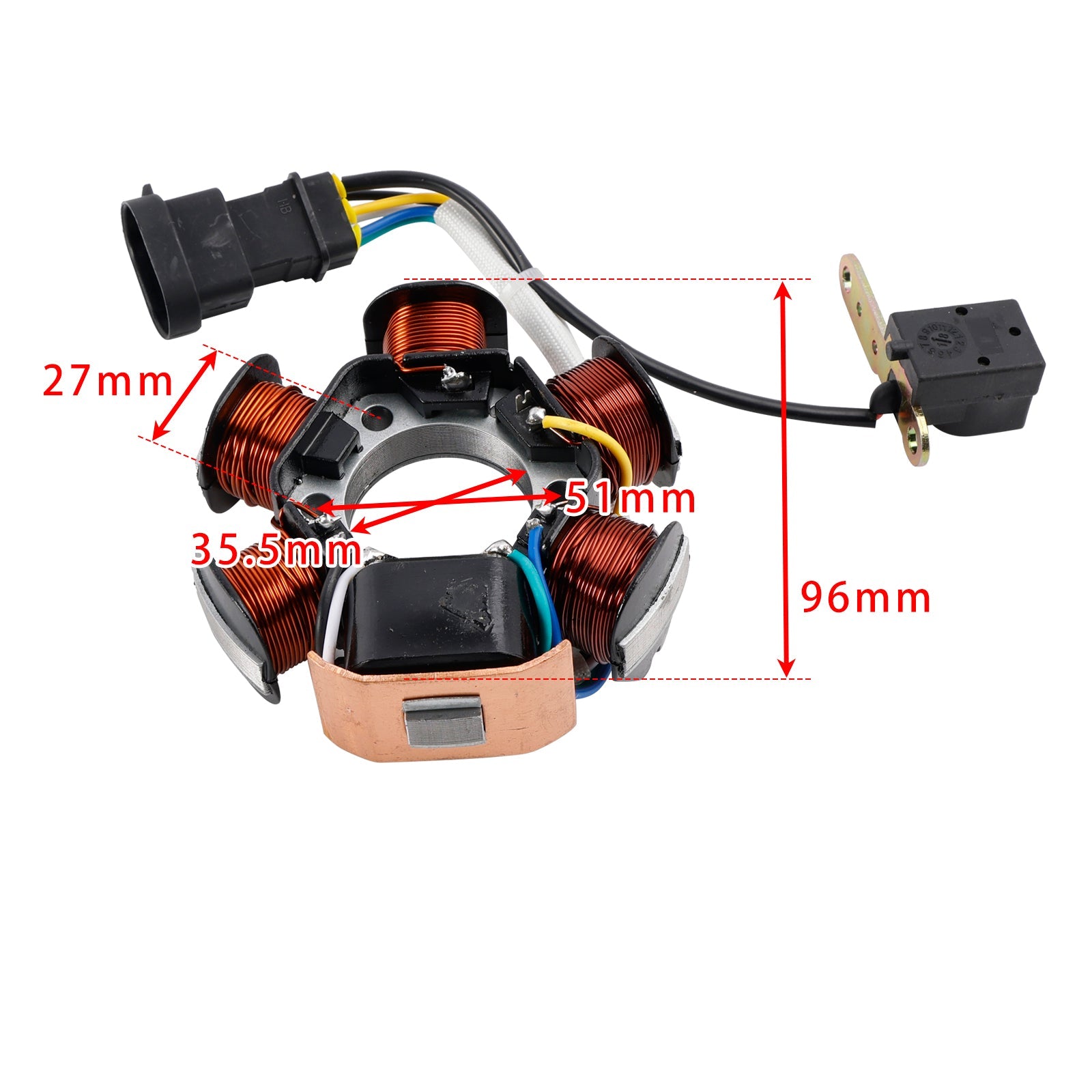

Size:
Diameter of Central Hole (Smallest): 35.5 mm
Outer Diameter Of Stator Poles (Greatest): 96 mm
Mount hole spacing center to center: 51 mm

Replacement Part Number:
639865
584525
830296

Fits Model:
This alternator is suitable for 50cc Piaggio 2-stroke engines with new Hyper 2 engine from year of construction 2000.
If you have a vehicle that was built or registered around 1999 to 2001, please compare the plug in the picture with the original version in the scooter.
This alternator is also not suitable for injection / PureJet vehicles.

Fit for APRILIA Mojito Custom 50 2T 2004-2013
Fit for APRILIA Sport City One 50 2T 2008-2013
Fit for APRILIA SR Motard 50 2T 2012-2017
Fit for APRILIA SR R 50 2T 2004-2017
Fit for APRILIA SR Street 50 2T 2003-2017
Fit for DERBI Atlantis 50 2T 2002-2010
Fit for DERBI Boulevard 50 2T 2009-2014
Fit for DERBI GP1 50 2T 2001-2003
Fit for DERBI GP1 Open 50 2T 2006-2009
Fit for DERBI GP1 Race 50 4T 2005-2007
Fit for DERBI Sonar 50 2T 2009-2009
Fit for DERBI Variant Sport 50 2T 2012-2012
Fit for GILERA DNA 50 2T 2000-2008
Fit for GILERA Ice 50 2T 2001-2005
Fit for GILERA Runner Poggiali 50 2T 2002-2002
Fit for GILERA Runner SP 50 2T 2002-2004
Fit for GILERA Runner SP RST 50 2T 2005-2017
Fit for GILERA Runner SP ST 50 2T 2008-2009
Fit for GILERA Stalker 50 2T 1997-2011
Fit for GILERA Storm 50 2T 2007-2012
Fit for ITALJET Jet-Set 50 2T 2002-2003
Fit for ITALJET Torpedo 50 2T 2000-2003
Fit for PIAGGIO Diesis 50 2T 2001-2005
Fit for PIAGGIO Fly 50 2T 2005-2015
Fit for PIAGGIO Liberty RST 50 2T 2004-2017
Fit for PIAGGIO NRG MC3 50 2T 2001-2005
Fit for PIAGGIO NRG Power 50 2T 2004-2017
Fit for PIAGGIO Typhoon 50 2T 2001-2017
Fit for PIAGGIO Vespa ET2 50 2T 1997-2005
Fit for PIAGGIO Vespa LX 50 2T 2005-2014
Fit for PIAGGIO Vespa LXV 50 2T 2006-2009
Fit for PIAGGIO Vespa Primavera 50 2T 2013-2017
Fit for PIAGGIO Vespa S 50 2T 2007-2014
Fit for PIAGGIO Vespa Sprint 50 2T 2014-2017
Fit for PIAGGIO Zip II 50 2T 2000-2017
Fit for PIAGGIO Zip SP 2 50 2T 2000-2015

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 6-Pin Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
