57mm Cylinder Domed Piston Gasket Top End Rebuild Kit 125cc For Suzuki GS125 GN125 GZ125 DR125

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

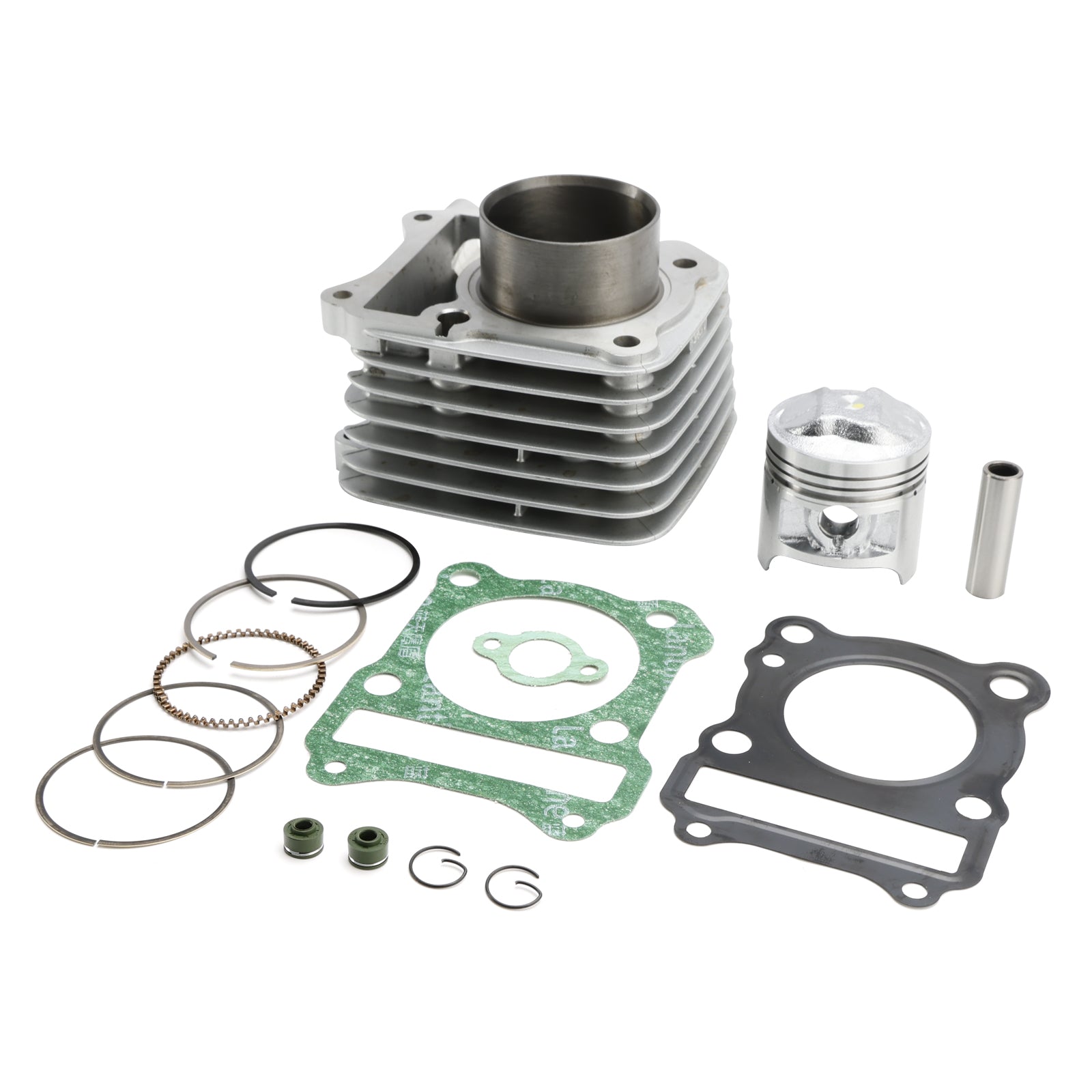

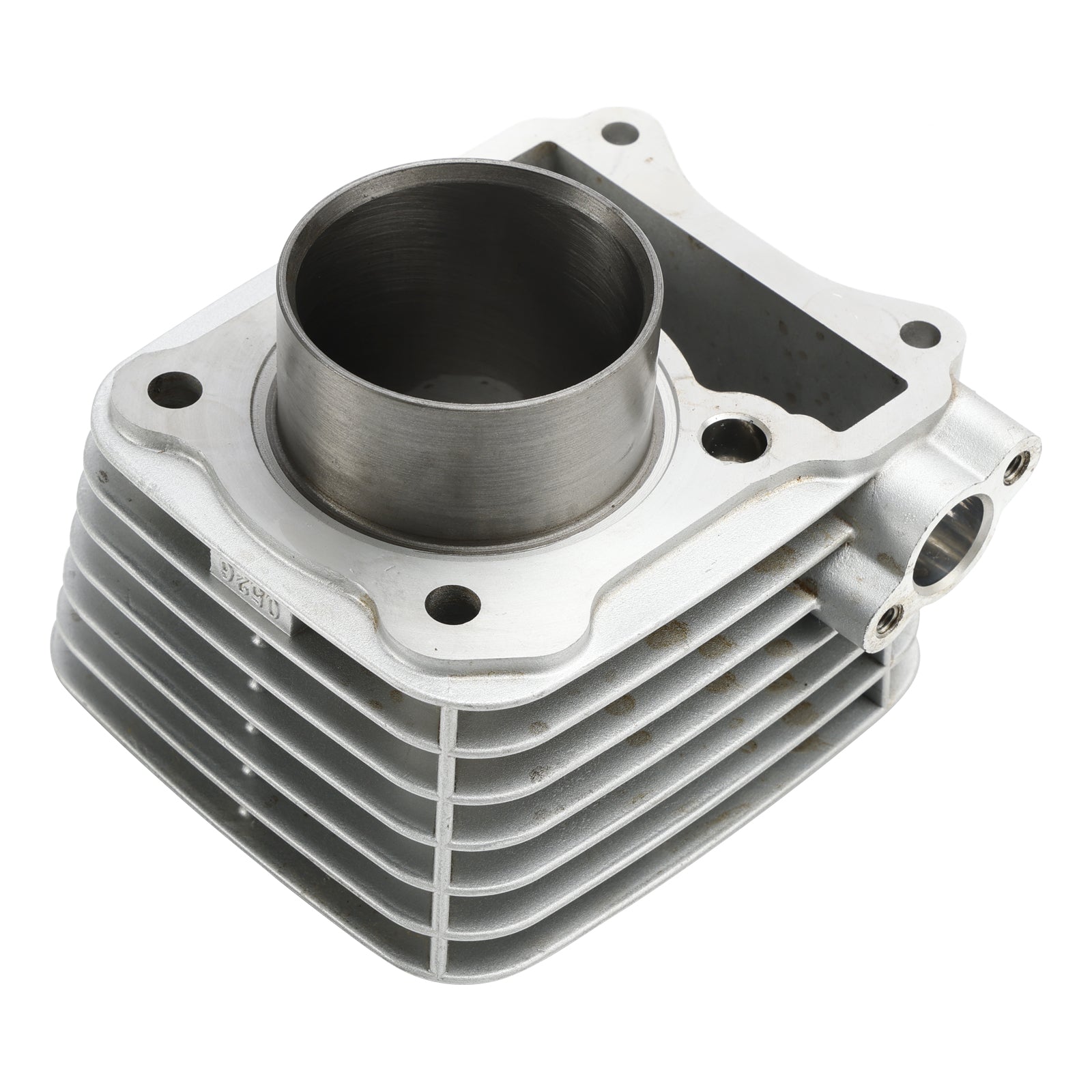

Kit includes cylinder, domed piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 57.0 mm x 48.8 mm stroke, 14mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 125cc 4 stroke
Bore Type: Standard Bore
Cooling: Air-cooled

other specifications:
Bore diameter: STD 57mm
Stroke: 48.8mm
Pin diameter: 14mm
Pin Height: 41mm
Total height: 98mm
Height without sleeves: 69mm
Sleeve outer diameter: 64mm
Hole spacing diagonally: 94mm

Replacement Part Number:
Cylinder: 11210-05211-0F0, 11210-44A11, 11210-05203-0F0
Cylinder Base Gasket: 11241-05311
Cylinder Head Gasket: 11141-05202
Piston (Std): 12111-05202-0F0
Pin, Piston: 12151-05220-0A0
Piston Ring Set (Std): 12140-01410
Circlips, piston (2): 09381-14001
Valve Stem Seal (2): 09289-05015

Attention:

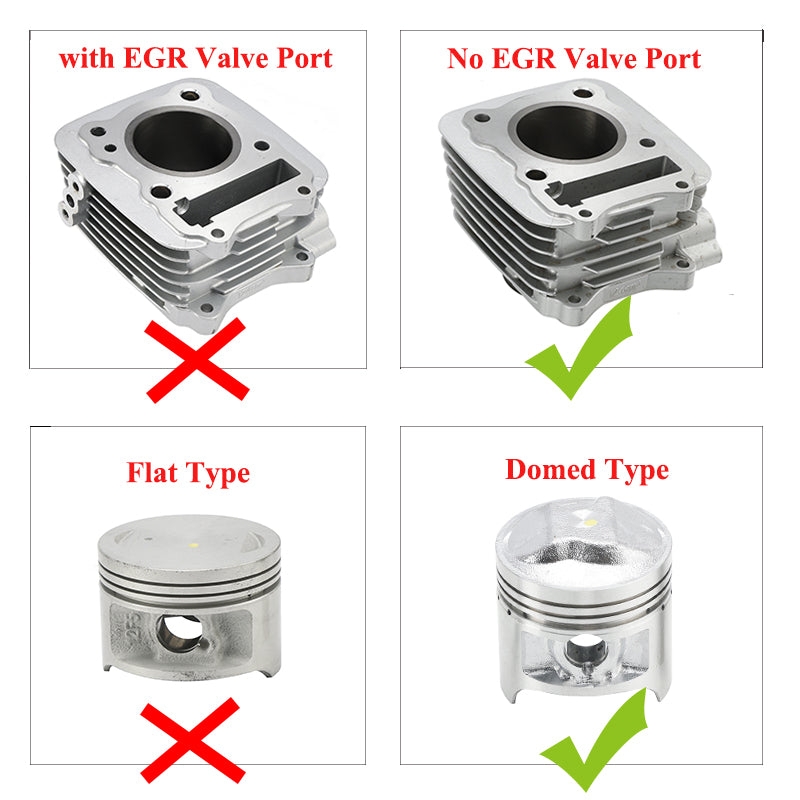

Before purchasing, please check your original piston pin to ensure that it is also 14mm and that your original piston also a domed piston.
And the side of cylinder does NOT have EGR (Exhaust Gas Recirculation) holes, the side of connecting cylinder head does NOT have vacuum hole.
Please study picture and compare our cylinder and piston with your original parts to confirm correct kit for your engine.

Fits Make/Model/Year:
Fit for Suzuki DR 125 S (1982-1994)
Fit for Suzuki DR 125 SE (1995-2000)
Fit for Suzuki GS 125 (1982-1999)
Fit for Suzuki GN 125 (1994-2001)
Fit for Suzuki GZ 125 Marauder (1998-2013)

The cylinder does NOT have SLS (Secondary air system), and the piston is domed type piston, NOT flat type piston.
Will NOT fit DRZ125 Models, though they have the same part number, the cylinder is not the same still.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

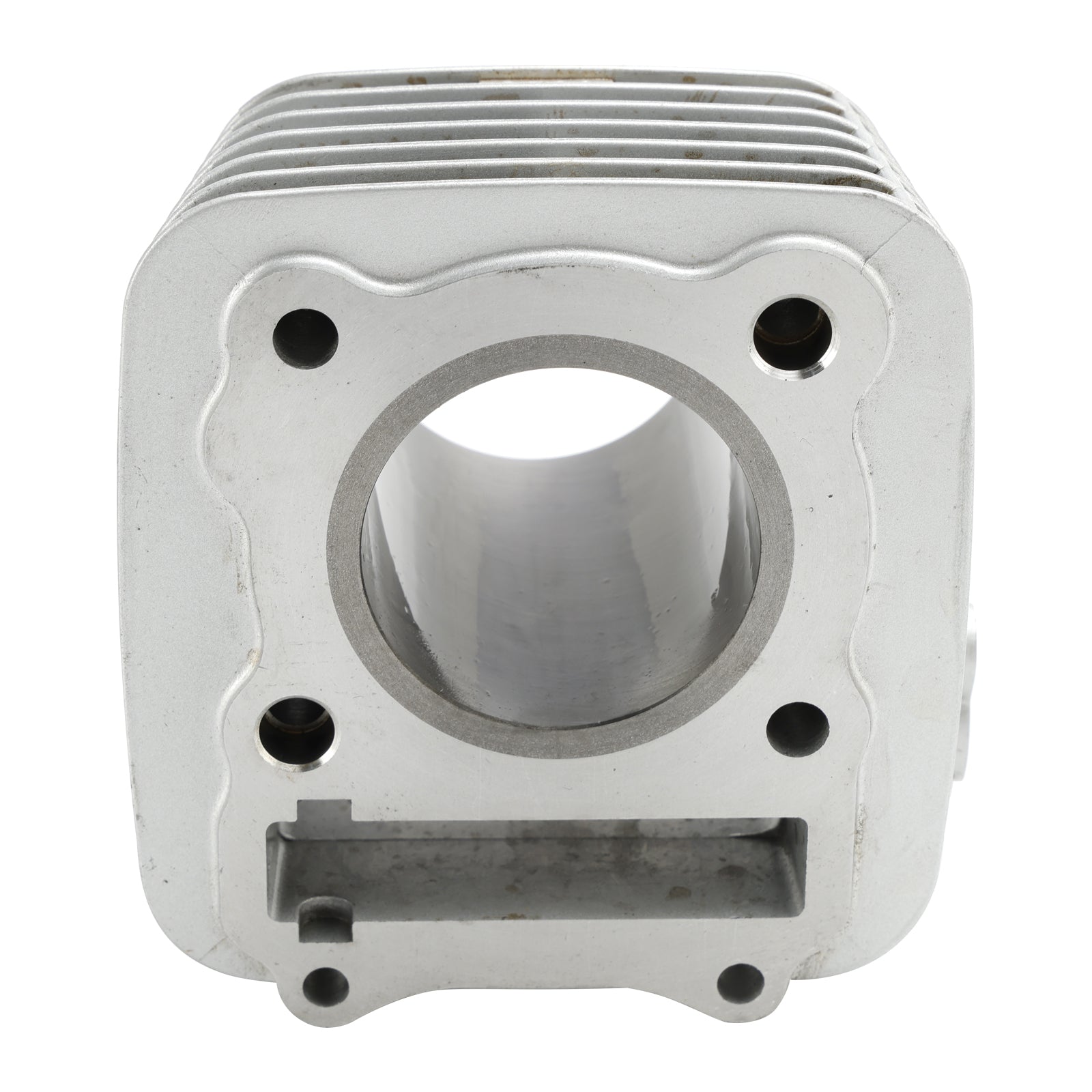

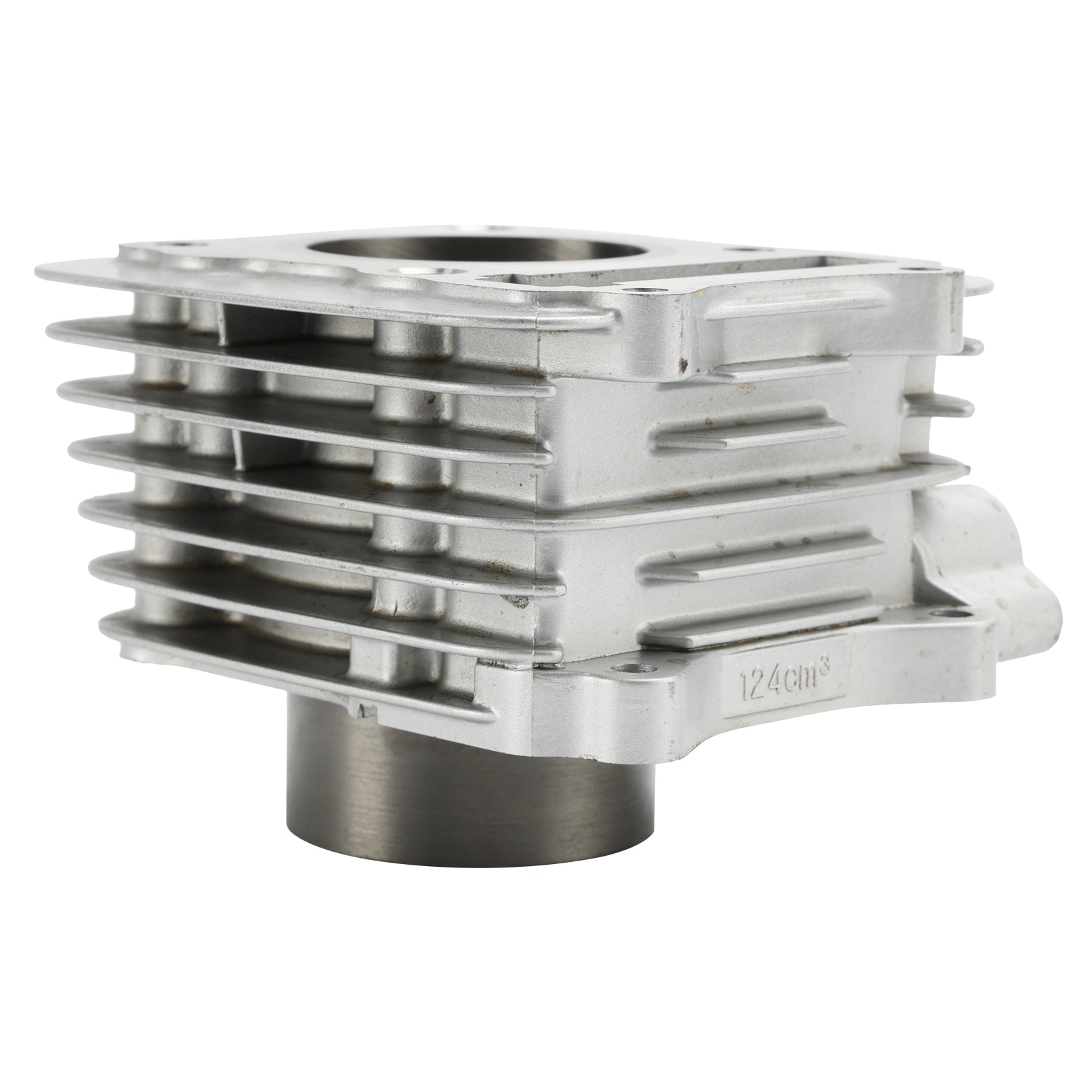

1x Cylinder

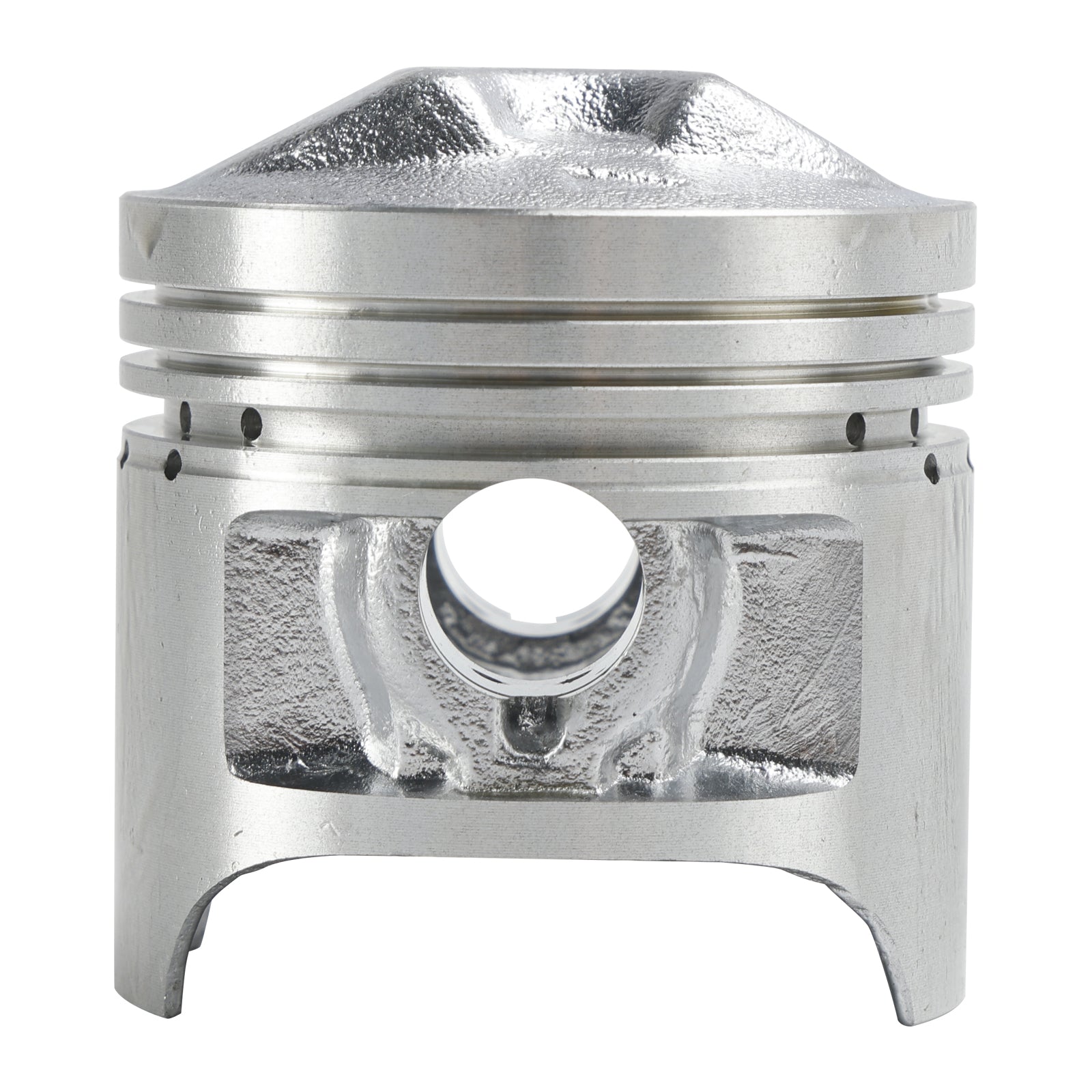

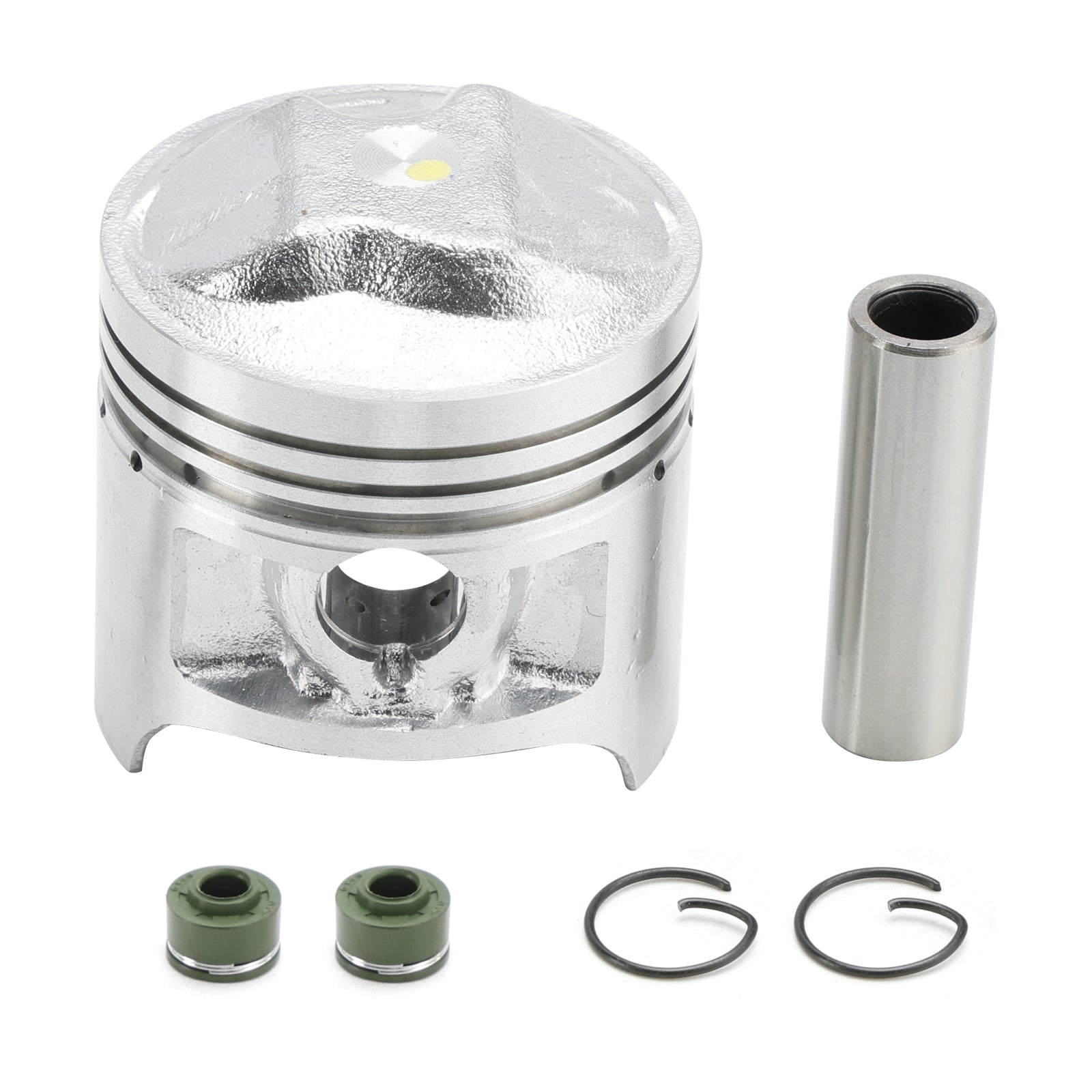

1x Domed Piston

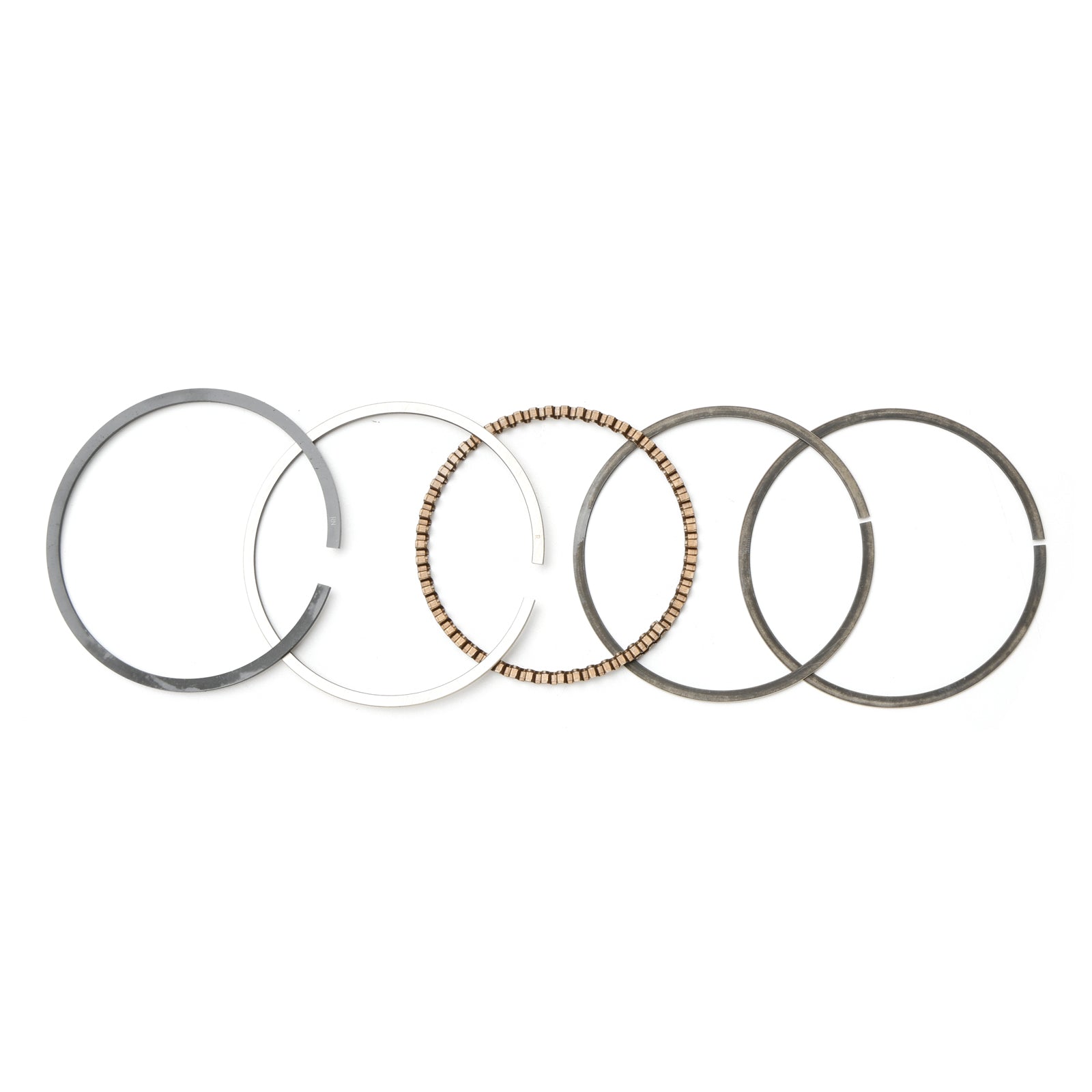

1x Piston Ring Set
1x 14mm Wristpin
1x Circlip(2)

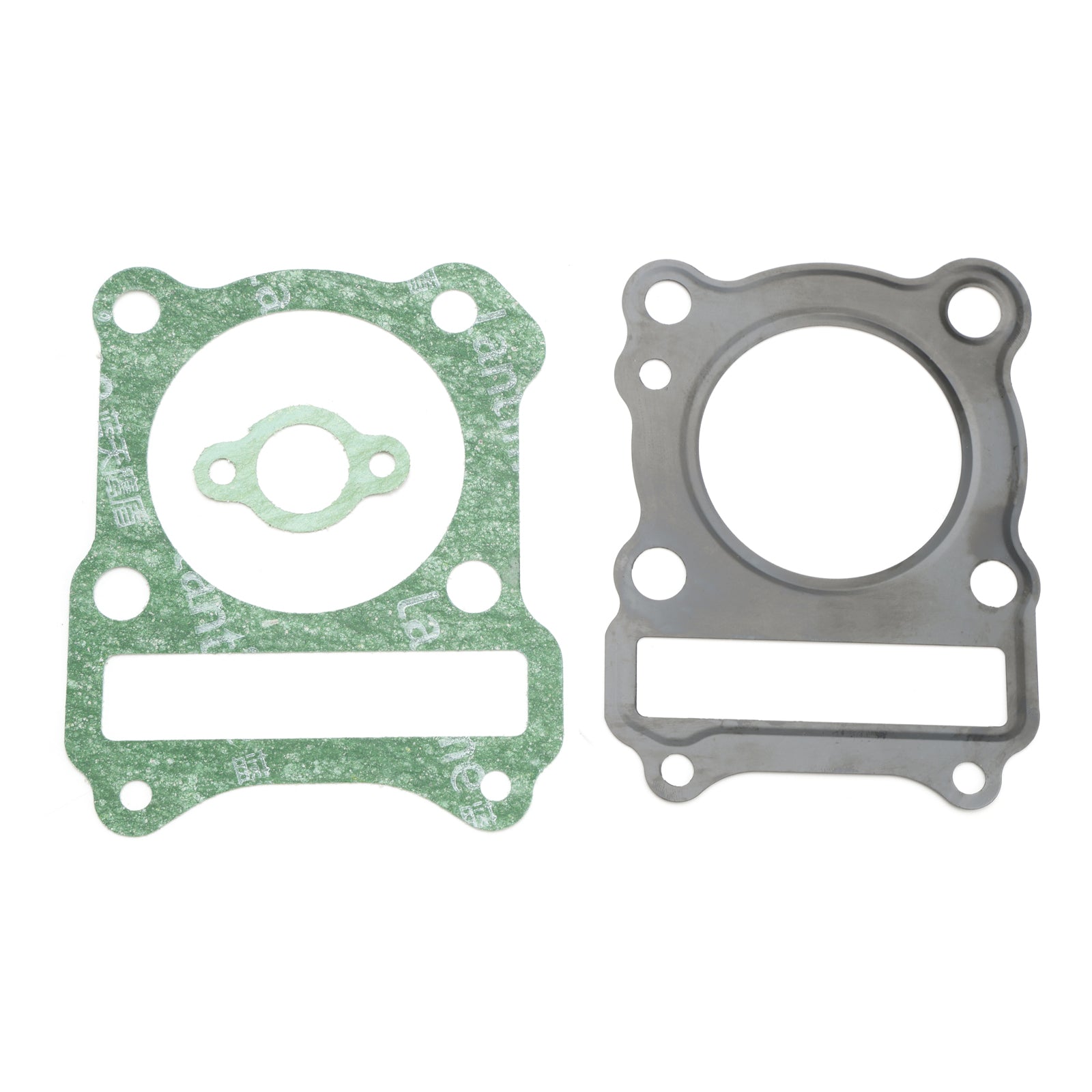

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
2x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
