50mm Cylinder Piston Gasket Top End Rebuild Kit For Suzuki LT80 LT 80 1987-2006

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).

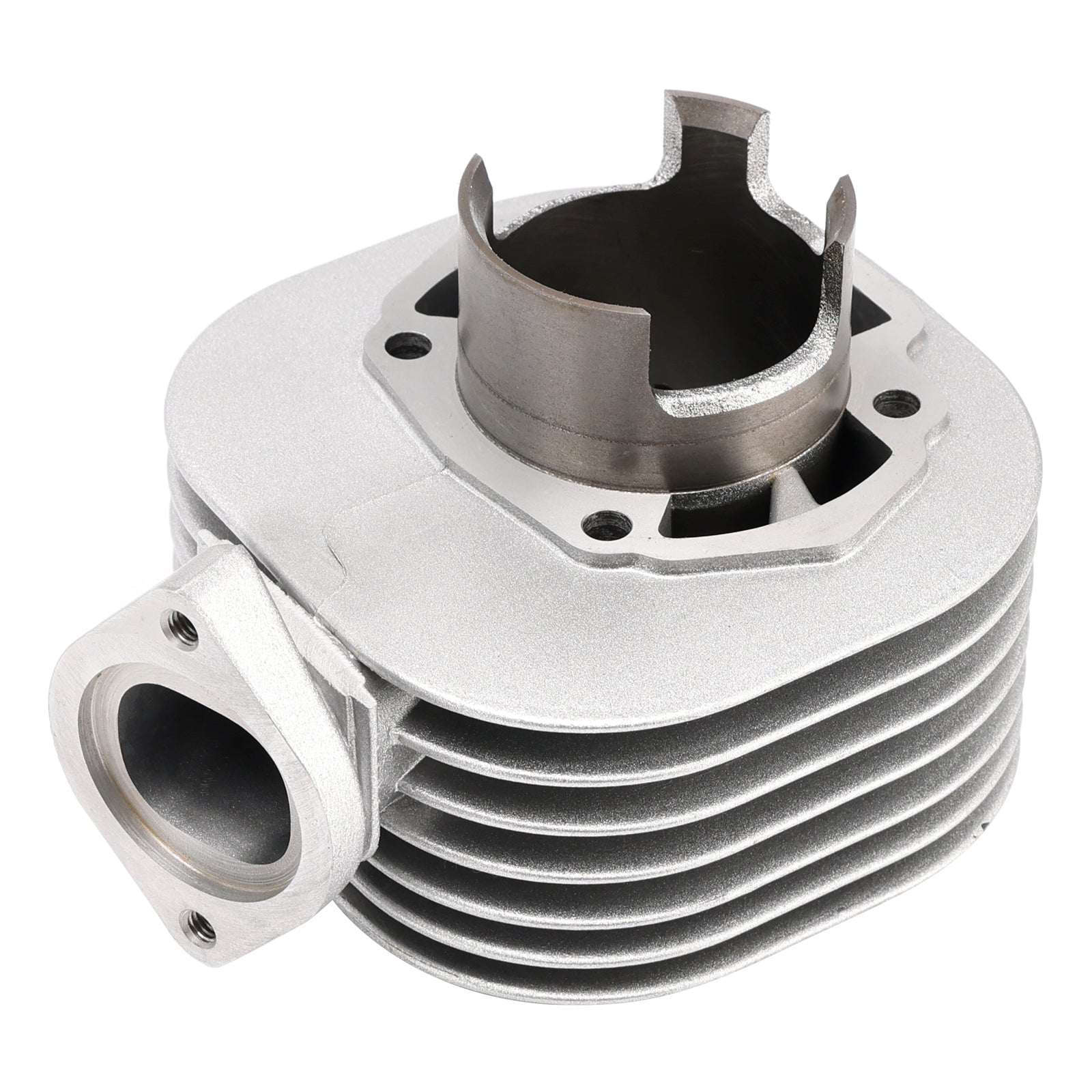

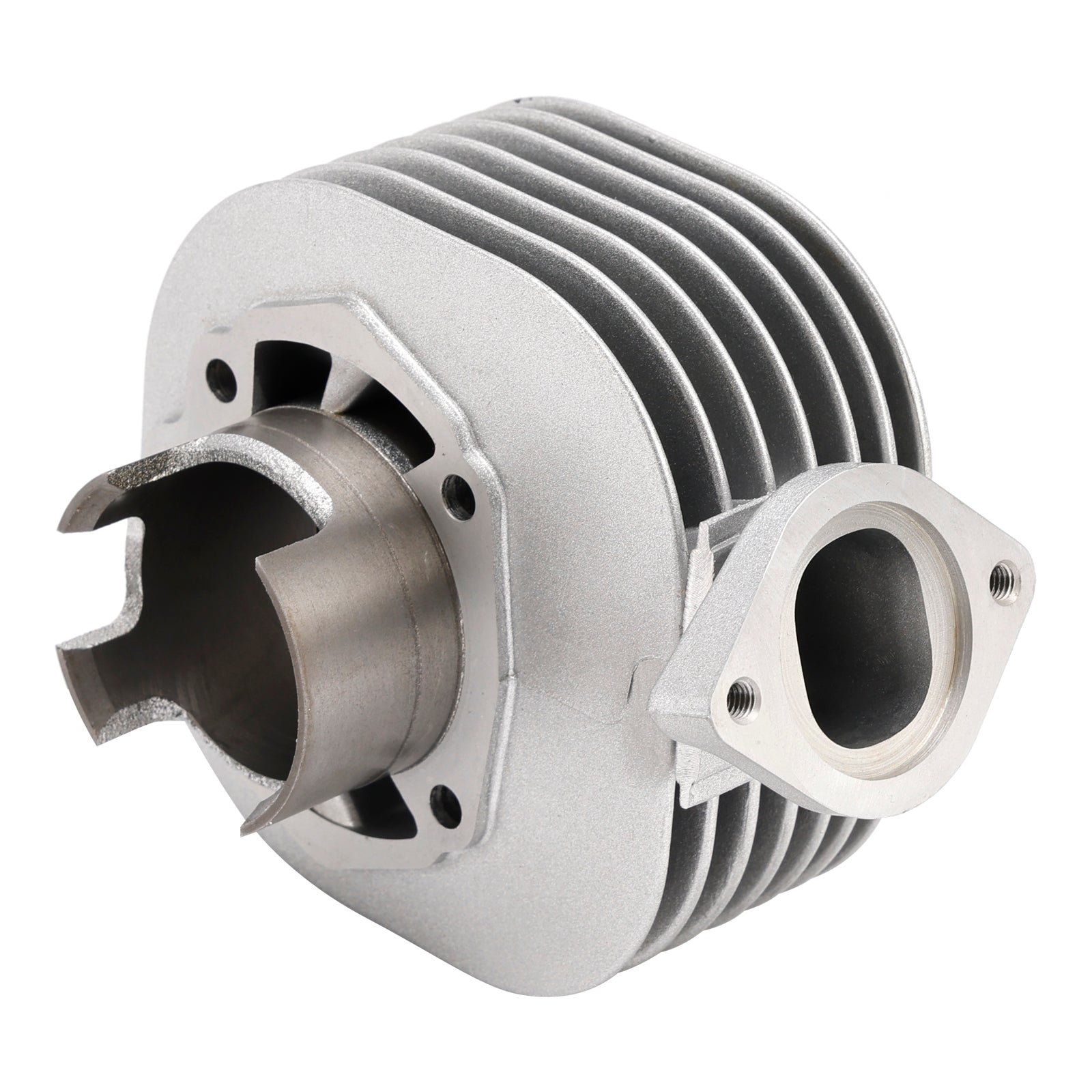

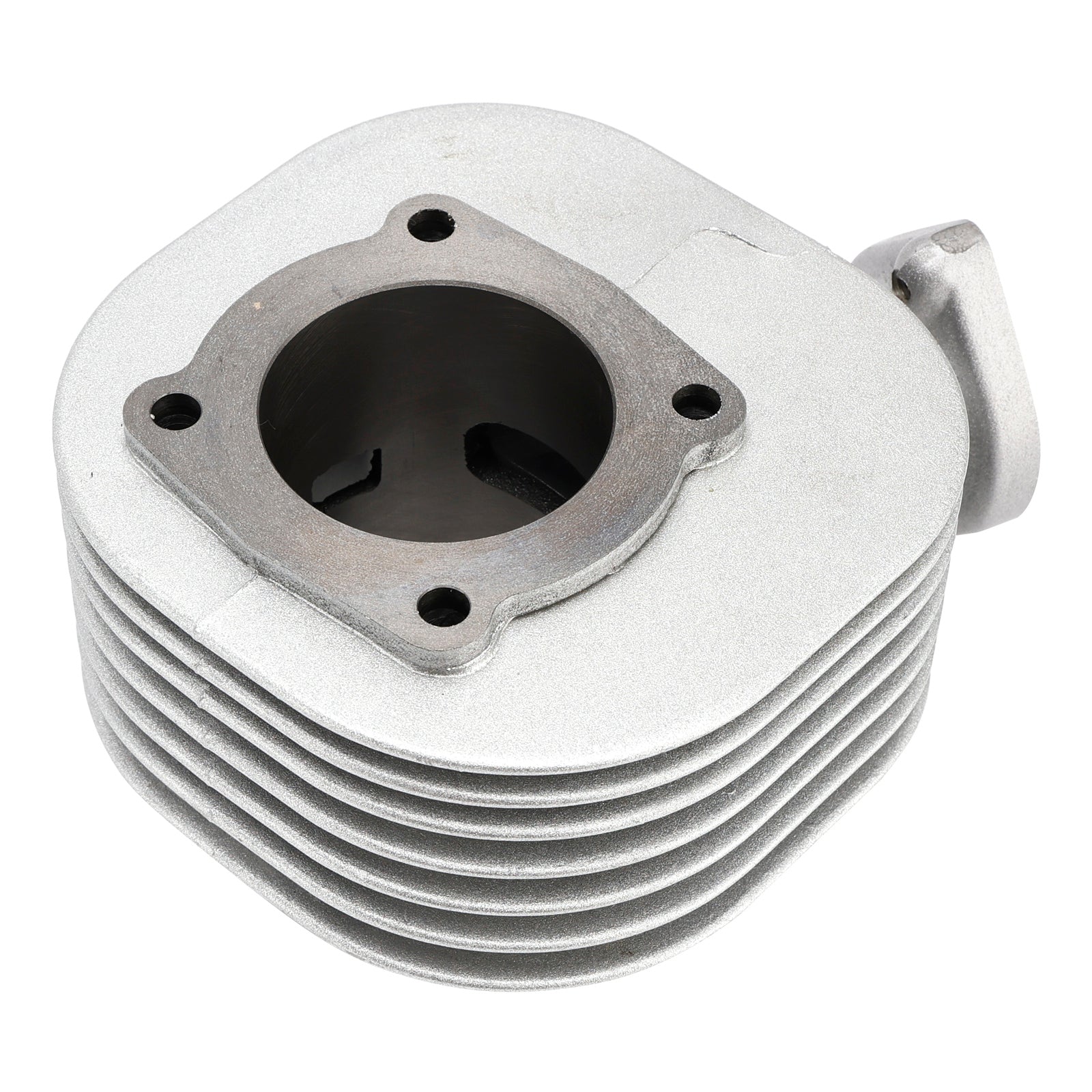

The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).

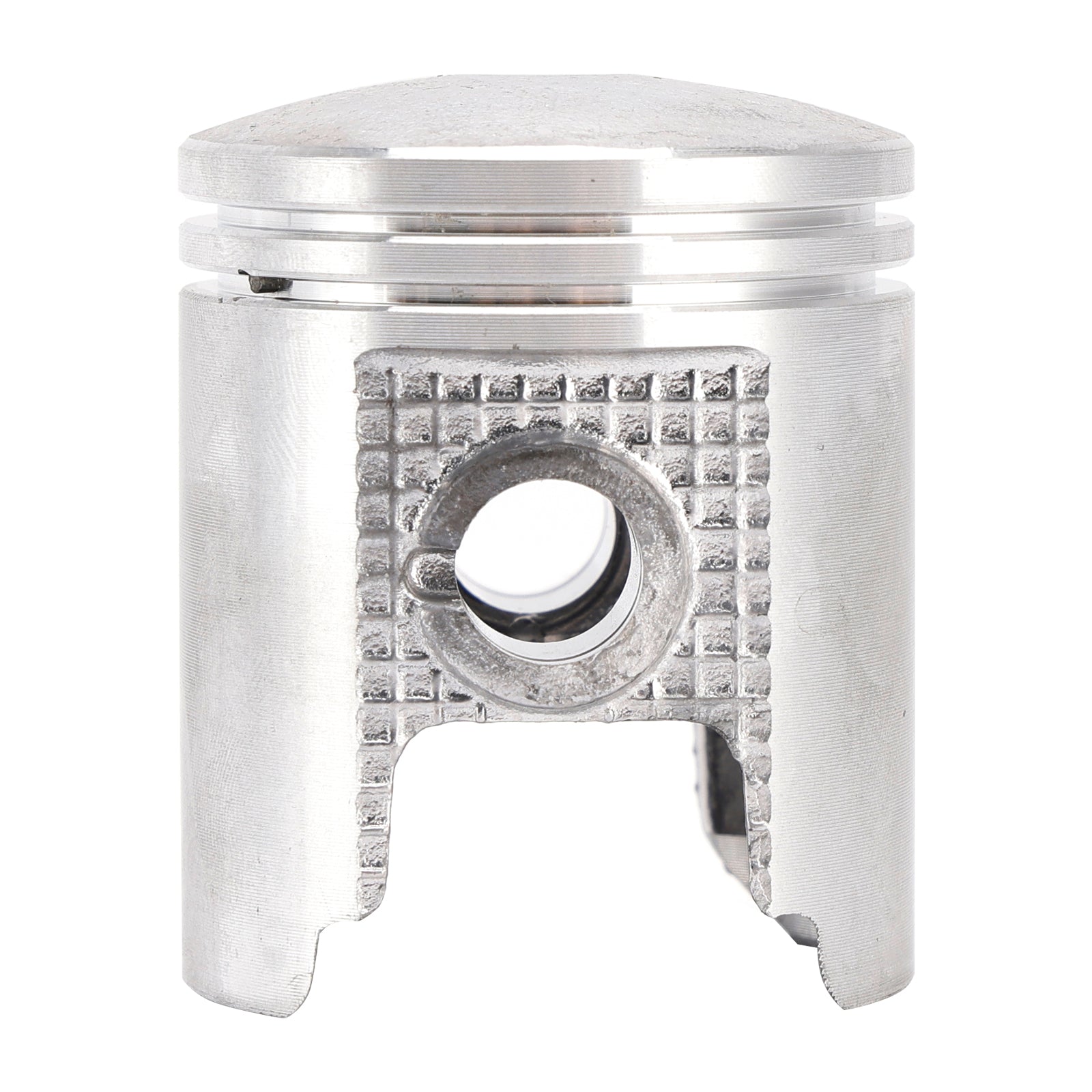

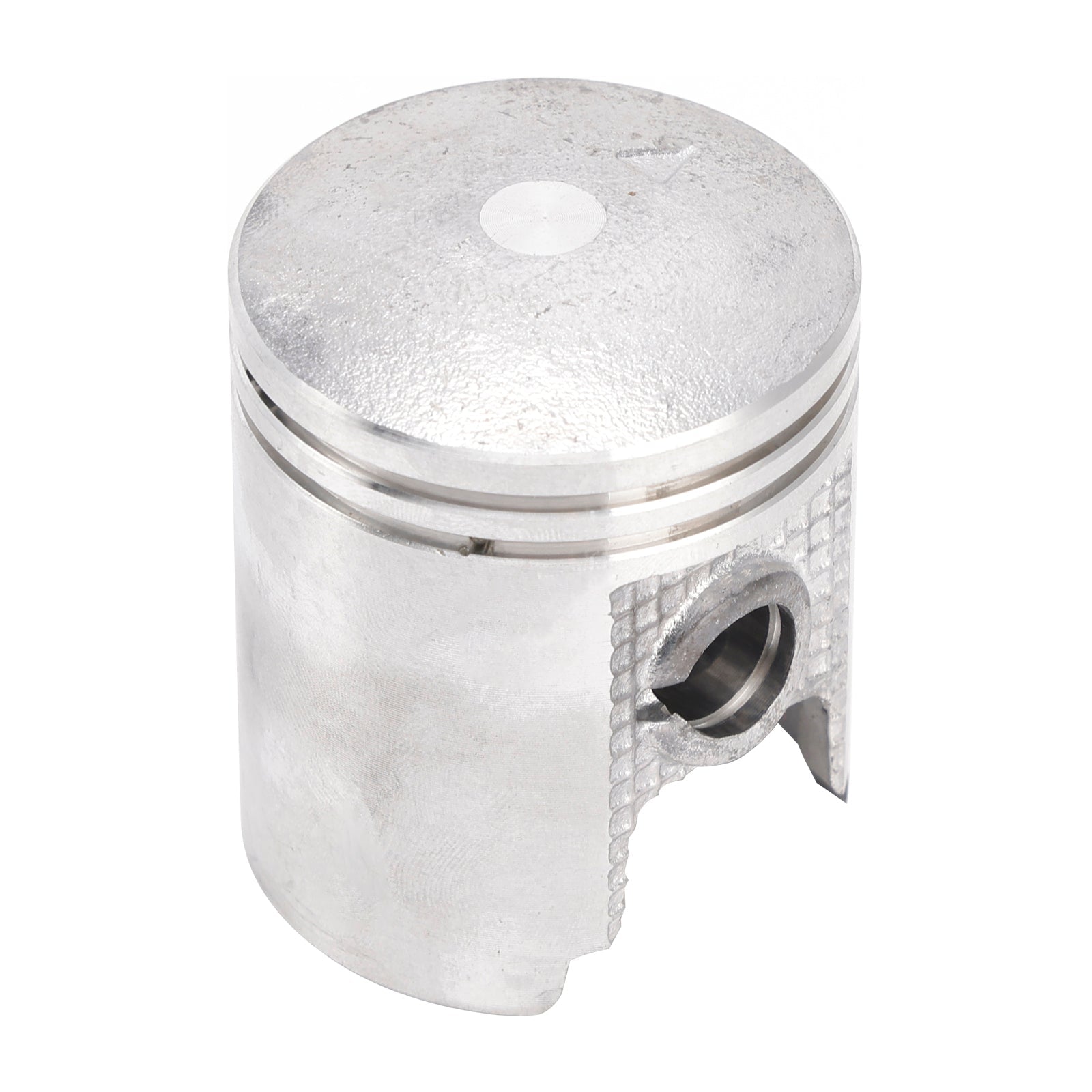

Piston is anodized for superior heat resistance and longer lifespan.

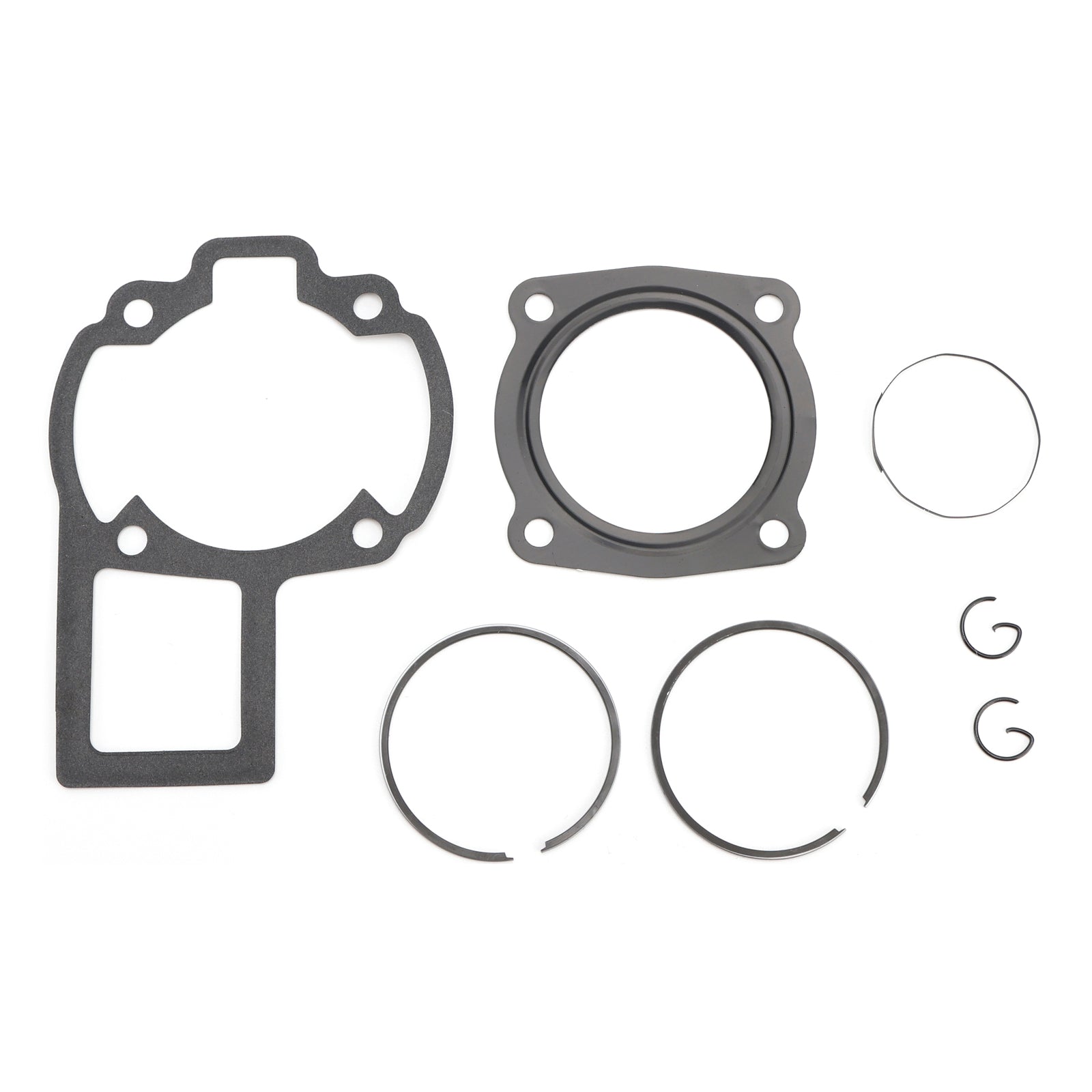

The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 50 mm x 42 mm stroke, 12mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 80cc
Bore Type: Standard Bore
Bore diameter: 50mm
Pin diameter: 12mm
Pin Overall Length: 40mm

Replacement Part Number:
Fit for Suzuki:
Cylinder: 11210-40B01
Cylinder Base Gasket: 11210-40B01
Cylinder Head Gasket: 11141-07910
Piston: 12110-40B010-F0
Pin, Piston: 12151-35400
Piston Ring Set (Std): 12140-40B30
Circlips, piston (2): 09381-12001
Cylinder Stud (M6x95): 01421-0695A
Bearing: 09263-12023

Fit for Kawasaki:
Cylinder: 11005-S006
Cylinder Base Gasket: 11061-S053
Cylinder Head Gasket: 11004-S005
Piston: 13001-S005
Pin, Piston: 13002-S005
Piston Ring Set (Std): 13008-S005
Circlips, piston (2): 92033-S024
Cylinder Stud (M6x95): 92004-S008
Bearing: 13033-S001

Always compare part numbers to your parts schematics and cross reference appropriately.

Fits Make/Model/Year:
Fit for Suzuki Quadsport 80 LT80 1987-2006
Fit for Kawasaki KFX80 KSF80 2003-2006

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

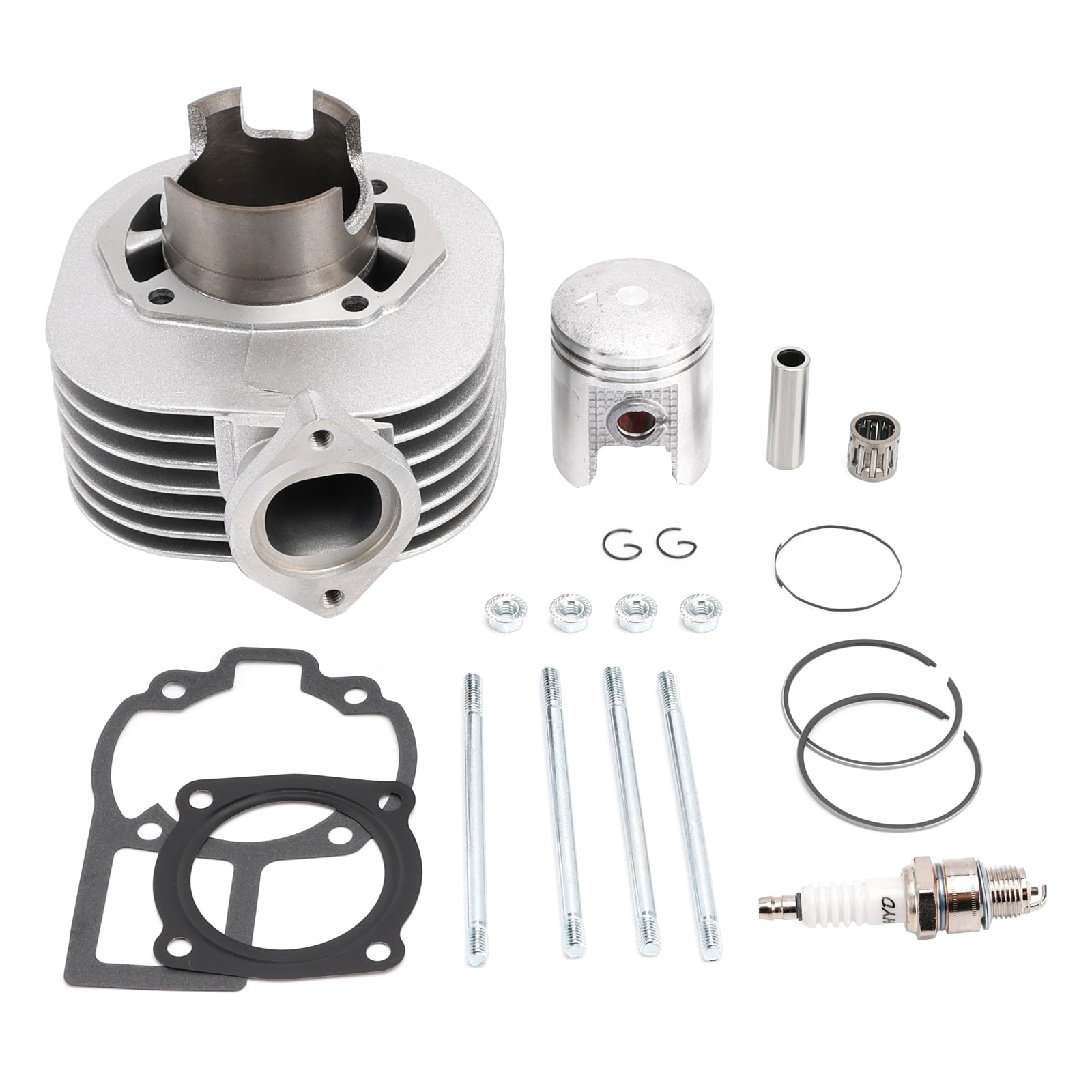

Package Includes:
1x 50mm Cylinder
1x Piston
1x Piston Ring Set
1x 12mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket

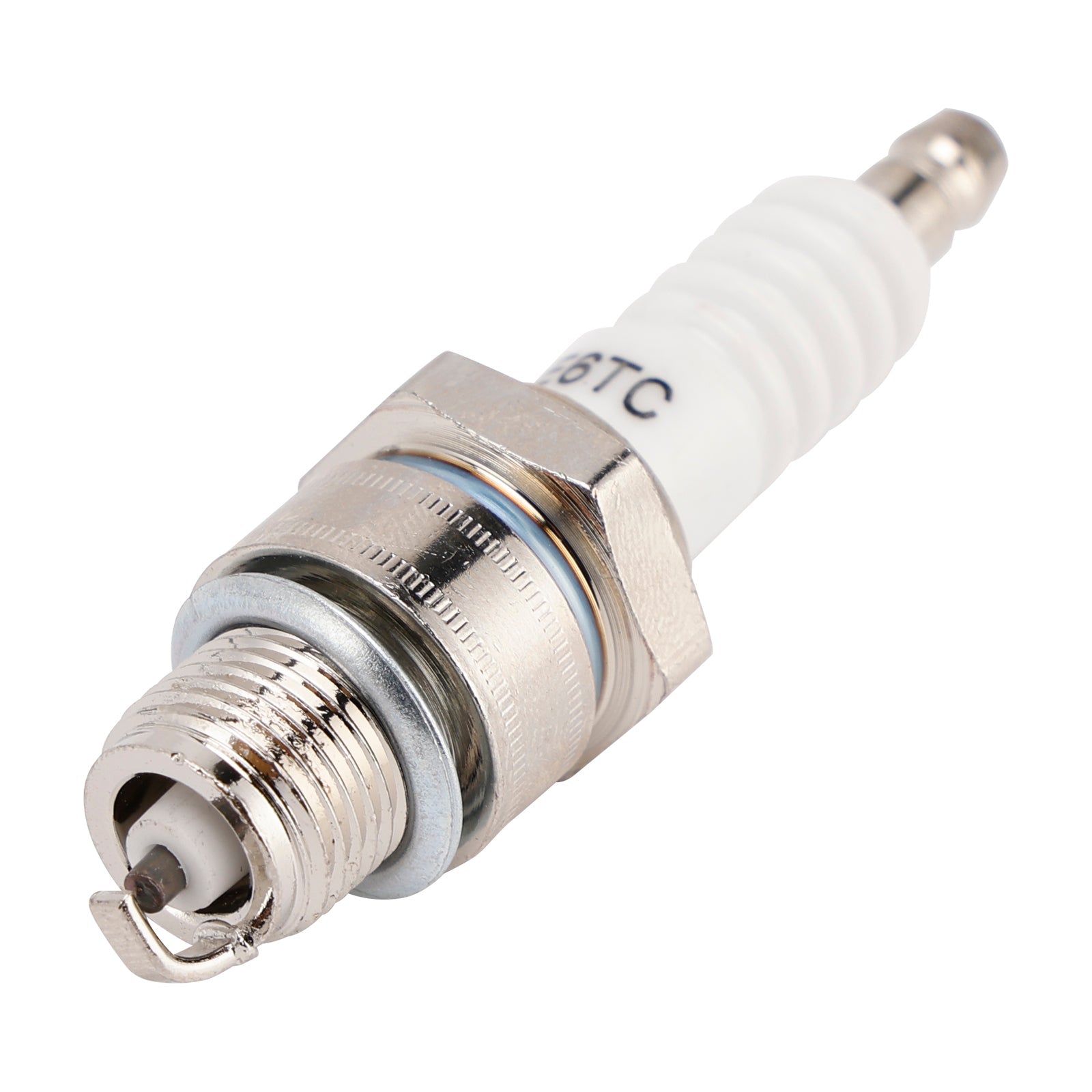

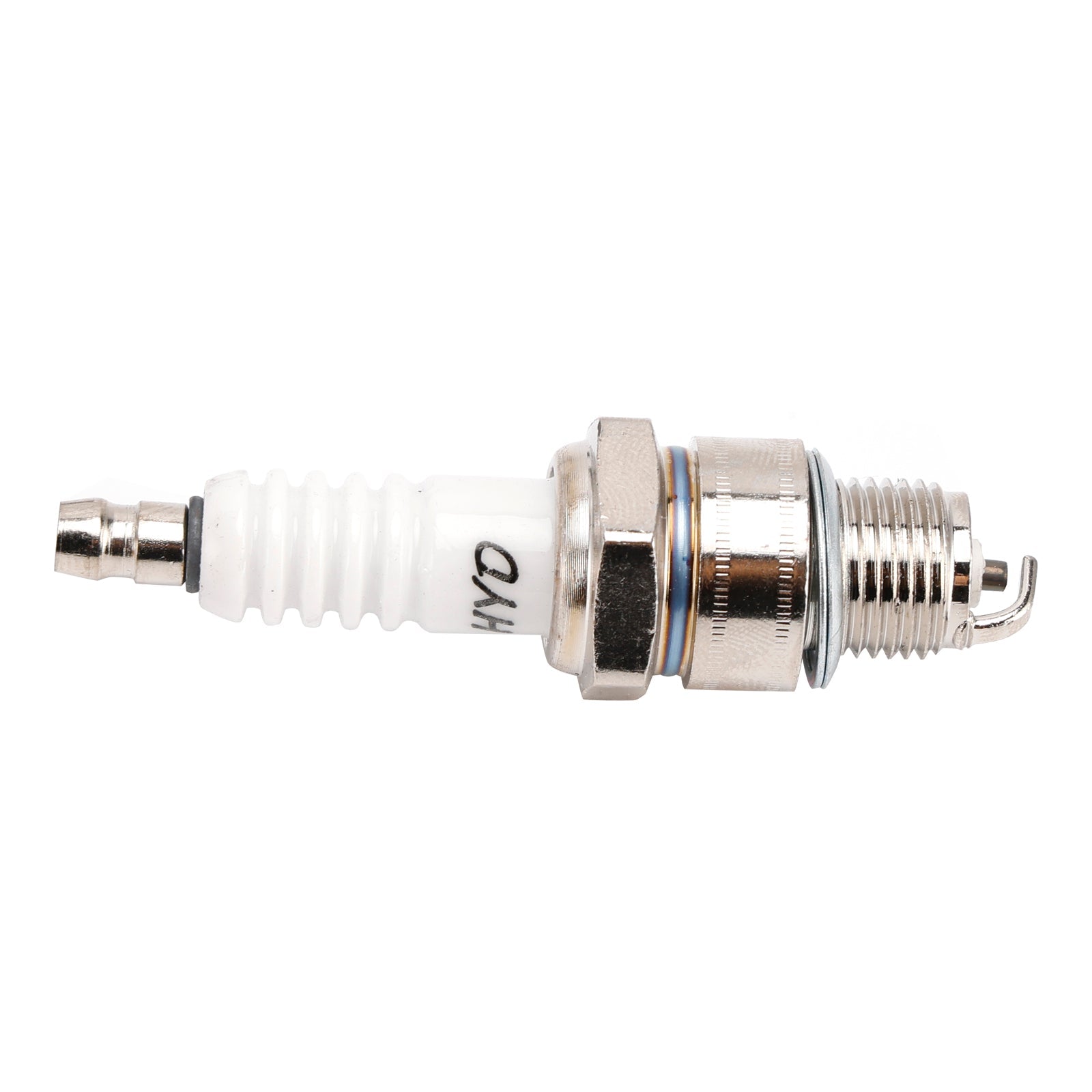

1x Spark Plug

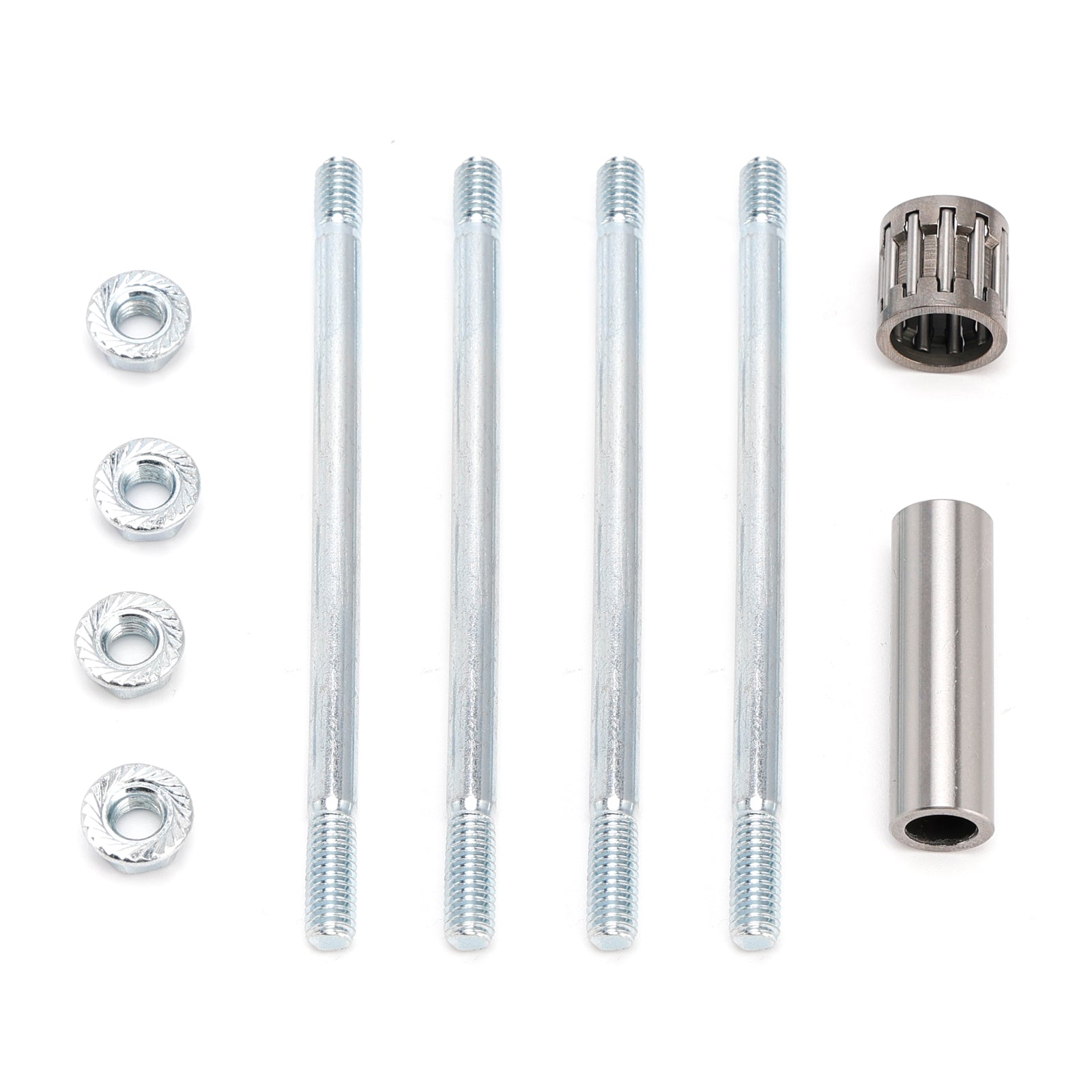

4x Cylinder Studs
4x Cylinder Stud Nuts
1x Piston Pin Bearing

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
