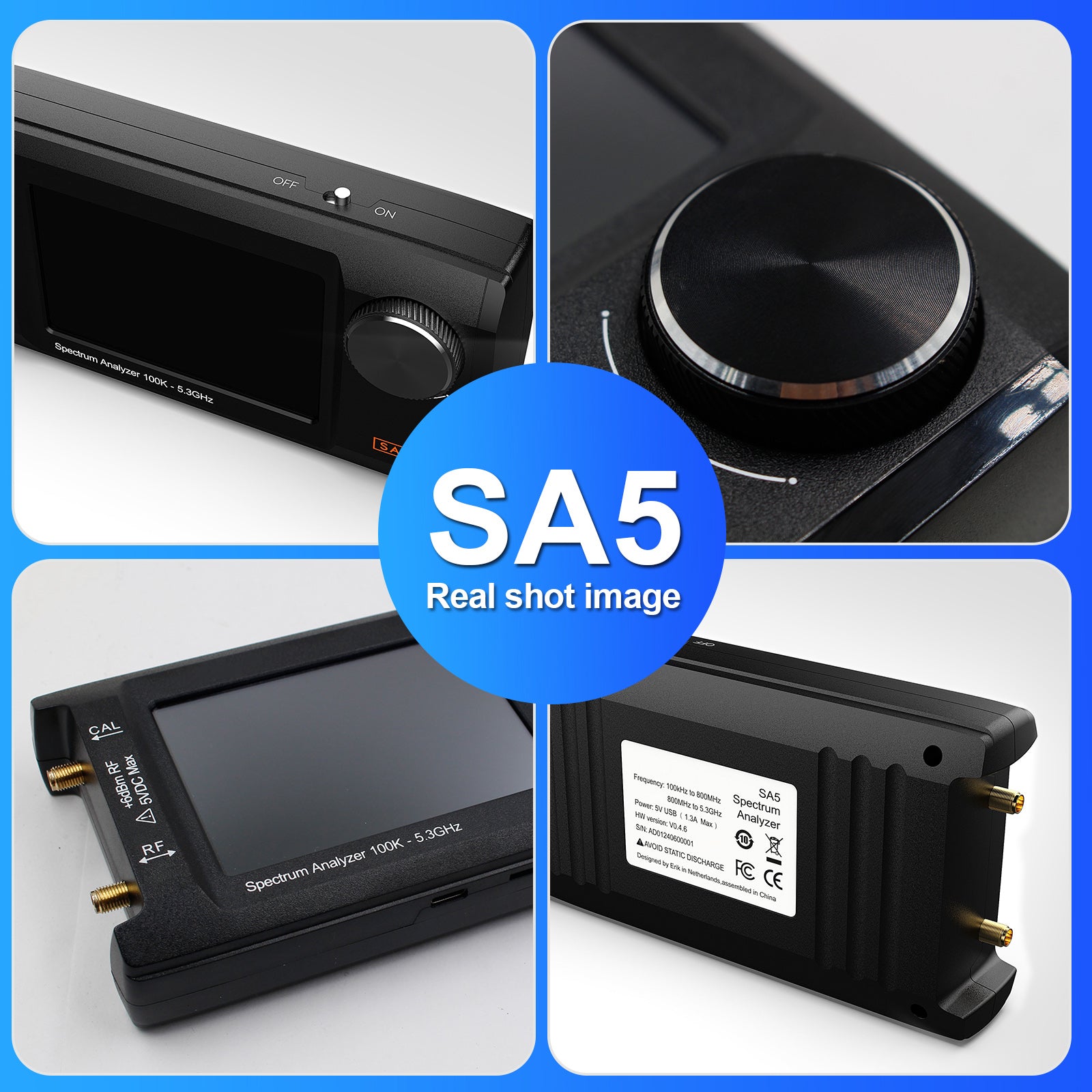

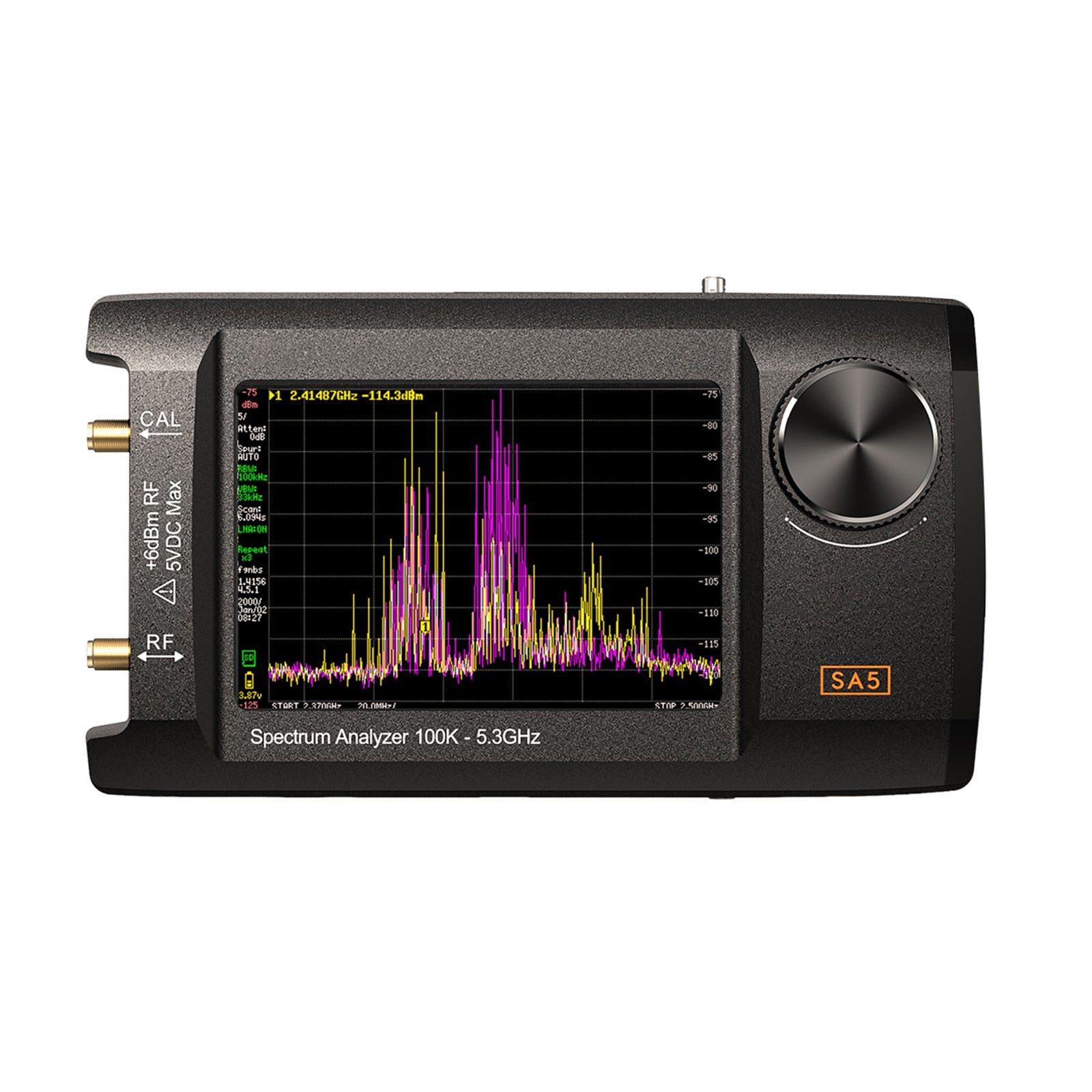

4" IPS LCD SA5 Multifunctionl Spectrum Analyzer 100k-5.3GHz Signal Generator

Feature:
1: Upgraded IPS LCD 4-inch high-definition display screen and knob design, making
operation easier, touch more sensitive, and more accurate to help you quickly read data.
2: The upgraded SA5 analyzer has a built-in large capacity 5000mAh rechargeable battery, providing
10 hours of portable use time. It comes with a Type-C charging cable, eliminating the need for frequent charging.
3: The SA5 is a compact frequency harmonic analyzer and signal generator with multiple impressive features.
4: The Xia Gai frequency range is 0.1-800MHz. When Ultra mode is turned on, it provides a level calibratable
signal frequency up to 5.3GHz and can observe signal frequencies up to 12GHz.
5: When not used as a frequency analyzer, the signal generator can output sine waves up to 0.1-800MHz, square waves up to 4.4GHz, or RF test signals up to 5.3GHz.
6: Built in 20dB Low Noise Amplifier (LNA).
7: Display up to 450 points and show 4 independently configured curves.

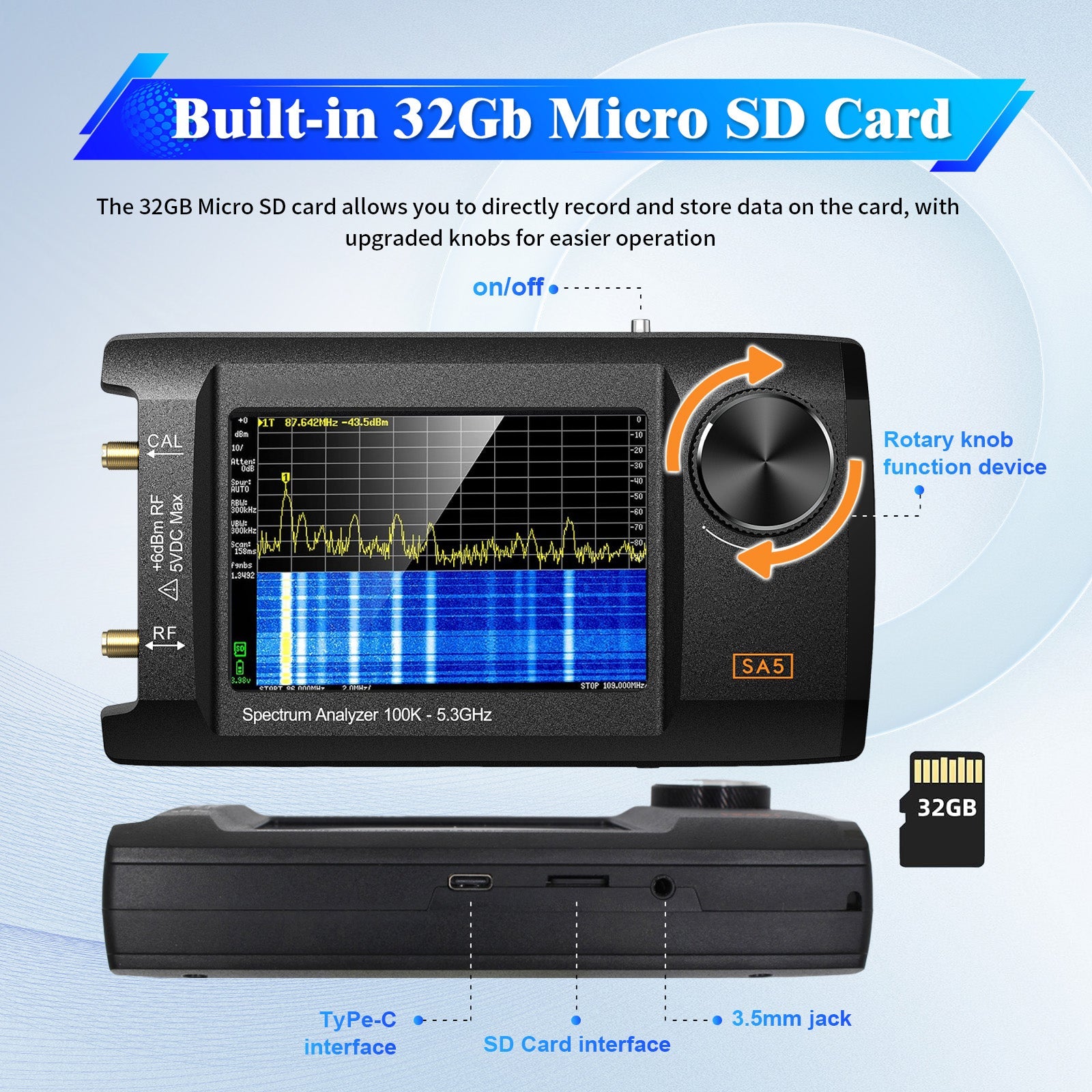

8: MicroSD card slot for storing measurement data, settings, and screenshots.
9: The resolution bandpass filter can be switched between 200Hz and 850kHz.
10: Built in calibration signal generator, used for automatic self checking and input calibration.
11: Connected via USB, the function is a PC controlled frequency harmonic analyzer or signal generator. Convenient to transfer data directly to the computer.

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

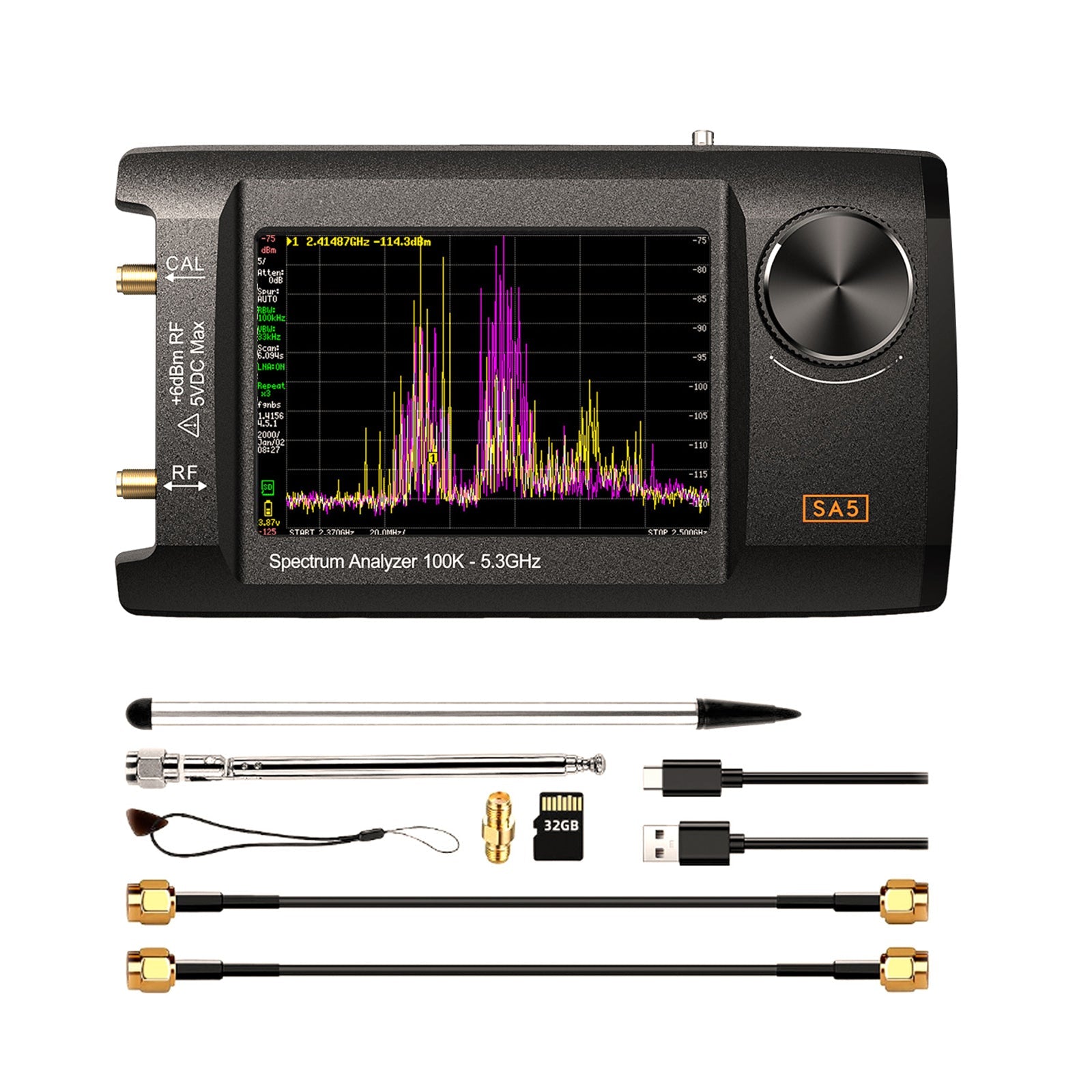

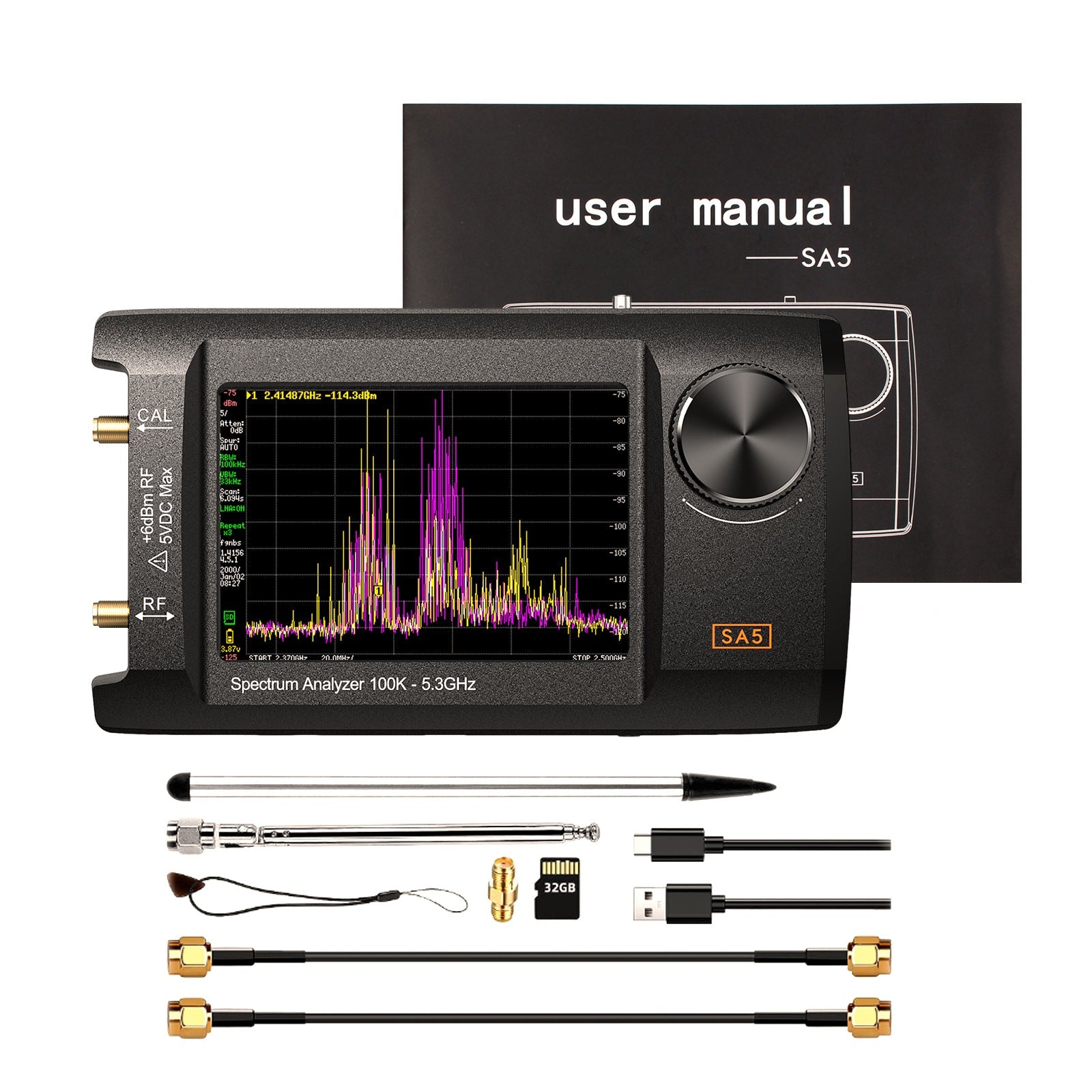

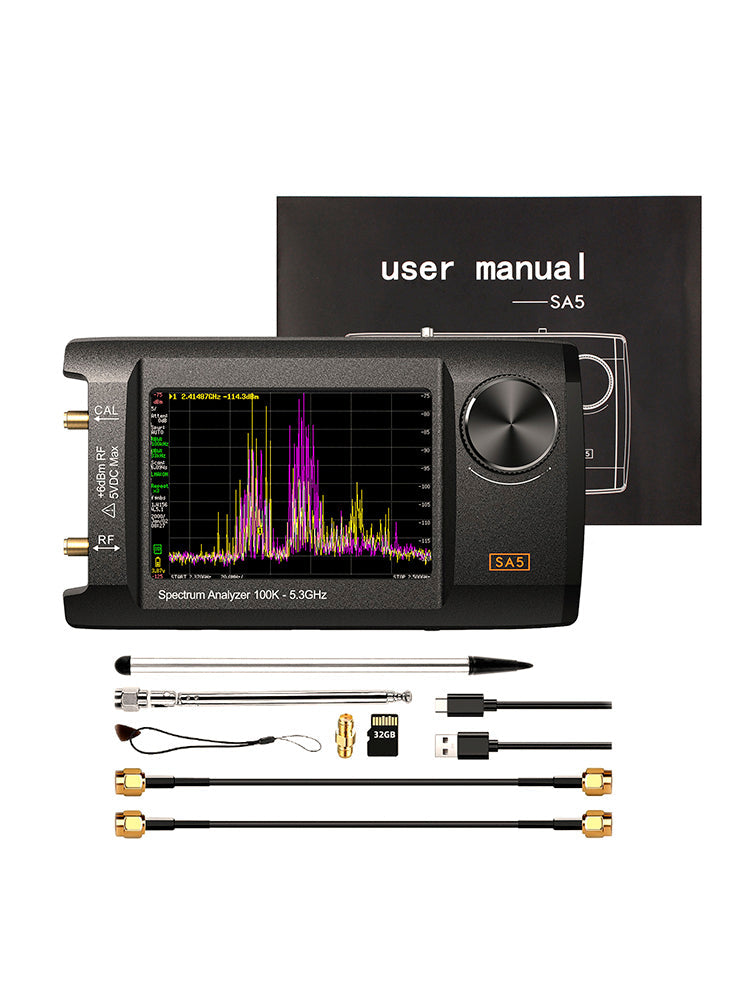

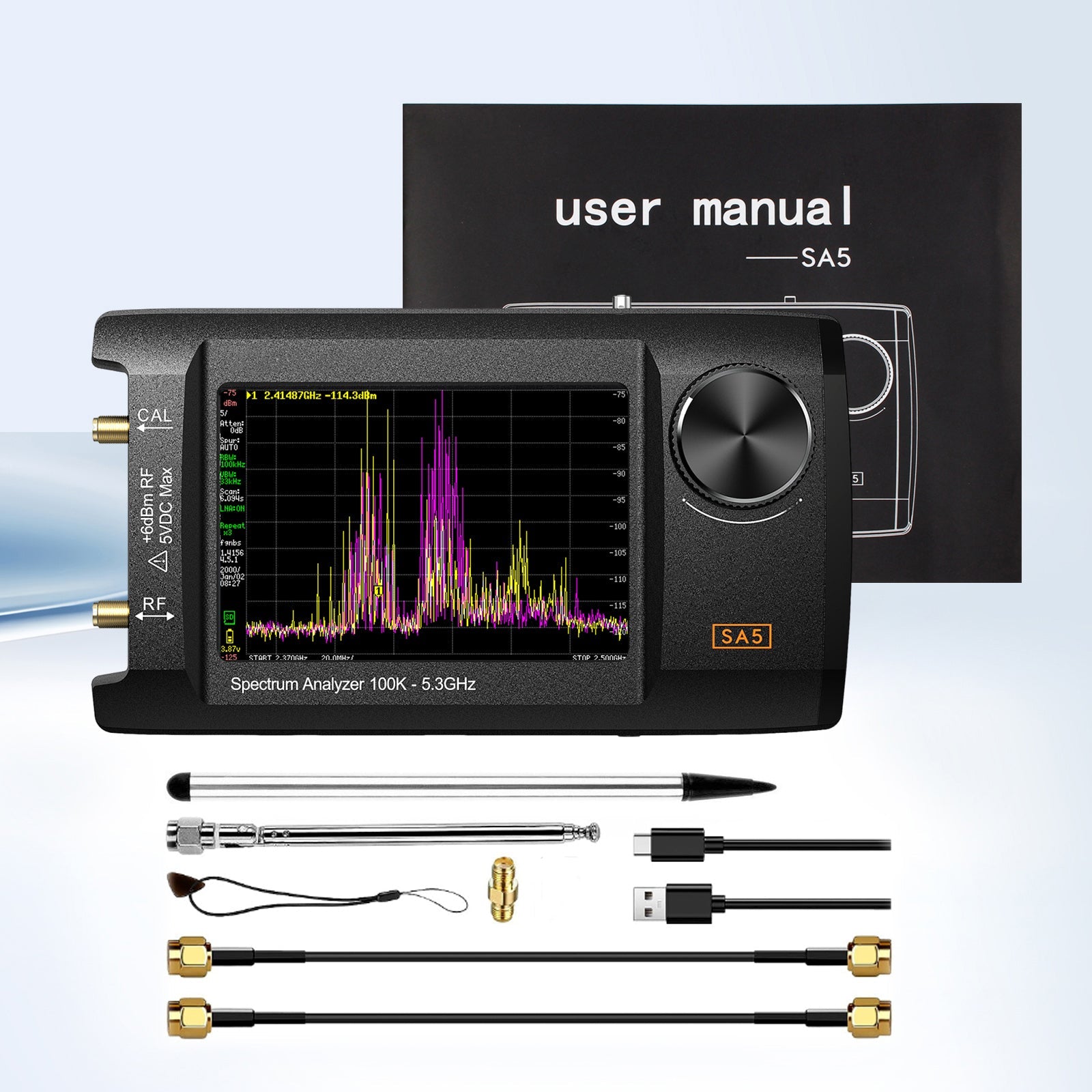

Package Included:
Set 1:
Host (with 5000mAh battery, 4-inch display screen) x 1
USB Type-C data cable x1
30cm RG405 SMAJB2/SMAJB2 RF connection cable x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Hanging rope touch pad x1
Touch pen x1

Set 2:
Host (with 5000mAh battery, 4-inch display screen) x 1
USB Type-C data cable x1
30cm RG405 SMAJB2/SMAJB2 RF connection cable x2
SMA-SMA barrel connector x1
Antenna with SMA connector x1
Hanging rope touch pad x1
Touch pen x1
32GB MicroSD card (inserted into the host) x1

Warranty:
1. Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
2. 24-Hour Expert Online: Solve your installation and product problems
