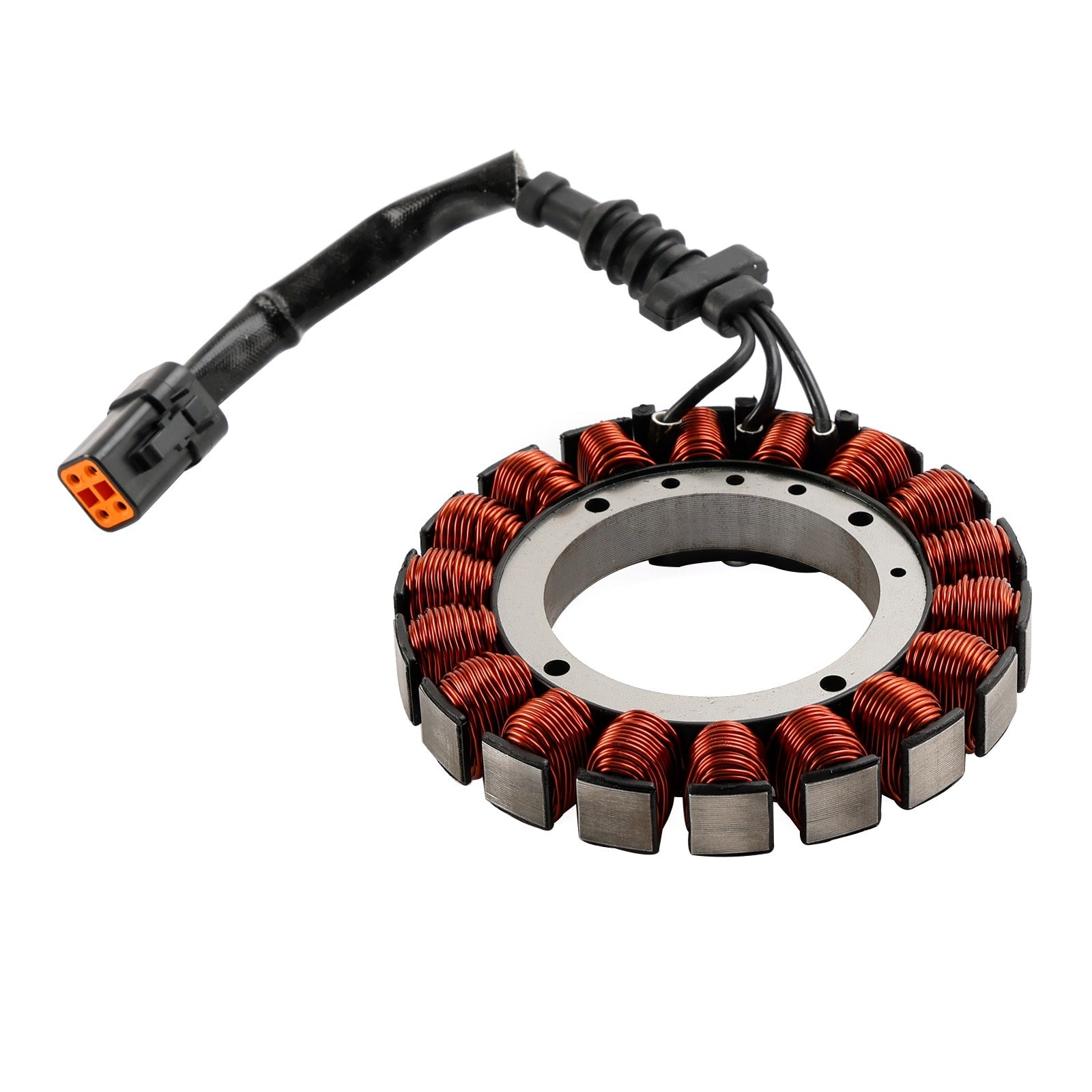

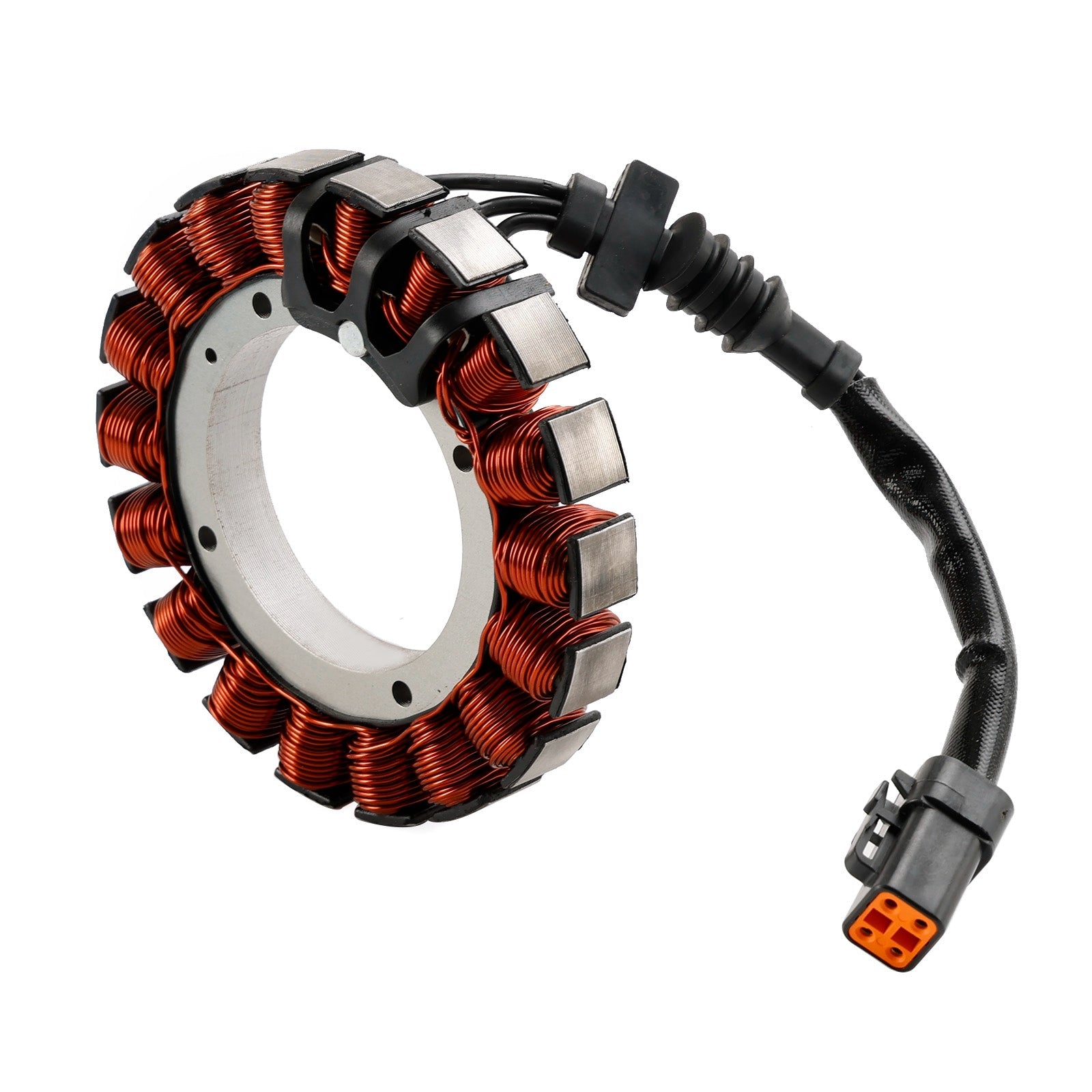

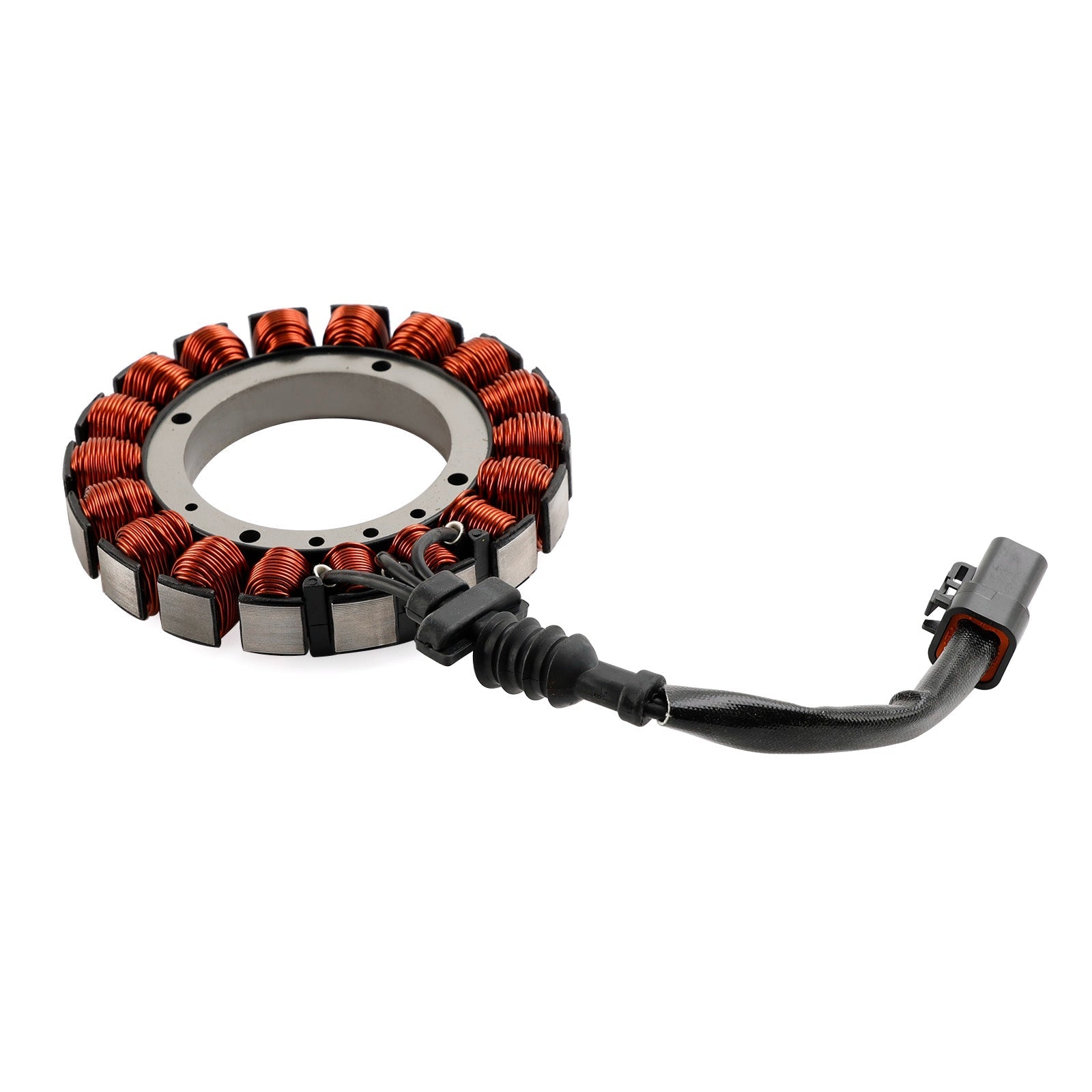

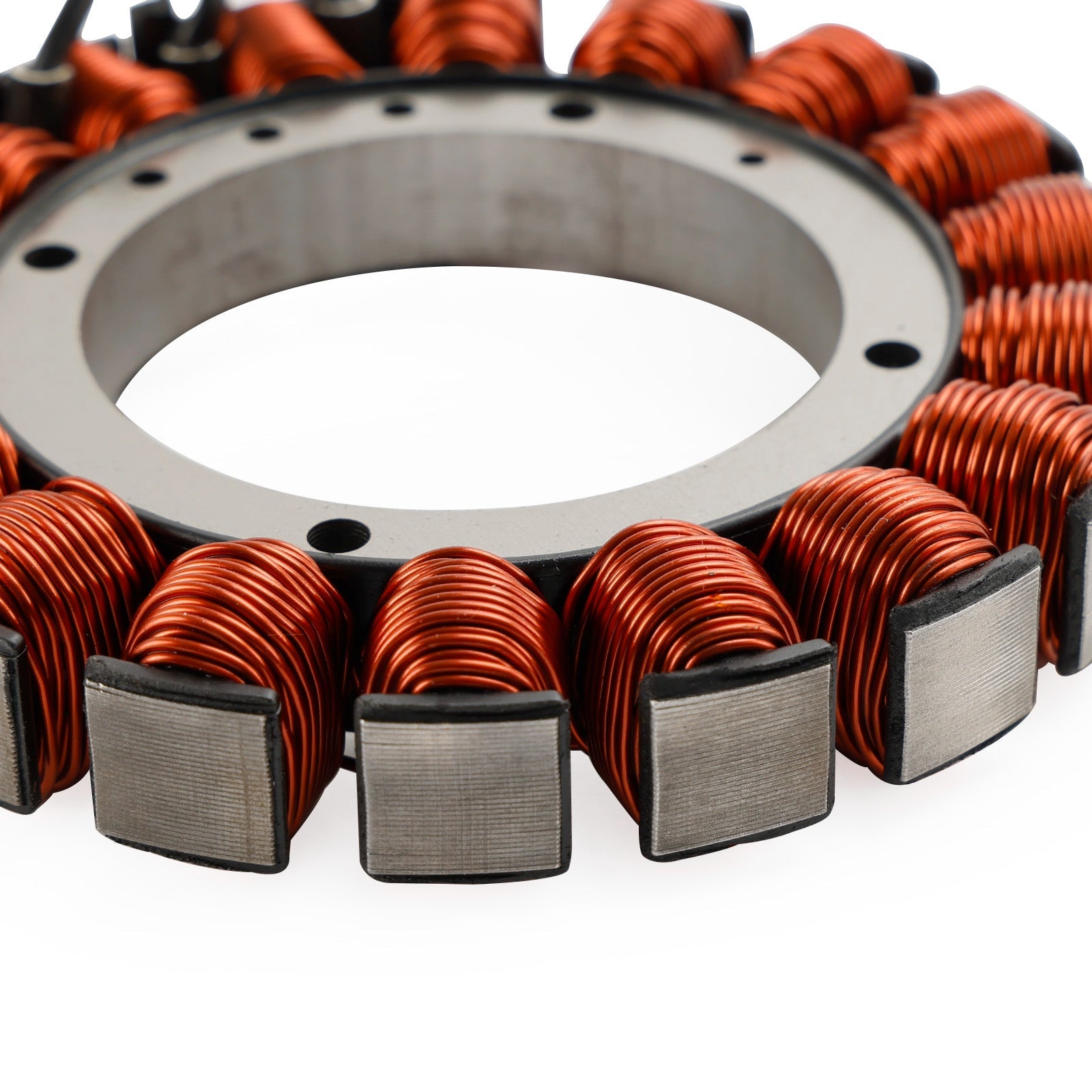

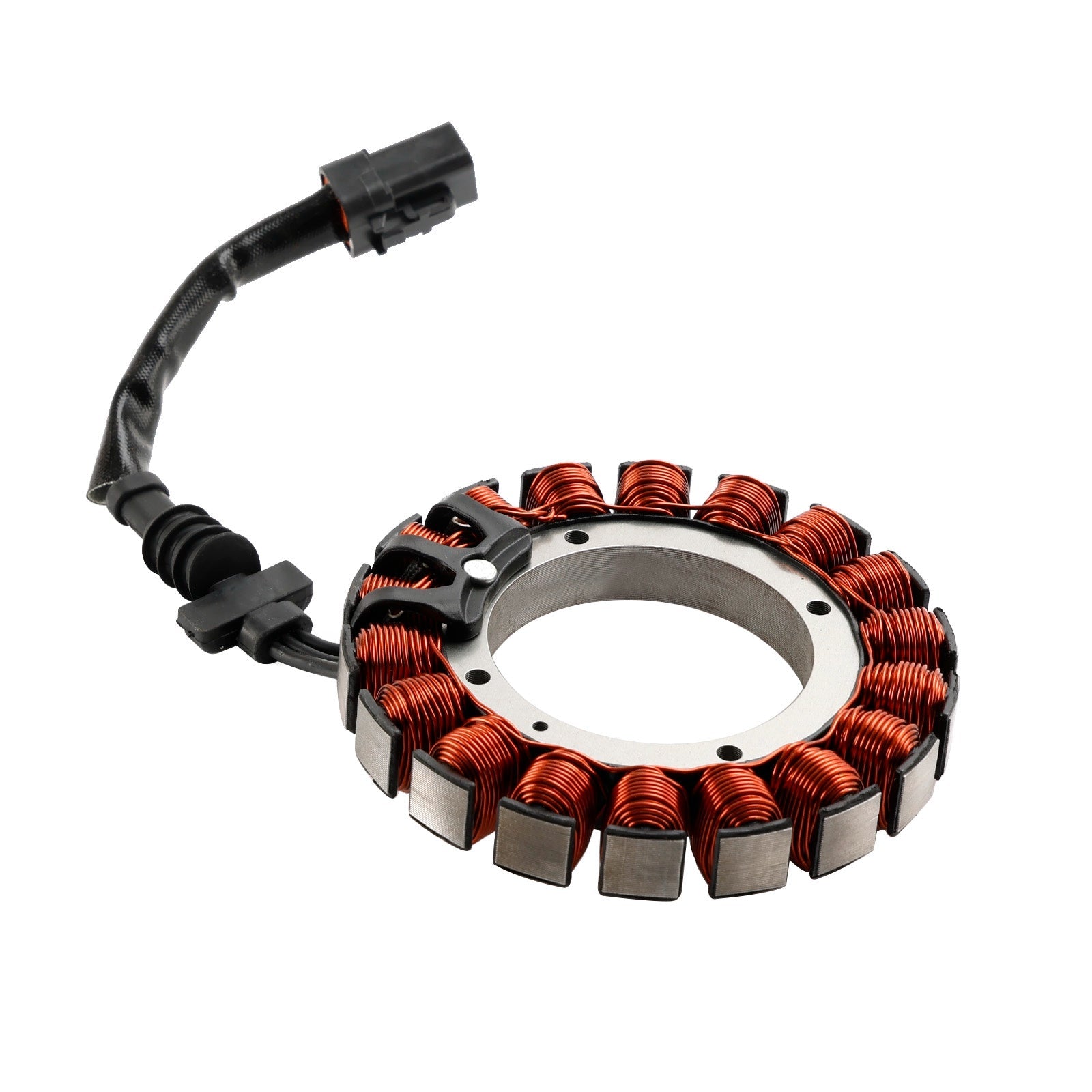

3-Phase Generator Stator Fit for Softail and Dyna 30017-01 30017-01A 30017-01B

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

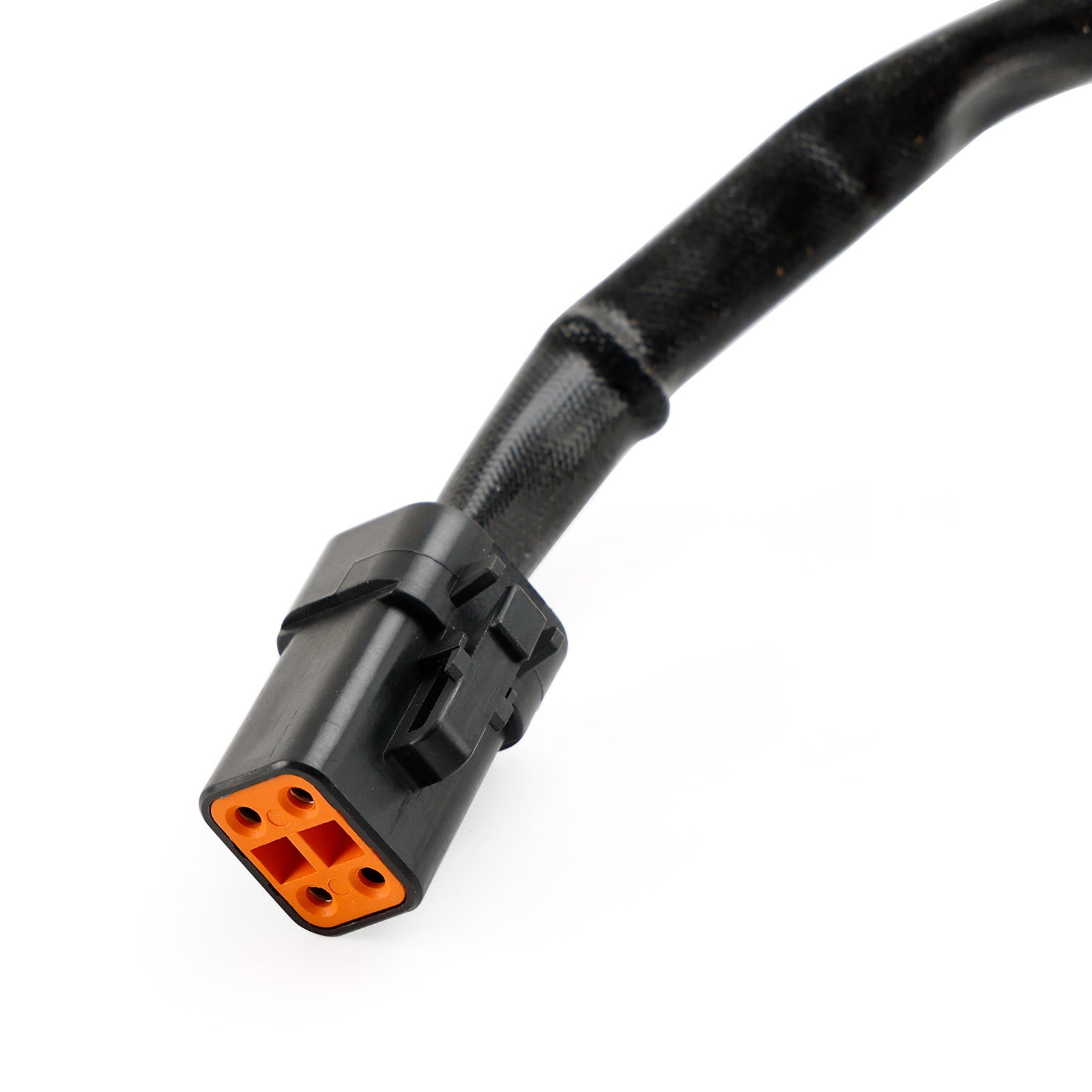

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18

Replacement Part Number:
3001701
30017-01
30017-01A
30017-01B

Fits Model/Year:
Fit for HERITAGE SOFTAIL CLASSIC FLSTC 1BJY 2001-2006
Fit for HERITAGE SOFTAIL CLASSIC FLSTCI 1BWB 2001-2006
Fit for HERITAGE SOFTAIL CLASSIC SHRINE FLSTCI SHRINE 1JHB 2005
Fit for HERITAGE SOFTAIL FLSTI 1JFB 2006
Fit for HERITAGE SOFTAIL FLST 1JEY 2006
Fit for HERITAGE SPRINGER FLSTS 1BRY 2001-2003
Fit for HERITAGE SPRINGER FLSTSI 1BYB 2001-2003
Fit for FAT BOY FLSTF 1BMY 2001-2006
Fit for FAT BOY FLSTFI 1BXB 2001-2006
Fit for FAT BOY SHRINE FLSTFI SHRINE 1JGB 2005
Fit for FAT BOY ANV FLSTFI-ANN 1BXD 2005
Fit for CVO FAT BOY FLSTFSE 1PLF 2005
Fit for CVO FAT BOY FLSTFSE2 1PNF 2006
Fit for CVO SOFTAIL DEUCE FXSTDSE 1PFD 2003
Fit for CVO SOFTAIL DEUCE FXSTDSE2 1PHD 2004
Fit for NIGHT TRAIN FXSTB 1BTY 2001-2006
Fit for NIGHT TRAIN FXSTBI 1JAB 2001-2006
Fit for SOFTAIL DELUXE FLSTN 1BNY 2005-2006
Fit for SOFTAIL DELUXE FLSTNI 1JDB 2005-2006
Fit for SOFTAIL DEUCE FXSTD 1BSY 2001-2006
Fit for SOFTAIL DEUCE FXSTDI 1JBB 2001-2006
Fit for SOFTAIL STANDARD FXST 1BHY 2001-2006
Fit for SOFTAIL STANDARD FXSTI 1BVB 2001-2006
Fit for DYNA SUPER GLIDE FXD 1GHV 2004-2005
Fit for DYNA 35TH ANV SUPER GLIDE FXD35 1GW1 2006
Fit for DYNA STREET BOB FXDBI 1GX1 2006
Fit for DYNA SUPER GLIDE CUSTOM FXDC 1GTV 2005
Fit for DYNA SUPER GLIDE CUSTOM FXDCI 1GV1 2006
Fit for DYNA SUPER GLIDE CUSTOM FXDCI 1GVW 2005
Fit for DYNA SUPER GLIDE FXDI 1GM1 2006
Fit for DYNA SUPER GLIDE FXDI 1GMW 2004-2005
Fit for DYNA LOW RIDER FXDL 1GDV 2004-2005
Fit for DYNA LOW RIDER FXDLI 1GN1 2006
Fit for DYNA LOW RIDER FXDLI 1GNW 2004-2005
Fit for DYNA WIDE GLIDE FXDWG 1GEV 2004-2005
Fit for DYNA WIDE GLIDE FXDWGI 1GP1 2006
Fit for DYNA WIDE GLIDE FXDWGI 1GPW 2004-2005
Fit for DYNA SUPER GLIDE SPORT FXDX 1GJV 2004-2005
Fit for DYNA SUPER GLIDE SPORT FXDXI 1GRW 2004-2005
Fit for SPRINGER CLASSIC FLSTSC 1BRY 2005-2006
Fit for SPRINGER CLASSIC FLSTSCI 1BYB 2005-2006
Fit for SPRINGER SOFTAIL FXSTS 1BLY 2001-2006
Fit for SPRINGER SOFTAIL FXSTSI 1BZB 2001-2004/2006

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
