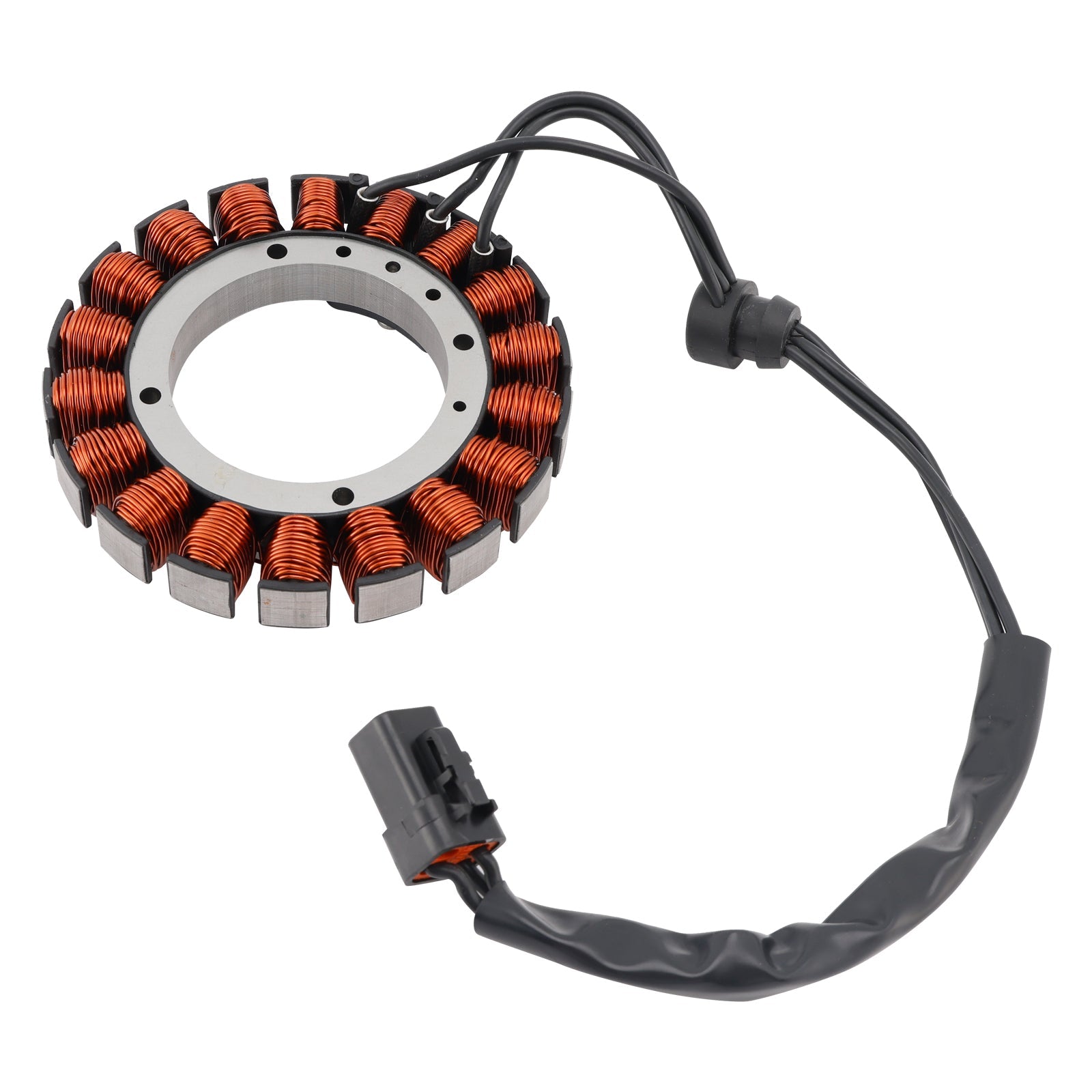

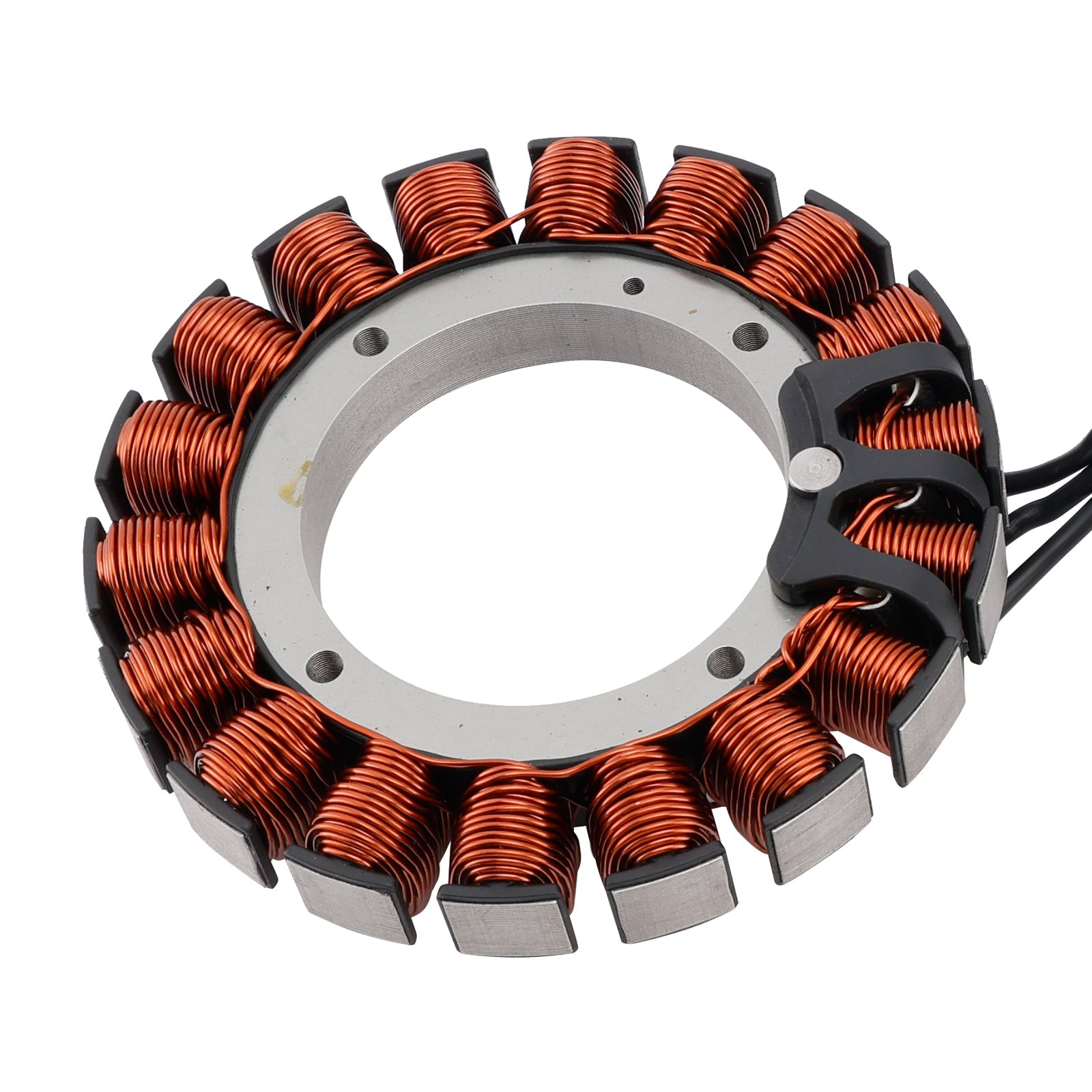

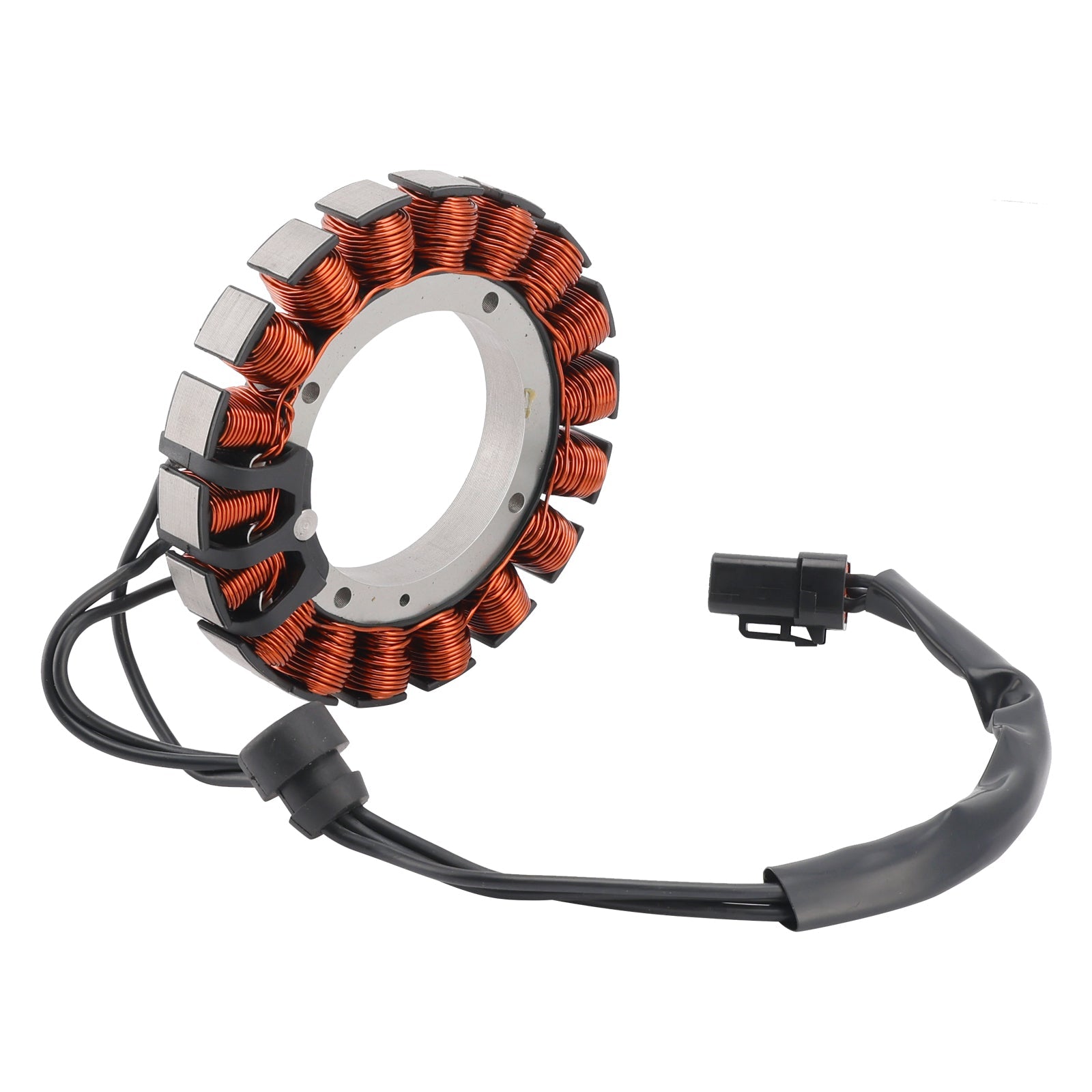

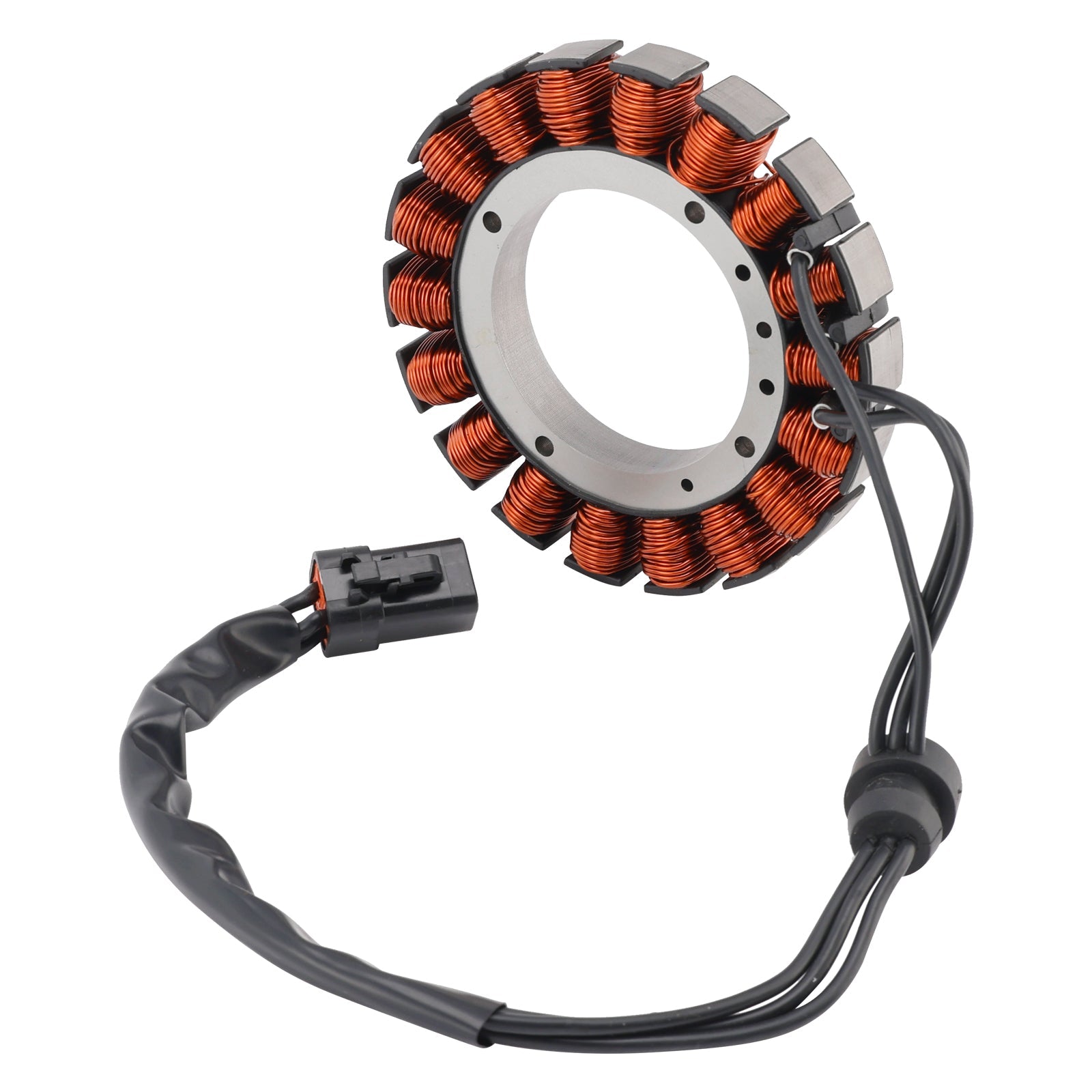

38A 3-Phase Magneto Generator Stator Fit for Buell XB9 XB12 2003-2007

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

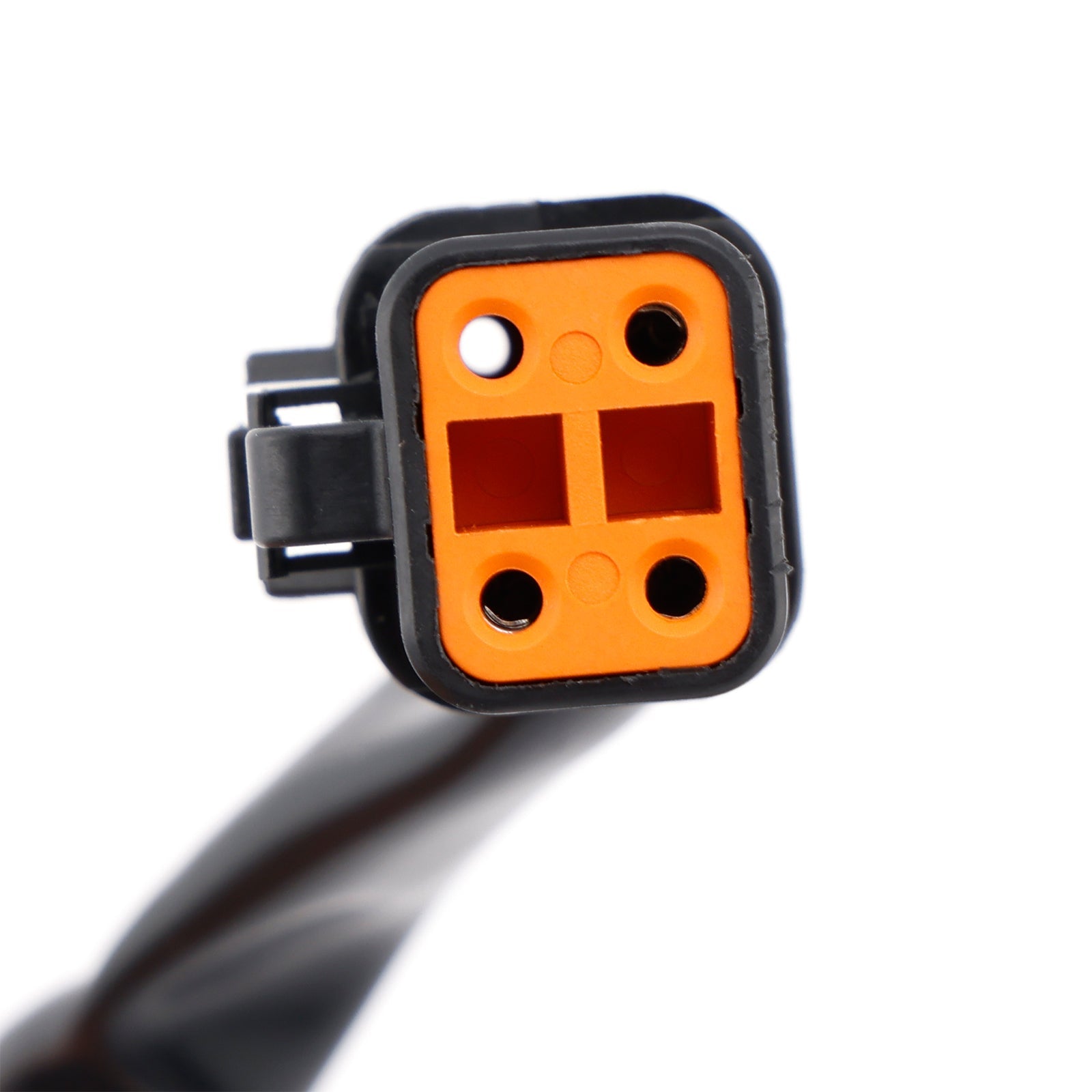

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of fixation holes: 4
Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Size:
Exterior diameter: 135mm
Interior diameter: 70mm

Replacement Part Number:
29971-02YA
2997102YA
29971-02Y
2997102Y

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fits all Buell XB9 and XB12 models from 2003-2007 only.
Fit for Buell XB9S Lightning 2003-2004
Fit for Buell XB9SL Lightning Low 2004
Fit for Buell XB9SX Lightning CityX 2005-2007
Fit for Buell XB12R Firebolt 2004-2007
Fit for Buell XB12S Lightning 2004-2007
Fit for Buell XB12X Ulysses 2006-2007
Fit for Buell XB12STT Lightning Super TT 2007
Fit for Buell XB12SS Lightning Long 2006-2007
Fit for Buell XB12SCG Lightning Low 2005-2007

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
