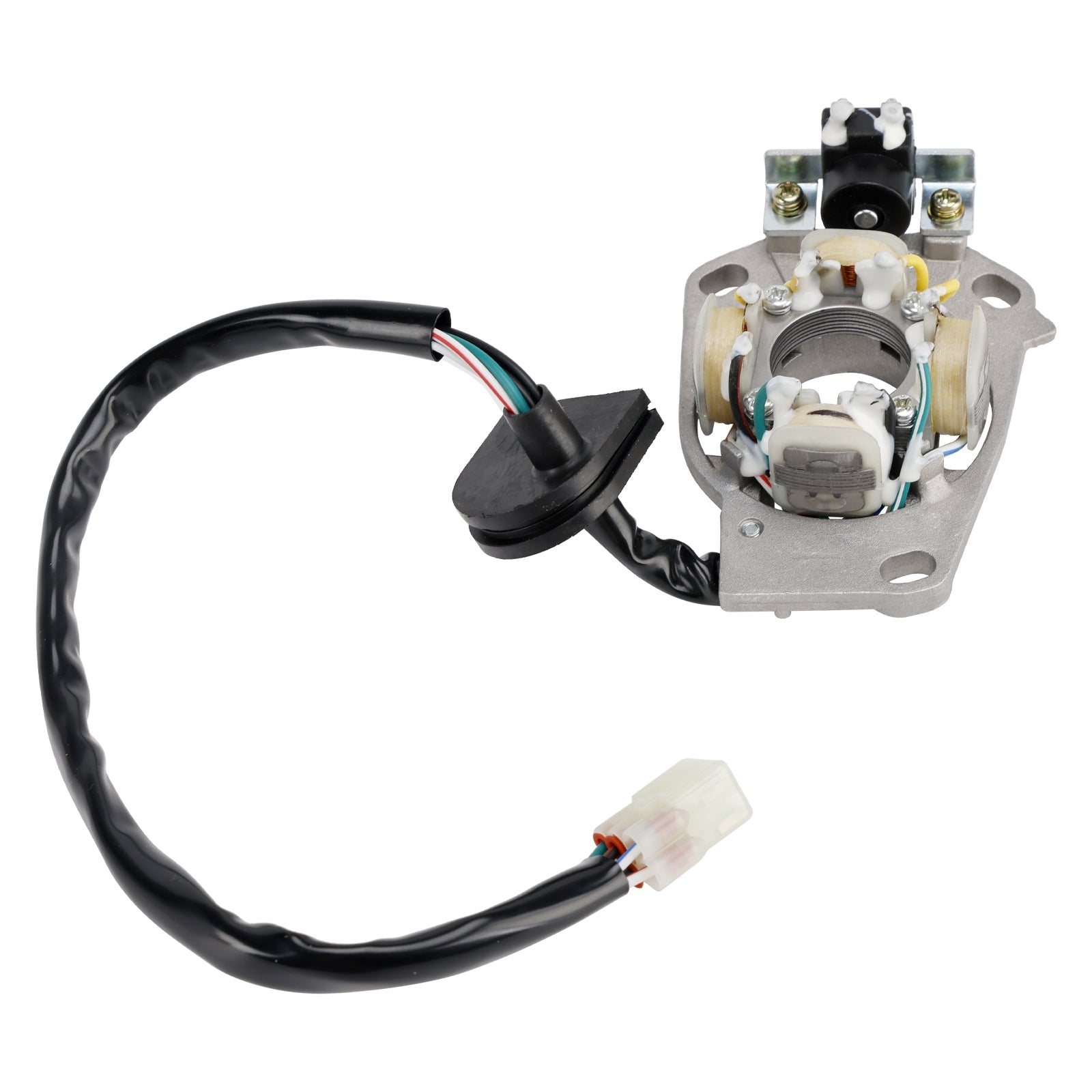

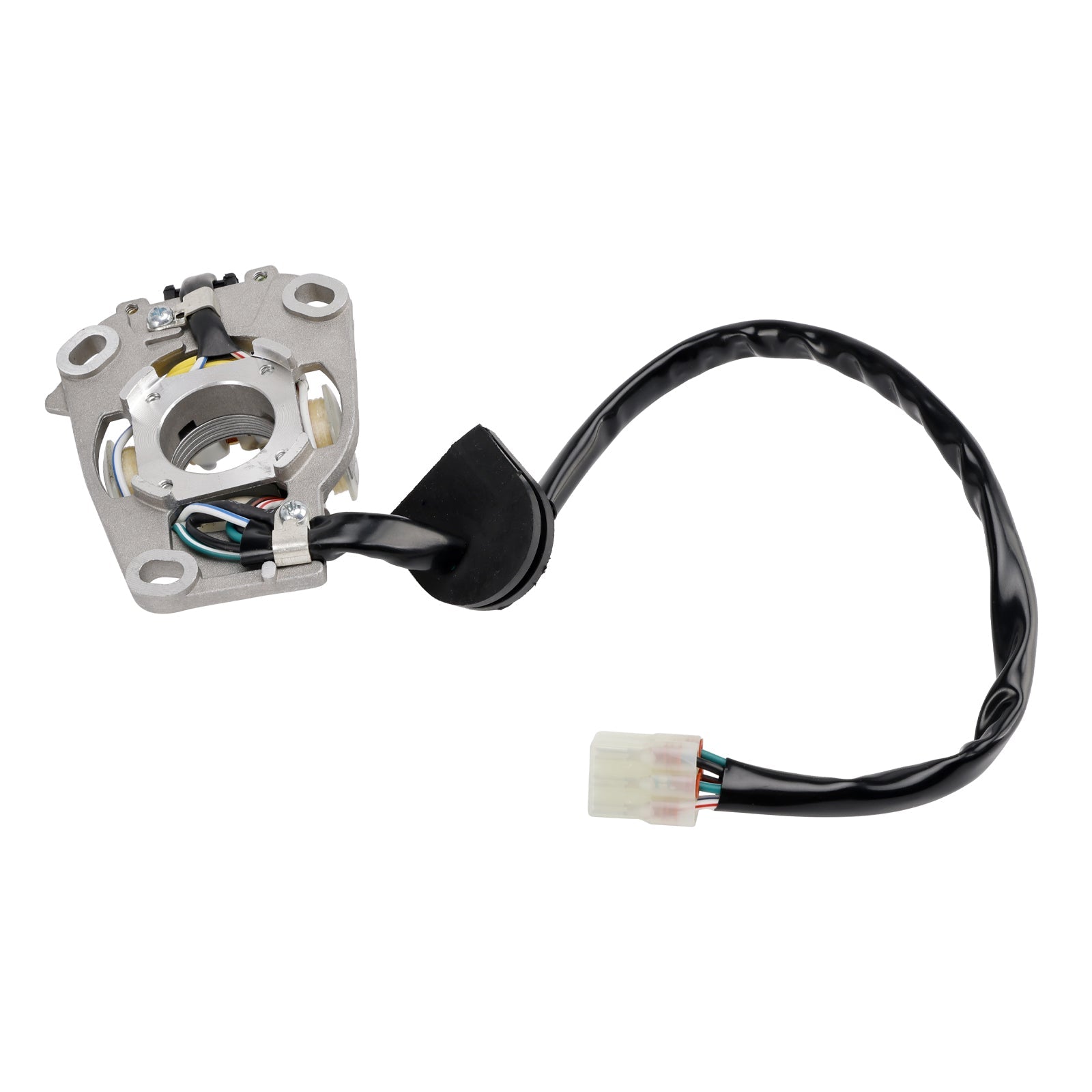

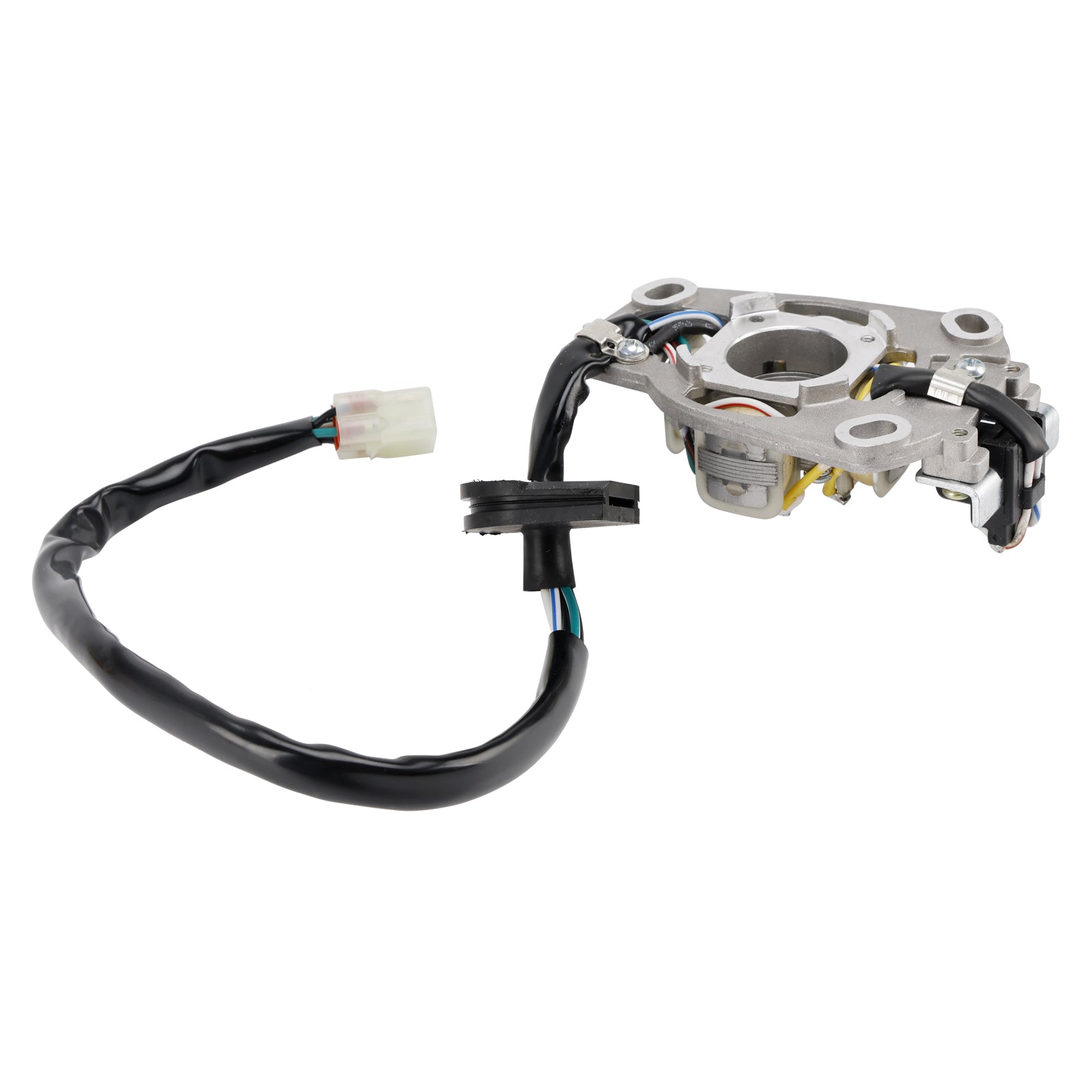

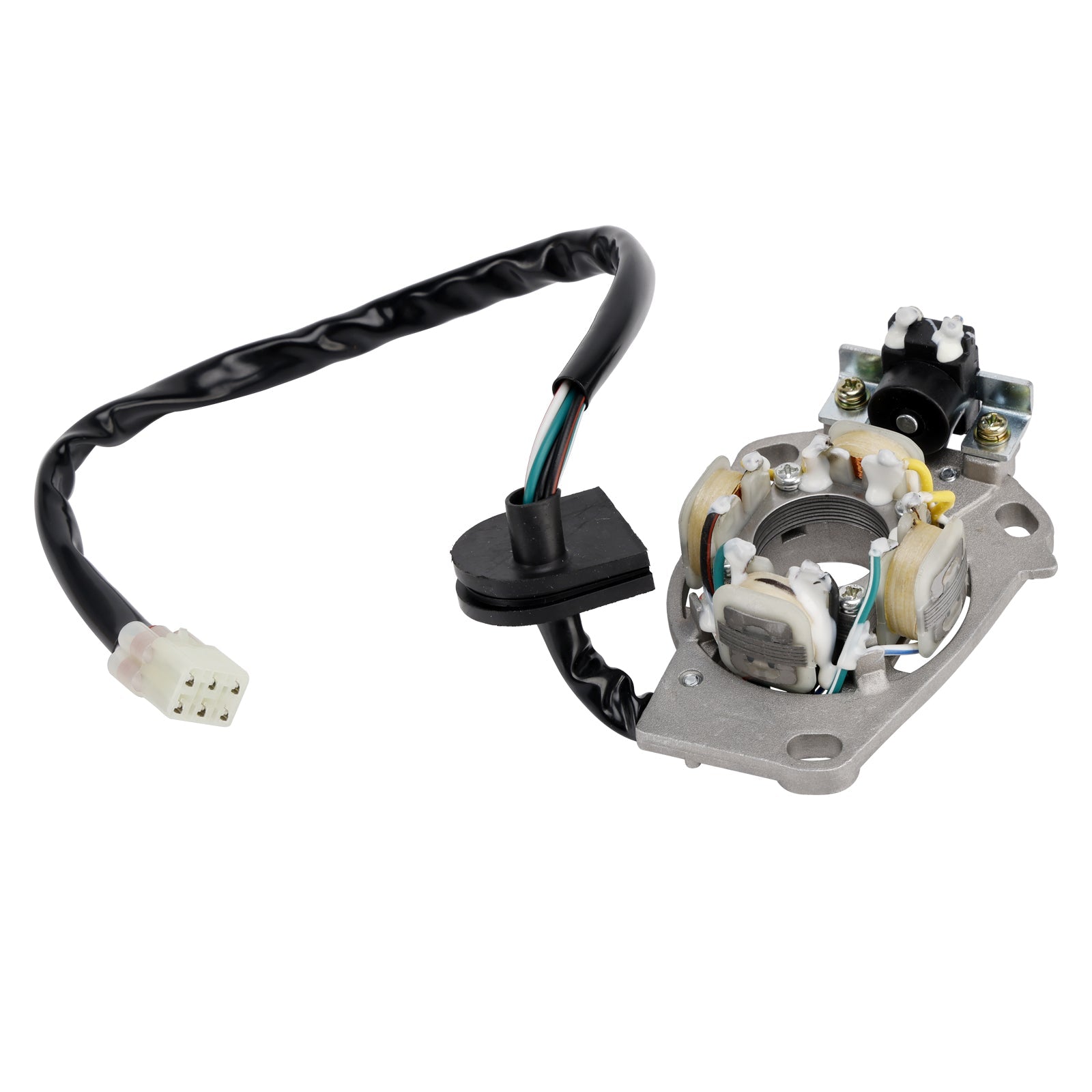

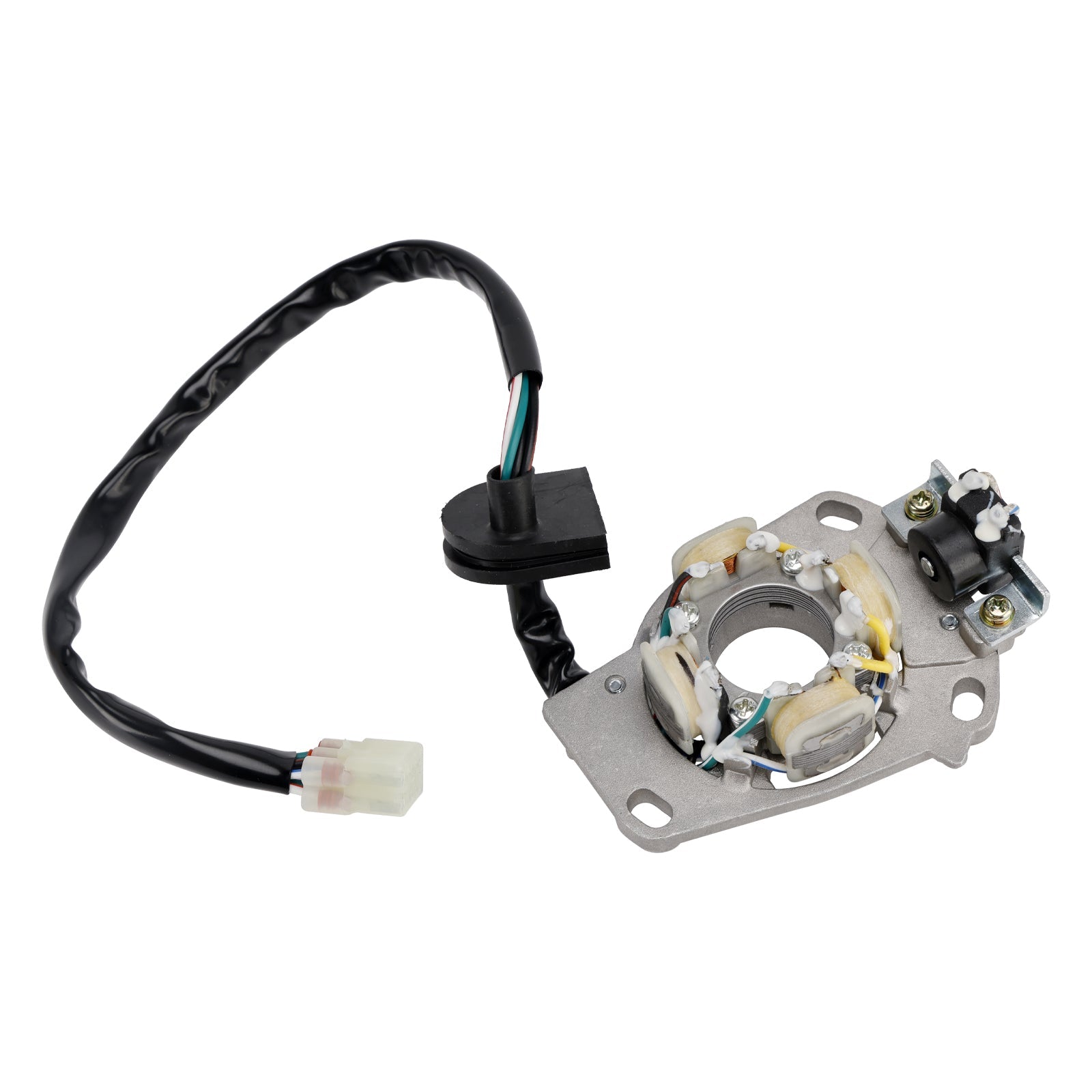

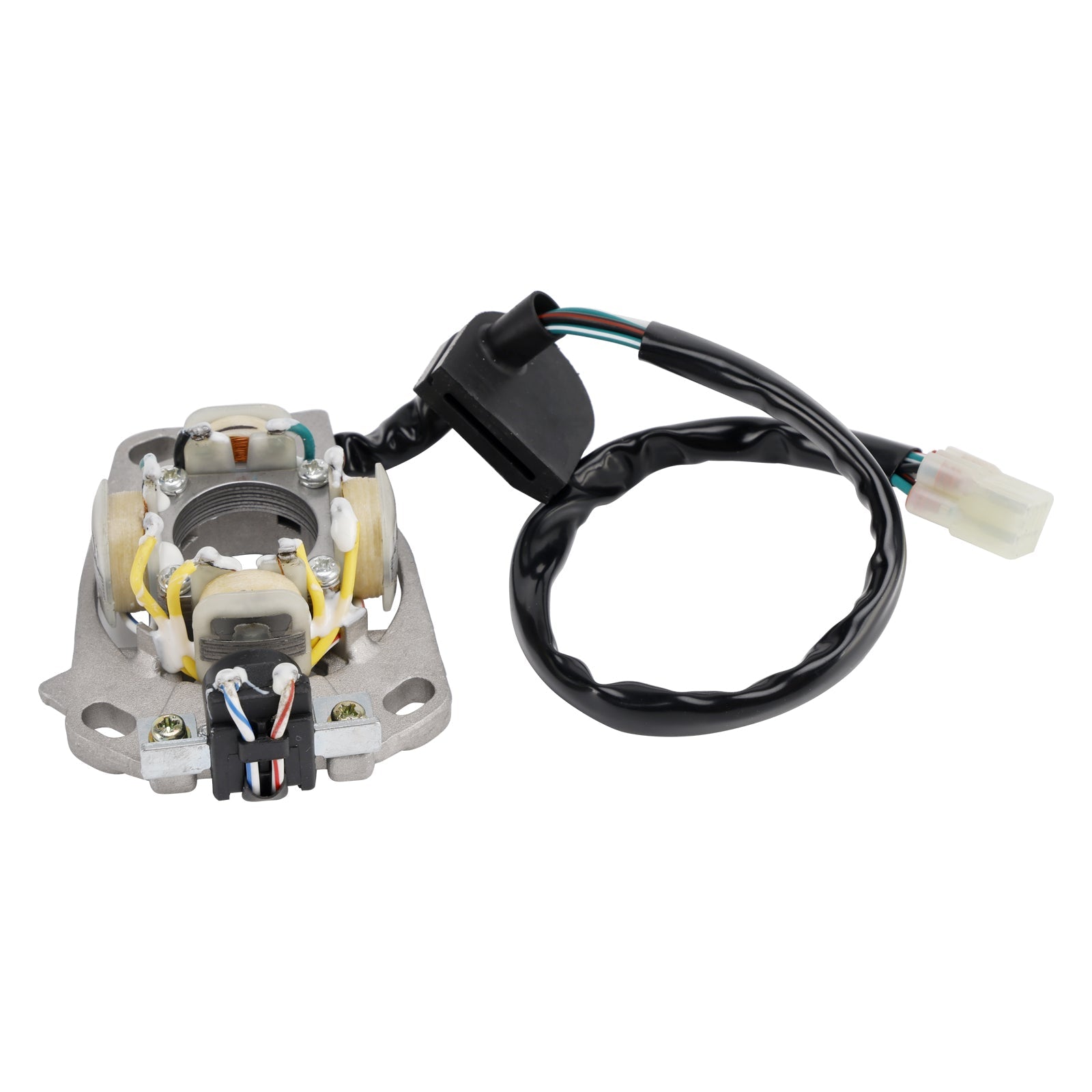

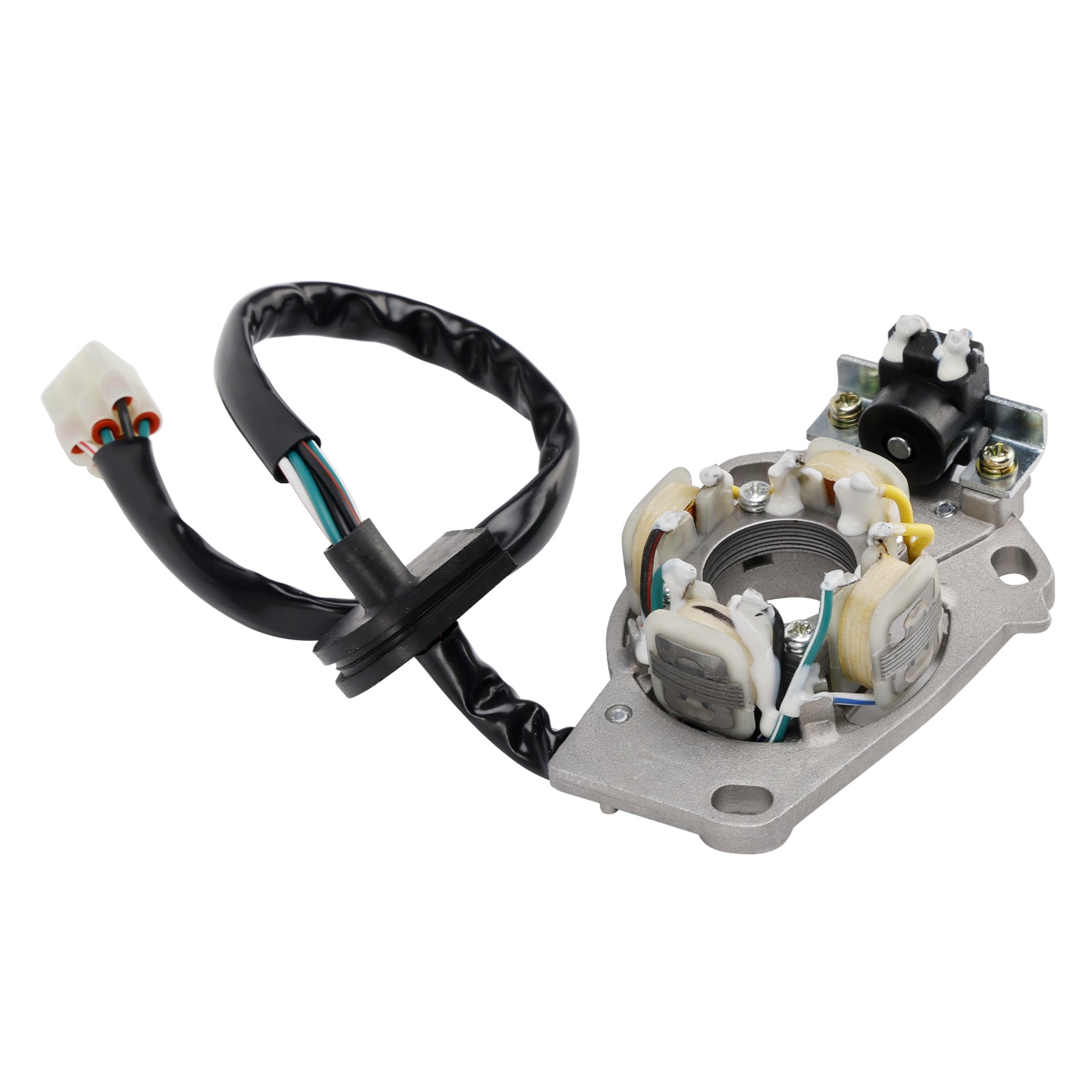

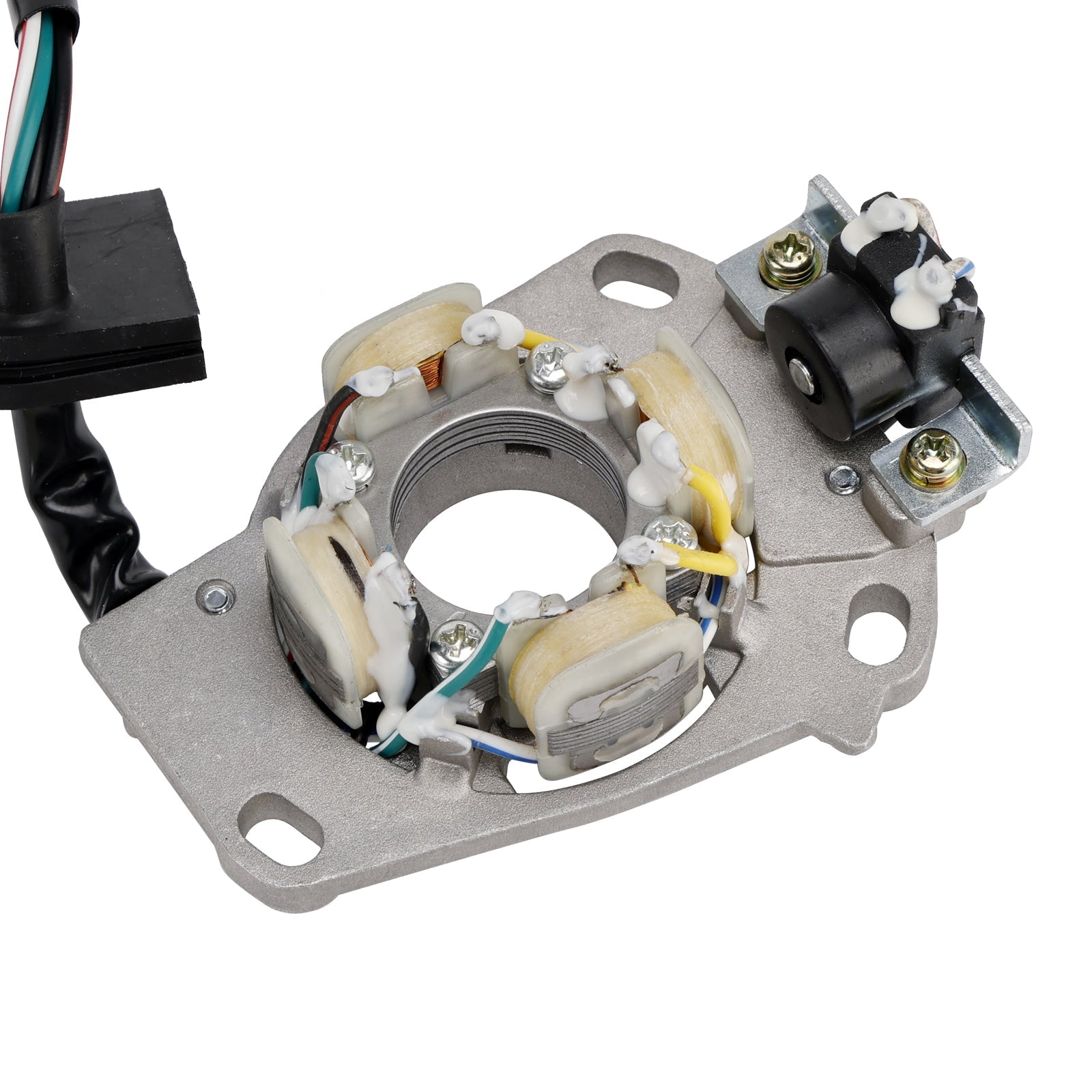

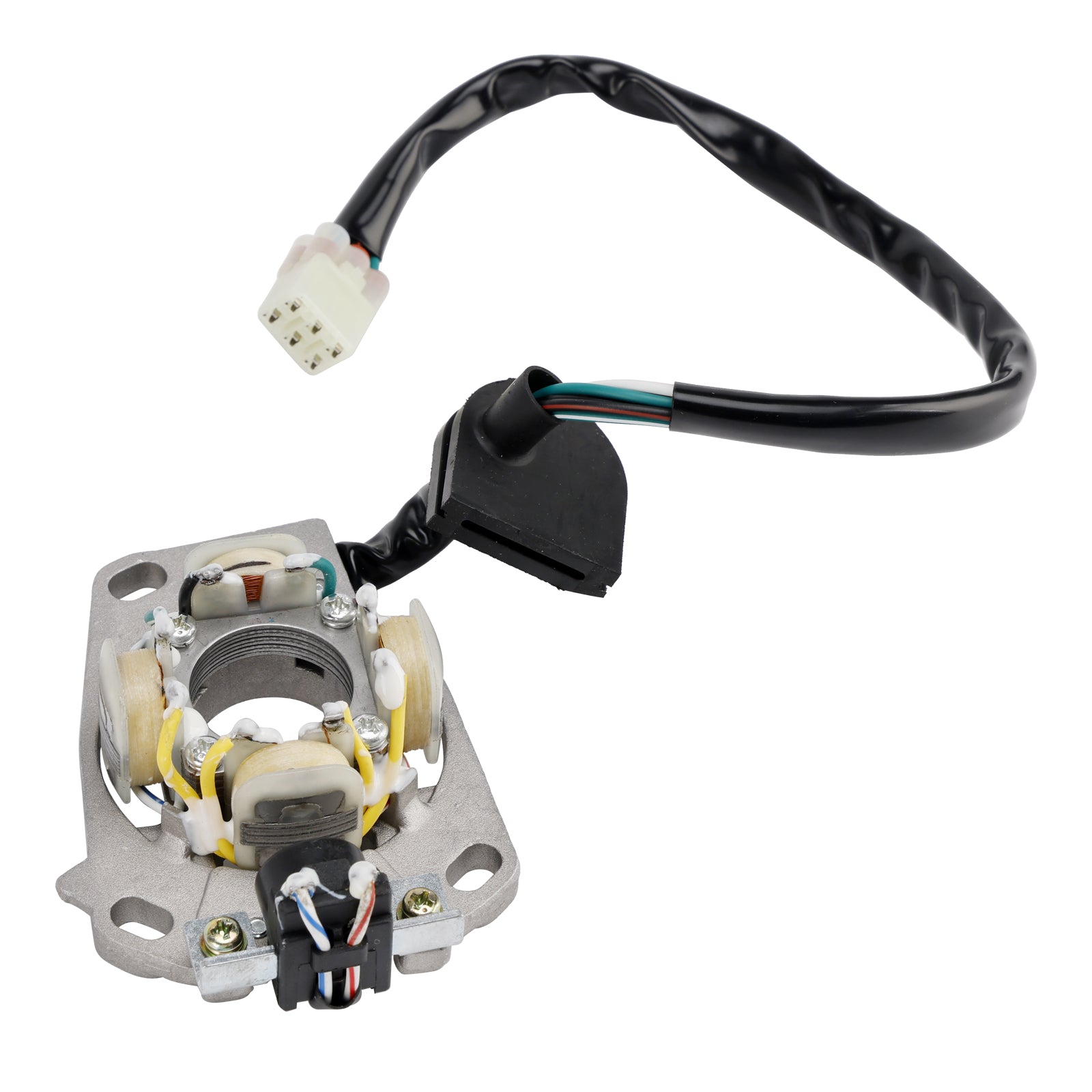

Magneto Generator Stator Base Assy Fit for Yamaha YZ125 YZ125X 2022-2025

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 6

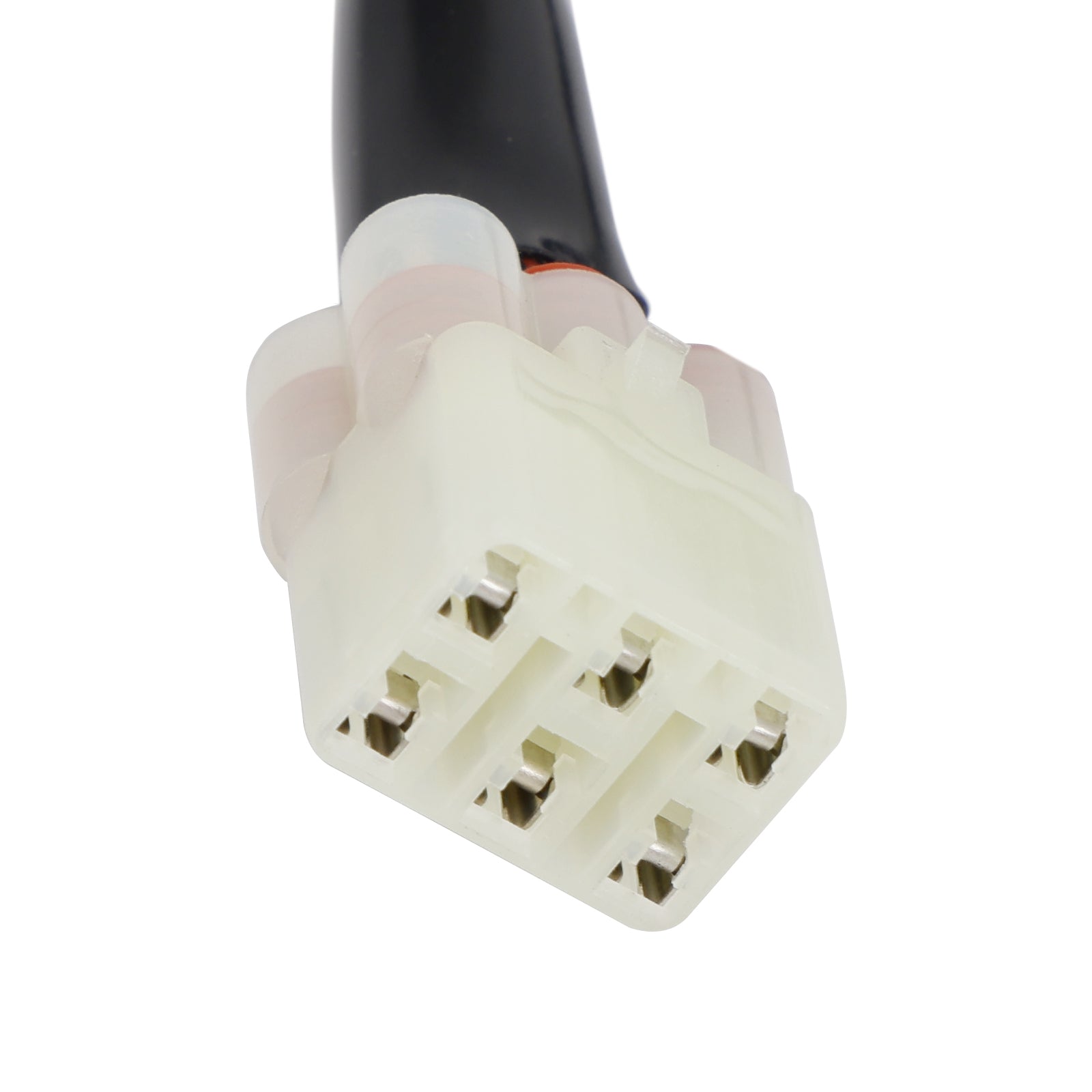

Number of plugs: 1
Number of pins: 6
Number of fixation holes: 3
Number of poles: 4

Please compare the number of pins and plugs with the old part before purchasing.

Size:
Inner diameter: 28mm
Outer diameter: 58mm

Replacement Part Number:
B4X-85560-00
B4X-85560-02

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part; OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Yamaha YZ125 YZ125N2L 2022
Fit for Yamaha YZ125 YZ125P2L 2023
Fit for Yamaha YZ125X YZ125XP 2023
Fit for Yamaha YZ125 YZ125RL 2024
Fit for Yamaha YZ125 50TH YZ125RSE 2024
Fit for Yamaha YZ125X YZ125XR 2024
Fit for Yamaha YZ125 YZ125SL 2025
Fit for Yamaha YZ125X YZ125XS 2025
Fit for Yamaha YZ125 MONSTER YZ125N2ME 2022
Fit for Yamaha YZ125 MONSTER YZ125P2ME 2023

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Base Assy

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !
