Generator Stator Regulator Rectifier Gasket Set For Street Triple R/S/RS/Moto2 765 660

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

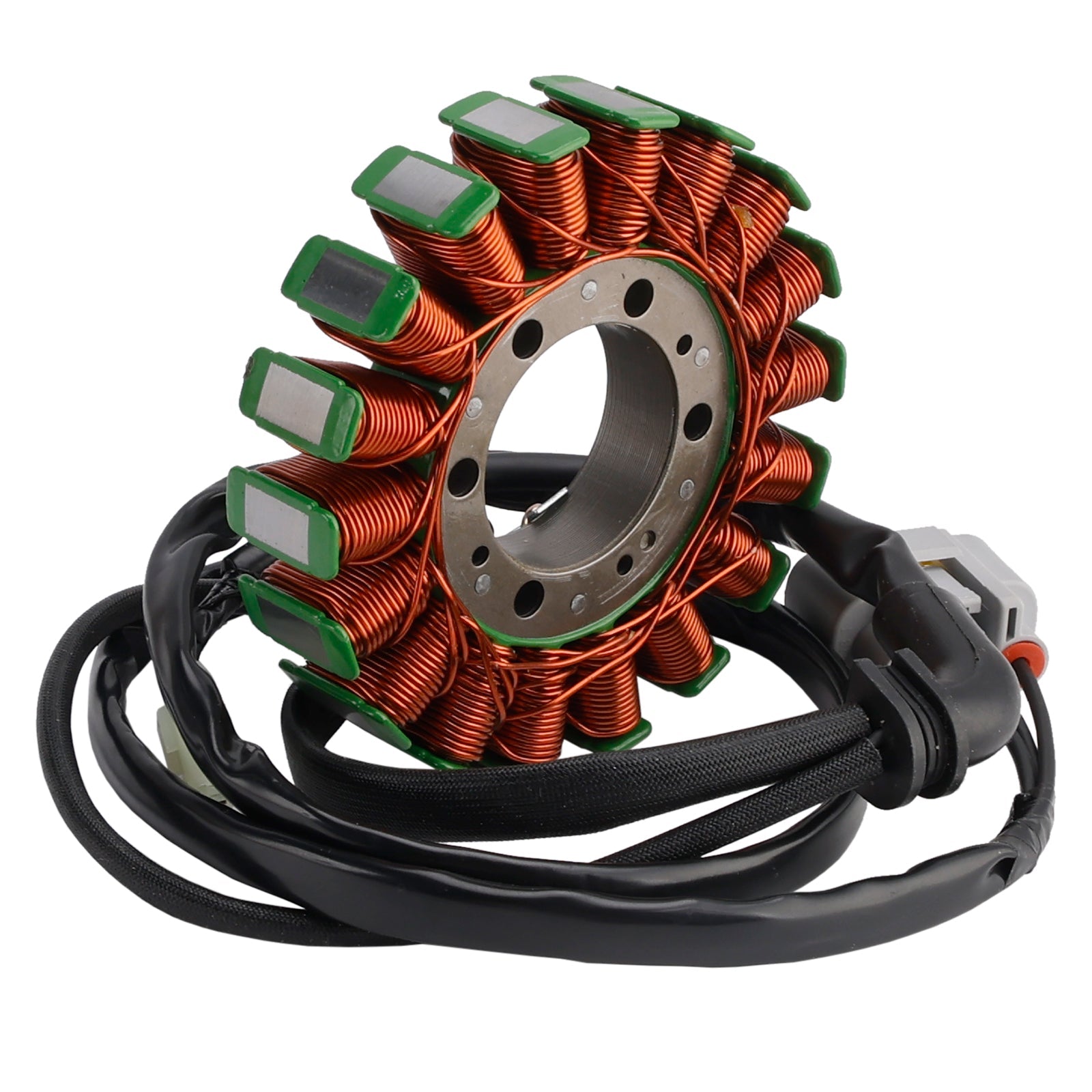

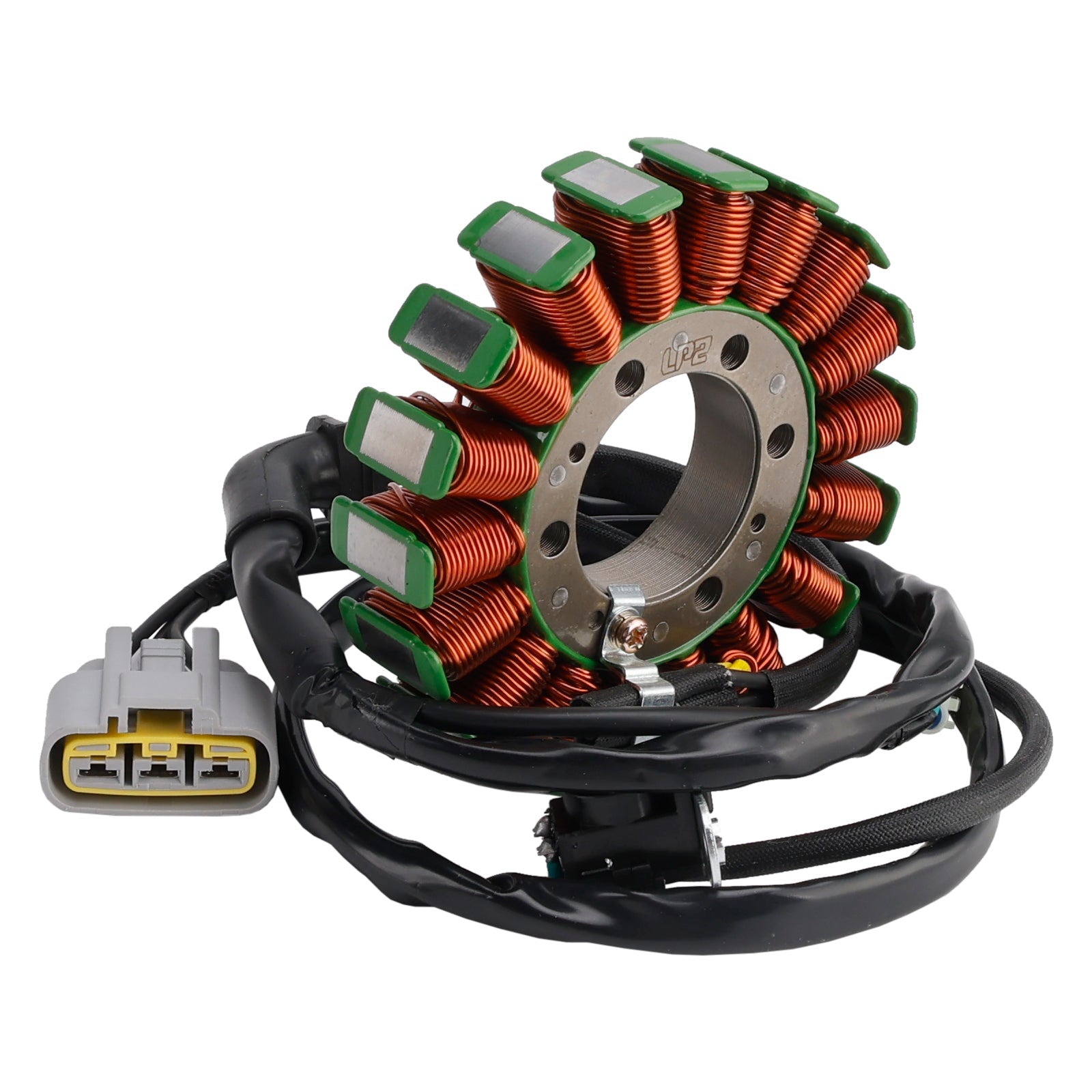

Stator
Number of wires: 5

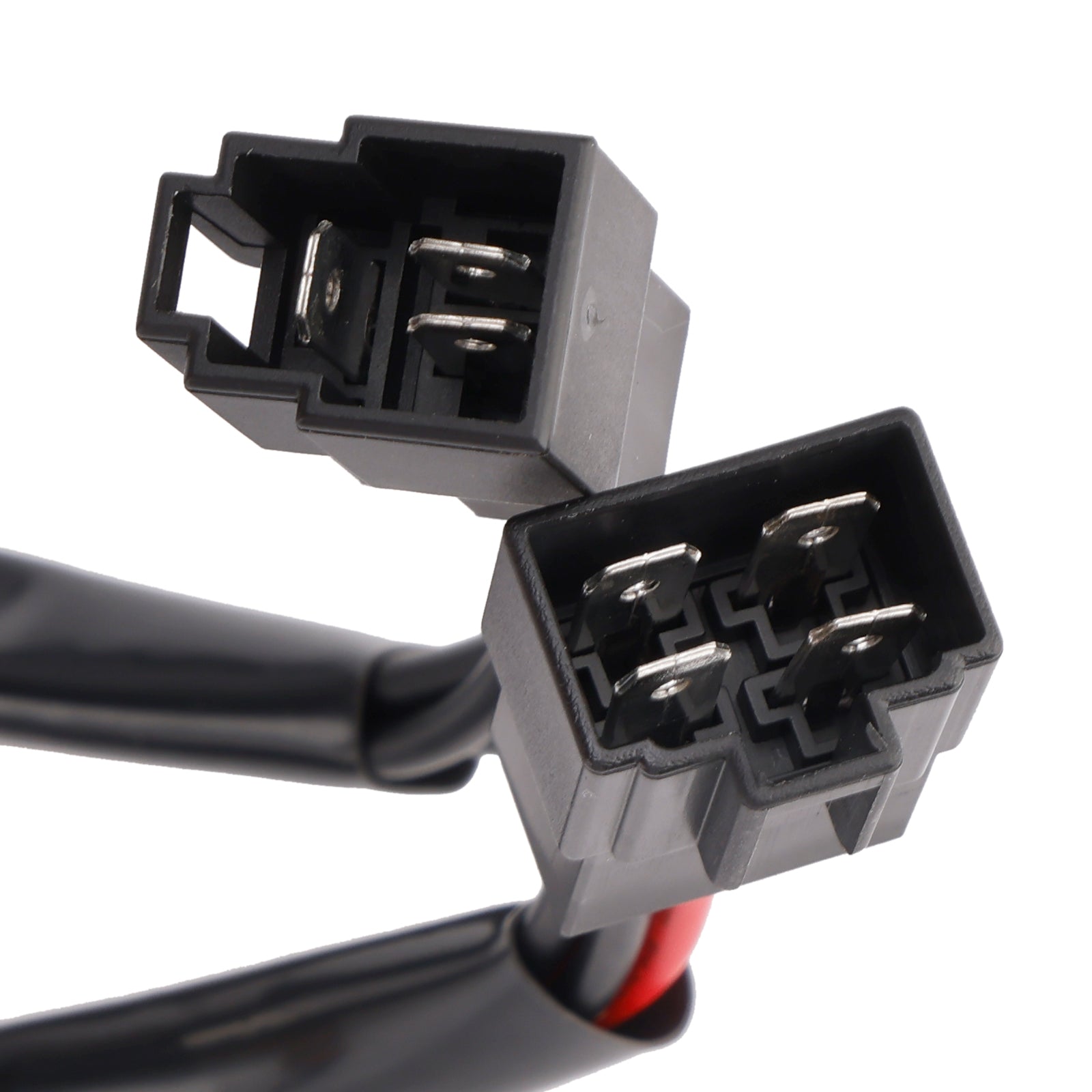

Number of plugs: 2
Number of pins: 3 + 2
Number of fixation holes: 5
Number of poles: 18
Interior diameter: 42 mm
Exterior diameter: 115 mm

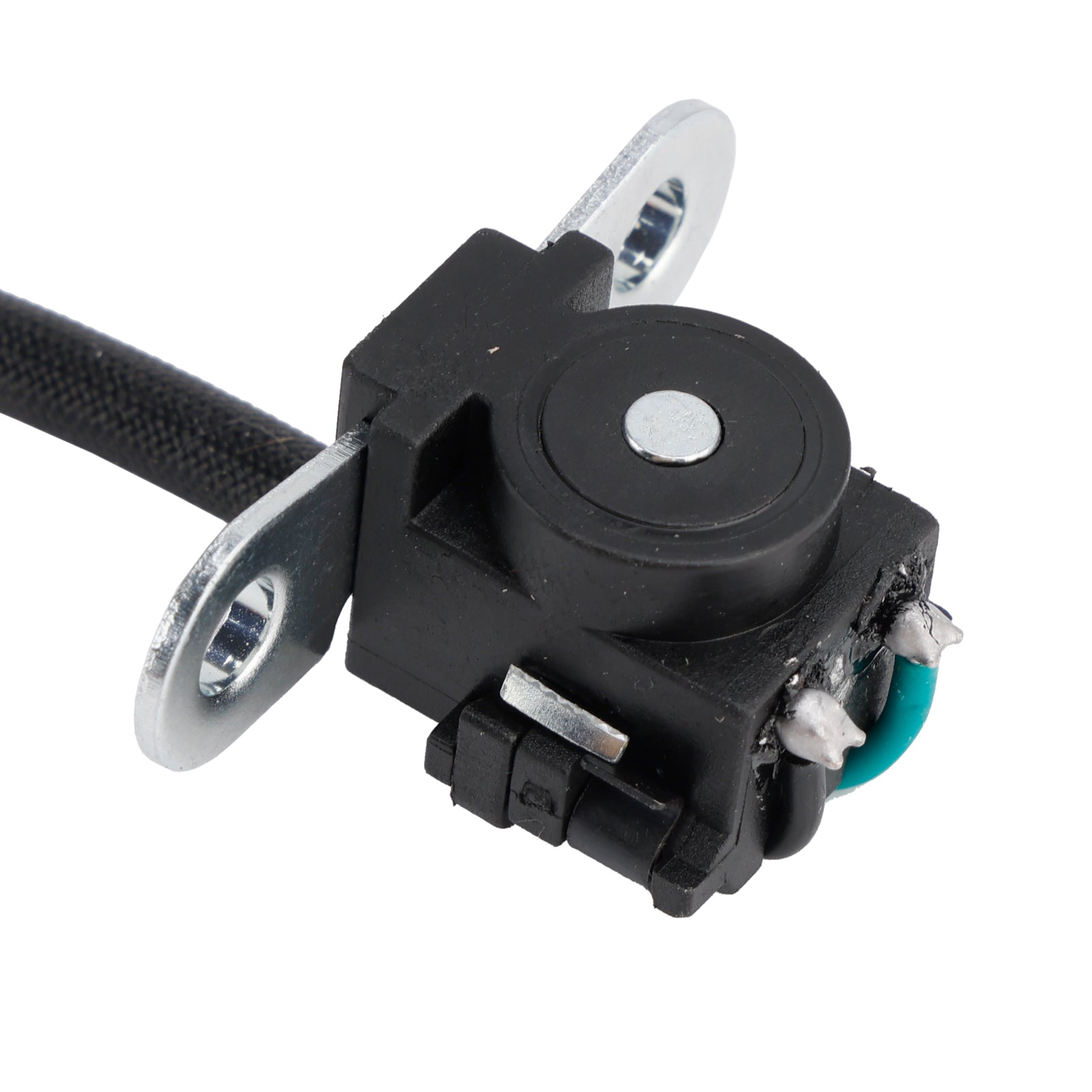

Pick up pulsar coil included.

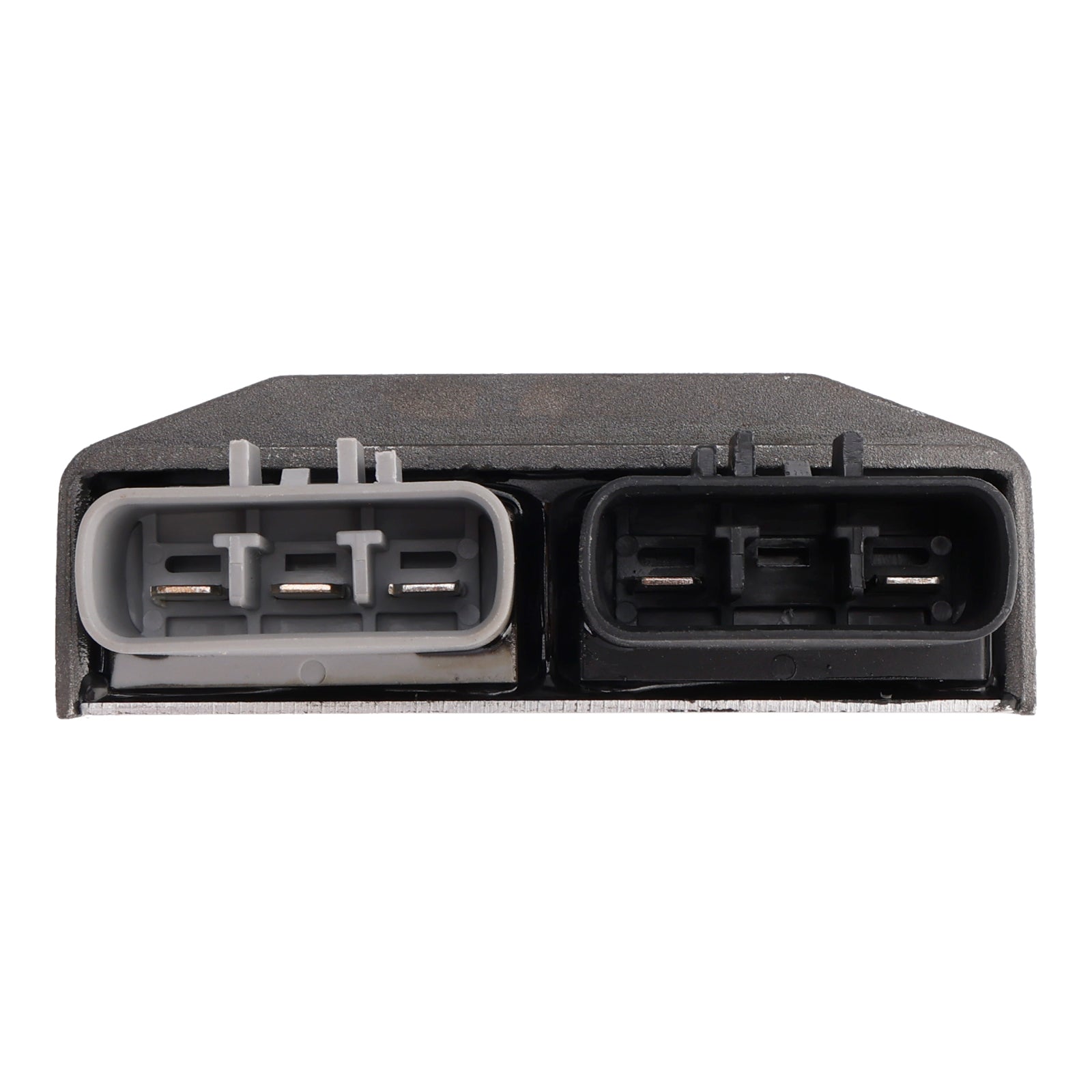

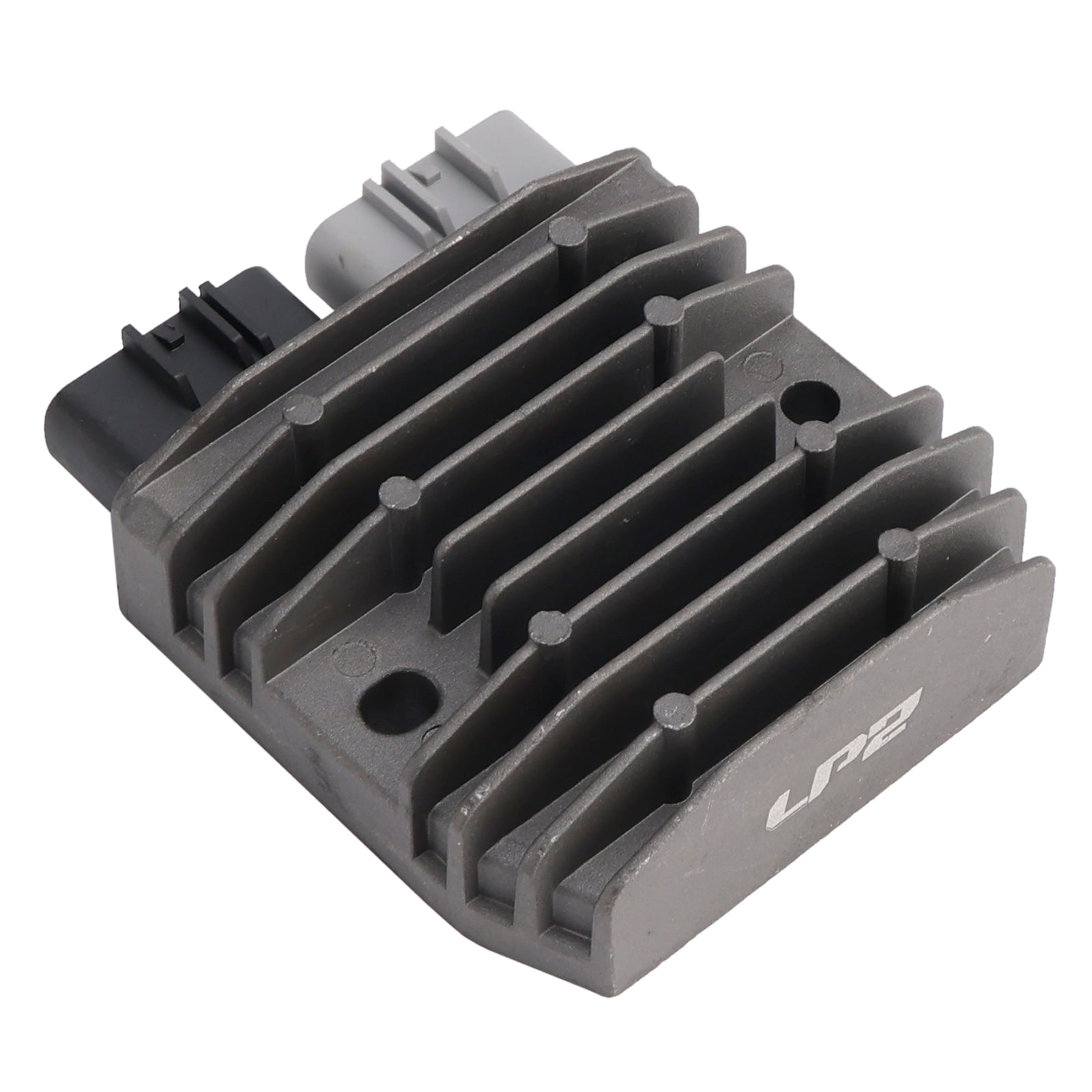

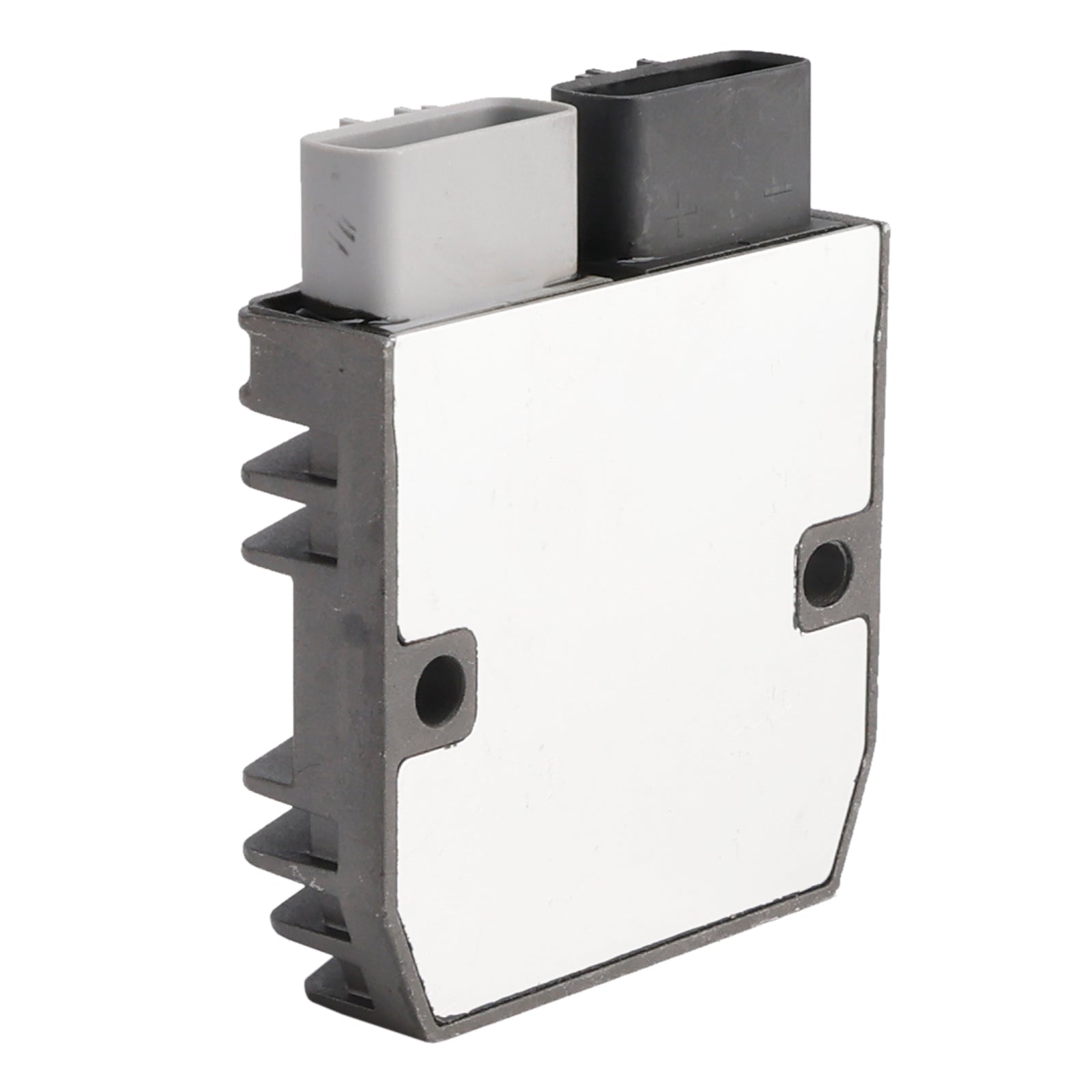

Regulator

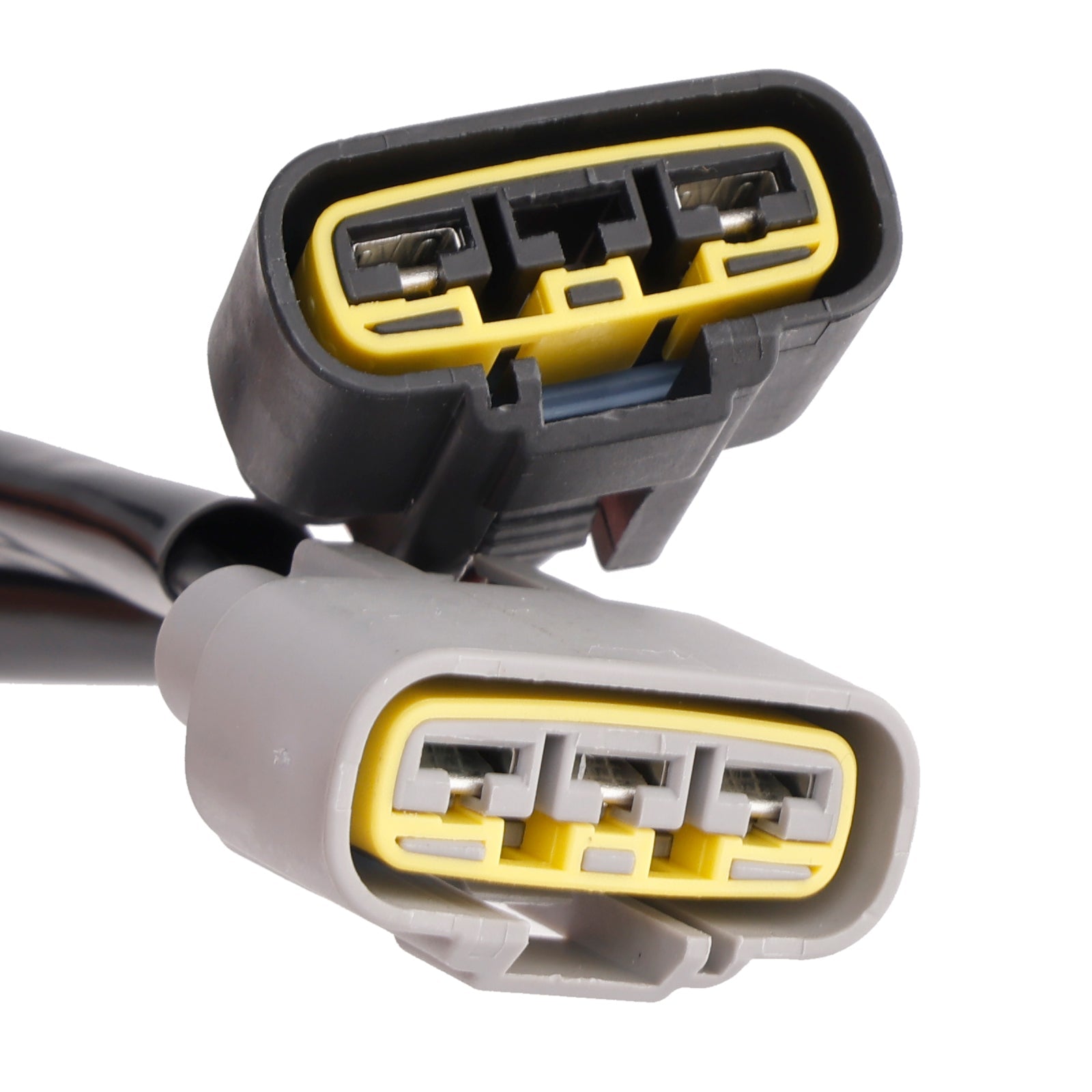

Number of plugs: 2
Number of pins: 2 + 3

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy: T1300205
Rectifier, regulator: T1300679, T1300675
Gasket, generator cover: T1260838, T1260823

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Model/Year:
Fit for Street Triple 660 S A2 2020
Fit for Street Triple 660 S Lams Compliant 2017-2020
Fit for Street Triple 660 S (From VIN 967907) 2021-2024
Fit for Street Triple 765 S (From VIN 803572 to 967906) 2017-2020
Fit for Street Triple 765 RS (Up to VIN 965682) 2017-2020
Fit for Street Triple 765 R (Up to VIN 982751) 2017-2020
Fit for Street Triple 765 S (From VIN 803572 to 968958) 2017-2021
Fit for Street Triple 765 S (From VIN 974463) 2021-2024
Fit for Street Triple 765 R (From VIN BF1297) 2021-2024
Fit for Street Triple 765 RS (From VIN BF1297) 2021-2024
Fit for Street Triple 765 RS (From VIN 966534) 2020-2024
Fit for Street Triple 765 R (From VIN 982752) 2021-2024
Fit for Street Triple 765 Moto2 2020-2024

Please check and comfirm your VIN number and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

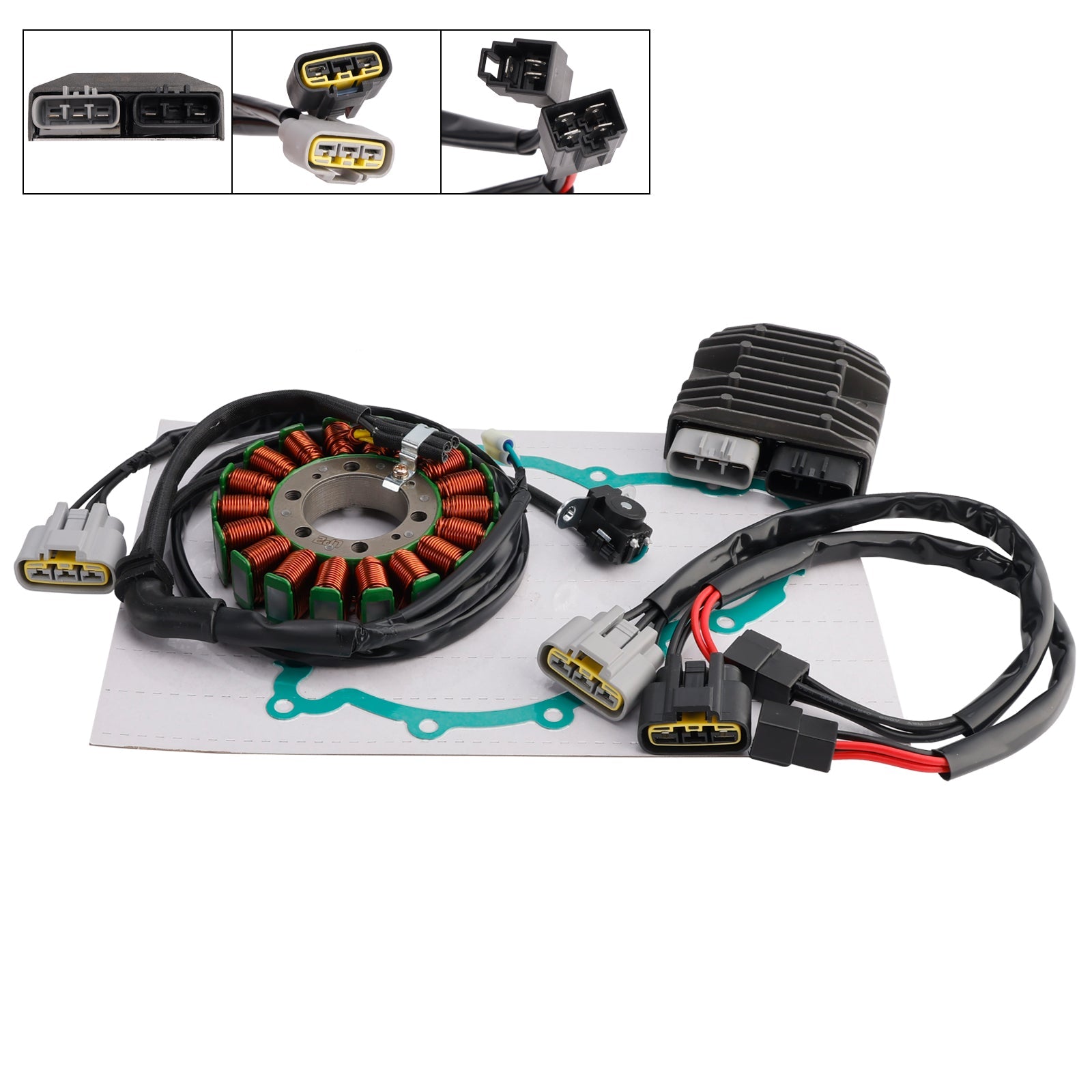

Package Includes:
1 x 115mm Generator Stator
1 x 5-Pin Regulator Rectifier

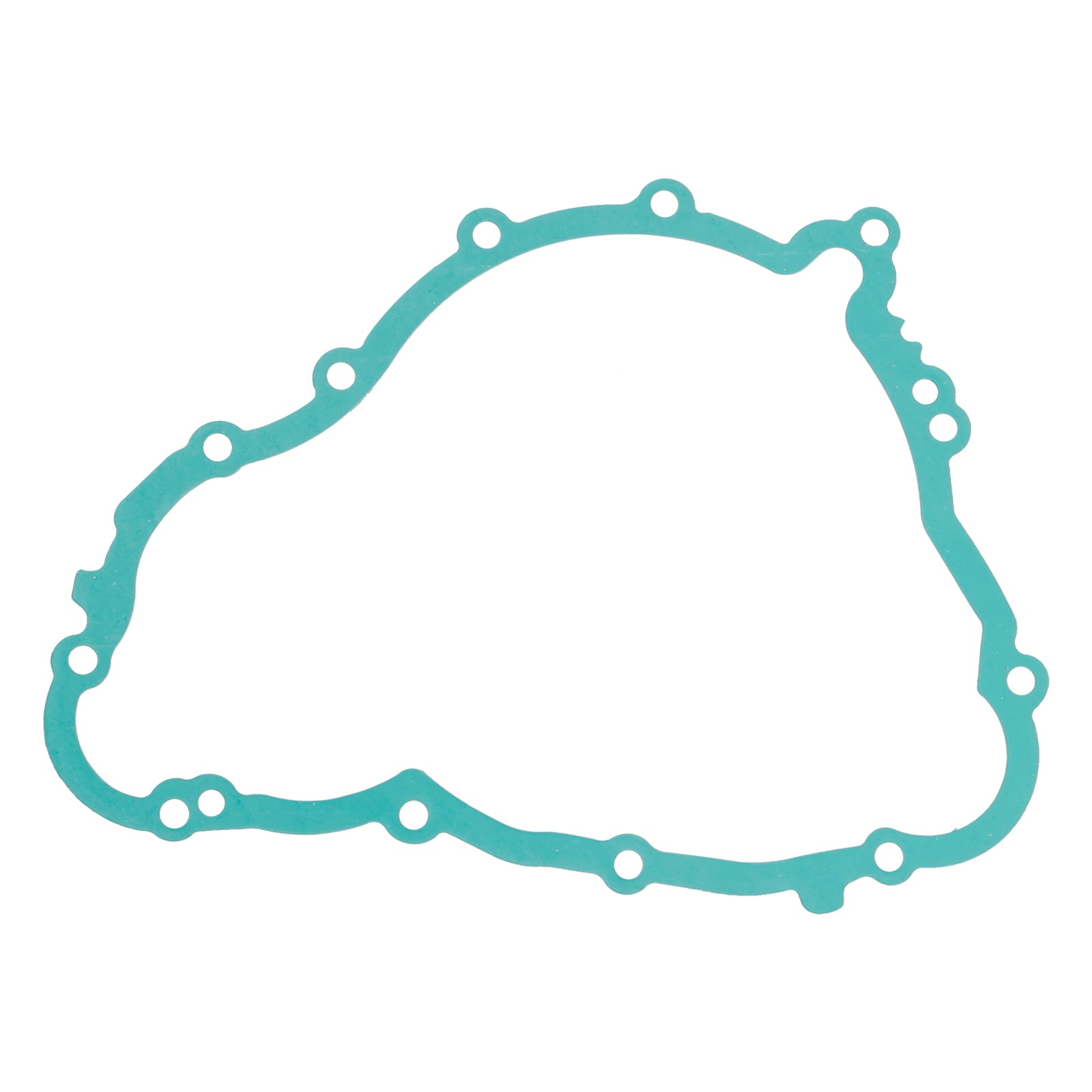

1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
