Cylinder Piston Gasket Top End Rebuild Kit For HiSun UTV 550 HS Sector Strike Tactic

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

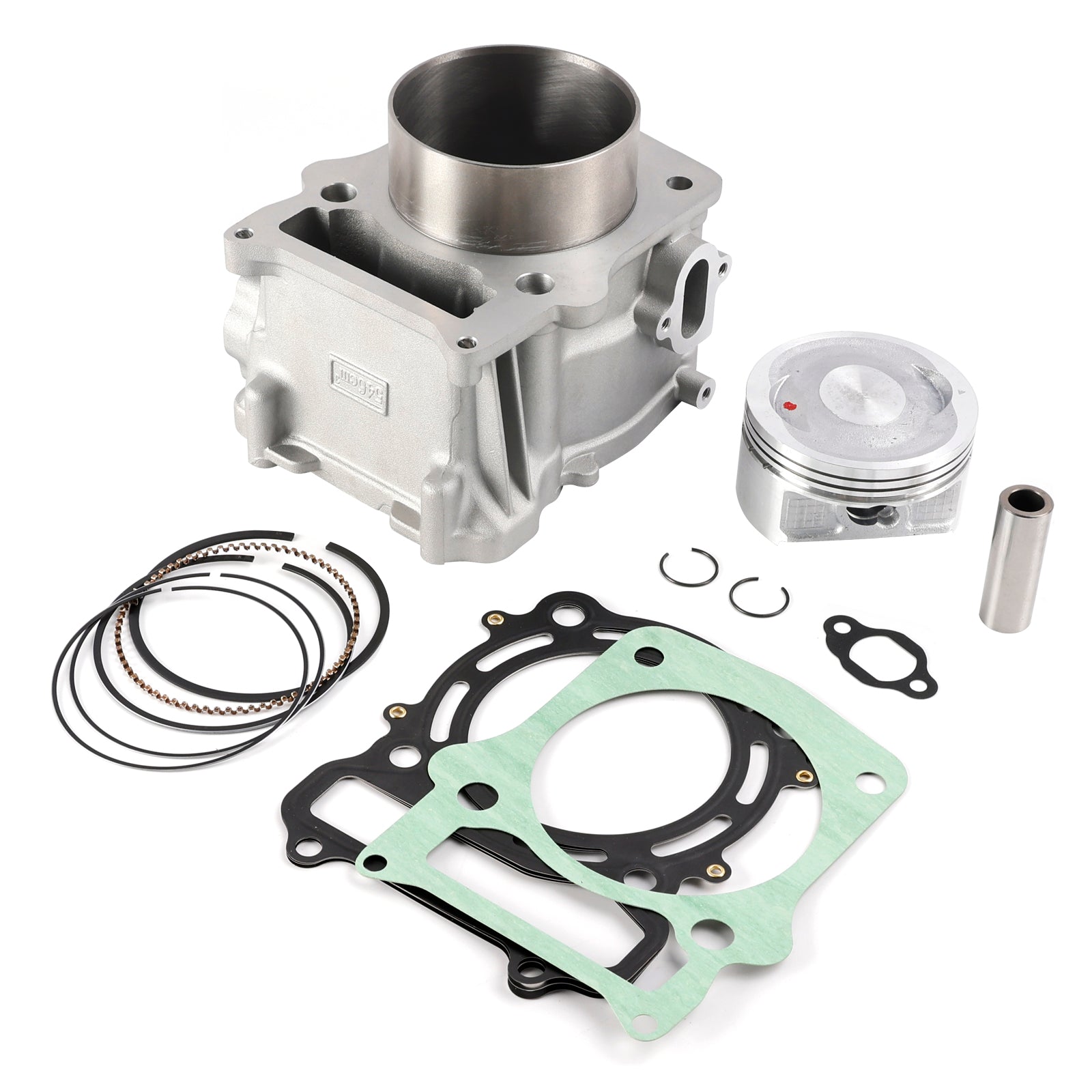

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 91mm.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 546cc
Bore Type: Standard Bore
Placement on Vehicle: Front
Bore diameter: STD 91mm
Pin diameter: 20mm
Pin Overall Length: 56mm

Replacement Part Number:
Cylinder: P0150001211A0000, 1211A-015-0000, 12100-015-0000
Cylinder Base Gasket: P015000120090000, 12150-015-0000
Cylinder Head Gasket: P0150001207A0000, 12250-015-0000
Tensioner Gasket: P002000145080000, 14508-002-0000, 14508-F11-0000
Piston (Std): P015000131010000, 13101-015-0000
Pin, Piston: P010000131020000, 13111-F68-0000
Piston Ring Set (Std): P0100001311A0000, 1311A-010-0000, 13120-F68-0000
Circlips, Piston Pin: P010000131070000, 91301-F68-0000

Always compare part numbers to your parts schematics and cross reference appropriately.

Fits Models:
Fit for HiSun Tactic 550 2017-2023
Fit for HiSun Sector 550 2017-2023
Fit for HiSun Strike 550 2017-2023
Fit for Cub Cadet Challenger 550 2017-2023
Fit for Masai A550i / EPS

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

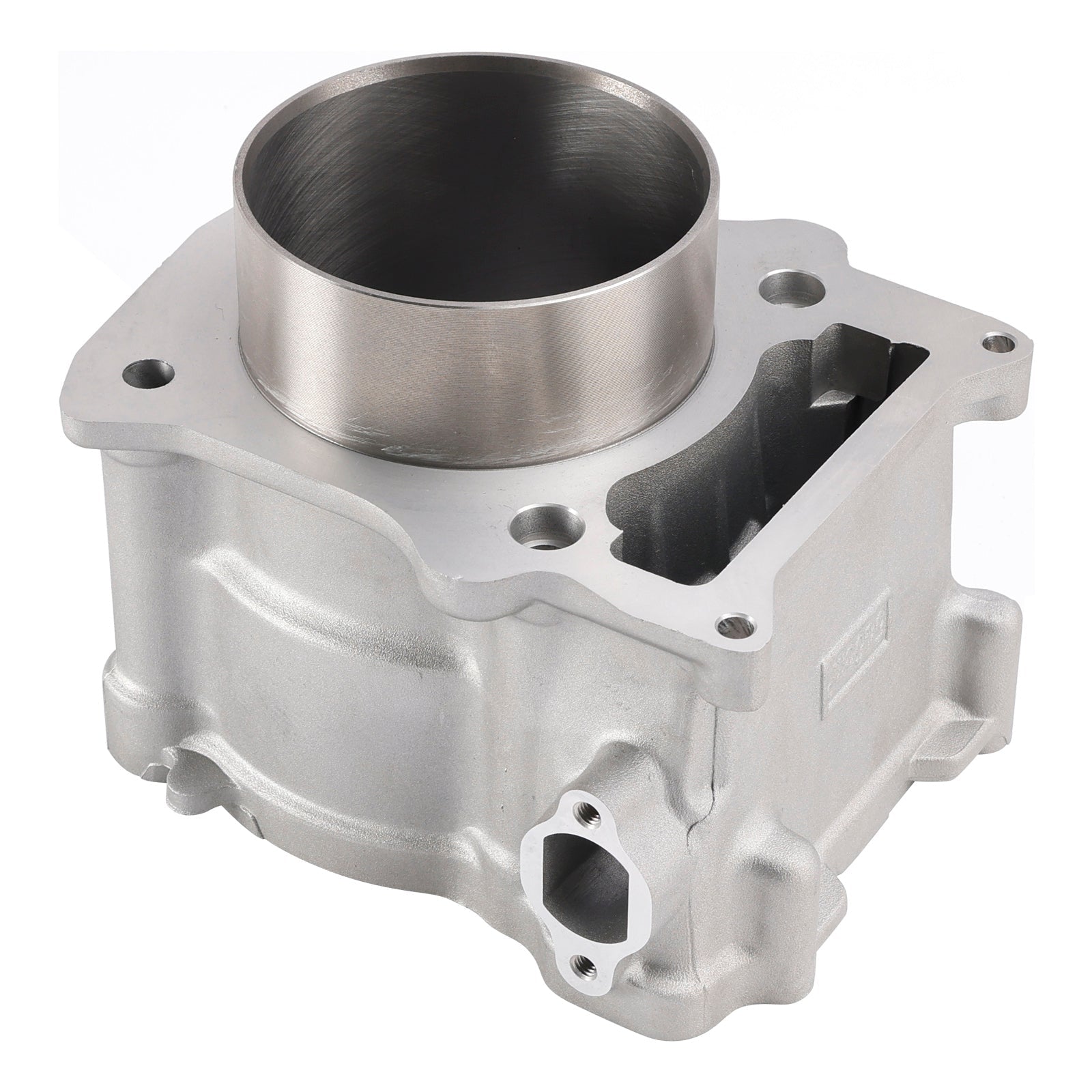

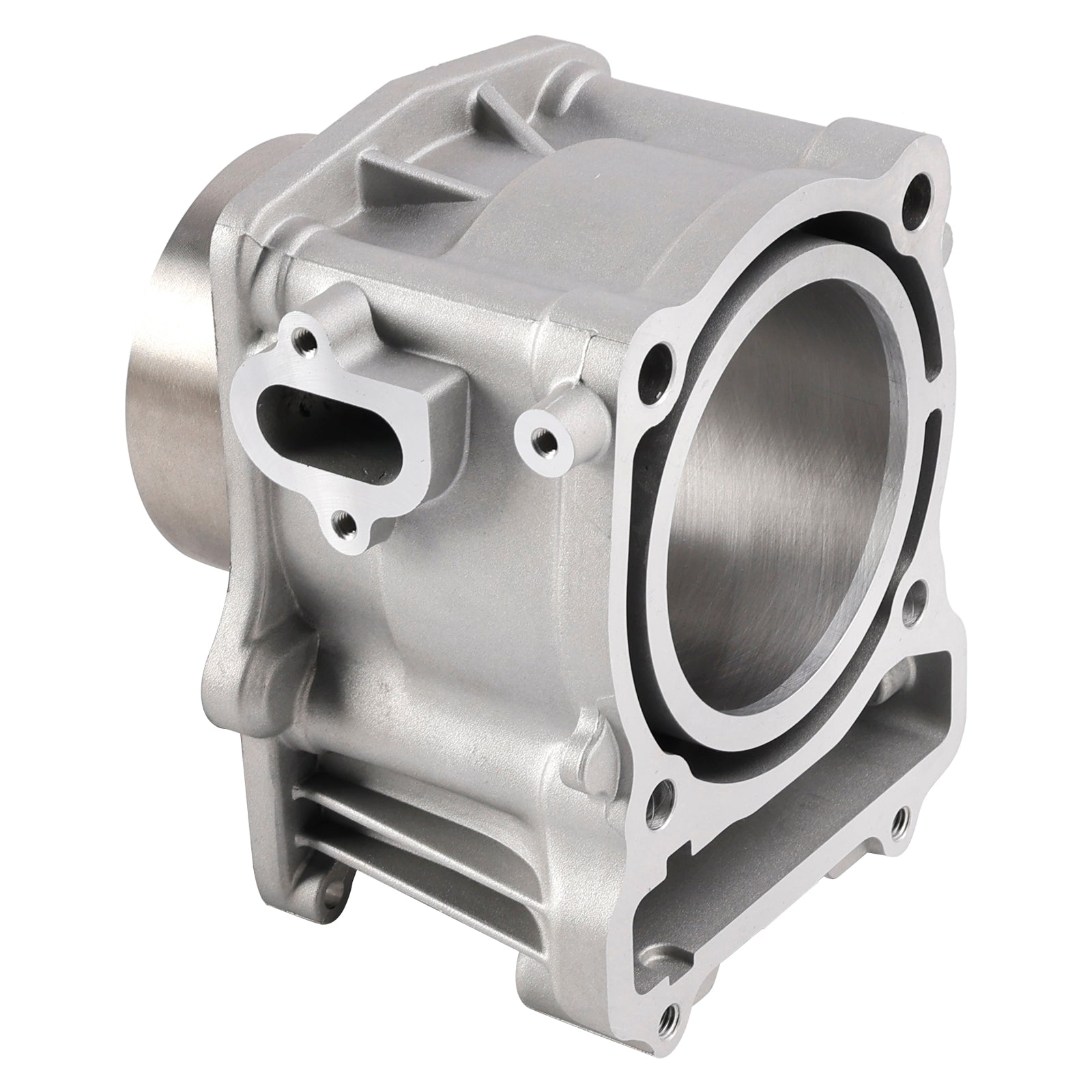

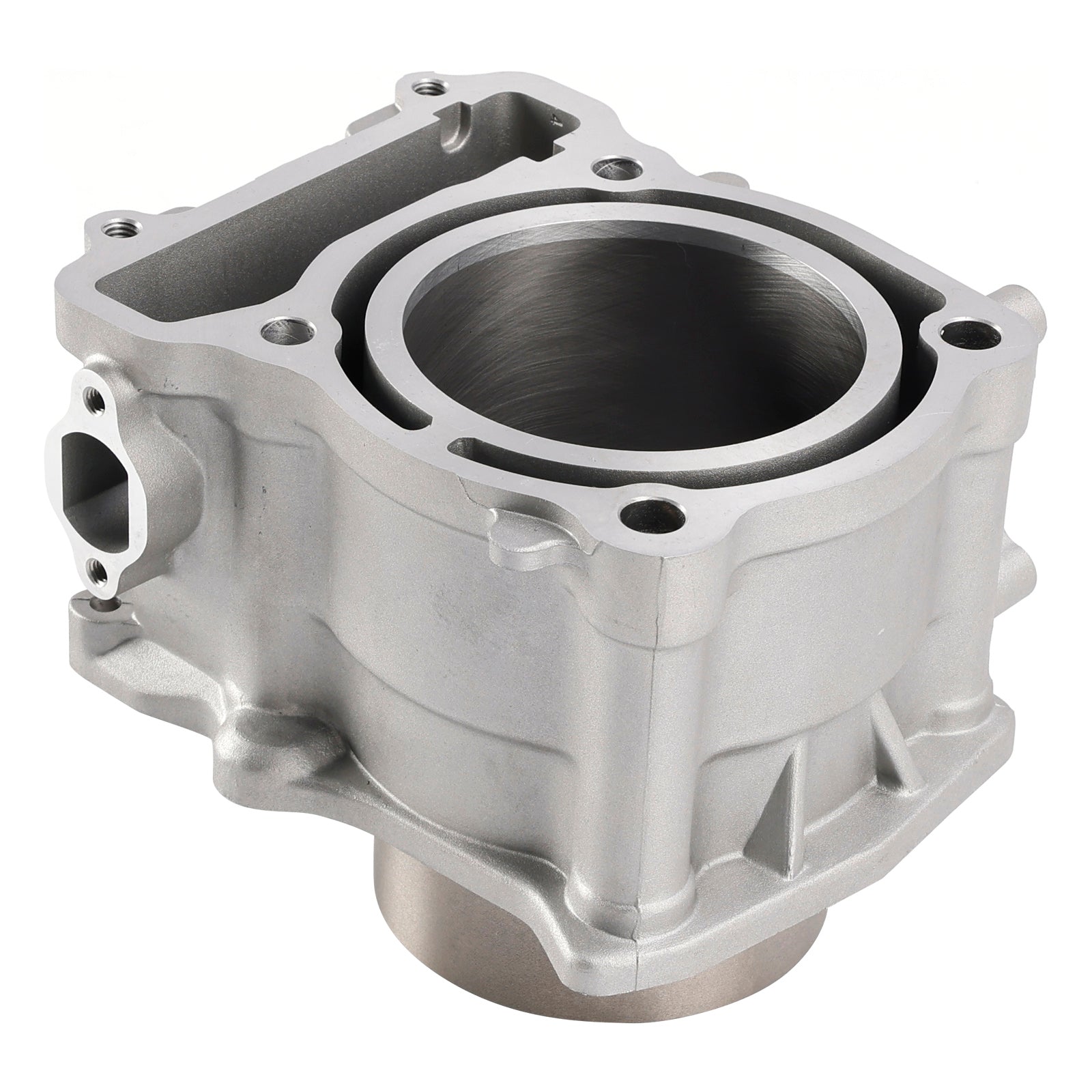

1x Cylinder

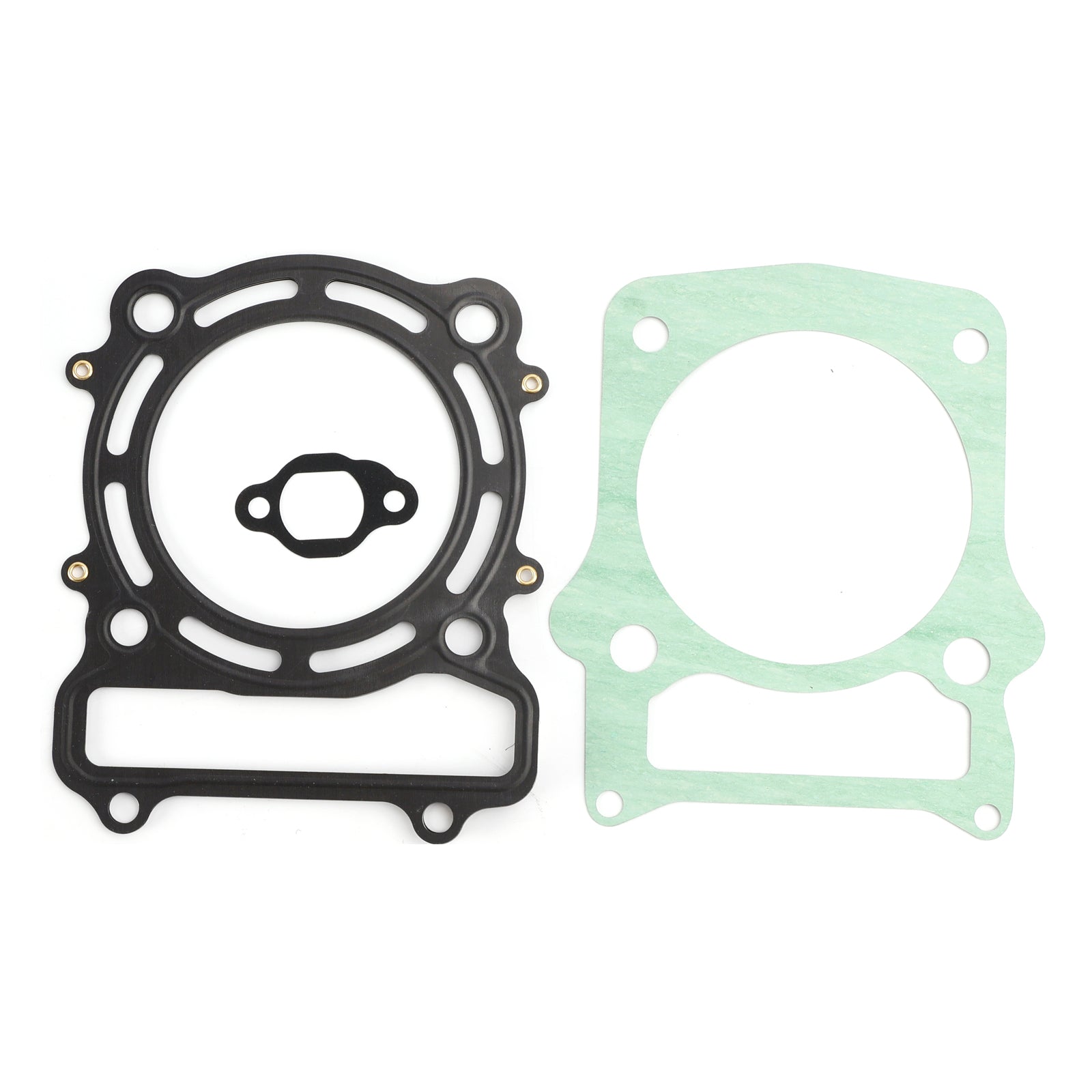

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket

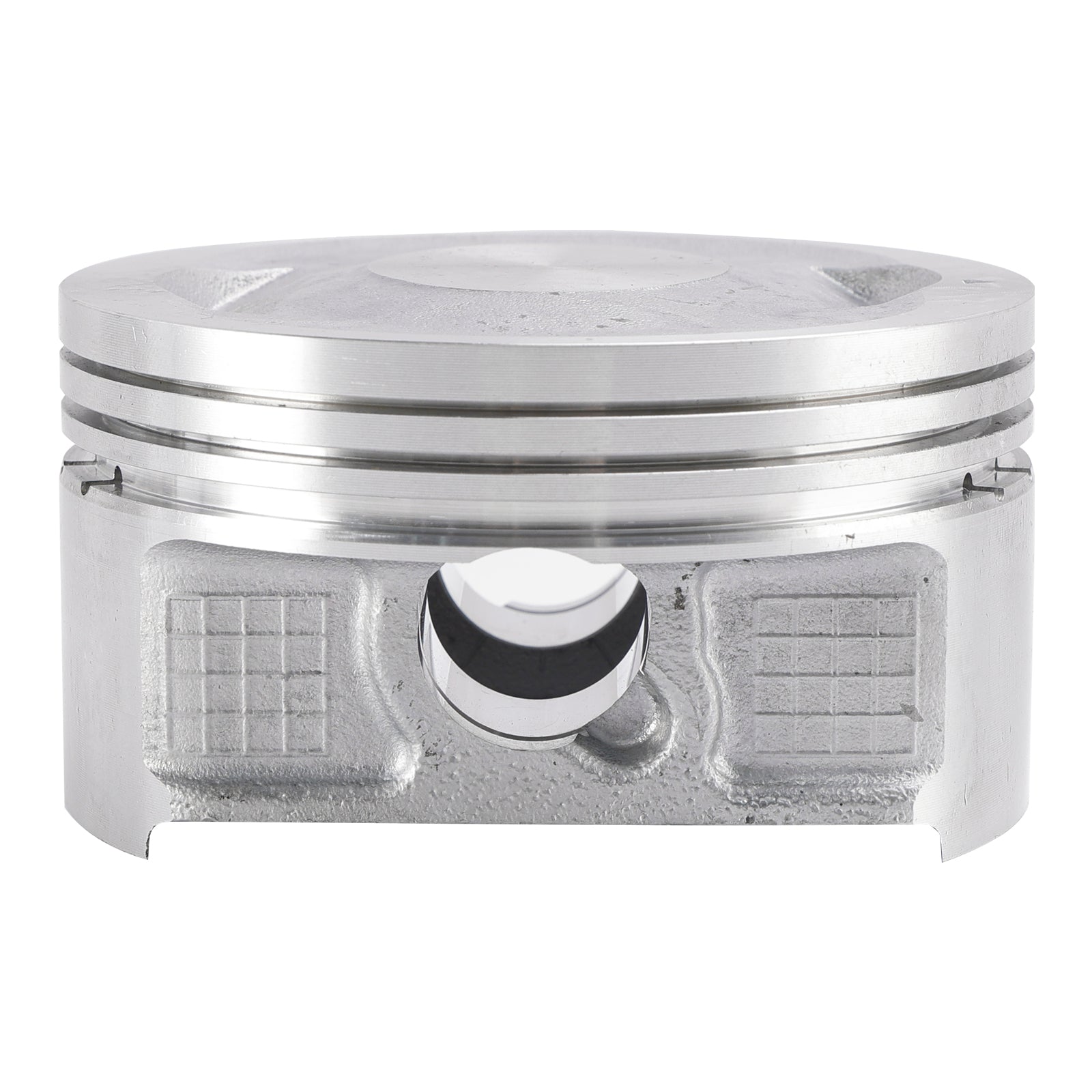

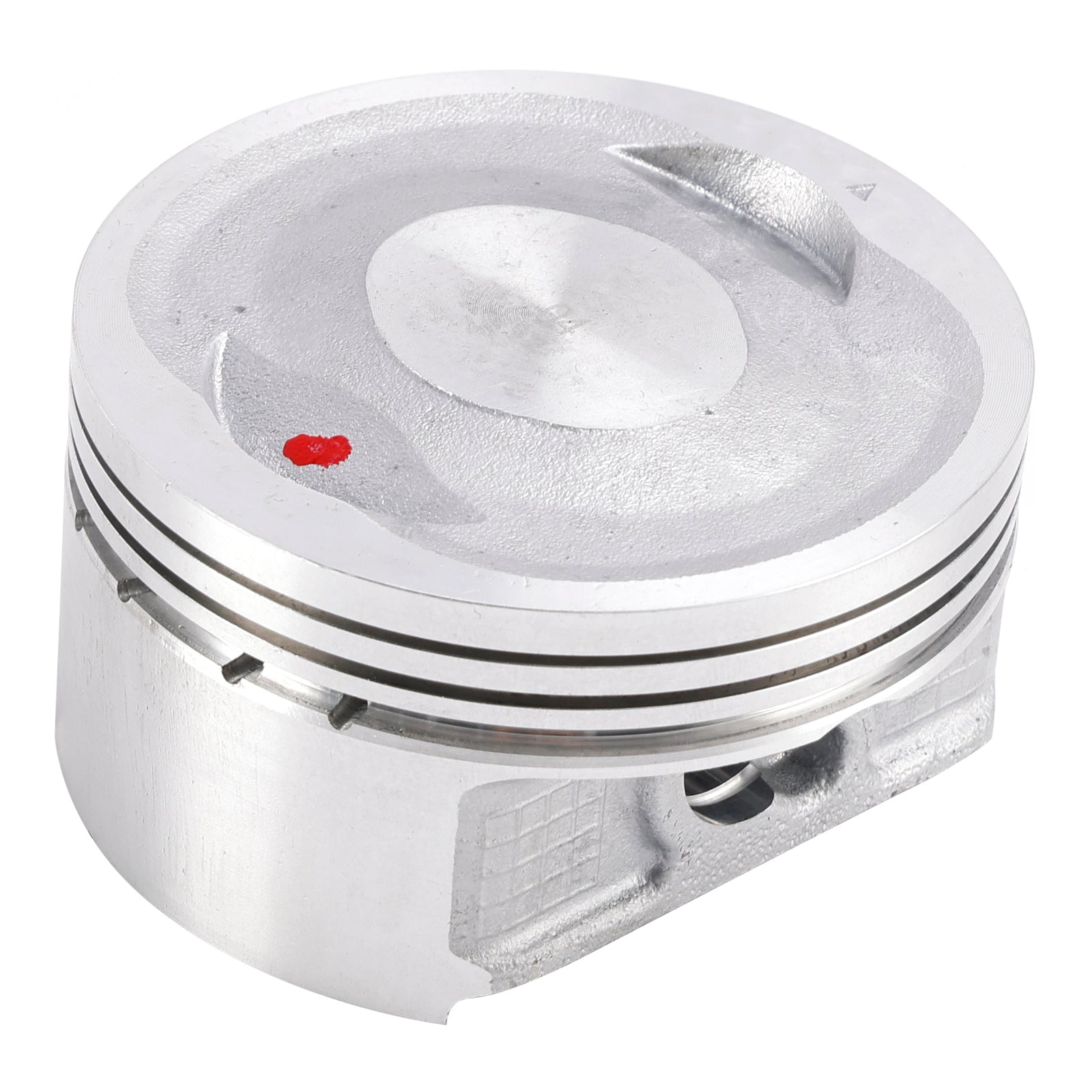

1x Piston
1x Wristpin

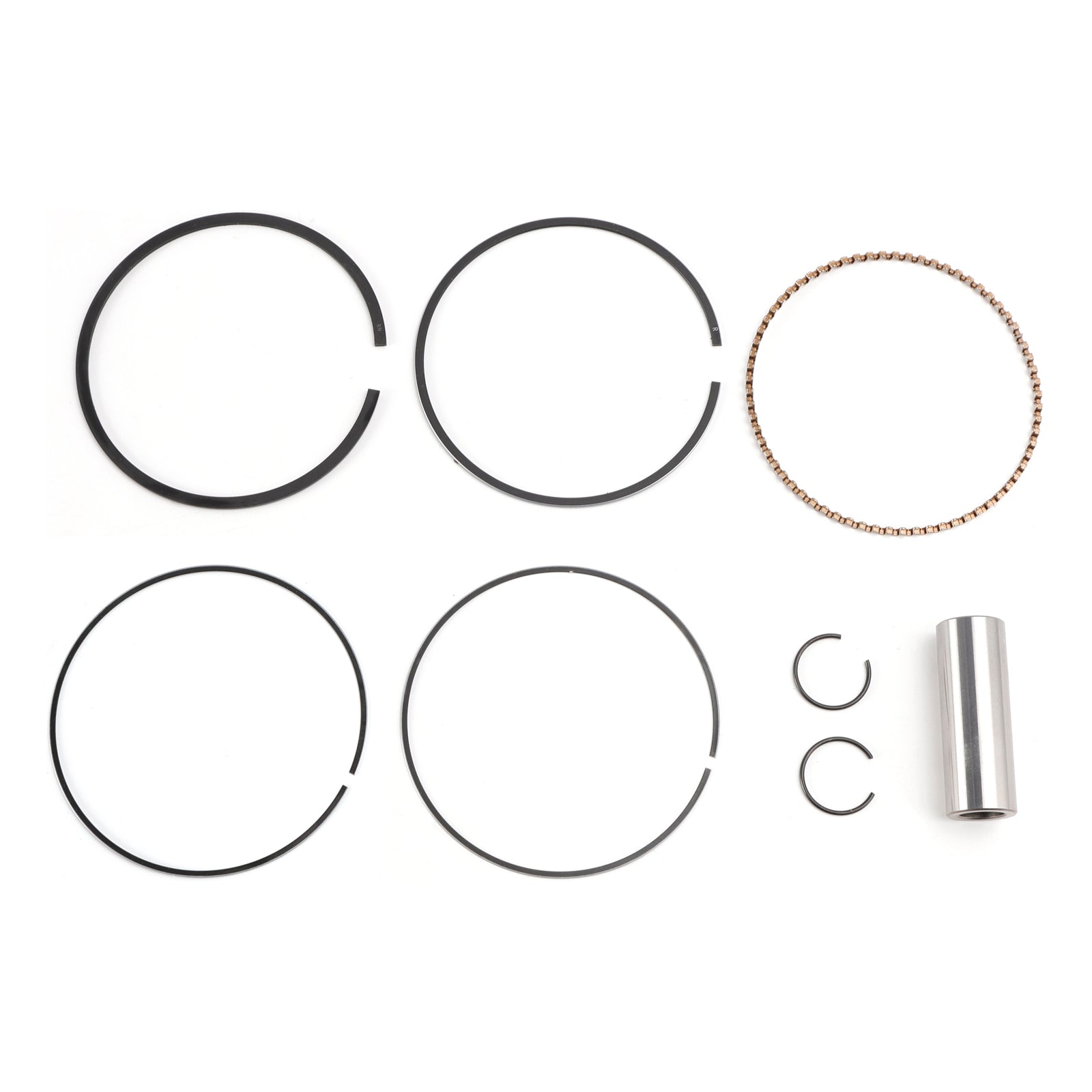

1x Piston Ring Set
2x Circlips

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
