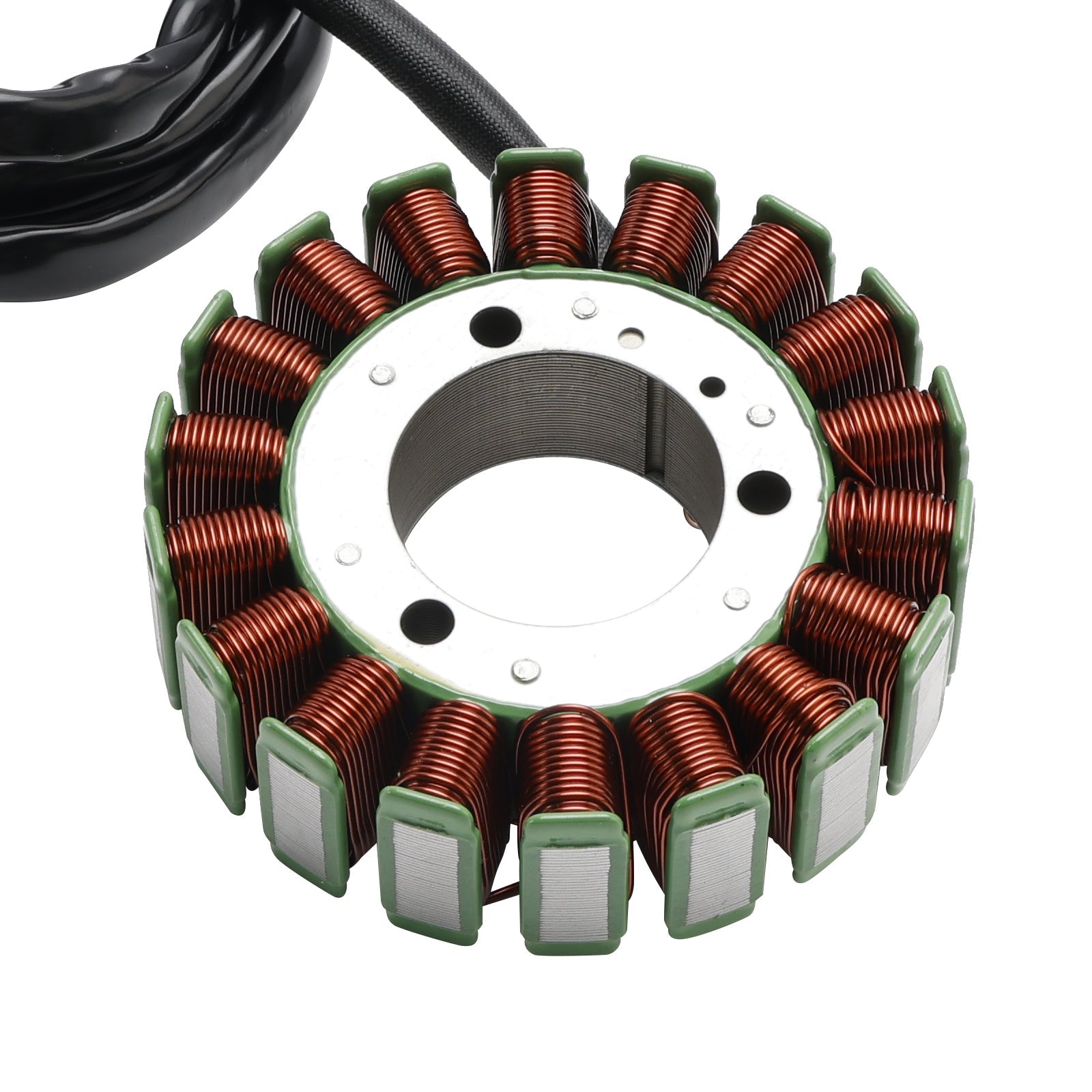

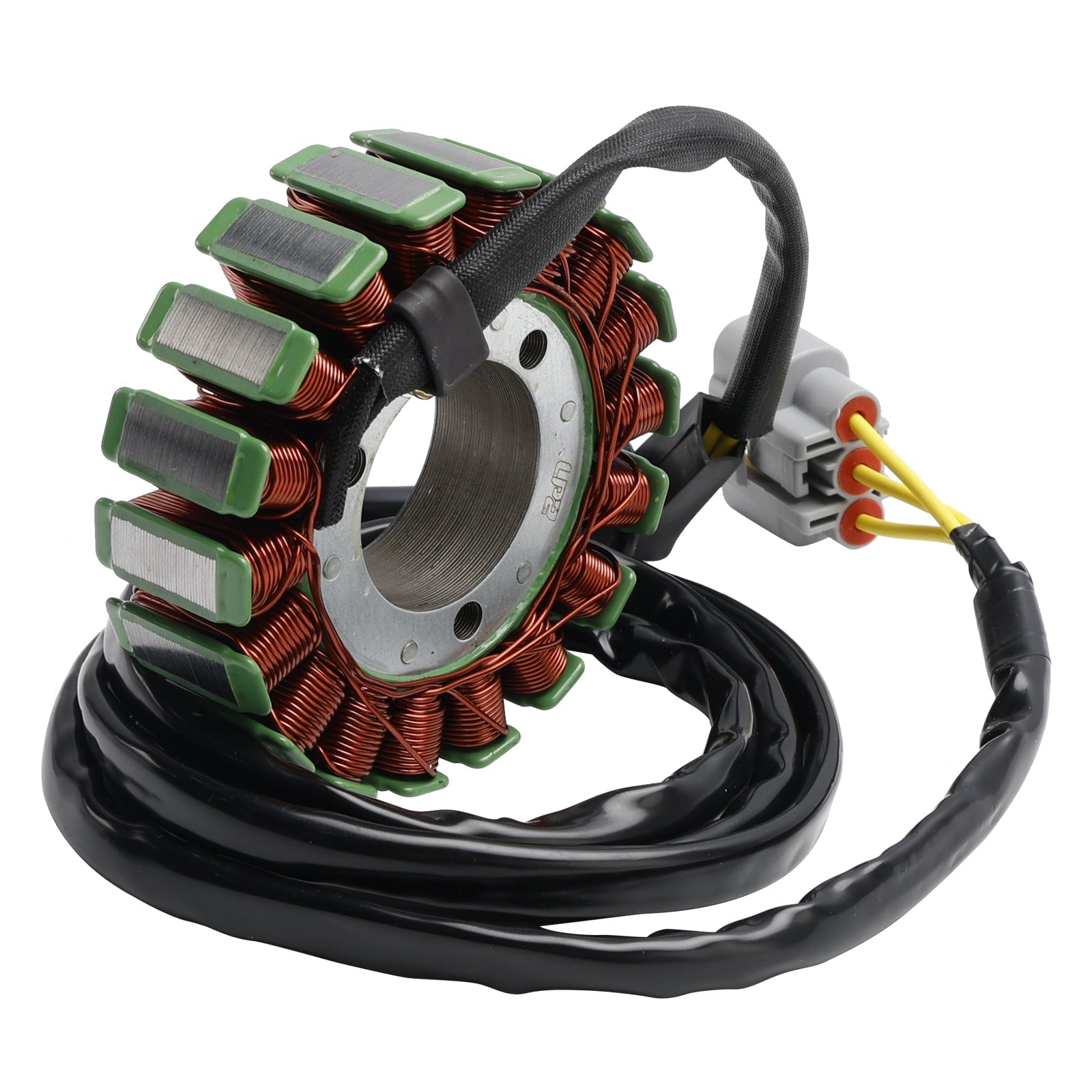

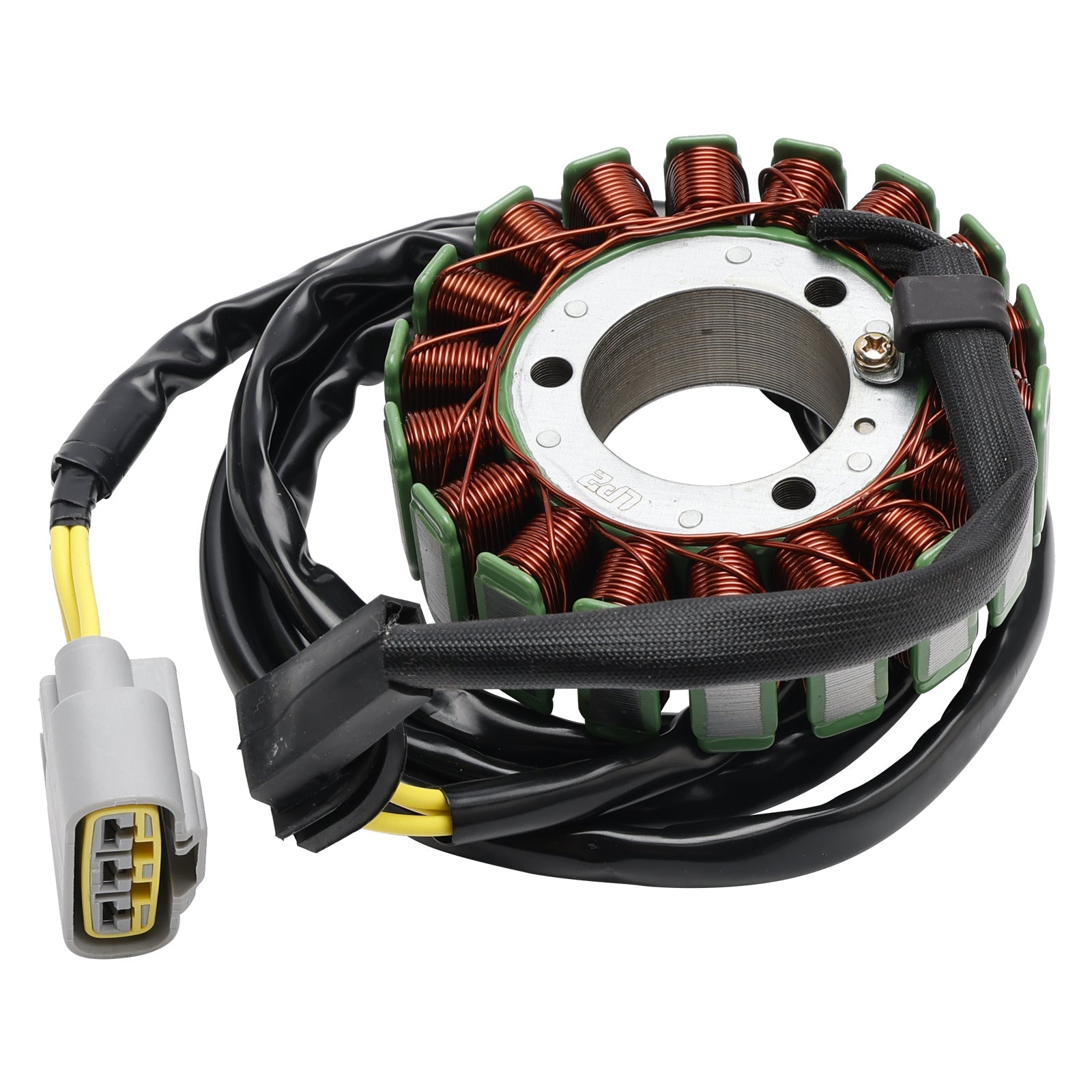

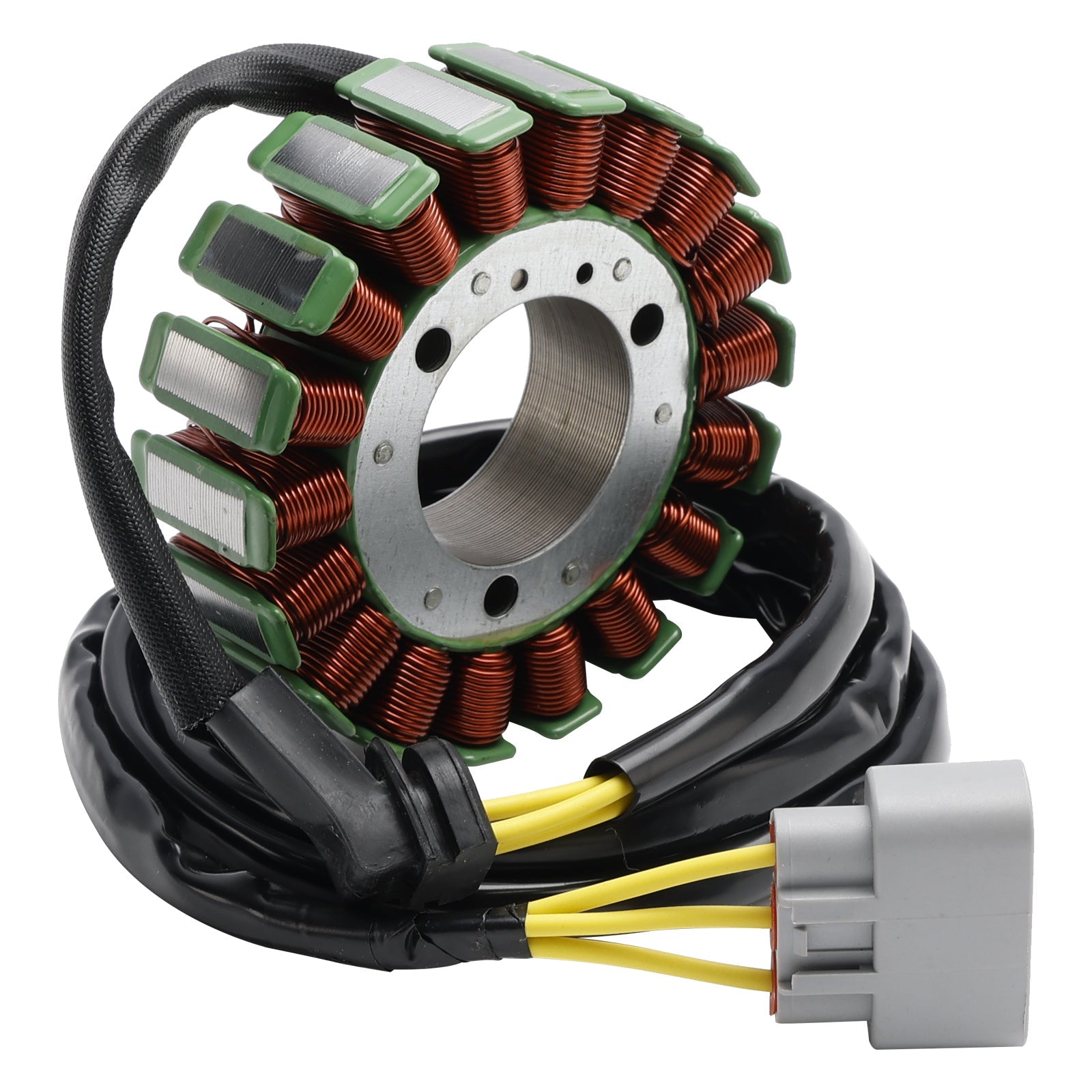

18-Pole Magneto Generator Stator 3 Wires Fit for Stels Guepard 650\800\850, Rosomaha 800, RM 800

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

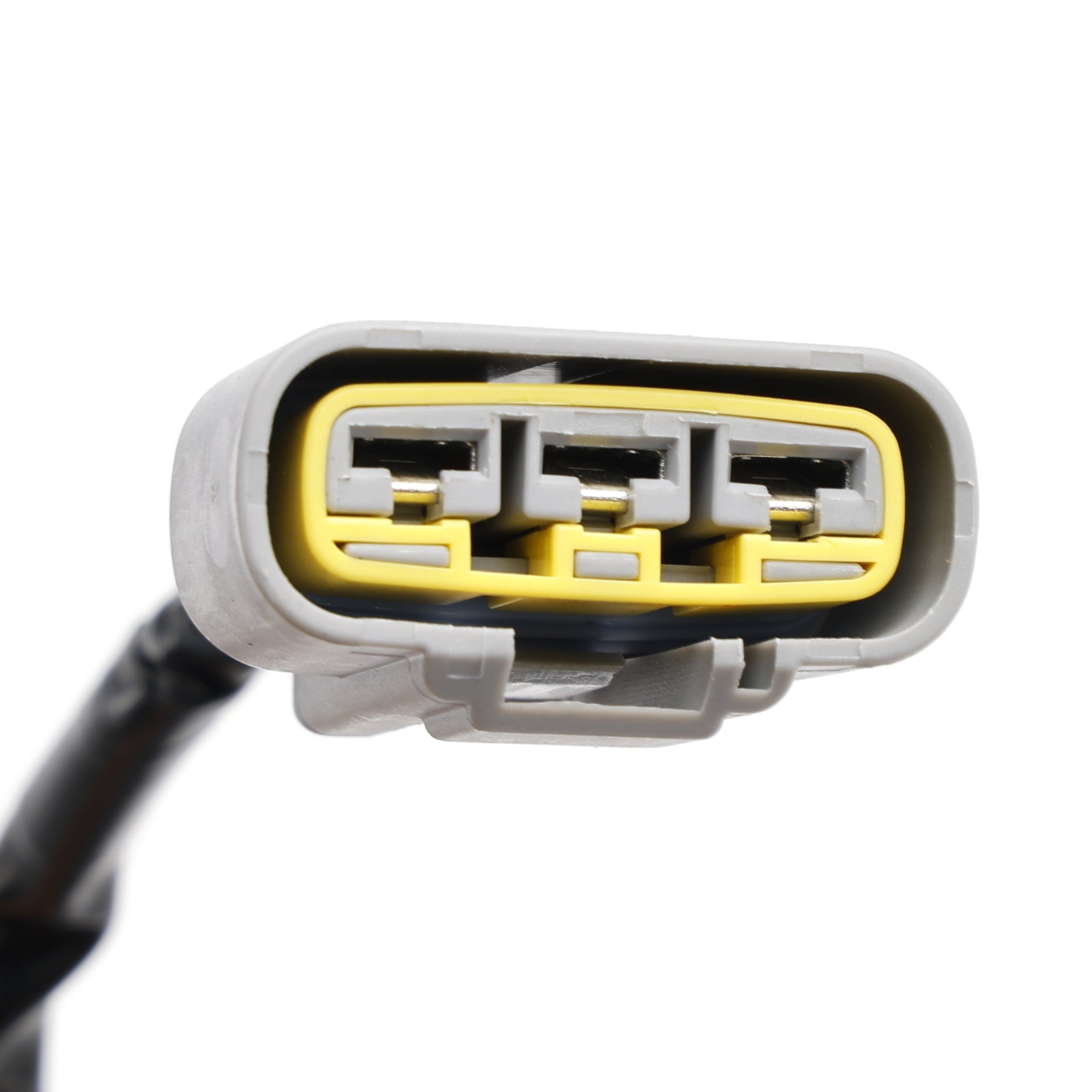

Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of fixation holes: 3
Number of poles: 18

Please compare the number of pins and plugs with the old part before purchasing.

Dimensions:
Exterior diameter: 104mm

Replacement Part Number:
21040109703
21170103101
31120-E05-0000
31120-E05-0001
370101-001-0000
3701010010000
LU049967
LU093873
21040500901

Fits Make/Model:
Fit for ATV/UTV:
21040109703
21170103101
Fit for Odes ATV UTV 650 800 1000
Fit for Odes ATV UTV Dominator 800
Fit for Russian Mechanics ATV RM 800
Fit for Russian Mechanics UTV RM 800

31120-E05-0000
31120-E05-0001
370101-001-0000
3701010010000
LU049967
LU093873
Fit for Stels ATV Guepard 650
Fit for Stels ATV Guepard 800
Fit for Stels ATV Guepard 850
Fit for Stels UTV Dominator 800
Fit for Stels UTV 800H EFI

Fit for Snowmobile:
370101-001-0000
3701010010000
LU049967
Fit for Stels Ermak 600
Fit for Stels Ermak 800
Fit for Stels Vityaz 800
Fit for Stels Viking 800
Fit for Stels Wolverine S 800
Fit for Stels Knight 800
Fit for Stels Rosomaha S 800

21040500901
Fit for Taiga Patrul 800 SWT 2016-2020
Fit for Russian Mechanics Frontier 1000

Please check and see if your stator pole's number as same as our and your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x 18-Pole Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
