Magneto Stator Rotor Regulator Kit For Aprilia RSV4 Tuono V4 - 1A010574 2D000049,

Features:
Kit include Stator, Rotor, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:

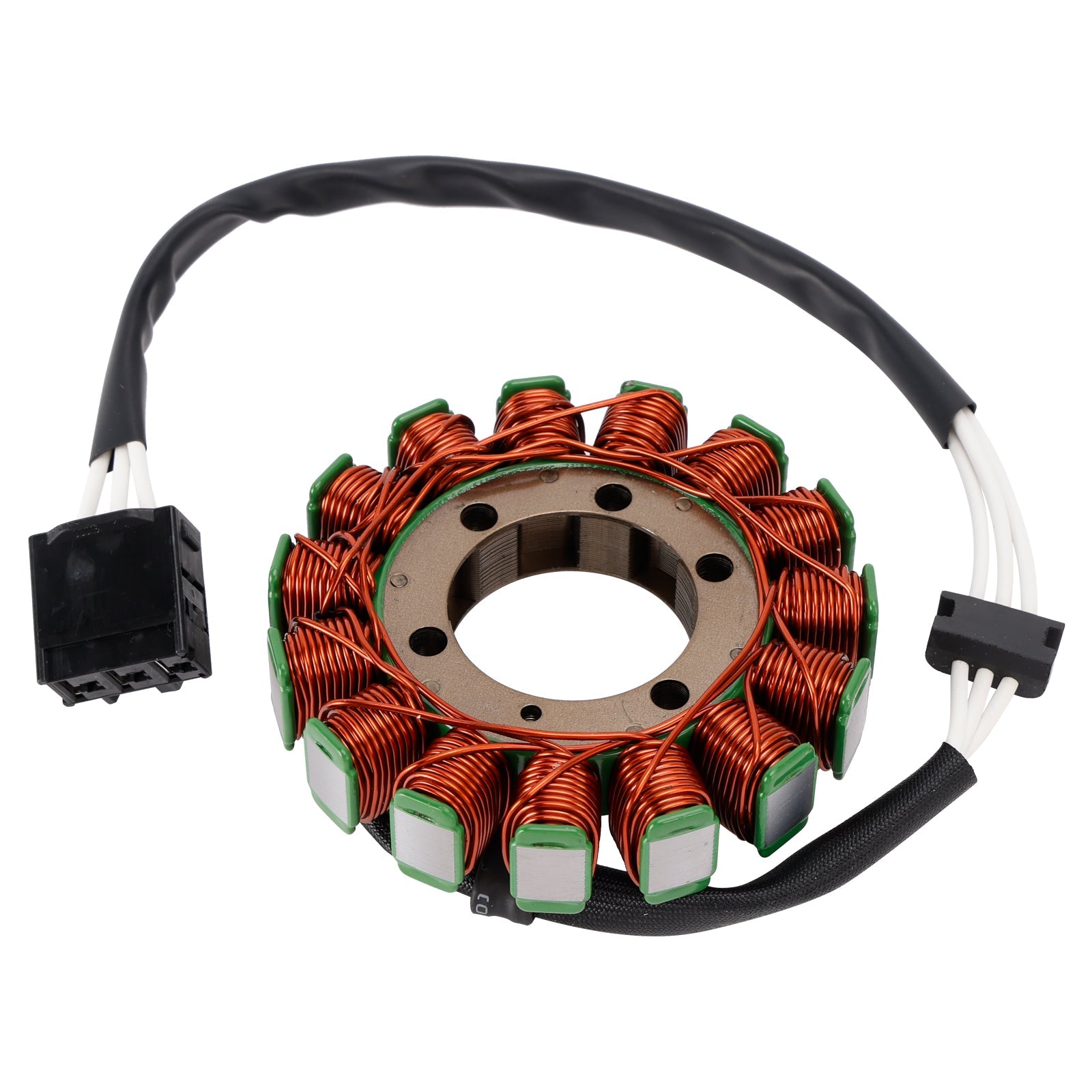

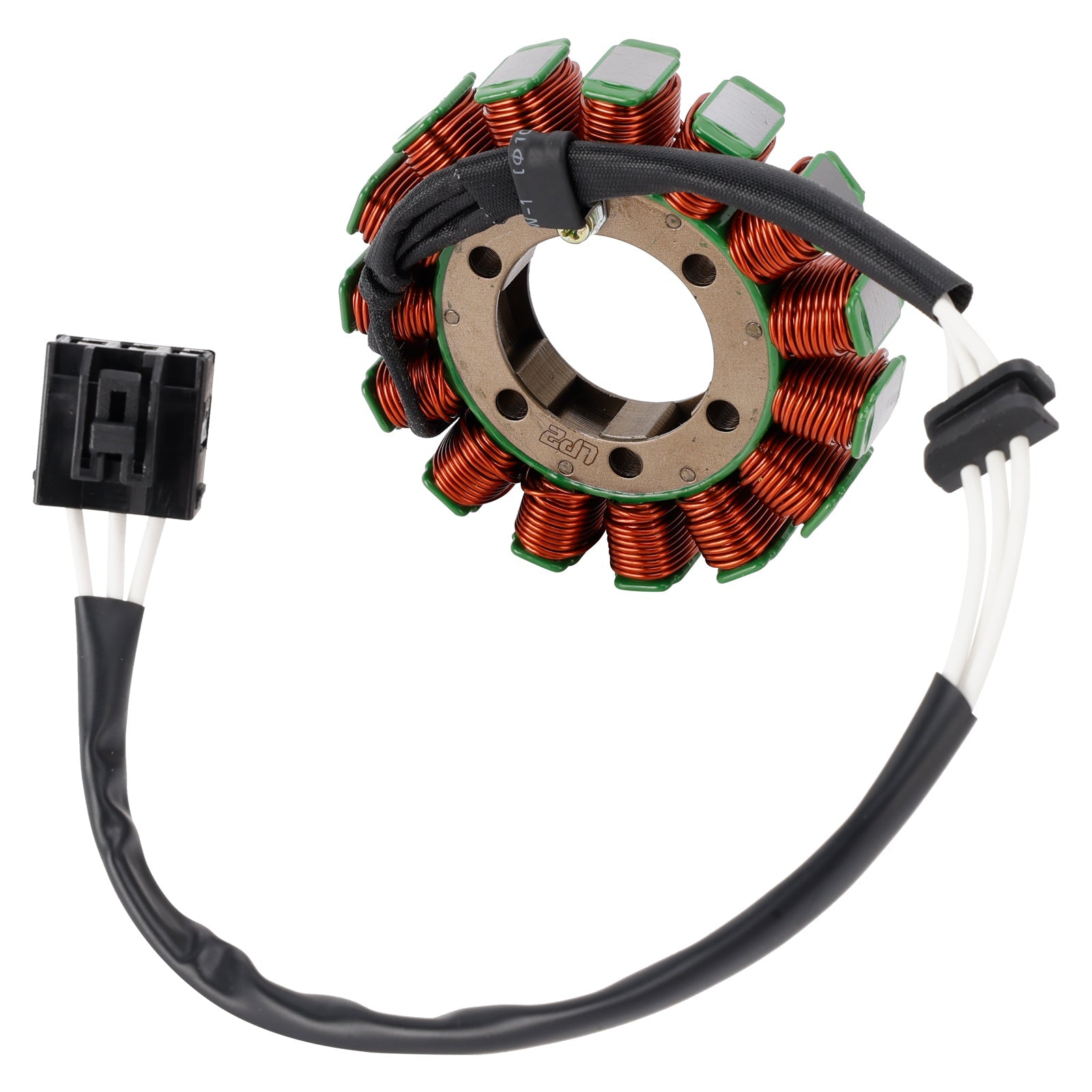

Stator
Number of wires : 3

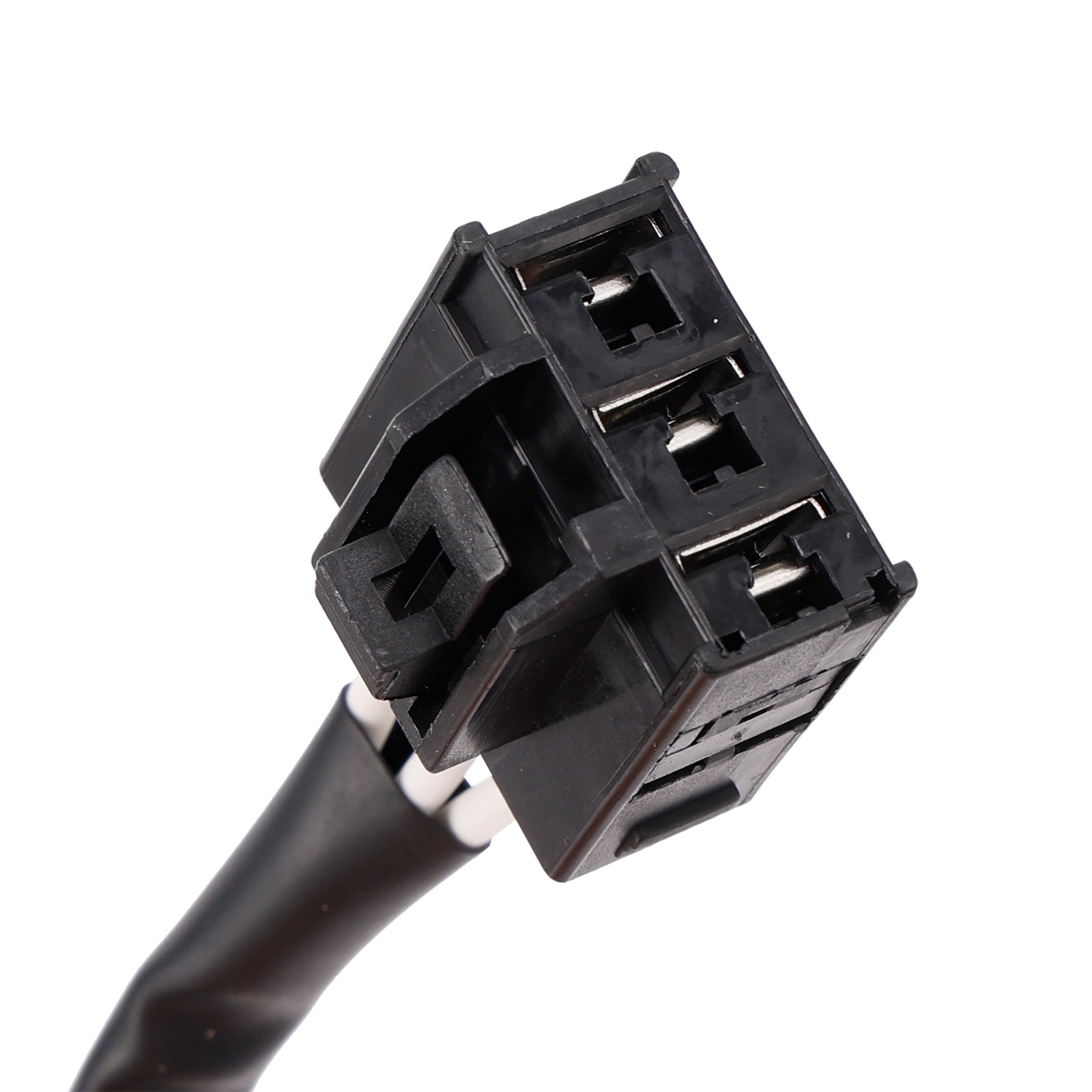

Number of plugs : 1
Number of pins : 3
Number of poles: 15
Interior diameter : 42mm
Exterior diameter : 104mm

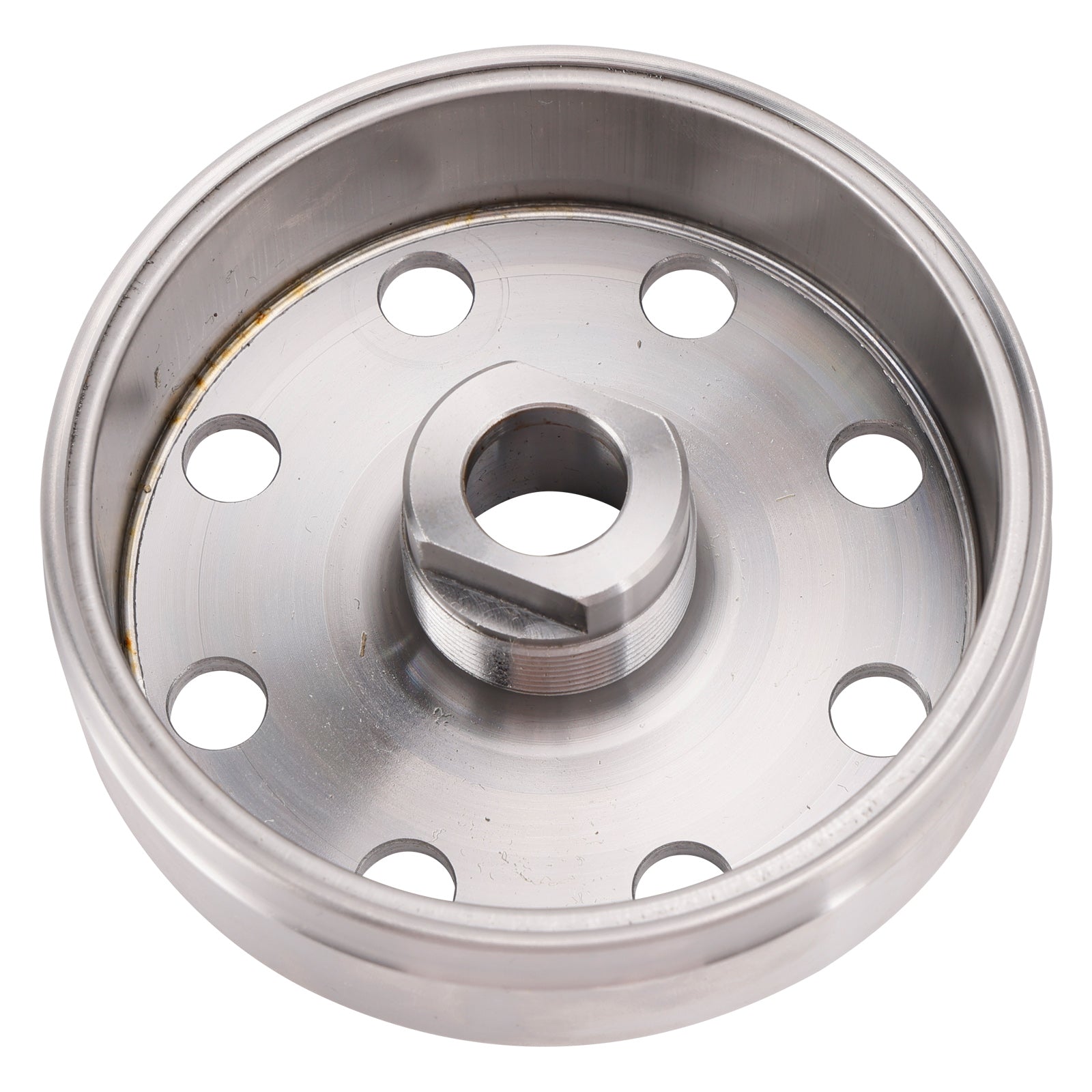

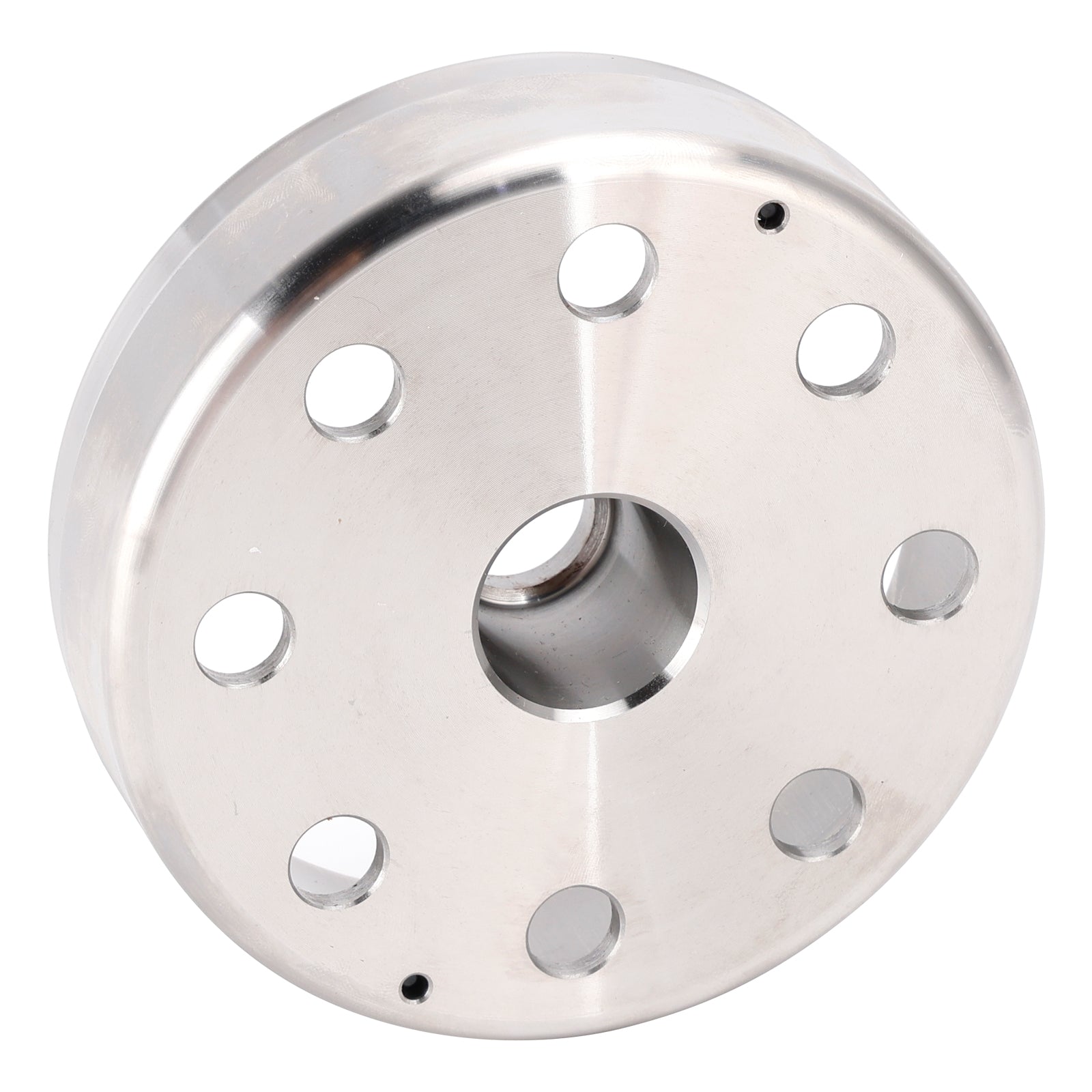

Rotor
Outer diameter: 121 mm
Outer diameter 2: 119 mm
Inner diameter: 107 mm
Inner diameter of center housing: 19.2 mm
Outer diameter of center housing: 34 mm
Thickness (outer): 34.8 mm
Thickness (inner): 30 mm

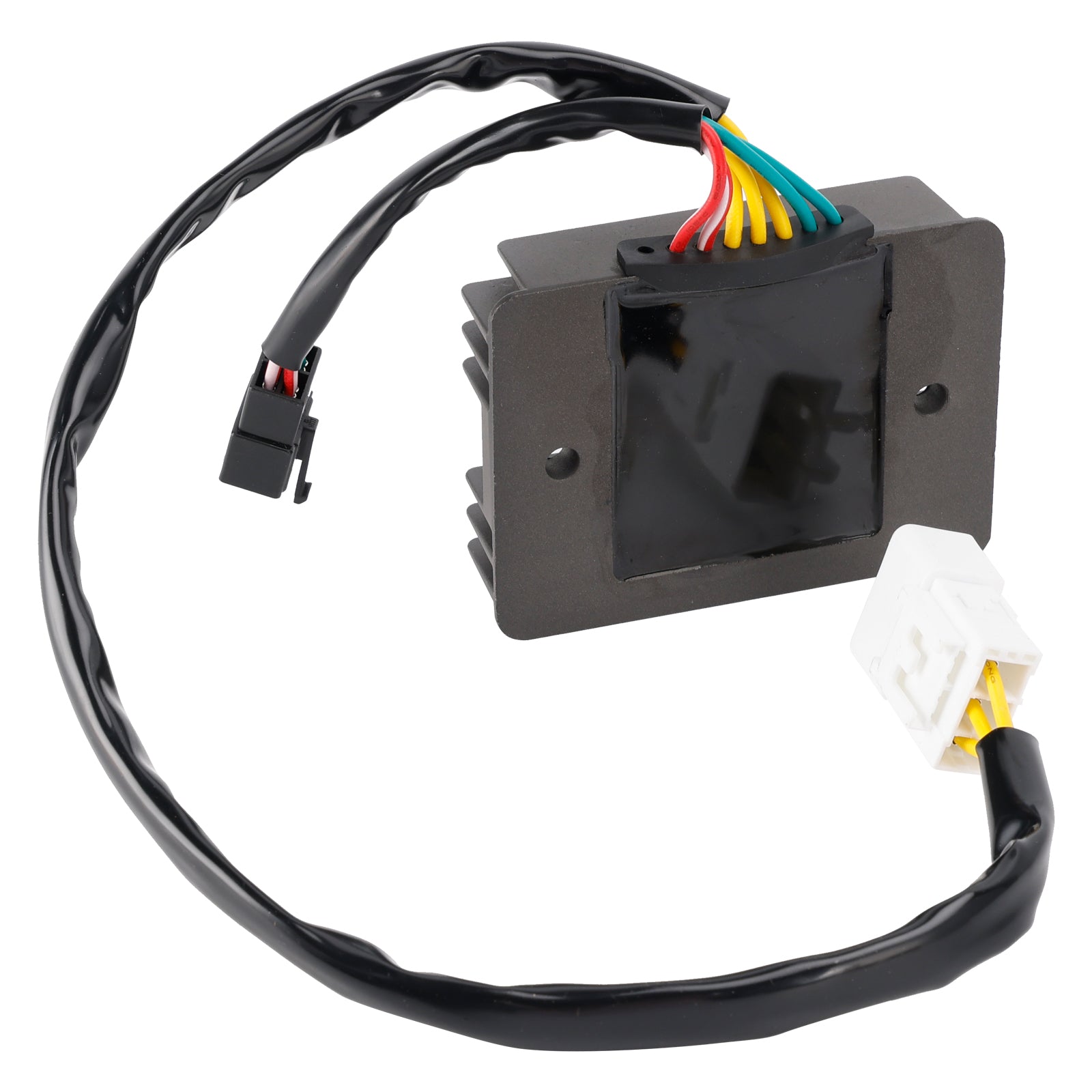

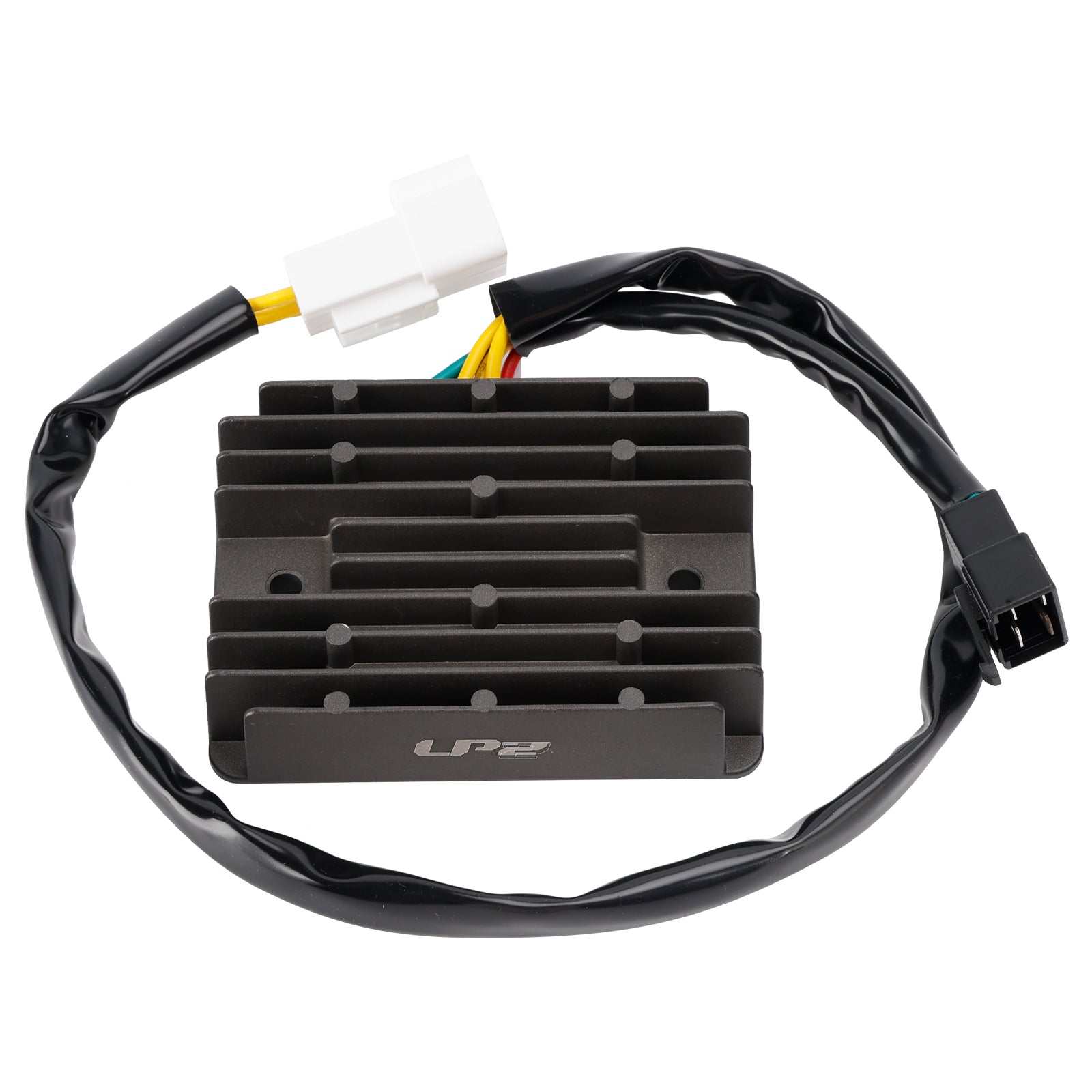

Regulator
Number of wires: 7
Number of plugs: 2

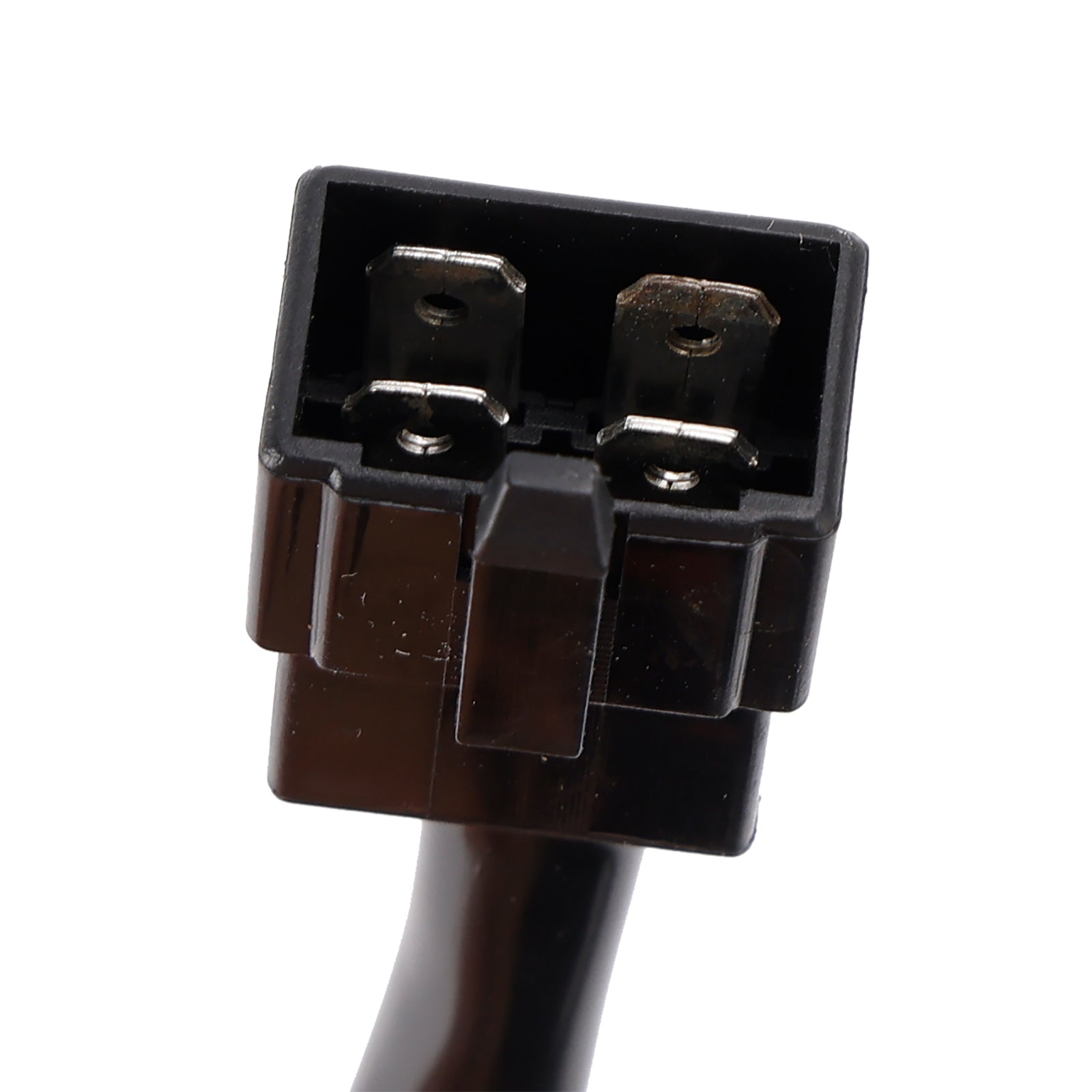

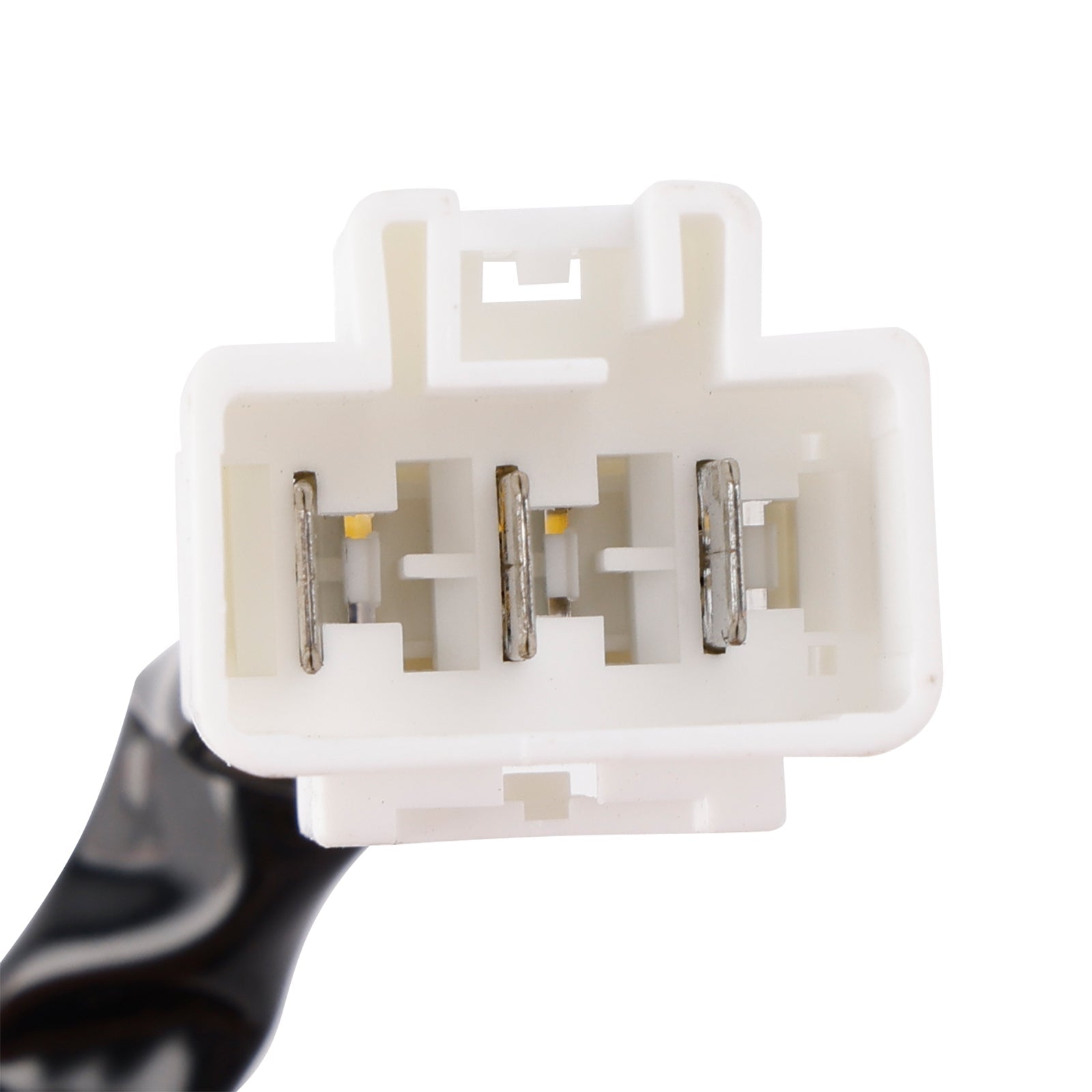

Number of pins: 3 + 4

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Flywheel: 1A010574
Stator Assy: 2D000049, 897479
Rectifier, regulator: B043488

(Use the part number to verify fitment to your application. )

Fits Make/Model/Year:
Fit for Aprilia RSV4 1000 Factory 2011-2017
Fit for Aprilia RSV4 R 1000 2011-2015
Fit for Aprilia Tuono V4 1000 2012-2015
Fit for Aprilia RSV4 RF 1000 2015-2017
Fit for Aprilia RSV4 RR 1000 2016-2017
Fit for Aprilia Tuono 1100 Factory 2016-2017
Fit for Aprilia Tuono 1100 RR 2016-2017

There is two possible kits for RSV4 engine.
This version of the stator and flywheel are in use for RSV4 engine numbers higher than 3413.
If your RSV4 engine number is lower than 3413, you will need Stator Assembly 857201.
There is no reliable way to tell which stator you will need unless you disassemble the engine.
Double check your stator assembly and carefully compare how the flywheel looks before ordering.

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

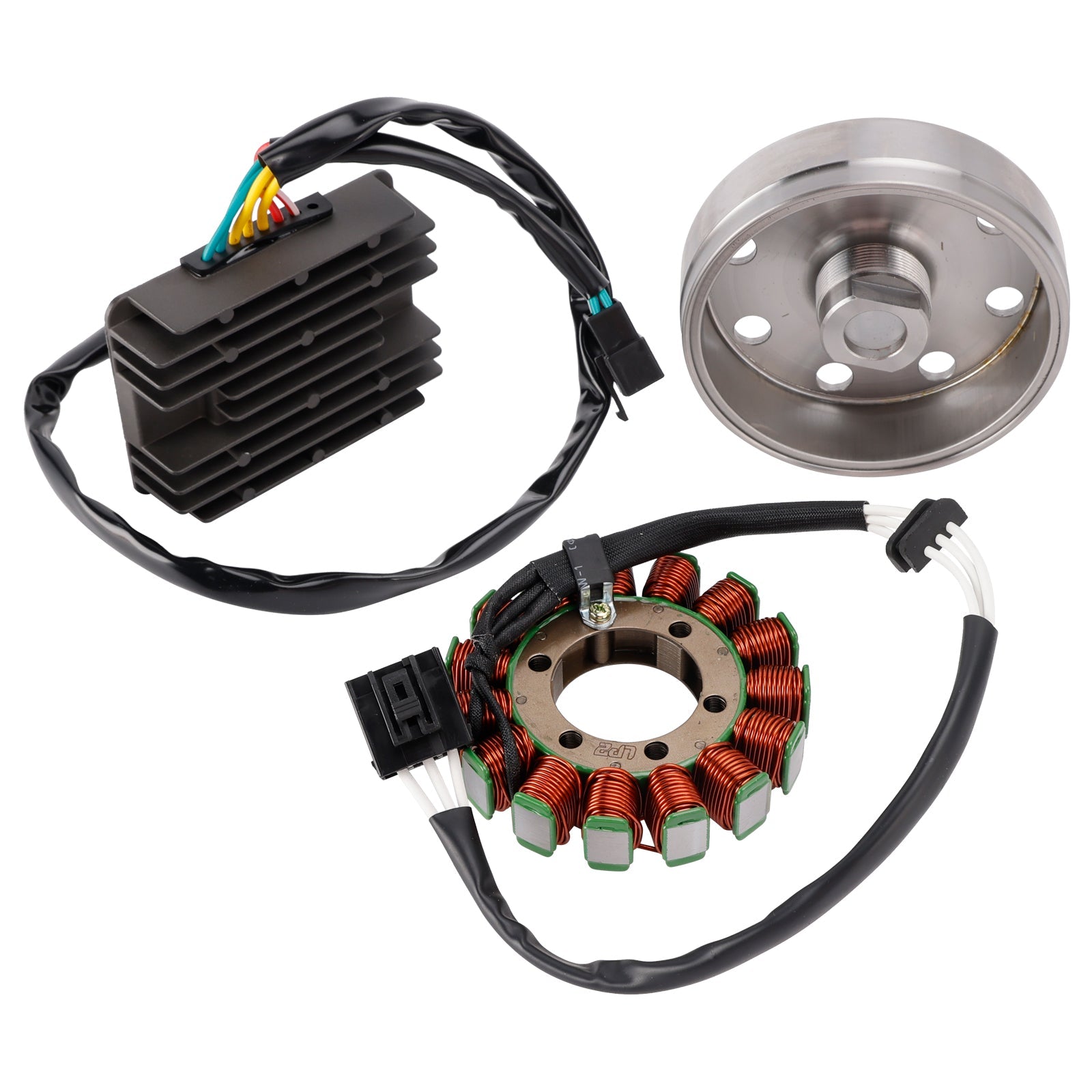

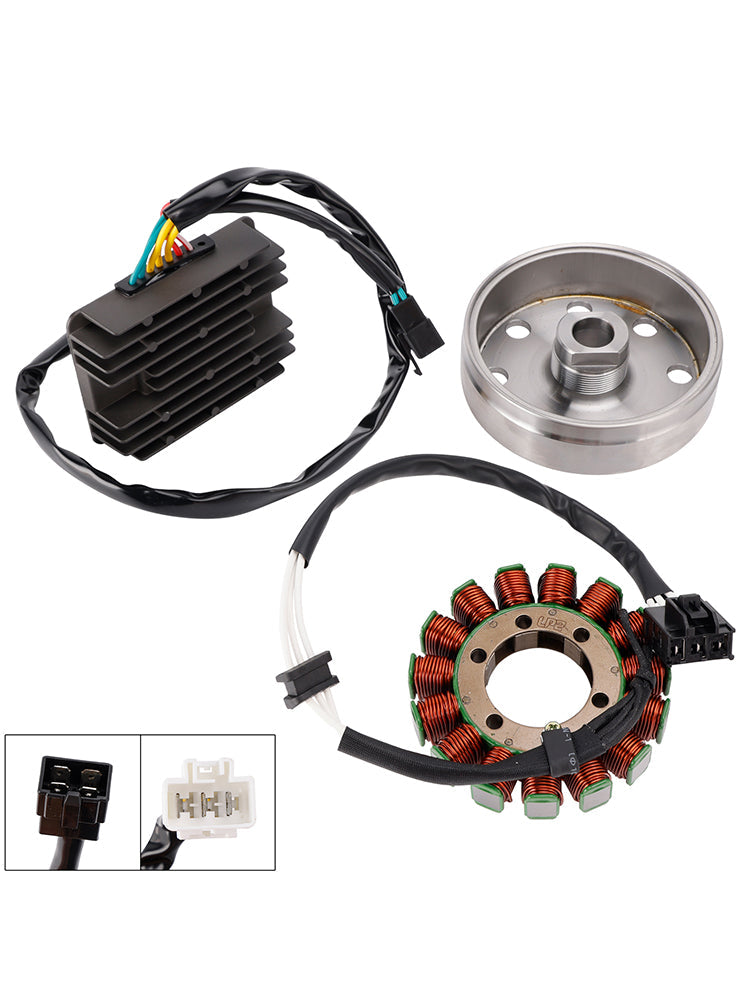

Package Includes:
1x 15-Pole Generator Stator
1x Magneto Rotor
1x 7-Wire Regulator

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
